Private VLANs (PVLANs) provide Layer 2 isolation between ports within the same broadcast domain. When a PVLAN spans multiple switches, a special type of trunk configuration is required to maintain the isolation and community logic across the inter-switch links.

Isolated VLAN Trunking (Option D): To extend an isolated VLAN across multiple switches, you must configure the trunk port on each switch to allow the isolated VLAN ID. In Junos OS, this is specifically achieved by configuring the interface as a trunk and associating it with the primary VLAN and the specific isolated VLAN. The correct syntax for enabling this inter-switch communication is to configure trunk ports that recognize the isolated VLAN tag (e.g., set interfaces unit 0 family ethernet-switching vlan members [ primary-vlan isolated-vlan ]).

Forwarding Rules: Traffic from an isolated port on Switch A must reach a promiscuous port (often on Switch B) to exit the PVLAN. The inter-switch trunk carries this traffic using the secondary (isolated) VLAN ID, ensuring that it remains isolated from other host ports on the remote switch.

Option A (inter-switch-link): In standard Junos switching, the inter-switch-link statement is used in Virtual Chassis or specific fabric designs, but for standard PVLAN extension, standard 802.1Q trunking with secondary VLAN IDs is the mechanism used.

Options B and C: These describe specific port roles (isolated vs. community) rather than the method used to enable trunking between switches.

To secure a Layer 2 network running Multiple VLAN Registration Protocol (MVRP) against unauthorized VLAN propagation from rogue devices, you must control the registration state of the ports.

Forbidden Registration Mode (Option D): This mode is specifically designed to prevent an interface from participating in the MVRP exchange.

When a port is set to forbidden, it will neither register nor declare VLANs (except those statically configured on the interface).

If a rogue device sends MVRP PDUs to this interface, the distribution switch will ignore those PDUs, preventing the rogue device from dynamically creating or learning VLANs through that port.

Registration Hierarchy: In Junos OS 24.4, this is configured at the [edit protocols mvrp interface registration forbidden] level.

Other Modes: normal (default) allows full participation, while restricted ignores joins for VLANs not already statically defined on the switch but still declares its own.

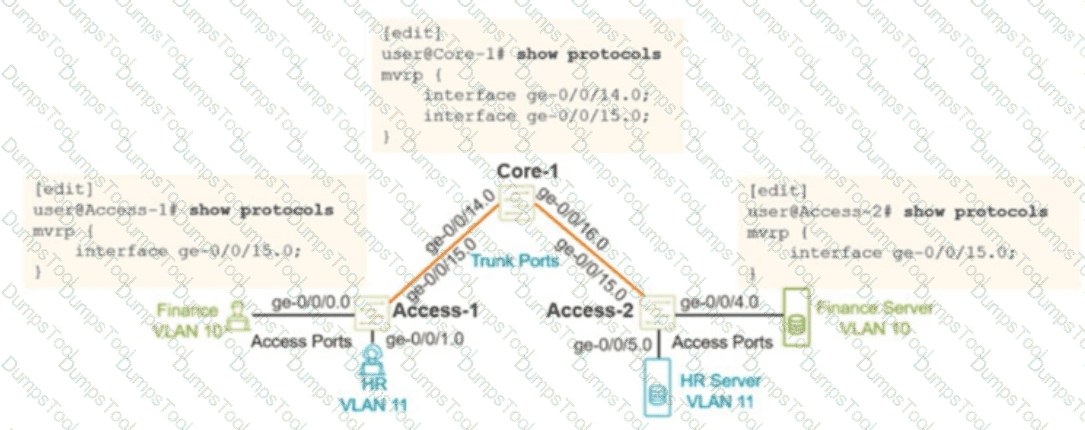

The exhibit shows a network topology where Multiple VLAN Registration Protocol (MVRP) is used to dynamically manage VLANs across switches Core-1, Access-1, and Access-2.

Identifying the Missing Configuration: According to the diagram, the trunk link between Core-1 and Access-2 uses interface ge-0/0/16.0 on the Core-1 side.

Output Analysis: However, the show protocols mvrp output for Core-1 only lists interfaces ge-0/0/14.0 and ge-0/0/15.0.

MVRP Requirements: For MVRP to successfully propagate VLAN information between Access-2 and the rest of the network, the protocol must be enabled on every trunk interface in the path.

Solution: Because ge-0/0/16.0 is missing from the Core-1 MVRP configuration, VLAN registration messages from Access-2 are not being processed by Core-1. Configuring this interface under MVRP on Core-1 will solve the communication problem.

In PIM Sparse Mode (PIM-SM), the Rendezvous Point (RP) is the cornerstone of the multicast distribution model.

The Meeting Point (Option A): The RP serves as a central clearinghouse where multicast sources and receivers meet.

When a source starts transmitting, the first-hop router encapsulates the data and sends it to the RP via a PIM Register message.

When a receiver wants to join a group, its last-hop router sends a (*,G) PIM Join request toward the RP.

The RP then manages the distribution from the source to the receivers until a Shortest Path Tree (SPT) can be established directly between them.

Incorrect Statements: Option B is incorrect because PIM Dense Mode does not use an RP; it uses a "flood and prune" mechanism. Option C is incorrect because the RP only forwards traffic to interfaces that have explicitly requested it via Join messages, which is what makes it "sparse". Option D is incorrect because SSM (Source-Specific Multicast) specifically avoids using an RP by having receivers join a known source directly.

In an EVPN-VXLAN architecture, the interaction between the control plane (EVPN) and the data plane (VXLAN) is defined by specific functional components:

VTEP (VXLAN Tunnel End Point): These are the entities responsible for the encapsulation and de-encapsulation of Layer 2 Ethernet frames into Layer 3 UDP/IP packets. A VTEP can be a physical switch (like a QFX or EX series) or a software-based entity. When traffic enters the fabric, the ingress VTEP wraps it in a VXLAN header; the egress VTEP removes this header before delivering it to the destination host. (Option B)

VNI (Virtual Network Identifier): The VNI is a 24-bit field in the VXLAN header that allows for up to 16 million unique identifiers. It is used to identify specific broadcast domains (or VLANs) within the overlay network. Each VNI effectively represents a virtualized Layer 2 segment that is stretched across the Layer 3 underlay. (Option D)

Incorrect statements: Option A is incorrect because VNIs are identifiers, not the "engine" that performs encapsulation—that is the VTEP's job. Option C is incorrect because VTEPs identify the endpoints of a tunnel, not the individual broadcast domains themselves.
