In a Juniper Networks environment, deployingRSVP-signaled LSPsrequires a functionalTraffic Engineering Database (TED). This database is populated by the Interior Gateway Protocol (IGP) using specific extensions that carry link-state information beyond simple reachability, such as available bandwidth, administrative groups (link coloring), and Maximum Reservable Bandwidth.

The behavior of these extensions differs betweenOSPFandIS-ISin Junos OS:

OSPF (Option C):By default, OSPF is a "pure" routing protocol. To support RSVP-TE, it must carry Opaque LSAs (Type 10). According to Juniper documentation, you mustexplicitly configuretraffic engineering within the OSPF protocol hierarchy using the set protocols ospf traffic-engineering command. Without this command, OSPF will not flood the TE information required by the Constrained Shortest Path First (CSPF) algorithm, and LSPs will fail to establish.

IS-IS (Option D):IS-IS was designed to be extensible through the use of TLVs (Type, Length, Value). In Junos OS,IS-IS traffic engineering extensions are enabled by defaultonce the protocol is active. As soon as you enable IS-IS on an interface, it begins to advertise the wide metrics and TE TLVs (like TLV 22 and 135) necessary for building the TED.

This distinction is a common design consideration for network architects. While IS-IS simplifies the rollout of MPLS by having TE enabled "out of the box," OSPF requires that extra configuration step to transition from a standard IGP to a TE-aware protocol.

In the Juniper Networks Junos operating system, the management of routing information is partitioned into several distinct routing tables (RIBs), each serving a specific architectural purpose. When dealing withMultiprotocol Label Switching (MPLS), understanding the distinction between inet.0 and inet.3 is fundamental for troubleshooting and traffic engineering.

Theinet.3routing table is specifically designed to store the egress IPv4 addresses ofLabel-Switched Paths (LSPs). When an ingress router successfully establishes an LSP (via RSVP or LDP), it places the host address of the egress router (the tail-end) into the inet.3 table. This table is not used for general packet forwarding; instead, it is primarily used by theBorder Gateway Protocol (BGP)for next-hop resolution. When BGP receives a route, it checks both inet.0 and inet.3 to resolve the next hop. If a matching entry exists in inet.3, the router knows it can reach that destination via an MPLS tunnel, allowing for the encapsulation of BGP traffic within MPLS.

In contrast,inet.0is the default unicast routing table used for standard IPv4 forwarding and contains routes learned via IGPs (OSPF, IS-IS) or static routing.inet.1is utilized for multicast forwarding (MBGP), andinet.2is typically used for Multicast Source Discovery Protocol (MSDP) or RPF checks in multicast environments. By isolating LSP egress points in inet.3, Junos prevents MPLS-specific paths from interfering with standard IGP path selection unless the administrator explicitly chooses to merge them (e.g., using the traffic-engineering bgp-igp command). Therefore, by default, the ingress router maintains its list of reachable LSP endpoints in inet.3.

In Junos OS for switching platforms, an interface is configured for Layer 2 bridging under thefamily ethernet-switchinghierarchy. The way an interface handles VLAN traffic depends on its port mode:accessortrunk.

According to Juniper Networks technical documentation, when an interface is configured simply with members , it defaults to anaccess port. In an access port configuration:

The port is a member of only a single VLAN.

The portreceives and sends untagged traffic (Option C). Any untagged frame arriving at this interface is implicitly associated with the configured VLAN member.

The interface does not expect or process 802.1Q tags in incoming frames.

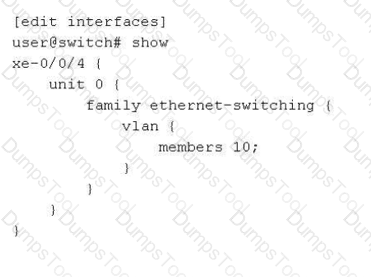

In the exhibit, interface xe-0/0/4 has members 10;. In Junos, the members statement can reference either aVLAN nameor aVLAN ID. However, when the configuration is shown as members 10; without further context of the specific ID mapping, the most precise interpretation of the CLI output provided is thatthe interface is a member of the VLAN named 10 (Option D). While "10" could be the numerical ID, Junos primarily maps members by their defined administrative name.

Why other options are incorrect:

Option A:Access ports do not receive tagged traffic; only trunk ports (which require the port-mode trunk and vlan members [ ... ] statements) are designed to process tagged frames.

Option B:While the VLAN named 10likelyhas a VLAN ID of 10, the exhibit does not explicitly confirm the ID mapping. In Junos, a VLAN named "10" could technically have a different tag ID (e.g., VLAN "Office" with ID 10). Option D is the more accurate direct reading of the displayed member configuration.

BGP attributes are categorized into four distinct types based on how they are handled by a BGP speaker:Well-known mandatory,Well-known discretionary,Optional transitive, andOptional non-transitive. Understanding these categories is essential for traffic engineering and ensuring consistent policy across an Autonomous System.

According to Juniper Networks technical documentation, theCommunityattribute is classified as anoptional transitiveattribute. The term "optional" implies that a BGP implementation is not required to support or recognize the attribute. However, because it is "transitive," if a Juniper router receives an update containing a community tag that it does not recognize or has no specific policy for, it must accept the attribute and pass it along to other BGP peers unchanged. This ensures that community-based policies can be signaled across intermediate ASes that may not be configured to act upon those specific tags.

In contrast:

Origin (Option A)andAS Path (Option B)arewell-known mandatoryattributes. Every BGP update must include these, and every BGP-compliant router must recognize them.

MED (Option D)(Multi-Exit Discriminator) is anoptional non-transitiveattribute. If a router receives a MED and advertises that route to an EBGP peer, the MED is typically stripped away (unless specific configurations like path-selection cisco-non-deterministic are used), as it is intended only to influence the immediate neighboring AS.

The Community attribute (defined in RFC 1997) is a powerful tool in Junos OS, often used for tagging routes to trigger specific routing policies, such as setting local preference or identifying the geographic origin of a prefix. By being transitive, it allows for sophisticated administrative control across complex multi-provider environments.

TheBGP path selection algorithmis a deterministic process used by Juniper routers to select the single "best" path from the BGP table to be placed into the routing table (inet.0). This algorithm follows a specific, hierarchical set of rules. According to Juniper Networks technical documentation, the router evaluates attributes in a fixed order, and once a tie is broken at a specific step, the remaining steps are ignored.

The order of the primary BGP attributes in Junos OS is as follows:

Highest Local Preference:This is the first attribute evaluated after the basic check for a reachable next hop. Local preference is used within an Autonomous System (AS) to prioritize one exit point over another.

Shortest AS_PATH:If the local preference is equal, the router then evaluates the length of the AS_PATH attribute.

Lowest Origin Code:(IGP < EGP < Incomplete).

Lowest Multi-Exit Discriminator (MED).

In this specific scenario, the router compares a path with ahigher local preferenceagainst a path with ashorter AS path. Because theLocal Preferencecheck occurs at Step 1 and theAS_PATHcheck occurs later at Step 2, the router will select the path with the higher local preference immediately. The length of the AS path becomes irrelevant in this comparison because the tie was already broken by the local preference value. This allows network administrators to override the default "shortest path" logic of BGP to prefer specific providers or links based on business requirements.
