The load command in Junos OS provides several operational methods for importing configuration data into the candidate buffer. When an administrator needs to perform a " clean slate " update—where the objective is to completely replace the existing candidate configuration with a new hierarchical file—the override option is the correct tool. Unlike load merge, which blends new data with the existing configuration, or load replace, which only updates specifically tagged sections, load override discards every statement currently in the candidate configuration and substitutes it entirely with the new content.

Using the terminal keyword in conjunction with override allows the architect to paste a large hierarchical configuration directly into the Command Line Interface (CLI). This is the most efficient method for applying validated templates, restoring full system backups, or migrating configurations between devices without having to manually delete existing parameters. After the data is pasted and the process is finalized (typically with a Ctrl+D sequence), the Junos OS kernel validates the new candidate configuration against the device ' s hardware and software capabilities. To make these changes active and operational, a subsequent commit command must be executed. This comprehensive replacement mechanism ensures configuration integrity by eliminating any potential remnants of previous, unwanted settings that might conflict with the new deployment.

When you need to visualize the hop-by-hop journey of a packet across a multi-vendor or Junos-based network, traceroute is the definitive operational tool. Unlike ping , which merely confirms end-to-end reachability by eliciting an Echo Reply, traceroute provides a clinical breakdown of every Layer 3 device (router or switch) in the path.

The mechanics of this tool are quite clever: it sends out a sequence of packets (usually UDP or ICMP) with an increasing Time-to-Live (TTL) value, starting at 1. When the first router receives the packet, it decrements the TTL to 0, discards the packet, and sends an ICMP " Time Exceeded " message back to the source. This informs your Junos device of the first hop ' s identity. This process repeats, incrementing the TTL each time, until the packet reaches the final destination. This path discovery is vital for identifying where traffic might be diverted by a misconfigured routing policy or where latency is being introduced in the network fabric. While monitor interface traffic gives you real-time throughput on a local port and SNMP provides historical telemetry to a management station, neither can map the external topological path like traceroute. In the Junos CLI, you can even specify the source address or bypass the routing table to test specific egress paths.

In Junos OS, route preference (often referred to as administrative distance in other operating systems) is the mechanism used to select the " best " path when the routing table receives multiple advertisements for the exact same destination prefix from different routing sources. The core rule for preference is that lower values indicate a more preferred or " higher priority " route . For example, a direct route has a default preference of 0, a static route is 5, and OSPF internal routes are 10. If a router learns about the same network from both OSPF and a static entry, it will select the static route because 5 is lower than 10.

Crucially, route preference is only evaluated after the longest prefix match (LPM) has been determined. LPM is the absolute first step in packet forwarding; the router will always choose the most specific route available (e.g., a /28 over a /24). Only if there are multiple entries for that same /28 does the router look at preference to break the tie. It is a common misconception that a lower preference value can override a more specific prefix; in reality, a /32 route with a preference of 170 (BGP) will always win over a /24 route with a preference of 5 (Static). Understanding this hierarchy is vital for network architects when designing redundant paths and predictable failover behaviors.

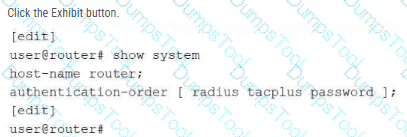

In the Junos OS architecture, the authentication-order statement within the [edit system] hierarchy defines the sequence in which the device attempts to validate user credentials against external and internal databases. The order specified in the exhibit is [ radius tacplus password ] , meaning the device first queries the RADIUS server, followed by the TACACS+ server, and finally the local password database.

A critical distinction in Junos authentication logic is the difference between a server being " unavailable " and a server " rejecting " a user. If an authentication server responds with an explicit access-reject (meaning it received the request but the credentials were invalid), the authentication process terminates immediately to maintain security integrity. However, if the server is unreachable or fails to respond within the configured timeout period (unavailable), the Junos Control Plane automatically falls back to the next method in the defined sequence. In this specific scenario, since the RADIUS server is unavailable, the device will proceed to attempt authentication using the TACACS+ server. If that were also unavailable, it would finally check the local password database. This fallback mechanism ensures that administrators can still access the device even during external server outages, provided they have a local account configured as the final method in the list.

In Junos OS, there is a distinct difference between show commands and monitor commands. While show commands provide a static snapshot of the current state of the device or its interfaces at the moment the command is executed, monitor commands provide dynamic, real-time updates. To view live traffic statistics across all physical and logical interfaces, the correct command is monitor interface traffic.

When this command is executed, the CLI enters an interactive text-based interface (TUI) that displays a list of interfaces along with their input and output rates in bits per second (bps) and packets per second (pps). The display refreshes automatically (usually every few seconds), allowing an administrator to observe traffic spikes or drops as they occur without manually re-running a command. This is an invaluable tool for troubleshooting congestion or verifying that traffic is flowing as expected after a configuration change. Commands like show interfaces extensive provide significantly more detail—including error counters and physical layer parameters—but they are not real-time and require manual execution to update the statistics. The monitor interface traffic command simplifies the view to focus specifically on throughput metrics across the entire device. Reference: Operational Monitoring and Maintenance, Interface Monitoring, Real-time Statistics.
