Understanding EVPN Route Types:

EVPN routes facilitate Layer 2 and Layer 3 connectivity across data centers.

Layer 2 and Layer 3 Connectivity:

For Layer 3 connectivity across data centers, where Layer 2 does not extend, IP prefixes need to be communicated.

Type 5 Routes:

Type 5 (IP Prefix Route):

Used to distribute IP prefixes between data centers.

Ensures that Layer 3 connectivity is established without extending Layer 2 domains.

References:

Juniper EVPN Type 5 Routes

Configuring EVPN for Data Center Interconnect

Analyzing BGP Route Information:

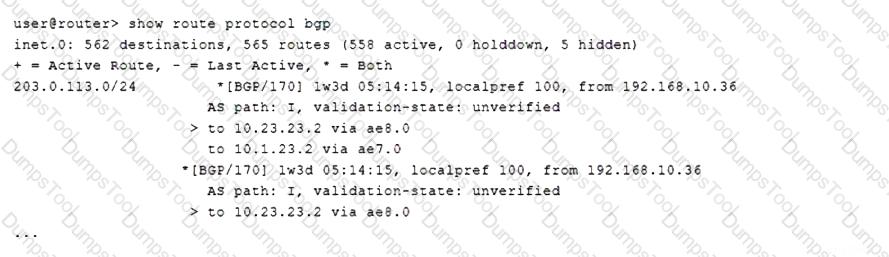

The exhibit shows BGP route information for the prefix 203.0.113.0/24.

Both paths to this prefix are learned from the same BGP peer with IP address 192.168.10.36.

Understanding BGP Neighbors:

The presence of multiple paths for the same prefix does not necessarily indicate multiple neighbors.

In this case, the routes to 203.0.113.0/24 are both learned from a single neighbor (192.168.10.36), but via different interfaces (ae8.0 and ae7.0).

Conclusion:

The BGP routes in the exhibit indicate that the prefix is learned from one neighbor but via different interfaces.

References:

BGP route analysis

Understanding BGP multi-path and neighbor relationships

 Technology Overview:

Q-in-Q (802.1ad), also known as VLAN stacking, allows multiple VLAN tags to be inserted into a single frame. This enables the carrying of multiple VLANs across a single backbone, preserving the original VLAN tags across different network segments.

 Application in Scenario:

By using Q-in-Q, the existing VLANs of the acquired company can be encapsulated within a single VLAN tag. This technique is highly efficient for carrying VLANs across a corporate backbone without altering the existing addressing scheme and with minimal configuration changes.

 Configuration Example:

Juniper Configuration:

shell

Copy code

set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan-id 100

set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan-id-list 100-200

set interfaces ge-0/0/2 unit 0 family ethernet-switching vlan-id 300

set interfaces ge-0/0/2 unit 0 family ethernet-switching vlan-id-list 300-400

This setup ensures that VLANs 100-200 on interface ge-0/0/1 and VLANs 300-400 on interface ge-0/0/2 are bundled together, achieving the desired encapsulation.

 References:

Detailed configuration and benefits are documented in the "network-mgmt.pdf" file, which outlines the necessary steps and considerations for deploying Q-in-Q​​.
