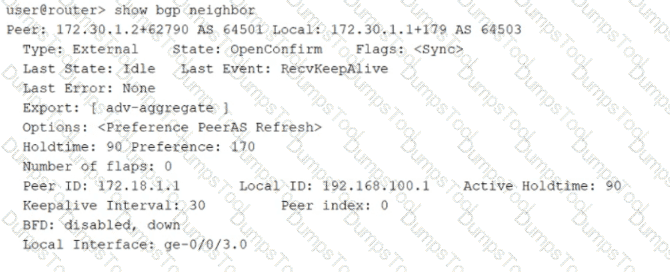

In the BGP finite state machine, OpenConfirm indicates that the TCP session is already established and the BGP OPEN message exchange has successfully completed. At this point, both peers have agreed on critical session parameters such as BGP version, autonomous system numbers, hold time, and the BGP identifier. Because the OPEN messages have been processed, BGP transitions from OpenSent to OpenConfirm and then waits for the next control message that validates the session is operational.

Specifically, in OpenConfirm the local BGP process is waiting to receive a KEEPALIVE message from the neighbor, which confirms that the neighbor accepted the OPEN and is ready to bring the session to the Established state. If instead a NOTIFICATION message is received, it indicates an error condition and the session will be torn down. This is why option D is correct.

Option A describes OpenSent, where the router is waiting to receive an OPEN after sending its own OPEN. Option B aligns more closely with Connect, where BGP is still trying to complete the transport connection. Option C relates to Idle, where BGP waits for a start event or configuration to initiate the session. In data center BGP underlays and EVPN control planes, being stuck in OpenConfirm commonly points to policy mismatch, capability negotiation issues, or keepalive handling problems, rather than basic IP reachability.

In a leaf spine IP fabric, spines form the high-speed transit layer and leaves provide the attachment points for servers, services, and edge connectivity. The defining physical topology rule is that every spine connects directly to every leaf. This design creates consistent one-hop transit through a spine for traffic between any two leaves, which keeps latency predictable and simplifies capacity planning. It also enables equal-cost multipath routing across all available spine links, allowing the fabric to use bandwidth efficiently and recover quickly from failures by shifting traffic to remaining paths.

Spine-to-spine connections are not required in a classic two-tier leaf spine fabric. Adding spine-to-spine links can create unnecessary complexity and does not improve the standard forwarding model, because spines are intended to provide transit between leaves, not to act as an additional meshed layer. Likewise, there is no inherent requirement that each spine must have two or more physical links to each leaf. Many fabrics start with one link per spine-leaf pair and scale capacity by adding more spines or adding additional parallel links as demand grows. The redundancy objective is achieved primarily by multiple spines and multiple available routed paths, not by mandating multiple links between every spine and every leaf from the outset.

On broadcast network types in OSPF, such as Ethernet segments, forming a full mesh of adjacencies between every pair of routers would create significant control-plane overhead. Every router would need to maintain neighbor state with every other router, exchange database information redundantly, and flood link-state updates across many parallel adjacencies. This becomes inefficient as the number of routers on the segment grows.

To address this, OSPF elects a Designated Router and a Backup Designated Router. The DR acts as the central point for adjacency formation on that broadcast segment. Instead of each router forming full adjacencies with all others, routers form full adjacencies primarily with the DR and BDR. The DR is responsible for generating and flooding network LSAs that represent the broadcast segment and for coordinating reliable LSA flooding on that segment. This significantly reduces the number of adjacencies and the volume of duplicated database exchange and LSA flooding, which is why option A is correct.

The BDR is a standby control-plane role. It monitors the segment and is prepared to take over the DR function if the DR fails, improving stability and convergence. However, the primary purpose of having DR and BDR is the scaling benefit of reduced adjacency and flooding overhead on broadcast networks.

Traditional data center networks are often built using a layered three-tier design with access, aggregation, and core. These designs frequently rely on Layer 2 domains and spanning tree to prevent loops. One major drawback is inefficient resource usage. Spanning tree typically blocks redundant links, which means installed bandwidth and expensive uplinks can sit idle during normal operation. To compensate, organizations overbuild capacity or use complex workarounds, raising cost and operational burden. In addition, scaling tends to be vertical, adding bigger chassis or more complex aggregation, which can concentrate risk and reduce flexibility.

Another common challenge is increased latency. In a three-tier model, traffic between servers in different access blocks often traverses multiple tiers, adding hops and delay. Even when traffic stays within the same facility, the path is not consistently short, and application performance can suffer, especially for east-west workloads such as distributed databases and microservices where frequent server-to-server communication is normal. Modern leaf spine IP fabrics reduce these issues by using a routed underlay with predictable one-spine-hop paths between leaves and by keeping all links active with multipath routing.

While traditional architectures can also experience suboptimal path behavior, the most consistently cited challenges are idle capacity due to blocked links and additional hop count that increases latency.

An IP fabric underlay is the routed foundation of a modern leaf-spine data center. Its purpose is to provide scalable, deterministic Layer 3 reachability between all fabric nodes, typically using point-to-point routed links between leaves and spines. In this design, EBGP is commonly used as an underlay routing protocol because it scales well, supports clear policy boundaries, and enables fast convergence and operational simplicity. Each leaf forms EBGP sessions to each spine, advertising loopback addresses and link subnets so that overlay endpoints and control plane services can reach one another reliably.

RSTP is a Layer 2 spanning tree mechanism and is not the standard protocol for a routed underlay. EVPN is an overlay control plane used to distribute tenant reachability and multihoming information; it is not the underlay routing protocol itself. VXLAN is a data plane encapsulation used by the overlay to transport Layer 2 segments across a Layer 3 fabric; it also is not the underlay routing protocol.

In Juniper data center architectures, the underlay is intentionally kept simple and purely routed, while overlays such as EVPN VXLAN deliver multi-tenant Layer 2 and Layer 3 services on top of that underlay. EBGP fits the underlay requirement among the provided options.
