• A is correct because generated routes require a contributing route. A contributing route is a route that matches the destination prefix of the generated route and has a valid next hop1. A generated route is only installed in the routing table if there is at least one contributing route available2. This ensures that the generated route is reachable and useful. If there is no contributing route, the generated route is not added to the routing table2.
• B is correct because generated routes show a next hop in the routing table. A generated route inherits the next hop of its primary contributing route, which is the most preferred route among all the contributing routes2. The next hop of the generated route can be either an IP address or an interface name, depending on the type of the contributing route2. The next hop of the generated route can also be modified by a routing policy3.

BGP (Border Gateway Protocol) is a protocol designed to exchange routing and reachability information among autonomous systems (AS) on the internet1.

• Option A is correct. When an EBGP router advertises routes to its neighbors, it appends its AS number to the AS_PATH attribute1. This is a key mechanism in BGP to prevent routing loops1.
• Option C is correct. BGP has a built-in loop prevention mechanism whereby if a BGP router detects its own AS in the AS_PATH attribute, it will drop the prefix and will not continue to advertise it2. This helps to prevent routing loops2.
• Option B is incorrect. EBGP routers do not accept routes that contain their own AS number in the AS_PATH2. Instead, they drop such routes as part of the loop prevention mechanism2.
• Option D is incorrect. While it’s true that EBGP routers append their AS number when advertising routes, they do not prepend their AS number1. The term “prepend” in BGP usually refers to a technique used to influence path selection by artificially lengthening the AS_PATH3.

IS-IS (Intermediate System to Intermediate System) is a routing protocol that is designed to move information efficiently within a computer network12. It supports multiple protocol topologies, including IPv4, IPv6, and multicast12. Therefore, options C, E, and D are correct.

The output shown in the exhibit is the result of the command “show ip bgp neighbor 10.36.1.4 received-routes”, which displays all received routes (both accepted and rejected) from the specified neighbor.

Option A is correct, because the routes displayed have traversed one or more autonomous systems. This can be seen from the AS_PATH attribute, which shows the sequence of AS numbers that the route has passed through. For example, the route 10.0.0.0/8 has an AS_PATH of 65001 65002, which means that it has traversed AS 65001 and AS 65002 before reaching the local router.

Option B is correct, because the output shows routes that were received prior to the application of any BGP import policies. This can be seen from the fact that some routes have a status code of “r”, which means that they are rejected by an import policy. The“received-routes” keyword shows the routes coming from a given neighbor before the inbound policy has been applied. To see the routes after the inbound policy has been applied, the “routes” keyword should be used instead.

Option C is incorrect, because the output does not show routes that are active and rejected by an import policy. The status code of “r” means that the route is rejected by an import policy, but it does not mean that it is active. The status code of “>” means that the route is active and selected as the best path. None of the routes in the output have both “>” and “r” status codes.

Option D is incorrect, because the routes displayed are not being learned from an IBGP peer. An IBGP peer is a BGP neighbor that belongs to the same AS as the local router. The output shows that the neighbor 10.36.1.4 has a remote AS of 65001, which is different from the local AS of 65002. Therefore, the neighbor is an EBGP peer, not an IBGP peer.

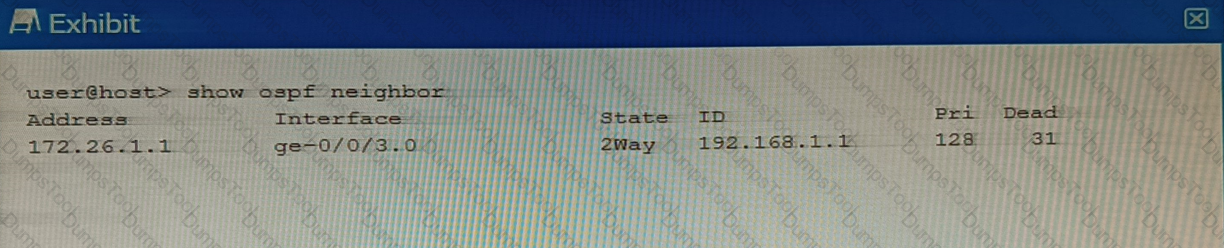

In OSPF, the state of the neighbor relationship is determined by the exchange of OSPF packets between routers1. The state “2Way” as shown in the exhibit indicates that bi-directional communication has been established between the two OSPF routers1. This is the normal state for a neighbor that is not the Designated Router (DR) or Backup Designated Router (BDR) on a broadcast, non-broadcast multi-access (NBMA), or point-to-multipoint network1. These neighbors are often referred to as "DRothers"1. Therefore, option B is correct.
