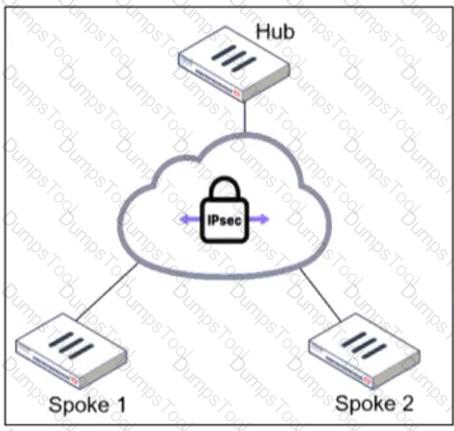

When configuring ADVPN (Auto-Discovery VPN) to connect overlay networks across different hubs using IBGP and EBGP, special configurations are required to allow spokes from different overlay networks to dynamically establish tunnels.

● set auto-discovery-crossover enable

● This allows cross-hub tunnel discovery in an ADVPN deployment where multiple hubs are used.

● Since Hub A and Hub B belong to different overlays, enabling crossover discovery ensures that spokes from one overlay can dynamically create direct tunnels to spokes in the other overlay when needed.

● set enforce-multihop enable

● This setting ensures that BGP peers using loopback interfaces can establish connectivity even if they are not directly connected.

● Multihop BGP sessions are required when using loopback addresses as BGP peer sources because the connection might need to traverse multiple routers before reaching the BGP neighbor.

● This is especially useful in ADVPN deployments with multiple hubs, where routes might need to cross from one hub to another.

neighbor-group:

● This command is used to group multiple BGP neighbors with the same configuration, reducing redundant configuration.

● Instead of defining individual BGP settings for each spoke, the administrator can create a neighbor-group and apply the same policies, reducing manual work.

neighbor-range:

● This command allows the configuration of a range of neighbor IPs dynamically, reducing the need to manually define each spoke neighbor.

● It automatically adds BGP neighbors that match a given prefix, simplifying deployment.

In this ADVPN (Auto-Discovery VPN) network, there are two hubs (Hub A and Hub B) connected via EBGP, while IBGP is used within each overlay. To ensure proper BGP routing between the overlays, the administrator must configure specific BGP options..

set ebgp-enforce-multihop enable

By default, EBGP requires directly connected neighbors. Since Hub A and Hub B are not directly connected but reach each other over an IPsec tunnel, multihop must be enabled for EBGP sessions to work.

set next-hop-self enable

In IBGP, the next-hop attribute does not change by default. When an IBGP route is advertised from a spoke to another hub or spoke, the next-hop needs to be updated to ensure proper reachability. Enabling next-hop-self forces the BGP speaker to advertise itself as the next-hop, ensuring that all spokes properly reach routes across the overlays.

The OSPF database optimization is necessary to reduce unnecessary routing information and improve network performance. In the given topology, Area 0.0.0.1 is a non-backbone area connected to Area 0.0.0.0 (the backbone area) through an Area Border Router (ABR).

To optimize OSPF in this scenario, configuring Area 0.0.0.1 as a Stub Area will:

● Reduce the size of the OSPF database by preventing external routes (from outside OSPF) from being injected into Area 0.0.0.1.

● Allow only intra-area and inter-area routes, meaning routers in Area 0.0.0.1 will rely on a default route for external destinations.

● Improve convergence time and reduce router processing load since fewer LSAs (Link-State Advertisements) are exchanged.

When designing an ADVPN (Auto-Discovery VPN) network for a large enterprise with spokes that have varying numbers of internet links, the main challenge is to minimize the number of peer connections and routes at the hub while maintaining scalability and efficiency.

Using a dynamic routing protocol (such as BGP or OSPF) with loopback interfaces helps in several ways:

● Reduces the number of peer connections at the hub by using a single loopback address per spoke instead of individual physical interfaces.

● Enables simplified route advertisement by dynamically learning and propagating routes instead of manually configuring static routes.

● Supports multiple internet links per spoke efficiently, as dynamic routing can automatically adjust to the best available path.

● Allows seamless failover if a spoke’s internet link fails, ensuring continuous connectivity.
