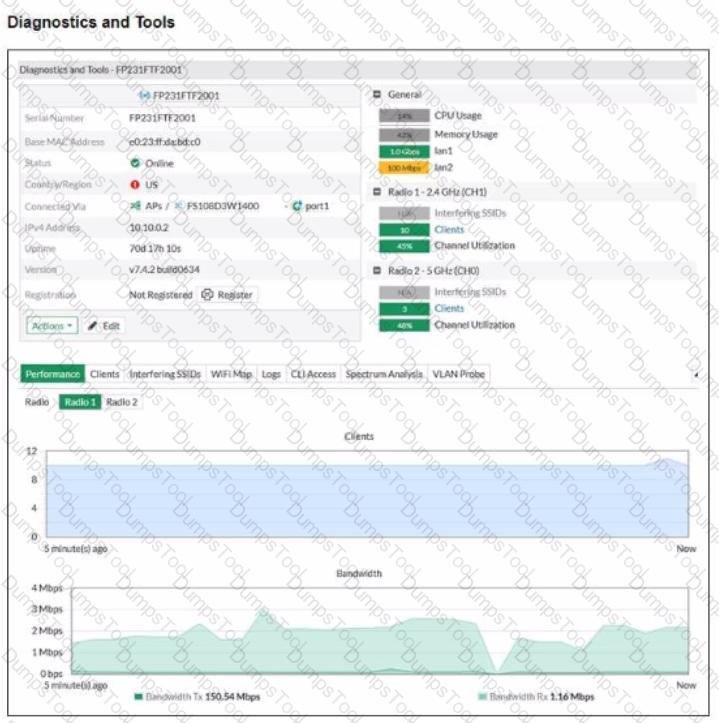

Exhibit Review:

The diagnostics panel for FortiAP FP231FTF2001 shows:

Tx bandwidth label: 150.54 Mbps (likely the negotiated or theoretical maximum).

Bandwidth graph (actual traffic): Transmit (Tx) bandwidth peaked at only ~3 Mbps over the last 5 minutes—far below the maximum.

Radio 1 (2.4 GHz) shows 10 interfering SSIDs and 40% channel utilization.

Radio 2 (5 GHz) is not the focus in the current graph.

Interpretation:

The significant difference between the potential (label) and actual (graph) throughput indicates that something is preventing the AP from delivering full speed.

This could be resource overload (e.g., too many clients, too much interference, CPU/memory constraints), leading to overall reduced throughput for all users.

The graph represents real-time/actual usage, not just the theoretical capability.

Option Breakdown:

A. Resources on FortiAP are overloaded which limits speed rates for all users

Correct. Overload (either due to too many clients, high interference, or hardware resources) is a logical reason why actual throughput is far below the possible maximum.

B. Label values are historical and provide average bandwidth

Incorrect. The label reflects the maximum link rate or negotiated data rate, not an average or historical usage value.

C. FortiAP is dual band and is transmitting data faster with a higher frequency band

Not supported by the evidence. The current data is for Radio 1 (2.4 GHz) and does not show high usage on either band.

D. Bandwidth is shared with other SSID signals broadcasting for nearby AP devices

While interference does share airtime, the drastic drop in throughput strongly suggests an overload or other limiting factor on this AP.

Summary:

The large gap between the expected maximum (label) and the actual throughput observed suggests that resource overload is the root cause of poor wireless speeds for all users.

When enabling a Security Fabric connection on a FortiGate interface to manage FortiAP devices, the following two types of CAPWAP (Control and Provisioning of Wireless Access Points) communication channels are established:

Control channels:

Correct. The control channel is used for management and control information between the FortiGate (controller) and FortiAP. This includes configuration, monitoring, and state updates.

Data channels:

Correct. The data channel carries client traffic between the FortiAP and FortiGate. This enables the FortiGate to apply security policies, content filtering, and other services to wireless client data.

Analysis of Other Options:

C. Security channels:

There is no specific “security channel” in CAPWAP terminology.

D. Fortlink channels:

FortLink is used for FortiSwitch management, not FortiAPs. CAPWAP is the protocol for FortiAP management.

Scenario:

The IT department wants to prevent direct communication between wireless stations.

There is one SSID configured in bridge mode (all clients on the same SSID/VLAN, directly bridging to the wired network).

Correct Action:

Block intra-SSID traffic (sometimes called “client isolation” or “intra-SSID privacy”).

This feature prevents wireless clients connected to the same SSID from communicating directly with each other at Layer 2.

Each station can reach the network but cannot reach other wireless clients on the same SSID.

This is the industry-standard method to achieve the stated security goal in a wireless environment, especially in bridge mode.

Why Other Options Are Incorrect:

A. Create unique SSIDs for each FortiAP device

Impractical and unnecessary for user isolation; users on the same SSID but different APs can still be isolated with intra-SSID blocking.

B. Add an upstream layer 3 device on each FortiAP device

Overkill and not required; this does not directly solve intra-SSID traffic.

D. Drop all local traffic in the wireless network

Too broad; you only want to prevent client-to-client communication, not all local traffic (such as traffic to the gateway).

Summary:

Block intra-SSID traffic is the intended and correct configuration to prevent wireless stations from communicating directly while sharing the same SSID in bridge mode.

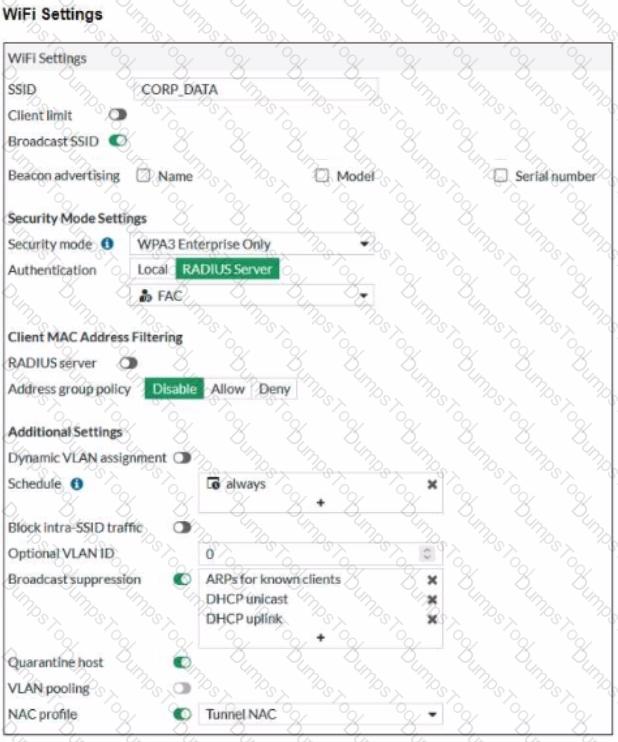

Exhibit Review and Feature Analysis:

The SSID "CORP_DATA" is configured with Tunnel NAC as the "NAC profile" (Network Access Control).

NAC quarantine host is enabled, which means when a station is identified as compromised, it will be placed into quarantine automatically by the FortiAP.

How This Works:

In Security Fabric deployments, when a FortiGate detects a compromised endpoint (via integration with FortiAnalyzer and endpoint telemetry), it can instruct FortiAPs (broadcasting the relevant SSID with NAC enabled) to move compromised clients into a quarantine VLAN or block their network access.

The NAC quarantine feature is specifically designed to isolate infected or non-compliant devices automatically, without waiting for manual SOC action.

Option Explanations:

A: NAC does not simply onboard compromised stations—it isolates or restricts them.

B: Disassociation and permanent blocking is not the default; quarantine is preferred.

C: FortiAnalyzer does generate reports, but this does not describe the action taken by FortiGate or FortiAP.

D: Correct. FortiAPs, following FortiGate's NAC/quarantine policy, will isolate (quarantine) compromised clients on the CORP_DATA SSID.

WPA3 improves security over WPA2 by, among other things:

Using robust key establishment (SAE/Dragonfly), which is not vulnerable to KRACK (Key Reinstallation Attack).

WPA3 does not enforce only enterprise mode, nor does it universally prevent all legacy protocols, nor is 128-bit key size unique to WPA3.
