The BIG-IP processing flow follows a specific sequence of events as a packet moves through the system.

TCP Handshake: Before any application-layer data (like HTTP) can be processed, a TCP connection must be established.

The First Event: The very first event triggered when a client completes the 3-way handshake with the virtual server is CLIENT_ACCEPTED.

Profile Influence: Even if an HTTP profile is attached, the system must first "accept" the connection at the protocol level. HTTP_REQUEST only triggers after the client sends data that the BIG-IP recognizes as a valid HTTP request. If a client connects but never sends a request, CLIENT_ACCEPTED will have fired, but HTTP_REQUEST will not.

In a BIG-IP device service cluster, configuration objects such as virtual servers, pools, profiles, and iRules are maintained through configuration synchronization (config-sync).

Key BIG-IP concepts involved:

Device Service Cluster (DSC)A cluster is a group of BIG-IP devices that share configuration data. One device is typically used to make changes, which are then synchronized to the rest of the group.

Config-Sync Direction Matters

Changes are made on a local device

Those changes must be pushed to the group

The correct operation is “Sync Device to Group”

Why C is correct:

The virtual server was created only on device 1

Other devices in the cluster do not yet have this object

To propagate the new virtual server to all cluster members, the administrator must synchronize device 1 to the group

Why the other options are incorrect:

A. Synchronize the settings of the group to device 1This would overwrite device 1’s configuration with the group’s existing configuration and may remove the newly created virtual server.

B. Create a new cluster on device 1The cluster already exists. Creating a new cluster is unnecessary and disruptive.

D. Create a new virtual server on device 2This defeats the purpose of centralized configuration management and risks configuration drift.

Conclusion:

After creating a new virtual server on a BIG-IP device that is part of a cluster, the administrator must synchronize the configuration from that device to the group so all devices share the same ADC application objects.

BIG-IP virtual server types define how traffic is handled at the data plane when it matches a virtual server’s destination address and service port.

According to BIG-IP Administration Data Plane Concepts:

Standard virtual server

The default and most commonly used type

Accepts client connections and forwards traffic to pool members

Supports both TCP and UDP traffic

Allows full use of profiles (UDP, FastL4, persistence, etc.) and iRules

Required when the goal is to process and pass traffic through BIG-IP

Drop virtual server

Silently discards matching traffic

No response is sent to the client

Reject virtual server

Actively rejects traffic by sending an error response

For UDP, BIG-IP may send an ICMP unreachable message

Block virtual server

Used to block traffic at the virtual server level

Traffic is neither forwarded nor processed by pools

In this scenario:

The administrator explicitly wants the UDP traffic to be forwarded

Only a Standard virtual server forwards traffic to a pool or next-hop destination

Why the Other Options Are Incorrect:

A. Drop – Traffic is silently discarded

B. Reject – Traffic is actively rejected

C. Block – Traffic is blocked and not forwarded

Key Data Plane Concept Reinforced:

When traffic must be accepted and forwarded—regardless of whether it is TCP or UDP—the BIG-IP administrator must use a Standard virtual server, which is the only virtual server type designed for normal application traffic processing.

===========

This question tests understanding of Priority Group Activation (PGA) and how BIG-IP determines which pool members are eligible to receive traffic.

Key BIG-IP Priority Group Concepts:

Higher priority group numbers = higher priority

BIG-IP will only send traffic to the highest priority group that meets the Priority Group Activation condition

Lower priority groups are activated only when the condition is met

Only available (green) members count toward the activation threshold

Configuration from the Exhibit:

Priority Group Activation: Less than 2 available members

Pool Members and Status:

Pool Member

Priority Group

Status

serv1

2

Active (available)

serv2

2

Inactive (down)

serv3

1

Active (available)

serv4

1

Active (available)

Step-by-Step Traffic Decision:

BIG-IP first evaluates the highest priority group (Priority Group 2)

Priority Group 2 has:

serv1 → available

serv2 → unavailable

Total available members = 1

Activation rule is Less than 2 available members

Condition is true (1 < 2)

BIG-IP activates the next lower priority group (Priority Group 1)

Traffic is now sent to:

serv1 (Priority Group 2)

serv3 and serv4 (Priority Group 1)

Final Result:

Traffic is distributed to serv1, serv3, and serv4

Why the Other Options Are Incorrect:

A – Ignores activation of the lower priority group

B – serv4 is also active and eligible

C – serv2 is down and cannot receive traffic

Key Data Plane Concept Reinforced:

Priority Group Activation controls when lower-priority pool members are allowed to receive traffic, based strictly on the number of available members in the higher-priority group. In this case, the failure of one high-priority member caused BIG-IP to expand traffic distribution to lower-priority members to maintain availability.

===========

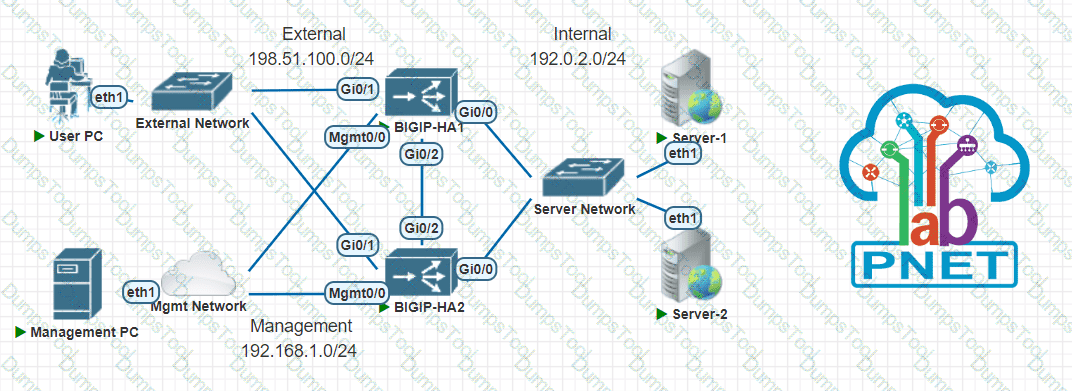

Redundant BIG-IP systems (HA pairs) must maintain constant communication to monitor the health of the peer and synchr15onize states.16

Heartbeats: By default, even with a serial cable, th17e BIG-IP systems exchange "heartbeat" packets over the network to determine if the peer is still alive.

Network Failover: This involves the exchange of UDP packets (typically on port 1026) at regular intervals.

Device Service Clustering (DSC): Modern BIG-IP versions use the Central Management (cm) infrastructure to communicate configuration status and sync status constantly.

Clarification on others: Port lockdown does affect HA communication if misconfigured (A is false). Mirroring uses separate channels (B is false). Mirroring is never sent over the serial cable because it requires high bandwidth (D is false).
