F5CAB2 Questions and Answers

In a High Availability (HA) environment, a failover event occurs when the active BIG-IP system stops processing traffic and the standby unit takes over. This transition can cause a brief disruption in network traffic because the surrounding switches need to update their ARP tables to associate the Virtual IP (VIP) and floating Self-IPs with the MAC address of the new active unit.

MAC Masquerade Functionality: To minimize this impact, an administrator can configure MAC masquerading . This feature allows the administrator to assign a unique, " shared " MAC address to a traffic group.

Seamless Transition: When a failover occurs, the new active unit begins using this shared MAC address immediately. Since the MAC address for the traffic group remains the same regardless of which physical device is active, the upstream switches do not need to update their ARP tables or learn a new MAC-to-port mapping.

Packet Loss Reduction: By maintaining a constant MAC address, MAC masquerading significantly reduces the time it takes for traffic to resume, effectively eliminating the " gratuitous ARP " dependency and minimizing packet loss during the handover.

Why other options are incorrect:

External monitors: These are used for advanced health checking of pool members and do not directly impact the speed or smoothness of a device-level failover.

OneConnect profile: This is a performance optimization tool that aggregates multiple client-side requests into a single server-side TCP connection; it is not a failover mechanism.

Clone pool: This is used to replicate traffic for IDS or monitoring purposes and has no role in high availability or failover optimization.

The appropriate configuration for emulating conventional stateless IP routing is a Forwarding (IP) virtual server using a FastL4 profile .

A Forwarding (IP) virtual server does not select an application-server pool in the normal load-balancing sense. Instead, BIG-IP forwards the packet toward the destination address originally specified by the client and uses the system ' s routing table to determine the serverside path. This makes the Forwarding (IP) virtual server the BIG-IP virtual-server type designed to provide router-like Layer 3 forwarding behavior.

BIG-IP processing is inherently stateful, so to approximate stateless router behavior, F5 uses specific FastL4 profile settings with the IP forwarding virtual server. FastL4 is supported with Forwarding (IP) virtual servers and provides efficient Layer 4 packet processing.

Option C is deceptive. BIG-IP does have a virtual server type called Stateless , but F5 documents that this type applies specifically to UDP traffic , requires a default pool, and has significant configuration restrictions. It is therefore not the general mechanism used to emulate stateless IP routing.

A Standard virtual server performs full-proxy processing, while Performance (Layer 4) is primarily used for high-performance Layer 4 application delivery and can use pools. Neither is the intended router-emulation configuration.

Study Guide References/Topics: Forwarding (IP) Virtual Servers; FastL4 Profile; Routing Table Processing; Stateful versus Stateless Forwarding; Virtual Server Types.

The F5 BIG-IP upgrade process for HA pairs requires a specific " staggered " approach to maintain uptime.

Version Mismatch: When one unit is upgraded to a newer version of TMOS (e.g., from 15.1 to 16.1), it enters a 26 " Version Mismatch " 27 state with its peer.

Configuration Sync: Because the configuration schemas between different versions are often incompatible, ConfigSync should not be performed . Attempting to sync a newer configuration to an older system (or vice-versa) can cause configuration corruption or system instability.

Failover Capability: Generally, a pair with a version mismatch can still fail over to ensure traffic continuity during the upgrade window, but administrative changes and syncs must be paused until both units are on the same version.

In the BIG-IP system, when you need to prevent traffic from reaching a specific destination or being processed by the system, you utilize specific Virtual Server types that act as " denial " points.

Reject Virtual Servers: When a packet matches a Reject virtual server, the BIG-IP system stops the packet from being processed and sends a reset (RST) in the case of TCP, or an ICMP unreachable message in the case of UDP. This is the preferred method for " blocking " specific IPs when you want the sender to receive immediate notification that the connection was refused.

Drop Virtual Servers: A Drop virtual server simply discards the packet without sending any response back to the source. While effective for " stealthing " a network, it is often less desirable for standard administration unless specifically mitigating a DoS attack.

Comparison with Standard: A Standard virtual server is used to process and load balance traffic to a pool of members; it does not inherently act as a " blocking " mechanism for a single IP within a subnet unless combined with complex iRules or Packet Filters.

Context of the Question: To block responses (or connection attempts) for a specific IP while other traffic in the subnet might be handled by more permissive virtual servers, a more specific (higher precedence) Reject virtual server is the standard administrative approach.

In BIG-IP LTM, a Wildcard virtual server is defined by using a destination IP address of 0.0.0.0. These virtual servers are designed to handle traffic that does not match any more specific Virtual Server destination address.

0.0.0.0 Destination: This address acts as a " catch-all " for IP traffic.

VLAN Specificity: While the destination address is generic, a Wildcard virtual server is typically restricted to a specific VLAN (such as the Internal VLAN) to process outbound traffic from backend servers.

Service Ports: A wildcard virtual server can be configured for a specific port (e.g., 0.0.0.0:80) or for all ports (0.0.0.0:0).

Data Plane Usage: It is commonly used for transparently intercepting outbound traffic for the purpose of Source NAT (SNAT), bandwidth shaping, or directing traffic to a gateway pool.

Understanding the default behavior of a Standard Virtual Server regarding address and port translation is fundamental to BIG-IP administration.

Source Address Translation (SNAT): By default, the BIG-IP system does not perform Source Address Translation (SNAT). This means that the packet ' s source IP address (the Client IP ) remains preserved as it passes through the BIG-IP to the pool member. This is critical for backend servers to identify the original client for logging and security purposes. Therefore, the client IP address is unchanged between the client-side and server-side connections.

Destination Address Translation (DAT): By default, a Standard Virtual Server always performs Destination Address Translation. The BIG-IP system changes the destination IP from the Virtual Server ' s IP address to the IP address of the specific Pool Member selected by the load balancing algorithm. Consequently, the server-side destination IP is different from the client-side destination IP.

Port Translation: By default, Port Translation is enabled. If a Virtual Server is listening on port 80 and the selected pool member is configured for port 8080, the BIG-IP will translate the destination port. Even if the ports happen to be the same, the setting allows for change, whereas the default SNAT setting (None) ensures the client IP remains static.

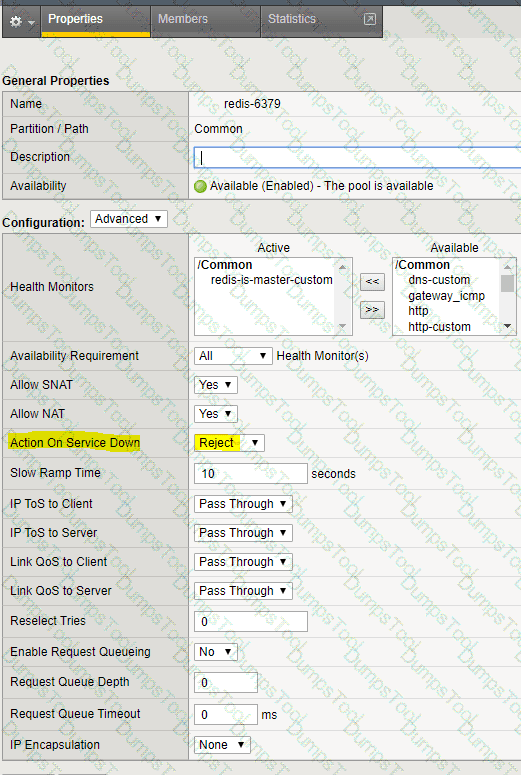

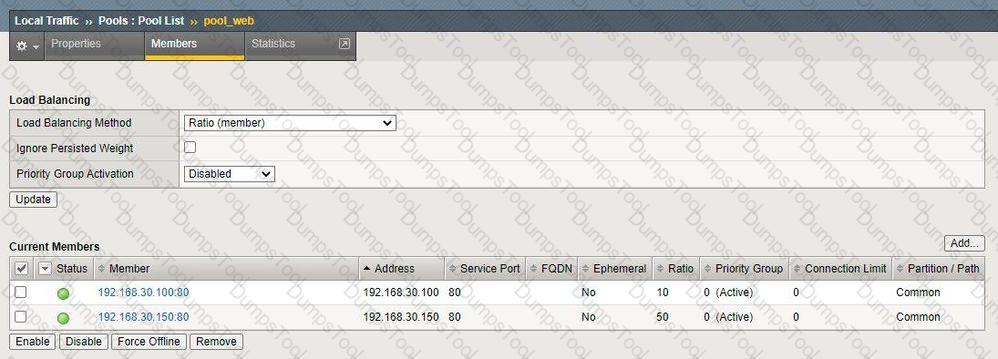

In BIG-IP LTM, a pool member state directly affects how traffic is handled at the data plane level. When a pool member is manually disabled , BIG-IP changes the member’s availability state to disabled , which has specific and predictable traffic-handling consequences.

According to BIG-IP Administration Data Plane Concepts:

A disabled pool member :

Does not accept new connections

Continues to process existing non-persistent connections until they naturally close

Is removed from load-balancing decisions , including persistence lookups

Most importantly for this question:

Persistent connections (such as those created using source-address persistence, cookie persistence, or SSL persistence) are not honored for a disabled pool member

BIG-IP will not send new persistent traffic to a disabled member, even if persistence records exist

Therefore, when a pool member is manually disabled, it stops processing persistent connections , while allowing existing non-persistent flows to drain gracefully.

Why the Other Options Are Incorrect:

B – Persistent connections are not honored for a disabled pool member

C – Existing connections are not immediately terminated when a pool member is disabled

D – Only the disabled pool member stops accepting new connections, not all pool members

Key Data Plane Concept Reinforced:

Manually disabling a pool member is a graceful administrative action that prevents new and persistent traffic from reaching the member while allowing existing connections to complete, which is critical for maintenance and troubleshooting scenarios.

===========

On BIG-IP systems, physical interface bandwidth is fixed by the link speed (for example, 1GbE or 10GbE). When traffic demand exceeds the capacity of a single interface, BIG-IP provides link aggregation through trunks .

Key concepts involved:

Interfaces A single physical interface (such as 1.1) is limited to its negotiated link speed. You cannot exceed this capacity through software tuning alone.

Trunks (Link Aggregation) A trunk combines multiple physical interfaces into a single logical interface.

BIG-IP supports LACP and static trunks.

Traffic is distributed across member interfaces, increasing aggregate bandwidth and providing redundancy .

VLANs are then assigned to the trunk , not directly to individual interfaces.

Why option B is correct:

Creating a trunk with two interfaces allows BIG-IP to use both physical links simultaneously.

This increases total available bandwidth (for example, two 10Gb interfaces → up to 20Gb aggregate capacity).

This is the documented and supported method for scaling bandwidth on BIG-IP.

Why the other options are incorrect:

A. Increase the MTU MTU changes affect packet size and efficiency, not total bandwidth capacity .

C. Assign two interfaces to the VLAN BIG-IP does not support assigning a VLAN to multiple interfaces directly. VLANs must be associated with one interface or one trunk .

D. Set the media speed manually Media speed can only be set up to the physical capability of the interface and connected switch port. It cannot exceed the hardware limit.

Conclusion:

To increase total available bandwidth on BIG-IP when a single interface is insufficient, the administrator must create a trunk object with multiple interfaces and move the VLAN onto the trunk. This aligns directly with BIG-IP data plane design and best practices.

In BIG-IP traffic management, persistence profiles cause existing client connections (and subsequent requests) to be repeatedly sent to the same pool member. When persistence is enabled, simply preventing new connections is not sufficient if the requirement is to immediately remove all existing connections .

Key behavior of pool member states:

Forced Offline

Immediately removes the pool member from load balancing.

Terminates all existing connections , regardless of persistence.

Prevents new connections from being established.

This is the correct state when urgent maintenance or troubleshooting is required.

Disabled

Prevents new connections from being sent to the pool member.

Allows existing connections to continue , which is not acceptable when persistence is configured and connections must be cleared immediately.

Offline (non-forced)

Similar to Disabled behavior depending on context.

Does not guarantee immediate termination of existing connections.

Manually deleting connections via the command line

Is unnecessary and operationally inefficient.

BIG-IP already provides a supported mechanism ( Forced Offline ) to cleanly and immediately remove traffic.

Conclusion:

To immediately remove all existing connections , including those maintained by persistence, the BIG-IP Administrator must set the pool member to a Forced Offline state. This directly satisfies the requirement without additional manual steps.

Cookie Persistence is a Layer 7 persistence method that leverages an HTTP cookie to track a user session.

IP Independence: Unlike " Source Address Affinity " (which relies on the client ' s IP), Cookie persistence identifies the session base 16 d on a unique token provided by the BIG-IP system. This is crucial for environments where many users share a single gateway (NAT) or where a client ' s IP might change mid-session.

Encryption and Decryption: For the BIG-IP to insert or read a cookie, it must be able to see the HTTP header. If the traffic is encrypted end-to-end (SSL Pass-through), the BIG-IP cannot use cookie persistence. SSL must be terminated at the BIG-IP (Option B is false).

Security: By default, BIG-IP cookies are encoded, not clear text. Modern versions allow for easy encryption of these cookies to prevent information leakage (Option C is false).

Memory vs. Disk: The default behavior is " session-based " (In-memory). A cookie is only written to the client ' s file system (disk) if an Expiration is configured in the persistence profile (Option D is false).

In a BIG-IP device service cluster , configuration objects such as virtual servers, pools, profiles, and iRules are maintained through configuration synchronization (config-sync) .

Key BIG-IP concepts involved:

Device Service Cluster (DSC) A cluster is a group of BIG-IP devices that share configuration data. One device is typically used to make changes, which are then synchronized to the rest of the group.

Config-Sync Direction Matters

Changes are made on a local device

Those changes must be pushed to the group

The correct operation is “Sync Device to Group”

Why C is correct:

The virtual server was created only on device 1

Other devices in the cluster do not yet have this object

To propagate the new virtual server to all cluster members, the administrator must synchronize device 1 to the group

Why the other options are incorrect:

A. Synchronize the settings of the group to device 1 This would overwrite device 1’s configuration with the group’s existing configuration and may remove the newly created virtual server .

B. Create a new cluster on device 1 The cluster already exists. Creating a new cluster is unnecessary and disruptive.

D. Create a new virtual server on device 2 This defeats the purpose of centralized configuration management and risks configuration drift.

Conclusion:

After creating a new virtual server on a BIG-IP device that is part of a cluster, the administrator must synchronize the configuration from that device to the group so all devices share the same ADC application objects.

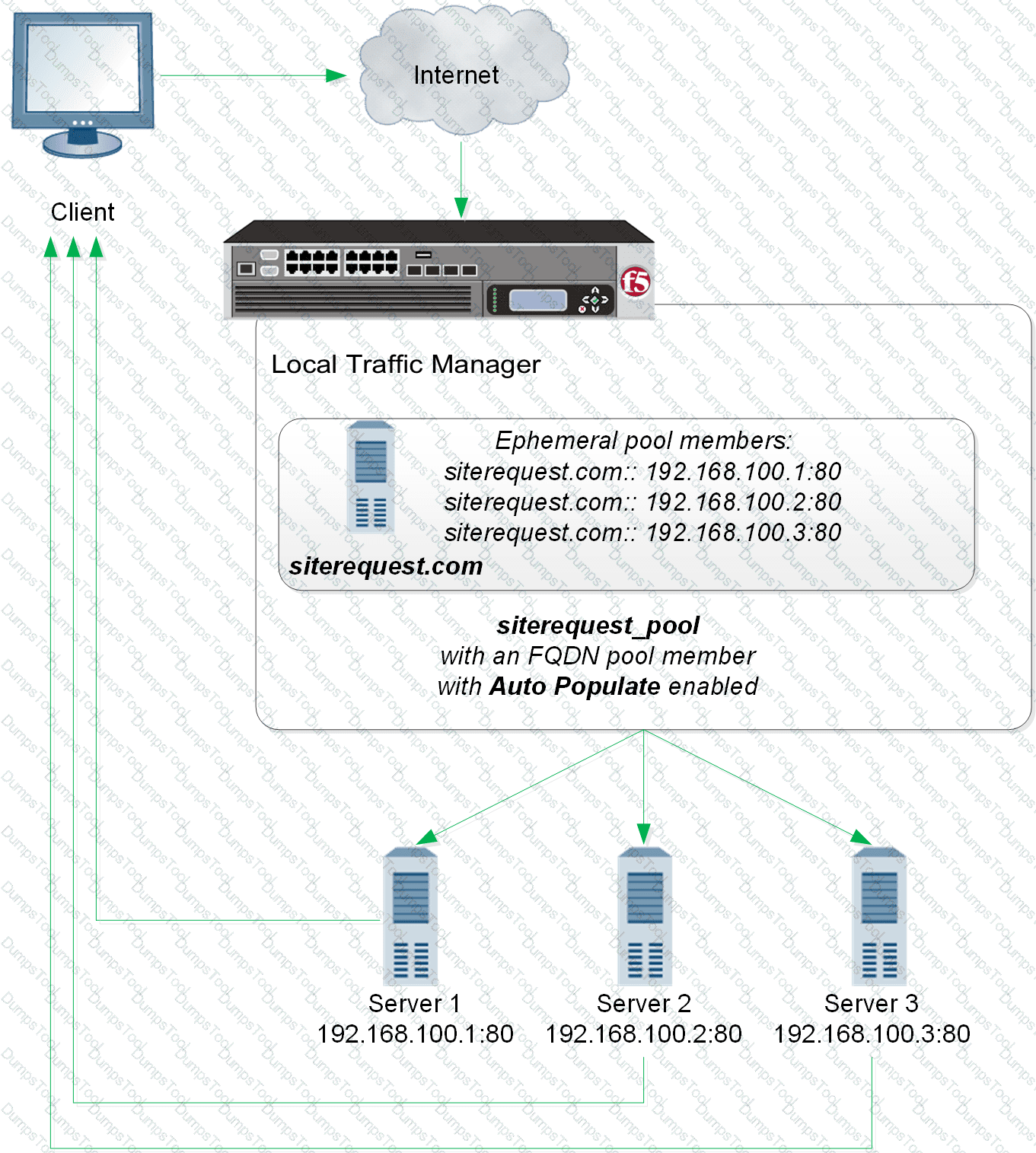

In the BIG-IP object hierarchy, the destination port for backend traffic is defined at the Pool Member level. While a Virtual Server listens on a specific port, the Pool determines where that traffic is directed after the load balancing decision is made.

Pools and Pool Members : A pool is a collection of devices, often called pool members, to which the BIG-IP system passes traffic. Each pool member is defined by an IP address and a service port.

Port Translation : When an administrator needs to change the port the BIG-IP uses to communicate with backend servers, they must navigate to the specific Pool and modify the service port for each member within that pool.

Logical Separation :

Virtual Servers define the " front-end " port where clients connect.

Pools define the " back-end " port where the application resides.

Nodes represent the physical server ' s IP address and do not contain port-specific configuration.

4647

Virtual Servers have a setting called VLAN and Tunnel Traffic which defines where the BIG-IP " listens " for new connections. 4849

Ingress Logic: A virtual server is an entry point. It must be enab 50 led on the VLAN where the Client resides. If a client is on the " 51 Internal " VLAN, the Virtual Server must be enabled there to receive the traffic.

Egress Logic: The BIG-IP system uses the TMM Routing Table and Self-IPs to reach pool members. It does not need the Virtual Server to be " enabled " on the destination VLAN (External) to send traffic there.

Default Behavior: By default, Virtual Servers are enabled on " All VLANs. " However, if restricted for security, the administrator must ensure the Virtual Server is active on the client-facing (ingress) VLAN.

A Traffic Group is a collection of related configuration objects that fail over together from one BIG-IP device to another. Only " floating " objects can be members of a traffic group.

Virtual Addresses (C): A virtual address (the IP part of a Virtual Server) is a floating object. It is assigned to a traffic group so that the entire IP moves to the standby unit during a failover.

Floating Self IPs (E): These are used as gateways for backend servers or SNAT addresses. By associating them with a traffic group, they remain reachable by the backend network regardless of which BIG-IP is currently active.

Why other options are incorrect:

iRules (A): iRules are configuration logic files; they are synchronized across devices but are not " hosted " by a traffic group.

VLANs (D): VLANs are local to the hardware interfaces/trunks of each specific device and do not fail over.

When handling high-volume UDP traffic where the BIG-IP does not need to maintain any session history or relationship between packets, a Stateless virtual server is the appropriate choice.

No Connection Tracking: A stateless virtual server does not create or maintain entries in the BIG-IP connection table. This means the system processes each packet as an individual event, without " considering previous connections " or packets from the same source.

High Performance: Because the system bypasses the overhead of state management, stateless virtual servers provide the highest possible throughput for UDP and ICMP traffic.

Use Cases: This is ideal for services like DNS (stateless queries) or some types of syslog traffic where each packet is independent and doesn ' t require the persistence or protocol inspection typically provided by a full-proxy.

Why other options are incorrect:

Forwarding: While a Forwarding (IP) virtual server can handle UDP, it still maintains a state entry in the connection table to ensure return traffic is handled correctly.

Standard: This is a full-proxy virtual server. It is inherently stateful and requires a connection table entry for every flow it manages.

Reject: This is a special virtual server type that simply drops incoming traffic and, in the case of TCP, sends a reset (RST) or, for UDP, sends an ICMP unreachable message. It is not a load balancing type.

Comprehensive and Detailed Explanation From BIG-IP Administration Data Plane Concepts/Course Guide/topics:

BIG-IP evaluates a new connection against eligible virtual servers using increasingly specific traffic-matching criteria. F5 ' s certification material states that, for BIG-IP 11.3 and later, virtual-server precedence considers destination address first, source address second, and service port third , with the most specific applicable listener taking precedence. F5, Inc.

Option B initially appears attractive because it specifies the exact destination 10.16.2.100:445. However, its source 192.168.5.1/32 restricts that virtual server to traffic originating from that single source. The actual packet originates from 10.10.1.1 , so B is not an eligible match. F5 explicitly documents that the source address setting can restrict a virtual server to packets originating from a defined address or range.

Option C is eliminated because its destination is 10.120.6.10, not 10.16.2.100. Option D is the broad catch-all forwarding virtual (0.0.0.0:any, protocol any). Option A , however, is an applicable TCP forwarding virtual for the requested traffic and is preferred over the generic catch-all forwarding listener.

Study Guide References/Topics: Virtual Server Order of Precedence; Source Address Matching; Forwarding (IP) Virtual Servers; FastL4 Processing; Virtual Server Traffic Matching.
