4A0-D03 Dumps with Practice Exam Questions Answers

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

Layer 3 EVPN multi-homing with a centralized router uses an Ethernet Segment to associate multiple leaf routers with a common external L3 attachment. The centralized router is part of that attached segment from the forwarding perspective, and the connected leaf routers advertise third-party or customer prefixes into EVPN so that remote leaves can reach those prefixes through the multi-homed attachment. For L3 EVPN, learned customer prefixes are normally advertised using EVPN route type 5, which carries IP prefix reachability. In an all-active design, remote leaf routers may load balance traffic to the customer prefix through multiple attached leaf routers because the ES next-hop allows the remote PE to understand that the prefix is reachable through a multi-homed Ethernet Segment. The false statement is that every router participating in the Ethernet Segment must be configured with all-active mode. Multi-homing mode is a design and configuration property of the EVPN PEs participating in the ES, and designs may use single-active or all-active behavior depending on redundancy and forwarding requirements. Reference: L3 EVPN multi-homing, centralized router attachment, EVPN RT-5 prefix advertisement.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

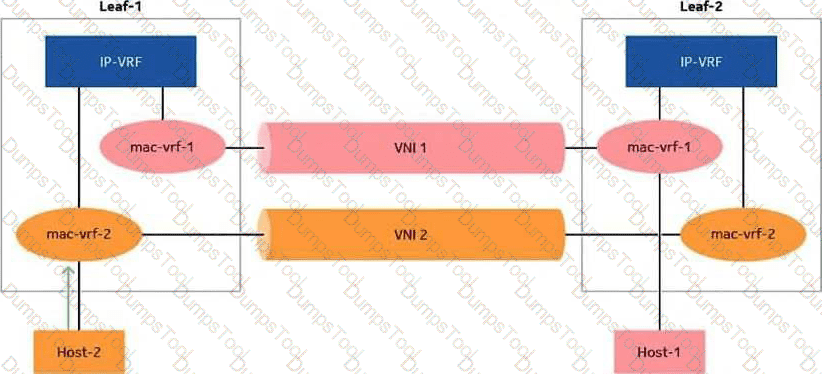

An IRB interface provides the logical L3 gateway function between a Layer 2 MAC-VRF and a Layer 3 IP-VRF on the same PE. It allows locally bridged hosts to route into the tenant IP-VRF while preserving EVPN control-plane signaling for MAC/IP reachability. The IRB subinterface must have at least one IP address because it acts as the routed gateway for the subnet, and it may also be configured with ACLs to apply traffic policy at the L3 boundary. Option B is false because it incorrectly generalizes the IRB relationship. In SR Linux EVPN service modeling, an IRB subinterface connects a MAC-VRF to an IP-VRF in a controlled one-to-one service attachment context; the design is not that both IP-VRFs and MAC-VRFs arbitrarily contain multiple IRB interfaces for the same relationship. A MAC-VRF has its IRB gateway association into the IP-VRF, and the IP-VRF may connect to multiple MAC-VRFs through distinct IRB contexts, but the statement as written is not the correct rule for IRB interface behavior. Reference: SR Linux IRB interface operation, MAC-VRF/IP-VRF interconnection, gateway IP and ACL support.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

The scenario describes Layer 3 EVPN multi-homing with an IP-VRF service and an external CE VNF advertising the 40.40.40.0/24 prefix through BGP. A DF election can occur among the leaf routers participating in the Ethernet Segment, and the active/primary forwarding node is used for the relevant service behavior. The AD per EVI route can participate in identifying service-level reachability for the Ethernet Segment, and the prefix traffic follows the valid advertised path toward the CE VNF. Because Leaf3 has the BGP connection to the CE VNF, traffic for 40.40.40.0/24 is forwarded through Leaf3. Option B is false because it incorrectly states that all connected leaf routers will use single-active redundancy. The exhibit and answer context indicate a more specific forwarding/primary selection for the service, not a blanket statement that every connected leaf operates using single-active redundancy. In L3 multi-homing, redundancy behavior depends on the ES mode, prefix advertisement, next-hop association, and CE connectivity. The forwarding decision for the customer prefix is tied to the active/valid route advertisement, not to every leaf uniformly acting as single-active. Reference: L3 EVPN multi-homing, DF election, AD per EVI role, PE-CE BGP prefix forwarding.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In a decoupled gateway-based DCI design, the data center border leaf and the WAN PE are separate devices. Traffic between them can be identified using VLAN tags, allowing different data center EVPN services to be mapped to corresponding WAN VPN services. This architecture provides a clean operational boundary: the border leaf remains aligned with the data center EVPN/VXLAN fabric, while the WAN PE handles WAN VPN transport, QoS, security policy, and service interconnection. The separation gives a strong demarcation point for troubleshooting and administrative control. Option D is false because the WAN PE does not maintain an MP-BGP EVPN peering session with the data center route reflector. In the decoupled model, the route reflector remains part of the data center EVPN control plane, while the WAN PE exchanges routing or service information with the border leaf through the local handoff model. Direct WAN PE-to-data-center-RR peering would blur the separation that defines the decoupled design and would make the WAN PE part of the data center EVPN overlay control plane, which is not the intended architecture. Reference: decoupled gateway DCI, VLAN handoff, WAN VPN mapping, security/QoS demarcation, route-reflector separation.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In SR Linux BGP configuration, parameters defined at a more specific hierarchy level can override broader protocol-level settings. Therefore, if a `local-as` value is configured within the BGP group used for EVPN MP-BGP route-reflector sessions, that value overrides the AS number configured directly under the BGP protocol for that group's sessions. Option A is correct. Option B is false because the cluster ID is configured on the route reflector, not on every participating client. The cluster ID identifies the RR cluster and helps prevent route-reflection loops. Option C is false because redundant route reflectors normally operate in parallel rather than as strict primary/backup devices; clients can peer with both for resilience. Option D is misleading because EVPN route reflectors are used to avoid a full mesh of overlay MP-BGP EVPN sessions between leaves, not to replace ordinary underlay eBGP leaf-spine routing sessions. In a clean fabric design, the underlay provides IP reachability, while the EVPN overlay uses MP-BGP sessions, often via route reflectors, to distribute tenant reachability. Reference: SR Linux BGP hierarchy, EVPN route reflector sessions, local-AS override, cluster ID behavior.

================
