Parameters Service

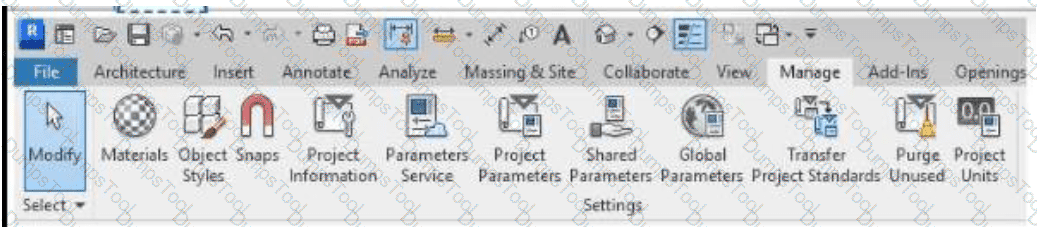

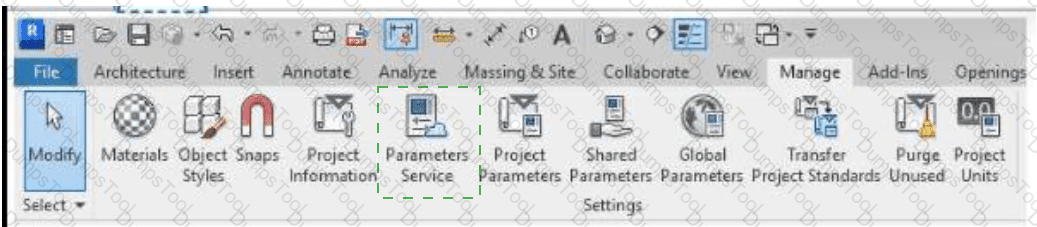

The team member should select Parameters Service on the Manage ribbon. The exhibit specifically shows this tool between Project Information and Project Parameters. The Parameters Service provides a centralized method for accessing and applying approved parameter definitions that have been made available to the organization. Because the BIM manager has already extracted the client’s custom shared parameters into that service, the project team should consume those controlled definitions from the same source.

This workflow supports parameter governance by reducing the risk of users creating duplicate parameters with similar names, selecting outdated shared-parameter definitions, or introducing parameters with incompatible identifiers, data types, disciplines, or grouping. A shared parameter is not defined solely by its displayed name; its underlying definition must remain consistent for reliable scheduling, tagging, filtering, exporting, and cross-project data exchange.

The Project Parameters tool is used to create or bind parameter definitions within a project, but it is not the designated interface for retrieving the organization’s centrally managed definitions in this scenario. The Shared Parameters command manages conventional shared-parameter files, while Global Parameters control design relationships inside a project and do not serve this data-standardization purpose.

Reference topics: Parameters Service; shared-parameter governance; centralized BIM standards; parameter consistency; project data requirements; reusable corporate content.

===============

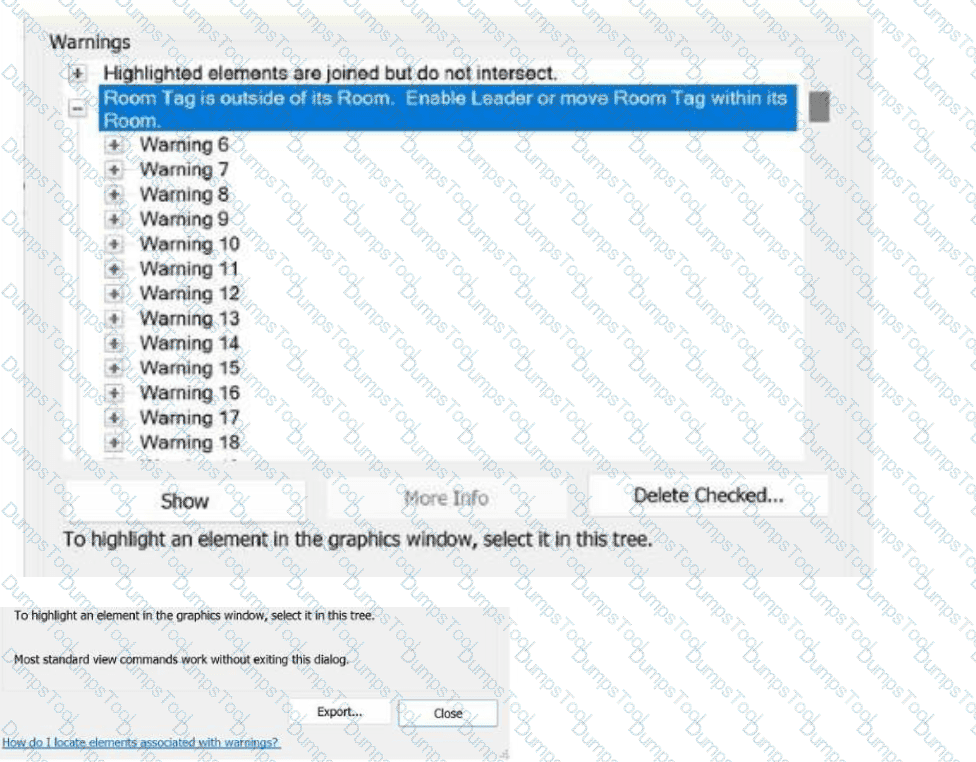

The Show function is the appropriate diagnostic action because it locates and highlights the elements associated with the selected warning in the active graphical view. The design team can then inspect each affected Room Tag, confirm the relationship between the tag and its room boundary, and determine whether the tag should be repositioned inside the room or displayed outside the room with a leader.

The warning does not necessarily indicate invalid room data. It identifies an annotation condition in which the Room Tag’s insertion point is outside the room it references. This commonly occurs where the room is narrow, irregularly shaped, crowded with documentation, or too small to contain the complete tag symbol. Each occurrence must therefore be visually assessed rather than handled through a blanket deletion or suppression process.

Export produces an external warning report for review; it does not move warnings out of the model or identify the affected annotation graphically. Close exits the dialog without investigating the condition. Delete Checked risks deleting associated model elements and is not an appropriate method for correcting annotation placement.

Using Show supports controlled warning resolution, preserves the room and tag data, and allows the team to apply a leader only where required.

Reference topics: Revit model-health review; warning management; annotation quality control; Room Tags; graphical element identification; model auditing procedures.

===============

The project requires a structured delivery plan that assigns responsibility and timing for each information exchange. The plan must define what information is required, which task team produces it, who verifies and authorizes it, the required format, the delivery milestone, and the receiving party. This is particularly important where design packages overlap and asset-data requirements must develop alongside spatial coordination rather than being added retrospectively.

A task information-delivery plan provides detailed commitments at the team level, while the consolidated information-delivery plan coordinates those commitments across the project. Together they align model production, structured data, coordination submissions, review periods, and final handover requirements.

Allowing each discipline to determine its own formats independently would produce inconsistent data structures and make late consolidation expensive and unreliable. Naming conventions are necessary but represent only one small component of information management. Postponing asset information until construction creates a high risk of missing parameters, unassigned responsibilities, incomplete records, and extensive rework.

The delivery strategy must therefore be established early and integrated with the design programme, BIM Execution Plan, client information requirements, and quality-assurance process.

Reference topics: Task Information Delivery Plans; Master Information Delivery Planning; information-exchange requirements; asset-data handover; structured data; responsibility matrices; delivery milestones.

Clash analysis is only valid when the federated inputs represent the correct model versions, include current references, and use the agreed coordinate system. Because the BIM manager has identified outdated links and local-coordinate exports, the current federation is technically unreliable. The appropriate response is to return the affected submissions to the responsible teams, require verification of model references and coordinates, and then reassemble the federation from corrected source files.

Adjusting clash tolerances would suppress or reclassify symptoms without correcting the underlying spatial and version-control defects. This could hide genuine clashes while leaving falsely positioned elements in the coordination environment. Freezing the model and asking trades to work around invalid information transfers avoidable risk into design and construction. Excluding entire models may temporarily reduce clash totals but produces an incomplete coordination dataset and should not precede a controlled correction request.

The BIM manager should validate file versions, export views, linked-model status, shared-coordinate settings, and model origin behavior before rerunning the clash matrix. Only after the federation passes these input-quality checks should coordination analysis resume.

Reference topics: Federated-model assembly; shared-coordinate verification; model-reference currency; coordination input validation; clash-detection governance; multidisciplinary model exchange.

Because the host model itself has not changed, the first investigation should focus on how the external references are being resolved. Relative paths depend on the relationship between the host file and the linked files within the project folder structure. If a folder was renamed, relocated, synchronized differently, or omitted from a distributed package, Revit may no longer locate the linked models even though the links remain correctly configured in the host.

The BIM manager should review the link status and saved paths in Manage Links , confirm that the referenced files still exist, and compare the current folder structure with the approved project structure. Access permissions, cloud synchronization status, and network availability should also be checked where applicable.

Converting all references to absolute paths would make the links dependent on a specific drive or network location and commonly causes failures for other users. Removing and reinserting links risks losing positioning, pinning, display overrides, workset assignments, and coordination history. Rebuilding the host from backup is disproportionate and does not address an external path or access failure.

Reference topics: Manage Links; relative file paths; federated-model folder structures; reference resolution; link-status troubleshooting; Common Data Environment access.

===============
