350-101 Dumps with Practice Exam Questions Answers

The command that enables web-based client authentication on the WLAN issecurity web-auth. Cisco’s Catalyst 9800 Web-Based Authentication guide shows the WLAN configuration workflow: enter WLAN configuration mode, disable WPA security for the open Layer 2 guest WLAN, then “Enable web authentication for WLAN” usingsecurity web-auth. Cisco then applies the authentication list and parameter map withsecurity web-auth authentication-list ...andsecurity web-auth parameter-map ..., which refine the WebAuth method and portal behavior after WebAuth itself is enabled.

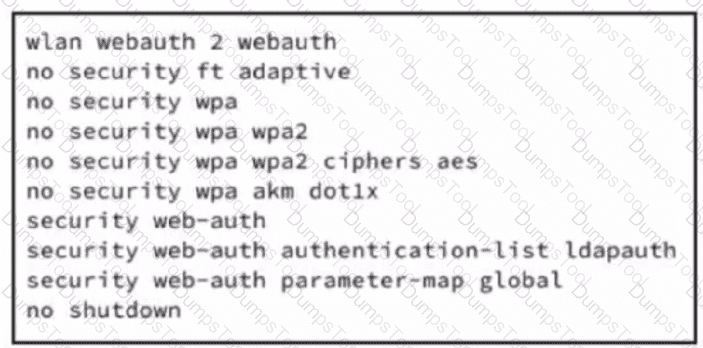

Cisco’s LDAP authentication example mirrors the exhibit exactly:wlan webauth 2 webauth, removal of WPA/802.1X Layer 2 security,security web-auth,security web-auth authentication-list ldapauth, andsecurity web-auth parameter-map global. Option B only creates or enters the WLAN profile with WLAN ID 2 and SSID name. Options C and D disable WPA2 and 802.1X AKM; they do not authenticate clients. Reference topics:Client Connectivity Configuration — guest WLAN authentication, WebAuth, Layer 3 security, authentication lists, parameter maps, and Catalyst 9800 WLAN security configuration.

The log is a Layer 2 802.1X authentication failure, not an AP join or WLAN encryption mismatch. In WPA3-Enterprise, the client authenticates with 802.1X/EAP through the configured AAA path. Cisco’s Catalyst 9800 WPA3 Enterprise configuration requires the necessary RADIUS or AAA servers and authentication lists before enabling WPA3 Enterprise, and the WLAN must reference the dot1x authentication list. Therefore, aCred Failreason points directly at the user/device credential validation path: the supplicant credentials, Active Directory identity source, RADIUS policy match, or RADIUS reachability.

Cisco’s 9800 802.1X configuration workflow also shows the controller defining a RADIUS server, adding it to a RADIUS group, creating a dot1x AAA authentication method list, and applying that list to the WLAN. It further recommends checking whether the RADIUS server is alive and using ISE RADIUS Live Logs to inspect authentication requests and results. Option A is wrong because the AP is not the supplicant in this WLAN client authentication event. Option B downgrades the security model and avoids 802.1X rather than fixing it. Option D addresses NAC behavior, not a credential authentication failure. Reference topics:Client Connectivity Configuration — WPA3-Enterprise, 802.1X/EAP, RADIUS authentication, and client authentication troubleshooting.

Cisco Catalyst Center uses its Event Notifications framework to alert operations teams when Assurance detects client, device, or wireless issues. The correct workflow is not a simple email-address entry under Issue Settings; it is an event subscription that binds selected issue events to a notification channel such as EMAIL. Cisco’s Catalyst Assurance documentation states that, when a specific Assurance issue is triggered and its status changes, Assurance can generate REST or email notifications, and the workflow opens thePlatform > Developer Toolkit > Event Notificationswindow from Manage Subscription. The same guide confirms that EMAIL is one of the supported notification channels and that the EMAIL notification details include sender, recipient, and subject fields. Cisco’s Platform User Guide also defines Event Notifications as the place to “view and subscribe to specific events” and gives the GUI path asPlatform > Developer Toolkit > Event Notifications. Therefore, option B is correct. SMTP/email destination configuration may be a prerequisite, but the required alerting action is creating the event notification subscription. Reference topics: Catalyst Center Assurance, Event Notifications, Wireless Monitoring and Management.

AI Enhanced RRM is not a static-threshold tuning feature and it is not designed to simply raise AP transmit power. Cisco defines AI Enhanced RRM as a radio resource management technology that applies artificial intelligence and machine learning to optimize RF environments, uses distributed data collection from Cisco wireless controllers with cloud-based analytics, and automates adaptive RF parameter tuning for Cisco wireless networks.

The operational model is telemetry-driven. RF telemetry is collected from APs by the Catalyst 9800 WLC, sent through Cisco Catalyst Center to the Cisco AI Analytics Cloud, analyzed by RRM algorithms, and then configuration-change information is returned through Catalyst Center toward the managed wireless infrastructure. Cisco’s AI-Enhanced RRM deployment guide further identifies DCA, TPC, FRA, and DBS as examples of optimizations performed, meaning the feature enhances dynamic RF control rather than disabling it.

Therefore, option D is the only correct answer. Options A, B, and C describe either legacy/static behavior, harmful power-only logic, or a fixed RF design model that contradicts Cisco AI Enhanced RRM. Reference topics:Automation and AI — AI/ML-driven RF optimization, Catalyst Center assurance, RRM telemetry, DCA, TPC, FRA, and DBS.

For in-depth wireless troubleshooting using a Cisco 9176 AP, the correct operational mode is thesniffer mode. This mode allows the AP to capture all RF frames, including management, control, and data frames, across all configured channels, and forward these to a remote protocol analyzer such as Wireshark. Sniffer mode is distinct from other AP modes because the AP does not serve clients in this state; its sole function is passive packet capture for analysis of interference, RF performance, and client behavior. The commandap name < ap_name > mode snifferexecuted on the WLC explicitly sets this mode.

Monitor mode (option A) is used to observe client behavior and RF environment, but it does not provide complete over-the-air packet capture. Local mode (option C) is the standard AP mode for client connectivity and normal CAPWAP operation. Rogue-detector mode (option D) is used to identify unauthorized APs and clients but does not capture traffic for external analysis.

Cisco documentation and technical guides for Catalyst APs clearly differentiate these modes, noting thatsniffer mode provides full frame capture without client services, making it ideal for troubleshooting complex wireless performance issues in high-density deployments. Reference topic:Wireless Network Operation — AP modes, sniffer mode configuration, RF troubleshooting, and protocol analyzer integration.
