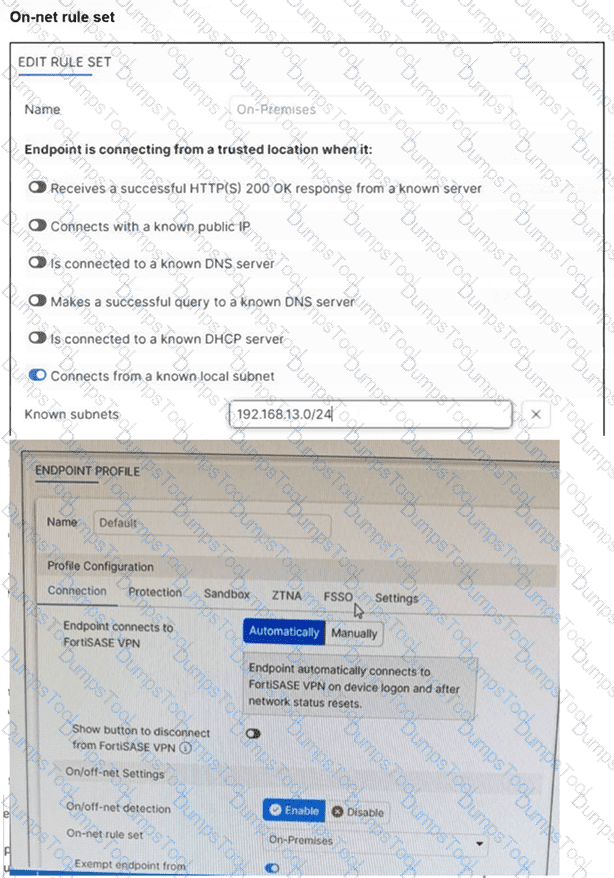

Based on the provided exhibits and the logic of FortiSASE On/off-net detection , the endpoint ' s behavior is determined by its network environment relative to the configured rules.

Subnet Matching and Detection: The On-net rule set (named " On-Premises " ) is configured to identify a trusted location when the endpoint " Connects from a known local subnet " . The administrator has defined the known subnet as $192.168.13.0/24$ . Since the endpoint ' s IP address is $192.168.13.101$ , it falls within this range. Consequently, FortiClient detects the endpoint as being on-net (on-fabric).

Action Logic (Exemption): In a FortiSASE Endpoint Profile , when On/off-net detection is enabled and an endpoint matches an " On-net " rule, the standard behavior is to exempt the endpoint from auto-connecting to the FortiSASE VPN tunnel. This design assumes the endpoint is already in a secured office environment where the corporate firewall (FortiGate) provides the necessary protection, making the SASE tunnel redundant.

Comparison of Other Options: * Option B: Incorrect, because the IP matches the defined " known local subnet " rule for on-net detection.

Option D: Incorrect, as auto-connect only triggers when the endpoint is detected as off-net to ensure remote security.

SSL deep inspection (DPI) is a critical security function that allows FortiSASE to decrypt and inspect the actual payload of encrypted traffic (such as HTTPS, SMTPS, and FTPS) to identify and block hidden threats.

The Role of the CA: For this process to occur, FortiSASE must act as a " man-in-the-middle " by intercepting the SSL session, decrypting it for inspection, and then re-encrypting it before sending it to the endpoint. 2 To re-encrypt the traffic, FortiSASE acts as a Certificate Authority (CA) and signs a new certificate for the destination website on the fly.

Certificate Types: This CA role can be fulfilled using the default self-signed certificate provided by Fortinet (typically Fortinet_CA_SSL) or a certificate issued by an organization ' s internal/private CA . Publicly trusted third-party CAs (like DigiCert or Let ' s Encrypt) do not sell CA-capable certificates that can be used for this type of inspection.

Client Machine Requirement: Because the endpoint’s browser or operating system will not natively trust a certificate signed by a private or self-signed CA, the root CA certificate must be imported into the Trusted Root Certification Authorities store on all managed client machines. Failure to do so results in persistent certificate warnings or blocked connections for the end user.

Supported Features: Once enabled, SSL deep inspection provides the necessary visibility for high-level security features to function, including Antivirus , Web Filtering , Data Loss Prevention (DLP) , File Filter , and Application Control .

Based on the provided exhibits, the reason why the Win7-Pro endpoint can no longer access the internet through FortiSASE is due to exceeding the total vulnerability detected threshold. This threshold is used to determine if a device is compliant with the security requirements to access the network.

Endpoint Compliance:

FortiSASE monitors endpoint compliance by assessing various security parameters, including the number of vulnerabilities detected on the device.

The compliance status is indicated by the ZTNA tags and the vulnerabilities detected.

Vulnerability Threshold:

The exhibit shows that Win7-Pro has 176 vulnerabilities detected, whereas Win10-Pro has 140 vulnerabilities.

If the endpoint exceeds a predefined vulnerability threshold, it may be restricted from accessing the network to ensure overall network security.

Impact on Network Access:

Since Win7-Pro has exceeded the vulnerability threshold, it is marked as non-compliant and subsequently loses internet access through FortiSASE.

The FortiSASE endpoint profile enforces this compliance check to prevent potentially vulnerable devices from accessing the internet.

When deploying FortiSASE agent-based clients, several features are available that are not typically available with an agentless solution. These features enhance the security and management capabilities for endpoints.

Vulnerability Scan:

Agent-based clients can perform vulnerability scans on endpoints to identify and remediate security weaknesses.

This proactive approach helps to ensure that endpoints are secure and compliant with security policies.

SSL Inspection:

Agent-based clients can perform SSL inspection to decrypt and inspect encrypted traffic for threats.

This feature is critical for detecting malicious activities hidden within SSL/TLS encrypted traffic.

Web Filter:

Web filtering is a key feature available with agent-based clients, allowing administrators to control and monitor web access.

This feature helps enforce acceptable use policies and protect users from web-based threats.

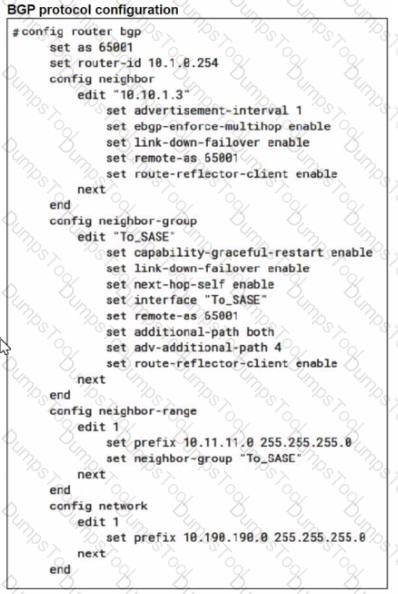

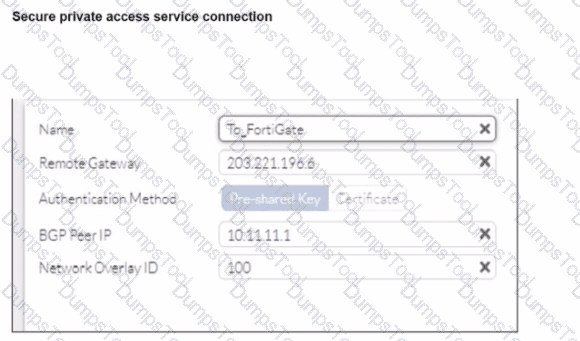

The VPN tunnel between the FortiSASE spoke and the FortiGate hub is not establishing due to the configuration of mode config, which is not supported by FortiSASE spoke devices. Mode config is used to assign IP addresses to VPN clients dynamically, but this feature is not applicable to FortiSASE spokes.

Mode Config in IPsec:

The configuration snippet shows that mode config is enabled in the IPsec phase 1 settings.

Mode config is typically used for VPN clients to dynamically receive an IP address from the VPN server, but it is not suitable for site-to-site VPN configurations involving FortiSASE spokes.

Configuration Adjustment:

To establish the VPN tunnel, you need to disable mode config in the IPsec phase 1 settings.

This adjustment will allow the FortiSASE spoke to properly establish the VPN tunnel with the FortiGate hub.

Steps to Disable Mode Config:

Access the VPN configuration on the FortiSASE spoke.

Edit the IPsec phase 1 settings to disable mode config.

Ensure other settings such as pre-shared key, remote gateway, and BGP configurations are correct and consistent with the FortiGate hub.
