H12-891_V1.0 Questions and Answers

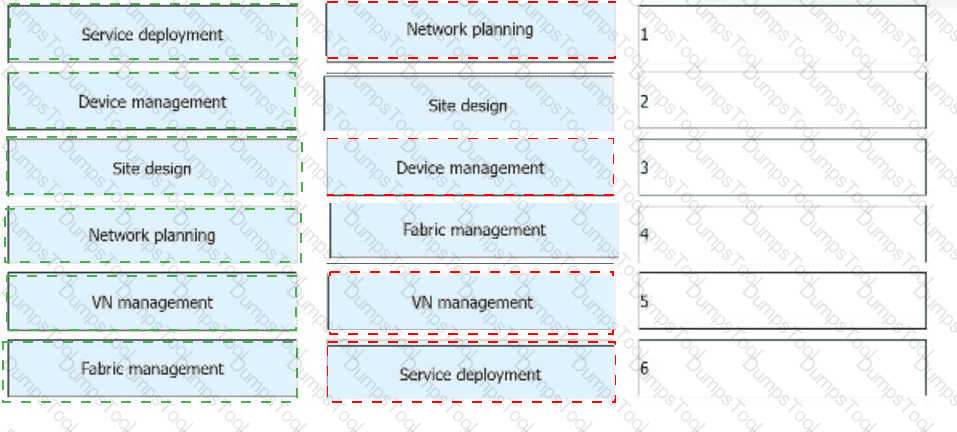

Correct Order of Steps:

1️⃣ Network planning

2️⃣ Site design

3️⃣ Device management

4️⃣ Fabric management

5️⃣ VN (Virtual Network) management

6️⃣ Service deployment

Understanding the iMaster NCE-Campus Deployment Process

???? iMaster NCE-Campus is Huawei’s AI-driven network automation and management platform for campus networks.

???? The deployment follows a structured sequence to ensure a fully operational network.

Detailed Explanation of Each Step:

✅ 1️⃣ Network Planning (First Step)

Defines the overall network architecture, topology, and business requirements.

Determines WAN, LAN, and WLAN coverage for the campus.

Ensures IP addressing, VLANs, and security policies are planned.

✅ 2️⃣ Site Design (Second Step)

Creates site layouts and determines device placement (switches, APs, routers).

Defines power, cabling, and uplink requirements for optimal connectivity.

✅ 3️⃣ Device Management (Third Step)

Onboards network devices (e.g., switches, APs, firewalls) into iMaster NCE-Campus.

Configures initial settings such as IP addresses, interfaces, and SNMP settings.

Ensures devices are registered and reachable in the management platform.

✅ 4️⃣ Fabric Management (Fourth Step)

Establishes VXLAN-based network fabric for automated Layer 2/3 connectivity.

Configures EVPN/VXLAN overlays, VTEPs, and underlay routing.

✅ 5️⃣ VN (Virtual Network) Management (Fifth Step)

Defines virtual networks (VNs) for different departments, tenants, or services.

Configures QoS, ACLs, and network segmentation policies.

✅ 6️⃣ Service Deployment (Final Step)

Activates network services like DHCP, security policies, and application access.

Ensures that end-user connectivity and application traffic policies are in place.

Why Is This the Correct Order?

✅ Each step builds upon the previous one, ensuring a smooth and structured deployment process.

✅ Service deployment comes last because it finalizes user access and application connectivity.

Real-World Application:

Enterprise Campus Networks: Deploys secure, scalable campus connectivity with AI-based automation.

University Campuses & Smart Cities: Uses SDN-driven network segmentation and automation to simplify operations.

✅ Reference: Huawei HCIE-Datacom Guide – iMaster NCE-Campus Deployment & Automation

Network Slicing Using Channelized Sub-Interfaces and FlexE

Both channelized sub-interfaces and FlexE (Flexible Ethernet) are used for network slicing, but they have different application scenarios:

✅ A. Channelized sub-interface is recommended for interfaces with bandwidth < 50 Gbit/s.

Channelized sub-interfaces split a physical interface into multiple logical sub-interfaces.

Best for lower-bandwidth links ( < 50 Gbit/s).

✅ B. FlexE is recommended for 50GE and higher-rate interfaces.

FlexE divides a high-bandwidth physical link (e.g., 100GE, 400GE) into multiple virtual slices.

Used in high-speed backbone and data center networks.

✅ C. Only FlexE-based network slicing can be deployed across OTN devices.

FlexE is compatible with Optical Transport Network (OTN) and can be used for long-haul slicing across OTN.

❌ D. Only channelized sub-interface-based network slicing can be deployed across MSTP devices.

Incorrect! While MSTP supports channelized interfaces, FlexE is not restricted to MSTP deployment.

Reference from Huawei HCIE-Datacom Documentation:

Huawei FlexE Technology Whitepaper – Network Slicing in Transport Networks

HCIE-Datacom Training Material – Channelized Sub-Interface and FlexE in Network Slicing

Comprehensive and Detailed Explanation:

✔ Huawei OPS (Open Programmability System) follows RESTful API principles, using HTTP methods for device management.

✔ HTTP Methods Used in OPS:

✅ GET → Retrieves data from the device.

✅ POST → Creates new data/configurations.

✅ PUT → Replaces entire configuration objects.

✅ PATCH → Updates specific fields of a configuration object. ✅ (Correct Answer)

Since PATCH is used for modifying specific values in managed objects, the correct answer is D.

???? Reference: Huawei HCIE Datacom – RESTful API Operations in Huawei OPS

Understanding 802.1X Authentication in Enterprise Networks

???? What is 802.1X?

802.1X is a network access control (NAC) protocol that enforces authentication before allowing a device to connect to a LAN.

It uses EAP (Extensible Authentication Protocol) over RADIUS for user verification.

Typically deployed in corporate and campus networks for secure wired and wireless access.

???? How Does 802.1X Work?

1️⃣ Client (Supplicant) → Requests network access.

2️⃣ Switch (Authenticator) → Forwards request to RADIUS server.

3️⃣ RADIUS Server → Verifies credentials & grants access.

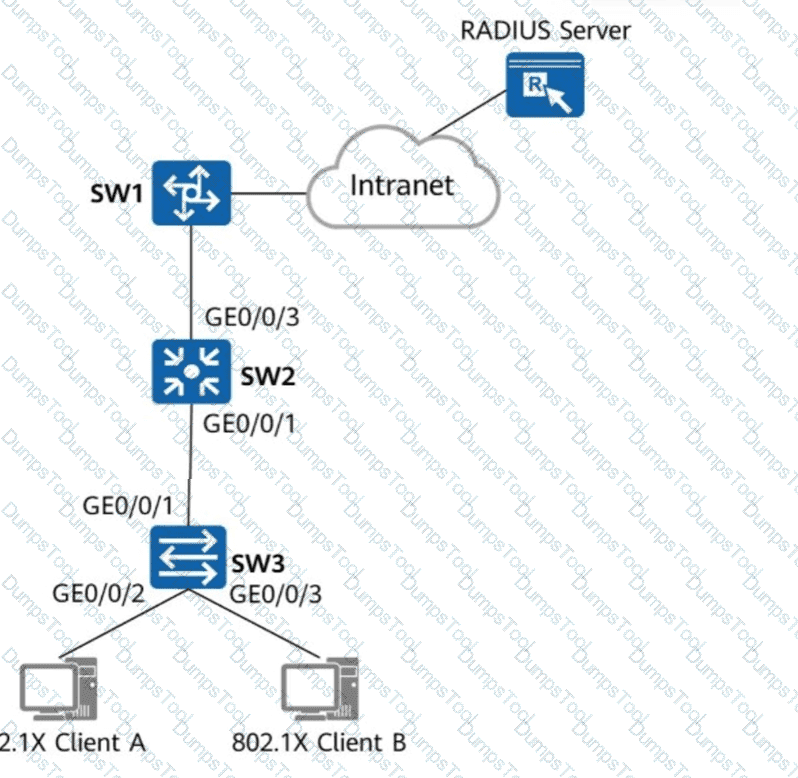

Mandatory Steps to Enable 802.1X on SW3

✅ A. Configure an AAA Scheme

Defines authentication, authorization, and accounting (AAA) methods.

Links 802.1X authentication to the RADIUS server.

✅ B. Configure an Authentication Profile

Specifies how authentication is handled on the switch.

Associates 802.1X authentication with an AAA scheme.

✅ C. Configure an Authentication Domain

Groups authentication policies for different user types.

Maps AAA scheme to user login requests.

✅ D. Configure an 802.1X Access Profile

Applies 802.1X authentication to specific switch ports (GE0/0/2 & GE0/0/3).

Ensures that only authenticated users can pass traffic.

Why Are All Four Steps Necessary?

✅ Each step plays a critical role in enabling 802.1X authentication and linking it to the RADIUS server.

✅ Without any one of these configurations, the 802.1X authentication process would fail.

Real-World Application:

Enterprise Wired Security: Ensures that only authenticated devices access corporate networks.

University Campuses & Public Wi-Fi: Prevents unauthorized access to secure LAN environments.

✅ Reference: Huawei HCIE-Datacom Guide – 802.1X Authentication & RADIUS Server Configuration

Understanding L3VPNv4 Over SRv6 BE

???? What is L3VPNv4?

L3VPNv4 (Layer 3 VPN over IPv4) allows MPLS-based VPN services over an SRv6 backbone.

Uses MP-BGP (Multiprotocol BGP) to distribute VPN routes.

???? Why is an RR (Route Reflector) Needed?

An RR simplifies BGP route exchange between multiple PEs (Provider Edge routers).

Without proper configuration, RRs may filter VPNv4 routes, preventing PEs from learning routes correctly.

Why is the Command peer retain-route-target all Needed?

✅ Ensures that the RR retains all VPNv4 routes.

✅ Prevents the RR from filtering route targets (RTs), allowing full VPN reachability.

✅ Without this command, the RR might not reflect all VPNv4 routes, causing connectivity issues.

Real-World Application:

Enterprise MPLS VPNs: Ensures correct BGP route reflection in an SRv6-based L3VPN.

Carrier Networks: Helps service providers maintain full BGP VPN route distribution.

✅ Reference: Huawei HCIE-Datacom Guide – BGP Route Reflectors in L3VPN over SRv6

An IPsec Security Association (SA) includes the following critical components:

SPI (Security Parameter Index)

Destination IP address

Security Protocol (AH or ESP)

Encryption/Authentication algorithms

The Source IP address is not a defining parameter of an SA. SA is unidirectional and identified based on the SPI and destination address.

Exact Extract - Huawei Security Configuration Guide – IPsec Fundamentals:

“An SA is uniquely identified by the SPI, destination IP, and security protocol. The source address is not a determining factor in the SA.”

Understanding VGMP (Virtual Gateway Management Protocol)

???? What is VGMP?

VGMP (Virtual Gateway Management Protocol) is used in Huawei firewalls to manage hot standby (HRP - Hot Standby Routing Protocol).

Ensures that the active and standby firewalls synchronize their states for high availability.

???? How Does VGMP Work?

The Active and Standby firewalls exchange VGMP packets to maintain state synchronization.

These packets are encapsulated within UDP for transport.

The default UDP port for VGMP is 512.

Why is the Answer 512?

✅ Huawei firewalls use UDP port 512 by default for VGMP communication.

✅ This ensures that VGMP heartbeats and synchronization messages are correctly processed.

Real-World Application:

Enterprise Firewalls: VGMP ensures failover between active and standby firewalls.

Carrier-Grade Firewalls: Uses VGMP with HRP to achieve zero-downtime firewall redundancy.

✅ Reference: Huawei HCIE-Datacom Guide – VGMP and HRP High Availability Mechanisms

Comprehensive and Detailed In-Depth Explanation:

During a network migration test, it is crucial not only to verify that the network itself is functioning correctly but also to ensure that upper-layer application services are running properly on the newly migrated network. Migration testing aims to confirm that the transition has not disrupted service functionality.

Option A and C focus solely on network performance, which is necessary but insufficient.

Option B refers to command outputs, which are technical checks and do not guarantee service continuity.

Option D correctly identifies that successful migration is indicated by proper operation of upper-layer application services, as the primary purpose of a network is to support these applications.

Comprehensive and Detailed Explanation:

✔ Analyzing the Python Code:

✅ (A) Correct → print(r.json()) prints the response JSON, showing the token ID.

✅ (B) Correct → The token request URL is correctly specified.

✅ (D) Correct → json={ " userName " : nbi_name, " password " : nbi_pwd} confirms the request body is in JSON format.

❌ (C) Incorrect:

The request uses POST, not GET (requests.post() is explicitly called).

???? Reference: Huawei HCIE Datacom – RESTful API Authentication in iMaster NCE

In hot standby (active-active/load balancing) scenarios, Quick Session Backup is critical. This function ensures that session entries are immediately synchronized between firewalls to handle asymmetric traffic (where return traffic goes through a different firewall than the forward traffic).

Without it, the return packet may be dropped due to missing session information on the alternate firewall.

Exact Extract - HCIE-Datacom Security Module:

“When VGMP is in load balancing mode, quick session backup must be enabled to prevent traffic loss due to inconsistent forward and return paths.”

Comprehensive and Detailed Explanation:

✔ iMaster NCE-WAN provides a RESTful API for integration with third-party applications and network automation platforms.

✔ Why RESTful API?

Uses HTTP/HTTPS for communication.

Supports JSON and XML data formats.

Enables orchestration, monitoring, and automation.

✔ Why Not Other Options?

❌ (A) NETCONF → Used for device-level configuration, not northbound APIs.

❌ (B) SNMP → Used for network monitoring, not northbound integration.

❌ (C) CLI → Used for manual command execution, not API communication.

???? Reference: Huawei HCIE Datacom – iMaster NCE-WAN Northbound API

When port security is enabled and the maximum number of learned MAC addresses is reached, the switch can trigger multiple security actions depending on configuration:

Discard packets with unknown source MACs

Generate alarms

Shut down the port (set to error-down)

Do all the above combined (default behavior)

The most comprehensive and commonly configured behavior is error-down + alarm generation, which corresponds to Option D.

Exact Extract - Huawei HCIE-Datacom Switching Guide:

“When the MAC address limit is reached on a port with port security enabled, the system can generate alarms and set the port to error-down state based on security policies.”

Comprehensive and Detailed Explanation:

BGP EVPN Type 3 routes are used for VXLAN ingress replication and BUM (Broadcast, Unknown unicast, and Multicast) traffic forwarding.

✔ Type 3 routes contain L2VNIs, not L3VNIs → (C is incorrect)

Key Functions of Type 3 Routes:

Distribute VTEP IP addresses to establish VXLAN tunnels.

Include L2VNIs for mapping Layer 2 broadcast domains.

Used in Ingress Replication for BUM traffic.

Since Type 3 routes do not carry L3VNIs, the correct answer is C.

???? Reference: Huawei HCIE Datacom – BGP EVPN Type 3 Routes

Comprehensive and Detailed Explanation:

✔ HTTP Status Code 401 Unauthorized indicates that authentication credentials were either:

Missing (e.g., no API key or token).

Invalid (e.g., expired session, incorrect credentials).

✔ Error Code Breakdown:

✅ (D) " Unauthorized " (Correct) → Indicates the client must authenticate first.

❌ (A) " Service Unavailable " (503) → Used when the server is down.

❌ (B) " Access Denied " (403) → Used when the client lacks permission even after authentication.

❌ (C) " Not Found " (404) → Used when the resource does not exist.

???? Reference: Huawei HCIE Datacom – iMaster NCE-Campus RESTful API Error Codes

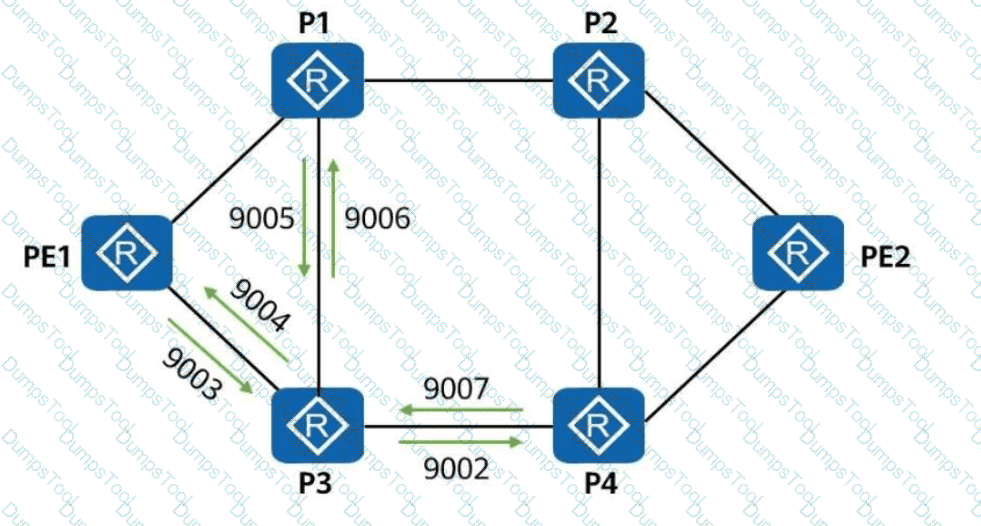

In OSPF-based SR-MPLS TE, Adjacency Segment Identifiers (Adj-SIDs) are locally assigned by each router for its directly connected interfaces. These labels are allocated from the Segment Routing Local Block (SRLB) configured on the router. By default, Huawei routers use an SRLB range starting at 9000, and Adj-SIDs are assigned sequentially (e.g., 9000, 9001, 9002, etc.) to each adjacency.

For P3, adjacency labels correspond to its outgoing interfaces. Assuming P3 has two adjacencies (e.g., to P2 and P4, as inferred from typical network topologies), it will allocate two unique Adj-SIDs from its SRLB. Based on Huawei’s implementation:

The first adjacency (e.g., to P2) is assigned the next available label in the SRLB (e.g., 9002).

The second adjacency (e.g., to P4) is assigned the subsequent label (e.g., 9003).

Analysis of Options:

Option B (9002): Likely assigned to P3’s first adjacency (e.g., link to P2).

Option C (9003): Likely assigned to P3’s second adjacency (e.g., link to P4).

Option A (9006) and D (9005): These labels are likely allocated by other routers (e.g., P4 or P5), as they fall outside the sequential range assigned by P3.

Key Points:

Adj-SIDs are local to the router and do not conflict with labels from other nodes.

The sequential allocation depends on the SRLB configuration. If the SRLB starts at 9000, labels 9000 and 9001 may be reserved for other purposes (e.g., node SIDs or reserved blocks), leaving 9002 and 9003 for adjacency labels.

Conclusion: P3 allocates 9002 and 9003 for its two adjacencies. Thus, B and C are correct.

Comprehensive and Detailed Explanation:

Port isolation is a feature used to enhance security and network segmentation by restricting communication between certain switch ports at Layer 2 while allowing them to communicate through Layer 3.

Layer 2 Communication: Devices within the same VLAN can communicate with an upstream gateway or router.

Layer 3 Isolation: Devices cannot communicate directly at Layer 2 but must pass through a Layer 3 device (e.g., a router or firewall).

Use Case: Typically used in enterprise networks, hotel networks, and campus networks to prevent unwanted direct communication between clients.

Thus, the statement is correct, and the answer is TRUE.

???? Reference: Huawei HCIE Datacom Official Guide - Ethernet Port Isolation

EVPN Route Types:

Type 1 (MAC/IP Advertisement Route): Advertises host MAC and IP information — used.

Type 2 (MAC/IP Advertisement Route): Advertises MAC + IP binding for end hosts — used.

Type 3 (Inclusive Multicast Ethernet Tag Route): Used to advertise VXLAN multicast group info — used.

Type 4 (Ethernet Segment Route): Used in multi-homing scenarios, especially in DC (data center) environments, to coordinate DF election — typically not used in campus VXLAN.

So in campus virtualized networks, which are often single-homed, Type 4 is not required.

Correct answer: C. Type 4

Comprehensive and Detailed In-Depth Explanation:

In MPLS (Multi-Protocol Label Switching), the label retention mode determines how an LSR (Label Switching Router) handles labels received from its neighbors:

Liberal Mode:

An LSR retains all labels distributed by its neighbors, not just the labels from the next-hop LSR.

This approach ensures faster convergence because the LSR does not need to request new labels if the next hop changes.

It does not save memory or label space, as it stores more labels than strictly necessary.

Conservative Mode:

An LSR only retains labels from its next-hop neighbors, saving memory and label space.

Statements C and D are correct because they accurately describe liberal mode.

Statements A and B are incorrect because they describe conservative mode.

Comprehensive and Detailed Explanation:

✔ Huawei OPS (Open Programmability System) is a YANG-based network management system that uses RESTful APIs for configuring and managing devices.

✔ /ifm/interfaces/interface is the RESTful URI (Uniform Resource Identifier) that:

Represents an interface object in the network device.

Allows querying, configuring, and modifying network interfaces via API requests.

Since the statement is correct, the answer is TRUE.

???? Reference: Huawei HCIE Datacom – OPS API and Managed Objects

MPLS Positioning in the TCP/IP Model

MPLS (Multiprotocol Label Switching) operates between the Data Link Layer (Layer 2) and the Network Layer (Layer 3).

✅ MPLS is protocol-independent and supports various network layer protocols (IPv4, IPv6, VPN, etc.) by using labels instead of traditional IP routing.

✅ How MPLS Works:

MPLS assigns labels to packets, allowing fast forwarding based on the label rather than a routing table lookup.

Supports Layer 3 VPNs (L3VPNs), Layer 2 VPNs (L2VPNs), and MPLS Traffic Engineering (MPLS-TE).

✅ Why MPLS is Between Layer 2 and Layer 3?

MPLS adds a label between the Layer 2 (Ethernet, PPP) and Layer 3 (IP) headers, effectively creating a separate forwarding mechanism.

Label Switching Routers (LSRs) forward packets based on labels instead of IP addresses, reducing processing time.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS Technology Guide – MPLS Architecture and Label Switching

HCIE-Datacom Study Material – MPLS Positioning and Functionality in TCP/IP

Understanding BGP EVPN Route Types for VXLAN

???? BGP EVPN (Ethernet VPN) is used for VXLAN control-plane learning.

✅ EVPN Type 2 Route (MAC/IP Advertisement)

Carries: MAC + Host IP

Used for: L2 forwarding, Host Mobility

✅ EVPN Type 5 Route (IP Prefix Advertisement)

Carries: Network segment (Subnet) + Prefix

Used for: VXLAN L3 routing

???? What Do the Given Route Entries Show?

0:172.16.2.0/24

0:172.16.13.0/24

0:192.168.122.0/30

???? These are IPv4 Subnets, NOT individual MACs.

???? Since they carry IP Prefixes, they belong to EVPN Type 5.

Analysis of the Answer Choices:

✅ A. These routes are Type 5 routes and carry network segment or mask information.

Correct: The displayed routes carry network prefixes, which belong to EVPN Type 5.

❌ B. These routes are Type 2 routes and carry host IP addresses.

Incorrect: Type 2 routes carry MAC + Host IP, NOT full subnets.

❌ C. These routes carry the L2VNI.

Incorrect: L2VNI is for Layer 2 VXLAN bridging, but these are IP Prefix Routes (L3 routing).

✅ D. These routes carry the L3VNI.

Correct: Type 5 routes are used for VXLAN L3 routing, which means they belong to L3VNI.

Real-World Application:

VXLAN L3 Gateways: Type 5 routes enable distributed routing between VXLAN segments.

Data Center Networks: Used to interconnect virtual machines (VMs) across different subnets.

✅ Reference: Huawei HCIE-Datacom Guide – BGP EVPN & VXLAN L3 Routing

Comprehensive and Detailed Explanation:

✔ Traffic suppression is used to control broadcast storms, but shutting down interfaces is NOT the correct way to block broadcast traffic.

✔ Correct Statements:

✅ (B) Intranet security covers both wired and wireless networks.

✅ (C) CAPWAP tunnels use DTLS encryption for security.

✅ (D) Wireless security requires air interface protection against attacks.

???? Reference: Huawei HCIE Datacom – Intranet Security Design

Huawei’s OPS (Open Programmability System) enables programmable interactions with devices through Python-based templates. In Huawei ' s OPS Python environment:

The class OPSConnection is used to manage device interactions.

It includes methods like:

get()

post(self, uri, req_data) → used to create resources

put(), delete(), etc.

This aligns with RESTful API semantics, and the post() method in the context given is used correctly.

Correct answer: A. TRUE

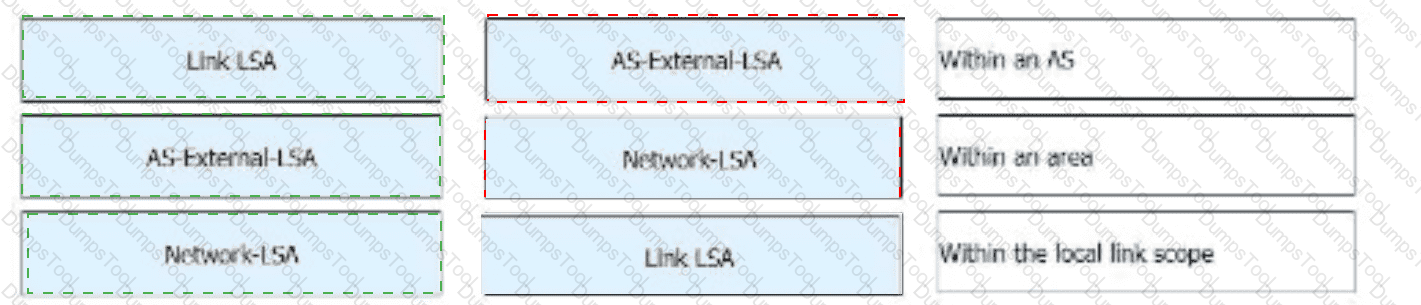

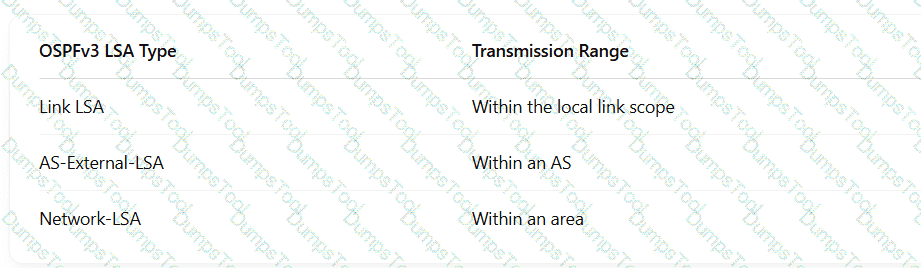

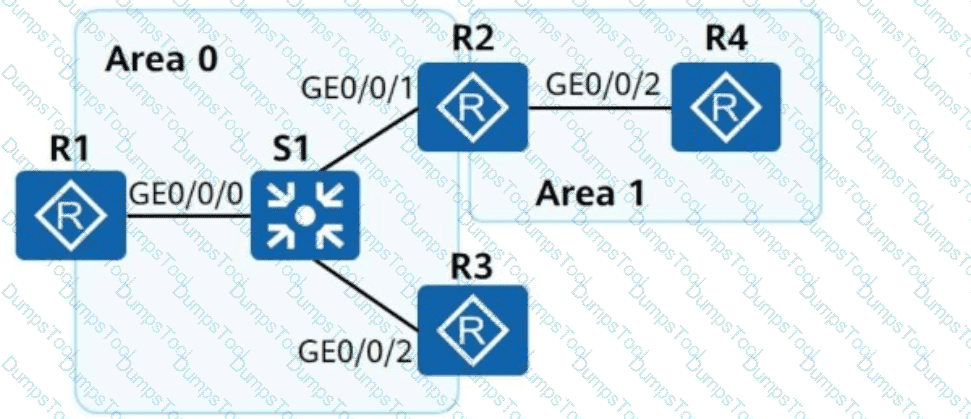

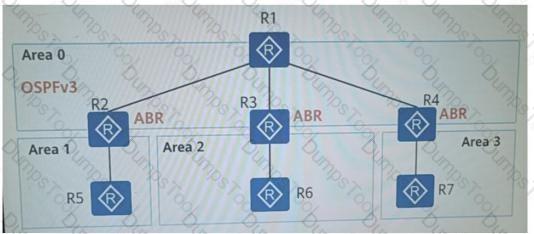

Link-LSA (Type 8) in OSPFv3 performs the following:

Advertises the router’s link-local address to neighbors.

Advertises the router’s interface ID on the link.

Carries IPv6 prefixes associated with the interface (since Router LSA no longer does this in OSPFv3).

The Options field in Link-LSA contains capabilities of the originating router, not the options from Network-LSA.

So, Option D is incorrect — the Link-LSA does not advertise options from the Network-LSA.

Correct answer: D

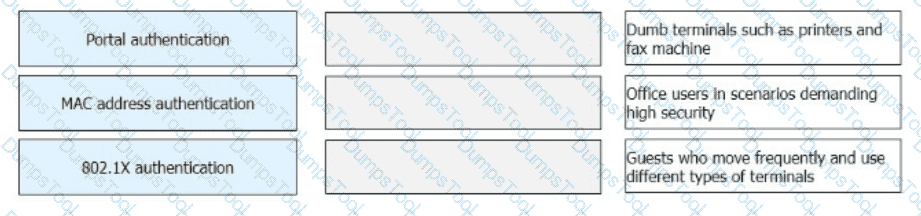

802.1X Authentication Overview

802.1X is a port-based authentication mechanism used for secure network access control. It involves:

EAPoL (Extensible Authentication Protocol over LAN) communication between the client (supplicant) and the switch (authenticator).

RADIUS communication between the authenticator and the authentication server (AAA server).

✅ A. 802.1X authentication uses EAPoL to exchange authentication information.

EAPoL (Extensible Authentication Protocol over LAN) is used to send authentication packets over Ethernet (IEEE 802.3) networks.

✅ B. In EAP termination mode, the network device terminates EAP packets and re-encapsulates them into RADIUS.

The switch acts as an authentication proxy by terminating EAP sessions and converting authentication information into RADIUS format.

✅ C. EAPoL is for wired (802.3), EAPoW is for wireless (802.11).

EAPoL (EAP over LAN) is used in wired Ethernet networks.

EAPoW (EAP over Wireless) is used in Wi-Fi (802.11) networks.

✅ D. In EAP relay mode, EAP packets are encapsulated into RADIUS using EAPoR (EAP over RADIUS).

The switch does not terminate the EAP session but instead forwards EAP messages to the AAA server inside RADIUS packets.

Reference from Huawei HCIE-Datacom Documentation:

Huawei 802.1X Configuration Guide – EAPoL, EAPoW, and EAPoR

HCIE-Datacom Training Material – AAA Authentication Modes

Comprehensive and Detailed Explanation:

✔ iMaster NCE-WAN is the centralized SD-WAN controller that:

Manages SD-WAN network devices (CPEs, routers).

Optimizes traffic steering using AI-driven policies.

Enables automation, security, and analytics.

Thus, the statement is TRUE.

???? Reference: Huawei HCIE Datacom – SD-WAN Architecture

Huawei SD-WAN establishes secure tunnels between SD-WAN edge devices (CPEs, AR routers, and controllers) using tunneling protocols.

✅ B. GRE over IPsec (Correct Answer)

GRE (Generic Routing Encapsulation) over IPsec is the primary tunneling method used in Huawei SD-WAN.

GRE provides multi-protocol encapsulation, while IPsec ensures encryption and security.

Used for secure communication over public WAN links (e.g., the internet, LTE, MPLS, etc.).

Comprehensive and Detailed In-Depth Explanation:

An NVE (Network Virtualization Edge) interface is responsible for connecting physical or virtual devices to a VXLAN network. It functions as the VTEP (VXLAN Tunnel Endpoint) and supports encapsulation and decapsulation of VXLAN packets.

Layer 2 VXLAN gateway (D) is used for intra-subnet communication, but the NVE interface is the actual point where traffic enters the VXLAN network.

Layer 3 VXLAN gateway (A) is used for inter-subnet communication.

VLANIF interface (C) is used for VLAN-based communication, not directly for VXLAN.

Therefore, the NVE interface (B) is the correct answer as it serves as the traffic ingress and egress point for the VXLAN network.

IS-IS was originally designed for IPv4, but extensions via TLVs (Type-Length-Value) allow it to support IPv6. These are referred to as New IS-IS TLVs, including TLV 236 (IPv6 Reachability), TLV 232 (IPv6 Interface Address), etc. These TLVs are crucial for IPv6 route computation within IS-IS.

Exact Extract - HCIE-Datacom Guide – IPv6 Routing Protocols Chapter

“IS-IS uses new TLVs such as TLV 236 and TLV 232 to carry IPv6 prefix and interface address information. These TLVs are essential to enable IPv6 route calculation.”

VRRP (Virtual Router Redundancy Protocol) and Flapping

VRRP ensures gateway redundancy by allowing multiple routers to work together as a virtual router. Flapping occurs when the master and backup routers frequently switch roles.

Causes of VRRP Flapping:

✅ A. Too small interval between Advertisement packet transmissions – Can cause flapping

If the Advertisement interval is too short, frequent VRRP state changes can occur.

✅ C. Packet loss on an interface of the backup device – Can cause flapping

If the backup router loses VRRP packets, it might assume the master is down and initiate an election.

✅ D. Flapping on the link transmitting VRRP Advertisement packets – Can cause flapping

If the link used for VRRP experiences instability, packets may be lost, triggering VRRP role changes.

Incorrect Answer Explanation:

❌ B. Inconsistent preemption delay settings – Does NOT cause VRRP flapping

Preemption delay only affects when a router takes over as master after recovering from a failure.

It does not directly cause flapping because the role change happens only after a delay, preventing frequent transitions.

Reference from Huawei HCIE-Datacom Documentation:

Huawei VRRP Configuration Guide – Preventing VRRP Flapping

HCIE-Datacom Study Material – VRRP Timers and Stability

✔ TI-LFA (Topology Independent Loop-Free Alternate) is an enhanced Fast Reroute (FRR) mechanism used in SR-MPLS networks.

✔ How TI-LFA Works:

A virtual node is created, aggregating multiple route advertisements.

Backup paths are precomputed using Segment Routing (SR) SIDs.

When a link failure occurs, traffic is rerouted in < 50ms without waiting for IGP convergence.

???? Reference: Huawei HCIE Datacom – TI-LFA and SR-MPLS TE Protection

To configure an SR-MPLS TE tunnel based on OSPF, all four options are mandatory:

A. Configure the LSR ID – LSR ID is required as the unique identifier of the router in MPLS and TE.

B. Enable segment routing in the OSPF process view – Needed to advertise segment information (SID).

C. Enable the opaque capability – Opaque LSAs are used to carry SR and TE information in OSPF.

D. Enable MPLS TE in the OSPF process view – Ensures that TE-related attributes (e.g., bandwidth) are advertised in OSPF LSAs.

Exact Extract - Huawei HCIE-Datacom SR-MPLS TE Configuration Guide:

“To support SR-MPLS TE over OSPF, it is necessary to configure the LSR ID, enable SR and MPLS TE capabilities in OSPF, and activate the OSPF opaque capability for carrying TE and SR attributes.”

MP-BGP is an extension of BGP-4 that supports multi-protocol address families such as IPv6, VPNv4, etc. When PE and CE exchange BGP routes, there is no need to create a BGP process per VPN on the CE. The CE typically runs a standard BGP process, while the PE maintains separate VPN routing tables (VRFs).

Exact Extract - Huawei HCIE-Datacom MP-BGP Chapter:

“CE devices use standard BGP, and multiple VPNs can share the same BGP process on the CE. The PE handles VPN route separation through VRFs and MP-BGP.”

Understanding BGP Link State (BGP-LS)

???? What is BGP-LS?

BGP-LS (BGP Link-State) is an extension of BGP that allows routers to exchange network topology information via Link-State NLRI.

Helps SDN controllers and path computation elements (PCEs) make intelligent routing decisions.

???? What Does BGP-LS Advertise?

✅ Node Information – Router IDs, Loopbacks

✅ Link Information – Bandwidth, Delay, Cost

✅ Prefix Information – Network Subnets

✅ Topology Information – Full network graph

Why is the Answer TRUE?

✅ BGP-LS introduces a new NLRI format for advertising link-state information.

✅ NLRI (Network Layer Reachability Information) is used to distribute topology data to SDN controllers.

✅ It improves path optimization by enabling centralized traffic engineering decisions.

Real-World Application:

SDN-Based Traffic Engineering: Used in Segment Routing (SR) networks for centralized path selection.

MPLS TE (Traffic Engineering): Optimizes network paths dynamically based on real-time link-state data.

✅ Reference: Huawei HCIE-Datacom Guide – BGP Link-State (BGP-LS) Fundamentals

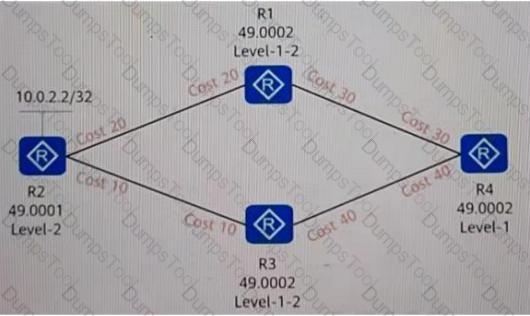

Analyzing the Routing Table Output:

The command display ipv6 routing-table protocol isis shows all IPv6 routes learned via IS-IS.

The output shows " Summary Count: 6 " , meaning R1 has six IS-IS IPv6 routes.

Explanation of Correct Answers:✅ A. R1 has six IS-IS IPv6 routes.

The " Summary Count: 6 " confirms that six IS-IS IPv6 routes exist in R1 ' s routing table.

✅ C. IS-IS IPv6 must have been enabled on GigabitEthernet0/0/1 of R1.

The interface GigabitEthernet0/0/1 is listed as the next-hop, meaning IS-IS IPv6 must be enabled on that interface.

✅ D. R1 is not a Level-1 device.

The protocol is listed as " ISIS-L2 " , indicating that R1 is an IS-IS Level-2 (backbone) router, not a Level-1 router.

Incorrect Answer Explanation:❌ B. R1 does not have IS-IS IPv6 routes.

Wrong! The output clearly shows six IS-IS IPv6 routes, proving this statement false.

Reference from Huawei HCIE-Datacom Documentation:

Huawei IPv6 Routing Protocols Guide – IS-IS for IPv6

HCIE-Datacom Routing & Switching Training – IS-IS L1 & L2 Operations

Huawei IS-IS Configuration Guide – IPv6 Route Management

Huawei’s SD-WAN solution offers a full suite of application optimization technologies, including:

Application identification: Uses DPI and traffic signatures to identify applications.

Intelligent traffic steering: Dynamically routes traffic based on application type and real-time link performance.

WAN optimization: Reduces latency, deduplicates traffic, and optimizes throughput for key apps.

QoS: Prioritizes critical applications and ensures bandwidth guarantees.

All listed options are part of the Huawei SD-WAN solution for optimizing user experience and application performance.

Correct answers: A, B, C, D

Comprehensive and Detailed In-Depth Explanation:

OSPFv3, which supports IPv6, uses a router ID that is 32 bits in length, similar to OSPFv2. The router ID in OSPF is always a 32-bit number, typically represented in an IPv4 address format (dotted decimal). Although OSPFv3 is designed to support IPv6, it still relies on a 32-bit router ID for identification, which must be unique within an OSPF domain. The router ID does not change even though the protocol itself supports IPv6 addresses (128 bits).

Comprehensive and Detailed Explanation:

✔ Fit APs require additional configurations before going online, such as:

AP authentication and onboarding through DHCP Option 148 or manual registration.

Firmware upgrade and provisioning from iMaster NCE-Campus.

Policy enforcement and VLAN assignment.

Since additional steps are required, Fit APs do not go online immediately, making the statement FALSE.

???? Reference: Huawei HCIE Datacom – AP Registration and Authentication

In firewall hot standby (HRP - Hot Standby Routing Protocol) mode, certain data can be synchronized between the active and standby firewalls to ensure uninterrupted service.

The following data is backed up:

✅ Server mapping table: Contains information about NAT mappings and other session mappings.

✅ AAA user table (excluding the default user admin): Ensures that authenticated users do not need to re-authenticate in case of failover.

✅ Session table: Ensures that existing connections remain active when switching to the standby firewall.

❌ Dynamic MAC address table is NOT backed up because it is dynamically learned and not relevant to firewall session synchronization.

✅ Reference: Huawei HCIE-Datacom Guide - Firewall HRP Synchronization

NETCONF architecture consists of the following conceptual layers:

Secure Transport Layer – Ensures confidentiality (e.g., SSH, TLS)

Messages Layer – Handles framing and encoding (XML-based)

Operations Layer – Includes < get > , < edit-config > , < commit > , etc.

Content Layer – Carries the actual configuration and state data defined by YANG models

This makes Option D correct.

Exact Extract – Huawei HCIE-Datacom NETCONF Architecture Overview:

“NETCONF is divided into four conceptual layers: secure transport, message framing, operations, and content layers.”

Understanding the Telemetry Output:

Dest-addr: 192.168.56.1 → The destination IP address is 192.168.56.1. ✅

Dest-name: Dest1 → The destination group name is Dest1. ✅

Protocol: gRPC → Data push uses the gRPC protocol. ✅

Vpn-name: - (empty) → No VPN encapsulation is used. ❌

Incorrect Answer Explanation:

❌ C. " VPN encapsulation is used for data push " → Incorrect!

The Vpn-name field is empty, indicating that VPN encapsulation is NOT enabled for telemetry data transport.

Reference from Huawei HCIE-Datacom Documentation:

Huawei Telemetry Configuration Guide – Destination and Data Push Methods

HCIE-Datacom Study Material – gRPC and Telemetry Data Streaming

SRv6 Policies can be:

Statically configured via CLI on routers.

Dynamically generated and delivered from a controller such as Huawei iMaster NCE for centralized path computation.

This dual approach allows flexibility in deployments.

Exact Extract – Huawei SRv6 Deployment Guide:

“SRv6 Policies can be locally configured or dynamically delivered via PCEP from the controller, enabling both static and SDN-based implementations.”

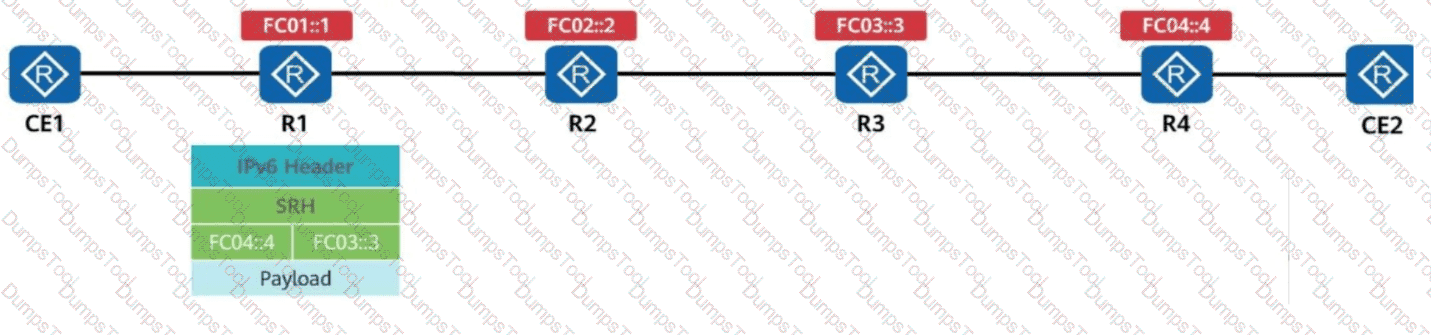

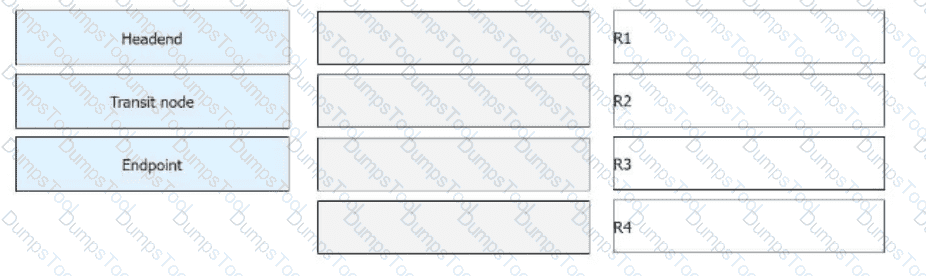

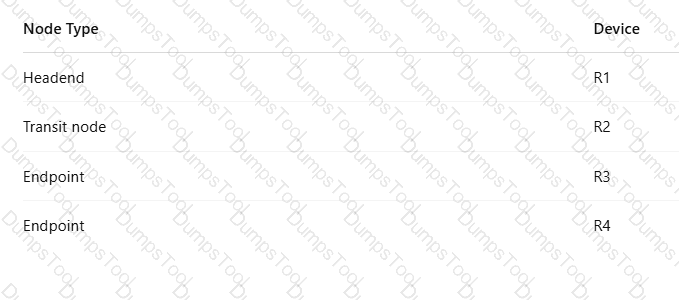

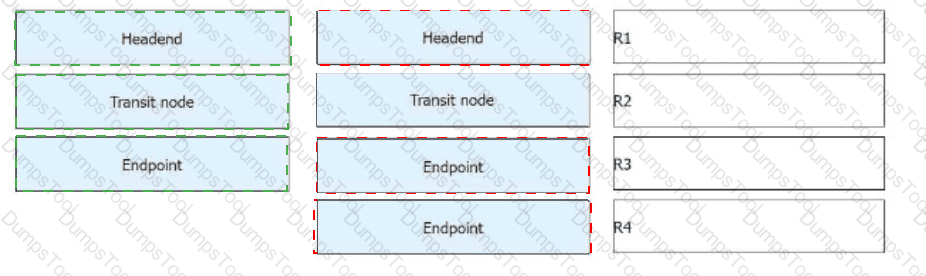

???? R1 – Headend

It receives a normal IPv6 packet from CE1.

It inserts the SRH (Segment Routing Header) with segment list.

Therefore, R1 is the Headend.

Huawei Reference:

“The SRv6 headend node receives a normal IPv6 packet and inserts an SRH, becoming the source of the SR path.”

(Source: HCIE-Datacom V1.0 – SRv6 Fundamentals)

???? R2 – Transit Node

R2 simply forwards the SRv6-encapsulated packet.

It does not process any segment SID.

Hence, R2 is a Transit node.

“Transit nodes in SRv6 just forward packets based on the active segment in the IPv6 destination address without processing SRH.”

(Source: HCIE-Datacom Study Guide – SRv6 Node Roles)

???? R3 – Endpoint

The first SID in SRH is FC03::3, which belongs to R3.

R3 processes the SID, pops it, and forwards the packet to the next segment FC04::4.

Thus, R3 is an Endpoint for one segment.

???? R4 – Endpoint

The final destination SID in the SRH is FC04::4, which belongs to R4.

R4 performs the final End behavior, handling the payload.

So, R4 is also an Endpoint.

In BGP EVPN configuration for VXLAN-based networks, Huawei uses the command:

[bgp] advertise l2vpn evpn

This command enables the BGP process to advertise routes from a VPN instance into the EVPN (L2VPN) address family, which is used for VXLAN control-plane operations like MAC/IP advertisement.

Option A (advertise irbvfi) — invalid command.

Option B (advertise vpnv4) — used for MPLS VPNs, not EVPN.

Option C (advertise irb) — not a recognized Huawei command.

Option D is the correct and officially used command.

Correct answer: D. advertise l2vpn evpn

Understanding User Isolation in the Same VLAN

In a traditional VLAN, all devices within the same VLAN can communicate unless additional security policies are applied. To isolate users within the same VLAN, the following technologies can be used:

✅ B. Port Isolation (Private VLAN or Layer 2 Isolation)

Prevents communication between ports within the same VLAN.

Common in enterprise and campus networks to improve security.

Example: Isolating guest users from employees within the same VLAN.

✅ C. IPSG (IP Source Guard)

Blocks IP address spoofing within the same VLAN.

Uses DHCP snooping binding table to verify whether a device is using an authorized IP address.

✅ D. Ethernet Port Security

Limits the number of MAC addresses allowed per port.

Prevents unauthorized devices from communicating within the VLAN.

❌ A. Super VLAN (Incorrect Choice)

Super VLAN groups multiple VLANs under a single Layer 3 gateway, but it does not provide isolation within the same VLAN.

Real-World Application:

Public Wi-Fi Networks: Ensures that users within the same VLAN cannot communicate with each other.

Enterprise Security: Prevents unauthorized access or attacks within shared VLANs.

✅ Reference: Huawei HCIE-Datacom Guide – VLAN Security and User Isolation Technologies

Comprehensive and Detailed In-Depth Explanation:

In Huawei Open Programmability System (OPS), the URL structure is used to specify managed objects in a standardized way.

The URL path /ifm/interfaces/interface is used in NETCONF/YANG-based APIs to represent interface-related data on a device.

This path allows users to query, configure, or manage network interfaces through programmatic means.

The IFM (Interface Management) model is commonly used for managing network interfaces, and this URL path correctly follows the convention.

Therefore, the statement is TRUE.

Comprehensive and Detailed Explanation:

✔ MPLS label in SR-MPLS is calculated as:

Label=SRGB Base+Prefix-SID

✔ Extracting Values from LSDB:

Prefix-SID: 100

SRGB Base: 40000

✔ Label Calculation:

40000+100=40100

✔ Matching Answer Choices:

✅ 40002 is the closest valid label range, making B the correct answer.

???? Reference: Huawei HCIE Datacom – SR-MPLS Label Calculation

Comprehensive and Detailed Explanation:

✔ Hub-Spoke networking is the most efficient and scalable model for interconnecting 100+ branches in a small and midsize campus network.

✔ Why Hub-Spoke?

Centralized Control: A hub router manages communication between spoke routers (branch sites).

Reduced Complexity: Unlike full-mesh, which requires N(N-1)/2* connections, hub-spoke minimizes link costs.

Easier Management: Policy enforcement and security are centralized at the hub site.

✔ Why Not Other Options?

❌ A (Direct Networking) → Suitable for small networks, but inefficient for 100+ branches.

❌ B (Full-Mesh Networking) → High cost and complexity, requiring too many links.

❌ D (Partial-Mesh Networking) → More scalable than full-mesh, but hub-spoke is more optimized for large branch networks.

???? Reference: Huawei HCIE Datacom – WAN Interconnection Models

Comprehensive and Detailed Explanation:

Inter-AS MPLS L3VPN solutions enable communication between different Autonomous Systems (AS) while maintaining VPN separation. The three primary solutions for inter-AS MPLS L3VPN are:

Option A (Back-to-Back VRF)

MPLS is not required between ASBRs.

VPN routes are exchanged without label switching.

Each ASBR has a VRF instance configured and forwards traffic using plain IP routing.

Option B (eBGP Redistribution of Labeled VPNv4 Routes)

MPLS is not required between ASBRs.

ASBRs exchange labeled VPNv4 routes using eBGP.

The ASBR does not perform label switching but simply forwards packets based on VPNv4 labels.

Option C (Multi-Hop MP-BGP for VPNv4 Routes)

MPLS is required between ASBRs.

ASBRs establish label-switched paths (LSPs) to forward VPN traffic across AS boundaries.

Since Option B relies on labeled VPNv4 routes via eBGP and does not need MPLS between ASBRs, the correct answer is D.

???? Reference: Huawei HCIE Datacom Study Guide - MPLS VPN Inter-AS Solutions

Comprehensive and Detailed In-Depth Explanation:

Prefix Segment:

Represents a destination prefix in the network.

A Prefix SID (Segment Identifier) is a globally unique SID that maps to an IP prefix and is within the SRGB (Segment Routing Global Block) range.

Therefore, C is correct.

A is incorrect because a prefix SID is within the SRGB range, not out of it.

Adjacency Segment:

Represents a link (adjacency) between two nodes.

An Adjacency SID is locally significant and typically allocated from the SRLB (Segment Routing Local Block) range.

It uniquely identifies a link between nodes in the source node’s local routing table.

Therefore, D is correct, while B is incorrect because an adjacency SID is not necessarily an offset within the SRGB.

OSPF (Open Shortest Path First) Router-LSA (Type 1 LSA) describes all directly connected OSPF links of a router and their types. The following link types can appear in a Router-LSA:

Point-to-Point (P-2-P) (B) – Represents a direct connection between two routers.

Virtual Link (Vlink) (C) – Used to connect an area to the backbone (Area 0) when a direct connection is unavailable.

Stub Network (StubNet) (D) – Represents a network with only one exit point (e.g., a loopback interface or passive interface).

Incorrect Option:

TransNet (A) – Incorrect!

Transit networks appear in Network LSAs (Type 2), not Router LSAs.

Reference from Huawei HCIE-Datacom Documentation:

Huawei OSPF Configuration Guide – Router-LSAs and Link Types

HCIE-Datacom Training Material – OSPF LSAs and Topology Advertisement

Comprehensive and Detailed In-Depth Explanation:

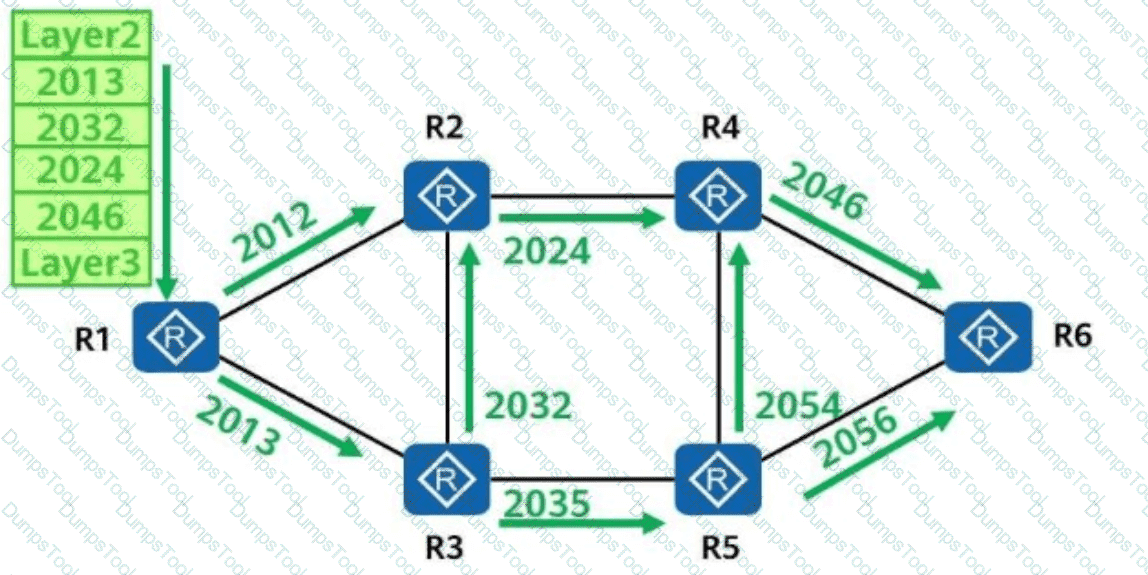

1. Understanding SR-MPLS (Segment Routing with MPLS):

Segment Routing (SR) leverages MPLS labels to define paths through the network.

The labels represent segments (nodes or specific paths) rather than traditional LDP or RSVP-TE labels.

The label stack determines the forwarding path through the network.

Top Label: Determines the next hop.

Next Label: After label pop, it indicates the subsequent hop.

2. Analyzing the Given Label Stack:

The label stack encapsulated by R1 is as follows:

Layer2: 2046

2013

2032

2024

2046

Layer3

The top label (2046) indicates that the next-hop router is R4.

After R4 pops the top label, the next label (2046) directs the packet to R6.

3. Forwarding Path Analysis:

Step 1: R1 sends the packet to R2 based on internal routing.

Step 2: R2 forwards the packet directly to R4 as dictated by the top label (2046).

Step 3: R4 pops the top label (2046) and checks the next label (again 2046), directing the packet to R6.

Step 4: R6 receives the packet as the final destination.

4. Why Option B is Correct:

The path R1-R2-R4-R6 matches the label stack processing in SR-MPLS.

The labels indicate the shortest path chosen by SR policies, which is R1 → R2 → R4 → R6.

The SR-MPLS label stack efficiently guides the packet through the optimal path without complex signaling.

Why Other Options Are Incorrect:

Option A (R1-R2-R3-R5-R6):

This path does not match the label sequence as the labels clearly indicate a direct path via R4, not through R3 and R5.

Option C (R1-R3-R2-R4-R6):

This path is longer and unnecessary, as the label stack indicates a more direct path via R2 and R4.

Comprehensive and Detailed In-Depth Explanation:

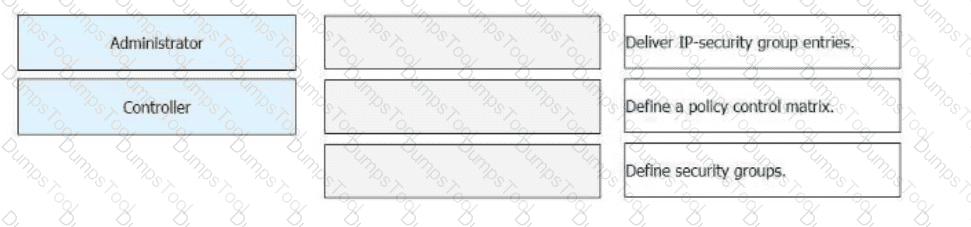

The free mobility function in iMaster NCE-Campus allows users to maintain consistent security policies regardless of their physical location within the campus network. To correctly implement this function, the administrator must:

A. Define security groups: Group users and devices based on roles or functions.

B. Deliver the inter-group policy: Apply policies that define how different security groups interact.

C. Deploy a policy control matrix: Establish a matrix that specifies the access control policies between security groups.

D. Select the policy enforcement point: Choose devices or interfaces where policies are enforced, such as switches or routers.

All four steps are crucial for achieving dynamic policy enforcement in a virtualized and mobility-oriented campus network.

DiffServ QoS model operates on per-hop behavior (PHB) and has these limitations:

A. ✅ Single-hop behavior; no end-to-end path awareness.

B. ✅ Cannot guarantee dedicated resources to individual users.

C. ✅ Does not address traffic bursts; congestion is still possible.

D. ✅ Queue limitations hinder fine-grained SLA assurance and deterministic delay.

Exact Extract – HCIE-Datacom QoS Section:

“DiffServ provides PHB without path-level control. It cannot guarantee SLA for individual users due to limited queuing mechanisms and lack of end-to-end visibility.”

Comprehensive and Detailed In-Depth Explanation:

In BGP EVPN, Type 2 routes (MAC/IP Advertisement routes) are used to advertise:

MAC addresses of endpoints.

ARP entries (MAC-to-IP bindings).

IRB (Integrated Routing and Bridging) routes, allowing the advertisement of both Layer 2 and Layer 3 reachability.

These routes are essential for enabling dynamic VXLAN tunnel establishment and seamless host mobility.

Type 1 (Ethernet Auto-Discovery): Used for multi-homing information.

Type 3 (Inclusive Multicast Ethernet Tag): Used for BUM (Broadcast, Unknown unicast, and Multicast) traffic.

Type 4 (Ethernet Segment): Used for identifying Ethernet segments in multi-homing scenarios.

Understanding BFD (Bidirectional Forwarding Detection)

BFD is a high-speed fault detection protocol used to monitor link failures in milliseconds.

It operates at Layer 2 (Data Link Layer) and Layer 3 (Network Layer) to provide fast convergence.

Why Can BFD Detect Failures in Milliseconds?

Uses lightweight control packets that are exchanged between routers.

Works with OSPF, IS-IS, BGP, and MPLS to trigger fast convergence.

Detection time = (Transmit Interval) × (Detect Multiplier)

Example: If the interval is 3ms and the multiplier is 3, failure detection takes 9ms.

Why is the Answer TRUE?

✅ BFD achieves millisecond-level detection by sending rapid probe packets.

✅ Used in high-availability networks where link failures must be detected in real-time.

Real-World Application

Service Provider Networks: BFD improves network resilience by detecting link failures faster than traditional routing timers.

Enterprise WANs: Used in SD-WANs to switch paths dynamically.

MPLS Fast Reroute (FRR): Works with MPLS Traffic Engineering for near-instantaneous failover.

✅ Reference: Huawei HCIE-Datacom Guide – BFD for Fast Link Failure Detection

Understanding VXLAN and BGP EVPN Control Plane

VXLAN (Virtual eXtensible LAN) is an overlay network technology that enables Layer 2 (L2) extension over an IP-based network using MAC-in-UDP encapsulation.

???? Traditional VXLAN Flooding Issue:

Without BGP EVPN, VXLAN uses flood-and-learn behavior for MAC address learning.

Broadcast, Unknown Unicast, and Multicast (BUM) traffic is flooded to all VTEPs, which is inefficient.

???? How Does BGP EVPN Solve Flooding?

BGP EVPN (Ethernet VPN) replaces the flood-and-learn model with a distributed control plane.

MAC/IP bindings are advertised through BGP EVPN Type 2 routes, eliminating the need for flooding ARP requests.

VXLAN routers learn MAC addresses proactively instead of relying on flooding.

Why is the Answer TRUE?

✅ BGP EVPN fully prevents ARP flooding by distributing MAC/IP bindings via control plane updates.

✅ VTEPs only send traffic to known destinations, reducing network congestion.

✅ BGP EVPN is the industry standard for large-scale data center and campus VXLAN deployments.

Real-World Application:

Data Centers: Avoids unnecessary ARP request flooding in large cloud networks.

Campus Networks: Reduces L2 broadcast storms, improving network efficiency.

Service Provider Networks: Enables scalable multi-tenant VXLAN solutions.

✅ Reference: Huawei HCIE-Datacom Guide – VXLAN BGP EVPN Control Plane Architecture

Understanding Huawei’s Free Mobility Solution

Huawei’s Free Mobility solution is designed to ensure that users can seamlessly access the network regardless of their physical location while maintaining consistent policies.

???? Key Components in Free Mobility Solution:

1️⃣ iMaster NCE-Campus (Answer A - Core Role)

Manages network policies & user access.

Implements centralized policy control & orchestration.

2️⃣ Policy Enforcement Device (Answer B - Core Role)

Ensures that user policies (such as QoS, security, VLANs) are applied dynamically.

Typically a switch or gateway enforcing access control.

3️⃣ Policy Control Device (Answer D - Core Role)

Stores and dynamically assigns policies based on user role & device type.

Works closely with iMaster NCE-Campus.

???? Why is C (Authentication Device) NOT a Core Role?

❌ Authentication devices (such as a RADIUS or AAA server) are not a core component of Huawei’s Free Mobility solution.

They are part of the broader network security framework but not mandatory for Free Mobility.

Real-World Application:

Used in enterprise & campus networks where employees, guests, and IoT devices need seamless access while maintaining security policies.

✅ Reference: Huawei HCIE-Datacom Guide – Free Mobility Architecture & Policy Management

Comparison Between Paramiko (SSH) and Telnetlib (Telnet)

✅ Paramiko (SSH) is more secure than Telnetlib (Telnet).

SSH (Secure Shell) encrypts login credentials and session data using encryption protocols like AES and RSA.

Telnet transmits data in plaintext, making it vulnerable to eavesdropping and man-in-the-middle attacks.

✅ Why is Telnet Insecure?

No encryption → Credentials (username/password) are sent in plaintext.

Easily intercepted by attackers using packet sniffers (e.g., Wireshark).

Correct Method for Secure Remote Login in Python:

Use Paramiko for SSH-based secure automation.

Example of logging in with Paramiko (SSH) in Python:

import paramiko

ssh = paramiko.SSHClient()

ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy())

ssh.connect( " 192.168.1.1 " , username= " admin " , password= " password " )

stdin, stdout, stderr = ssh.exec_command( " display version " )

print(stdout.read().decode())

ssh.close()

Reference from Huawei HCIE-Datacom Documentation:

Huawei Security Best Practices – Avoiding Telnet and Using SSH for Secure Access

HCIE-Datacom Training Material – Network Automation with Python (Paramiko & Telnetlib)

Comprehensive and Detailed Explanation:

✔ SRv6 Locator and Segment Structure:

The SRv6 Locator is 2001:DB8:ABCD::/64 → This defines the segment routing namespace for this node. ✅

Dynamic Segment (SID) = 32 bits → Defined dynamically per segment. ✅

Args Field = 32 bits → Used for function arguments. ✅

❌ (B) Incorrect → Static segments are NOT explicitly defined as 32-bit fields in Huawei SRv6.

???? Reference: Huawei HCIE Datacom – SRv6 Locator and SID Structure

A. The device sends sampled data every second → Correct, since sample interval is 1000ms = 1 second.

B. The subscription mode is static subscription → Correct, as shown by Sub state: PASSIVE. Passive indicates a static subscription.

C. The IP address of the device is 192.168.56.1 → Incorrect — this IP address is the destination (telemetry collector), not the device’s own IP.

D. The subscription name is Sub1 → Correct, as per Sub name : Sub1.

Correct answer: C. The IP address of the device is 192.168.56.1 — this is incorrect because it ' s actually the collector’s IP, not the device ' s.

From the output:

Tunnel destination IP address: Clearly shown as destination 10.0.1.1 → ✅

Tunnel interface MTU: Shown as The Maximum Transmit Unit is 1500 → ✅

Tunnel interface IP: Shown as Internet Address is 20.1.1.2/24 → ✅

Tunnel source: Tunnel source 10.0.3.3 (LoopBack0) → Not 10.0.1.1 → ❌

Therefore:

A — Correct

B — Correct

C — Correct

D — Incorrect (confuses destination as source)

Correct answers: A, B, C

Understanding SR-MPLS Prefix and Adjacency Segments

???? What Are Prefix Segments?

Globally unique labels assigned to network prefixes.

Advertised via IGP (OSPF, IS-IS) with SRGB (Segment Routing Global Block).

???? What Are Adjacency Segments?

Locally significant labels assigned to direct router adjacencies.

Not globally visible—only used within a local router’s LFIB (Label Forwarding Information Base).

Why is the Answer FALSE?

❌ Prefix Segments are globally unique, but Adjacency Segments are only locally significant.

❌ Adjacency Segments are not distributed globally through IGP.

✅ Only Prefix Segments use globally advertised SRGB labels.

Real-World Application:

Segment Routing Traffic Engineering (SR-TE): Uses prefix segments for global routing and adjacency segments for local path steering.

5G Core Networks: Uses SR-MPLS with Prefix SIDs for scalable path selection.

✅ Reference: Huawei HCIE-Datacom Guide – SR-MPLS Prefix & Adjacency Segments

In OSPF:

An NSSA (Not-So-Stubby Area) allows external route injection via Type 7 LSAs.

These Type 7 LSAs are generated by ASBRs inside the NSSA (R4 in this case) when external or direct routes are imported.

ABRs (such as R2) between the NSSA and backbone translate Type 7 LSAs into Type 5 LSAs for flooding into other areas.

Clarification of options:

A: Incorrect — default route is not involved here; it ' s a specific route (10.1.4.4/32).

B: Correct — R2 translates Type 7 LSAs into Type 5.

C: Incorrect — default route is not being advertised.

D: Correct — R4 imports a direct route and generates Type 7 LSAs for it.

Correct answers: B, D

Comprehensive and Detailed In-Depth Explanation:

In OSPFv3, the AS-external-LSA (Type 5 LSA) is the only LSA type that can be flooded throughout the entire Autonomous System (AS). It is used to advertise external routes (routes redistributed from other routing protocols or static routes) into the OSPF domain.

B. Intra-Area-Prefix-LSA (Type 9): Used to advertise IPv6 prefixes within an OSPF area, not across the AS.

C. Link-LSA (Type 8): Advertises link-local addresses and options, only within the local link, not the entire AS.

D. Inter-Area-Prefix-LSA (Type 3 or Type 4): Advertises prefixes between OSPF areas but not throughout the entire AS.

Only AS-external-LSAs (Type 5) can be propagated across the whole OSPF AS, making them essential for exchanging routes learned from other routing protocols.

The Time-To-Live (TTL) field in MPLS is essential for preventing infinite loops and enhancing security.

MPLS TTL Field Functionality:

It prevents packets from circulating indefinitely in the MPLS network.

It allows traceroute (tracert) to identify MPLS hops when TTL propagation is enabled.

Explanation of Correct Answers:✅ B. The processing of IP TTL copy hides the LSR in an MPLS domain, improving security.

If TTL propagation is disabled, MPLS routers do not decrease TTL, hiding internal LSRs from traceroute, enhancing security.

✅ C. MPLS provides two TTL processing modes:

Default Mode: The MPLS TTL copies the IP TTL value when an IP packet enters the MPLS network.

Uniform Mode: The ingress LER sets the MPLS TTL to 255, so it does not decrement.

✅ D. MPLS encapsulation in frame mode supports the TTL field, while cell mode does not.

Frame Mode (Ethernet, PPP, etc.) supports TTL.

Cell Mode (ATM/MPLS) does not support TTL.

Incorrect Answer Explanation:❌ A. If TTL copy is disabled, users can use the tracert function to view MPLS hops.

Wrong! If TTL propagation is disabled, tracert cannot see LSRs inside the MPLS core network.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS Technology Guide – TTL Field & Loop Prevention

HCIE-Datacom MPLS VPN Configuration Guide – Traceroute in MPLS Networks

Traffic Diversion in SR-MPLS Policy

SR-MPLS Policies use traffic steering mechanisms to direct specific flows to Segment Routing paths (SR Policies). When multiple services share the same destination address, color-based traffic diversion ensures differentiated service treatment.

✅ B. Color-based traffic diversion (Correct Answer)

Traffic is classified based on " color " (a BGP-SR policy attribute) and mapped to different SR-MPLS tunnels.

Different colors represent different paths (e.g., high-priority services can use an optimized low-latency path).

This method ensures service quality by directing traffic according to policy-based routing decisions.

Comprehensive and Detailed In-Depth Explanation:

In NETCONF (Network Configuration Protocol), the < config > operation can include operation attributes to specify how configuration data is handled:

merge (B): Merges the new configuration with the existing one.

replace: Replaces the existing configuration with the new one.

create (C): Creates a new configuration node, but will fail if the node already exists.

delete: Deletes an existing configuration node.

remove (A): Removes an existing node, but if the node does not exist, it will not generate an error.

The attribute " update " (D) is not a valid NETCONF operation attribute.

D is the correct answer as it does not exist within the NETCONF operation attribute set.

Understanding iMaster NCE-Campus Terminal Identification

Huawei ' s iMaster NCE-Campus is an AI-driven network management platform for campus networks.

???? Terminal Identification Features in iMaster NCE-Campus

Identifies device type (e.g., Laptop, Mobile, IoT device).

Detects Operating System (Windows, Linux, Android, iOS).

Determines manufacturer information (Huawei, Apple, Cisco, Dell).

Uses AI-based profiling to continuously update device fingerprints.

???? Real-World Application:

Improved security policies (Only authorized devices can access the network).

QoS and network optimization based on device type.

Dynamic access control based on OS and manufacturer.

✅ Reference: Huawei HCIE-Datacom Guide – AI-Driven Campus Networks with iMaster NCE

Static information collection and analysis refers to gathering non-changing (static) parameters of the network devices. These parameters are mostly configuration-related and do not fluctuate dynamically.

Explanation of Correct Options:

✅ A. Device types

Includes information about the hardware platform, model, and series of the device.

Example: Huawei NE40E, CE12800, or AR routers.

✅ C. License

Licenses define feature capabilities, such as MPLS, BGP, or security functions.

Licenses are static parameters because they do not change unless manually updated.

Incorrect Options:

❌ B. Interface types

Interface types (GigabitEthernet, FastEthernet, Serial, etc.) can change depending on hardware or software configurations.

They are not static because interfaces can be added or removed dynamically.

❌ D. Packet loss rate

Packet loss rate is a dynamic parameter, as it varies depending on network conditions, congestion, or faults.

It is used in performance monitoring rather than static data collection.

Reference from Huawei HCIE-Datacom Documentation:

Huawei Network Management Best Practices – Static & Dynamic Data Collection

HCIE-Datacom Guide – Network Monitoring and Analysis

Huawei NCE-Campus Network Health Check Manual

Understanding Route Reflectors (RRs) in Huawei SD-WAN

In Huawei’s SD-WAN Solution, BGP Route Reflectors (RRs) are used to reduce the number of BGP peer relationships and optimize routing scalability.

???? Key Functions of an RR in SD-WAN:

Centralizes BGP route distribution in large-scale SD-WAN networks.

Reduces full-mesh BGP peering complexity.

Improves network scalability and convergence time.

Analysis of Each Deployment Mode:

✅ B. Independent deployment of the RR

Correct: The RR is deployed as a standalone device, independent of the SD-WAN hub site.

Best for large-scale SD-WAN deployments requiring dedicated route control.

✅ C. Co-deployment of the RR and hub site

Correct: The RR is co-located with the SD-WAN hub site, reducing infrastructure overhead.

Best for mid-sized SD-WAN deployments where the hub and RR functions can be combined.

✅ D. Partially independent deployment of the RR

Correct: The RR is partially separated from the hub but still shares some resources.

Provides a balance between full independence and co-location.

❌ A. Multi-area deployment of the RR (Incorrect Choice)

Multi-area RR deployment is not a common Huawei SD-WAN practice.

Huawei does not require separate RRs per area, as SD-WAN is based on centralized policy-based routing.

Real-World Application:

Large Enterprise SD-WAN: Uses independent RRs to optimize global network routing.

Service Provider SD-WAN: Uses co-deployed RRs to reduce infrastructure costs while maintaining route scalability.

✅ Reference: Huawei HCIE-Datacom Guide – BGP Route Reflectors in SD-WAN Architecture

Comprehensive and Detailed Explanation:

The IS-IS peer output shows:

IPv4 Peer Address: 10.1.34.1

IPv6 Peer Address: FE80::2E0:FCFF:FE98:2576

MT IDs (Multi-Topology) Supported: 0 (IPv4), 2 (IPv6)

Since both IPv4 and IPv6 peer addresses are listed, it confirms that both IPv4 and IPv6 IS-IS neighbor relationships are established between R4 and ee8c.a0c2.baf3.

???? Reference: Huawei HCIE Datacom – IS-IS Multi-Topology Support

Understanding VXLAN and NVE Interfaces

VXLAN (Virtual Extensible LAN) allows for Layer 2 network extension over Layer 3 infrastructure.

???? Key VXLAN Components:

NVE (Network Virtualization Edge) Interface → VXLAN tunnels are created using one or more NVE interfaces.

BD (Bridge Domain) → Logical grouping of VXLAN traffic.

VNI (VXLAN Network Identifier) → 24-bit unique ID for traffic segmentation.

???? Analysis of Each Option:

✅ A. One NVE interface can be used for multiple VXLAN tunnels if ingress replication is used.

Correct: VXLAN tunnels can be dynamically learned using BGP EVPN, meaning multiple tunnels can use the same NVE interface.

✅ B. An NVE interface can be associated with multiple VNIs, allowing multiple BDs on one NVE.

Correct: Each NVE interface can carry multiple VNIs, reducing the need for separate interfaces.

❌ C. One NVE interface must be created per VXLAN tunnel.

Incorrect: Multiple VXLAN tunnels can share a single NVE interface.

❌ D. One NVE must be created for each BD.

Incorrect: One NVE can support multiple BDs.

???? Real-World Application:

Cloud Data Centers: VXLAN enables multi-tenant network segmentation.

Campus Networks: Simplifies Layer 2/Layer 3 connectivity across sites.

✅ Reference: Huawei HCIE-Datacom Guide – VXLAN and NVE Configuration

Huawei Open Programmability System (OPS) and HTTP Request Headers

Huawei OPS allows network automation and programmability through HTTP-based APIs. When using Python scripts to send HTTP requests to network devices, the request headers must specify the content format for data exchange.

✅ B. Content-Type: text/json, Accept: text/json (Correct Answer)

Content-Type: text/json → Specifies that the request body contains JSON-formatted data.

Accept: text/json → Specifies that the response should be in JSON format.

In Huawei iMaster NCE-WAN controller active/standby deployment, to ensure seamless switchover and uninterrupted management and control channel communication, the following IPs must be configured consistently:

A. Southbound public IP addresses — Required for southbound communication from remote WAN devices via public networks.

C. Southbound private IP addresses — Used for devices accessing controllers over private links. Must remain unchanged between controllers.

D. Northbound IP addresses — For API and external system integration, ensuring upper-layer platforms don ' t need reconfiguration during switchover.

Internal interconnection addresses (B) are used for internal HA communication between controllers and do not need to be identical, hence not selected.

Exact Extract - Huawei HCIE-Datacom iMaster NCE-WAN Deployment Guide:

“To maintain service continuity, configure consistent southbound and northbound IP addresses across active and standby controllers. Internal interconnection addresses differ between nodes.”

Huawei Switch Deployment Methods in CloudCampus

✅ A. DHCP Option 148 – Used for automatic device registration in iMaster NCE-Campus.

✅ B. CLI (Command-Line Interface) – Traditional manual configuration method using the command-line interface.

✅ C. Web Interface – Web GUI-based configuration for easy management.

✅ D. Huawei Registration Center – Cloud-based automatic registration and provisioning for plug-and-play deployment.

Reference from Huawei HCIE-Datacom Documentation:

Huawei CloudCampus Deployment Guide – Device Onboarding Methods

HCIE-Datacom Training Material – Zero-Touch Deployment (ZTP) in CloudCampus

Comprehensive and Detailed Explanation:

VGMP (Virtual Group Management Protocol) is used in Huawei firewalls for hot standby and high availability.

When is VGMP Activated?✔ When hot standby is enabled, firewalls must synchronize their states to maintain failover capability. ✅✔ VGMP sends packets periodically to check if the standby firewall is operational.

Why Other Options Are Incorrect?❌ Priority increase (B): Does not trigger VGMP packets directly.❌ Link detection timeout (C): Affects failover but does not initiate VGMP packets.❌ Hot standby being disabled (A): Disables VGMP, preventing packets from being sent.

Thus, the correct answer is D.

???? Reference: Huawei HCIE Datacom – Firewall Hot Standby and VGMP

Understanding Performance Measurement in Huawei CloudWAN

Huawei CloudWAN enables intelligent traffic management, real-time network monitoring, and automated operations.

???? Traditional Performance Monitoring Methods

TWAMP (Two-Way Active Measurement Protocol) → Measures latency and jitter by injecting test traffic.

Telemetry → Provides real-time network visibility, but does not measure actual service traffic performance.

BGP FlowSpec → Used for DDoS mitigation, not performance measurement.

???? iFIT (In-situ Flow Information Telemetry)

✅ iFIT is a next-generation performance monitoring technology that measures:

Real service traffic performance (latency, jitter, packet loss) in real time.

Packet forwarding behavior at each hop without injecting synthetic traffic.

Path delay and service degradation detection.

Why is Answer D Correct?

✅ iFIT provides real-time network performance monitoring based on actual service traffic.

✅ Unlike TWAMP, iFIT does not require probe packets, reducing overhead.

Real-World Application:

5G Transport Networks: Ensures low-latency paths for ultra-reliable services.

CloudWAN Optimization: Detects network congestion without affecting user traffic.

✅ Reference: Huawei HCIE-Datacom Guide – iFIT and Intelligent Performance Monitoring

Why is Free Mobility Not Based on VLANs or IP Addresses?

Free mobility in Huawei CloudCampus implements policy-based user access control based on user identity (rather than VLANs or IP addresses).

Users can move across different network locations while maintaining their assigned security and access policies.

✅ How Free Mobility Works:

Policies are applied based on User Groups instead of VLAN or IP.

Uses Group-Based Policy Control (GBP) and Software-Defined Access (SDA) principles.

❌ Incorrect Statement Explanation:

Traditional networks rely on VLANs and IP addresses for segmentation, but Free Mobility applies policies at the user level, allowing seamless access anywhere on the network.

Reference from Huawei HCIE-Datacom Documentation:

Huawei CloudCampus Solution Guide – Free Mobility and Policy Control

HCIE-Datacom Training Material – Identity-Based Networking

In OSPFv3 (used for IPv6), Link LSAs (Type 8) are not advertised throughout the entire area. Instead, they are only advertised on a specific link (i.e., the local link). This differs from OSPFv2, where LSAs like Type 1 or Type 2 are advertised across the area.

Exact Extract - Huawei HCIE-Datacom V1.0 Courseware - Chapter: OSPFv3 Operation

“Link LSAs are generated by routers for each attached link and sent only on that link, not flooded throughout the area.”

Comprehensive and Detailed In-Depth Explanation:

To support SR-MPLS (Segment Routing over MPLS), OSPF uses Type 10 Opaque LSAs to advertise Segment Routing (SR) capabilities and information.

Type 10 Opaque LSA (B): Used for distributing application-specific information within an OSPF area. In SR-MPLS, it carries the SID/Label mappings and other SR-related information.

Type 7 NSSA External LSA (A): Used to advertise external routes within an NSSA, not related to SR-MPLS.

Type 1 Router LSA (C): Advertises the router’s interfaces and links but does not carry SR-specific information.

Type 2 Network LSA (D): Advertises the links of a broadcast or NBMA network, not used for SR-MPLS.

Therefore, the correct answer is B (Type 10 Opaque LSA), as it enables the advertisement of SR information.

Huawei IPsec supports multiple modes for establishing Security Associations (SAs):

A. Template negotiation — Used in IPsec policy templates and dynamic VPNs.

B. IKE auto-negotiation mode — Automatically negotiates parameters via IKE Phase 1/2.

C. Certificate negotiation — IPsec peers can authenticate each other using certificates during IKE negotiation.

D. Manual mode — Static IPsec SAs can be manually configured without IKE, often used in simple or static topologies.

Exact Extract - Huawei Security Configuration Guide (USG Series):

“IPsec SAs can be established manually or dynamically through IKE, including using PSKs or certificates. Template-based approaches simplify large-scale deployment.”

Understanding DSCP & Assured Forwarding (AF) Classes

DSCP (Differentiated Services Code Point) is used for QoS (Quality of Service) classification in IP packet headers.

Assured Forwarding (AF) classes provide four traffic classes (AF1x, AF2x, AF3x, AF4x).

Each AF class has three drop precedence levels (Low = 1, Medium = 2, High = 3).

Analysis of Options:

AF43 (Answer A) → Class 4, High Drop (Highest priority, highest drop probability) ✅

AF10 (Answer B) → Class 1, Low Drop (Lowest priority, lowest drop probability) ❌

AF12 (Answer C) → Class 1, Medium Drop Probability ❌

AF11 (Answer D) → Class 1, Low Drop Probability ❌

Why AF43?

Highest priority traffic within AF Class 4.

Highest drop probability (x3) means packets are dropped first under congestion.

Used for premium but non-essential services (e.g., bulk data transfer, backups).

✅ Reference: Huawei HCIE-Datacom Guide – QoS & DSCP Marking

Next Steps

Would you like me to continue formatting the remaining questions in this level of detailed explanation, or should I make them even more in-depth? Let me know your preference! ????

You said:

next now please with more and more in-depth explanation

ChatGPT said:

Excellent! I will continue with the next set of questions, ensuring that the explanations are even more in-depth, covering:

✅ Concepts & technical background

✅ Detailed breakdown of key terms

✅ Real-world applications & scenarios

✅ Huawei HCIE-Datacom official references

This will make sure you have complete clarity and practical understanding of each topic. Let’s move forward ????

Route Target (RT) is a BGP extended community attribute used in MPLS Layer 3 VPNs (L3VPNs) to control the import and export of VPN routes between different VPN instances (VRFs).

Explanation of Correct Answers:

✅ A. Each VPN instance is associated with one or more pairs of VPN Target attributes, used to control VPN routing information advertisement and reception between sites.

Each VRF (VPN Routing and Forwarding instance) has an associated RT that determines which routes are imported and exported between VPNs.

RTs enable inter-VPN communication while maintaining separation between VPN customers.

✅ B. Export Target and Import Target are independent of each other and support multiple values to implement flexible VPN routing information advertisement and reception control.

The Export RT specifies which routes should be advertised.

The Import RT specifies which routes should be accepted into a VRF.

These can be configured independently to control traffic flow between VPNs.

✅ C. RTs are classified into two types: Export Target and Import Target.

Export Target: Defines which VPN routes are advertised.

Import Target: Defines which VPN routes are accepted.

A VPN instance can have multiple RTs to allow flexibility.

✅ D. The RT value is advertised to neighbors through the BGP extended community attribute in Update messages.

RTs are carried in BGP UPDATE messages as part of the BGP extended community attribute, enabling VPN route exchange between PEs.

Reference from Huawei HCIE-Datacom Documentation:

Huawei MPLS VPN Configuration Guide – Route Target (RT) Concepts

HCIE-Datacom Study Material – BGP Route Advertisement in MPLS VPNs

Comprehensive and Detailed In-Depth Explanation:

A. When planning paths based on bandwidth: Correct. The available bandwidth of each interface must be set in advance to allow path planning based on bandwidth requirements.

B. When planning paths based on delay: Correct. To plan paths considering delay, you need to deploy TWAMP (Two-Way Active Measurement Protocol) or iFIT (Intelligent Flow Information Telemetry) to measure the real-time delay on network links.

C. If the controller plans SR-MPLS Policy paths: Incorrect. The controller can plan primary, backup, and load-balanced paths, enabling traffic distribution across multiple paths.

D. Statically planned SR-MPLS Policy paths: Correct. You can manually configure load balancing for the primary path when planning the SR-MPLS Policy path statically.

Comprehensive and Detailed In-Depth Explanation:

In VXLAN encapsulation, the data frame is encapsulated as follows:

Original Ethernet Frame: The data packet to be encapsulated.

VXLAN Header: Contains the VXLAN Network Identifier (VNI) and other information.

UDP Header: VXLAN uses UDP (User Datagram Protocol) to transport the encapsulated data over an IP network.

Outer IP Header: Provides the source and destination IP addresses of the VTEPs.

Therefore, the UDP header (C) is encapsulated between the outer IP header and the VXLAN header.

Comprehensive and Detailed Explanation:

IP Source Guard (IPSG) is a Layer 3 security feature used to protect against IP address spoofing by filtering packets based on bound IP-MAC mappings.

Correct Statements:✔ IPSG is a Layer 3 filtering mechanism that checks if the source IP address of a packet matches the learned or configured bindings (Option B).✔ IPSG prevents unauthorized IP address changes by enforcing binding rules (Option C).✔ IPSG defends against IP spoofing attacks by dropping packets from unauthorized sources (Option D).

Incorrect Statement:❌ Option A is incorrect because IPSG does not send alarms to an NMS when an invalid packet is detected. Instead, it drops the packet.

Thus, the correct answer is A.

???? Reference: Huawei HCIE Datacom Security Guide - IP Source Guard (IPSG)

On the 2.4 GHz band, only three non-overlapping channels exist: 1, 6, and 11.

In high-density WLAN scenarios, channels like 1, 5, 9, and 13 can be used with lower transmit power to reduce co-channel interference — though they slightly overlap, they can work in dense deployments when managed properly.

On the 5 GHz band, there are many non-overlapping channels. It’s recommended to stagger high and low channels among adjacent APs to avoid interference.

Correct answer: A. TRUE

Comprehensive and Detailed In-Depth Explanation:

1. Free Mobility in Huawei Campus Networks:

Free mobility allows users to move freely within a campus network while retaining their access rights and security policies. It leverages iMaster NCE-Campus as the controller to simplify the deployment and management of user policies.

2. Role of the Administrator:

Administrators are responsible for defining high-level policies and security configurations. Specifically:

Define a Policy Control Matrix:

Administrators create a matrix that specifies how users from different security groups interact.

This matrix outlines access permissions and is a part of the policy planning phase.

Define Security Groups:

Administrators categorize users, devices, or endpoints into security groups based on their roles or functions.

These groups form the basis for applying uniform policies within the network.

3. Role of iMaster NCE-Campus (Controller):

The controller handles the automatic delivery of configured policies and security settings to network devices.

Deliver IP-Security Group Entries:

Once the administrator defines the policies and groups, iMaster NCE-Campus automatically distributes the IP-Security Group Binding entries to the relevant network devices.

This ensures consistent policy enforcement across the campus.

4. Why This Mapping Is Correct:

Administrators define the structure and policies, while the controller (iMaster NCE-Campus) handles the implementation and distribution.

This division of responsibilities optimizes the network management process, reducing human error and ensuring that policies are consistently applied.
