H12-811_V1.0 Questions and Answers

Network Layers in Campus Design:

The three common layers in a campus network are:

Core Layer: Provides high-speed backbone connectivity.

Aggregation Layer: Consolidates traffic and applies policies.

Access Layer: Connects end devices like PCs and phones.

Why " Network Layer " Is Incorrect:

" Network layer " is not a term used to describe physical or logical architecture in campus networks. It refers to Layer 3 in the OSI model, which is about IP routing.

Why Other Options Are Correct:

Core, access, and aggregation layers are widely used in hierarchical network design.

Eth-Trunk Functionality:An Eth-Trunk interface can operate as both a Layer 2 and Layer 3 interface depending on the configuration. For example:

As a Layer 2 interface, it can aggregate Ethernet links for switching.

As a Layer 3 interface, it can aggregate links for routing​.

Correct Answer:FALSE. Eth-Trunk interfaces can function as both Layer 2 and Layer 3 interfaces.

Huawei devices support different authentication modes:

authentication-mode local: Requires a username and password stored locally.

authentication-mode hwtacacs: Uses Huawei TACACS+ authentication, which requires a username and password.

authorization-mode hwtacacs: Refers to authorization (not authentication).

authentication-mode none: Does not require a username or password, meaning no authentication is needed.

Thus, the correct answer is D.

IP Address Uniqueness on VLANIF Interfaces:Each VLANIF interface represents a different logical interface, often tied to distinct subnets. IP addresses for VLANIF interfaces must be unique on the same switch to prevent address conflicts and routing issues​​.

Correct Answer:TRUE. The IP addresses of VLANIF interfaces on the same switch must be different.

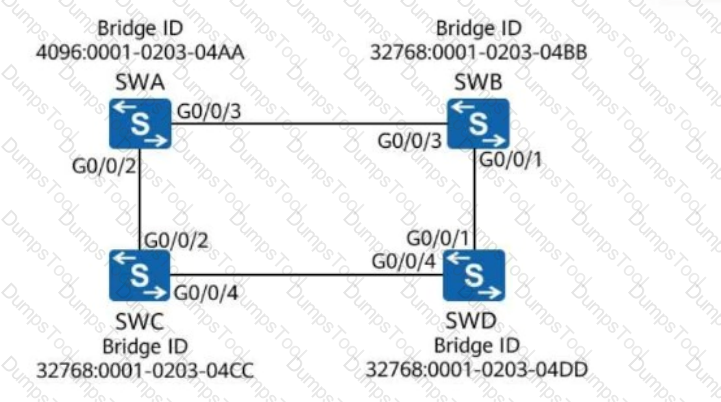

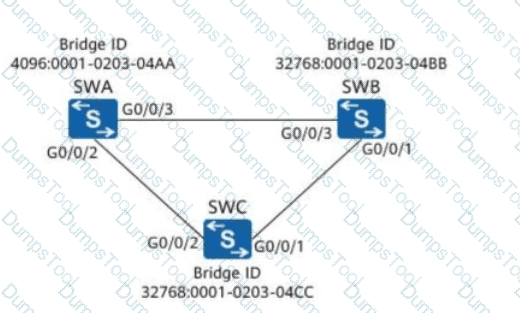

Comprehensive Explanation: In STP (Spanning Tree Protocol), the Bridge ID (BID) is used to uniquely identify a switch in the network. It consists of a bridge priority and a MAC address. A BID with a bridge priority of 0 and a MAC address starting with 00-01 is reserved for special purposes and cannot be used in a configuration BPDU (Bridge Protocol Data Unit) sent by a regular switch. This prevents conflicts with reserved MAC addresses.

In STP, a port moves from Learning to Forwarding state after the Forward Delay timer has expired. This delay ensures stability by allowing time for the topology to converge before the port begins forwarding user traffic, thereby preventing loops in the network during the transition​.

Comprehensive Explanation: When a switch port receives an untagged frame, the port adds the default VLAN ID, known as the PVID (Port VLAN ID), to the frame. This ensures that the frame is associated with a specific VLAN before it is forwarded. The PVID represents the VLAN to which the port belongs and is used when the port receives untagged traffic. This behavior is typical for access and hybrid ports in a VLAN-enabled switch configuration.

In OSPF, the " Full " state signifies that the neighbor relationship has been fully established, with both routers synchronized and their LSDBs updated. This state is achieved after exchanging and acknowledging Link State Advertisements (LSAs) between the neighbors, marking the completion of OSPF adjacency​.

In RSTP, both alternate and backup ports do not forward user traffic, but they can still receive and process BPDUs (Bridge Protocol Data Units). This allows the network to quickly reconfigure if the active path fails, as these ports are already participating in spanning tree calculations​.

Wireless networks commonly use Access Controllers (ACs) and Access Points (APs) to manage user connectivity.

Option A (Incorrect): Fat APs operate independently and do not require an AC to function. Instead, Fit APs require ACs to manage them centrally.

Option B (Correct): An AC (Access Controller) is usually deployed at the aggregation layer of a network. It provides centralized control over Fit APs, ensuring high-speed, secure, and reliable WLAN services. This is the standard design in enterprise WLAN architectures.

Option C (Incorrect): Fit APs do not handle authentication and forwarding on their own. Instead, they rely on an AC for these functions.

Option D (Incorrect): Many wireless devices (including APs and ACs) have wired interfaces for uplink connectivity to switches or other network devices.

Thus, the correct answer is B. An AC is usually deployed at the aggregation layer of a network to provide high-speed, secure, and reliable WLAN services.

A (Correct): Stacking allows inter-chassis Ethernet Trunks to be created, improving redundancy and bandwidth.

B (Correct): Multiple switches act as a single logical device, simplifying network management.

C (Correct): Stacking increases available ports, allowing expansion without adding separate devices.

D (Correct): By enabling redundancy, stacking and CSS help prevent single points of failure in the network.

Thus, the correct answers are A, B, C, and D.

Comprehensive and Detailed In-Depth Explanation:

IEEE 802.1Q defines VLAN tagging in Ethernet frames by inserting a 4-byte VLAN tag between the source MAC address and the EtherType field.

VLAN Tagging Format (IEEE 802.1Q):

2 Bytes → Tag Protocol Identifier (TPID)

2 Bytes → Tag Control Information (TCI)

Thus, the VLAN frame is extended by 4 bytes.

Configuration Analysis:

The router has two DHCP pools (pool1 and pool2).

Interface Gi/0/0 is assigned the IP address 10.10.10.1/24 and is configured to use global DHCP.

Reasoning:

The IP address 10.10.10.1 indicates that the interface belongs to the 10.10.10.0/24 network segment.

DHCP assigns IP addresses based on the network of the interface. Therefore, the host will receive an IP address from pool1 (10.10.10.0/24).

To determine which statements are true, we need to analyze the VLAN configurations on the Huawei switch (SWA) as shown in the diagram and configuration details. We’ll evaluate each client’s VLAN membership and verify the correctness of the VLAN assignment commands based on Huawei switch configuration principles, as outlined in HCIA Datacom documentation. Let’s break it down step by step:

Understanding VLAN Assignment Types on Huawei Switches:

Huawei switches support different port link types for VLAN assignment:

Access Port: Carries traffic for a single VLAN (untagged). Typically used for end devices like PCs.

Trunk Port: Carries traffic for multiple VLANs (tagged, except for the native VLAN, which is untagged). Typically used for interconnecting switches.

Hybrid Port: Similar to a trunk port but can carry untagged traffic for specific VLANs, often used for both end devices and inter-switch links. It can tag or untag traffic based on configuration.

Additionally, Huawei supports MAC address-based VLAN assignment (using the mac-vlan command), which assigns VLAN membership based on a device’s MAC address, overriding port-based VLAN settings.

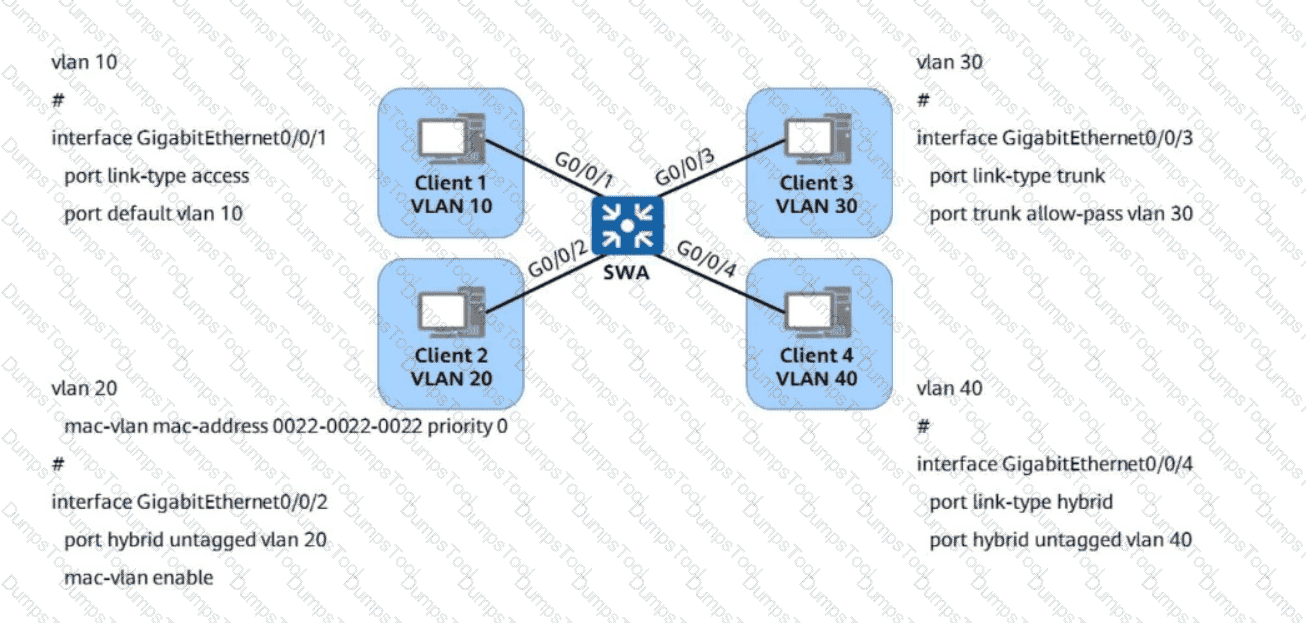

Analyzing the Configuration for Each Client:Let’s examine the configuration details for each interface connected to the clients and verify the VLAN assignments:

Client 1 (connected to GigabitEthernet0/0/1):

Configuration:

text

WrapCopy

vlan 10

#

interface GigabitEthernet0/0/1

port link-type access

port default vlan 10

The port is configured as an access port with port link-type access and assigned to VLAN 10 using port default vlan 10.

Access ports carry untagged traffic for a single VLAN, so Client 1 belongs to VLAN 10.

The commands are correct for an access port assignment to VLAN 10.

Statement C (“Client 1 belongs to VLAN 10, and the commands for VLAN assignment on the switch are correct”) is true.

Client 2 (connected to GigabitEthernet0/0/2):

Configuration:

text

WrapCopy

vlan 20

mac-vlan mac-address 0022-0022-0022 priority 0

#

interface GigabitEthernet0/0/2

port hybrid untagged vlan 20

mac-vlan enable

The port is configured as a hybrid port with port link-type hybrid and set to carry untagged traffic for VLAN 20 using port hybrid untagged vlan 20.

Additionally, mac-vlan mac-address 0022-0022-0022 priority 0 and mac-vlan enable are configured, indicating MAC address-based VLAN assignment for a device with MAC address 0022-0022-0022.

However, the diagram does not specify the MAC address of Client 2. If Client 2’s MAC address is not 0022-0022-0022, the MAC-VLAN assignment does not apply, and the port’s default VLAN (VLAN 20, untagged) determines its membership.

If Client 2 has MAC address 0022-0022-0022, it would belong to the VLAN specified by the mac-vlan command (VLAN 20, as no specific VLAN is mentioned in the mac-vlan command, implying it uses the port’s default VLAN or another configured VLAN). But since the MAC address is not provided, we assume the port-based VLAN assignment (VLAN 20) applies.

The commands appear correct for a hybrid port with untagged VLAN 20 and MAC-VLAN enabled, but the effectiveness of the MAC-VLAN depends on Client 2’s MAC address.

Statement B (“Client 2 belongs to VLAN 20, and the commands for MAC address-based VLAN assignment on the switch are correct”) is potentially true if Client 2’s MAC is 0022-0022-0022, but without confirmation, we must consider the port’s default VLAN 20. However, the MAC-VLAN priority is set to 0, which is unusual (priority 0 typically indicates the lowest priority, and Huawei recommends non-zero values for MAC-VLAN). This suggests a potential configuration error or ambiguity.

Given the lack of MAC address confirmation and the unusual priority 0, Statement B is not definitively true, as the MAC-VLAN assignment may not function as intended or may conflict with port-based VLAN 20.

Client 3 (connected to GigabitEthernet0/0/3):

Configuration:

text

WrapCopy

vlan 30

#

interface GigabitEthernet0/0/3

port link-type trunk

port trunk allow-pass vlan 30

The port is configured as a trunk port with port link-type trunk and allows VLAN 30 traffic using port trunk allow-pass vlan 30.

Trunk ports carry tagged traffic for specified VLANs. For Client 3 (an end device, typically not a switch), the trunk port configuration is unusual because end devices usually connect via access ports, not trunk ports. However, if Client 3 is configured to send tagged frames for VLAN 30 (e.g., a VLAN-aware device like a phone or IP camera), it can belong to VLAN 30.

The commands are correct for a trunk port allowing VLAN 30, assuming Client 3 is configured to handle tagged VLAN 30 traffic.

Statement D (“Client 3 belongs to VLAN 30, and the commands for VLAN assignment on the switch are correct”) is true, assuming Client 3 supports VLAN tagging for VLAN 30.

Client 4 (connected to GigabitEthernet0/0/4):

Configuration:

text

WrapCopy

vlan 40

#

interface GigabitEthernet0/0/4

port link-type hybrid

port hybrid untagged vlan 40

The port is configured as a hybrid port with port link-type hybrid and set to carry untagged traffic for VLAN 40 using port hybrid untagged vlan 40.

Hybrid ports can carry untagged traffic for specific VLANs, so Client 4 belongs to VLAN 40 (untagged).

The commands are correct for a hybrid port assignment to VLAN 40.

Statement A (“Client 4 belongs to VLAN 40, and the commands for VLAN assignment on the switch are correct”) is true.

Evaluating Each Statement:

A: True – Client 4 belongs to VLAN 40 (untagged on a hybrid port), and the commands are correct.

B: Not definitively true – Client 2 belongs to VLAN 20 based on the port’s hybrid untagged VLAN 20, but the MAC-VLAN configuration with priority 0 is ambiguous without Client 2’s MAC address, and the priority 0 may indicate a configuration error. Thus, we cannot confirm the MAC address-based VLAN assignment is correct.

C: True – Client 1 belongs to VLAN 10 (access port), and the commands are correct.

D: True – Client 3 belongs to VLAN 30 (trunk port, assuming tagged traffic), and the commands are correct for a trunk port allowing VLAN 30.

Conclusion:

Statements A, C, and D are true based on the configuration and VLAN assignment rules. Statement B is not definitively true due to the ambiguity of Client 2’s MAC address and the unusual priority 0 in the MAC-VLAN configuration.

Answer: A, C, D

References from HCIA Datacom Documents:

HCIA Datacom V3.0, Chapter 4: VLAN Technologies – Access, Trunk, and Hybrid Port Configurations

HCIA Datacom V3.0, Chapter 4: MAC Address-Based VLAN Assignment – mac-vlan Command and Priority Settings

Huawei VLAN Configuration Guide (HCIA Datacom Certification Material) – Port Link Types and VLAN Assignment Rules

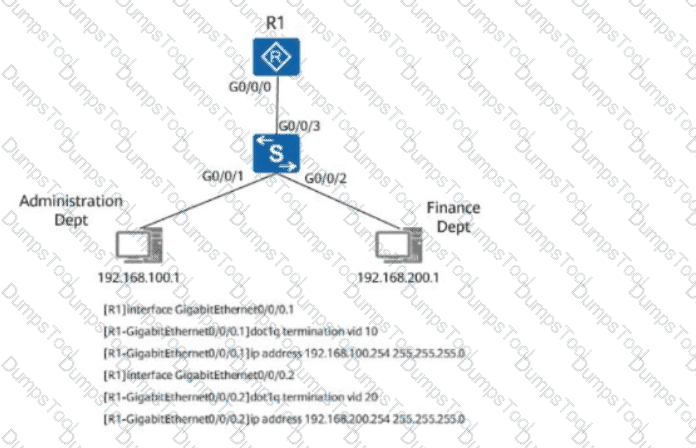

Detailed Explanation:In a " one-armed routing " setup, a router with sub-interfaces can handle inter-VLAN routing by logically segmenting traffic within a single physical interface. In this configuration, each department (Administration and Finance) is assigned a different VLAN with separate sub-interfaces on Router R1.

In such a setup, communication between different VLANs (i.e., inter-VLAN routing) is handled by the router, even without Proxy ARP enabled. The router can directly route packets between the VLANs as it is aware of the different networks and performs Layer 3 forwarding based on the IP address of each VLAN ' s sub-interface.

Thus, even if ARP Proxy is disabled, devices in the Administration and Finance departments can communicate through the router because inter-VLAN routing takes place at Layer 3 without relying on ARP proxy functionality​​​.

Command Overview:The Huawei Versatile Routing Platform (VRP) uses specific commands to manage file systems and view directory contents. While the dir command is used to list files in the current directory, the pwd command is not supported in VRP environments. Instead, the current working directory is displayed as part of the command prompt in VRP​​​.

Command Analysis:

dir Command:This command is supported and displays the list of files and subdirectories in the current directory. Example:

< Huawei > dir

Output includes filenames, sizes, and other metadata.

pwd Command:The pwd command is commonly used in UNIX/Linux systems to print the current working directory. However, this command is not available on VRP. VRP automatically shows the current directory in its prompt, making pwd unnecessary.

Correct Answer:Since only dir is valid, the statement is false. The correct answer is B (FALSE).

An AP (Access Point) radio can support multiple SSIDs, allowing segmentation of different types of traffic on the same wireless network. Each SSID can have unique security and access policies, enabling flexible wireless network configurations for different user groups​.

A floating static route is configured by assigning a higher preference value to the backup route. This ensures that the backup route (floating route) is used only when the primary route is unavailable. Lower preference values indicate higher priority​.

Detailed Explanation:Static routing does not automatically recover from link failures; manual reconfiguration is required if a static route path becomes invalid. Dynamic routing protocols, on the other hand, adapt automatically to network changes, adjusting routes as needed. (Reference: HCIA-Datacom Training Material, Static vs. Dynamic Routing)

Bridge Priority Overview:

Bridge Priority is a key parameter in Spanning Tree Protocol (STP) and is used to elect the root bridge.

The default bridge priority for Huawei switches is 32768, which is the default for many vendors.

How STP Uses Bridge Priority:

Lower bridge priority values are preferred during root bridge elections.

Administrators can modify this value for desired root bridge placement.

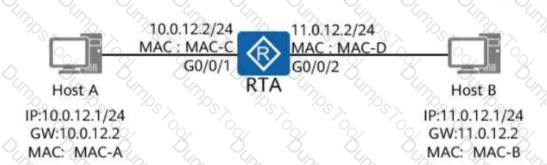

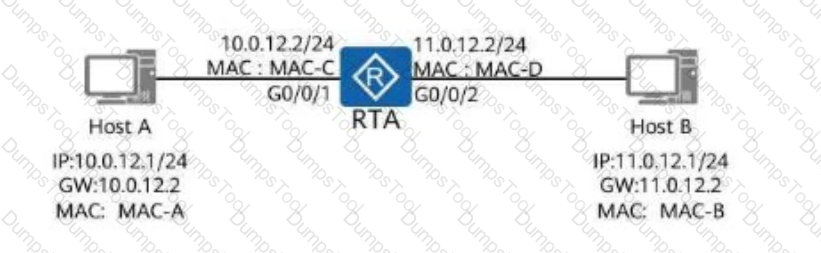

A " Length/Type " field value of 0x0806 indicates an ARP (Address Resolution Protocol) frame, which is part of the Ethernet II frame standard. The source MAC address cannot be a broadcast address (FFFF-FFFF-FFFF), as ARP requests are sent from specific hosts. This field helps identify the protocol type used by the Ethernet frame​.

Python is known for clear syntax and ease of learning, but it is not highly efficient at runtime due to being an interpreted language.

Option A (Correct): Python has a vast ecosystem of third-party libraries.

Option B (Incorrect - Answer): Python is easy to learn but is not as fast as compiled languages like C or Java.

Option C (Correct): Python is widely used in O and M, AI, and data science.

Option D (Correct): Python is fully open-source.

Thus, the correct answer is B.

The configuration provided is for a trunk port, which can carry multiple VLANs.

The command port trunk allow-pass vlan 10 20 30 40 allows tagged traffic from VLANs 10, 20, 30, and 40.

The command port trunk pvid vlan 10 sets the PVID (Port VLAN ID) to VLAN 10.

Any untagged frames received on this port will be assigned to VLAN 10, as per the PVID setting.

Option A (Correct): Since the PVID is VLAN 10, untagged frames are assigned to VLAN 10.

Options B, C, and D (Incorrect): VLANs 20, 30, and 40 are allowed, but untagged frames are not assigned to them.

Thus, the correct answer is A.

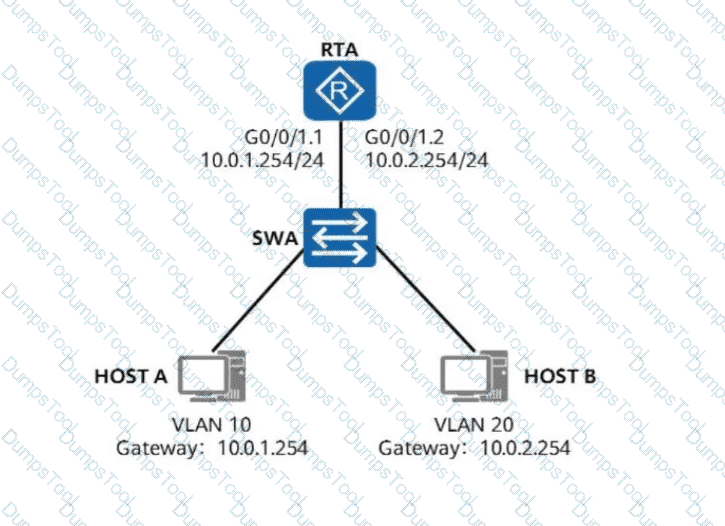

Understanding the Network Diagram

Host A is in VLAN 10 with a gateway of 10.0.1.254.

Host B is in VLAN 20 with a gateway of 10.0.2.254.

The router (RTA) has two sub-interfaces:

G0/0/1.1 (10.0.1.254/24) for VLAN 10

G0/0/1.2 (10.0.2.254/24) for VLAN 20

The switch (SWA) is using VLAN trunking to forward packets to the router, requiring 802.1Q encapsulation.

One-Armed Routing (Router-on-a-Stick) is being used, meaning a single physical interface (G0/0/1) handles multiple VLANs using sub-interfaces.

Analyzing the Answer Choices

Option A (dot1q termination vid 20) → Incorrect

This command would be configured on G0/0/1.2, not G0/0/1.1.

Option B (dot1q termination vid 30) → Incorrect

VLAN 30 is not part of this topology.

Option C (dot1q termination vid 10) → Correct

Since G0/0/1.1 corresponds to VLAN 10, the correct command is dot1q termination vid 10.

Option D (dot1q termination vid 1) → Incorrect

VLAN 1 is usually the default VLAN, which is not relevant here.

Thus, the correct answer is C (dot1q termination vid 10).

Comprehensive and Detailed Explanation:

Huawei devices support the following Telnet authentication methods:

No authentication → Users can log in without a password. ✅

Password authentication → Requires a static password for access. ✅

AAA local authentication → Uses a centralized database for user authentication. ✅

❌ Incorrect Option:

MD5 authentication is NOT used in Telnet. SSH uses MD5 for key exchange, not Telnet.

✅ Reference: HCIA-Datacom Security Guide – Telnet & SSH Authentication

A Layer 2 ACL primarily matches Layer 2 information, such as source and destination MAC addresses. However, it does not match Layer 3 information like IP addresses, as Layer 2 ACLs are designed to control traffic based on MAC addresses rather than IP-based criteria. Layer 3 ACLs would be used to match IP addresses​.

On Huawei routers running VRP, the reset saved-configuration command is used to delete the saved startup configuration file.

Option A (Incorrect): This command does not replace the saved configuration with the running configuration. Instead, it deletes the saved startup configuration.

Option B (Incorrect): The configuration file for the next startup is NOT retained. Instead, it is erased, meaning the device will boot with default settings if restarted.

Option C (Correct): Selecting Y (Yes) confirms the deletion of the saved startup configuration file, meaning the router will no longer have a saved configuration at the next reboot.

Option D (Incorrect): Selecting N (No) cancels the operation and keeps the saved startup configuration intact.

Thus, the correct answer is C. To clear the configuration file for next startup, select Y.

Detailed Explanation:DNS (Domain Name System) is responsible for translating human-readable domain names (like www.example.com) into IP addresses, enabling devices to locate services on a network. (Reference: HCIA-Datacom Training Material, DNS Function and Protocol Overview)

ICMP and NAPT:ICMP packets do not have port numbers, but NAPT (Network Address and Port Translation) can still manage ICMP traffic by matching identifiers in the ICMP header. This allows NAPT to handle ICMP messages properly​​.

Correct Answer:FALSE. ICMP packets can be handled by NAPT.

OSPF Network Types Overview:OSPF (Open Shortest Path First) supports different network types based on the underlying physical or logical topology:

A. Broadcast: OSPF assumes a fully meshed network, like Ethernet. DR/BDR elections occur.

B. Point-to-Point: A simple two-node network where no DR/BDR elections occur.

C. NBMA: OSPF operates over WAN technologies like Frame Relay. DR/BDR elections occur.

D. Point-to-Multipoint: OSPF operates on logically defined topologies where broadcast or multicast is not supported.

OSPF Flexibility:OSPF accommodates all these network types to ensure compatibility with a variety of link-layer technologies.

A VLANIF (VLAN Interface) is a Layer 3 virtual interface used for inter-VLAN routing on a switch.

Option A (Incorrect): Different VLANIF interfaces cannot use the same IP address because each VLANIF interface represents a different VLAN and requires a unique IP.

Option B (Correct): VLANIF interfaces operate at Layer 3, enabling routing between VLANs.

Option C (Correct): VLANIF interfaces do not need to learn MAC addresses because they are virtual interfaces that forward packets based on IP routing instead of MAC learning.

Option D (Incorrect): A VLANIF interface does have a MAC address, typically derived from the switch’s system MAC address.

Thus, the correct answers are B and C.

Comprehensive and Detailed Explanation:

A default route is used when no specific route matches a destination IP.

The correct syntax for a default static route is:

ip route-static 0.0.0.0 0.0.0.0 < next-hop IP >

✅ Correct Option:

A. [Huawei] ip route-static 0.0.0.0 0.0.0.0 192.168.1.1

This correctly sets 192.168.1.1 as the next-hop for all unknown destinations.

❌ Incorrect Options:

B. 0.0.0.0 0.0.0.0 0.0.0.0 → Invalid because 0.0.0.0 cannot be a next-hop.

C. 0.0.0.0 255.255.255.255 192.168.1.1 → Invalid because the mask must be 0.0.0.0 for a default route.

D. [Huawei-Serial0] ip route-static 0.0.0.0 0.0.0.0 0.0.0.0 → Invalid interface syntax.

✅ Reference: HCIA-Datacom Routing Guide – Default Route Configuration

Detailed Explanation:Static MAC address entries are manually configured and stored in the switch ' s configuration file, making them persistent across reboots. These entries remain in the MAC address table after a restart, unlike dynamic entries, which are lost. (Reference: HCIA-Datacom Training Material, MAC Address Table Types)

An IPv4 packet consists of a header and a payload:

Total Length=Header Length+Payload Length\text{Total Length} = \text{Header Length} + \text{Payload Length}Total Length=Header Length+Payload Length

Given:

IPv4 header length = 20B

Total packet length = 1500B

Payload=1500B−20B=1480B\text{Payload} = 1500B - 20B = 1480BPayload=1500B−20B=1480B

Option A (Incorrect): 1520B is incorrect because it exceeds the total packet length.

Option B (Incorrect): 20B is just the header, not the payload.

Option C (Incorrect): 1500B includes the header, not just the payload.

Option D (Correct): 1480B is the correct payload size.

Thus, the correct answer is D (1480B).

Comprehensive Explanation: The PVID (Port VLAN ID) is the VLAN to which untagged data frames are assigned on a hybrid port. In this configuration, the port hybrid untagged vlan 4 6 command indicates that VLANs 4 and 6 are untagged, and the PVID will be the lowest untagged VLAN, which is VLAN 4. Tagged frames for VLANs 2, 3, and 100 will be forwarded as tagged, but untagged traffic will belong to VLAN 4 by default.

Comprehensive and Detailed In-Depth Explanation:

LACP selects active ports based on priority (lower is better).

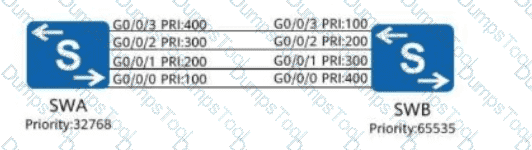

Switch A (SWA) has the following priorities:

G0/0/0 → Priority 100

G0/0/1 → Priority 200

G0/0/2 → Priority 300

G0/0/3 → Priority 400

Since only 3 ports can be active, the port with the highest priority number (400) is NOT active.

Thus, G0/0/3 is NOT selected as an active port.

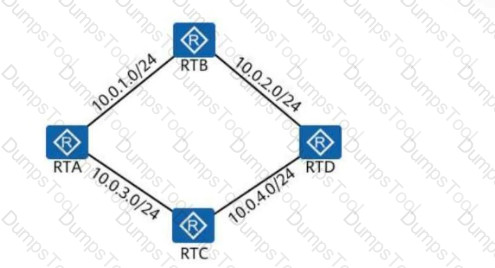

Routing preference (administrative distance) is the first criterion used when multiple paths exist.

If multiple routes have the same preference, the router then compares the cost (metric) to choose the best path.

Lower cost values indicate better paths and are preferred by the router.

If multiple paths have the same cost, the router may perform load balancing (depending on the routing protocol).

Thus, the correct answer is A (TRUE).

VLAN Assignment Overview:VLAN (Virtual Local Area Network) assignment is a critical step in campus network planning. It involves logically segmenting a network to improve manageability, security, and performance. Huawei recommends various approaches based on specific needs.

Analysis of Options:

Option A: " VLAN assignment by service type " This method groups devices based on the type of service they require (e.g., voice, video, data). It helps in isolating traffic for different service types, improving QoS and security. This is a common practice in network planning​​.

Option B: " VLAN assignment by logical area " Logical area-based assignment groups devices based on their logical function in the network (e.g., core, access, distribution). It ensures proper segmentation and alignment with network topology​.

Option C: " VLAN assignment by geographic area " Assigning VLANs based on geographic areas (e.g., floors in a building, departments) helps localize traffic within a region, reducing unnecessary cross-network traffic​​.

Option D: " VLAN assignment by personnel structure " While this option suggests assigning VLANs based on organizational structure (e.g., employees, managers), it is not a typical practice in VLAN assignment. It lacks scalability and alignment with network topology, making it an inefficient approach​.

Correct Answers:The valid VLAN assignment methods in campus network planning are:

A. By service type

B. By logical area

C. By geographic area

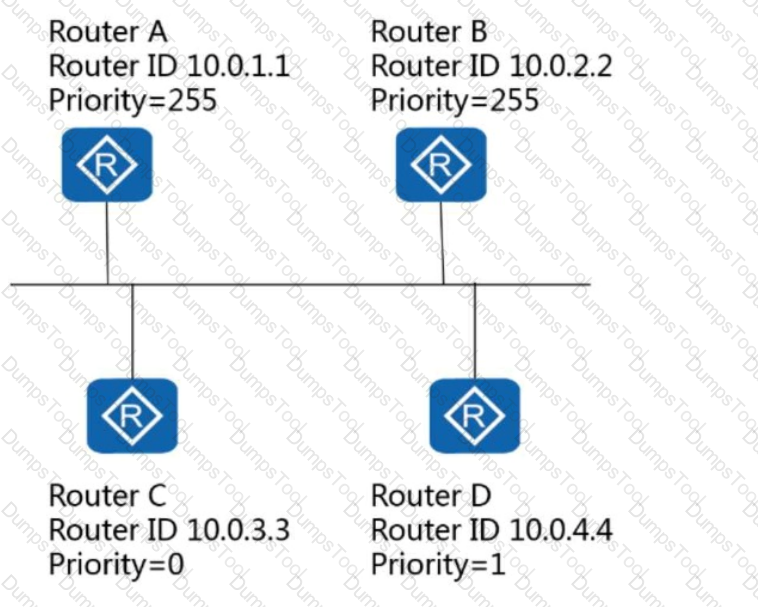

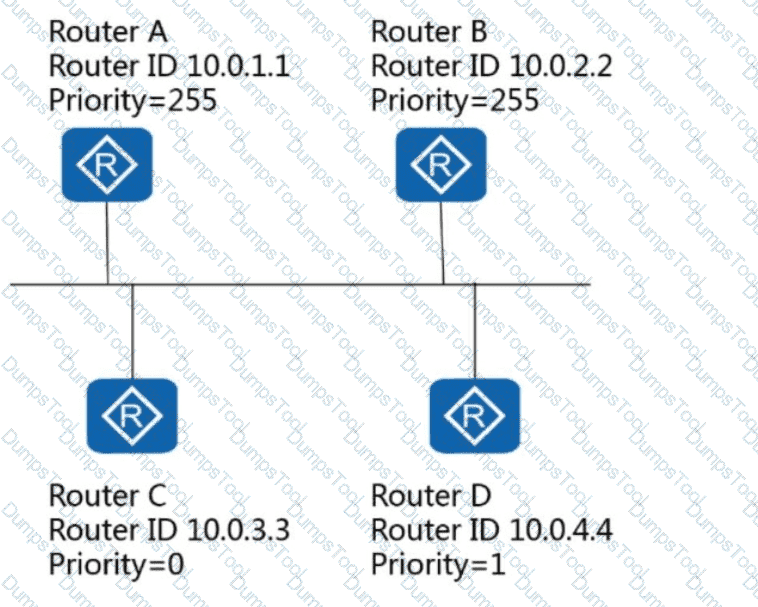

In OSPF, the Backup Designated Router (BDR) is selected based on the highest priority and, in case of a tie, the highest router ID. Given that Router D has the appropriate settings, it is designated as the BDR, providing backup for the DR (Designated Router) in this network configuration​.

A broadcast address, with all host bits set to 1, is used for broadcasting messages to all devices within a network segment. It cannot be assigned to a specific host, as its purpose is to reach every device in the subnet. Therefore, it is reserved for broadcast communication and cannot serve as an individual host address​.

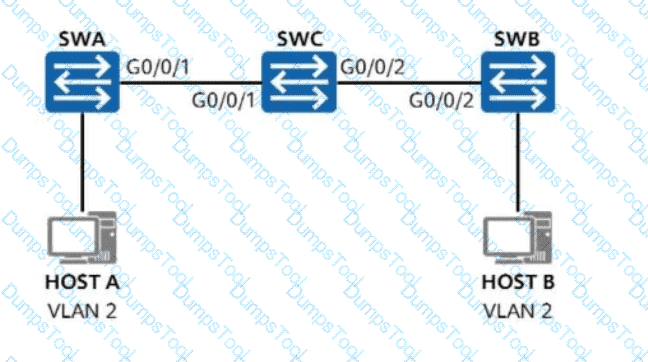

To ensure communication between Host A and Host B, we need to analyze the network topology, VLAN configuration, and the role of SWC as an intermediate switch. Let’s break it down step by step, based on VLAN and trunking principles as outlined in HCIA Datacom documentation:

Understanding the Current Network Configuration:

Host A and Host B: Both are connected to SWA and SWB, respectively, via access ports assigned to VLAN 2. Access ports carry untagged traffic for a single VLAN (in this case, VLAN 2), so Host A and Host B are part of VLAN 2.

SWA and SWB Trunk Interfaces: G0/0/1 on SWA and G0/0/2 on SWB are configured as trunk interfaces allowing all VLANs. Trunk ports carry tagged traffic for multiple VLANs (including VLAN 2 in this case) and are used to interconnect switches, enabling VLAN traffic to pass between them. Since these trunk ports allow all VLANs, VLAN 2 traffic can traverse between SWA and SWB.

SWC: SWC is the intermediate switch connecting SWA and SWB via its G0/0/1 (connected to SWA’s G0/0/1) and G0/0/2 (connected to SWB’s G0/0/2). However, the diagram and question do not specify SWC’s current VLAN or port configurations. By default, if no VLAN or trunk configuration exists on SWC, VLAN 2 traffic cannot pass through SWC, preventing communication between Host A and Host B.

Requirements for Communication Between Host A and Host B:

For Host A and Host B (both in VLAN 2) to communicate across the network, VLAN 2 traffic must be able to traverse SWC. This requires:

VLAN 2 to be created on SWC so that the switch recognizes and processes traffic for that VLAN.

The interfaces on SWC (G0/0/1 and G0/0/2) connecting to SWA and SWB must be configured as trunk ports to carry tagged VLAN 2 traffic, matching the trunk configuration on SWA’s G0/0/1 and SWB’s G0/0/2.

Trunk ports are necessary because they can carry traffic for multiple VLANs (tagged) and are typically used between switches to maintain VLAN consistency across the network.

Evaluating Each Option:

A. Create VLAN 2 on SWC.

Creating VLAN 2 on SWC is necessary, but it alone is insufficient. Without configuring the ports (G0/0/1 and G0/0/2) as trunk interfaces allowing VLAN 2, the VLAN traffic cannot pass through SWC. This option is incomplete and incorrect.

B. Configure G0/0/1 on SWC as a trunk interface that allows packets from VLAN 2 to pass through.

Configuring G0/0/1 as a trunk interface allowing VLAN 2 is part of the solution, but it only addresses the connection to SWA. G0/0/2 (connected to SWB) also needs to be configured as a trunk interface allowing VLAN 2 for bidirectional communication between Host A and Host B. This option is incomplete and incorrect.

C. Create VLAN 2 on SWC, and configure G0/0/1 and G0/0/2 as trunk interfaces that allow packets from VLAN 2 to pass through.

This option addresses all requirements:

Creating VLAN 2 on SWC ensures the switch recognizes VLAN 2 traffic.

Configuring both G0/0/1 and G0/0/2 as trunk interfaces allowing VLAN 2 ensures that tagged VLAN 2 traffic can pass between SWA and SWB through SWC, enabling communication between Host A and Host B.

This is the complete and correct solution, aligning with VLAN and trunking principles in HCIA Datacom.

D. On SWC, configure G0/0/1 as a trunk interface that allows packets from VLAN 2 to pass through, configure G0/0/2 as an access interface, and set the PVID to 2.

Configuring G0/0/1 as a trunk interface allowing VLAN 2 is correct for the connection to SWA. However, configuring G0/0/2 as an access interface with PVID 2 (Port VLAN ID) is incorrect for this scenario:

Access ports carry untagged traffic for a single VLAN and are typically used for end devices, not for interconnecting switches. Since SWB’s G0/0/2 is a trunk interface allowing all VLANs, G0/0/2 on SWC must also be a trunk interface to match and carry VLAN 2 traffic.

Using an access port on G0/0/2 would prevent VLAN 2 traffic from passing correctly, as it would expect untagged traffic only for VLAN 2, which conflicts with SWB’s trunk configuration.

This option is incorrect because it mixes access and trunk port types inappropriately for inter-switch links.

Conclusion:

To ensure communication between Host A and Host B (both in VLAN 2), SWC must:

Create VLAN 2.

Configure G0/0/1 and G0/0/2 as trunk interfaces allowing VLAN 2 traffic.

Option C fulfills these requirements, making it the correct answer.

Answer: C

References from HCIA Datacom Documents:

HCIA Datacom V3.0, Chapter 4: VLAN Technologies – Access and Trunk Port Configurations

HCIA Datacom V3.0, Chapter 4: VLAN Trunking and Inter-VLAN Routing – Configuring Trunk Ports for VLAN Traffic

Huawei VLAN Configuration Guide (HCIA Datacom Certification Material) – VLAN Creation and Port Link Types

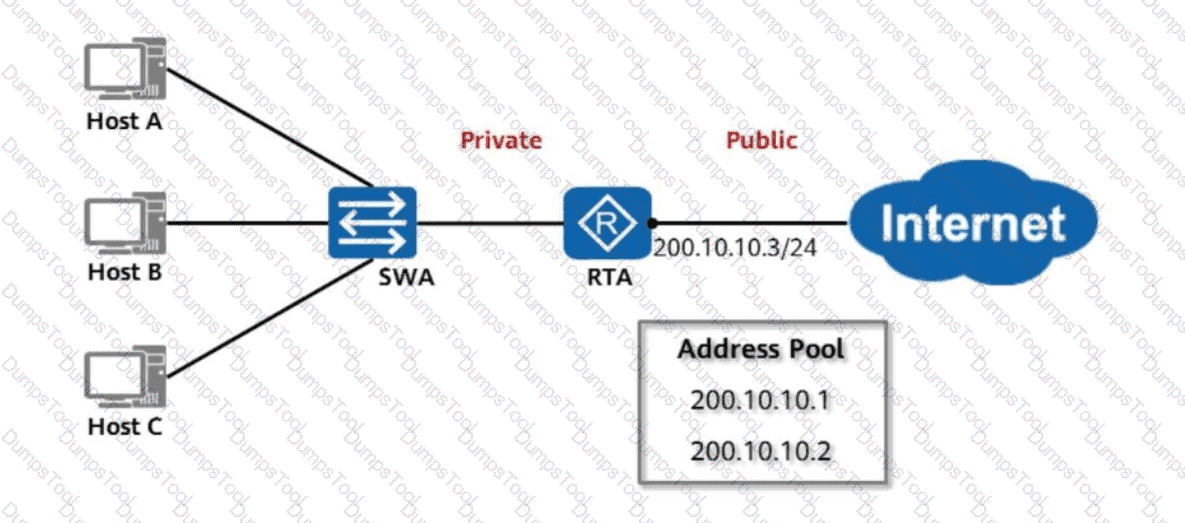

In a many-to-many non-NAPT (Network Address Port Translation) configuration, each private host requires a unique public IP address from the address pool. If only two public IP addresses are available and both are already in use by Host A and Host B, no IP will be available for Host C, preventing it from accessing the public network​.

Comprehensive Explanation: In Telnet sessions, different privilege levels determine what actions a user is allowed to perform. If users are not able to configure the IP address, it is likely that their privilege level is set incorrectly. The administrator must ensure that the Telnet users are assigned the correct privilege level (typically level 15 for full administrative rights) to allow configuration changes, including IP address modifications.

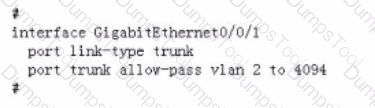

Trunk Interface Basics:

Trunk interfaces are used to carry traffic for multiple VLANs between switches.

Tagged frames include VLAN identifiers, while untagged frames belong to the native VLAN.

Untagged Frames:

Frames from the native VLAN are sent untagged on the trunk interface.

Conclusion:

Trunk interfaces support both tagged and untagged frames, so the statement is TRUE.

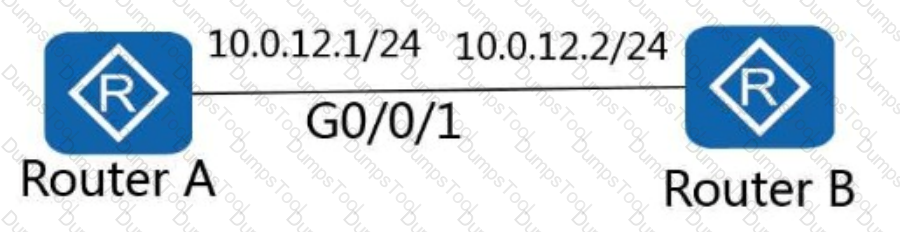

Router A would have three TCP connections in this scenario:

One for the Telnet session from host A to router A.

One for the FTP control connection to router B.

One for the FTP data connection to transfer the configuration file. These TCP connections facilitate the remote login and file transfer across the network​.

Comprehensive Explanation: The wildcard mask 0.0.254.255 corresponds to a range of IP addresses where the second octet can vary between 2 and 4, and the third octet can vary between 0 and 255. This means the ACL rule matches IP addresses in the range 10.0.2.0 to 10.0.4.255. The only option that falls within this range is 10.0.4.5, making it the correct answer.

1. Understanding the ACL Rule

The rule:

rule 5 deny source 100.0.12.0 0.0.0.255

Blocks traffic originating from 100.0.12.0/24 (Host B’s network).

This means any packet sent from Host B to Host A will be blocked.

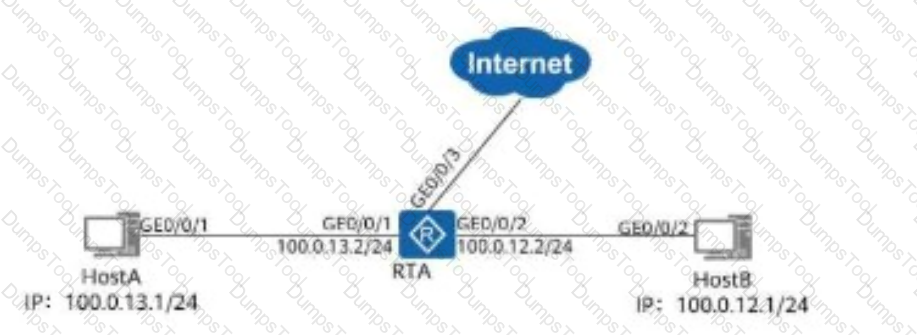

2. Applying the ACL to the Correct Interfaces

Option A: Applied inbound on GE0/0/1 → Blocks packets from Host B before reaching Host A. ✅

Option B: Applied inbound on GE0/0/2 → Blocks packets from Host A before reaching Host B. ✅

3. Why Other Options Are Incorrect

Option C (GigabitEthernet0/0/3):

Interface GE0/0/3 is not connected to Host A or Host B, so applying ACL here is meaningless.

Option D (Outbound on GE0/0/1):

Outbound filtering is less efficient than inbound filtering because it blocks traffic after routing.

4. Correct Approach to Prevent Communication

To completely block communication between Host A and Host B, we must:✅ Block inbound traffic on GE0/0/1 (Host A’s interface)✅ Block inbound traffic on GE0/0/2 (Host B’s interface)

Conclusion:

The correct choices are A and B because they block inbound traffic at the correct interfaces.

Options C and D are incorrect because they apply ACL rules to the wrong interfaces or use inefficient filtering.

To determine which types of traffic can be filtered by an advanced Access Control List (ACL) on a Huawei device, we need to understand the capabilities of advanced ACLs as defined in HCIA Datacom documentation and Huawei networking standards. Let’s analyze each option step by step:

Understanding Huawei ACL Types:

Huawei devices support different types of ACLs, including Basic ACLs, Advanced ACLs, and Layer 2 ACLs (MAC-based). Each type has specific filtering capabilities:

Basic ACLs (2000–2999): Filter traffic based on source IP addresses only.

Advanced ACLs (3000–3999): Provide more granular filtering, including source IP addresses, destination IP addresses, protocols, port numbers, and other Layer 3 and Layer 4 parameters. They are more flexible than Basic ACLs but do not filter based on Layer 2 information like MAC addresses.

Layer 2 ACLs (4000–4999): Filter traffic based on source and destination MAC addresses, VLAN IDs, and other Layer 2 parameters.

The question specifically asks about advanced ACLs, so we focus on their capabilities, which are limited to Layer 3 and Layer 4 traffic (IP-based and protocol-specific filtering).

Evaluating Each Option:

A. Network traffic based on a specific source IP address

Advanced ACLs on Huawei devices can filter traffic based on source IP addresses. This is a standard feature of advanced ACLs, which support matching rules for source IP addresses using wildcard masks or specific IP ranges.

This statement is true.

B. Network traffic based on a specific source MAC address

Advanced ACLs operate at Layer 3 and Layer 4 (IP and TCP/UDP) and do not have the capability to filter traffic based on Layer 2 information, such as MAC addresses. Filtering based on MAC addresses requires Layer 2 ACLs (e.g., ACLs in the 4000–4999 range), not advanced ACLs.

This statement is false.

C. Network traffic based on a specific user name

Advanced ACLs do not have the capability to filter traffic based on user names. User-based filtering typically requires authentication mechanisms (e.g., 802.1X, AAA, or RADIUS) combined with dynamic ACLs or policies, not standard advanced ACLs. Advanced ACLs are limited to IP addresses, protocols, and port numbers, not user-specific attributes.

This statement is false.

D. Network traffic based on a specific port number

Advanced ACLs can filter traffic based on transport layer port numbers (e.g., TCP/UDP ports), such as HTTP (port 80), FTP (port 21), etc. This is a key feature of advanced ACLs, allowing granular control over application-layer traffic.

This statement is true.

E. Network traffic based on a specific destination IP address

Advanced ACLs can filter traffic based on destination IP addresses, similar to source IP addresses. This is another standard capability, allowing matching rules for destination IP addresses using wildcard masks or specific IP ranges.

This statement is true.

Conclusion:

Advanced ACLs on Huawei devices can filter traffic based on:

Source IP addresses (Option A).

Destination IP addresses (Option E).

Port numbers (Option D).

They cannot filter traffic based on source MAC addresses (Option B) or user names (Option C), as these require Layer 2 ACLs or authentication-based policies, respectively.

Therefore, the correct answers are A, D, and E.

TPID Definition:

TPID (Tag Protocol Identifier) is a field in the Ethernet frame header that indicates the presence of an 802.1Q VLAN tag.

IEEE 802.1Q defines the TPID value as 0x8100.

Why Other Options Are Incorrect:

0x9100: Used in some proprietary protocols but not IEEE standard.

0x8200 and 0x7200: Not valid TPID values.

Comprehensive and Detailed In-Depth Explanation:

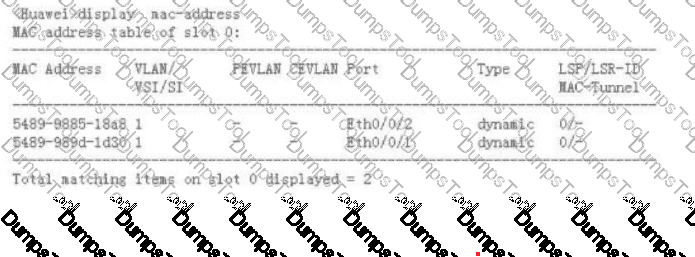

MAC Address Table Analysis:

5489-9885-18a8 → Learned on Eth0/0/2

5489-989d-1d30 → Learned on Eth0/0/1

Switch Behavior:

If a frame arrives on the same port where the destination MAC is learned, it is discarded to prevent loops.

Since the frame arrives on Eth0/0/2, and the MAC is already associated with Eth0/0/2, the switch discards the frame.

Comprehensive and Detailed Explanation:

RADIUS (Remote Authentication Dial-In User Service) is a widely used AAA protocol for:

Authentication (verifying user credentials).

Authorization (determining access level).

Accounting (logging user activity).

It uses UDP (ports 1812/1813 or 1645/1646) and is common in enterprise networks.

✅ Reference: HCIA-Datacom Security Guide – AAA & RADIUS Overview

Detailed Explanation:Stateless Address Autoconfiguration (SLAAC) allows IPv6 hosts to generate their own IP addresses but does not include DNS server information. DHCPv6 is typically required for DNS configuration. (Reference: HCIA-Datacom Training Material, IPv6 SLAAC and DNS)

In PPP (Point-to-Point Protocol) authentication, if the authentication fails, the authenticator sends an Authenticate-Reject message.

Option A (Incorrect - Authenticate-Ack): Sent when authentication is successful.

Option B (Incorrect - Authenticate-Reply): Not a valid PPP authentication message.

Option C (Correct - Authenticate-Reject): Sent when authentication fails, and the connection is rejected.

Option D (Incorrect - Authenticate-Nak): Used for PPP negotiation, not authentication failure.

Thus, the correct answer is C.

With a subnet mask of /25, the IP range for this subnet would be 192.168.1.0 to 192.168.1.127. Here, 192.168.1.127 is the last usable address in the subnet, making it a valid host address rather than a network or broadcast address. This address falls within the range of available host addresses for that subnet​.

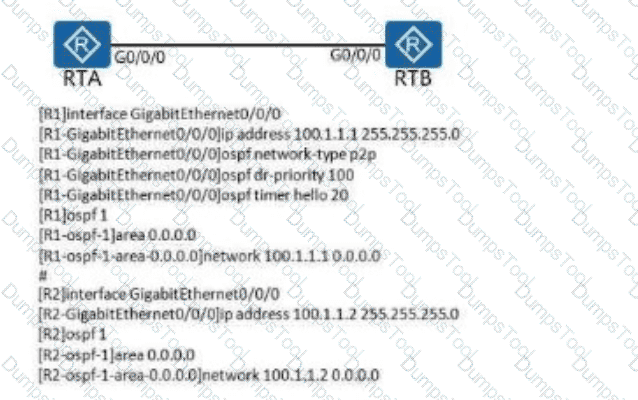

Detailed Explanation:The default Router Dead Interval in OSPF is 40 seconds for broadcast and point-to-point networks. This interval defines the time period a router waits to receive hello packets before declaring a neighbor as down. (Reference: HCIA-Datacom Training Material, OSPF Hello and Dead Intervals)

Comprehensive and Detailed Explanation:

NAPT (Network Address Port Translation) maps multiple private IPs to one public IP by modifying the source port.

It differentiates users using:

Source IP

Source Port (TCP/UDP)

Incorrect Statement:

Protocol ID (TCP=6, UDP=17, ICMP=1) is NOT used for differentiation.

Port numbers are used instead.

✅ Reference: HCIA-Datacom NAT Guide – NAPT Functionality

NFV Overview:NFV replaces traditional hardware appliances with software-based solutions that can be deployed on virtualized infrastructure. This allows for flexible, cost-effective, and scalable network application deployment​​.

OSPFv1 (B): Was an experimental version, not widely used.

OSPFv2 (C): Used for IPv4 networks, does not support IPv6.

OSPFv3 (D): Specifically designed for IPv6 networks and includes additional features like security and address scope handling.

OSPFv4 (A): This version does not exist.

Thus, the correct answer is D (OSPFv3).

SNMP Agent Functionality:Each network device running SNMP includes an agent process that collects and manages information about the device ' s operations. This process interfaces with the SNMP manager to provide network monitoring and management capabilities​​.

Comprehensive and Detailed Explanation:

BPDU (Bridge Protocol Data Unit) packets are exchanged only on ports in Blocking, Listening, and Learning states.

Ports in Forwarding state DO NOT receive BPDU packets (BPDUs are only processed by non-designated ports).

If a forwarding port starts receiving BPDUs, it goes back to Listening state to re-evaluate STP topology.

✅ Reference: HCIA-Datacom Switching Guide – STP Port States

Detailed Explanation:Wi-Fi 6 refers to the IEEE 802.11ax standard, which improves the efficiency, capacity, and performance of wireless networks, especially in dense environments​.

Comprehensive Explanation: The command dot1q termination vid 100 in the configuration specifies that the sub-interface is configured to receive tagged data frames for VLAN 100. VLAN tagging ensures that frames are properly identified and routed through the correct VLAN, and the sub-interface is associated with a specific VLAN ID to handle the tagged traffic.

IPv6 Address Types:

Unicast: Identifies a single interface.

Anycast: Identifies a set of interfaces, delivering to the nearest one.

Multicast: Delivers to multiple interfaces.

Broadcast: Does not exist in IPv6; replaced by multicast addressing​​.

Understanding Trunk Ports:

Trunk ports carry traffic from multiple VLANs.

Native VLAN (PVID) frames are sent untagged on the trunk.

Breakdown of Configuration:

port link-type trunk → Interface operates as a trunk.

port trunk pvid vlan 10 → Sets VLAN 10 as the native VLAN.

port trunk allow-pass vlan 10 20 30 40 → Allows traffic from VLANs 10, 20, 30, and 40.

Conclusion:

Since VLAN 10 is the PVID (native VLAN), frames from this VLAN are sent untagged.

Correct answer is A (VLAN 10).

Detailed Explanation:UDP (User Datagram Protocol) is a connectionless protocol that does not provide reliability, packet sequencing, or traffic control. These features are usually managed by TCP, which is used for applications requiring reliable data transmission. UDP’s design makes it suitable for real-time applications, such as video streaming or VoIP, where speed and low latency are prioritized over reliability. (Reference: HCIA-Datacom Training Material, UDP Characteristics)

The command defines a static route to the network 10.0.12.0 with a 255.255.255.0 subnet mask, using 192.168.1.1 as the next-hop address. Static routes are manually set routes with fixed paths, and by default, they have higher priority than dynamic routes, but the specific preference value depends on configuration. This setup enables targeted routing for traffic towards the specified destination​.

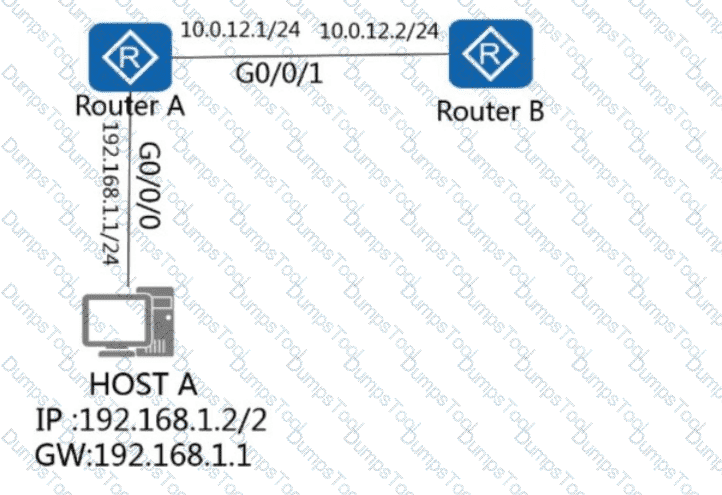

Private vs Public IPs:

192.168.1.2 belongs to the private IP range (192.168.0.0/16).

Private IP addresses cannot be routed on the Internet and must be translated.

Network Address Translation (NAT):

NAT converts private IP addresses to a public IP so that the device can access the Internet.

Conclusion:

NAT is required to access the Internet from a private IP, making the statement TRUE.

Comprehensive and Detailed In-Depth Explanation:

In both STP (Spanning Tree Protocol) and RSTP (Rapid Spanning Tree Protocol), the root switch is elected based on two criteria:

Lowest Bridge Priority (Primary Factor)

If Priority is Equal, Lowest MAC Address Wins

Thus, the statement is false because STP and RSTP both consider both priority and MAC address. The difference between STP and RSTP lies in their convergence speeds, not the root switch election process.

In RSTP, an edge port is intended to connect directly to end devices, not other switches. However, if the edge port receives a BPDU, it will lose its edge status and revert to a standard STP port. This feature prevents loops by reconfiguring the port based on network conditions​.

Comprehensive Explanation: In Spanning Tree Protocol (STP), the Message Age in the BPDU (Bridge Protocol Data Unit) sent by the root bridge is set to 0. As BPDUs are forwarded by non-root switches, the Message Age is incremented. This timer is used to ensure that outdated information is not propagated indefinitely through the network. If the Message Age reaches a configured maximum value, the BPDU is discarded, and the network topology is recalculated.

Router Initialization:

When a router boots up, it attempts to load its configuration file from the default save directory to initialize.

If the configuration file is missing, the router defaults to preconfigured parameters to ensure basic functionality.

Default Parameters:

These parameters include IP routing, interface defaults, and system-level settings. They allow network administrators to connect and manually configure the router.

Why Other Options Are Incorrect:

B: The " initial configuration file " refers to the manually created file, which may not exist.

C: The " current configuration file " is used during runtime but does not persist through reboots if unsaved.

D: A " new configuration file " must be manually created and does not exist by default.

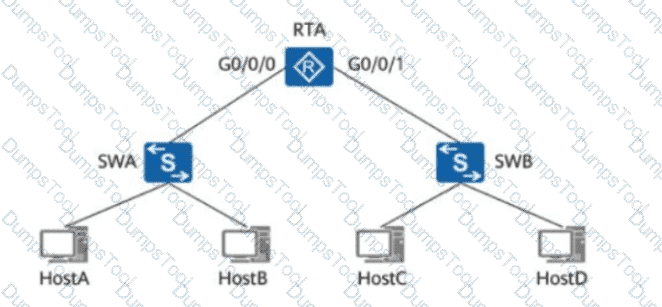

When HostA wants to send data to HostC, the following steps occur:

HostA checks if HostC is in the same subnet:

HostA and HostC are in different network segments, meaning HostA must send the packet to its default gateway (RTA, G0/0/0) to reach HostC.

HostA needs the MAC address of its gateway (RTA G0/0/0):

Since ARP (Address Resolution Protocol) is used to resolve IP to MAC addresses, HostA will send an ARP Request to obtain the MAC address of G0/0/0 of RTA.

RTA forwards the packet to HostC:

Once HostA sends the packet to RTA (using G0/0/0 ' s MAC), RTA will route it to the correct network segment and send it to HostC through G0/0/1.

Why the Other Options Are Incorrect:

Option A (HostC) - Incorrect:

HostA does not send an ARP request for HostC because HostC is in a different subnet.

Option B (G0/0/1 of RTA) - Incorrect:

HostA only communicates with its directly connected gateway (G0/0/0), not G0/0/1.

Option C (SWA) - Incorrect:

Switches (SWA, SWB) operate at Layer 2 and do not require ARP.

Final Answer: D (G0/0/0 of RTA)

Comprehensive Explanation: The quit command is used to return from the system view to the user view in Huawei ' s VRP (Versatile Routing Platform). This command allows users to exit the current configuration mode and revert to the default user view. For example, when you are in the system view and you want to return to the user view, typing quit takes you back to the initial prompt without saving the current configuration​​.

Detailed Explanation:The address 145.4.2.55/26 is a valid unicast address and falls within the range of usable IP addresses for a /26 subnet. The address 237.6.1.2/24 is from a reserved range, 127.3.1.4/28 is part of the loopback range (127.0.0.0/8), and 192.168.10.112/30 only provides two usable addresses, which would not allow the router to be properly configured .

Comprehensive Explanation: Router Advertisement (RA) packets in IPv6 are part of the Neighbor Discovery Protocol, which uses ICMPv6 (Internet Control Message Protocol for IPv6). RA messages are sent by routers to inform hosts about the presence of routers on the network and provide them with information needed for stateless address auto-configuration, such as the network prefix and default gateway.

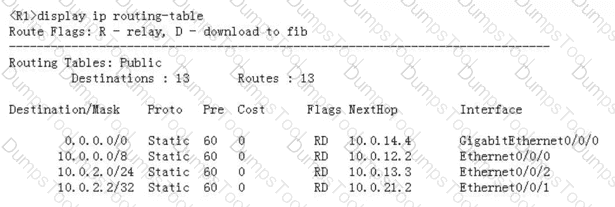

Comprehensive Explanation: A routing table contains several key elements:

Cost: Also known as metric, this indicates the cost associated with reaching a specific destination, such as the number of hops or link speed.

Next-hop address: This is the IP address of the next device along the route that packets should be forwarded to.

Protocol: The routing protocol (e.g., OSPF, RIP) that determined the route.

Interface: The physical or logical interface through which the router sends packets to reach the destination.

Destination/Mask: The destination network or subnet and the associated subnet mask define the range of IP addresses for which this route is valid. These elements together allow routers to efficiently forward traffic to the correct destinations.

DHCP (Dynamic Host Configuration Protocol) can allocate various network parameters, including:

IP address: Assigns a unique IP to each client.

Gateway address: Provides the default gateway for routing traffic.

DNS server address: Allows domain name resolution. The DHCP server does not assign an operating system, as this is outside its scope​.

Comprehensive Explanation: The interface configuration shows that VLANs 2, 3, and 100 are tagged, meaning frames belonging to these VLANs are transmitted with VLAN tags. VLANs 4 and 6 are untagged, meaning frames for these VLANs are transmitted without tags. The command port hybrid tagged vlan 2 to 3 100 specifies that data frames for VLANs 2, 3, and 100 are transmitted with tags, while port hybrid untagged vlan 4 6 configures the interface to transmit untagged frames for VLANs 4 and 6.

LACP Active Interface Election Overview:In LACP mode, active interfaces are elected based on interface priorities. If the interface priorities are identical, the system compares the interface numbers, and the one with the smaller number is preferred.

Analysis of Options:

Option A: Incorrect because interface priorities alone are insufficient when multiple interfaces share the same priority.

Option B: Device priorities are not used in this scenario for selecting active interfaces.

Option C: Correct. This process aligns with the behavior described for LACP, where interface priorities are compared first, and interface numbers are used as a tie-breaker.

Option D: Incorrect because interface numbers are only used as a secondary criterion.

Correct Answer:C. Interface priorities are compared first. If priorities of interfaces on the Actor are the same, interfaces with smaller interface numbers are elected as active interfaces​​.

Detailed Explanation:The Priority Code Point (PCP) field in an 802.1Q VLAN tag is 3 bits long, which gives it a value range of 0 to 7. This field is used to indicate the priority of the frame, with higher values indicating higher priority​​.

The MAC address table does not contain an entry for 5489-98EC-F011.

When a switch receives a frame with an unknown destination MAC address, it performs flooding.

Flooding sends the frame out of all interfaces except the one it was received on.

A (Incorrect): The switch does not discard unknown frames; it floods them.

B (Incorrect): No request is sent; flooding occurs instead.

D (Incorrect): ICMP is used for network-layer (IP) communication, not Ethernet switching.

Thus, the correct answer is C (Floods the frame on all interfaces except the incoming one).

Comprehensive and Detailed Explanation:

A static route requires the following essential parameters:

Destination Network → The network to reach (e.g., 10.1.1.0/24). ✅

Next-hop IP Address → The next router to forward traffic (e.g., 192.168.1.1). ✅

Outbound Interface → Instead of a next-hop, an interface (e.g., GigabitEthernet0/0/1) can be used. ✅

❌ Incorrect Option:

MAC address is not needed because routers forward packets based on IP, not MAC addresses.

✅ Reference: HCIA-Datacom Routing Guide – Static Routing Fundamentals

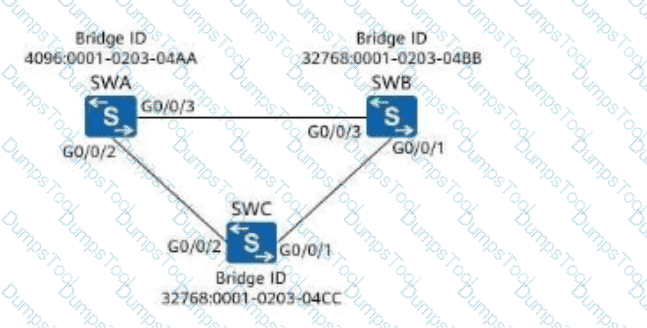

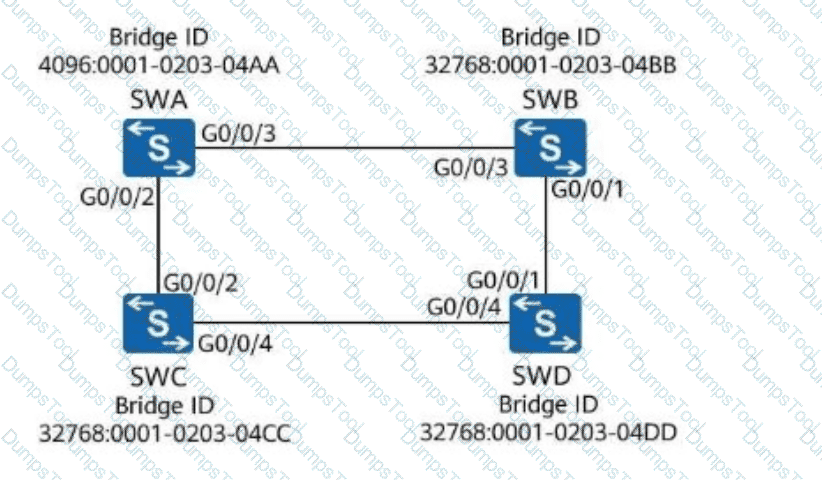

Comprehensive Explanation: SWA has the lowest Bridge ID and is the root bridge. In this topology, G0/0/2 of SWA and G0/0/1 of SWC are forwarding ports. Since G0/0/3 of SWB provides an alternate path to the root bridge, it will be placed in a blocking state to prevent network loops. The Spanning Tree Protocol ensures that only the most efficient path to the root bridge is active, and alternate paths are blocked until needed.

Comprehensive and Detailed Explanation:

The TCP/IP model consists of four layers:

Application Layer (Includes HTTP, FTP, DNS, etc.)

Transport Layer (Includes TCP, UDP)

Internet Layer (Same as OSI Network Layer)

Network Access Layer (Same as OSI Data Link & Physical Layers)

However, the OSI model has seven layers, which include:

Presentation Layer (Handles data translation, encryption, compression)

Session Layer (Manages sessions between applications)

Since the Presentation Layer and Session Layer are part of OSI and not TCP/IP, they do not exist in the TCP/IP model.

✅ Reference: HCIA-Datacom Network Principles Guide – TCP/IP Model vs. OSI Model

Comprehensive and Detailed Explanation:

802.11n operates on both 2.4 GHz and 5 GHz bands (Dual-band support). ✅

802.11ax (Wi-Fi 6) supports 6 GHz (but 802.11n does not). ❌

✅ Reference: HCIA-Datacom Wireless Guide – 802.11 Standards

Comprehensive Explanation: SNMP (Simple Network Management Protocol) consists of several key components:

Management Information Base (MIB): A database containing the network management data.

Managed object: The individual objects (such as interfaces or devices) that SNMP manages.

Agent process: The software running on the managed device that reports data to the NMS.

NMS (Network Management System): The centralized system that collects data from managed devices using SNMP.

All these components work together to monitor, configure, and manage network devices.
