HPE7-A08 Questions and Answers

In a high-security " Colorless Ports " environment using AOS-CX, we often run both 802.1X (Dot1x) and MAC Authentication (MAC-auth) on the same port to handle a mix of corporate laptops and " dumb " IoT devices (printers, cameras).

The Default Behavior: By default, the switch usually attempts 802.1X first. When a device like a printer is plugged in, it does not have an 802.1X " supplicant " to respond to the switch ' s EAPOL-Request packets. The switch will wait for a series of timeouts and retries (EAPOL timeouts) before it gives up on 802.1X and moves on to the next method (MAC-auth). This waiting period is what causes the " few minutes " delay the user is experiencing.

Auth-Precedence vs. Auth-Priority:

Auth-Precedence: This defines the order in which the switch attempts the authentication methods.

Auth-Priority: This defines which method " wins " if multiple methods succeed (relevant for a PC that might trigger both).

The Solution: By changing the auth-precedence to mac-auth dot1x, the switch immediately captures the device ' s MAC address and sends it to the RADIUS server (like Aruba ClearPass) for authentication.

For a printer, MAC-auth succeeds immediately, and the port is authorized without waiting for 802.1X timeouts.

For a corporate laptop, MAC-auth happens first (granting basic or initial access), and then the 802.1X process can trigger immediately after to provide higher-level " User " access.

Why other options are incorrect:

Option A: Disabling 802.1X removes the security for corporate devices on those ports; it is not a " secure configuration " maintenance.

Option B: Increasing the timeout would make the delay worse, not better.

Option D: There is no specific " MAC auth start value " timer in AOS-CX that would solve a multi-minute delay caused by the 802.1X failure wait.

CLI Example:

Bash

interface 1/1/1

aaa authentication port-access auth-precedence mac-auth dot1x

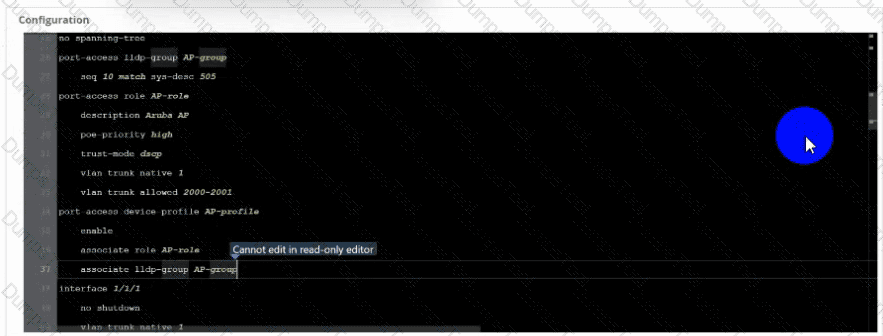

Device Profiles on AOS-CX switches are a " Lite " version of Dynamic Segmentation, allowing the switch to automatically configure a port when a specific device is detected via LLDP or CDP, without needing a RADIUS server.

Associate an LLDP group (Option C): To " catch " a device, you first define a Device Group (often an lldp-group) that contains match criteria such as the System Name or OUI of an Aruba AP. This group tells the switch which devices should trigger the profile.

Associate a role (Option A): Once a device matches the group, the switch needs to know what to do with it. The Role is the container that holds all the port attributes (VLAN, PoE priority, STP settings, etc.). The Device Profile ' s job is to " bridge " the group and the role together using the associate role and associate lldp-group commands.

Why other options are incorrect:

Options B, D, and E: These are all settings that are configured inside the Role. You do not associate a VLAN or an ACL directly to the Profile; you associate them to the Role, and then associate the Role to the Profile.

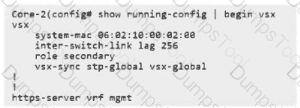

In AOS-CX architecture, management services (such as SSH, HTTPS, and SNMP) are VRF-aware. This is a security hardening feature designed to separate management traffic from data traffic.

Default Behavior: By default, AOS-CX switches enable the HTTPS server only on the mgmt VRF (the Out-of-Band Management port). This means the Web UI and REST API are only accessible through the dedicated physical management port.

In-Band Management: When you create an SVI (Switch Virtual Interface) like SVI 100, that interface resides in the default VRF (unless you manually assign it to a custom VRF). To manage the switch " in-band " through this SVI using a web browser, you must explicitly instruct the AOS-CX operating system to listen for HTTPS requests on that specific VRF.

The Command: The command https-server vrf default tells the switch to start the web server process for the default VRF. Without this command, any attempt to access the switch ' s IP address on SVI 100 via port 443 will be dropped by the switch ' s internal control plane protection, as the service is not active for that network context.

Verification of Options:

Option A: This command is typically already part of the factory default configuration to allow OOBM access; it does nothing for an SVI in the default VRF.

Option B: Incorrect, as HTTPS is restricted to the mgmt VRF out of the box for security.

Option C: This is a true statement regarding the default state, but it describes the problem rather than providing the solution to the requirement.

Option D: This is the correct administrative action to enable the service for the data plane (where SVI 100 lives).

The troubleshooting methodology exemplified by comparing outputs or configurations to find discrepancies is called Spot the difference. It involves checking variations between working and non-working states or devices.

Follow the path: tracing packet flow step-by-step.

Top-down/Bottom-up: analyzing layers systematically.

Replace configuration: swapping configurations to isolate issues.

Here, comparing command outputs aligns with spot-the-difference.

In an AOS-CX Virtual Switching Extension (VSX) environment, the Configuration Synchronization (vsx-sync) feature simplifies management by allowing the Primary switch to automatically push configuration settings to the Secondary switch.

Primary-Only Configuration: A fundamental rule of vsx-sync is that all synchronization commands must be configured on the Primary VSX node. The Secondary node simply receives and applies the configuration; it does not initiate the sync.

The time Synchronization Module: In AOS-CX, the command used to synchronize all time-related parameters—including NTP servers, authentication keys, and time zone settings—is vsx-sync time.

Command Logic: By adding vsx-sync time under the vsx context on the Primary switch, the NTP configuration currently present on the Primary will be replicated to the Secondary switch ' s running configuration.

Why other options are incorrect:

Options B and C: These are incorrect because they suggest configuring the sync on the Secondary switch.

Option A: While it specifies the Primary switch, vsx-sync ntp is not the correct command syntax in AOS-CX; the feature is consolidated under the broader vsx-sync time module.

In the Aruba troubleshooting framework, there are several structured approaches to resolving network issues.

Replace Configuration (Option A): This methodology involves reverting the system to a known good state. In AOS-CX, Checkpoints are snapshots of the switch configuration. By running copy checkpoint [name] running-config, the administrator is essentially performing a " rollback. " This is often used when a recent change (like the routing change mentioned) caused a failure, and the fastest way to restore service is to " replace " the current faulty configuration with a verified historical one.

Evaluating Other Methodologies:

Top-down/Bottom-up: These involve working through the OSI layers (either from physical to application or vice-versa).

Spot the difference: This involves comparing a working device/configuration with a non-working one. While you might use checkpoint diff to find the error, the act of copying the checkpoint itself is the " Replace " method.

Divide and conquer: This involves starting in the middle of a stack (e.g., Layer 3) and testing in both directions.

Dynamic User Roles require the AOS-CX switch to establish a trusted HTTPS connection to ClearPass Policy Manager (CPPM) so that the role definition can be securely downloaded after authentication. Consequently, the switch must trust the certificate presented by the ClearPass HTTPS service . HPE Aruba specifies that DUR requires a RADIUS server root certificate installed on the switch , and its DUR certificate procedure specifically instructs administrators to create a Trust Anchor profile and import the root CA certificate used to sign the applicable server certificate . Aruba Networks

The crucial distinction is that the downloadable-role transaction uses HTTPS/API communication , rather than the CPPM RADIUS server certificate itself. HPE Aruba documentation for ClearPass certificate validation identifies https-root.pem as the HTTPS root-certificate resource used for DUR trust establishment. Aruba Networks

Therefore, A is the technically correct requirement: install the root CA that signs the CPPM HTTPS certificate . Option D incorrectly associates the trust anchor with the RADIUS certificate. Option C is not universally correct because the required certificate is the relevant HTTPS signing CA, which need not be the ClearPass internal self-signed CA. Option B gives an incomplete/malformed URL rather than the required CX trust configuration.

Study Guide References: Downloadable User Roles; ClearPass Policy Manager Integration; PKI Trust Anchors; HTTPS Certificate Validation; RADIUS/DUR Authentication.

===============

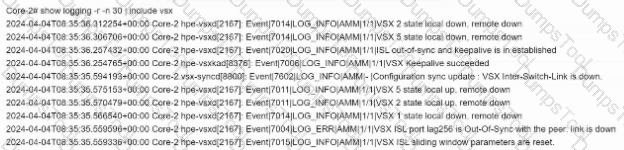

If the ISL between two VSX core switches is down and logs indicate that Core-2 has disabled its VSX LAG interfaces, it means Core-2 has disabled its VSX LAG interfaces, likely as a protective or failover mechanism.

Keepalive packets being dropped (Option B) may cause issues but logs specifically state interface disablement.

Both switches forwarding traffic (Option C) is unlikely if ISL is down.

Downstream switches inability to forward traffic (Option D) is a consequence, not the cause.

For an interface connected to an untrusted device regarding DSCP markings, the recommended configurations are:

Apply a classifier-based policy to assign a Local Priority value (Option B). This overrides or marks traffic based on predefined criteria.

Configure qos trust none (Option E) to disable trusting DSCP or CoS markings from the device, preventing manipulation of QoS.

Trusting CoS (Option A) is incorrect because the device is untrusted.

DSCP maps and Weighted Fair Queuing (Options C and D) are additional QoS features but do not specifically address untrusted markings.

The term " Active " in BGP is one of the most misunderstood states. It sounds positive, but it actually indicates that the switch is " actively " trying to establish a TCP connection and failing.

eBGP Default Behavior: By default, External BGP (eBGP) expects neighbors to be directly connected. Because of this, eBGP packets are sent with a Time to Live (TTL) of 1.

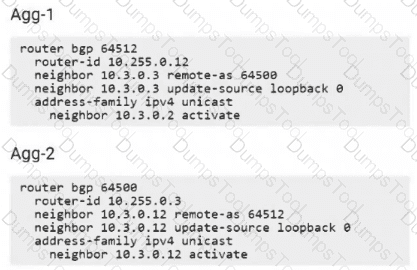

The Loopback Problem: In the exhibit, the switches are peering using their Loopback 0 addresses (update-source loopback 0). Even if the switches are physically connected, the Loopback interface is considered a " hop " away from the physical interface.

TTL Expiry: When Agg-1 sends a BGP packet to Agg-2 ' s loopback, the TTL of 1 expires before the packet can reach the logical loopback interface. This causes the TCP connection to fail, keeping the session in the Active state.

The Solution (eBGP Multihop): To fix this, you must configure ebgp-multihop (usually with a value of 2 or more). This increases the TTL, allowing the BGP packets to reach the loopback address.

Side Note on the Exhibit: If you look closely at Agg-1 ' s configuration, there is a typo: the neighbor is defined as 10.3.0.3 but the address-family activation is for 10.3.0.2. While this would also cause a failure, the core architectural concept being tested here regarding " Active " state and loopbacks is the TTL/Multihop requirement.

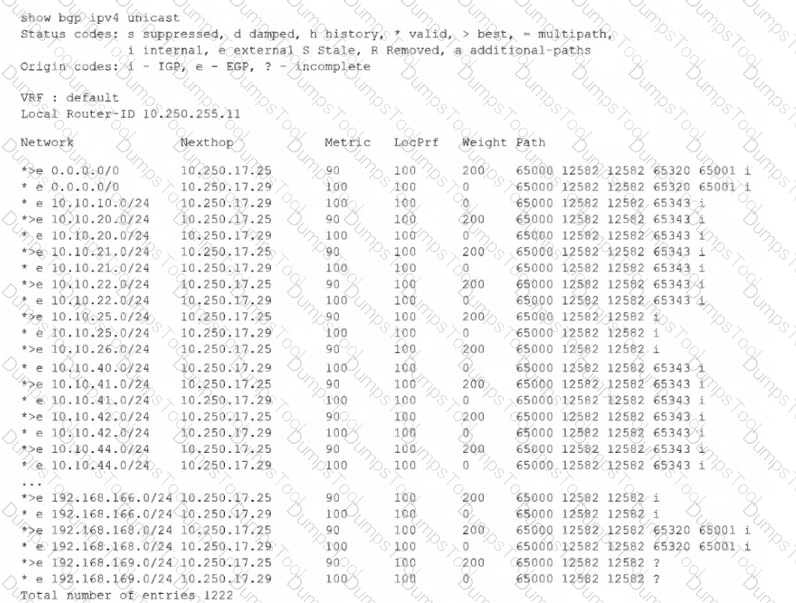

To influence BGP path selection, you must understand the BGP Best Path Selection Algorithm used by AOS-CX. When multiple paths to the same prefix exist, the switch evaluates attributes in a specific order.

The Decision Order:

Highest Weight (Proprietary/Local to the switch).

Highest Local Preference (Standard, used within an AS).

Locally originated.

Shortest AS Path.

Lowest MED (Metric).

Local Preference (LP): Although Local Preference is an attribute that is typically passed between iBGP peers, it is the most common tool used on an ingress (import) policy from an eBGP peer to tell the local switch (and the rest of the AS) " this is our preferred exit/entry point. "

The default Local Preference is 100.

By creating a route-map that sets the Local Preference to 200 and applying it to Peer A on import, the switch will see Peer A ' s route as having a higher LP than Peer B ' s route (which remains at 100).

Local Preference vs. Metric (MED): Local Preference is evaluated before the Metric (MED) in the decision process.

Option C works because LP 200 is higher than 100.

Option B is incorrect because setting a higher Metric (200) actually makes a route less preferred (lower metric wins).

Option D would technically make Peer A preferred (because Peer B would have a higher/worse metric), but because Local Preference is higher in the decision-making hierarchy, Option C is the more robust and standard BGP engineering choice in Aruba architectures.

Example CLI Logic:

Bash

route-map PREFER_A permit seq 10

set local-preference 200

!

router bgp 65001

neighbor < Peer_A_IP > route-map PREFER_A in

To enable Layer 3 multicast functionality on an AOS-CX switch, it is essential to understand the roles of different protocols and where they are applied in the hierarchy of the switch configuration.

L3 vs. L2 Multicast:

IGMP (Internet Group Management Protocol): This is a Layer 3 protocol used by hosts to report their multicast group memberships to adjacent routers. It is configured on a Layer 3 interface, such as an SVI (Switch Virtual Interface) or a routed port.

IGMP Snooping: This is a Layer 2 optimization feature. It allows a switch to " listen in " on IGMP conversations between hosts and routers to constrain multicast traffic to only those ports that have requested it, preventing the traffic from flooding the entire VLAN.

Enabling L3 Multicast Locally: When the " core switch " acts as the default gateway for multicast receivers, it must be able to process membership reports from those receivers. By enabling IGMP on the SVI (e.g., interface vlan 100), the switch begins listening for IGMP Join/Leave messages from clients on that subnet. This is a prerequisite for the switch to populate its multicast routing table and, when combined with a routing protocol like PIM (Protocol Independent Multicast), forward traffic from a source to those local receivers.

Analysis of Options:

Option A (Correct): IGMP must be enabled on the SVI so the switch can function as a multicast-aware gateway for that specific subnet.

Option B: In AOS-CX syntax, you do not configure " IGMP " under the L2 vlan [ID] context; it is an L3 function.

Option C: Enabling IGMP-snooping on a VLAN only manages the L2 delivery of traffic; it does not enable L3 routing or the processing of multicast packets across different subnets.

Option D: While IGMP-snooping is often used in conjunction with L3 multicast, it is technically a VLAN-level configuration, not a property of the SVI itself.

Key CLI Commands:

To fully enable this, a professional would typically use:

Bash

router multicast

routing

!

interface vlan 100

ip igmp

ip pim-sm

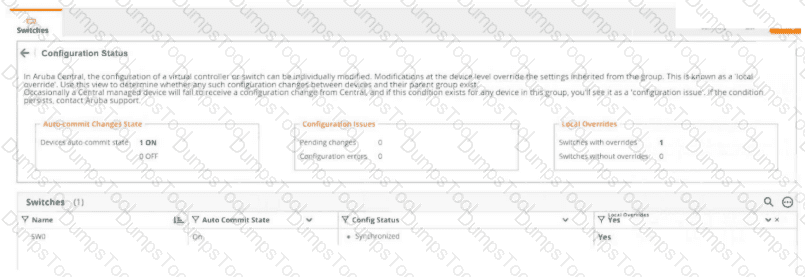

This exhibit displays the Configuration Status dashboard within HPE Aruba Networking Central for a specific switch (SW0).

Interpreting " Local Overrides " : In the Central management model, switches are typically assigned to a Group, and they inherit the configuration of that group (the " inherited settings " ). A Local Override (as explicitly defined in the exhibit ' s header text) occurs when an administrator makes a configuration change at the individual device level within Central. This device-specific configuration takes precedence over the group-level settings.

Analysis of SW0:

The table shows Local Overrides: Yes. This confirms that SW0 has unique configuration parameters applied to it that differ from the baseline configuration of its assigned group.

The Config Status is Synchronized, meaning these device-level changes have already been successfully pushed to the switch.

Evaluating the Options:

Option B (Correct): Having a " Local Override " means that a configuration has been pushed to the switch which deviates from the " default " (inherited group) settings.

Option A: " Local Overrides " in Central refers to the Central UI device-level settings, not changes made directly on the local physical CLI of the switch.

Option C: While Central does track configuration health, this specific screen is showing override and commit status, not the detailed logic for auto-checkpoints.

Option D: The exhibit shows Auto-commit Changes State: ON. This means any change made in Central is automatically committed and pushed to the device; no manual commit action is required by the administrator.

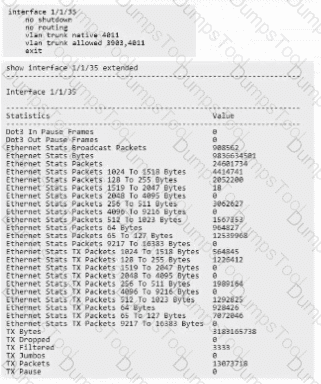

The issue is VMware vMotion traffic on VLAN 3903 failing, while other VLANs work normally. vMotion traffic requires support for larger frame sizes (jumbo frames) because vMotion packets are large and benefit from increased MTU to improve performance and reduce fragmentation.

Configuring jumbo frames on VLAN 3903 ensures that frames on this VLAN can use an MTU larger than the default 1500 bytes.

Configuring jumbo on the interface alone may not be sufficient if the VLAN itself is not set to support jumbo frames.

Setting MTU on VLAN or interface might not work unless jumbo frames are enabled.

AOS-CX switches include a robust Configuration Checkpoint system that allows administrators to save snapshots of the configuration state. These checkpoints are stored in the switch ' s internal flash memory.

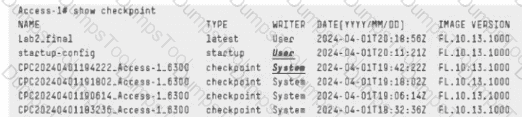

Understanding the Exhibit: The output shows several checkpoints.

Lab2_final: A user-created checkpoint.

startup-config: The current configuration that will be loaded on reboot.

CPC2024...: Automatic " System " checkpoints created by the switch during various configuration events or at scheduled intervals.

The " Diff " Operation: To investigate a missing configuration (like the missing device profile) without impacting the operational state of the switch, you use the checkpoint diff command. This command compares two configuration files and displays the specific lines that are present in one but missing in the other (marked with + and -).

Analyzing the Requirement: The user wants to validate the removal without changing the current config.

Option B (Correct): Executing checkpoint diff startup-config CPC20240401183236_Access-1_6300 (or another older checkpoint) will show exactly what was removed. This is a read-only comparison.

Why other options are incorrect:

Option A: show checkpoint only lists the metadata (name, date, version); it does not provide a content comparison.

Option C: This command would overwrite an existing checkpoint or create a new one, but it does not provide an analytical comparison of the differences.

Option D: checkpoint rollback is a destructive operation; it immediately applies the older configuration to the running state, which violates the requirement to not change the current configuration.

For an availability-sensitive WLAN deployment, the appropriate AOS-CX capabilities are Quick PoE and Always-on PoE . They address two different switch power-transition conditions and together minimize interruption to PoE-powered APs.

Always-on PoE maintains PoE delivery to already powered devices during a soft reboot , including scheduled switch reboots and firmware upgrade operations. Consequently, an AP-615 does not unnecessarily lose electrical power and perform a complete hardware boot merely because the CX switch ' s operating system is restarting. HPE Aruba specifically identifies this capability on the CX 6300 as part of its high-availability PoE functionality. Aruba Networks

Quick PoE addresses a cold reboot/power-up condition. HPE Aruba defines it as allowing the PSE to restore power to connected powered devices shortly after the switch powers up, rather than waiting for the complete network operating system initialization sequence. Aruba Networks Developer Hub

Using both features therefore covers both major restart scenarios: Always-on PoE preserves existing power across software restarts, while Quick PoE accelerates AP power restoration following a cold startup. For hospital WLANs supporting critical endpoints, this combination provides the highest AP power availability among the listed choices.

Study Guide References: CX 6300 PoE Architecture; Always-on PoE; Quick PoE; High-Availability Campus Design; AP Power Resiliency.

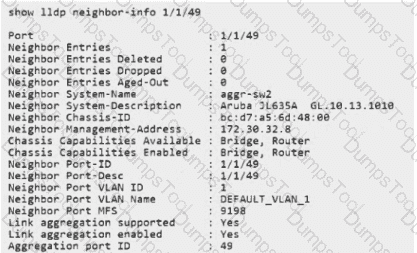

The Link Layer Discovery Protocol (LLDP) is used by Aruba switches to share identity and capability information with neighbors. By default, AOS-CX switches often advertise the IP address of the dedicated Out-of-Band (OOB) management port.

The Management-Address TLV: Neighbors use the " Management Address " Type-Length-Value (TLV) to know which IP they should use to manage the remote device (e.g., for SSH or Web UI access).

Changing the Source: In some designs, you want the switch to be managed through an " In-Band " VLAN interface rather than the physical management port.

AOS-CX Command Syntax: To specify which local interface ' s IP should be placed into the LLDP advertisement, AOS-CX uses the global command:

lldp management-ipv4-address vlan < VLAN-ID >

This tells the LLDP process: " Look at the IP assigned to SVI 5, and use that as our management identity in all LLDP frames sent out of all ports. "

Evaluating the Options:

Option D (Correct): Matches the specific AOS-CX syntax for selecting a VLAN-based management address.

Option B: This syntax is more common in the legacy AOS-S (ProCurve) software, whereas CX uses the management-ipv4-address keyword to distinguish between address families.

Option A: While intuitive, LLDP management address selection is a global process control in AOS-CX, not an interface-level trigger on the SVI itself.

Option C: While you can manually set the address using lldp management-address < IP > , there is no standalone lldp configuration context in the AOS-CX CLI.

To make configuration changes using multi-edit in Aruba Central when encountering the shown condition, you must enable edit config mode using the gear icon. This unlocks the configuration for editing and allows you to make batch changes safely.

Selecting configuration status or device in multi-edit alone is not sufficient.

Overriding state is not a standard approach in Aruba Central for editing configs.

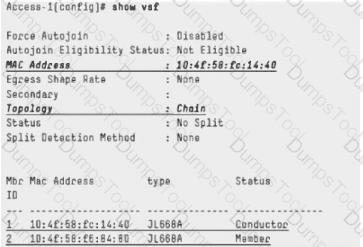

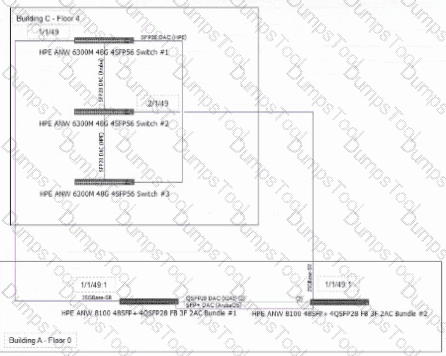

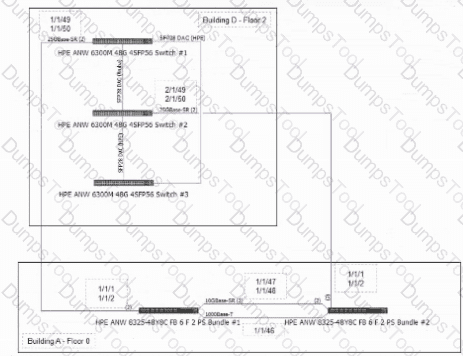

To avoid split-brain scenarios in VSF stacks, the VSL split-detect mgrep command is used to enable multicast group detection over the Virtual Switching Link (VSL). This helps detect when the stack links are down or partitioned, triggering appropriate failover or shutdown mechanisms.

Options like vsf start-auto-stacking, vsf secondary-member 2, or vsf conductor-member 2 are related to stack initialization and member roles but do not address split-brain detection directly.

Hence, enabling split-detect with mgrep is the best practice for VSF stack stability.

The LACP state event Actor state: ALFNCD, Partner state: ASFNCD indicates that the LACP negotiation between the local (actor) and peer (partner) is successful with all flags matching and no errors.

ALFNCD and ASFNCD are standard LACP states indicating Active, Long timeout, Aggregation capable, Not synchronized, Collecting, and Distributing flags set as expected.

Also, the log shows the LACP rate is set to slow, which is the default.

Thus, the output shows the LAG 253 has a matching LACP configuration with its peer.

In the Aruba/HPE troubleshooting framework, the methodology is selected based on the information provided at the start of the engagement.

Follow the Path: Since you have the Source IP and Destination IP, you have a clear starting and ending point. This methodology involves identifying every hop (switches, routers, firewalls) between the client and the SQL server.

Execution: You would typically use tools like traceroute, check interface statistics for errors/drops on each switch in the path, and look for specific buffer or congestion issues that could cause " intermittent " loss.

Why others are less ideal: * Divide and Conquer: Better for situations where you don ' t know the full path but know the issue is likely at a specific layer (e.g., Layer 3).

Spot the Difference: Used when one server works and another doesn ' t; here, we are troubleshooting a single, specific intermittent path.

Top-down/Bottom-up: These are systematic but time-consuming. When you have the IPs, " Follow the path " is the most direct and efficient diagnostic choice.

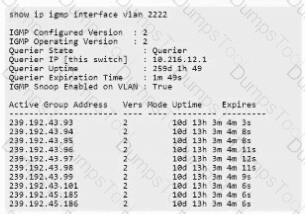

This is a classic troubleshooting scenario in AOS-CX multicast environments. IGMP Snooping is designed to be " quiet " and efficient, but it has a specific dependency.

The Need for a Querier: IGMP Snooping works by listening for IGMP Join messages. However, for hosts to keep sending Join messages, there must be an IGMP Querier on the network that periodically asks, " Is anyone still listening to this multicast group? "

The Problem: If you enable IGMP Snooping on a VLAN but there is no L3 device acting as a Querier, the initial Join messages will eventually time out. The switch will then stop forwarding the multicast traffic to those ports because it assumes no one is listening anymore.

The Solution: By enabling IGMP on the Layer 3 interface (SVI) for that VLAN, the switch becomes the IGMP Querier for that subnet. It will send out periodic queries, the hosts will respond with " Reports, " and the IGMP Snooping table will remain populated, allowing the multicast application to continue functioning.

Why other options are incorrect:

Option A: IGMP Snooping is a Layer 2 function and is not configured " on " the L3 interface (SVI).

Options C and D: While PIM (Protocol Independent Multicast) is used for routing multicast between subnets, the immediate failure described (local applications not working on a VLAN after snooping is turned on) is almost always a lack of an IGMP Querier on that local segment.

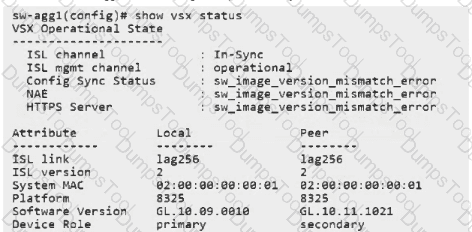

During a VSX firmware upgrade, the vsx-syned process stops synchronization while the switches have mismatched software versions. Synchronization resumes once both switches run the same software.

VSX synchronization cannot continue while versions mismatch (contrary to options B and D).

Compatibility mode is not required before rebooting secondary switch (Option D incorrect).

This behavior ensures consistency and avoids split-brain during upgrades.

In an AOS-CX VSX environment, LACP is the standard for forming Multi-Chassis Link Aggregation Groups (MC-LAGs). However, LACP has a " chicken and egg " problem during certain boot processes.

The LACP Dilemma: LACP requires a software driver or " actor " on the client device to exchange BPDUs with the switch. During a Preboot Execution Environment (PXE) Boot, a server or workstation does not yet have its OS or LACP drivers loaded. Consequently, the switch receives no LACP packets, and by default, it keeps the LAG ports in a " blocked " or " waiting " state to prevent loops.

LACP Fallback Function: The lacp fallback command allows the VSX members to temporarily treat the LAG ports as non-bonded individual interfaces if no LACP partner is detected. This allows the device to communicate over a single physical link during the PXE process to download its OS image.

The Transition: Once the OS is loaded and the LACP driver starts sending BPDUs, the switch automatically transitions the ports back into a fully functional, bonded LAG.

Why other options are incorrect:

Option A: LACP mode (Active vs. Passive) is handled by the lacp mode command, not fallback.

Option D: While fallback results in a single interface operating, the intent and design requirement is to facilitate the pre-OS boot process, not simply to limit the partner to one interface.

To implement Dynamic User Roles (DUR) with Aruba ClearPass, an HTTPS certificate must be configured. This certificate enables secure communication between ClearPass and the Aruba CX switches for role downloading and authentication.

RadSec service enables secure RADIUS but is unrelated to DUR certificates.

Admin user roles and RADIUS dictionary attributes are necessary but secondary to certificate requirements.

To upgrade an HPE Aruba Networking CX 8320 VSX cluster with minimal downtime from a remote server, the correct command is:

vsx update-software scp://172.25.101.10/image vrf mgmt

Using SCP (Secure Copy Protocol) ensures secure transfer.

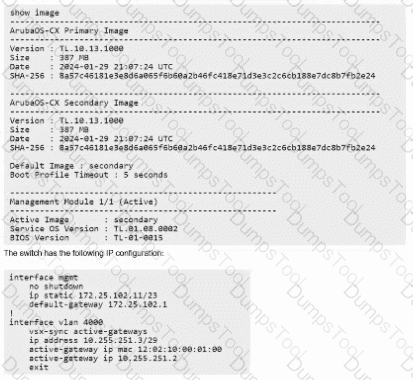

Specifying vrf mgmt ensures the update uses the management VRF for connectivity.

Using TFTP is less secure and not recommended for production upgrades.

The primary keyword is not valid for the vsx update-software command.

This method allows an in-service software upgrade (ISSU) with least disruption.

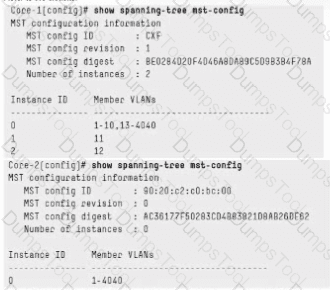

To prevent the campus core from seeing the data center core as the root bridge in a spanning tree topology (which can cause suboptimal paths or loops), Root Guard should be applied on the campus-to-data center core link. Root Guard enforces root bridge placement by blocking any superior BPDU from a downstream switch, maintaining the intended root bridge location.

BPDU filter blocks BPDUs entirely, which can cause problems.

Admin edge and BPDU guard are related to edge port protection, not root placement control.

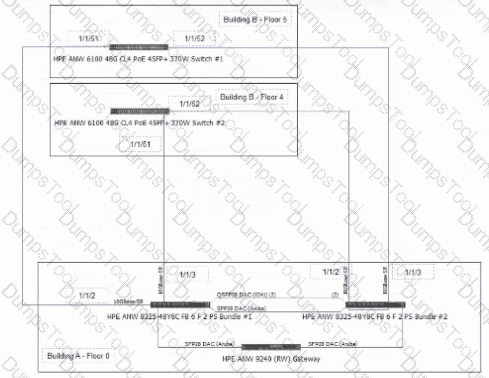

The correct remediation is to establish a VSX keepalive connection using the management interfaces between SW-A and SW-B . The two links on interfaces 1/1/53 and 1/1/54 form the VSX Inter-Switch Link (ISL). When that ISL fails, the VSX peers require an independent keepalive path to distinguish an ISL failure from a complete peer failure and prevent an uncontrolled split condition.

HPE Aruba Networking specifically recommends that keepalive communication use a path independent of the ISL and states that keepalive should not traverse VSX LAG uplinks . With keepalive operational, when the ISL becomes out-of-sync, the primary continues forwarding while the secondary can suppress its VSX LAG member ports, preventing both peers from independently forwarding traffic toward Router-A and SW-C. Aruba Networks

The management VRF is explicitly supported for VSX keepalive source and peer addresses, making the dedicated management interfaces an appropriate fault-independent path. Aruba Networks

vsx shutdown-on-split is intended primarily for non-VSX interfaces on the secondary ; it is not the appropriate protection for the dual-homed VSX LAG topology shown. HPE documentation also states that this command has no split-state effect on the primary, eliminating option C. Aruba Networks

Study Guide References: VSX Keepalive, ISL Failure Handling, Split-Brain Prevention, VSX LAG Failure Behavior, Management-VRF Keepalive.

The command erase all zeroize performs a secure erase on the switch, which deletes all customer data including startup-config and stored credentials. This process can take up to an hour depending on the hardware and storage media.

It does not retain running config (Option A).

It does not restore the factory AOS-CX image (Option B).

Admin credentials are deleted as part of the secure erase (Option C is incorrect).

Therefore, this command securely wipes all data and resets the device.

To find which changes were made on an HPE Aruba CX switch from the GUI, the correct command is:

show checkpoint diff — this compares the running configuration with stored saved-config revisions.

Using " saved-config revisions " as the comparison base allows the GUI to show what has changed since the last saved configuration.

Other options mix checkpoint and saved-config terminology incorrectly.

The concept of Colorless Ports is central to Aruba ' s Dynamic Segmentation strategy. A colorless port is one where the configuration is not static but is instead determined dynamically based on the identity of the device that connects to it.

The Role of Authentication: To achieve a colorless port, the switch must first identify the connecting device. This is done through Port Access Control mechanisms.

MAC Authentication (MAC Auth): While 802.1X is the preferred method for devices with a supplicant (like laptops), MAC Authentication is used for " headless " devices (like printers, cameras, or IoT sensors) that cannot perform 802.1X. By configuring MAC Auth, the switch sends the device ' s MAC address to a RADIUS server (like ClearPass), which then instructs the switch on which User Role to apply to that port.

Why other options are incorrect:

Option A and C: Port-security and Sticky MAC are static security features. They lock a port to a specific MAC address but do not dynamically assign VLANs, ACLs, or QoS based on identity, which is the definition of a colorless port.

Option D: Virtual MAC is a component of Active Gateway or VRRP, used for default gateway redundancy in a VSX or high-availability environment. It has no role in edge port " colorless " provisioning.

This scenario highlights a common conflict between Port Access Control and WLAN architectures in AOS10.

Tunnel Mode vs. Bridge Mode: * In Tunnel Mode, client traffic is encapsulated (GRE/IPsec) from the AP to the Gateway. The switch port only sees the MAC address of the AP itself. Once the AP authenticates via 802.1X, all tunneled client traffic passes through the authenticated " tunnel " unnoticed by the switch ' s port security.

In Bridge Mode, the AP bridges wireless client traffic directly onto the local VLAN. The switch port now sees the MAC addresses of the wireless clients.

The Conflict: By default, an 802.1X port expects only one authenticated device. When the AP authenticates, the port is " open " for the AP ' s MAC. However, when a wireless client’s bridged MAC appears on the same port, the switch treats it as an unauthenticated intruder and drops its DHCP requests.

The Solution (Device Mode): You must configure the User Role assigned to the AP (after it authenticates) with device-mode (often referred to as dev-conf-mode or device auth-mode in exam contexts). This tells the switch: " The device that just authenticated is a trusted infrastructure device (an AP). Please allow all subsequent MAC addresses seen on this port to pass without requiring individual authentication. "

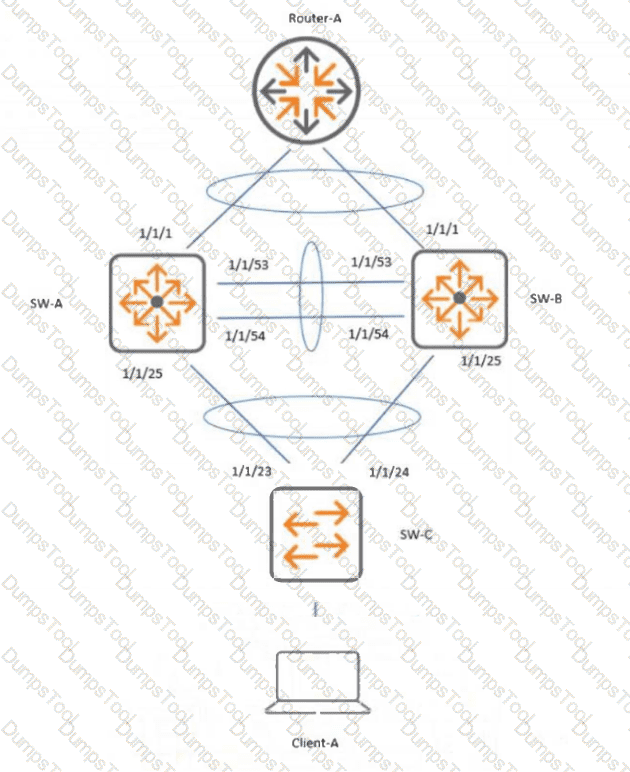

LACP (Link Aggregation Control Protocol) modes can be active or passive. When two switches are both configured in passive mode, no LACP packets are initiated, causing the link aggregation to fail or go into a block state.

Changing one side from passive to active causes that switch to initiate LACP negotiation, resolving the block state.

Changing to static mode disables LACP negotiation, which is not recommended unless both sides are static.

Changing timeout does not solve LACP block issues caused by mode mismatches.

Therefore, changing one switch’s LACP mode from passive to active is necessary to resolve the block.

MACsec (Media Access Control Security) is the correct solution when the requirement is to provide encryption, integrity protection, and authentication for Ethernet traffic at Layer 2 . MACsec is defined by IEEE 802.1AE and protects Ethernet links on a hop-by-hop basis between MACsec-capable devices.

HPE Aruba Networking describes MACsec as Layer 2 security for wired LAN connections. Once the peers establish the secure association and validate the required cryptographic keys, Ethernet payloads are encrypted before transmission. The receiving device validates frame integrity and decrypts successfully authenticated traffic; invalid or modified protected frames can be discarded. This protects against threats such as eavesdropping and man-in-the-middle manipulation on the physical Ethernet link. Aruba Networks

This directly satisfies the requirement for securing Ethernet frames between compatible AP uplinks and CX switching infrastructure. Platform and interface MACsec support must, of course, be confirmed for the selected AP and CX models.

MAC authentication does not encrypt Ethernet frames; it authenticates a client based primarily on its MAC address through port-access mechanisms and RADIUS. Aruba Networks Sticky MAC provides MAC-based port security rather than cryptographic protection, while “MAC-TLS” is not the applicable Aruba Ethernet encryption technology.

Study Guide References: MACsec; IEEE 802.1AE; MKA; Layer 2 Encryption; Ethernet Frame Integrity; CX Security Architecture.

===============

To resolve this QoS mapping issue on AOS-CX, you must understand the hierarchy of Trust Levels and how they interact with Link Aggregation Groups (LAGs).

Trust Hierarchy: AOS-CX switches use a " top-down " approach for QoS.

Global Trust: Setting qos trust dscp globally means that, by default, every port on the switch will look at the Layer 3 DSCP markings to determine queue priority.

Interface Override: You can override the global setting on a per-interface basis. If a specific device or service (like the video streaming service in this prompt) relies solely on Layer 2 CoS (802.1p) markings rather than DSCP, the switch will ignore those CoS markings under the global DSCP policy and place the traffic in a default (best-effort) queue.

LAG Configuration Logic: In the AOS-CX architecture, a LAG is a logical interface (interface lag 20).

Configuration parameters for the bundle (such as VLANs, ACLs, and QoS trust) should be applied to the logical LAG interface, not the individual physical member ports (1/1/20 and 2/1/20).

Once applied to the LAG, the settings are automatically inherited by all physical members.

Analyzing the Options:

Option D (Correct): By entering the interface lag 20 context and applying qos trust cos, you are instructing the switch to ignore the global DSCP setting for this specific bundle and instead trust the Layer 2 priority bits. This allows the video service to once again map correctly to the intended priority queues.

Option A: This is unnecessarily complex. Setting the physical member ports to qos trust none and then the LAG to cos is redundant because the LAG configuration overrides the physical port settings in this context.

Option B: qos trust dscp, cos is not a valid AOS-CX command. Unlike the older AOS-S (ProCurve) software which allowed a combined dscp-cos trust, AOS-CX requires you to choose a single trust type (DSCP, CoS, or None) per interface.

Option C: This applies the configuration to the physical ports only. In an AOS-CX VSF/LAG environment, this is considered a configuration error or " best practice " violation, as the logical LAG interface should hold the configuration.

When making changes remotely to critical configurations such as Control Plane ACLs on a CX switch, to protect against accidental lockout due to misconfiguration, you should enable checkpoint auto before committing the changes.

Checkpoint auto creates an automatic rollback timer. If the administrator loses connectivity (e.g., because of the ACL change), the system automatically rolls back the change after the timer expires, preventing lockout.

checkpoint commit is used after committing to save the checkpoint explicitly, but it does not provide automatic rollback.

Running checkpoint auto before committing is essential to have the rollback safety net.

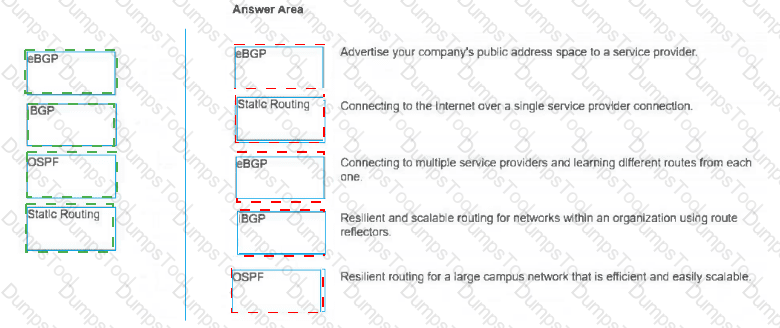

In the study of BGP (Border Gateway Protocol) for AOS-CX, understanding the differences between Internal BGP (iBGP) and External BGP (eBGP) is fundamental to the ACP-S certification.

eBGP Peering Definition: eBGP occurs when two BGP neighbors reside in different Autonomous Systems. In this scenario, the local switch is in AS 65010 and the neighbor is in AS 65100.

The " Directly Connected " Requirement: By default, BGP assumes that eBGP neighbors are directly connected (physically connected or on the same subnet). This is because eBGP packets are sent with a Time-to-Live (TTL) of 1. If the neighbor is more than one hop away (for example, peering via loopback interfaces without additional configuration), the packet will expire before reaching the neighbor, and the session will not establish.

Terminology Note: The term " directory connected " in the question is a common typographical error in exam materials for " directly connected. " In the context of eBGP peering, being directly connected is the default requirement to ensure the TTL 1 packet reaches the peer. If you were peering with a non-directly connected device, you would need to manually configure ebgp-multihop.

Analysis of Other Options:

Option A: This is incorrect as it uses a random AS number (65001) that does not match the local or neighbor AS provided in the prompt.

Option B: Route Reflectors are a solution used exclusively in iBGP to solve the split-horizon rule (which dictates that a prefix learned from an iBGP peer cannot be advertised to another iBGP peer). Route reflectors are never used for standard eBGP sessions.

Option D: While AOS-CX requires you to enter the address-family ipv4 unicast context to activate a neighbor, the keyword " internal " is not a valid address-family type in the AOS-CX BGP syntax for this purpose.

Key Practice Tip: When configuring BGP on AOS-CX, always remember that after defining the neighbor x.x.x.x remote-as, you must enter the address-family context and use the neighbor x.x.x.x activate command for the session to transition to the " Established " state.

Capacity management in a high-density wireless environment (especially with Wi-Fi 6E APs like the AP-615) focuses on two finite resources: Bandwidth and Power.

Switch PoE Utilization (Option D): AP-615s are high-performance devices that typically require PoE+ (802.3at) power. As more APs are added to a switch, the total power draw approaches the switch ' s PoE Budget. Enabling this alert ensures that Central notifies the administrator when the total power consumed by the APs reaches a critical threshold, preventing a scenario where new APs fail to power up or existing APs reboot due to power starvation.

Switch Uplink Port Usage (Option A): This alert monitors the aggregate traffic flowing through the switch ' s uplinks to the core or distribution layer. Since multiple APs share these uplinks, high wireless client activity can saturate the backhaul. Monitoring the " Uplink Port Usage " (measured in GB over a duration) allows the customer to identify when they need to upgrade to higher-speed transceivers (e.g., from 10G to 25G) or add more links to the LAG.

Why other options are incorrect:

Options C and E: Port Tx/Rx rates are useful for monitoring individual ports, but " Capacity Issues " for a group of APs is better represented by the aggregate Uplink usage.

Option B: Link Status Change notifies you of a down/up event, which is a connectivity/fault issue rather than a capacity/utilization issue.

When a recent routing change causes an outage affecting all users, the recommended immediate action is to restore the last-known working configuration to quickly return the network to a stable state. This is critical to minimize downtime and impact.

Asking customers to send logs or explaining the issue takes time and delays remediation.

Collecting show tech and opening TAC cases can be done after restoring service.

Hence, the quickest way to mitigate the impact is to restore the last known good configuration.

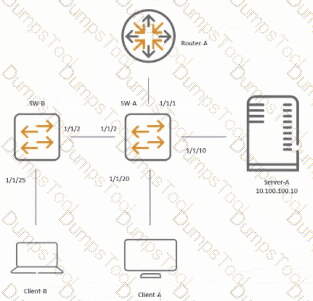

On AOS-CX, Dynamic ARP Inspection distinguishes between trusted and untrusted interfaces . All interfaces are untrusted by default, and ARP packets arriving on untrusted ports are checked against valid IP-to-MAC bindings, principally the DHCP snooping binding database or supported static bindings. HPE Aruba specifies that only ARP traffic entering untrusted interfaces is subjected to these validation checks. Aruba Networks

A hypervisor port is a special case because the physical interface can legitimately source ARP traffic for many virtual machines , each with its own MAC address and IP address. Unless every VM has a corresponding valid binding available to Dynamic ARP Inspection, legitimate VM ARP traffic can be interpreted as invalid. Configuring interface 1/1/20 as trusted prevents these legitimate ARP messages from generating false-positive inspection failures.

On the CX 6300, the correct interface-level configuration is:

interface 1/1/20

arp inspection trust

HPE Aruba explicitly documents arp inspection trust under the physical interface configuration context and confirms that it marks the interface as trusted. Aruba Networks

Options B, C, and D are not valid forms of the AOS-CX DAI trust command. Trust is assigned to the interface , not directly to an individual MAC/IP pair using those syntaxes.

Study Guide References: Dynamic ARP Inspection; DHCP Snooping Bindings; Trusted and Untrusted Interfaces; Hypervisor Connectivity; ARP Spoofing Protection.

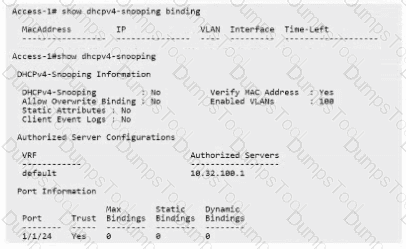

To prevent rogue DHCP servers in a VLAN, DHCP snooping authorized-server commands are used to specify trusted DHCP servers allowed to respond.

Option A (dhcpv4-snooping trust 10.100.100.10) configures a trusted port, but it is not VLAN specific and not precise enough for this purpose.

Enabling DHCP snooping globally and on VLAN or interface (Options C and D) are prerequisites but do not prevent rogue servers unless authorized servers are defined.

Option B correctly enables an authorized DHCP server IP on VLAN 30, blocking unauthorized DHCP responses.

Aruba Central utilizes a " Top-Down " management model for UI Groups. To maintain the integrity of the network and ensure that the central dashboard remains the " Source of Truth, " specific logic is applied during the onboarding process.

Configuration Conflict Prevention: If a group in Central already has a configuration defined (VLANs, DNS, NTP, etc.), and you add a switch that has its own local startup-configuration, Central detects a conflict. It does not know whether to trust the local switch settings or the group settings.

The Factory Default Rule: To protect the network from unintended configuration overwrites, Central will only automatically sync and push group settings to a switch that is in a Factory Default state. If the switch has an existing configuration, Central marks it as having a " Config Conflict " and stops the synchronization process until an administrator manually intervenes to choose which configuration should " win. "

Evaluating other options:

Option B: If Central weren ' t enabled, the switch wouldn ' t even show up as " connected " or " online " in the dashboard, let alone fail a sync within a group.

Option C: Central supports VSX monitoring and management (particularly through Template groups or specific UI workflows).

Option D: Authorization happens at the " Device Inventory " level. If you have already added it to a group, the device is already authorized.
