HPE0-S59 Questions and Answers

To set up HPE Synergy frames after the hardware components are discovered within HPE OneView, the following steps should be followed in the correct order:

Create an enclosure group.

Create a logical interconnect group with uplink sets.

Define all required networks.

Create a logical enclosure.

Create server profile templates and server profiles.

Create an enclosure group: This step involves defining the enclosure group, which includes the configurations for the enclosure such as firmware baselines and logical interconnect groups.

Create a logical interconnect group with uplink sets: Next, set up the logical interconnect group, which includes the uplink sets that define the connectivity from the enclosures to the data center networks.

Define all required networks: After setting up the logical interconnect group, define all the necessary networks that will be used within the HPE Synergy environment.

Create a logical enclosure: Create a logical enclosure by combining the physical enclosures with the defined enclosure group, effectively binding the hardware configuration with the logical settings.

Create server profile templates and server profiles: Finally, create server profile templates and individual server profiles to apply the required configuration settings to the compute modules.

Storm control is a feature in HPE Virtual Connect that allows administrators to suppress excessive inbound multicast, broadcast, and destination lookup failure (DLF) packets. This feature helps to mitigate the negative impact of network storms, which can degrade network performance and availability. By configuring storm control, administrators can set thresholds to limit the rate of such packets entering the network, ensuring a stable and reliable network environment.

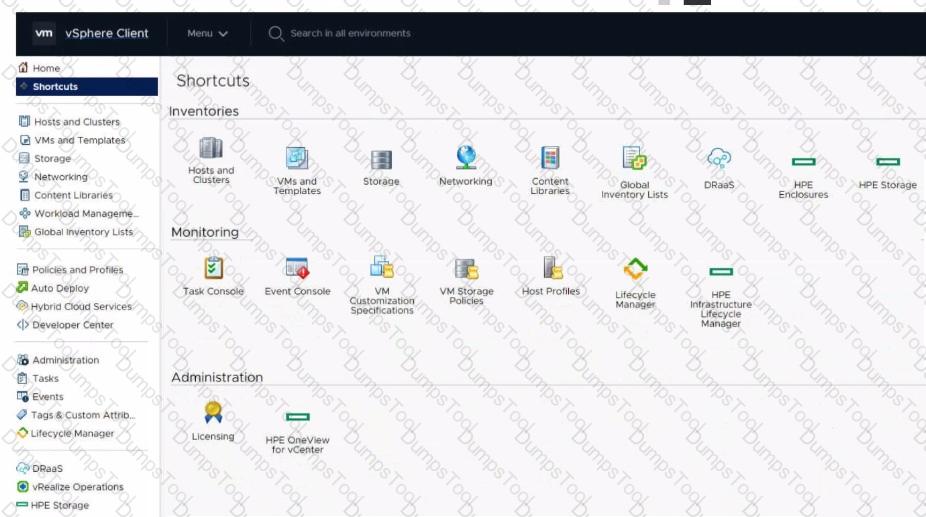

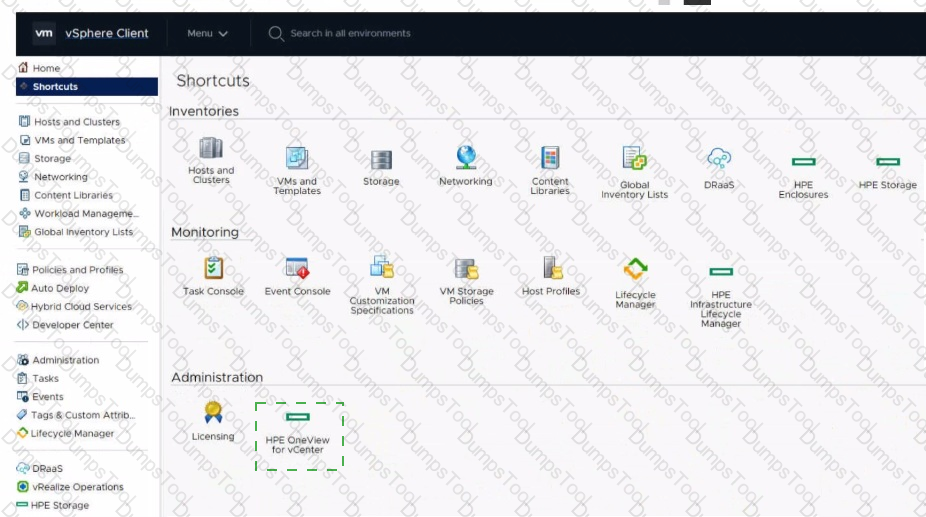

Click the " HPE OneView for vCenter " icon under the Administration section

HPE OneView for vCenter (under Administration): This icon provides access to the plugin ' s administrative console and configuration settings. Within this interface, there is a Deployment tab (or sub-page) specifically designed for managing OS Build Plans (or OS Deployment Plans). From the Deployment page, administrators can view, create, edit, and delete build plans, as well as upload or remove ESXi ISO images used within those plans.

HPE Infrastructure Lifecycle Manager (under Monitoring): This icon is primarily used for infrastructure health monitoring and firmware remediation (managing Service Packs for ProLiant - SPP), rather than operating system deployment plans.

HPE Enclosures and HPE Storage (under Inventories): These icons provide inventory views of the physical enclosure and storage resources managed by the plugin.

Therefore, to change the ESXi image used in an OS Deployment Plan, you must navigate to the administrative settings of the plugin by clicking the HPE OneView for vCenter icon in the Administration section of the Shortcuts menu.

With 15 HPE Synergy 12000 frames, the customer must create multiple logical enclosures to manage the setup efficiently. HPE Synergy typically supports up to five frames per logical enclosure, meaning that at least five logical enclosures would be necessary to manage all 15 frames. This ensures proper organization, management, and scalability of the resources.

An HPE OneView support dump includes various diagnostic information, and by default, it contains a logical enclosure support dump. This comprehensive dump helps in troubleshooting by providing detailed logs and configuration data from the appliance and the logical enclosures it manages, enabling effective diagnosis of issues within the managed environment.

HPE GreenLake for File Storage is a key component of the HPE Private Cloud AI architecture, designed to provide the high-throughput, low-latency performance required for AI workloads.

Hardware Foundation: The infrastructure underlying this service is based on the HPE Alletra Storage MP platform. These modular " MP " (Multi-Protocol) nodes are built using standard HPE ProLiant Gen11 hardware components. By leveraging the proven ProLiant ecosystem, HPE ensures the solution is both cost-effective (due to global supply chain efficiencies) and highly resilient (utilizing enterprise-grade power supplies, fans, and management via iLO).

NVMe Performance: To handle the massive data requirements of AI model training and inference, the infrastructure utilizes all-NVMe drives. This provides the parallelism and speed necessary to feed hungry GPUs without the bottlenecks associated with traditional SAS or SATA storage.

Disaggregated Architecture: Unlike legacy systems, this infrastructure separates performance (compute nodes) from capacity (JBOFs/Storage shelves), allowing the environment to scale efficiently as data grows.

Why other options are incorrect:

Option B: While Alletra MP Block storage offers a 100% availability guarantee, the File persona is designed for extreme durability and high availability but is typically marketed with 99.9999% (six nines) availability rather than the absolute 100% block storage claim.

Option C: HPE Private Cloud AI uses shared storage (Alletra MP) rather than local drives on the worker nodes. This ensures data persistence and allows multiple GPU nodes to access the same datasets simultaneously.

Option D: HPE GreenLake for File Storage is powered by the VAST Data software stack, not Lustre. While Lustre is common in classic HPC, the VAST-based HPE solution is preferred for modern enterprise AI due to its ease of management and superior data reduction capabilities.

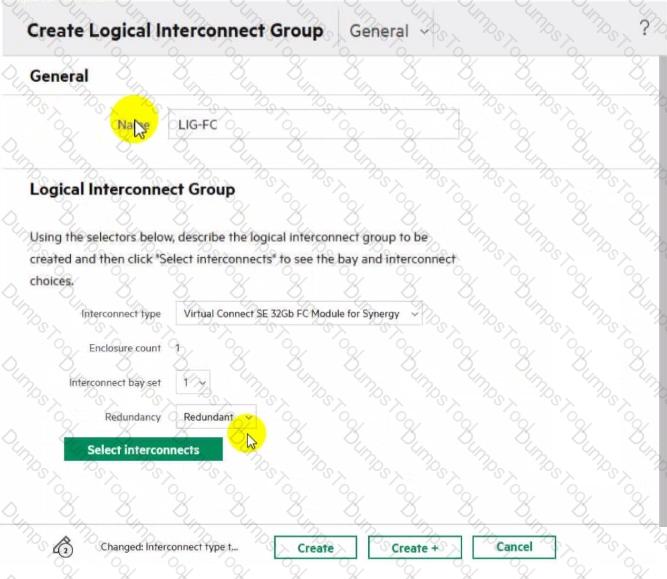

In the HPE Synergy setup shown in the exhibit, the interconnect type is Virtual Connect SE 32Gb FC Module for Synergy with an enclosure count of 1 and interconnect bay set 1. Typically, in such configurations, the interconnect modules are installed in bays 1 and 4 for redundancy. This placement ensures high availability and failover capabilities.

The VMware vSphere Standard license does not include support for advanced features like Distributed Resource Scheduler (DRS) and Distributed Switches. These features are available only with the vSphere Enterprise Plus license. Therefore, to meet the customer ' s requirement of using Distributed Switches and a DRS cluster, the proposal should include vSphere Enterprise Plus licenses instead of Standard licenses.

When encountering an error while growing a VMware cluster using HPE OneView for VMware vCenter Server, it is crucial to verify that the server profile template is properly imported and registered in HPE OneView. This ensures that the necessary configurations and settings are correctly applied to the new compute nodes being added to the cluster.

The HPE OneView Update Readiness Checker is a tool specifically designed to evaluate the health and readiness of an HPE OneView appliance before proceeding with an update. It checks for any potential issues that could affect the update process and provides recommendations for resolution.

The phenomenon where a physical network port (uplink, downlink, or stacking port) transitions between " up " and " down " states repeatedly in a short period is known as port flapping . This behavior can cause significant instability in a network fabric, as it forces the switch to constantly update its MAC address tables and can trigger spanning tree recomputations.

Port Flap Protection: HPE OneView (managing the HPE Virtual Connect SE 100 Gb F32 and 40 Gb F8 modules) includes a feature specifically called Port flap protection (sometimes referred to as link fault monitoring).

Configurable Thresholds: Administrators can configure this feature within the Logical Interconnect Group (LIG) or Logical Interconnect (LI) settings. You can define a threshold (e.g., a certain number of flaps within a specific interval).

Action on Detection: When the threshold is exceeded, the feature can be set to " Detect and disable ports. " Once a port is disabled by this protection mechanism, it remains in a disabled state until an administrator manually resets it, preventing the " flapping " port from further disrupting the network.

Comparison to other options:

sFlow (B): A monitoring protocol used to sample network traffic for analysis; it does not take corrective action like disabling ports.

Pause flood protection (C): This feature protects against a " storm " of Ethernet PAUSE frames (flow control), which can exhaust switch buffers. While it can also disable ports, the trigger is traffic-based (PAUSE frames), not the physical link-state toggling described in the prompt.

Storm control (D): This limits the amount of broadcast, multicast, or unknown unicast traffic allowed on a port to prevent a broadcast storm; it does not monitor link-up/link-down transitions.

The HPE Superdome Flex system is the only HPE compute system that supports up to 16 CPU sockets, making it suitable for customers who require a hardware platform with such high scalability. The Superdome Flex is designed for mission-critical workloads and provides exceptional scalability and performance.

HPE OneView allows for several storage management tasks when managing HPE Primera, including volume provisioning. This task involves creating and managing storage volumes that can be allocated to compute nodes and applications within the environment. HPE OneView streamlines this process, providing a centralized management interface.

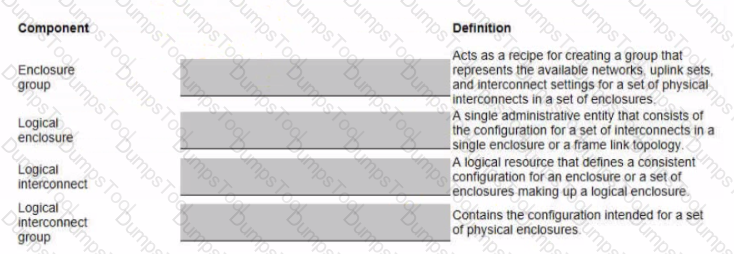

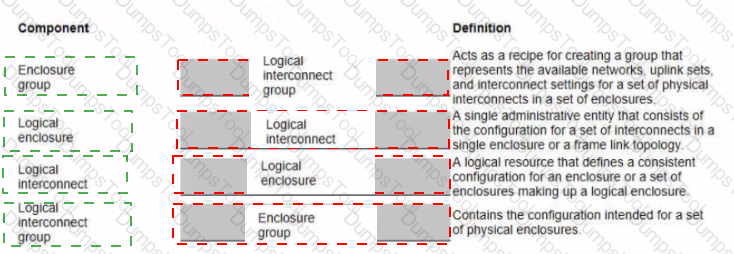

Here are the correct matches for each HPE Synergy logical component with their respective definitions:

Enclosure group Definition: Contains the configuration intended for a set of physical enclosures.

Logical enclosure Definition: A logical resource that defines a consistent configuration for an enclosure or a set of enclosures making up a logical enclosure.

Logical interconnect Definition: A single administrative entity that consists of the configuration for a set of interconnects in a single enclosure or a frame link topology.

Logical interconnect group Definition: Acts as a recipe for creating a group that represents the available networks, uplink sets, and interconnect settings for a set of physical interconnects in a set of enclosures.

Enclosure group: An enclosure group in HPE Synergy defines the configuration settings, including logical interconnect groups and firmware baselines, for a set of physical enclosures.

Logical enclosure: A logical enclosure in HPE Synergy is a resource that includes one or more physical enclosures and their associated logical interconnects, providing a consistent configuration for those enclosures.

Logical interconnect: A logical interconnect represents a set of interconnects within an enclosure, managed as a single entity. It includes the configuration of the interconnects and their connections.

Logical interconnect group: A logical interconnect group (LIG) defines the network configuration, including available networks, uplink sets, and interconnect settings, that can be applied to multiple enclosures.

The HPE Superdome Flex system supports configurations of up to 32 sockets and 48TB of memory, making it suitable for extremely large-scale and demanding workloads. In contrast, the HPE Superdome Flex 280 has a lower maximum configuration limit, making it more suited for smaller-scale deployments compared to the full Superdome Flex.

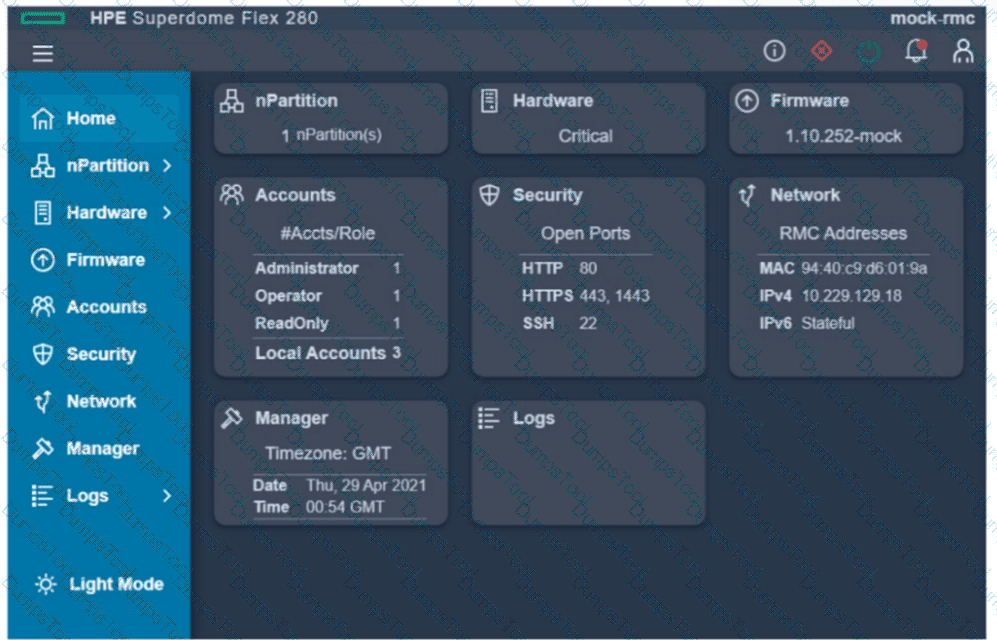

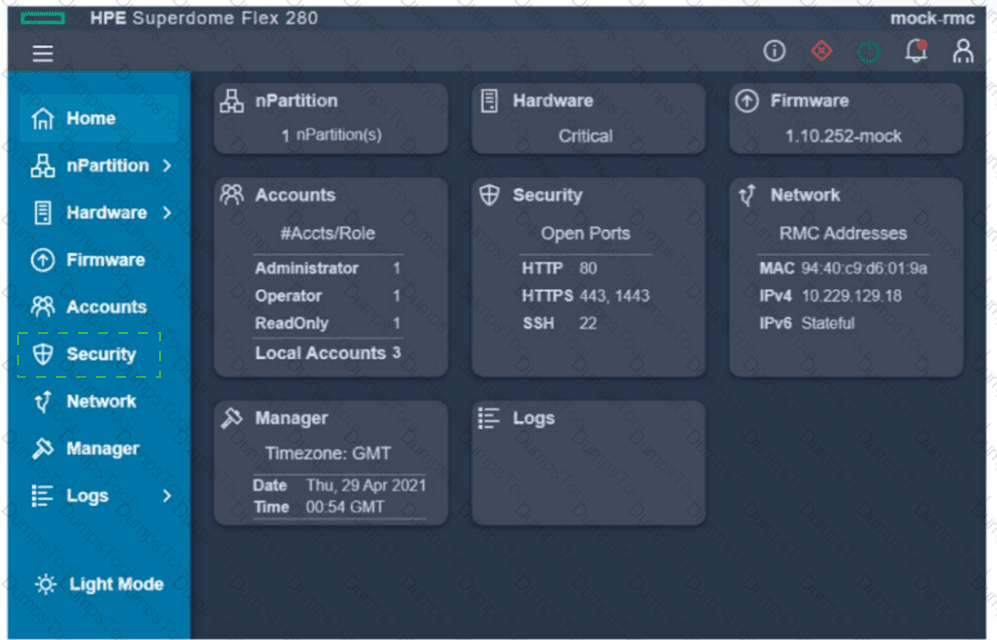

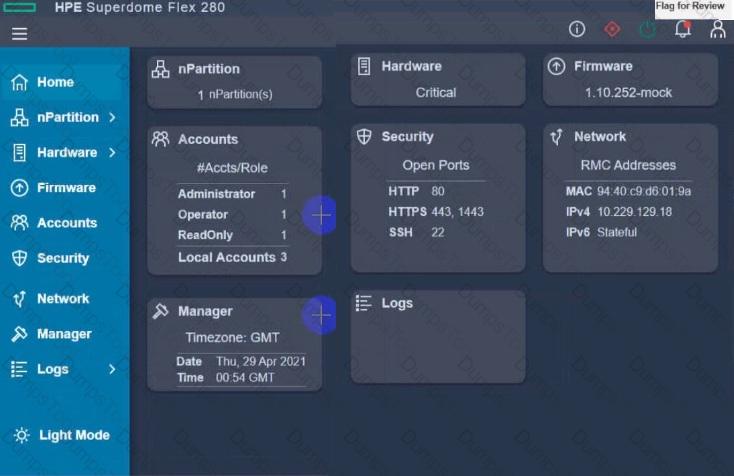

To check the network protocol status and SSL certificate in the HPE Superdome Flex 280 management interface, you should click on the " Security " section on the left-hand menu. This section typically provides access to details about protocols like HTTPS, SSL certificates, and port configurations.

The HPE Superdome Flex family represents HPE ' s premier scale-up compute portfolio, but there are significant architectural differences between the original Superdome Flex and the Superdome Flex 280:

Management Processor (The Key Difference): The Superdome Flex 280 was engineered to bring the management experience closer to the standard HPE ProLiant line. It utilizes the HPE iLO 5 (Integrated Lights-Out) ASIC for each 2-socket or 4-socket building block. This allows administrators to use the same tools (like iLO RESTful API and HPE OneView) they use for standard servers. The original, larger Superdome Flex (up to 32 sockets) relies on a Rack Management Controller (RMC) or an electronic RMC (eRMC) based on the Superdome Integrity heritage.

Scalability (Correction of Option A): The Superdome Flex 280 scales from 2 to 8 sockets (using 3rd Gen Intel Xeon Scalable processors). It does not reach 16 sockets; the 16 to 32-socket range is reserved for the original Superdome Flex.

Partitioning (nPars): Both systems support nPars (hard partitions). While the original Superdome Flex requires an RMC for complex multi-chassis partitioning, the 280 handles its partitioning and fabric management through the integrated iLO 5 logic and the embedded firmware.

Persistent Memory: Both systems support HPE Persistent Memory (Intel Optane). It can be configured in either App Direct Mode or Memory Mode . There is no requirement that the system must be in memory mode only.

vSAN licenses and vSphere licenses are separate entities. While vSAN licenses cover the storage virtualization aspect of VMware ' s hyper-converged infrastructure, vSphere licenses are required for the actual hypervisor operations. Therefore, the customer must ensure they have the appropriate vSphere licenses in addition to vSAN licenses for their compute nodes.

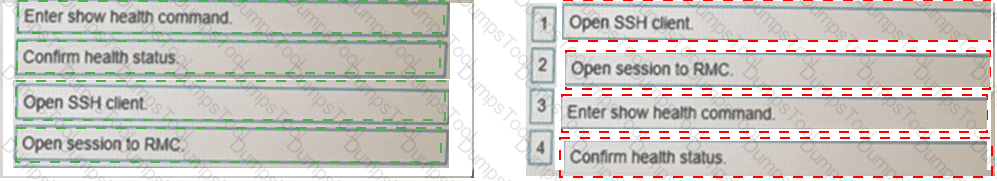

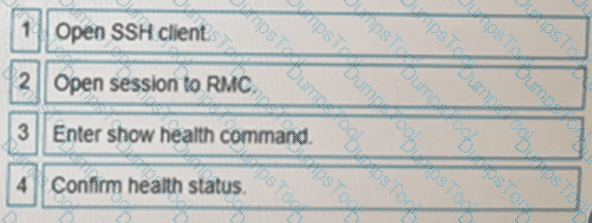

Open SSH client: Begin by opening an SSH client on your computer. This client will be used to establish a secure connection to the Rack Management Controller (RMC).

Open session to RMC: Use the SSH client to open a session to the RMC. The RMC is the central management component for the HPE Superdome Flex system.

Enter show health command: Once connected to the RMC, enter the show health command. This command will provide detailed information about the health status of various components within the Superdome Flex system.

Confirm health status: Review the output of the show health command to confirm the health status of the Superdome Flex components. This step ensures that all components are functioning correctly and identifies any potential issues.

To configure a Link Aggregation Group (LAG) for two connections within a server profile for a compute node running an ESXi system, a Virtual Distributed Switch (VDS) is required from the VMware side. VDS allows for the configuration of LAGs and provides advanced network features such as centralized management and monitoring, which are essential for setting up and managing LAGs.

In the HPE AI Essentials software stack—which provides the orchestration and management layer for AI workloads— Prometheus is the industry-standard component used for system observability.

Metric Collection (Scraping): Prometheus is responsible for " scraping " or collecting real-time numerical data (metrics) from across the environment. This includes hardware statistics from GPU-accelerated nodes (via the NVIDIA DCGM exporter) and performance data from Kubernetes pods.

Time-Series Database: It stores these metrics in a time-series format, allowing administrators to visualize performance over time and identify historical trends in resource consumption.

Alerting Framework: Prometheus includes a built-in alerting engine. Administrators can define specific thresholds (e.g., if a GPU temperature exceeds a certain limit or if a training job stalls). When these conditions are met, Prometheus generates an alert and forwards it to the Alertmanager for notification.

Infrastructure Health: By providing a unified view of the cluster ' s health, Prometheus ensures that the AI platform remains stable and that bottlenecks are identified before they impact model development.

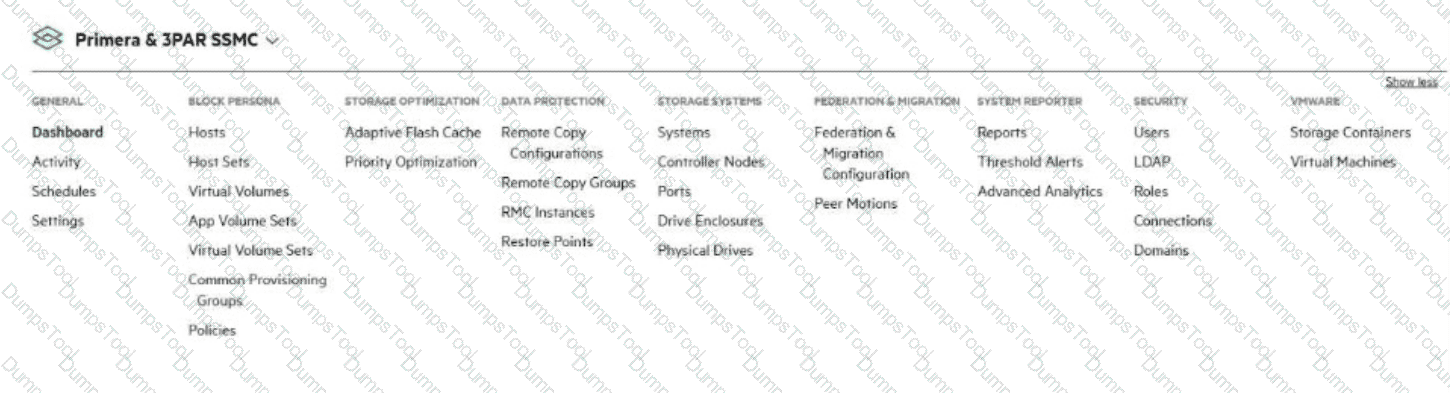

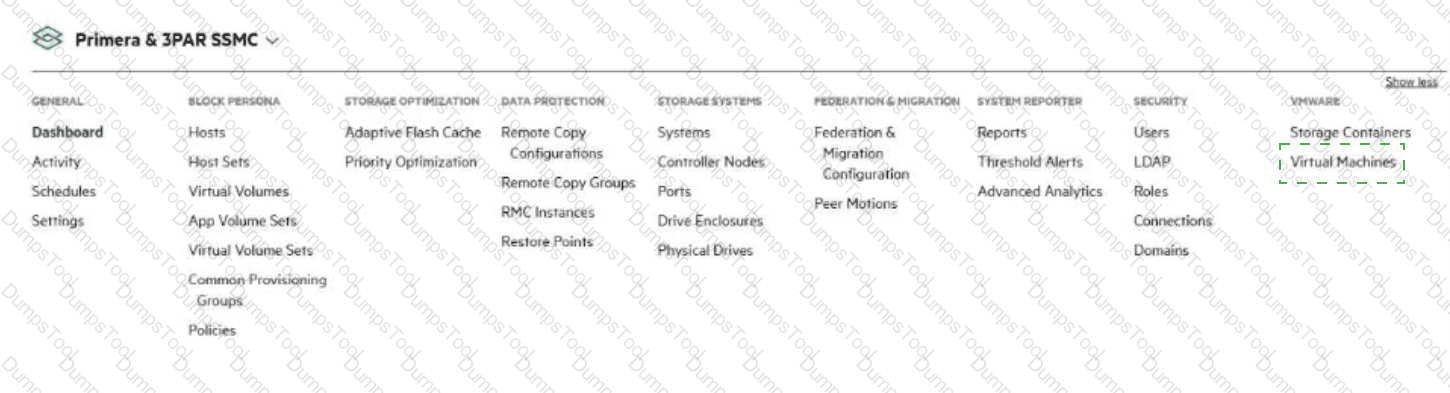

To verify whether a virtual storage operation is properly created on HPE Primera or 3PAR using the HPE Storage Integration Pack for VMware vCenter, you would click on the " Virtualization " option in the SSMC (StoreServ Management Console) main menu. This option allows you to manage and monitor storage operations related to virtual environments, including VMware integration.

The integration of NVIDIA AI Enterprise (NVAIE) into the HPE Private Cloud AI stack is designed to remove the operational complexity of managing high-performance GPU hardware in a containerized environment.

Automation via GPU Operator: One of the most significant features of NVAIE is the NVIDIA GPU Operator . In a standard Kubernetes environment, administrators would typically need to manually install GPU drivers, container runtimes, and monitoring tools on every node. The GPU Operator automates this entire lifecycle. It detects the presence of NVIDIA GPUs and automatically deploys the necessary drivers, the NVIDIA Container Toolkit , and the Kubernetes Device Plugin .

Infrastructure Readiness: By including NVAIE, HPE ensures that the " Infrastructure Layer " is fully optimized for AI workloads. This means that as soon as an AI worker node (like an HPE ProLiant DL380a) is provisioned, the software stack is ready to pass GPU instructions from a containerized application directly to the hardware without manual intervention.

Consistency and Support: NVAIE provides a validated and supported path for these drivers and operators. This ensures that the versions of the drivers are compatible with the AI frameworks (like PyTorch or TensorFlow) and the specific version of Kubernetes running on the HPE Private Cloud AI, reducing " version hell " and ensuring enterprise-grade stability.

Why other options are incorrect:

Option A: While resource scheduling and orchestration (via tools like NVIDIA Run:ai, now part of NVAIE) can manage workload placement, the " cleanup of idle workloads " is typically a function of the Kubernetes scheduler or specific policy engines (like Kyverno), not the primary defining benefit of NVAIE itself.

Option C: NVIDIA AI Enterprise is a software platform . It does not provide access to " unreleased " or " non-public " hardware models; rather, it provides the software stack to run on commercially available NVIDIA GPUs like the H100, L40S, or B200.

Option D: Secure communication between workloads is usually handled by the Service Mesh (such as Istio , which is part of the HPE AI Essentials software layer) or networking operators, rather than NVAIE ' s primary role of GPU enablement.

This scenario tests your knowledge of HPE Synergy Master/Satellite architecture and Management Ring requirements. Based on the requirements provided, the design has two primary issues that must be addressed:

Management Redundancy (HPE Composer 2):

The requirement states that all frames must formulate a single management entity. In a Synergy environment, this is achieved by linking the Frame Link Modules (FLM) of the three frames together to form a management ring.

Within a single management ring (one Logical Enclosure), only two (2) HPE Synergy Composer 2 modules are required to provide a highly available, redundant management cluster.

The architect ' s proposal included 6 Composers (2 per frame). This is incorrect for a single management entity design; therefore, 4 Composers are unnecessary and should be removed (Option C).

Fibre Channel Connectivity Licensing:

The HPE Virtual Connect SE 100Gb F32 Module is a converged interconnect. While it physically supports Fibre Channel (FC) and FCoE, the Fibre Channel uplink functionality is not enabled by default.

According to HPE QuickSpecs, a specific FC Upgrade License must be purchased and applied via HPE OneView to enable the use of the QSFP28 ports as native Fibre Channel uplinks to a SAN. Without these licenses, the customer cannot meet the requirement for connectivity to an FC array (Option A).

Analysis of other options:

Option B is incorrect: In a 3-frame setup, you only need one pair of " Master " modules (the F32s). The other frames are correctly equipped with Interconnect Link Modules (ILMs) which act as satellites to extend the Master ' s fabric.

Option D is incorrect: Virtual Connect technology is explicitly designed to provide MAC and WWN virtualization (often called " Server-Side Networking " ), allowing identities to be assigned to server profiles rather than being hardcoded to hardware.

Option E is incorrect: A 3-frame Synergy setup provides a total of 36 half-height slots (12 per frame). Since the HPE Synergy 480 Gen10 Plus is a half-height module, the physical infrastructure can support up to 36 modules, easily meeting the " at least 30 " requirement. There is no architectural limitation in this specific F32/ILM combination that restricts it to only 18 modules.

HPE Tech Care is the operational support experience for HPE hardware and software. It was designed to go beyond traditional " break-fix " support by integrating advanced digital tools and direct access to expertise.

Digital Experience and Insights: A core component of the HPE Tech Care experience is the personalized digital dashboard accessible via the HPE Support Center. Within this portal, customers have access to My Insights Dashboards , which include a specific Software Dashboard .

Software Dashboard Functionality: This dashboard provides a centralized view of all the customer ' s covered HPE products. It automatically identifies the currently installed software and firmware versions and compares them against the latest available versions released by HPE. This allows IT teams to proactively identify systems that are out of date, reducing security risks and ensuring they are running on the most stable code.

Proactive vs. Reactive: While traditional support (like HPE Foundation Care) focused on reacting to failures, the Software Dashboard in Tech Care helps customers stay ahead of issues by providing " actionable intelligence " regarding their software and firmware lifecycle.

Comparison to Other Options:

Option A: HPE OpsRamp is an IT Operations Management (ITOM) platform that is typically bundled with HPE Complete Care (formerly Pointnext Complete Care) or available as a standalone subscription, but it is not a standard benefit of the base Tech Care service.

Option B: Multivendor support is a hallmark of HPE Complete Care , which provides a single point of contact for the entire data center environment, including non-HPE hardware. Tech Care is primarily focused on the support of HPE products.

Option D: An assigned or dedicated account team (personalized support) is a feature of HPE Complete Care . HPE Tech Care offers " Direct access to product-specific specialists " (expert-to-expert) rather than a dedicated, named account team that manages the customer ' s specific environment profile.

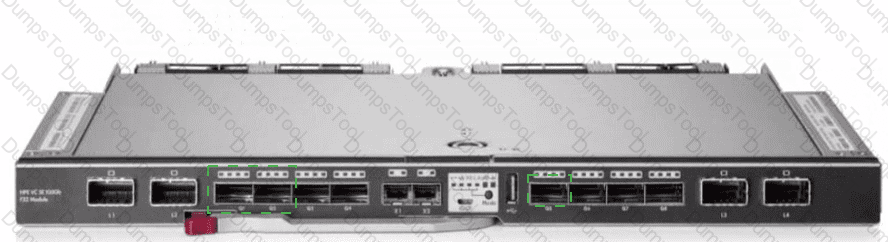

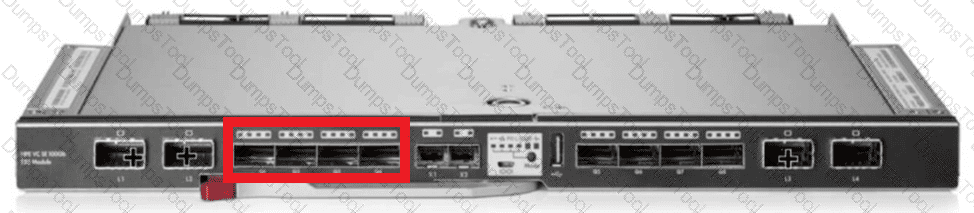

The QSFP+ ports (Q1 and Q2) on the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy can be used to connect satellite modules. These ports are designed to handle high-speed connectivity required for linking additional frames and expanding the Synergy infrastructure.
