NSE6_FSM_AN-7.4 Questions and Answers

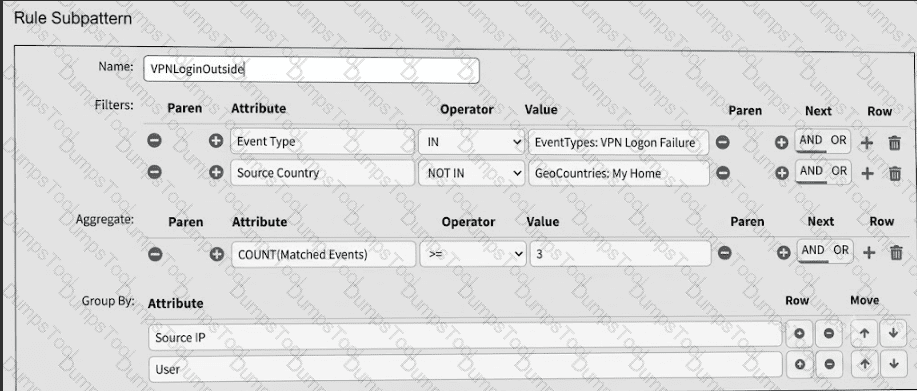

The rule is matching VPN logon failure events where the Source Country is outside the configured home country . In the exhibit, the filter section shows Event Type IN EventTypes: VPN Logon Failure and Source Country NOT IN GeoCountries: My Home . That means the source must be outside the home-country geo group. The aggregate condition shows COUNT(Matched Events) > = 3 , so the rule is looking for at least three matching failed VPN logon events. The Group By section uses Source IP and User , so FortiSIEM evaluates the count per unique source IP and user combination, not by different countries.

The FortiSIEM Study Guide explains that a rule subpattern contains three components: Filter , Aggregate , and Group By . It states that the filter identifies the matching event group, the aggregate function specifies how many events must match, and Group By combines events with the same grouped attributes into one row while the count tracks those events.

Option A is wrong because the rule does not count different countries. Options C and D are wrong because the source country is explicitly NOT IN My Home, not inside the home country.

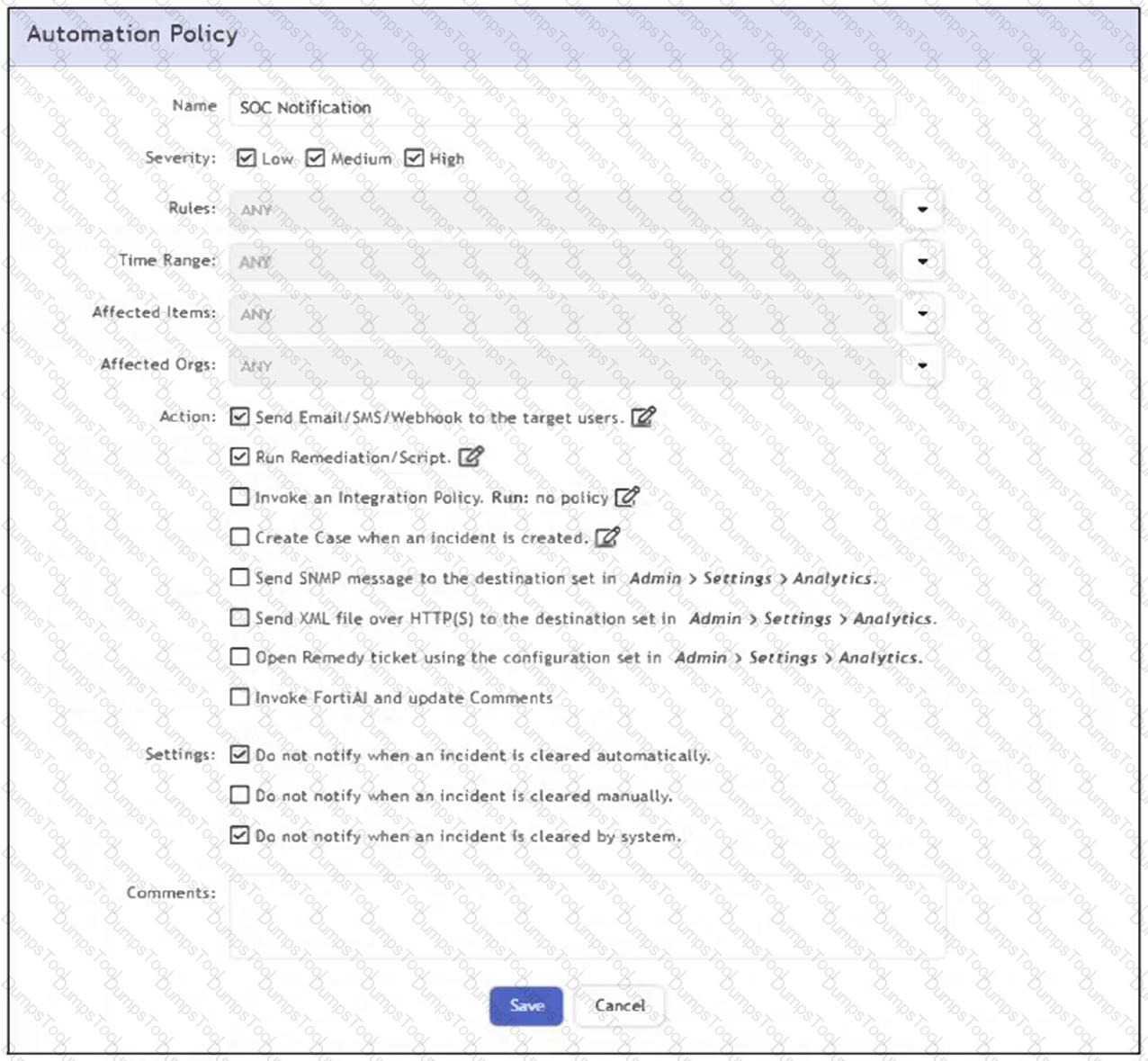

The correct answer is B because the automation policy shown has the email/SMS/webhook notification action enabled, and the setting that suppresses notification for manual incident clearing is not selected. The FortiSIEM Study Guide explains that automation policies define actions taken when incident-related policy criteria match. It states that notification policies are defined by criteria such as severity, associated rules, time range, affected items, and actions. The guide also states that FortiSIEM can send email notifications and SMS messages to individuals or groups as part of an automation policy. In the exhibit, the options Do not notify when an incident is cleared automatically and Do not notify when an incident is cleared by system are selected, but Do not notify when an incident is cleared manually is not selected. Because the analyst clears the incident manually, the suppression condition does not apply. Therefore, FortiSIEM sends the configured email notification to the target user, identified in the question as the SOC manager.

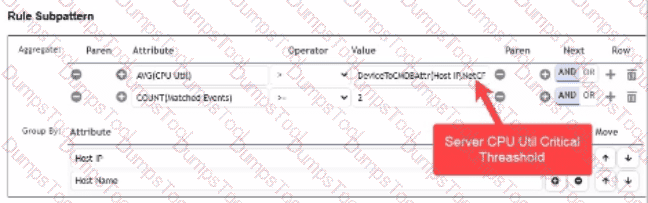

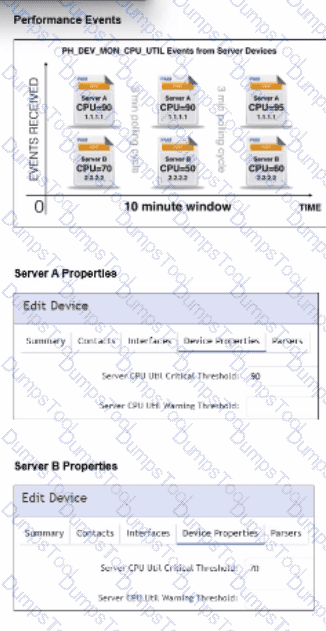

The correct answer is D because Server A satisfies the rule’s threshold and count requirements, while Server B does not. The Study Guide explains that a FortiSIEM subpattern consists of Filter , Aggregate , and Group By components. It also states that the Aggregate function defines how many or what metric values must match during the time window, while Group By controls how the matching events are grouped into rows. The performance metrics lesson explains that FortiSIEM collects performance and availability data, converts polling results into logs, and uses those metrics for performance, availability, resource utilization, and baselining. In the exhibit, the aggregate evaluates CPU utilization against the device’s CPU critical threshold and also requires a matched-event count of at least two within the 10-minute window. Server A has CPU values above its critical threshold enough times in the window, so it generates one incident. Server B has a lower configured threshold but its collected CPU values do not satisfy the required aggregate condition for the grouped server. Therefore, only Server A generates an incident.

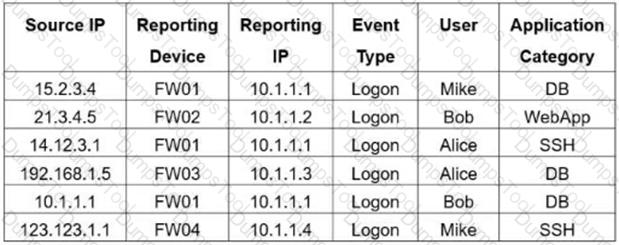

FortiSIEM grouping works by combining events that have the same values for all selected Group By attributes. The Study Guide’s rule and subpattern example states that when multiple events have the same Group By values, “they are grouped together in one row, and the count column tracks the number of events for each of those rows.” In the exhibit, the selected grouping fields are Reporting Device, Reporting IP, and Application Category. The table contains six raw rows, but two rows share the same grouped combination: FW01 / 10.1.1.1 / DB . Those two rows are collapsed into one grouped result. The other combinations are unique: FW02 / 10.1.1.2 / WebApp, FW01 / 10.1.1.1 / SSH, FW03 / 10.1.1.3 / DB, and FW04 / 10.1.1.4 / SSH. That creates five grouped rows in total. FortiSIEM does not display six because grouping removes duplicate combinations, and it does not display four because only one duplicate combination exists.

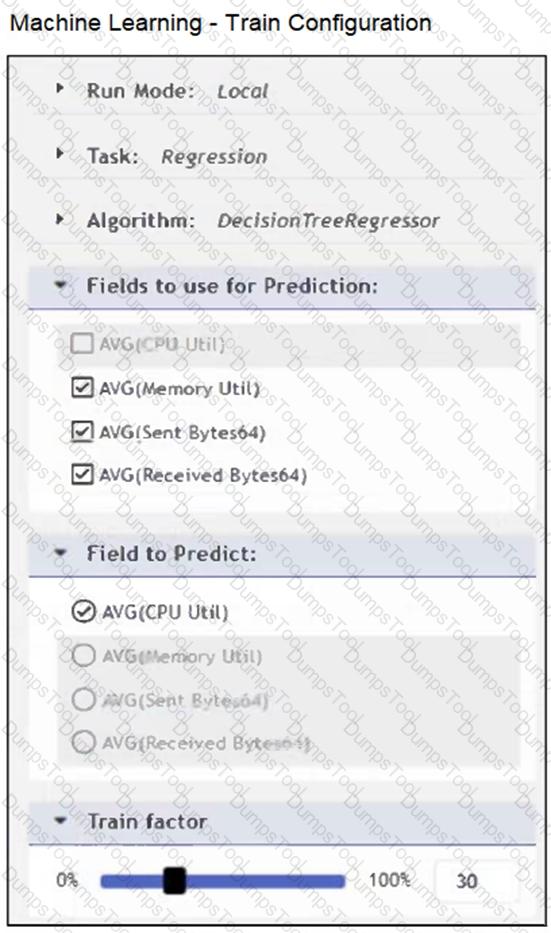

The correct answer is B. Train. In FortiSIEM machine learning, the Train step is where the model is built from the prepared dataset and where model-fitting behavior can be adjusted. The FortiSIEM 7.4 User Guide explains that after preparing data, the analyst goes to Analytics > Machine Learning > Train, selects the machine learning task, chooses the algorithm, selects the prediction/target fields when required, and chooses the Train factor, which determines how much data is used for training versus testing. The guide states that the Train factor should be greater than 70%, meaning 70% of the data is used for training and 30% for testing. It also explains that model quality metrics show how accurately the algorithm predicts the field. For regression, lower MAE means a better fit, and R2 shows how well predictions approximate real data points. Most importantly, the guide states: “If you want to change the algorithm parameters and re-train, then click Tune & Train, change the parameters and click Save & Train.” This confirms that modifying how the model fits the training dataset is done in the Train step, not Prepare Data, Statistics, or Design.

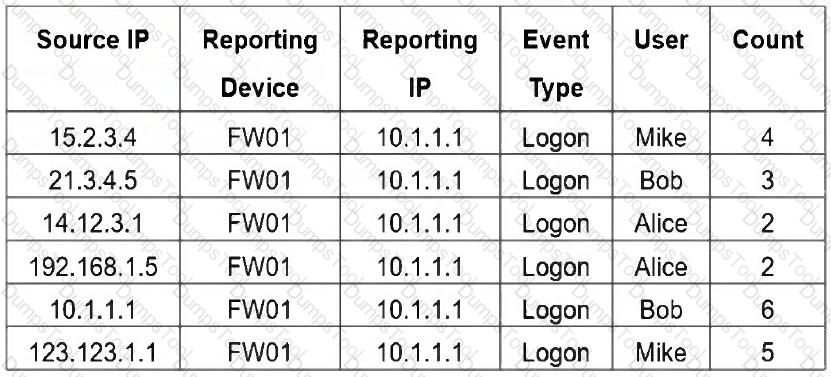

The verified answer is D. Five . FortiSIEM grouping is based on unique combinations of the selected Group By fields. The Study Guide explains this behavior clearly: if multiple events have the same selected Group By values, “they are grouped together in one row,” and the count column tracks the number of events for each row. In this question, the selected fields are User and Count . The six raw rows contain these combinations: Mike/4, Bob/3, Alice/2, Alice/2, Bob/6, and Mike/5. Because Alice/2 appears twice, those two rows are grouped into a single result. The remaining combinations are unique. So FortiSIEM displays five grouped results, not six. Six would be correct only if every row had a unique User-and-Count combination, or if grouping included another differentiating attribute such as Source IP. Since the question specifically groups only by User and Count, duplicate User/Count pairs collapse into one row. Therefore, the correct result count is five .

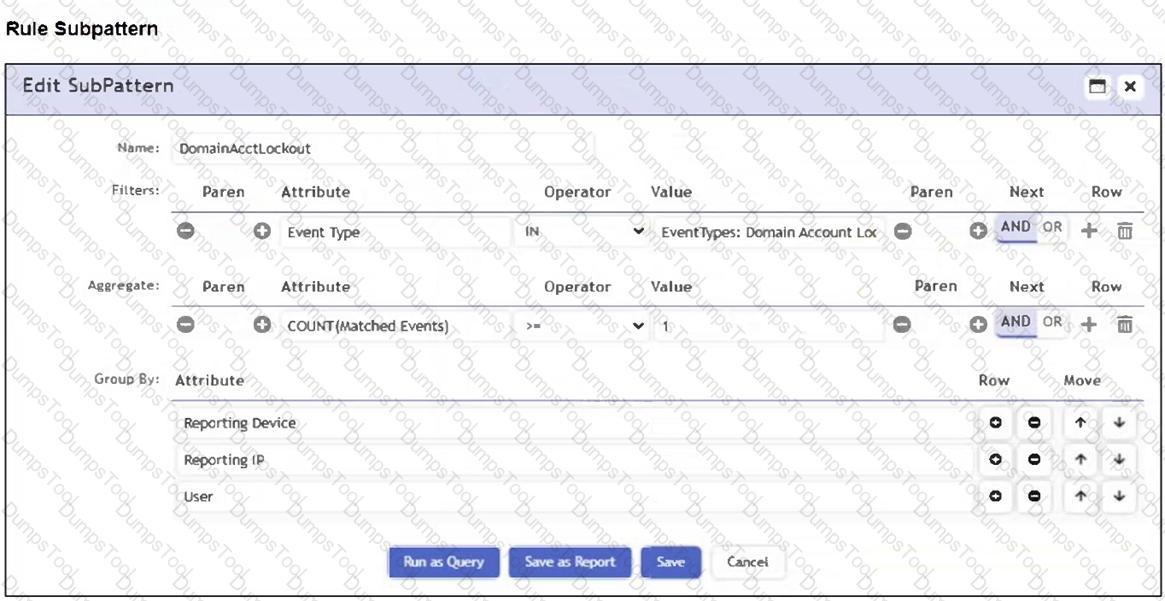

The Aggregate section contains the condition COUNT(Matched Events) > = 1, which defines how many events must match the filter criteria for the rule to trigger. This is the subpattern configuration that determines the event threshold.

The correct answer is A. Aggregate . In FortiSIEM rule subpatterns, the Filter section defines which events are eligible for matching, but the Aggregate section defines the statistical or threshold condition that must be satisfied before the subpattern is considered matched. The Study Guide explains that rule conditions are built from subpatterns of event attribute filters and aggregation functions. It also states that a single-subpattern rule is formed by three fields: filters, aggregate, and group by. In the exhibit, the aggregate line is COUNT(Matched Events) > = 1. That expression directly specifies the number of matching events required to satisfy the subpattern. Group By only controls how matching events are partitioned into separate evaluation groups. Actions define what happens after a rule triggers, such as incident generation or notification. Filters define the event type or attribute criteria, but they do not define the required count threshold. Therefore, the section that determines how many matching events are needed is the Aggregate section.

A FortiSIEM rule requires detection logic and at least one subpattern structure to evaluate matching events. The FortiSIEM Study Guide explains that a single subpattern rule example consists of filter, aggregate, and group-by sections. It states: “The subpattern, ExcessVPNLoginFailure, consists of three components: Filter, Aggregate, Group By.” That confirms that a subpattern is a core rule component. The FortiSIEM 7.4 User Guide also identifies Detection Technology as part of rule definition and built-in rule metadata. Detection Technology describes the detection method used by the rule, such as correlation, profiling, machine learning, or correlation using lookup tables. Exception policy is not required; it is used to suppress or tune matches under specific conditions. Clear policy is also not required; it controls how an incident can be cleared or auto-cleared after triggering. Therefore, the required components among the listed options are Subpattern and Detection Technology. Without them, the rule lacks both the event-detection structure and the detection-method classification needed for rule evaluation.

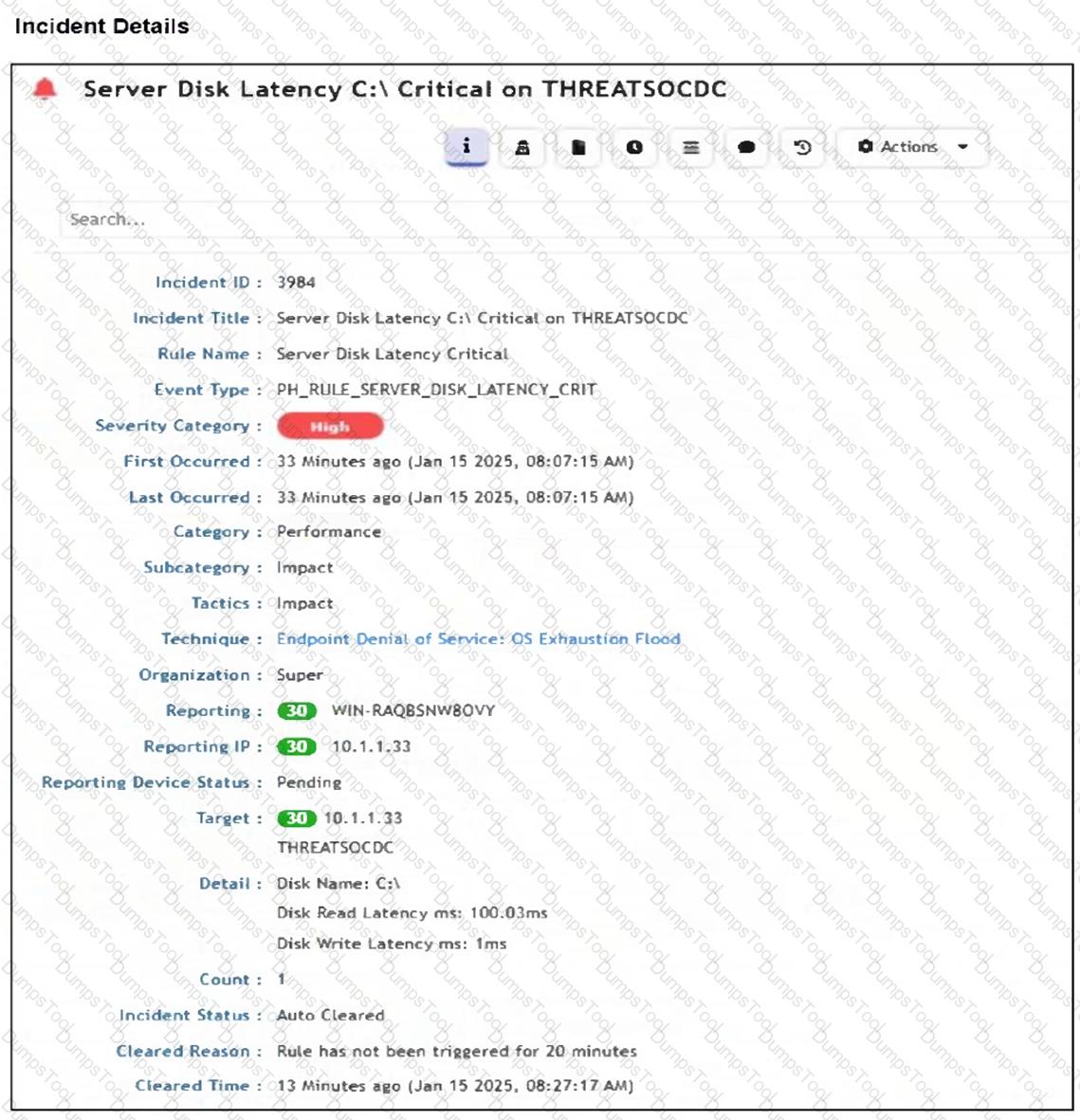

The Incident Status shows " Auto Cleared " , and the Cleared Reason states: " Rule has not been triggered for 20 minutes. " This indicates that the incident was automatically cleared by the rule logic after a defined period of inactivity.

The correct answer is C because the exhibit shows the incident status as Auto Cleared and the cleared reason indicates that the rule condition was no longer being triggered. The Study Guide explains that FortiSIEM supports clear conditions and auto-clearing behavior at the rule level. It states that if a time-based clear condition is configured, FortiSIEM can auto-clear the incident after the last occurrence if the trigger condition no longer exists. It also explains pattern-based clear behavior: FortiSIEM evaluates clear-condition subpatterns and compares attributes from the clear condition with the original incident attributes. If the configured attributes match, the incident status is set to auto cleared. In the exhibit, the cleared reason says the rule has not been triggered for a defined number of minutes. That is not a manual action by the analyst and not an endpoint-generated all-clear signal. It is FortiSIEM’s rule-based clearing logic. Option B is also wrong because the exhibit shows a specific rule inactivity period, not a generic 24-hour timeout.
