NSE6_FMG_AD-7.6 Questions and Answers

Enabling a workflow with approval ensures that any policy package changes must be reviewed and approved before installation, preventing administrators from repeating configuration mistakes and enforcing change control.

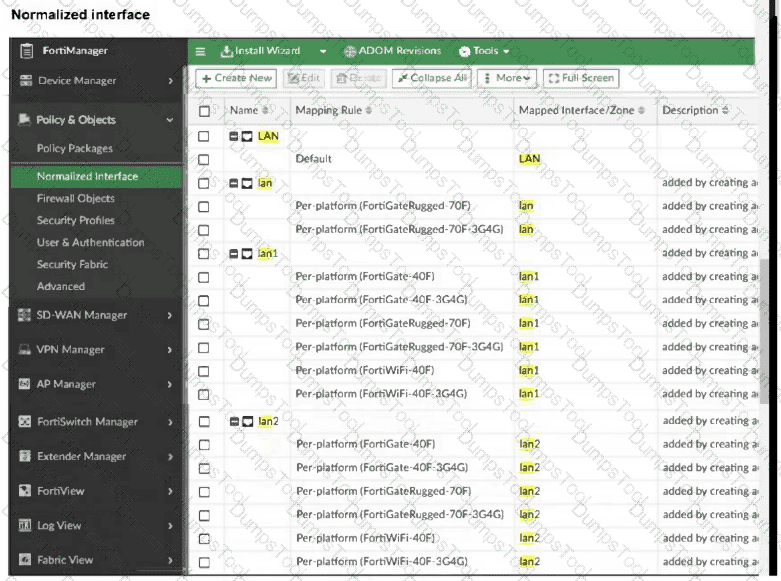

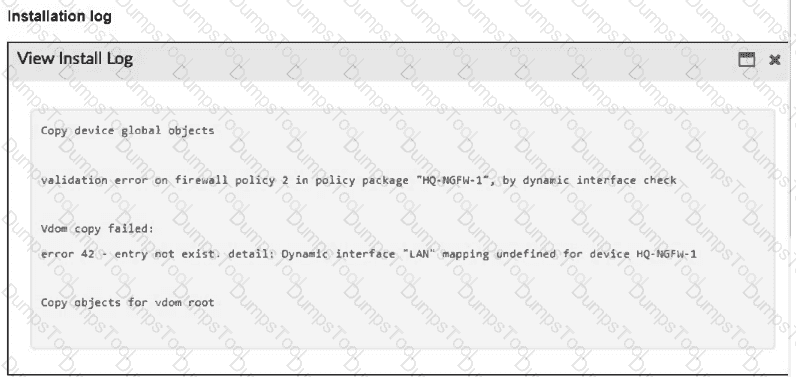

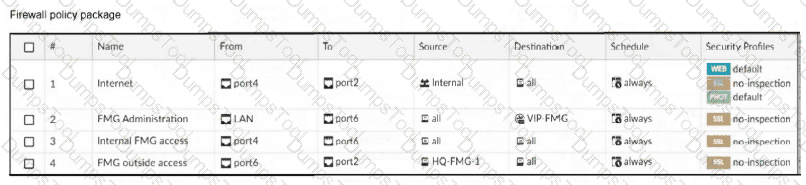

The correct answer is C. The installation log explicitly says: “Dynamic interface ‘LAN’ mapping undefined for device HQ-NGFW-1”. That means the policy is using a normalized interface, but FortiManager has no valid mapping for that device. The FortiManager 7.6 Administrator Study Guide states that “Interfaces are mapped per device, per platform, or both” and “When the normalized interface is used in a policy, the per-device mappings have higher priority than per-platform mappings.”

The lab guide also shows that during import or policy mapping fixes, the administrator can set the Mapping Type to Per-Device for interfaces.

So the correct fix is to create a per-device mapping for the normalized interface LAN for that FortiGateRugged-70F. Hardcoding lan1 in the policy is not the best FortiManager method because interface mapping is designed specifically to avoid that.

=========

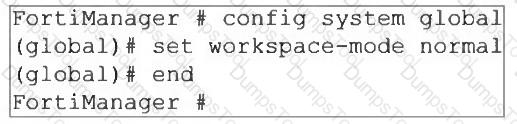

The command set workspace-mode normal enables Workspace (ALL ADOMs). The study guide states that in this mode “All ADOMs can be locked” and workspace mode lets administrators lock ADOMs, devices, policy packages, and objects. The lab guide then gives the exact behavior for ungraceful session closure: “If a session is not closed gracefully … FortiManager does not close the administrator session until it times out or the session is deleted. Until this time, the ADOM remains in a locked state.” That directly proves A.

C is also verified by the lab guide statement: “If an administrator locked one or more ADOMs, and then logs out of FortiManager, all of those ADOMs are unlocked.” The phrase “one or more ADOMs” confirms the same administrator can lock multiple ADOMs at once.

D is a workflow mode approval concept, not workspace normal.

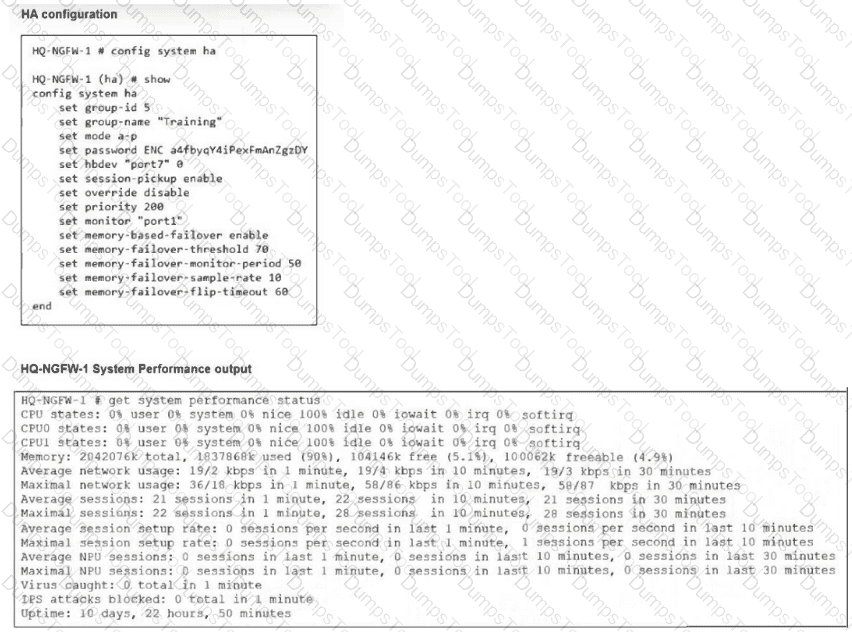

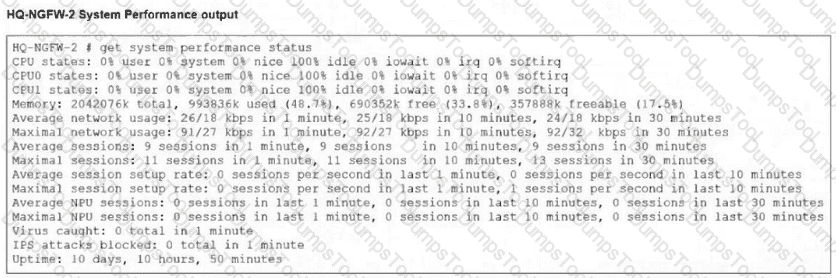

The correct answer is A. This conclusion comes from the HA settings shown in the exhibit plus Fortinet’s HA behavior. In the exhibit, HQ-NGFW-1 has memory-based-failover enabled, memory-failover-threshold 70, memory-failover-monitor-period 50, and its memory usage is about 90%, while HQ-NGFW-2 is about 48.7%. Fortinet’s official documentation states that memory-failover-threshold is the memory percentage that triggers failover, and memory-failover-monitor-period is the duration high memory must persist before failover occurs. It also states that if utilization stays above the threshold for the entire monitor period, a failover is triggered, and the peer becomes primary. (Fortinet Document Library)

Because the condition was observed for 55 seconds, which is longer than the configured 50-second monitor period, the cluster would fail over from HQ-NGFW-1 to HQ-NGFW-2 due to the memory-failover-threshold condition. The priority setting does not explain this result here, because override is disabled, and flip-timeout governs subsequent memory-based failovers, not the initial trigger. (Fortinet Document Library)

=========

The correct answers are A and C. The FortiManager 7.6 Administrator Study Guide gives the exact extract: “FortiManager creates a configuration revision when: FortiGate is added to FortiManager, Device changes are installed from FortiManager, FortiGate configuration is retrieved from FortiManager, A local change on FortiGate causes an automatic update”.

This exactly proves A, because device changes are installed from FortiManager, and C, because a local change on FortiGate causes an automatic update. The guide also states: “By default, all changes made on a managed FortiGate device are automatically updated on FortiManager and reflected in revision history”.

B and D only modify the FortiManager device-level database status to Modified. They do not, by themselves, create a new revision history until an install, retrieve, or auto-update occurs.

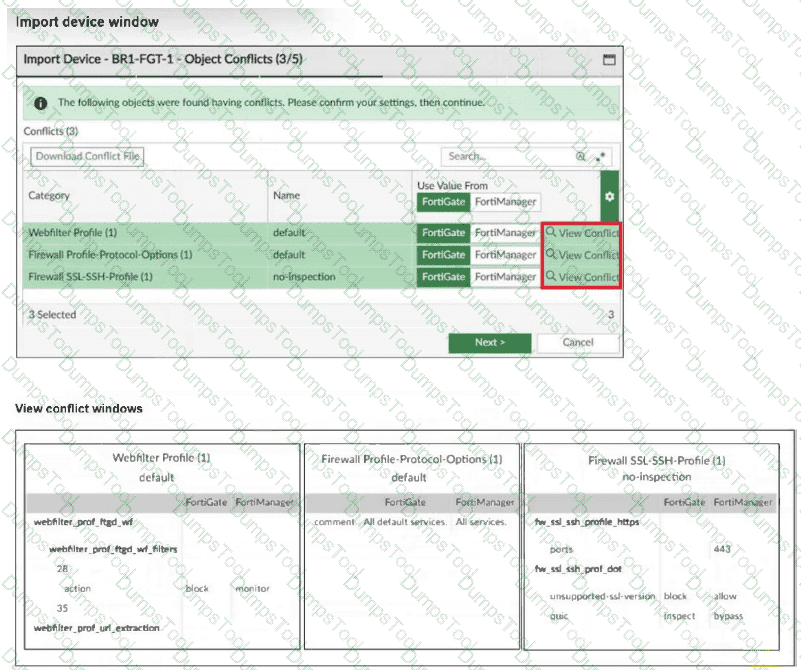

The exhibits are directly supported by the lab guide’s troubleshooting section. It states: “The only profile that can be replaced is the Firewall Profile-Protocol-Options profile, because the only difference is a change in the comment field.” It then explains that for the other two profiles, “Whether you accept the value from BR1-FGT-1 or FortiManager, it will cause changes on different devices.”

That exactly matches C. The conflict window is not primarily showing a firmware mismatch, and the guide does not say BR1-FGT-1 lacks HTTPS 443 support. It also does not describe this as a FortiGuard database mismatch for QUIC. Instead, the key point is that only the default Firewall Profile-Protocol-Options conflict is minor enough to safely take from FortiManager because the difference is only in the comment field. The web filter and SSL/SSH profiles would cause real configuration differences if replaced.

The command set workspace-mode normal enables Workspace (ALL ADOMs). In this mode, FortiManager uses ADOM locking to prevent configuration conflicts. The study guide explains that workspace mode is used to prevent concurrent ADOM access, and once an ADOM is locked, only the administrator who locked it has read-write access while all others have read-only access. That makes D correct.

B is also correct because locking is applied per ADOM, so different administrators can work at the same time on different ADOMs without conflicting with each other. This is consistent with the design goal of workspace mode and ADOM locking.

C describes workflow mode, not workspace normal. Approval before installation is required only with set workspace-mode workflow.

=========

FortiManager must have the NAT device ' s IP address and correct ports configured to communicate properly with the FortiGate behind NAT.

The NAT device must have the correct virtual IP address and ports configured to allow push updates to reach the FortiGate device.

ADOM revisions save the current state of all policy packages and objects within an ADOM, allowing administrators to track changes over time and revert to previous configurations if needed.

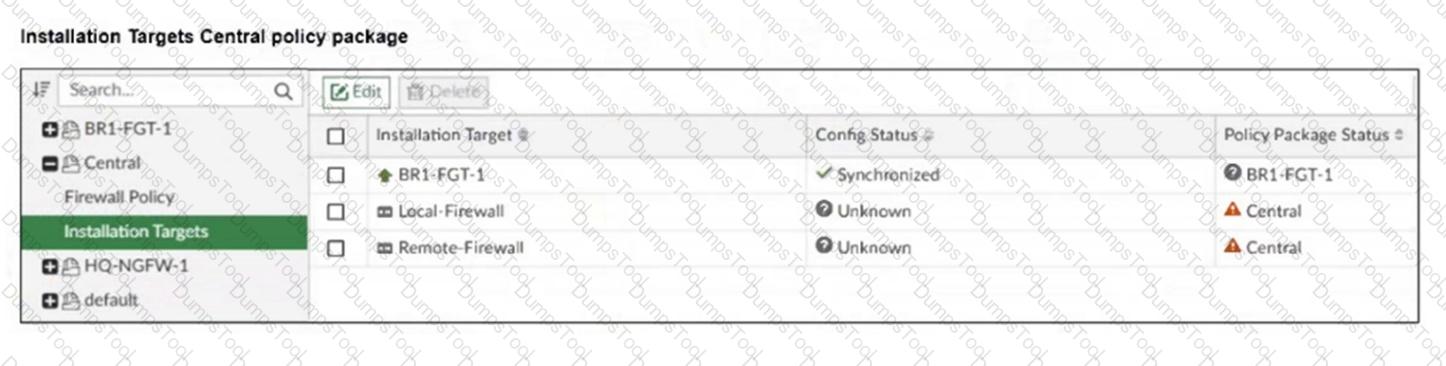

Using the Install Wizard is the recommended method to reinstall the central policy package on the BR1-FGT-1 firewall, ensuring all settings, installation targets, and dependencies are correctly processed during installation.

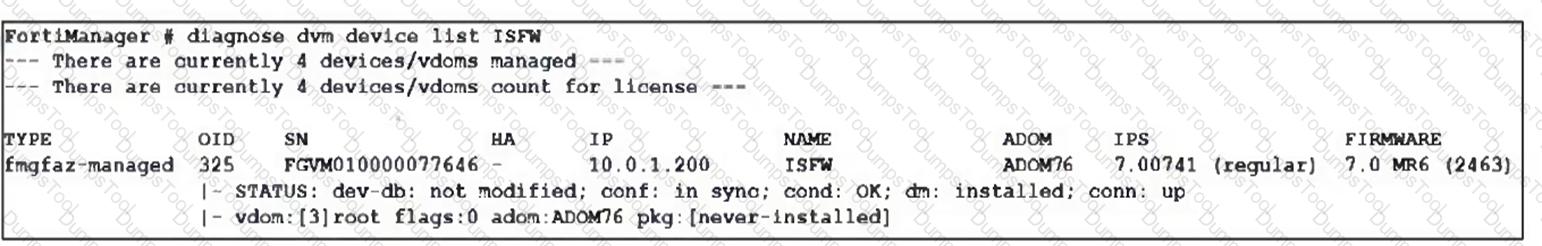

Right after moving the ISFW device to a new ADOM, the status typically shows the policy package as never-installed, indicating that the device has been assigned to the new ADOM but no policy package has yet been installed in that ADOM.

The FortiManager 7.6 Administrator Study Guide is explicit for the scenario where both FortiManager and FortiGate are behind NAT. It states that FortiManager can discover FortiGate through the FortiGate NATed IP address, which makes A correct. It also explains that in this scenario, the FortiManager NATed IP address is not configured on FortiGate by default under central management, which makes B correct.

C is incorrect because FortiGate must use the FortiManager NATed IP address, not the non-NATed IP, if it needs to announce itself or reestablish the FGFM tunnel. D is also incorrect because in this NAT scenario, if the tunnel is torn down, only FortiGate attempts to reestablish the connection; FortiManager does not automatically do so.

=========

The correct answer is C. The FortiManager 7.6 Administrator Study Guide explicitly says: “You must explicitly assign global policy packages to specific ADOMs” and “you can even pick specific policy packages in individual ADOMs that you want to apply the global policies to.” The study guide also explains the assignment workflow: “This slide shows the steps to assign a global policy package to an ADOM policy package” and “First, add the required ADOMs as targets. Second, assign the global policy package to the ADOMs.”

Because Remotes is a newly created policy package, it does not inherit the earlier assignment automatically. The administrator must explicitly assign the Training global policy package to the Remotes policy package. Automatic install does not create that assignment, and unassigning all packages is unnecessary.

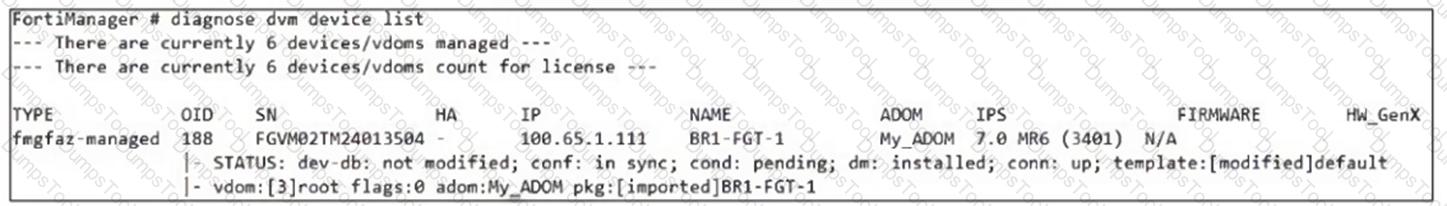

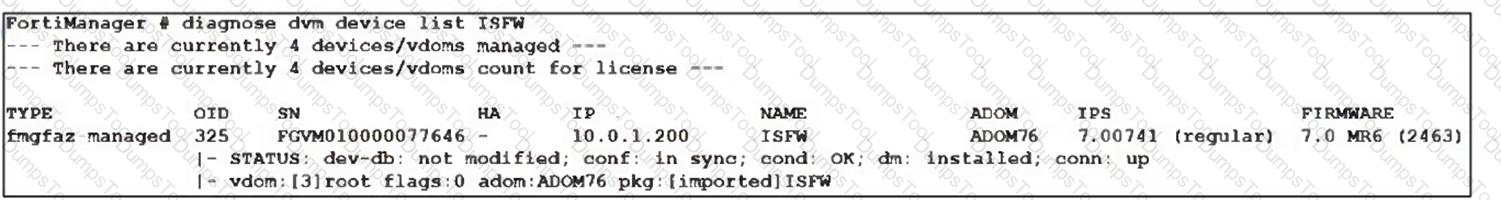

The output shows dev-db: not modified; conf: in sync, which means the device-level database is aligned with the latest revision history, so A is false. The study guide explains that “Synchronized / Auto-update: The latest revision history configuration entry … is aligned with the configuration on FortiGate,” and dev-db: not modified indicates the device-level settings are not changed on FortiManager.

For the policy layer, the output shows pkg:[imported]BR1-FGT-1. The study guide states “Imported: indicates that a policy package was successfully imported for a managed device,” so the policy package in FortiManager matches what was imported from the managed device context, making C correct.

D is also correct because the lab guide explicitly says “All Provisioning Templates applied on FortiGate devices have precedence over any configuration you apply on the device layer of the FortiManager.”
