F5CAB1 Questions and Answers

Securing the BIG-IP management interface is a fundamental administrative responsibility. F5 best practices emphasize restricting who can reach the management port and ensuring that only authorized systems are allowed access.

A. Limiting management access to trusted network segments

F5 recommends placing the management interface on adedicated, isolated, and secured management network or VLAN, rather than exposing it to production or untrusted networks.

This reduces the attack surface by ensuring only trusted segments have visibility to administrative interfaces.

D. Restricting management access by IP or subnet

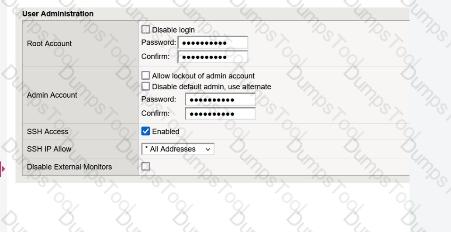

F5 BIG-IP uses the/sys httpd allowlist (for HTTPS) and configuration options insshd(for SSH) to control which IP addresses or subnets can access the device.

By specifying only known administrative IPs or ranges, unauthorized users cannot reach the login services.

Why the other options are incorrect

B. Blocking all management HTTPS/SSH ports

This would prevent any administrative access and is not a viable security practice.

C. Using Self-IP addresses for administrative access

F5 explicitly warns against using Self-IPs for management access unless strictly necessary.

Self-IPs are exposed to the data plane and should not be used as the primary administrative interface.

The BIG-IP system has built-in licensing enforcement.

If an administrator provisions a module that the device isnot licensedto run, the system will still allow the provisioning action to occurinitially, but the system detects the mismatch and displays an alert.

What actually happens:

The GUI places awarning bannerin theupper-left cornerlabeled something similar to:“Provisioning Warning”

This appears immediately after provisioning a module that is not included in the active license.

The system remains in an “inconsistent state” until the module is disabled again or the license is updated.

This is the visual cue BIG-IP uses to indicate that a module was provisioned without valid licensing.

Why the other options are incorrect:

A. “A BIG-IP does not allow unlicensed modules to be provisioned.”

Not true. BIG-IPdoesallow provisioning, but warns afterward.

B. “A warning will appear when provisioning an unlicensed module.”

The warning doesnotappear during the provisioning step itself.

It appearsafter provisioning, in the main GUI, as a system banner.

BIG-IP hardware platforms use chassis LEDs to indicate system health states.

Asolid yellow status LEDtypically indicates awarning condition, such as:

A non-critical hardware alert

A temperature threshold nearing limit

A minor fan or sensor irregularity

Other non-fatal environmental or system conditions

This state reflects awarning-level alarm, meaning the unit is operational but requires investigation.

Why the other options are incorrect

A. Halted or EUD mode

This is associated with different LED patterns (usually flashing conditions or specific color codes), not a solid yellow status LED.

B. Standby in device group

HA state is not indicated by the chassis status LED.

Standby status is alogicaldevice state, not a hardware LED state.

D. Power supply failure

Power supply indicators use separate LEDs located on each power module (usually flashing amber/red), not the system status LED.

Thus, asolid yellow status indicatorsignifies awarning-level alarm.

In BIG-IP, software images are installed onboot volumes(for example, HD1.1, HD1.2, HD1.3, etc.).

To install software on anew volume, the administrator must instruct the system to create a new boot location before installation.

There are two correct ways to create a new volume:

A. tmsh command (with correct syntax)

tmsh install software image /shared/images/BIGIP-.iso volume HD1.5 create-volume

This syntax correctly includes:

install software image

full path to ISO (/shared/images/...)

volume name (HD1.5)

create-volumekeyword

This instructs BIG-IP to create the new boot volume as part of the installation.

C. Using the GUI → System > Disk Management

From the Disk Management menu, the administrator can:

Select “New Volume”

Enter the volume identifier (e.g., HD1.5)

Apply changes

This GUI method is officially supported and explicitly creates a new boot volume before installing the software.

Why the other options are incorrect:

B. Incorrect tmsh syntax

Missing /shared/images/ path

Incorrect command structure

D. Incorrect command structure

Missing required keywords and correct command hierarchy

E. Software Management → Install does NOT create volumes

This installs to anexistingvolume only

The GUI install dialog does not create new boot volumes

Thus, onlyOption AandOption Cproperly create a new software volume.

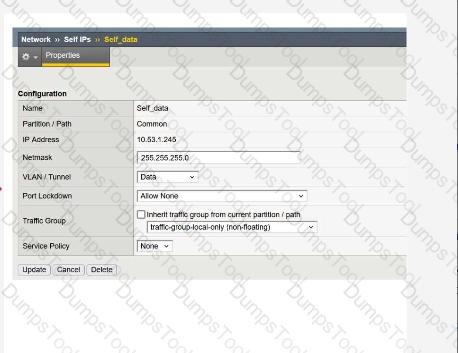

Port Lockdown controls which ports and protocols aSelf IPwill respond to.

TheAllow Defaultsetting permits only a predefined set of BIG-IP internal and required service ports.

The Allow Default listincludes:

TCP 443→ HTTPS (Management/TMUI access via Self-IP)

TCP 4353 → CMI (device sync)

TCP/UDP ports related to HA communication

Other essential internal F5 ports

Why TCP 443 is correct:

It is one of the officially allowed ports underAllow Default.

It enables HTTPS/TMUI access through a Self IP.

Why the other options are incorrect:

A. TCP 80 (HTTP)

Not allowed under Allow Default

HTTP via Self-IP is blocked unless placed under Allow Custom

B. UDP 8443

Not an F5 default service

Not part of the Allow Default ports

When logged into thebash shellof a BIG-IP system, there are two valid ways to view themanagement-ipaddress:

A. tmsh list /sys management-ip

Even from the bash shell, the administrator can enter a tmsh command by typing:

tmsh list /sys management-ip

This displays:

Management IP address

Netmask

Any configured management routes

This is theofficial tmsh methodfor viewing the management-ip configuration.

C. ifconfig mgmt

In the underlying Linux OS, the management interface maps to themgmtinterface.

Running:

ifconfig mgmt

displays:

Assigned management IP

Netmask

Link-level status

This is a valid Linux-level method used frequently for troubleshooting.

Why the other options are incorrect:

B. show mgmt ip

Not a valid bash or tmsh command on BIG-IP.

D. list / sys management-ip

Missing thetmshprefix.

In bash, this will generate a syntax error.

The correct form requires:

tmsh list /sys management-ip

BIG-IP allocates CPU and memory resources based on module provisioning levels.

To view how much CPU a module is assigned, administrators must check provisioning information from:

C. GUI — System » Resource Provisioning

This page visually displays CPU allocation via color-coded bars.

Hovering over the CPU bar shows:

CPU usage percent per module

Which modules share CPU cycles

The system’s total resource allocation

This is the primary GUI method.

D. tmsh show /sys provision

This command displays detailed module provisioning information including:

Provisioned modules

Their provisioning level

CPU and memory allocation data

It is the authoritative CLI method for resource provisioning status.

Why the other options are incorrect:

A. top

Shows real-time process usage, notprovisionedCPU allocation.

B. tmsh show /sys cpu

Displays CPU runtime utilization, not per-module provisioning.

E. Statistics Dashboard

Only shows traffic / system runtime metrics, not provisioning resource allocations.

Therefore,C and Dare correct.

When installing a software upgrade with a HotFix on BIG-IP, the correct workflow requires:

Install the base TMOS imageon an unused boot volume

Install the corresponding HotFixonto that same boot volume

Activate the updated boot volumeto boot into the new software

This method ensures:

The existing active system (HD1.1) is untouched

The upgrade occurs in a new, clean volume (HD1.2)

The HotFix applies properly to the same base image

The administrator can revert to HD1.1 if issues occur

OptionCmatches the correct F5 upgrade sequence:

1. Install base image on HD1.2

2. Install HotFix on HD1.2

3. Activate HD1.2

Why the other options are incorrect:

A. Install HotFix before base image

HotFixes must be appliedafterthe base image; not valid.

B. Installing a HotFix on the active boot location (HD1.1)

Not recommended and does not use a clean new volume.

Also does not involve installing the base image.

D. Activating HD1.2 before installing anything

Cannot activate an empty or invalid boot volume.

Thus,Option Cis the correct sequence.
