220-1101 Questions and Answers

A media converter is a network device that operates as a bridge function, which means it connects two different types of network media, such as copper and fiber optic cables, and converts signals between them. This allows network devices that use different media types to communicate with each other over long distances or in different environments, without requiring major changes or upgrades to the existing network infrastructure. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 73)

802.11ac is the 802.11 standard that supports both 5GHz and 2.4GHz channel frequencies. 802.11ac is the latest wireless networking standard that operates in both the 5GHz and 2.4GHz frequency bands. It provides higher wireless network speeds and better reliability compared to previous standards, such as 802.11a, 802.11b, and 802.11g. The 802.11a standard operates exclusively in the 5GHz band, while the 802.11b and 802.11g standards operate exclusively in the 2.4GHz band.

If a computer is not booting and the onboard speaker emits beeps, it can indicate a hardware issue. One of the most common causes of beep codes is overheating, which can occur if the processor's fan is not properly installed and running. The processor's fan is responsible for cooling the processor and preventing damage to the internal components.

Before attempting to resolve the issue, it is important to first determine the cause or probable cause of the issue, so that a plan of action can be developed. In this case, the fact that the retention policy was updated shortly before users first noticed the issue suggests that this could be the cause of the issue. The systems administrator should investigate this further to determine if this is indeed the cause of the email server issue.

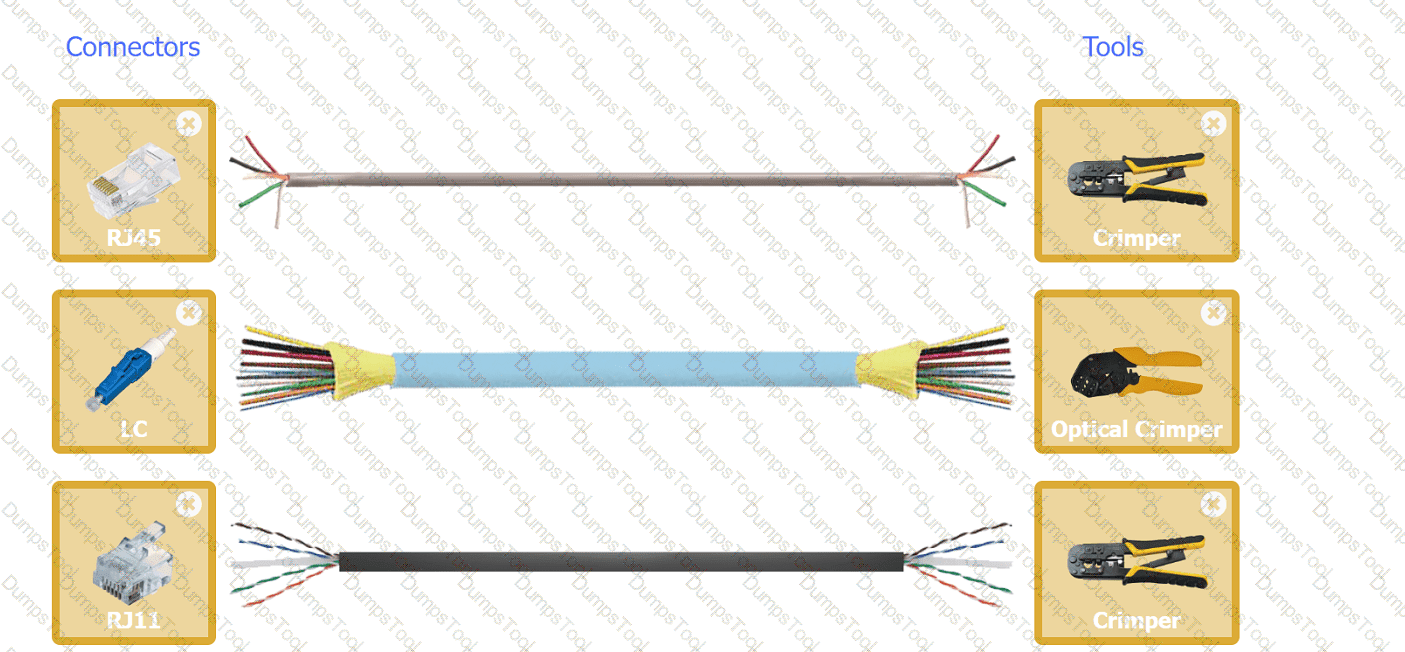

A crimper is a tool that is used to crimp (attach) an RJ45 connector onto the end of a patch cable. The crimper applies pressure to the connector to make a permanent connection between the connector and the cable, ensuring that the connector will stay attached to the cable.

A cable tester is used to test the connectivity of a network cable. A punchdown tool is used to terminate network cables in a patch panel or keystone jack. A loopback plug is a diagnostic tool that is used to test network interfaces by simulating network traffic.

The MOST efficient next step the technician should do is to test the output resolution1. The issue of a projector that will not display any images could be related to the output resolution1. If the output resolution is not compatible with the projector, the projector will not display any images1. Calibrating the image, replacing the bulb, or cleaning the fans may not be effective1.

If a projector is not displaying any images despite verifying that the computer output and cable are providing a good video signal, the technician should test the output resolution. The output resolution of the computer may not be compatible with the projector, which can cause the projector to not display any images.

Every computer has a CMOS battery and when you remove that battery, your computer will work almost the same as before. The only difference is you won’t be able to save any settings in the BIOS, which includes the date and time. If your PC is not booting after removing CMOS, you need to make sure that you have your CPU and RAM connected because it’s not possible for your system to boot without those.. Your motherboard and computer will be able to boot just fine even without a CMOS battery present. The only issue is all your BIOS settings will be reset and the time and date will be inaccurate. You will also be unable to save BIOS settings.

The minimum cable category that could be used to support a 10Gbps throughput is Cat 6a. Cat 6a cable is required with 10 Gigabit Ethernet for reliable performance with cable lengths up to 100 metres. However, lower-specification cables can often be successfully used, particularly with the shorter cable lengths required in a typical home123.

Utilizing a grounding strap is the safest way to replace RAM on a server that has a redundant power supply. This ensures that no static electricity is transferred to any of the server components, which could cause permanent damage. The other options are not the correct methods for replacing RAM. Unplugging one power cable is not recommended, as it could cause the server to go offline and disrupt any services that are running. Verifying the RAM temperature is not necessary and does not provide any additional safety measures, and replacing the RAM while the server is running is not recommended, as it could cause system instability.

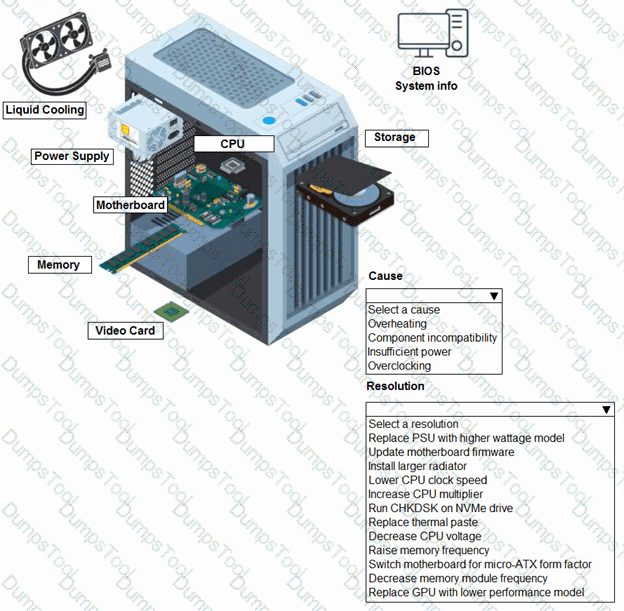

If a workstation shuts down unexpectedly during a burn-in test, overheating is the most likely cause. This is because a burn-in test is designed to stress the components of the workstation, which can generate a lot of heat. Therefore, overheating is the correct answer. References: CompTIA A+ Certification Exam Guide, Ninth Edition, page 120

In a private cloud model, the cloud infrastructure is maintained within a company's own data center and is used exclusively by that company. Private clouds offer the advantage of maintaining access even when a local internet outage occurs, since the cloud infrastructure is not dependent on a public network connection.

Software as a Service (SaaS) is a cloud model in which software applications are hosted by a third-party provider and made available to customers over the internet. SaaS is not designed to maintain access in the event of a local internet outage.

A community cloud is a shared infrastructure that is used by multiple organizations, typically from the same industry or with similar requirements. Community clouds are not designed to maintain access in the event of a local internet outage.

A public cloud is a cloud infrastructure that is maintained by a third-party provider and is made available to the public over the internet. Public clouds are not designed to maintain access in the event of a local internet outage.

It is designed to protect an organization's network infrastructure and data from unauthorized access, while allowing legitimate traffic to pass through. Firewalls can be configured to enforce security policies that block certain types of traffic, limit access to specific network resources, and prevent attacks such as malware and phishing.

A firewall is a network security system that monitors and controls incoming and outgoing network traffic based on predetermined security rules. It establishes a barrier between a trusted internal network and an untrusted external network, such as the Internet. Firewalls are used to implement network security policies for an environment by controlling access to the network and protecting it from unauthorized access.

A firewall is used to implement network security policies. It monitors incoming and outgoing traffic based on predetermined security rules and can block traffic that does not meet the defined criteria. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Chapter 6, page 243)

The pink hue is most likely caused by physical cabling issues

the output on a monitor is clear but has a pink hue, it could be due to an issue with the physical cabling connecting the monitor to the computer. The video signal may be degraded or distorted due to a damaged or loose cable. The technician should check and replace the cable if necessary to resolve the issue.

https://spryzensecurity.medium.com/what-is-troubleshooting-methodology-40cec6b6494

The technician should ask the user additional clarifying questions regarding the issue. This will help to identify any other potential causes of the issue, such as software configuration or compatibility issues, before attempting any further troubleshooting steps.

NFC (Near Field Communication) is the technology used for contactless payment features on mobile payment devices. If a mobile payment device is having issues with its contactless payment feature and is not detecting payment options, it is most likely due to an issue with the NFC functionality of the device.

The contactless payment feature on a mobile payment device uses NFC (Near Field Communication) to detect payment options. If the device is not detecting payment options, the issue may be related to a problem with the NFC feature. References: https://www.techopedia.com/definition/31790/near-field-communication-nfc

A Storage Area Network (SAN) is a dedicated, high-speed network that connects servers to data storage devices. SANs are used in server rooms to provide high-speed storage access to virtual servers.

VDI is a technology that allows a company to provide desktop environments to third-party developers while still maintaining control over the corporate network. VDI creates virtual desktops on a remote server, and each user gets their own desktop environment that is isolated from the other users. This allows the company to maintain control over the corporate network, as the virtual desktops are not directly connected to the corporate network.

Adjusting the lens is the best solution to improve image quality in a projector. The lens can become misaligned over time or during transportation, causing the image to appear fuzzy.

If a technician is tasked with upgrading a laptop’s RAM, the technician should verify the memory requirements of the motherboard first. The motherboard of the laptop will have specific requirements for the type and amount of RAM that can be installed. By verifying the memory requirements of the motherboard, the technician can ensure that the new RAM is compatible with the laptop.

Before upgrading a laptop's RAM, a technician should verify the memory requirements of the motherboard to ensure the new RAM is compatible. The type, speed, and maximum capacity of the RAM should be checked to ensure it meets the requirements of the motherboard. References: CompTIA A+ Certification Exam Guide, pg. 347-348

Asking the user about the symptoms the computer is experiencing is the first step the technician should take when a user reports that a computer has a virus on it. This step helps the technician to gather information and identify the problem before determining a plan of action to resolve it. Running antivirus software, making a backup of the user’s data, or determining a plan of action are not the first steps, but possible actions that can be taken after identifying the problem.

The Domain Name System (DNS) is responsible for translating domain names into IP addresses. By blocking malicious sites from resolving correctly, the DNS server is able to prevent the user from accessing those sites. Therefore, the DNS server setting on the user’s router needs to be changed to enable this functionality123.

Using the device as a Wi-Fi hotspot, a failing battery, and too many open applications are the most likely causes of the cell phone getting hot. These actions require the phone to use more power and processing, causing it to heat up.

A client-side hypervisor is a virtual machine monitor (VMM) that resides in and virtualizes a user’s computer, allowing it to run multiple operating systems (or virtual machines) on shared hardware12. A client-side hypervisor can be useful for a software developer who needs to test an application in many environments, such as different versions of Windows, Linux, or Mac OS. By using a client-side hypervisor, the developer can switch between different virtual machines without rebooting the computer or using multiple physical devices3.

To enable devices to connect to the internet after installing a new router at a small office, the technician should configure DHCP (Dynamic Host Configuration Protocol) on the router. DHCP is a network protocol that automatically assigns IP addresses and other network configuration parameters to devices on a network. By configuring DHCP on the router, the technician can ensure that all devices on the network are assigned a valid IP address that allows them to connect to the internet.

If all devices have a 169.254.x.x IP address, this suggests that the router is not assigning IP addresses to the devices using DHCP (Dynamic Host Configuration Protocol). Configuring the DHCP settings on the router can enable the devices to receive IP addresses automatically and access the internet. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 14

If a technician is implementing a SOHO wireless solution with three access points and wants to avoid high latency, the technician should configure all devices with different channels. By configuring all devices with different channels, the technician can ensure that the wireless signals from each access point do not interfere with each other, which can cause high latency.

If the printed text is not adhering properly to the paper on a laser printer that has had repairs previously for scanning issues, the fuser should be replaced to resolve this issue. The fuser is a component of the printer that uses heat and pressure to fuse the toner onto the paper. If the fuser is not functioning properly, the toner may not adhere properly to the paper.

A private cloud deployment model provides the company with complete control over how the data is managed. This is because a private cloud is managed solely by the organization and resides on-premises or in a data center. Therefore, a private cloud deployment model is the best option for this scenario.

BSoDs can be caused by poorly written device drivers or malfunctioning hardware, such as faulty memory, power supply issues, overheating of components, or hardware running beyond its specification limits. In the Windows 9x era, incompatible DLLs or bugs in the operating system kernel could also cause BSoDs.

If a technician made several upgrades to a computer and then determined the power supplied by the PSU is insufficient, the upgraded graphics card and adding more RAM would most likely cause the insufficiency. Upgrading the graphics card and adding more RAM can increase the power consumption of a computer, which can cause the power supplied by the PSU to be insufficient.

Adding more RAM and upgrading the graphics card are the most likely causes of the insufficiency of power supplied by the PSU. These upgrades require more power to operate efficiently and can cause the PSU to become insufficient.

A redundant power supply is a device that provides two or more power supplies connected in parallel so that when one fails, the other one will take over to ensure continuous power. This is ideal for critical warehouse machines that require a reliable power source and are at risk of downtime in the event of a power failure. Installing a redundant power supply will help to reduce the chances of an unexpected power outage and keep the machine running.

A Wi-Fi analyzer is a tool that can be used to scan the local area for available wireless networks and can provide information such as signal strength, interference, and available channels. It can also be used to locate the best channel to use for a given access point, which can help to reduce latency and improve performance.

Enabling the audio device is the correct action to correct an audio issue where a laptop does not have any audio output from the built-in speakers and Windows Device Manager shows a down arrow for the audio device. A down arrow indicates that the audio device is disabled and needs to be enabled by right-clicking on it and selecting Enable device. Replacing the speakers, increasing the volume, or updating the driver are unlikely to solve the issue if the audio device is disabled.

The technician will need to connect the DVI port on the computer to the new display's HDMI port. To do this, a DVI to HDMI cable will be needed. This type of cable will allow the computer's DVI video signal to be transmitted to the new display's HDMI port.

A digital-to-analog converter (DAC) is used to convert a digital signal to an analog signal. An A/V switcher is used to switch between multiple audio and video sources and display them on a single monitor or display. A DisplayPort to HDMI adapter is used to convert a DisplayPort signal to an HDMI signal, but it is not necessary in this scenario as the computer has a DVI port and not a DisplayPort.

NVMe (Non-Volatile Memory Express) drives are high-speed solid-state drives that utilize the PCIe (Peripheral Component Interconnect Express) interface to connect to the motherboard. Before purchasing an NVMe drive, the user should confirm that the PC has an available M.2 slot for the drive and that the PC has a PCIe interface for the M.2 slot.

SATA (Serial ATA) is an older interface for hard drives and is not compatible with NVMe drives. SAS (Serial Attached SCSI) is a newer interface for hard drives and is typically used for enterprise-level storage systems. SCSI (Small Computer System Interface) is a parallel interface for hard drives that is primarily used in high-end workstations and servers. DRAM (Dynamic Random Access Memory) is a type of memory commonly used in computers, but it is not relevant to the storage of data on a hard drive.

A USB to 9-pin serial adapter can be used to connect the new computer to the point-of-sale system using a USB port. USB is a common and versatile port type found on most computers.

If a technician is replacing a computer with a connected point-of-sale system using a 9-pin serial adapter and the new computer does not have a 9-pin serial port, an adapter can be installed on the USB port in order to connect to the point-of-sale system. A USB-to-serial adapter can be used to connect a serial device to a USB port on a computer.

The two sets of colors on the motherboard indicate that it supports dual-channel memory, which doubles the bandwidth available to the memory controller. Dual-channel memory requires two identical memory modules to be installed in pairs in the correct slots to work effectively. In this case, the user can install two identical RAM modules to enable dual-channel memory, which will provide better performance when using multimedia applications that consume a lot of memory.

The technician should verify the header panel connector is properly connected. A beep code is a diagnostic tool used by motherboards to indicate issues with hardware components. This beep code may be indicating an issue with the connection between the motherboard and the case's header panel connector. This connector is responsible for providing power to the system and any connected peripherals. Therefore, the technician should verify the connection is secure and properly connected before attempting any other troubleshooting steps.

Thunderbolt 3 is a USB-C port, so any device with a USB-C connector can be plugged into it. MiniUSB, microUSB and USB-A are not compatible with Thunderbolt 3.

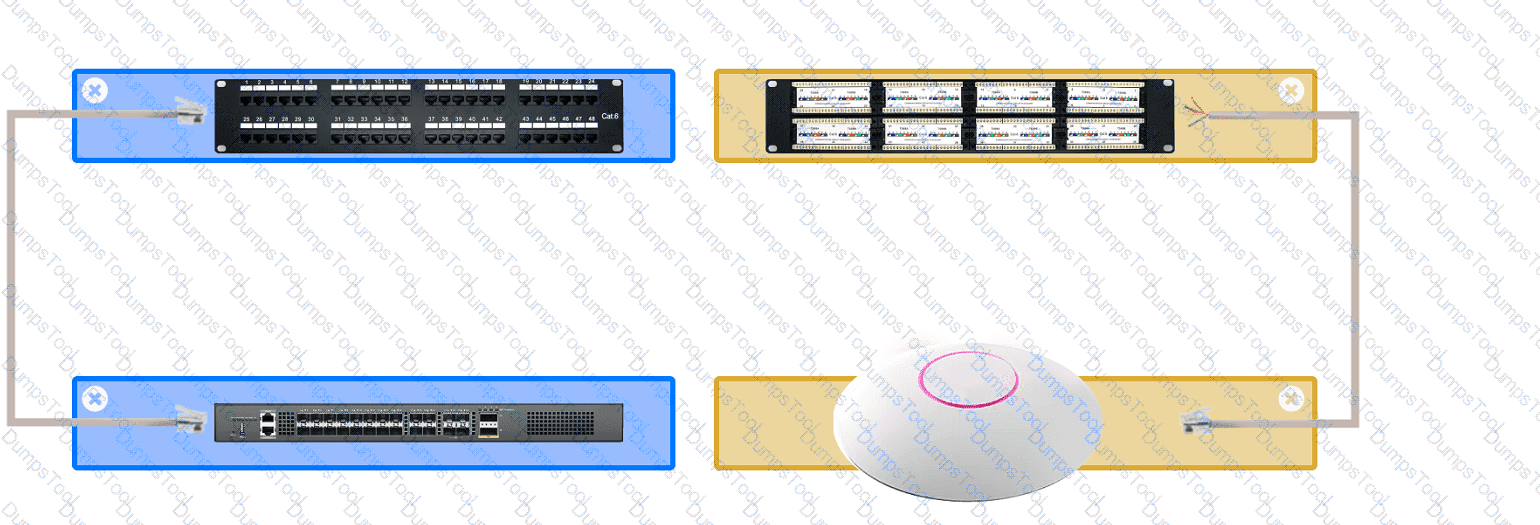

A patch panel is a mounted hardware unit containing ports used to manage cable connections. The individual pairs of a Cat 6 cable are terminated on the patch panel, which then provides a central location for cable management and organization. The patch panel is then connected to the switch using a patch cable.

Upgrading all workstations and providing a virtual environment for the legacy software is the best option, as it allows the engineering department to continue using the vital software while also upgrading to the latest version of Windows. This also ensures that the rest of the organization can take advantage of the latest software and security features.

Dynamic Host Configuration Protocol (DHCP) allows a networked device to always be assigned the same IP address based on the device's MAC address. DHCP can also assign other network configuration settings to devices automatically.

The most appropriate way for the technician to receive the latest official drivers for a USB Wi-Fi card is to download them from the vendor’s website. This ensures that the drivers are compatible, updated, and secure. Allowing the OS to install the drivers automatically may not provide the latest or best drivers for the device. Utilizing a third-party, non-OEM driver could cause compatibility or security issues. Running the autoinstall CD could install outdated or unnecessary software along with the drivers

To resolve the issue of new memory modules not being recognized, the systems administrator should configure appropriate settings within the BIOS. This can include enabling memory mapping or setting memory speed and timings. References: CompTIA A+ Certification Exam Objectives, 220-1001 Section 1.8

Configure appropriate settings within the BIOS. If new memory modules were installed in several Windows desktops but some users are still reporting performance issues and the desktop has not recognized the new memory modules, the systems administrator should configure appropriate settings within the BIOS to help resolve this issue.

Cross-platform virtualization allows different operating systems, such as Linux and Windows, to run on the same hardware or software platform. This enables users to access applications and data from different operating systems without switching devices or rebooting.

802.11ax, also known as Wi-Fi 6, has the longest range and the highest wireless throughput of all the wireless technologies listed. References: CompTIA A+ Certification Exam Guide, 220-1001, Chapter 3

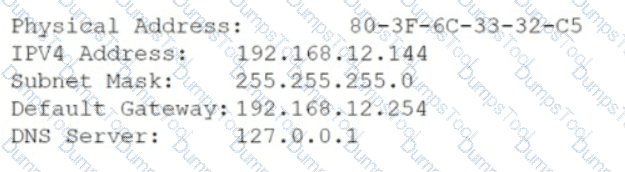

The cause of the issue is likely due to a DNS resolution issue. While the technician can ping the servers by IP address, they cannot ping the UNC path, indicating an issue with the name resolution. This can be resolved by configuring the correct DNS server settings.

The most secure way to implement fingerprint readers would be to restrict device access to only the user to whom the laptop is assigned. This ensures that only authorized personnel have access to the device, reducing the risk of unauthorized access and data breaches.

Near field communication (NFC) is a function that enables contactless payments with a phone by allowing it to communicate with compatible devices within close proximity. If NFC is not working properly, the user will not be able to perform contactless payments with the phone. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB. Bluetooth is a wireless technology that allows devices to connect and exchange data over short distances. USB is a standard interface that connects devices such as keyboards, mice, flash drives, etc

The best choice for the user's laptop is a 1TB NVMe SSD. NVMe (Non-Volatile Memory Express) is a high-performance storage protocol designed specifically for solid-state drives (SSDs). It is significantly faster than SATA SSDs and SAS hard drives, making it ideal for users who need fast storage for their laptop. NVMe SSDs also have lower latency and higher bandwidth than traditional hard drives, making them well-suited for data-intensive tasks such as video editing, gaming, and running multiple applications simultaneously. Additionally, NVMe offers more reliable data reliability than traditional hard drives, and is less susceptible to performance degradation over time.

According to the Official CompTIA A+ Core 1 Study Guide (220-1101) 1, the correct answer is A. Document the findings, actions, and solution in the company knowledge base.

The explanation is that after resolving an issue, a technician should always document what was done and how it was fixed. This helps to create a record of the problem and its solution for future reference and also to share knowledge with other technicians.

https://www.comptia.org/training/books/a-core-1-220-1101-study-guide

By documenting the findings, actions, and solution in the company knowledge base, it will help to ensure that if the Issue happens again, the technician or a different technician will be able to quickly and easily find the solution and resolve the Issue. Additionally, it is important to document the solution so that the same Issue does not need to be troubleshot multiple times in the future.

A public cloud is a cloud computing model that provides services and resources to anyone over the internet. The service that the user uploads a file to is an example of a public cloud service, as it is accessible via a web browser and a client application, allows multiple users to access the file, and is provided by a third party for a monthly fee. A hybrid cloud is a combination of public and private cloud services that share data and resources. Infrastructure as a service is a cloud computing model that provides servers, storage, networking, and software over the internet. Private cloud is a cloud computing model that provides services and resources to a specific organization or group over a private network

A USB-C cable is the best option for installing an RS-232 serial signature pad to an ultralightweight laptop. USB-C is a universal connector that supports various protocols and devices, including serial devices. A port replicator is a device that expands the connectivity options of a laptop by providing additional ports. Wi-Fi Direct is a wireless technology that allows devices to connect directly without a router or access point. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB.

By documenting the findings, action, and outcomes of issues, the technicians can create a knowledge base that can be used to resolve similar issues in the future more quickly and efficiently. The documentation can also help identify patterns or trends that can lead to preventive measures or root cause analysis. Documenting the issues can also improve communication and collaboration among technicians and users, as well as provide evidence of service quality and performance. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 4)

IaaS is a cloud computing model where a third-party provider hosts infrastructure components such as servers, storage, and networking on behalf of customers. This allows the startup to immediately expand its data center without the need for additional personnel or space to manage everything internally. Additionally, IaaS allows remote users to easily access the required computational and storage resources from multiple small offices.

Infrastructure as a Service (laaS) can provide the startup with the necessary computational and storage solutions without the need for internal management. laaS allows organizations to rent computing resources from a third-party provider instead of owning and maintaining them in-house.

A storage area network (SAN) is the type of network that the technician will be working with when adding more space to resolve the issue of all VMs being down due to the network being out of space. A SAN is a network that provides access to consolidated and block-level data storage, which can be used for virtualization and backup purposes. SCSI is a type of interface that connects devices such as hard drives and optical drives to a computer. NAC is a type of security solution that controls access to a network based on policies and device compliance. WISP is a type of internet service provider that delivers wireless broadband access over long distances.

Telnet is an unsecure remote access protocol that allows a user to connect to a remote device and execute commands on it12. Telnet does not encrypt the data that is transmitted between the user and the device, which means that anyone who intercepts the network traffic can read the information, including usernames and passwords12. Telnet also does not authenticate the user or the device, which means that anyone can impersonate either party and gain unauthorized access1.

Automatic document feeder (ADF) is a feature that allows a multifunction printer to photocopy documents with hundreds of pages automatically without requiring manual intervention. ADF scans multiple pages from a stack of documents and feeds them into the printer one by one. SMB is a network protocol that allows file sharing and printer access among different devices on a network. PCL is a printer language that controls how data is formatted for printing. SSH is a network protocol that allows secure remote access to another device over an encrypted connection.

A docking station is a hardware accessory that allows laptops to connect to multiple peripherals and devices with a single connection. A docking station with DisplayPort would provide the necessary connectivity for the dual monitors, and it can also support the required peripherals such as the keyboard, mouse, and speakers. In addition, it will provide a wired network connectivity for faster and more reliable network access.

The Trusted Platform Module (TPM) is a hardware component that provides cryptographic functions and secure storage for encryption keys, passwords, and certificates. BitLocker requires a TPM to be enabled and activated in the BIOS or UEFI settings of the laptop in order to use SSD-level encryption. The technician should check that the TPM is enabled and activated before trying to turn on BitLocker. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-series-combined-content-guide (page 34)

A sandbox is a virtualization solution that allows a legacy application to run in an isolated environment without affecting other applications or systems. A sandbox can emulate an older operating system or hardware configuration that is compatible with the legacy software. A hybrid cloud is a combination of public and private cloud services that share data and resources. Infrastructure as a service is a cloud computing model that provides servers, storage, networking, and software over the internet. Public cloud is a cloud computing model that provides services and resources to anyone over the internet. Private cloud is a cloud computing model that provides services and resources to a specific organization or group over a private network.

The BEST solution to mitigate spam that appears to come from an organization's own domain is to implement SPF (Sender Policy Framework). SPF is an email validation protocol designed to detect and prevent email spoofing, which is a common tactic used by spammers. By publishing SPF records in the organization's DNS (Domain Name System), the recipient's mail server can check if an incoming email originated from a valid source. If the email fails SPF authentication, it can be blocked or flagged as spam. Therefore, SPF helps to prevent email spoofing and mitigate the risk of spam coming from an organization's own domain

Metered utilization is a cloud feature that allows cloud providers to charge customers based on their actual consumption of resources, such as CPU time, storage space, bandwidth, or transactions.This enables customers to pay only for the resources they use, rather than a fixed or flat rate, which can reduce costs and increase efficiency. Metered utilization can also provide more transparency and accountability for both cloud providers and customers, as they can track and monitor their resource usage and billing. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 97)

A toner probe is a tool that can be used to trace and identify cables in a wiring closet. The technician can use a toner probe to find the cable that connects the new computer to the internet. A cable tester is a tool that can be used to check the continuity and quality of a cable. A loopback plug is a tool that can be used to test network ports or cables by sending and receiving signals from the same device. A punchdown tool is a tool that can be used to terminate wires into a patch panel or jack.

A faulty battery could cause a tablet to restart on its own and have intermittent issues with charging. Water damage could also cause these symptoms, but it is not the most likely cause unless there is evidence of liquid exposure. Incorrect OS version could cause compatibility or performance issues, but not charging problems. Damaged charging port could prevent the tablet from charging, but not cause it to restart randomly.

One of the possible causes of random and incorrect characters appearing on print jobs sent to a laser printer is an outdated or corrupted driver. The driver is a software component that communicates between the operating system and the printer, and converts data into a format that the printer can understand. If the driver is outdated or corrupted, it may send incorrect or garbled data to the printer, resulting in poor print quality or errors. The technician should update the driver to the latest version from the manufacturer’s website, or uninstall and reinstall it if necessary. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 47)

A loopback plug is a device that can be used to test the functionality of a network interface card (NIC) by sending and receiving data packets from itself. The loopback plug connects to the NIC’s port and simulates a network connection without requiring another device or cable. The technician can use a loopback plug to verify that the NIC is able to transmit and receive data without errors or interruptions.

The message prompting to press "OK" indicates that the printer is waiting for a user input. This suggests that there is some issue with the printer settings, and the most probable cause is that the default paper type has been changed, and the printer needs the user to confirm the paper type before proceeding with the print job. This is a common issue that can occur when the default paper type is not set correctly or has been changed without the user's knowledge.

The most likely cause of the problem is that the printing trays are not configured to match the paper size of the print jobs. The technician should verify that the printing trays are correctly set for 8.5in x 14in (216mm x 356mm) paper and that the printer driver settings match the tray settings. This will ensure that the printer can feed and print the paper correctly without cutting off any part of the document.

 The USB 2.0 port has insufficient bandwidth to support a high-definition webcam that can update 30 frames per second. USB 2.0 has a maximum theoretical bandwidth of 480 Mbps, which may not be enough for HD video streaming. The user should try using a USB 3.0 port or a Thunderbolt connector, which have higher bandwidths and can support HD webcams. The Thunderbolt connector is compatible with USB devices, so it is not the cause of the issue. The VGA cable and the STP cable are not related to the webcam, as they are used for video output and network connection respectively.

A technician is working on a help desk ticket for a user who wants the filament replaced in a 3-D printer. To remove the old filament and load the new one, the technician should preheat the nozzle to melting temperature. After the nozzle is heated, the technician should withdraw the filament and remove the spool. Then, cut a sharp angle on the end of the new strand, and push it along until resistance is felt.

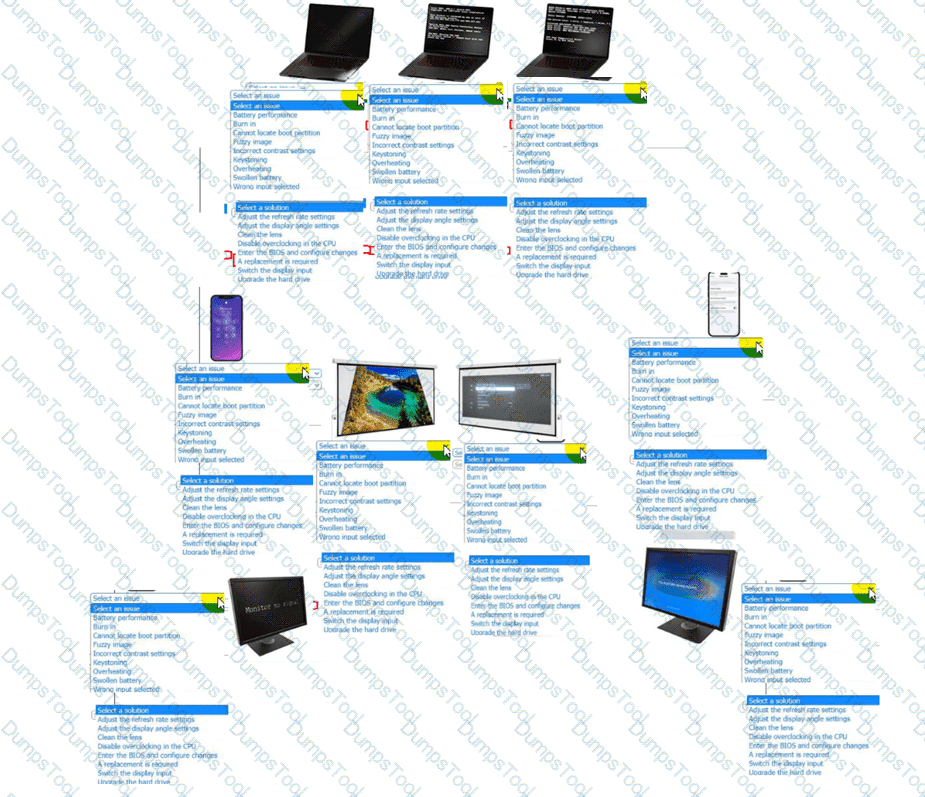

Check the exhibit diagram for both parts.

Part 2

 M2PCIeNVMeSSD. M.2 PCIe NVMe SSDs are the fastest internal storage devices available for desktops. They are faster than SATA SSDs and PCIe SATA HDDs12.

The error message "Reboot and Select Proper Boot Device" indicates that the computer cannot find the boot device that contains the operating system12. This can happen if the hard drive that stores the operating system is damaged or failed, and the BIOS cannot detect it or read from it23. A failed hard drive can also cause other symptoms such as clicking noises, corrupted files, or slow performance4.

Cleaning the air filter is the best action to resolve the issue of a projector that shuts down after fifteen minutes of use. A dirty air filter can cause overheating and trigger the projector’s thermal protection mechanism. Replacing the video input cable, changing the bulb, or swapping the power cord are unlikely to solve the overheating issue

The screen rotation is locked. If a user’s touch-screen tablet is having an issue with screen orientation, it could be due to screen rotation being locked in device settings.

If the screen rotation is locked, the touch-screen tablet will not rotate the screen when the device is turned. This can usually be unlocked in the settings or by pressing a specific key combination. References: https://www.howtogeek.com/254132/how-to-enable-screen-rotation-on-windows-10/

A multipage misfeed is when more than one sheet of paper feeds into the printer at once, causing paper jams or misprints. A multipage misfeed can be caused by low paper supply or wrinkled paper in the tray, as reported by the user in this case. High latency is not related to paper jams, but to network delays or slow performance. Page orientation refers to whether the page is printed in portrait or landscape mode, which does not affect paper jams either. Driver mismatch could cause printing errors or compatibility issues, but not paper jams.

The shared-tenant model for a cloud deployment, also known as a multi-tenant model, allows multiple customers to use the same resources and infrastructure of the cloud service provider, with each customer's data and applications isolated from one another. This model is often chosen for cost savings, as resources are shared and users only pay for what they use. Therefore, the MOST likely reason that an administrator chose this model is A. Cost savings.

A scratch on the scanning bed of a copier can cause a solid black line to appear on all copies, as the scanner cannot read the original document properly through the scratch. The scratch can also reflect light and create noise in the scanned image. The printing function is unaffected by the scratch, as it does not use the scanning bed. The technician should inspect and clean the scanning bed, and replace it if necessary. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 16)

The best action for the salesperson to take in order to view weather forecasts while traveling and minimize the battery drain on their mobile device is to configure fewer location checks using cellular location services. This can be done by adjusting the settings for the weather application to limit how often it checks for updates and uses location services. This will help to conserve the battery on the device and keep the application from consuming too much power.

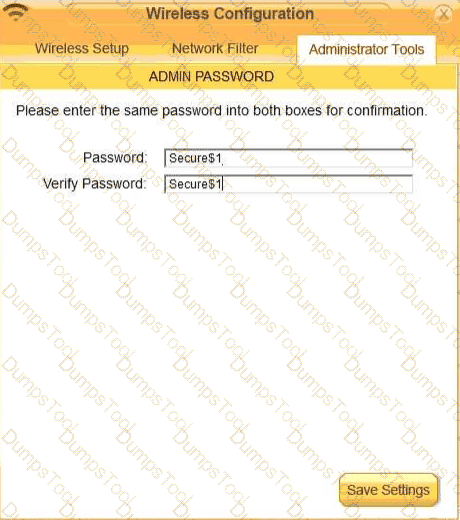

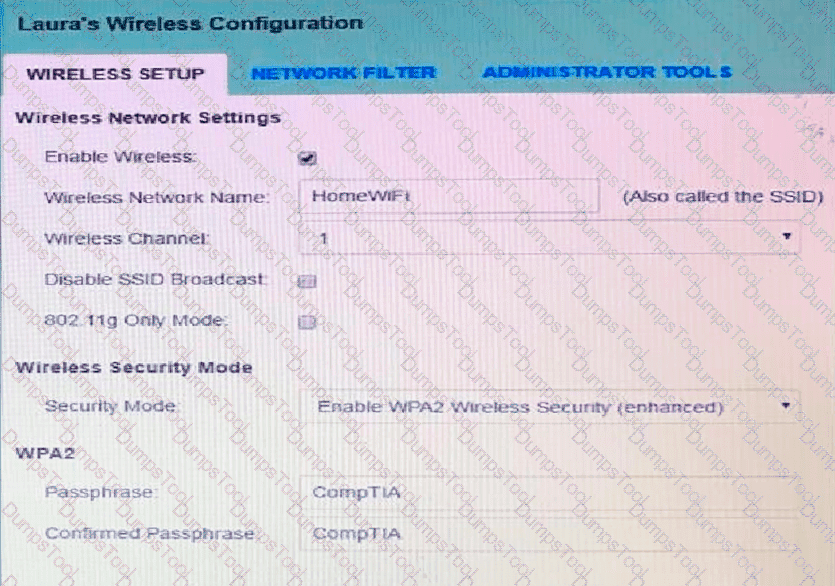

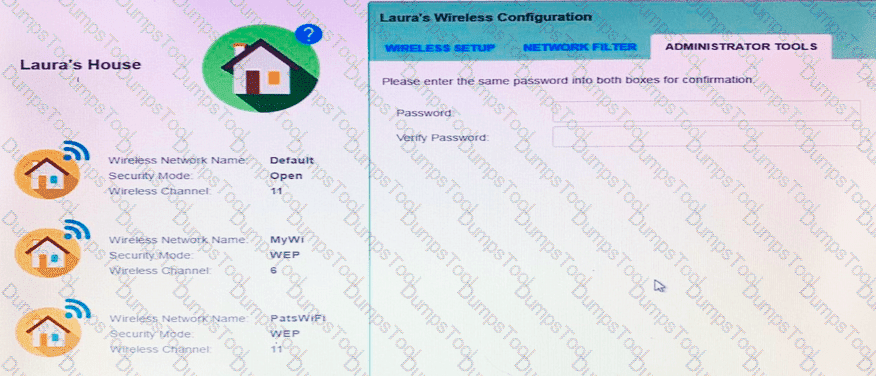

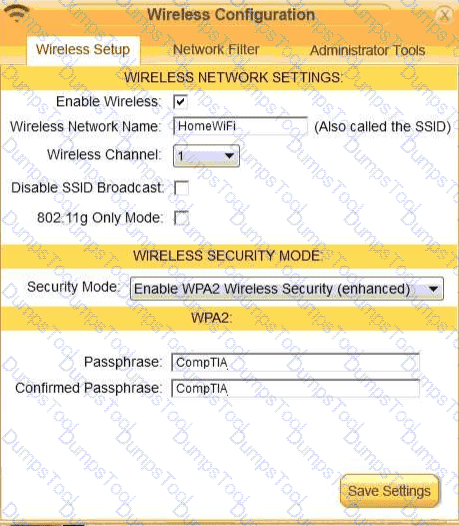

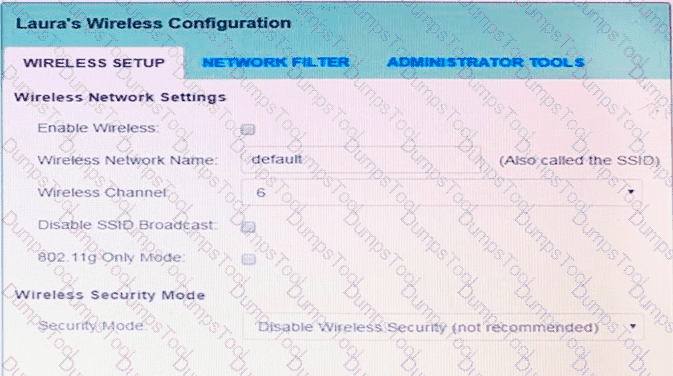

Checking if the password and SSID are correct is the best step that the technician should take to resolve the issue of a user being unable to access the SOHO wireless network after replacing the gateway. The new gateway may have a different password and SSID than the old one, which would prevent the user from connecting to the wireless network. The technician should verify that the user has entered the correct password and SSID for the new gateway. Assessing the network cables for damage, disabling Bluetooth connections, or updating the firmware are not likely to solve the issue, as they are not related to the wireless network authentication

The frequency bands that 802.11b and 802.11g operate in are 2.4GHz bands, which allow for longer range but lower speed than higher frequency bands such as 5GHz or 6GHz bands used by newer standards such as 802.11a/n/ac/ax.

The power supply unit (PSU) is the component that converts AC power from the outlet to DC power for the computer. If the PSU fails, the computer will not turn on. The CPU, RAM, and GPU are not directly related to the power supply and would not prevent the computer from turning on.

Host-only mode is a network option that isolates a client-side virtual machine from the rest of the network. It allows the virtual machine to communicate only with the host machine and other virtual machines on the same host. NAT mode allows the virtual machine to share the host’s IP address and access the network through it. Bridge mode allows the virtual machine to have its own IP address and connect directly to the network. Direct mode is not a valid network option for virtual machines.

Shared resources is the concept that allows several websites from different companies to be housed on the same virtual server. A virtual server is a software-based server that runs on a physical server and can host multiple virtual machines (VMs). Each VM can run a different operating system and application, such as a website, and have its own allocated resources, such as CPU, memory, disk space, and network bandwidth. However, the VMs share the underlying hardware resources of the physical server, which reduces the cost and complexity of maintaining separate servers for each website. This also enables rapid scalability, as new VMs can be created or deleted as needed.

One of the methods to host multiple websites on the same virtual server is to use virtual hosts. Virtual hosts are a feature of web servers, such as Apache, that allow the web server to serve different websites based on the domain name or IP address requested by the client. For example, a web server can host two websites, a.example.com and b.example.com, on the same virtual server and the same port (such as 80 or 443), by using virtual hosts to map each domain name to a different document root directory. The web server will then deliver the content of the corresponding website to the client based on the domain name in the HTTP request header.

Quad-channel memory architecture allows the CPU to access four memory modules simultaneously, increasing the memory bandwidth and performance. DDR4 RAM is a type of memory that has higher speed and lower power consumption than DDR3. SODIMM is a smaller form factor of memory that is typically used in laptops, not desktops. ECC RAM is a type of memory that can detect and correct errors, but it is more expensive and slower than non-ECC RAM. Triple-channel memory architecture is less common and less efficient than quad-channel. References: https://www.comptia.org/certifications/a#examdetails https://www.comptia.org/blog/what-is-ddr4-ram https://www.comptia.org/blog/what-is-quad-channel-memory

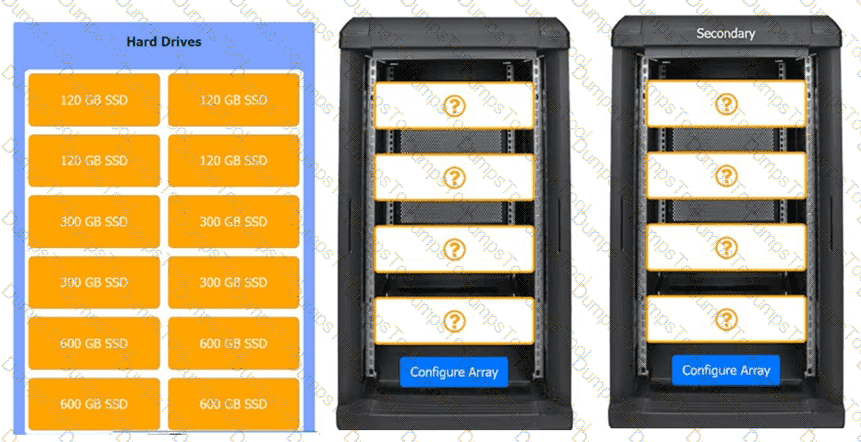

Primary Array:

Drag and drop two 120 GB SSD hard drives to the primary array bay.

Open the primary array and select RAID 1 as the RAID level. RAID 1 provides fault tolerance of one drive, ability to function with only one drive, easily recoverable data, high redundancy, and very fast on reads. It also does not need to be scalable and uses the minimum number of drives (two) for RAID 1.

Confirm the configuration and close the primary array.

Secondary Array:

Drag and drop two 300 GB SSD hard drives to the secondary array bay.

Open the secondary array and select RAID 0 as the RAID level. RAID 0 provides the best write performance and uses the minimum number of drives (two) for RAID 0. It also provides a total space of 600 GB (300 GB x 2), which meets the requirement.

Confirm the configuration and close the secondary array.

You have completed the configuration of the storage arrays.

This is because the fuser is the part of the printer that heats and melts the toner onto the paper. If the fuser is defective or dirty, it can cause streaks or smudges on printed pages. The system board and the memory are not related to the quality of the print output. The paper tray may cause paper jams or misfeeds, but not streaks on the paper.

The technician should check that the audio inputs are configured correctly for the videoconference software and that they are not muted or disabled.The technician should also make sure that the microphone is plugged in properly and that it is not faulty or damaged.If possible, the technician should test the microphone on another device or use another microphone on the same device to isolate the problem. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 11)

Updating the preferred roaming list (PRL) is what a user should do to resolve the issue of being unable to get personal cell phone service after traveling to another country. The PRL is a database that contains information about cell towers and frequencies that a phone can use in different areas. Updating the PRL can improve the phone’s ability to connect to local networks and avoid roaming charges. CDMA is a type of cellular technology that uses code division multiple access to transmit data over radio frequencies. MDM is an acronym for mobile device management, which is a type of software solution that allows remote management and security of mobile devices. GPS is an acronym for global positioning system, which is a satellite-based navigation system that provides location and time information

A managed switch provides advanced features such as traffic monitoring and VLAN configuration, allowing a technician to view network statistics for devices on the local subnet.

Why Not B (Router): A router connects different networks and directs traffic between them but does not provide detailed subnet-level statistics.

Why Not C (Access point): Access points provide wireless connectivity but lack traffic monitoring features.

Why Not D (Firewall): A firewall filters traffic but is not used for monitoring detailed statistics on a local subnet.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.6, network monitoring tools​.

The Syslog server collects logs and system messages from devices on a network. It’s a standard protocol used to store log messages from network hardware like routers, switches, and servers for diagnostics and auditing.

Option A (DNS): Translates domain names into IP addresses, not used for logging.

Option B (Mail): Manages email communication.

Option C (Print): Manages print jobs and printer sharing.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.4: Compare and contrast common networking hardware.

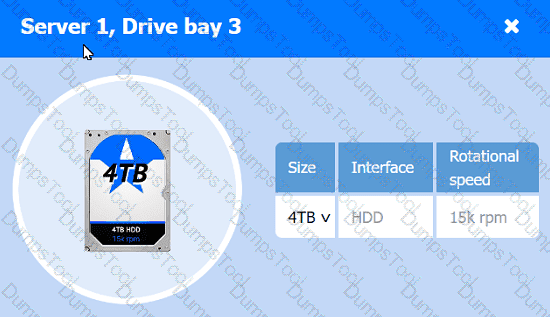

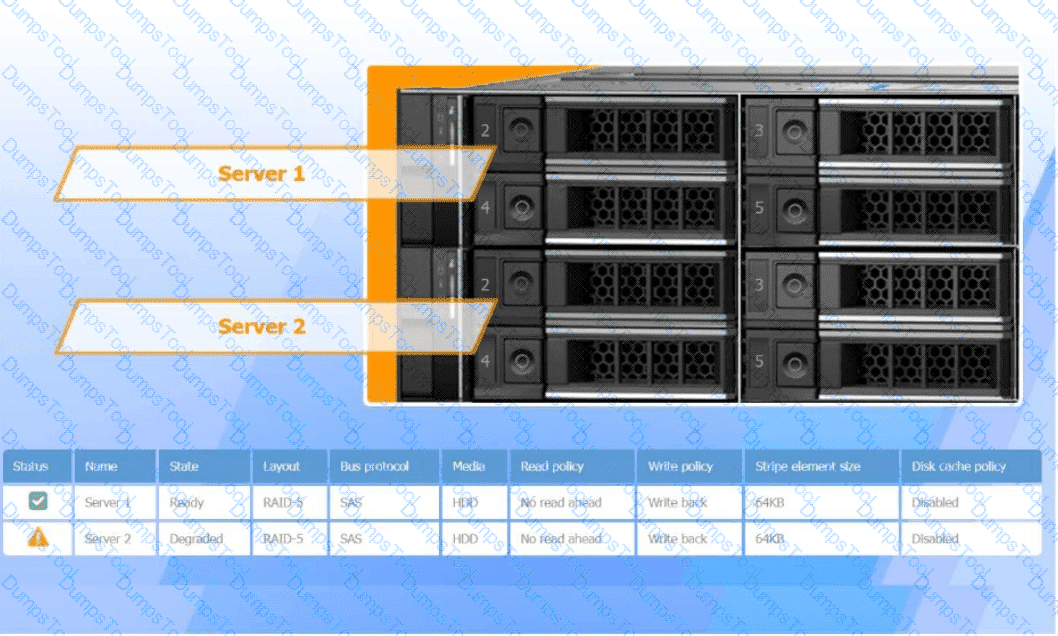

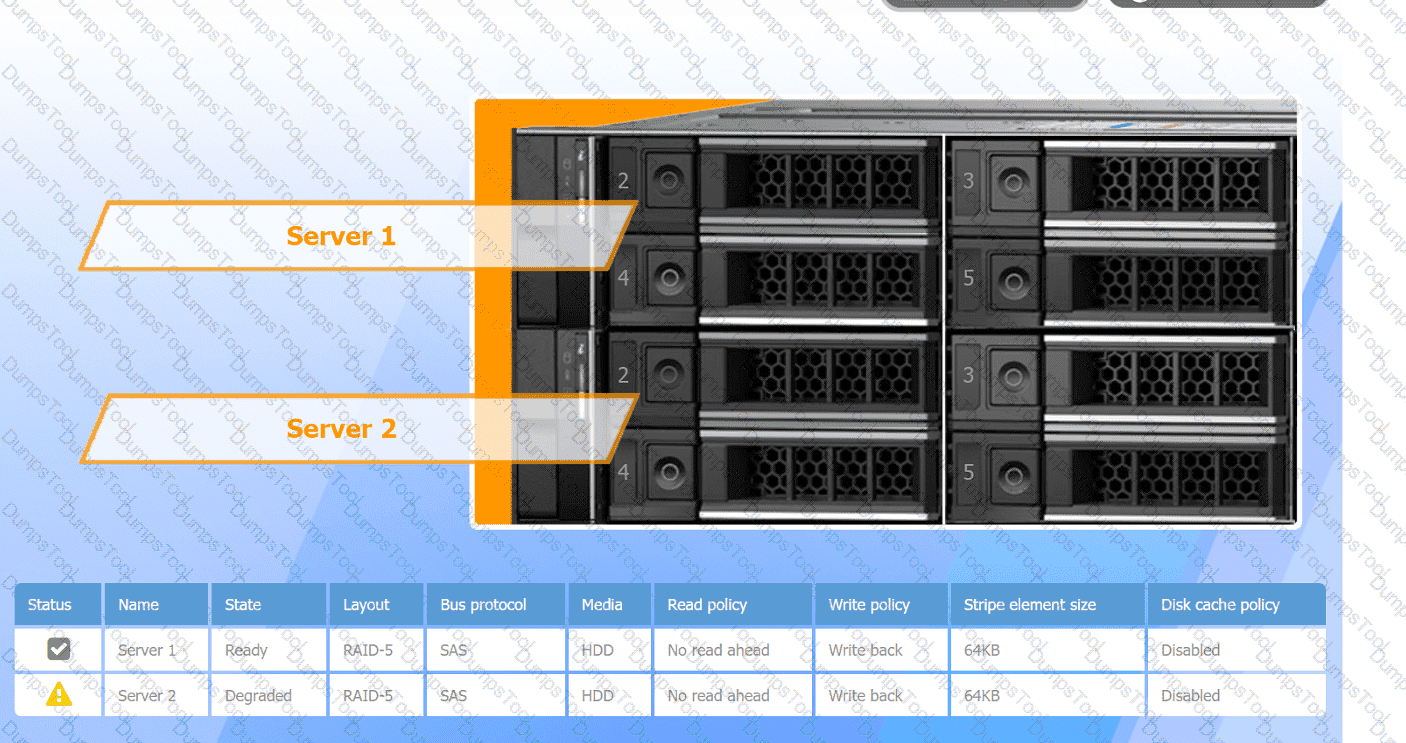

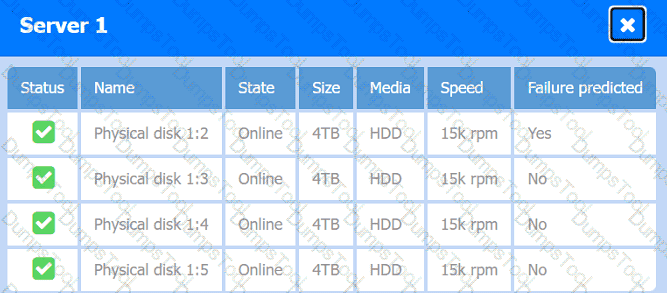

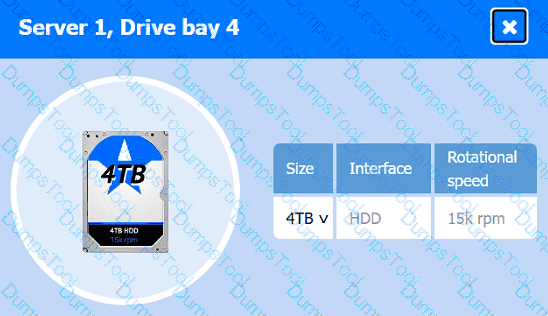

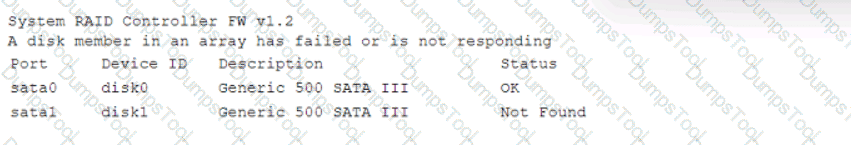

Since the RAID card does not support hot swapping, the technician needs to shut down the server and check the RAID controller’s status to verify RAID health. S.M.A.R.T. is a feature of hard drives, not RAID cards. Replacing the failed drive while users are connected could cause data loss or corruption. Physically cleaning the HDDs and connectors is unlikely to solve the slow boot time and performance issues.

A hypervisor is a software layer that manages and allocates resources for virtual machines (VMs) on a physical host machine. A technician can use a hypervisor to adjust the resource allocation for a virtual workstation, such as increasing the amount of RAM assigned to it from the available pool of memory on the host machine. This can improve the performance and functionality of the virtual workstation without requiring any hardware changes or modifications. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 59)

RAID stands for Redundant Array of Independent Disks, which is a technology that combines multiple disks into a logical unit to improve performance, reliability, or both. There are different types of RAID levels that use different methods of data distribution and redundancy.

RAID 0 is a level that stripes data across multiple disks without any redundancy. It offers the highest performance but no fault tolerance. If any disk fails, the entire array is lost.

RAID 1 is a level that mirrors data across two disks. It offers the lowest performance but the highest fault tolerance. It can survive the failure of one disk.

RAID 5 is a level that stripes data across multiple disks with parity information. It offers a balance between performance and fault tolerance. It can survive the failure of one disk, but not two or more disks.

RAID 10 is a level that combines RAID 1 and RAID 0. It creates a striped array of mirrored pairs. It offers high performance and high fault tolerance. It can survive the failure of one disk in each pair, or multiple disks in different pairs.

Therefore, if the server administrator wants to rebuild the array to withstand a potential multidrive failure in the future, RAID 10 is the most likely choice.

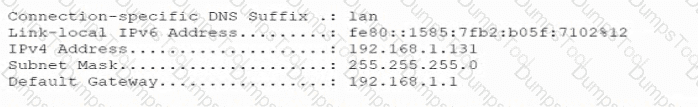

The technician is unable to access the company portal website, but other websites work fine. This suggests an issue with resolving the specific URL of the company portal, which is a function of DNS.

Here's why other options are not the most likely cause:

DHCP reservations: This is not relevant as the issue persists even when the technician tries a different workstation, indicating a problem beyond individual device configuration.

Static IP addresses: Similar to DHCP reservations, static IPs are not likely the cause as both affected workstations are experiencing the issue.

Default gateway: While the default gateway is necessary for internet access, other websites are working, making it less likely to be the root cause.

The message to clean the air filters, despite them being clean, is likely due to the projector's preconfigured settings related to the hours of use. Many projectors have maintenance reminders that trigger based on usage hours to prompt regular cleaning and maintenance. This reminder may need to be reset after checking or cleaning the filters. Adjusting the maintenance reminder or resetting the hours of use counter in the projector's settings can resolve the issue. This approach is consistent with the troubleshooting principles outlined in the CompTIA A+ Core 1 (220-1101) Exam Objectives under section 5.4 "Given a scenario troubleshoot video, projector, and display issues", where it's advised to consider all potential causes, including preconfigured settings, when diagnosing display-related problems .

Radio-frequency identification (RFID) is the most appropriate protocol to use for inventory tracking in a small warehouse. RFID is a technology that uses radio waves to identify and track objects that have RFID tags attached to them. RFID tags are small devices that store information about the object, such as its name, serial number, location, or status. RFID tags can be passive, which means they do not have a battery and rely on the radio signal from the reader to power them, or active, which means they have a battery and can transmit their own signal. RFID readers are devices that can scan the RFID tags and read the information stored on them.

RFID is suitable for inventory tracking in a small warehouse because it can provide several benefits, such as:

Faster and more accurate scanning: RFID tags can be scanned without direct line of sight, unlike barcodes, and can be scanned in bulk, unlike QR codes. This means that RFID readers can scan multiple items at once, even if they are inside boxes or containers, and reduce the time and errors involved in manual scanning.

Real-time visibility and control: RFID tags can be updated with the latest information about the inventory, such as its location, quantity, or condition. This means that RFID readers can provide real-time data and feedback on the inventory status, such as its availability, movement, or expiration. This can help improve inventory management, optimize warehouse space, and prevent stockouts or overstocking.

Enhanced security and quality: RFID tags can be encrypted and authenticated, unlike barcodes or QR codes, which can be easily copied or tampered with. This means that RFID tags can prevent unauthorized access or theft of the inventory, and ensure its authenticity and quality. This can help protect the inventory from damage, loss, or fraud, and increase customer satisfaction and trust.

Allow listing is a security technique that allows only specific IP addresses or domains to access a network or a service. By adding the office IP address as an exception, the company can prevent two-factor authentication from being triggered when users are connected to the office Wi-Fi, since the office network is considered trusted. This way, users will only be prompted for two-factor authentication when working outside of the office, which enhances security.

The screen needs to be recalibrated. The cursor drift is a common symptom of a misaligned touch screen, which can be caused by physical shocks, temperature changes, or software updates. The screen can be recalibrated using the tablet’s settings or a utility program. The screen is not physically damaged, as there is no visible crack or break. The screen rotation is not related to the cursor drift, as it only affects the orientation of the display. The touch-pen battery is not relevant, as the cursor drift occurs even without using the pen.

ECC stands for Error Correction Code, which is a type of memory that can detect and correct data errors that may occur during processing or transmission. ECC memory is commonly used in servers that handle sensitive or critical information, such as payment information online, because it can reduce the risk of data corruption, system crashes, or security breaches12.

DDR4 is a generation of DDR technology, which stands for Double Data Rate. DDR4 memory is faster and more power-efficient than its predecessors, but it does not necessarily have ECC functionality. DDR4 memory can be either ECC or non-ECC1.

VRAM is Video RAM, which is a type of memory that is dedicated to storing graphics data for display. VRAM is usually found on graphics cards or integrated graphics processors, not on servers3.

SODIMM is Small Outline DIMM, which is a type of memory module that has a smaller size and lower profile than regular DIMMs. SODIMMs are typically used in laptops, notebooks, or other compact devices, not on servers3.

RAID 0 is a disk array configuration that splits data across two or more disks without parity or mirroring. RAID 0 provides the best I/O performance because it allows parallel read and write operations on multiple disks. RAID 0 also provides the most storage capacity possible because it does not use any disk space for redundancy. However, RAID 0 does not provide any fault tolerance and increases the risk of data loss if any disk fails.

Calibration is the process of adjusting the printer settings to ensure that the printed output matches the original document. Calibration can fix issues such as misaligned images, color accuracy, and print quality. References: [Printer Calibration]

A redundant power supply is a type of power supply that consists of two or more independent units that can provide power to the same device or system. A redundant power supply can increase the reliability and availability of the device or system, because if one unit fails, the other unit can take over and continue to provide power without interruption. A redundant power supply is often used in servers that require continuous availability, such as web servers, database servers, or file servers.

A crimper is a tool that is used to attach connectors to network cables, such as RJ-45 or RJ-11. A technician might need a crimper to create a longer cable for the router access point or to replace a damaged connector.

A Wi-Fi analyzer is a software or hardware tool that can scan and measure the wireless signal strength, interference, channel usage, and security of a Wi-Fi network. A technician might need a Wi-Fi analyzer to find the optimal location and configuration for the router access point to improve the signal coverage for the SOHO client.

Relocating a router access point (AP) farther from the modem to optimize signal coverage involves two key aspects: physically extending the network connection (likely via Ethernet cabling) and ensuring the wireless signal is optimally placed. The CompTIA A+ Core 1 Study Guide emphasizes tools for cabling and wireless network configuration in such scenarios, aligning with Objective 2.6 ("Given a scenario, install and configure basic wired/wireless networks") and Objective 5.4 ("Given a scenario, troubleshoot wired and wireless network problems").

B. Crimper: A crimper is essential for creating or modifying Ethernet cables, such as attaching RJ45 connectors to twisted pair cabling (e.g., Cat 5e or Cat 6) to extend the connection from the modem to the new AP location. Since the AP is moving farther away, a longer Ethernet cable may be needed, and the technician might need to terminate a new cable or repair an existing one. This is a common task in SOHO network setups.

E. Wi-Fi analyzer: After relocating the AP, a Wi-Fi analyzer is used to assess signal strength, identify interference, and optimize placement for maximum coverage. This tool ensures the relocation achieves the goal of improving wireless performance, a critical step in the process.

Evaluation of Other Options:

A. Punchdown tool: Used to terminate wires into a patch panel or keystone jack, not typically for connecting a router AP directly to a modem via Ethernet. It’s less likely unless the relocation involves structured wiring termination, which isn’t implied here.

C. Clamp-style wire stripper: Useful for stripping insulation from wires during cable preparation, but it’s a secondary tool to a crimper, which both strips and attaches connectors. The crimper is more directly tied to completing the cable.

D. Network tap: A diagnostic tool for monitoring network traffic, not relevant to relocating or optimizing an AP’s signal coverage.

F. Loopback plug: Used to test network ports for functionality, not for cabling or wireless optimization in this scenario.

The combination of crimper (for physical connection) and Wi-Fi analyzer (for signal optimization) directly supports the relocation and coverage goals, making them the most likely tools.

Exact Extracts from the Study Guide:

From The Official CompTIA A+ Core 1 Study Guide (220-1101):

Section 2.2, Tools for Networking:

"Crimper: A crimper is used to attach connectors (such as RJ45) to the ends of twisted pair cabling. It presses the metal contacts in the connector into the wires to make a solid electrical connection. Many crimpers also include a stripper function to remove insulation from the cable."

Implication: The crimper is key for preparing Ethernet cables to extend the AP’s connection.

Section 2.6, Wireless Networking:

"Wi-Fi analyzer: A Wi-Fi analyzer is a software tool or handheld device that scans the wireless spectrum to identify signal strength, channel usage, and interference. It’s invaluable when setting up or troubleshooting wireless networks to ensure optimal access point placement and channel selection."

Implication: Essential for verifying and optimizing signal coverage after relocation.

Section 5.4, Troubleshooting Wired and Wireless Network Problems:

"Poor wireless signal—Use a Wi-Fi analyzer to check signal strength and interference… Relocate the access point to a more central location or away from obstructions… Ensure the wired connection to the access point is secure and within cable length specifications."

These excerpts confirm the crimper’s role in cabling and the Wi-Fi analyzer’s role in optimizing wireless performance, aligning with the task’s requirements.

Additional Reasoning:

Physical Relocation: Moving the AP farther from the modem likely requires extending the Ethernet cable connecting them. A crimper is the primary tool for creating a custom-length cable with RJ45 connectors, a common SOHO task.

Signal Optimization: The goal is to "optimize signal coverage," which involves more than just moving the AP—it requires verifying the new location improves Wi-Fi performance. A Wi-Fi analyzer provides data on signal strength and channel conflicts, ensuring the relocation succeeds.

SOHO Context: In a small office/home office, technicians often use basic tools like crimpers for cabling and software/apps (Wi-Fi analyzers) for wireless setup, rather than specialized tools like punchdown tools unless structured wiring is involved.

HDD fragmentation is a condition where the data on a hard disk drive (HDD) is not stored in contiguous clusters, but scattered across different physical locations on the disk. This happens when files are created, modified, or deleted over time, leaving gaps and fragments of data on the disk. HDD fragmentation can affect the performance of the PC, especially when accessing large files that require more disk operations to read or write12.

According to some web search results123, some signs and symptoms of a heavily fragmented HDD are:

•Longer load times for files and programs

•Graphics-heavy apps and games take too long to load new windows or process new environments

•Reduced disk space and efficiency

•Increased disk noise and temperature

•Accelerated disk wear and failure

To fix this issue, the user can use a tool called Disk Defragmenter, which is built-in in Windows. Disk Defragmenter rearranges the fragmented data on the HDD so that it is stored in contiguous clusters, improving the disk performance and reliability1. Disk Defragmenter can run on a schedule or manually by following these steps1:

•Open Disk Defragmenter by clicking the Start button. In the search box, type Disk Defragmenter, and then, in the list of results, click Disk Defragmenter.

•Under Current status, select the disk you want to defragment.

•To determine if the disk needs to be defragmented or not, click Analyze disk. If you’re prompted for an administrator password or confirmation, type the password or provide confirmation.

•Once Windows is finished analyzing the disk, you can check the percentage of fragmentation on the disk in the Last Run column. If the number is above 10%, you should defragment the disk.

•Click Defragment disk. If you’re prompted for an administrator password or confirmation, type the password or provide confirmation.

•Disk Defragmenter might take from several minutes to a few hours to finish, depending on the size and degree of fragmentation of your hard disk. You can still use your computer during the defragmentation process.

The answer is A. High availability and B. Elasticity.

High availability is the ability of a system to remain operational and accessible with minimal or no downtime, even in the event of failures, disasters, or disruptions. High availability can be achieved by designing a system that has redundancy, fault tolerance, and disaster recovery capabilities. For example, a cloud engineer can design a system that replicates data and resources across multiple regions, zones, or availability domains, and uses load balancing and failover mechanisms to distribute the workload and handle failures gracefully12.

Elasticity is the ability of a system to scale up or down automatically in response to changes in demand or utilization. Elasticity can be achieved by designing a system that can dynamically allocate and deallocate resources based on predefined metrics, policies, or triggers. For example, a cloud engineer can design a system that uses auto-scaling groups, horizontal or vertical scaling strategies, and on-demand or spot instances to optimize the performance and cost of the system32.

By implementing high availability and elasticity, a cloud engineer can ensure that the solution is able to immediately fail over to another region in case of an outage and also scale up in the event of high utilization. These are two important aspects of building reliable and scalable cloud architectures. Therefore, options A and B are the correct answers.

The technician should check the wattage and the form factor of the power supply to ensure it will support the upgraded workstation. These are the two most important criteria for choosing a compatible and adequate power supply.

Wattage: The wattage of a power supply is the maximum amount of power it can deliver to the components of the workstation. The wattage of the power supply should match or exceed the total power consumption of the components, especially the new graphics card, which is usually the most power-hungry part. If the power supply does not have enough wattage, it may cause instability, crashes, or damage to the workstation. To estimate the power consumption of the components, the technician can use a power supply calculator tool, such as the ones found in the web search results123. The technician should also add some headroom to the wattage, such as 20% to 50%, to account for peak power consumption, future upgrades, or power supply degradation.

Form factor: The form factor of a power supply is the physical size and shape of the unit. The form factor of the power supply should fit in the case of the workstation and match the mounting holes and screws. The most common form factor for desktop power supplies is ATX, which measures 150 x 86 x 140 mm. However, some older or smaller workstations may use different form factors, such as SFX, TFX, or FlexATX. The technician should check the specifications of the workstation case and the power supply to ensure they have the same form factor.

Other criteria, such as efficiency rating, heat dissipation, fan type, and modular cabling, are not essential for supporting the upgraded workstation, but they may affect the performance, noise, or aesthetics of the power supply. The efficiency rating is the percentage of input power that is converted to output power, and it indicates how much power is wasted as heat. The heat dissipation is the ability of the power supply to cool itself and prevent overheating. The fan type is the design and size of the fan that cools the power supply, and it affects the noise level and airflow of the unit. The modular cabling is the feature that allows the user to detach unused cables from the power supply, and it helps to reduce clutter and improve airflow inside the case.

The most likely cause of the wireless network connectivity issues is A. External interference.

External interference is any signal or noise that disrupts or degrades the quality of a wireless network. External interference can come from various sources, such as other wireless networks, cordless phones, microwaves, Bluetooth devices, or electrical appliances. External interference can affect the wireless network performance, reliability, and security, by causing issues such as signal loss, packet drops, latency, or interference.

In this scenario, a company in a large building uses a wireless network for its workstations. After a new company moves into the building on the floor below, the old company’s wireless network begins experiencing connectivity issues. This could indicate that the new company’s wireless network is using the same or overlapping frequency channel as the old company’s wireless network, and creating external interference. Wireless networks use radio frequency channels to transmit and receive data, and each channel has a certain bandwidth and range. If two or more wireless networks use the same or overlapping channel, they may interfere with each other and cause congestion or collision.

To resolve this issue, the old company’s network technician should change the wireless network channel to a different one that is less crowded or more compatible with the wireless network standard. The technician should also check the wireless network settings and features, such as SSID (Service Set Identifier), encryption, authentication, or power level, and adjust them if necessary. The technician should also scan the wireless environment and identify the sources and levels of external interference, and try to avoid or minimize them if possible.

For more information about external interference and how to prevent or reduce it, you can refer to the following web search results: [What Is Wireless Interference?], [How to Find the Best WiFi Channel for Your Router], [How to Reduce Wireless Interference].

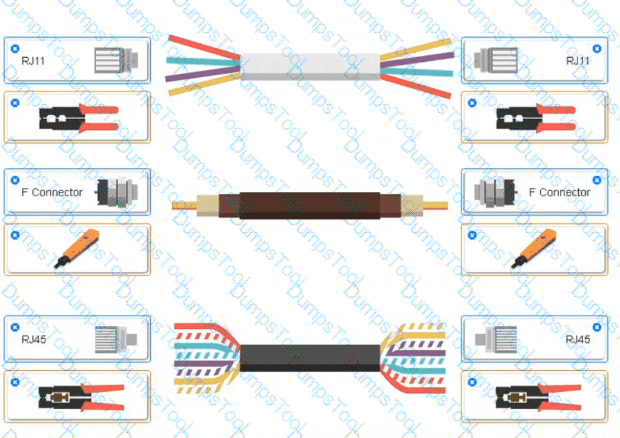

An F-type connector is a coaxial RF connector that is commonly used for cable television, satellite television, and cable modems. An internet service provider (ISP) may use an F-type connector to connect the coaxial cable from the wall outlet to the cable modem or the set-top box. The F-type connector has a threaded interface that provides a secure and reliable connection. The F-type connector can also support high-frequency signals up to several GHz, which can deliver high-speed internet and high-definition television.

Other scenarios, such as making a serial connection to a hardware device, purchasing a charging cable for a laptop, or upgrading the service on an electrical panel, are not likely to use an F-type connector. A serial connection to a hardware device may use a DB-9 or a DB-25 connector, which are D-shaped connectors with pins. A charging cable for a laptop may use a USB or a barrel connector, which are flat or cylindrical connectors with contacts. An electrical panel may use a twist-lock or a pin-and-sleeve connector, which are round connectors with locking mechanisms.

VRAM (Video Random Access Memory) is a special-purpose memory type used by graphics controllers to store image data that is displayed on the screen. VRAM is faster and more expensive than regular RAM, and it allows the graphics controller to access the image data directly without involving the CPU or the system memory. VRAM can improve the performance and quality of graphics-intensive applications, such as video editing, gaming, and 3D rendering.

The correct answer is C. PoE switch.

A PoE switch is a network device that can provide both data and power to other devices over an Ethernet cable. PoE stands for Power over Ethernet, which is a technology that allows electrical power to be transmitted along with data on twisted pair Ethernet cabling. This eliminates the need for separate power supplies or AC adapters at the users’ desks, as the VoIP devices can receive power from the PoE switch12.

A firewall is a network device that monitors and controls incoming and outgoing network traffic based on predefined security rules. It does not provide power to other devices1.

A power injector is a device that adds electrical power to an Ethernet cable for a single device. It is not suitable for a large number of devices, as it would require one power injector per device1.

A router is a network device that connects multiple networks and forwards data packets between them. It does not provide power to other devices1.

MDM (Mobile Device Management) is a policy that allows the technician to remotely manage, secure, and monitor the personal devices that employees use for work purposes. MDM can enforce security settings, such as passwords, encryption, and antivirus software, on the personal devices. MDM can also remotely wipe or lock the devices in case of loss, theft, or termination of employment. MDM can protect company information by preventing unauthorized access, data leakage, or malware infection on the personal devices.

References

What is Mobile Device Management (MDM)?

Chapter 2: Networking

The problem in this scenario is that the battery charger is not a USB device, but a device that plugs into a USB port to draw power. Therefore, it does not have a unique identifier that can be recognized by the peripheral security software, which is designed to prevent unauthorized USB devices from accessing the company’s network or data. The security software cannot add the battery charger to its whitelist, and may block its power supply or generate alerts.

The best solution for this problem is to provide a USB to AC adapter for the battery charger, which is a device that converts the USB power output to an AC power input that can be plugged into a wall outlet. This way, the battery charger does not need to connect to the docking station or the computer, and does not trigger the peripheral security software. The user can still charge the camera’s battery without compromising the company’s security policy.

The other options are not advisable because they either do not solve the problem or create new risks. Option B, adding a powered USB hub to the docking station, may not work if the security software also monitors the hub’s ports and detects the battery charger as an unknown device. Option C, disabling the peripheral security software for this user only, is a very bad idea because it exposes the user’s computer and the company’s network to potential attacks from malicious USB devices. Option D, replacing the battery charger with a USB device that has a unique identifier, is unnecessary and costly, and may not be compatible with the camera’s battery.

The best way to start troubleshooting a non-specific error after a scheduled computer restart is to review the system event log. The system event log is a record of significant events that occur on the computer, such as errors, warnings, or information messages. The system event log can help identify the cause of the error and provide possible solutions. The answer is C.

To learn more about troubleshooting methods and tools, you can refer to the CompTIA A+ Certification Exam Core 1 Objectives1 or the CompTIA A+ Core 1 (220-1101) Certification Study Guide2. These resources cover the topics that are tested on the CompTIA A+ Core 1 exam, which is one of the two exams required to earn the CompTIA A+ certification. The CompTIA A+ certification validates your skills and knowledge as an entry-level IT professional.

The best solution for the developer is D. Sandbox environment.

Client-side virtualization is a technology that allows users to run multiple operating systems and applications on the same device, without affecting the host system or the network1. A sandbox environment is a type of client-side virtualization that creates a secure and isolated space for testing, debugging, or experimenting with code, without risking any damage or interference to the rest of the system2.

A sandbox environment can provide several benefits for the developer, such as23:

•It can simulate different scenarios and conditions for the code, such as different operating systems, browsers, devices, network settings, etc.

•It can protect the code from external threats, such as malware, hackers, or unauthorized access.

•It can prevent the code from affecting other applications or processes on the device or the network, such as consuming resources, causing errors, or leaking data.

•It can allow the developer to easily revert any changes or restore the original state of the system, if something goes wrong.

Therefore, a sandbox environment can provide the best solution for the developer who wants to write code in a setting isolated from other infrastructure to avoid negative impacts of experimental code.

A video production workstation that will consist of two high-end GPUs will require a lot of power and a modular power supply. A modular power supply allows the technician to connect only the cables that are needed for the components, which reduces clutter and improves airflow. A 1,200W power supply should be enough to power the two GPUs and other components, but the exact wattage depends on the specifications of the GPUs and other components. A 400W external power supply is not enough to power the workstation and may not be compatible with the ATX case. Two 600W redundant power supplies are unnecessary and may not fit in the ATX case. A 1,500W uninterruptible power supply (UPS) is a device that provides backup power in case of a power outage, but it is not a replacement for a power supply unit (PSU). References: https://www.comptia.org/blog/what-is-a-power-supply-unit

The next troubleshooting step that the technician should attempt is to restart the smartphone. Restarting the smartphone can help resolve many common issues, such as battery drain, network utilization, app crashes, or performance slowdowns. Restarting the smartphone can do the following:

Clear the memory and cache of the smartphone, which can free up space and speed up the device.

Close any background apps or processes that may be consuming battery or network resources, such as syncing, updating, or streaming.

Reset the network settings and connections of the smartphone, which can improve the signal strength and quality.

Refresh the operating system and the user interface of the smartphone, which can fix any glitches or errors.

To restart the smartphone, the user can follow these steps:

Press and hold the power button of the smartphone until a menu appears on the screen.

Tap the option that says Restart, Reboot, or Power off and on.

Wait for the smartphone to turn off and then turn on again.

Enter the PIN, password, or pattern to unlock the smartphone.

Check the battery level and the network utilization of the smartphone.

If restarting the smartphone does not solve the problem, the technician may need to try other troubleshooting steps, such as updating the mobile OS, disabling Bluetooth, or connecting the smartphone to a Wi-Fi network. However, restarting the smartphone is usually the first and simplest step to try.

RFD stands for Radio Frequency Identification, which is a technology that uses radio waves to identify and track objects that have RFID tags attached to them. RFID tags are small devices that store information and can be read by RFID readers without direct contact or line of sight. RFID can be used for inventory management, as it can provide real-time visibility and accuracy of the location, quantity, and status of the items in a warehouse, store, or supply chain .

The best option to allow all users to print to the new network printer is to install all applicable print drivers on the print server. This way, the print server can automatically provide the correct driver to the client computers when they connect to the printer. This option also reduces the administrative overhead and security risks of the other options, which involve either granting users more privileges, mapping them to a shared folder, or remotely accessing their computers.

References

1 CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 16: Installing and Configuring Printers, page 419.

2 The Official CompTIA A+ Core 1 Instructor Guide (Exam 220-1101), Lesson 16: Installing and Configuring Printers, page 16-7.

3 CompTIA A+ Core 1 (220-1101) Complete Video Course, Lesson 16: Installing and Configuring Printers, Video 16.2: Installing and Configuring Network Printers.

The most likely reason is A. Missing Wi-Fi adapter.

A Wi-Fi adapter is a device that allows a computer to connect to a wireless network. A legacy workstation may not have a built-in Wi-Fi adapter, or it may have an outdated or incompatible one. If the workstation does not have a Wi-Fi adapter, it will not be able to detect or access any wireless networks, regardless of the location, signal strength, or configuration of the network.

To fix this issue, the technician can install a Wi-Fi adapter on the workstation, either internally or externally. An internal Wi-Fi adapter is a card that fits into a slot on the motherboard, while an external Wi-Fi adapter is a device that plugs into a USB port. The technician should choose a Wi-Fi adapter that is compatible with the workstation’s operating system, hardware, and wireless standards .

The other options are less likely to be the reason for the issue. A Wi-Fi AP replacement means changing the wireless access point that provides the network connection. This may affect the network name, password, or settings, but it should not prevent the workstation from detecting any wireless networks. A hidden Wi-Fi SSID means that the network name is not broadcasted publicly, but it can still be accessed by entering the name manually. A hidden Wi-Fi SSID may make it harder to find the network, but it should not prevent the workstation from detecting other wireless networks. An incorrect Wi-Fi channel means that the network is using a frequency band that is crowded or interfered by other devices. This may affect the network performance or stability, but it should not prevent the workstation from detecting any wireless networks.

A scope is a term used to define a range of IP addresses available to assign using DHCP. DHCP stands for Dynamic Host Configuration Protocol, and it is a protocol that automatically assigns IP addresses and other network configuration parameters to devices on a network. A scope defines the start and end IP addresses, as well as other options, such as subnet mask, default gateway, and DNS servers.

The best option that the technician should choose for the best performance is A. PCIe SSD connected via NVMe interface. This option means that the technician should install a solid state drive (SSD) that uses the PCIe (Peripheral Component Interconnect Express) bus and the NVMe (Non-Volatile Memory Express) protocol to communicate with the motherboard. This option can offer the following advantages:

Faster speed: PCIe SSDs can transfer data faster than SATA or IDE SSDs, as they use more lanes and have higher bandwidth. PCIe SSDs can reach speeds of up to 7,000 MB/s, while SATA SSDs are limited to 600 MB/s and IDE SSDs are even slower12. NVMe is a protocol that is designed specifically for SSDs and can optimize their performance by reducing latency and increasing parallelism3.

Smaller size: PCIe SSDs can be smaller than SATA or IDE SSDs, as they do not require additional cables or connectors. PCIe SSDs can come in different form factors, such as M.2 or U.2, which can fit in different slots on the motherboard12.

Higher reliability: PCIe SSDs can be more reliable than SATA or IDE SSDs, as they have less moving parts and are less prone to mechanical failures or data corruption. PCIe SSDs can also support features such as error correction and wear leveling, which can enhance their durability and lifespan12.

The correct answer is A. Install the latest graphics drivers.

The most likely cause of the external monitor not working after an operating system upgrade is that the graphics drivers are incompatible with the new version. Installing the latest graphics drivers from the manufacturer’s website or using Windows Update can resolve this issue. Replacing the monitor, restoring the operating system to the previous version, or reseating the external video adapter are not effective solutions for this problem.

The most likely component that is failing and causing the PC to overheat is D. CPU fan. The CPU fan is a vital part of the cooling system that prevents the CPU from overheating by blowing air over the heatsink and dissipating the heat. If the CPU fan is faulty, noisy, or clogged with dust, it can reduce the airflow and cause the CPU temperature to rise12. This can result in poor performance, instability, or shutdowns of the PC.

The other components are less likely to be the cause of overheating. RAM, motherboard, and SSD do not generate as much heat as the CPU and usually do not require fans to cool them down1. They may overheat if there is poor ventilation in the case or if they are defective, but they are not as common as a failing CPU fan.

Therefore, the correct answer is D. CPU fan. This is the most likely component that is failing and causing the PC to overheat.

VGA stands for Video Graphics Array, and it is a type of cable that can be used to transmit analog video signals between devices, such as laptops, monitors, or projectors. VGA cables have 15 pins arranged in three rows, and they are usually color-coded blue. VGA cables can support resolutions up to 2048 x 1536 pixels, but they have low quality and limited color depth compared to modern digital standards such as HDMI or DisplayPort .

A projector is a device that projects an image or a video onto a large surface, such as a wall or a screen. A projector can have different types of input ports, such as VGA, HDMI, DVI, or USB. A projector can also have different types of output technologies, such as LCD, DLP, or LED .

In this scenario, the user needs a technician’s help connecting a laptop to a projector. The projector is old and only has analog input. This means that the projector can only accept analog video signals, and not digital ones. Therefore, the technician should use a VGA cable to connect the laptop to the projector, as it is the most common type of analog video cable. The technician should also make sure that the laptop and the projector have compatible VGA ports, and that the laptop’s display settings are adjusted to match the projector’s resolution and aspect ratio.

A virtual Trusted Platform Module (vTPM) is a technology that can be used to harden guest virtual machines by providing them with a secure cryptographic device. A vTPM can store encryption keys, certificates, and passwords, and can perform integrity checks on the guest operating system and applications. A vTPM can also enable features such as BitLocker and Credential Guard in Windows 10 virtual machines.

A. Containerization is a technology that can be used to isolate applications from the underlying operating system and hardware resources. Containerization does not directly harden guest virtual machines, but rather provides a lightweight alternative to virtualization.

B. Network isolation is a technology that can be used to separate network traffic between different virtual machines or groups of virtual machines. Network isolation can help prevent unauthorized access or attacks on guest virtual machines, but it does not harden them internally.

C. Resource reservation is a technology that can be used to guarantee a minimum amount of CPU, memory, disk, or network resources for a virtual machine or a group of virtual machines. Resource reservation can help improve the performance and availability of guest virtual machines, but it does not harden them against security threats.

D. vTPM is a technology that can be used to harden guest virtual machines by providing them with a secure cryptographic device. A vTPM can store encryption keys, certificates, and passwords, and can perform integrity checks on the guest operating system and applications.

The first step in troubleshooting any network issue is to identify the problem and gather information from the user and the device. Reviewing the network settings in the OS can help the technician verify if the laptop is configured correctly to connect to the wireless network, such as the SSID, security type, password, IP address, DNS server, etc. This can also help the technician rule out any software or driver issues that might prevent the laptop from connecting to the network. This is a logical and simple step that can be done before attempting any other actions that might affect the network infrastructure or other devices.

A laptop’s battery is the component that provides power to the laptop when it is not connected to an external power source, such as a wall outlet or a docking station. A laptop’s battery can wear out over time, losing its capacity and ability to hold a charge. This can cause the laptop to not turn on or shut down unexpectedly when it is not plugged in .

According to some web search results , some signs and symptoms of a failing laptop battery are:

•The laptop does not turn on or turns off suddenly when it is not connected to an external power source

•The laptop shows a low battery warning or a red X over the battery icon even when it is fully charged

•The laptop takes longer to charge or does not charge at all

•The laptop feels hot or the battery bulges or leaks

To fix this issue, the technician should replace the laptop’s battery with a new one that is compatible with the laptop model and specifications. The technician should also dispose of the old battery properly, following the environmental and safety guidelines .

Reinstalling the laptop’s operating system, enabling a remote desktop account, or issuing a peripheral set for use in the conference room are not effective solutions for this issue, since they do not address the root cause of the problem, which is the faulty battery. Reinstalling the operating system may erase the user’s data and settings, and it may not improve the laptop’s performance or power management. Enabling a remote desktop account may allow the user to access their files and applications from another device, but it does not solve the problem of the laptop not turning on. Issuing a peripheral set for use in the conference room may provide the user with an external monitor, mouse, and keyboard, but it does not guarantee that the laptop will work without an external power source.

The next thing that the technician should investigate is D. Radio frequency.

Radio frequency is the range of electromagnetic waves that are used to transmit wireless signals. Different devices and networks use different radio frequencies, such as 2.4 GHz or 5 GHz, to communicate with each other. If there are multiple devices or networks using the same or overlapping radio frequencies, they can interfere with each other and cause Wi-Fi connection issues, such as intermittent disconnections, slow speeds, or poor quality .

To fix this issue, the technician can try changing the radio frequency or channel of the router or the laptop, to avoid interference from other sources. The technician can also use a tool such as Wi-Fi Analyzer to scan the nearby wireless networks and find the best frequency or channel to use. Alternatively, the technician can move the router or the laptop to a different location, away from potential sources of interference, such as cordless phones, microwaves, Bluetooth devices, or other routers .

The other options are less likely to be the reason for the issue. Firewall settings are software configurations that control the network traffic and security of a device. They may block some websites or applications from accessing the internet, but they should not affect the Wi-Fi connection itself. MAC address filter is a feature that allows the router to restrict access to specific devices based on their MAC addresses, which are unique identifiers for network interfaces. If the MAC address filter is enabled and the laptop’s MAC address is not on the allowed list, it will not be able to connect to the Wi-Fi network at all, not intermittently. Number of connected devices is the amount of devices that are using the same Wi-Fi network at the same time. This may affect the network performance or bandwidth, but it should not cause intermittent disconnections, unless the network is overloaded or unstable.

RAID 10 is a combination of RAID 1 and RAID 0, which provides both performance and redundancy. RAID 1 mirrors data across two or more disks, while RAID 0 stripes data across two or more disks. RAID 10 combines these two methods to create a mirrored stripe set, which can tolerate multiple disk failures as long as they are not in the same mirror. RAID 10 requires at least four disks and offers better performance than RAID 5, which uses parity to provide redundancy. References: https://www.comptia.org/blog/what-is-raid-0-1-5-6-10

The most likely reason the data transfer failed is D. The older phone utilized different wireless protocols.

Wireless protocols are the standards that devices use to communicate with each other over a wireless network. Different wireless protocols have different features, such as speed, range, security, and compatibility. If the older phone and the new phone use different wireless protocols, they may not be able to transfer data smoothly or at all. For example, if the older phone uses Wi-Fi Direct and the new phone uses Bluetooth, they may not be able to connect or recognize each other.

To avoid this problem, you should make sure that both devices support the same wireless protocol and that they are in range of each other. You can also use a third-party app or service that can transfer data between different devices, such as Smart Switch1 or Move to iOS2. These apps can help you transfer data such as contacts, photos, messages, and more from your old phone to your new phone.

The correct answer is D. Sandboxing.

Sandboxing is a security technique that isolates email attachments in a safe place until the attachments can be scanned for malware. A sandbox is a virtual environment that mimics the operating system and applications of the user, but prevents any changes or damage to the actual system. A sandbox can also monitor the behavior and activity of the attachments and detect any malicious code or actions12.

An approve listing is a security technique that allows only trusted or authorized email senders or domains to be received by the user. An approve listing can help reduce spam and phishing emails, but it does not scan or isolate email attachments for malware3.

A screened subnet is a security technique that creates a buffer zone between the internal network and the internet. A screened subnet uses firewalls and routers to filter and control the traffic that enters and exits the network. A screened subnet can help protect the network from external attacks, but it does not scan or isolate email attachments for malware.

Cross-platform virtualization is a technology that allows running multiple operating systems and applications on the same physical machine. Cross-platform virtualization can help improve efficiency, flexibility, and compatibility, but it does not scan or isolate email attachments for malware.

The most likely reason for this issue is A. The webcam is not on a level surface.

A webcam is a device that captures and transmits video and audio signals over the internet. A webcam can be integrated or external, depending on whether it is built-in or attached to the computer. A webcam can be used for various purposes, such as videoconferencing, streaming, or recording.

An integrated webcam is a webcam that is embedded in the monitor or the bezel of the laptop. An integrated webcam usually has a fixed position and angle, and it can be adjusted by tilting or rotating the laptop screen. An integrated webcam may have advantages such as convenience, portability, and compatibility, but it may also have disadvantages such as low quality, limited features, or vulnerability to damage.

An external webcam is a webcam that is connected to the computer via a cable or a wireless connection. An external webcam usually has a clip or a stand that allows it to be placed on a level surface or attached to the monitor or the laptop. An external webcam may have advantages such as high quality, advanced features, or flexibility, but it may also have disadvantages such as inconvenience, cost, or compatibility issues.

In this scenario, an integrated webcam on a user’s laptop broke, so a technician installed a temporary, external webcam. Since the external webcam installation, other users can only see part of the user’s face during videoconferences. This could indicate that the external webcam is not properly positioned or aligned to capture the user’s full face. The most likely cause of this issue is that the webcam is not on a level surface, and it is either too high or too low, or too far or too close to the user.

To resolve this issue, the user should adjust the position and angle of the external webcam until it captures their full face clearly and accurately. The user should also check the settings and features of the external webcam, such as zoom, focus, resolution, or brightness, and modify them if necessary. The user should also test the video and audio quality of the external webcam before joining a videoconference .

The other options are not the most likely causes of this issue, because they are not related to the partial face problem. A webcam driver should be updated (option B) if the webcam is not recognized or functioning properly by the computer. A webcam driver is a software component that enables the communication and interaction between the webcam and the operating system. A webcam is plugged into the wrong USB port (option C) if the webcam does not receive enough power or bandwidth from the computer. A USB port is a physical interface that allows data and power transmission between devices. A webcam is not compatible with the OS (option D) if the webcam does not work with the operating system installed on the computer. An operating system is a software program that manages the hardware and software resources of the computer.

For more information about webcams and how to use them effectively, you can refer to the following web search results: [What Is a Webcam?], [Integrated vs External Webcams: Which One Is Better?], [How to Set Up Your Webcam for Video Calls], [How to Look Good on Video Calls], [What Is a Device Driver?], [What Is a USB Port?], [What Is an Operating System?].

One of the possible causes of slow OS performance, random shutdowns, and loud fan noise is the CPU overheating. This can happen due to dust accumulation, faulty cooling system, or high CPU usage. Overheating can damage the CPU and other components, so it is important to monitor the CPU temperature and take preventive measures.

The first thing that the technician should do to diagnose the issue is A. Check the keyboard layout.

The keyboard layout is the arrangement of the keys and symbols on the keyboard, which can vary depending on the language, region, or standard. If the keyboard layout is not set correctly, it can cause the keys to produce different characters than expected. For example, if the keyboard layout is set to French, pressing the key for @ will produce à instead.

To check and change the keyboard layout, the technician can follow these steps:

•On Windows 10, click on the Start menu and select Settings.

•Click on Time & Language and then on Language.

•Under Preferred languages, click on the current language and then on Options.

•Under Keyboards, check if the keyboard layout matches the physical keyboard. If not, click on Add a keyboard and select the correct layout. Alternatively, click on Remove to delete any unwanted layouts.

•To switch between keyboard layouts, use the shortcut Windows key + Space bar.

Checking the keyboard layout can help identify and fix the issue quickly and easily, without requiring any hardware or software changes. Therefore, it is the best first step to diagnose the issue.

The first step to troubleshoot this issue is to check if the website that hosts the random number generator is HTTPS enabled. This means that the website supports secure communication using SSL certificates and encryption. If the website is not HTTPS enabled, it may not be compatible with the SSL redirection implemented by the IT department. SSL redirection is a technique that automatically redirects HTTP requests to HTTPS, ensuring that the data exchanged between the web browser and the website is protected. However, some websites may not have SSL certificates or may have expired or invalid ones, which can cause errors or warnings when trying to access them via HTTPS. Therefore, the technician should check the website’s URL and see if it starts with https:// or http://. If it is the latter, the technician should try to manually change it to https:// and see if the website loads correctly. If it does not, the technician should contact the website owner or administrator and ask them to enable HTTPS or update their SSL certificates.

The correct answers are C. Pickup roller and D. Separation pad.

A pickup roller is a rubber wheel that grabs the paper from the paper tray and feeds it into the printer. A separation pad is a small piece of cork or rubber that prevents more than one sheet of paper from being fed at a time. If the pickup roller or the separation pad is worn out, dirty, or damaged, it can cause the printer to pull multiple sheets of paper instead of a single sheet. This can lead to paper jams, misprints, or wasted paper.

To resolve this issue, a technician should investigate the condition of the pickup roller and the separation pad and replace them if necessary. The technician should also clean the paper tray and make sure the paper is loaded correctly and not stuck together.

A toner cartridge is a component that contains the toner powder used to create the printout on a laser printer. A tractor feed is a mechanism that uses sprockets to move continuous paper through a dot matrix printer. A duplexer is a device that allows a printer to print on both sides of the paper automatically. A fuser is a part of a laser printer that melts the toner onto the paper using heat and pressure. None of these components are related to the issue of pulling multiple sheets of paper from the paper tray.

When installing a wireless point-to-point connection between two buildings, the technician should consider the allowable limits for transmit power, which vary depending on the country or region. Exceeding these limits could interfere with other wireless devices or violate regulations. NFC protocol data rate, RFID frequency range, and Bluetooth version compatibility are not relevant for a wireless point-to-point connection.

The best practice methodology for troubleshooting is to follow these steps:

Identify the problem.

Establish a theory of probable cause.

Test the theory to determine cause.

Establish a plan of action to resolve the problem and implement the solution.

Verify full system functionality and implement preventive measures.

Document the findings, actions, and outcomes. Since the technician has already verified full system functionality and implemented preventive measures, the next step is to document the findings, actions, and outcomes. Verified References: CompTIA A+ Certification Exam Objectives, page 8.

The issue described suggests that the home USB-C adapter may not be compatible with the laptop or may not meet the necessary power requirements to charge the device. Providing the user with an Original Equipment Manufacturer (OEM) power supply ensures compatibility and reliability, as OEM chargers are specifically designed to work with the laptop model in question. This solution ensures that the user can work efficiently both at home and in the office without facing charging issues, as OEM power supplies adhere to the specific voltage and amperage requirements of the device.

The correct answer is D. Identify the problem.

The first troubleshooting step that the technician should perform is to identify the problem. This means that the technician should gather information from the user and the system, and analyze the symptoms and the error messages to determine the nature and the scope of the issue. Identifying the problem can help to define the expected outcome, establish a theory of probable cause, and plan a course of action.

The other options are not the first troubleshooting steps, but they are part of the troubleshooting process that should be performed after identifying the problem. Establishing a plan of action (option A) means that the technician should devise a strategy to resolve the issue, based on the theory of probable cause and the available resources. Testing the theory (option C) means that the technician should verify if the theory of probable cause is correct, by performing tests or experiments on the system or its components. Documenting the findings (option B) means that the technician should record and report the results of each troubleshooting step, as well as the final solution and outcome.

For more information about troubleshooting steps and best practices, you can refer to the following web search results: [Troubleshooting Steps for Beginners], [Troubleshooting Methodology], [How to Troubleshoot Like an Expert].

The CMOS battery powers the real-time clock (RTC) on the motherboard, which maintains the date and time when the computer is turned off. If the battery fails, the system will lose date and time settings, reverting to defaults on restart.

Why Not A (OS updates): While OS updates can sometimes cause time issues, they don’t typically affect changes persisting after shutdown.

Why Not C (NTP server): An incorrect NTP server setting would cause the system to synchronize incorrectly, but this issue relates to time resetting during power-off.

Why Not D (RAM): RAM is volatile memory and unrelated to storing persistent time settings.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.4, motherboard troubleshooting​.

A patch panel is a device that connects multiple network cables in an organized and convenient way. A patch panel has a number of ports that correspond to different cables, such as Ethernet, coaxial, or fiber-optic cables. A patch panel can help simplify the wiring and management of a network, as well as provide flexibility and scalability for adding or changing network devices.

A punchdown tool is a tool that can be used to terminate network cables into a patch panel. A punchdown tool has a blade that cuts and pushes the wires into the slots or contacts of the patch panel. A punchdown tool can help create a secure and reliable connection between the network cables and the patch panel.

Comprehensive and Detailed Step-by-Step Explanation:

To determine the correct device, we need to understand how a DOCSIS (Data Over Cable Service Interface Specification) network functions in a Small Office/Home Office (SOHO) environment:

C. Cable Modem:

A cable modem is required to convert the signal provided by the ISP (Internet Service Provider) over a DOCSIS network into a format that is usable by the local area network (LAN).

DOCSIS is a standard for high-speed internet over cable television infrastructure, and the cable modem acts as the gateway between the ISP's coaxial network and the LAN.

Without the cable modem, devices in the LAN would not be able to access the internet.

Comprehensive and Detailed Step-by-Step Explanation:

Wi-Fi Analyzer:

A Wi-Fi analyzer is a tool used to detect and analyze wireless networks, even those that are not broadcasting their SSIDs (hidden networks).

It provides detailed information about nearby networks, including signal strength, channel usage, and security protocols.

In this case, the Wi-Fi analyzer can identify the hidden networks that users are connected to, which are not visible on the standard user interface.

Incorrect Options:

A. Cable tester: A cable tester is used to test the integrity of physical network cables. It does not detect wireless networks or SSIDs.

B. Toner probe: A toner probe is used to trace and identify cables within a wiring system. It is not applicable to wireless network analysis.

D. Loopback plug: A loopback plug is used to test the functionality of a network port or NIC. It is unrelated to identifying hidden wireless networks.

Key Takeaway:

The most effective tool for identifying hidden wireless networks is a Wi-Fi analyzer, as it can detect networks that are not broadcasting their SSIDs.

If paper gets stuck at the last stage of printing, the rollers responsible for moving the paper through the printer are likely worn out or dirty.

Why Not B (Tray assembly): The tray assembly manages paper loading, not feeding during the print process.

Why Not C (Toner): Toner is unrelated to paper jams.

Why Not D (Printhead): Printheads manage ink/toner distribution, not paper movement.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 4.6, printer troubleshooting​.

A. Run the maintenance application:

Most modern printers include a built-in maintenance application that can calibrate the print heads and correct alignment issues. Running this tool is the first step to address misalignment.

Incorrect Options:

B. Clean the rollers: Cleaning rollers is typically done to resolve paper feed or jamming issues, not alignment problems.

C. Upgrade the firmware: While updating firmware is beneficial for performance improvements, it is not the first step for fixing alignment.

D. Reinstall the drivers: Misaligned printing is usually hardware-related, not a driver issue.

Key Takeaway: The maintenance application should be run first to resolve alignment issues in a newly installed printer.

B. USB-C:

USB-C is a versatile connector that supports charging, high-speed data transfer, and the ability to send audio and video signals (e.g., DisplayPort over USB-C).

It is used by most modern mobile devices and laptops because of its fast transfer speeds and power delivery capabilities.

Incorrect Options:

A. Lightning: Lightning is proprietary to Apple devices and does not natively support video output.

C. MicroUSB: MicroUSB is outdated and does not support video output.

D. MiniUSB: MiniUSB is an older standard and does not support modern features like video output or fast charging.

Key Takeaway: USB-C is the most versatile connector for charging and transferring data, audio, and video.

In DNS (Domain Name System), the AAAA record is used to map a domain or device to an IPv6 address. IPv6 addresses are 128-bit addresses, and the AAAA record is specifically designed for handling these larger addresses.

C. AAAA: This record is used to associate a hostname with an IPv6 address in DNS.

Why the other options are incorrect:

A. A: An A record maps a domain to an IPv4 address, not an IPv6 address.

B. CNAME: A CNAME (Canonical Name) record is used to alias one domain name to another but does not map to an IP address directly.

D. MX: An MX (Mail Exchange) record is used to direct email traffic to the correct email servers, not to map devices to IP addresses.

This falls under the Networking domain of the CompTIA A+ Core 1 exam​.

ECC (Error-Correcting Code) RAM is commonly used in servers to provide error detection and correction, improving reliability in critical systems. It is designed to detect and correct single-bit errors, ensuring data integrity in environments where stability is paramount.

Option A (SODIMM): Incorrect. SODIMM is typically used in laptops, not servers.

Option B (Rambus): Incorrect. Rambus is an outdated RAM type and not commonly used today.

Option C (DDR3): Incorrect. While DDR3 is a type of RAM, it is not specific to servers and does not provide error correction.

Port 20 is used for FTP data transfer (along with port 21 for control), so enabling this port is required. Ports 23, 53, and 68 are unrelated to FTP functionality, as they correspond to Telnet, DNS, and DHCP respectively. CompTIA A+ Core 1 objectives outline the importance of knowing standard port numbers for network services.

Self-encrypting hardware, such as self-encrypting drives (SEDs), provides an effective solution for securing data with minimal user interaction. SEDs automatically encrypt all data stored on the drive without requiring any special software or user action, ensuring that data remains protected even if the drive is removed from the device. This feature is particularly beneficial for remote users who may not consistently follow manual encryption procedures, offering a seamless and user-transparent method to secure sensitive data.

If a desktop PC shuts down suddenly and there is a burning smell coming from the area where it is connected to the wall socket, the first step should be to check that the power cable is not damaged. A damaged power cable can cause electrical shorts or overheating, leading to sudden shutdowns and a burning smell. Inspecting the power cable for fraying, cuts, or other damage can help identify if it is the source of the problem.

If a user consistently receives an error requesting A4 paper for print jobs, and this issue is isolated to a single user, it's likely that the user's printer settings are configured incorrectly for A4 paper size instead of the standard letter size used in the office. Adjusting the printer defaults in the Control Panel on the user's computer to use letter-sized paper should resolve the issue without needing to reinstall drivers, switch printers, or require the user to check page size for every job.

A sandbox environment is designed to isolate and contain software or programs, preventing them from interacting with other parts of the system or network. This isolation can be used to safely run untested or untrusted programs or code without risking the integrity of the host system or network. Setting up a virtual machine within a sandbox environment ensures that the VM has no communication with other devices over the network, providing a controlled and secure environment for testing or development purposes.

A sandbox is an isolated environment typically used for testing software or running applications without affecting the host system. The isolated nature of a sandbox allows users to run applications or even entire operating systems in a contained virtual machine, which prevents potential harm to the primary system.

A. Sandbox: A sandbox is an isolated virtual machine environment where users can test new applications or software safely.

Why the other options are incorrect:

B. Hypervisor: A hypervisor is software that manages multiple virtual machines (VMs), but it is not an isolated VM itself.

C. Container: Containers isolate applications but are not fully isolated virtual machines. Containers share the host OS kernel, while sandboxes provide a full virtualized environment.

D. VDI (Virtual Desktop Infrastructure): VDI provides a desktop environment hosted on a centralized server. It is not the same as an isolated virtual machine for testing purposes.

This is covered under the Virtualization domain in the CompTIA A+ Core 1 exam​.

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

Multiple peripherals are non-functional, and the USB-C hub is a common point of failure.

Option Evaluation:

A. Verify the AC adapter voltage: Power issue could cause shutdowns, not device failure. Incorrect.

B. Repair the operating system: Not relevant since alternate devices are tested. Incorrect.

C. Replace the user's USB-C hub: Faulty hubs cause multiple peripheral failures. Correct.

D. Reinstall the drivers for affected devices: Driver issues wouldn’t affect all peripherals. Incorrect.

E. Make sure the printer is not drawing too much power: This is uncommon for peripherals via a hub. Incorrect.

Turning off the laptop and disconnecting power immediately prevents further damage and potential safety hazards. Checking for foreign objects or damage is essential for identifying the root cause. Other options, such as contacting the vendor or using a different adapter, are not immediate troubleshooting steps for an active burning smell. CompTIA A+ Core 1 objectives emphasize safety and hardware troubleshooting.

When an external touch screen exhibits flickering without registering input on a presentation laptop, the first troubleshooting step should be to check the cables connecting the touch screen to the laptop. This includes ensuring that the cables are securely connected, undamaged, and are the correct type for transmitting both video and touch input data. Faulty, loose, or incorrect cabling can lead to issues like flickering and unregistered inputs.

A Storage Area Network (SAN) is primarily used for data archiving and large-scale storage. SANs provide high-speed, block-level storage for enterprise environments.

Why Not A (PAN): Personal Area Networks are for connecting personal devices like phones and smartwatches.

Why Not B (MAN): Metropolitan Area Networks are for city-wide data communication, not storage.

Why Not D (LAN): Local Area Networks are for general connectivity, not dedicated storage.

Why Not WAN: Wide Area Networks are for connecting geographically dispersed networks, not storage.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.7, network types and purposes​.

If a smartphone repeatedly loses connection to a home Wi-Fi network and the common troubleshooting steps like restarting the device, rebooting the router, and resetting the Wi-Fi settings have not resolved the issue, updating the smartphone's operating system (OS) could be the next logical step. OS updates often include fixes for known bugs and improvements in connectivity and compatibility with network hardware, which could resolve persistent connection issues.

Input voltage must be validated to ensure desktop PCs can operate in different regions with varying power standards (e.g., 110V in North America vs. 220V in Europe). Failure to verify input voltage compatibility can lead to hardware damage or operational issues.

Option B (BIOS language support): Incorrect. While language support may be helpful, it is not critical for hardware deployment across regions.

Option C (Supply chain security): Incorrect. This refers to ensuring secure sourcing of components but does not directly impact deployment.

Option D (Power efficiency): Incorrect. Power efficiency may be important for energy savings but is not relevant to regional compatibility.

Comprehensive and Detailed In-Depth Explanation:

SMB (Server Message Block) is a protocol used to access files and printers over a network, including across shared network folders. It enables the user to access and print files stored remotely on a shared directory.

Option A (ADF): Automatic Document Feeder — hardware, not a network protocol.

Option B (USB): Used for direct physical connections, not for printing over networks.

Option C (PCL): Printer Command Language — relates to printer drivers, not file sharing or access.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.4: Given a scenario, install and configure printers.

If a hard drive is heavily fragmented, file read/write operations can take significantly longer, causing slow backup speeds. Defragmenting the drive organizes the data for more efficient access.

Why Not A (Replace the hard drive's USB cable): A faulty cable would typically cause disconnections or errors, not just slower speeds.

Why Not C (Update the storage drivers): This might help if the issue is with system drivers, but the described symptoms point to a fragmentation issue.

Why Not D (Compress the files): Compression reduces file size but does not address the root cause of the slow backups.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 3.1, storage troubleshooting​.

Vertical lines in different colors on a laptop screen are often indicative of an issue with the liquid crystal display (LCD) itself. This could be due to a damaged display panel or issues with the connections between the display and the rest of the system. Replacing the LCD is the most likely solution to resolve this issue, as it addresses potential faults in the display hardware that are causing the visual artifacts.

Data throttling, often implemented by network providers to manage bandwidth usage, can slow data speeds after a certain usage limit is reached. Turning off wireless would prevent uploads, while roaming and 5G status primarily affect connectivity rather than speed throttling. CompTIA A+ Core 1 objectives cover connectivity troubleshooting for mobile devices, including factors impacting network speed and performance.

Comprehensive and Detailed In-Depth Explanation:

Dot matrix printers use an inked ribbon that physically contacts the paper through tiny pins. Over time, the ribbon wears out or dries up, resulting in faded or light print output. Replacing the ribbon restores print quality.

Option A: Cleaning helps with image clarity, not ink density.

Option C: Maintenance kits apply to laser printers, not dot matrix.

Option D: Calibration affects print position, not darkness.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.7: Given a scenario, troubleshoot common printer problems.

===========

Comprehensive and Detailed In-Depth Explanation:

A Private Cloud is operated solely for a single organization. It is hosted on-premises or in a dedicated off-site data center, giving the company full control over data, security, and compliance — often hosted in the organization’s own local data center.

Option B (Public): Hosted by third-party providers and shared by multiple clients.

Option C (Hybrid): Combines private and public cloud resources.

Option D (Community): Shared by several organizations with similar goals.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.1: Compare and contrast cloud computing concepts.

===========

Duplex printing allows printing on both sides of a paper, which can significantly reduce paper consumption and costs associated with buying paper. This makes duplex printing the best feature for cutting costs on consumables.

A Personal Area Network (PAN) is designed to connect devices in close proximity, typically within a few meters, often using wireless technologies like Bluetooth. This allows for the interconnection of smart devices such as smartphones, tablets, and wearables within an individual's personal space. Unlike a Local Area Network (LAN), which covers a larger geographical area such as a home or office building and can support wired and wireless connections, a PAN specifically facilitates wireless connections between personal devices.

Comprehensive and Detailed Step-by-Step Explanation:

LC Connector (Lucent Connector):

LC is a type of fiber optic connector commonly used in optical networking cables. It is small, compact, and widely used for high-speed data transfer over fiber optic networks.

LC connectors are specifically designed for fiber optic cables, making them the correct answer.

Incorrect Options:

A. RJ45: RJ45 connectors are used for Ethernet cables (twisted-pair copper cabling) and are not compatible with optical networking cables.

C. USB-C: USB-C is a connector type used for general-purpose data transfer, charging, and video output, not for optical networking.

D. Lightning: Lightning connectors are proprietary to Apple devices and are not used in optical networking.

Key Takeaway:

The LC connector is specifically designed for fiber optic cables, making it the correct answer for optical networking.

Streaks and multiple lines on print jobs are commonly caused by an issue with the toner cartridge, such as a damaged or improperly installed cartridge. The technician should replace the toner first as it is the most likely and simplest component to check.

Why Not A (Rollers): Rollers primarily handle paper feeding and are less likely to cause streaking.

Why Not B (Drum): While the drum can cause similar issues, the toner cartridge is easier to replace and should be checked first.

Why Not D (Fuser): The fuser bonds toner to the paper, but it typically causes smudging rather than streaking.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 4.6, printer troubleshooting​.

When multiple RAM modules with different speeds are installed in a system, the system will default to the speed of the slowest module to maintain reliability and stability. In this case:

The system contains two DDR3-1066 (PC3-8500) modules and one DDR3-1333 (PC3-10600) module.

The slowest RAM speed is DDR3-1066 (PC3-8500), and the system will run all memory modules at this speed to prevent timing mismatches and data corruption.

Key Concepts:

Backward Compatibility: RAM modules with higher speeds can operate at lower speeds when mixed with slower modules.

Reliability vs. Performance: Operating all modules at the slowest speed ensures stability, especially when modules have different specifications.

CompTIA A+ Exam Objectives References:

220-1101, Section 3.2: Covers selecting and installing appropriate RAM, understanding different speeds (DDR3-1066, DDR3-1333), and how system compatibility is ensured​.

A firewall monitors and filters incoming and outgoing network traffic based on security rules, protecting the network from unauthorized access and threats.

Why Not A (Switch): A switch connects devices within a network but does not monitor or filter traffic.

Why Not B (Access point): An access point provides Wi-Fi connectivity but does not filter traffic.

Why Not D (Hub): A hub simply broadcasts data to all connected devices without filtering traffic.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.2, network security concepts​.

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

Switching to the 5GHz frequency improves speed but decreases range and penetration through walls compared to 2.4GHz.

Users experience degraded performance likely due to poor coverage at the 5GHz range.

Option Evaluation:

A. Select a different channel: Useful for interference resolution but not coverage improvement. Incorrect.

B. Switch the Wi-Fi back to 2.4GHz frequency: This downgrades the network speed, which isn't a preferred solution. Incorrect.

C. Upgrade the wireless drivers on the users' devices: Unlikely to resolve coverage issues. Incorrect.

D. Add more access points for better coverage: Improves coverage in areas where 5GHz struggles. Correct.

VDI (Virtual Desktop Infrastructure) allows users to access a desktop environment that is running on a server in the data center rather than on the local machine. This is particularly useful for employees who need to work remotely on various devices (A), as it provides a consistent and secure environment regardless of the endpoint device. For a bank with security concerns regarding employee activity (D), VDI offers a centralized management of desktops, enhancing security by keeping sensitive data and applications within the data center and not on the local devices, thus reducing the risk of data breaches.

Comprehensive and Detailed In-Depth Explanation:

Changing the page orientation (e.g., from portrait to landscape) allows wider columns to fit on one side of the page. This maintains readability while continuing to use duplex printing.

Option A: Disabling duplex defeats the goal of printing on both sides.

Option B: May help, but could make the document harder to read if the font is too small.

Option D: Unlikely to resolve formatting issues related to layout and dimensions.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.7: Given a scenario, troubleshoot common printer problems.

Comprehensive and Detailed In-Depth Explanation:

A degraded RAID 1 array usually means one of the drives has failed or is failing. The correct next step is to run diagnostics on each drive to identify the faulty one. RAID 1 uses mirroring, so one good drive should still contain all the data.

Option B: chkdsk checks file system integrity, not hardware drive health.

Option C: Rebuilding should only occur after identifying and replacing a faulty drive.

Option D: RAID 0 offers no redundancy and would destroy data in this context.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to storage devices.

In Platform as a Service (PaaS), the cloud provider manages the hardware, operating system, and middleware, while the customer is responsible for managing data and applications.

Why Not B (SaaS): In SaaS, the provider manages all layers, including applications and data, leaving no responsibility for the customer.

Why Not C (IaaS): In IaaS, the customer manages the OS, data, and applications, while the provider only handles the hardware.

Why Not D (CaaS): CaaS (Container as a Service) is not a primary cloud model described in the CompTIA objectives and is less commonly referenced.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 4.1, cloud computing models​.

Liquid cooling is an effective solution for managing the high heat output that can result from overclocking a GPU. It's more efficient than air cooling methods (like larger heat sinks or fan upgrades) and can better maintain lower temperatures under load, reducing the risk of overheating.

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

Loud fans and immediate shutdown under stress are indicators of overheating.

Option Evaluation:

A. Install a liquid cooling unit: Premature without diagnosing the issue. Incorrect.

B. Monitor the core CPU and system temperatures: Confirms overheating and pinpoints thermal issues. Correct.

C. Reapply thermal paste to the processor heat sink: This may help but needs confirmation of the issue first. Incorrect.

D. Clean and test all fans: Ensures airflow but does not isolate the root cause immediately. Incorrect.

Comprehensive and Detailed In-Depth Explanation:

If the system reports “Bootable device not found”, and the BIOS is configured correctly, the next step is to run diagnostics on the hard drive to check for physical or logical failure. It could be a sign of a failing drive or corrupt boot sector.

Option A: Reformatting the drive would erase data — not a diagnostic step.

Option C: RAM does not affect whether a drive is bootable.

Option D: Replacing the drive should only be done after diagnostics confirm failure.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to storage devices.

After determining the issue is likely on the remote server, the technician should test the theory to confirm the root cause before proceeding.

Why Not A (Document the findings): Documentation comes after confirming the issue.

Why Not C (Gather information): Information gathering is already completed.

Why Not D (Establish a plan of action): This is done after confirming the issue.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 3.1, troubleshooting methodology​.

Punch-down blocks are commonly used to terminate and manage cabling for telephone systems and Ethernet networks (e.g., Cat 5, Cat 6). These blocks allow for efficient organization and connection of wires.

Why Not B (Fiber): Fiber cables use specialized connectors (e.g., SC, LC) and are not terminated with punch-down blocks.

Why Not C (HDMI): HDMI cables are pre-terminated and not designed for punch-down termination.

Why Not E (Coaxial): Coaxial cables use screw-type or compression connectors, not punch-down blocks.

Why Not F (USB): USB cables are also pre-terminated with proprietary connectors.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.1, cable termination techniques​.

When a laptop sometimes fails to charge despite a good power adapter connection, the most likely issue is a defective DC jack. The DC jack, where the power adapter plugs into the laptop, can become loose or damaged over time, leading to intermittent or failed charging. Cooling fan issues, bad memory, or an overheating CPU would typically lead to different symptoms such as overheating, system crashes, or performance issues, not charging problems.

A swollen battery can prevent a laptop from powering on as it disrupts connectivity or damages internal components. Identifying physical signs such as swelling or bulging is key, which aligns with the CompTIA A+ Core 1 objective on mobile device troubleshooting, specifically battery issues​.

Testing the power supply first ensures that the correct voltage is reaching all components, which is a common cause of boot issues. Modifying BIOS settings is not possible without a POST. Checking PCIe cards or replacing the motherboard are secondary steps if the power supply is functional. CompTIA A+ Core 1 objectives cover power supply testing as an essential troubleshooting step in system startup issues.

Reasoning: Many docking stations provide power and functionality only when the laptop is properly powered on. If the laptop was powered off (e.g., during the vacation), docking it will not automatically turn it on. The technician should first ensure the laptop is powered on by pressing the power button.

This is a common troubleshooting step when laptops in docking stations appear non-functional.

Relevance to CompTIA A+ Core 1: This falls under Objective 5.2, which covers diagnosing and resolving common laptop and mobile device issues.

Why the Other Options Are Incorrect:

A. Ensure the docking station is plugged in:

While ensuring power to the docking station is important, the scenario specifies that the issue occurred after a vacation. The likelihood of the docking station losing power coincidentally during the vacation is low. Verifying the laptop's power state should be the first step.

C. Plug the laptop in and let it charge overnight:

There is no indication the laptop’s battery is drained. While charging could resolve a dead battery, the user is more likely experiencing an issue where the laptop is powered off but docked, so charging overnight is not the best first step.

D. Connect the laptop directly to the network:

A network connection will not resolve the primary issue of the keyboard and display not working. Addressing the laptop’s power state is a higher priority.

Practical Example:

If a user returns from a vacation and places a powered-off laptop into a docking station, it may not automatically power on. Pressing the power button ensures the laptop is operational and communicating with the docking station.

CompTIA A+ Exam Objective Alignment:

Objective 5.2: Troubleshooting common laptop issues, including power, display, and peripheral connectivity.

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

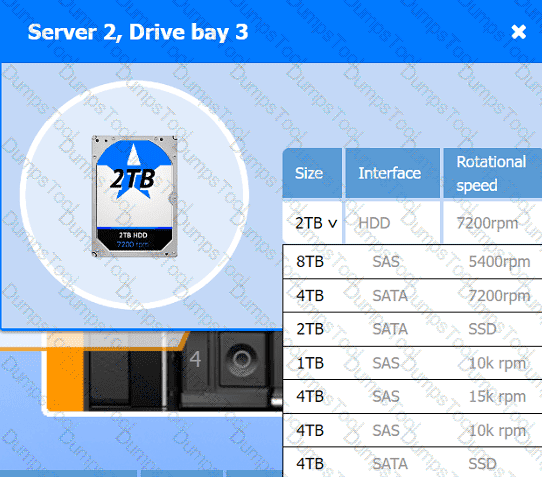

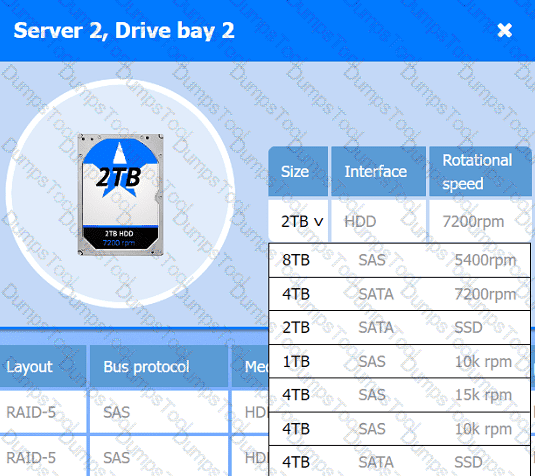

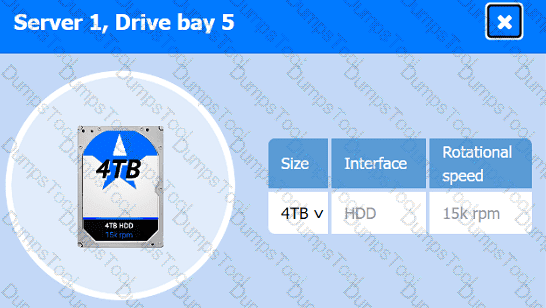

A user reports poor performance on the

application server.

INSTRUCTIONS

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A screenshot of a computer Description automatically generated

A screenshot of a computer Description automatically generated

The most likely cause is a swollen battery, which occurs when the battery's internal components break down, causing a buildup of gas. This results in:

Physical Symptoms: The battery bulges, pushing the screen away.

Operational Symptoms: The device may still power on when connected to a charger but fails to hold a charge due to battery degradation.

Option A (Malfunctioning power supply): Incorrect. Power supply issues affect charging but do not cause physical bulging.

Option B (Damaged charge port): Incorrect. A damaged port can prevent charging but does not explain the bulge.

Option D (Broken screen): Incorrect. A damaged screen does not cause the device to bulge; it is likely a secondary effect of the swollen battery.

Safety Note: A swollen battery poses a risk of fire or explosion and should be replaced immediately following proper disposal procedures.

If users are experiencing decreased bandwidth and connectivity issues in a Wi-Fi mesh network, the technician should use a Wi-Fi analyzer to determine whether the channel in use is overcrowded and to identify which channel the mesh network should use for best performance. References: CompTIA A+ Certification Study Guide, Tenth Edition, pg. 308

eSATA is the best choice for adding external storage as it offers a fast transfer rate and is specifically designed for external storage devices. SCSI is an older interface that is rarely used today, PCIe is typically used to add expansion cards to a computer, and NVMe is a newer interface for high-speed solid-state storage, but it is typically used for internal storage devices.

https://techlibrary.hpe.com/docs/iss/proliant-gen10-uefi/s_enabling_VT-d.html

Enabling VT-d (Virtualization Technology for Directed I/O) in the server's BIOS settings is required for the hypervisor to run properly. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 11

Thin, vertical lines on every printed page are usually caused by a dirty drum or toner cartridge. Performing the drum-cleaning procedure will likely resolve the issue. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 18

A smartphone that takes more than a day to fully charge may be due to a charger that is not powerful enough. The technician should verify that the charger is rated for the smartphone’s battery capacity and that it is providing the correct voltage and amperage123.

DDR3 is the most commonly used RAM type in modern desktop computers. It is faster and more energy efficient than its predecessors, and offers larger capacity modules. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 5
