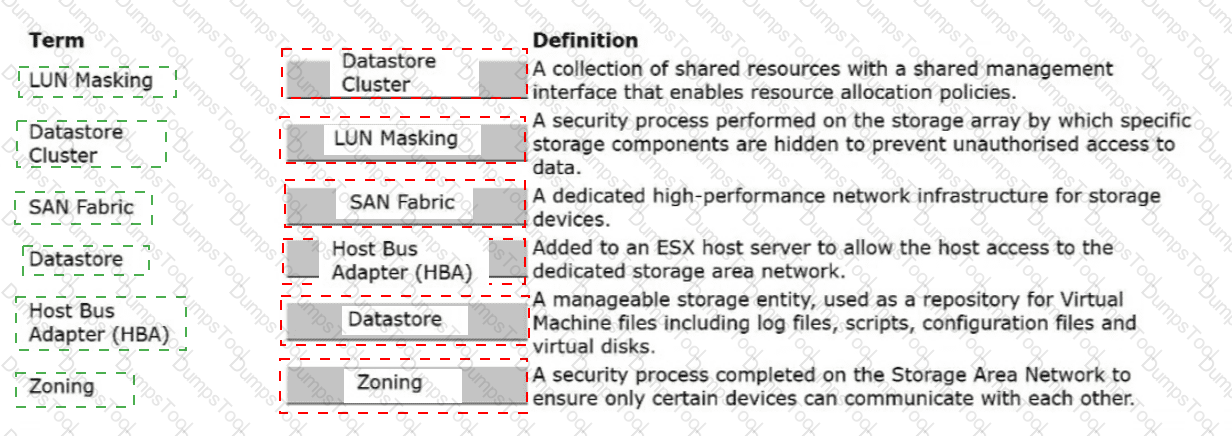

LUN Masking = A security process performed on the storage array by which specific storage components are hidden to prevent unauthorized access to data;

Datastore Cluster = A collection of shared resources with a shared management interface that enables resource allocation policies;

SAN Fabric = A dedicated high-performance network infrastructure for storage devices;

Datastore = A manageable storage entity used as a repository for Virtual Machine files including log files, scripts, configuration files and virtual disks;

Host Bus Adapter (HBA) = Added to an ESX host server to allow the host access to the dedicated storage area network;

Zoning = A security process completed on the Storage Area Network to ensure only certain devices can communicate with each other.

These definitions describe the core components of a Fibre Channel SAN design in a VCF Workload Domain. LUN masking is performed on the storage array and controls which hosts can see specific LUNs, preventing unauthorized access to storage. A datastore cluster is a collection of datastores managed as a shared resource pool, allowing placement and balancing policies through Storage DRS. A SAN fabric is the dedicated high-performance network that interconnects ESX hosts, Fibre Channel switches, and storage arrays. A datastore is the vSphere logical storage container where VM configuration files, virtual disks, logs, and related files reside. A Host Bus Adapter is the physical or virtual adapter in the ESX host that connects the host to the Fibre Channel storage area network. Zoning is performed on the Fibre Channel fabric and controls which initiators and targets can communicate. Together, zoning and LUN masking provide layered access control, while datastores and datastore clusters provide the vSphere consumption model. Reference topics: Fibre Channel SAN Concepts, SAN Fabric, Zoning, LUN Masking, VMFS Datastores, Datastore Clusters.

With “Ensure Accessibility,” vSAN migrates only the minimum amount of data required to keep objects accessible while the host enters maintenance mode. This mode is faster than Full Data Migration, but it does not fully reprotect all objects. The documentation states that objects might no longer be fully compliant with their storage policy during this evacuation mode, meaning they might not have access to all replicas. Because the default policy is RAID-1 with FTT=1, each object can tolerate only one failure. While the first host is in maintenance mode, some VM objects are already running in a reduced-availability state. If a second host loses network connectivity during this window, affected objects can lose quorum or access to required components. vSAN does not immediately rebalance or fully rebuild objects simply because Ensure Accessibility was selected, and permanent data loss is not the expected result from a temporary network loss. The likely impact is that some VMs become inaccessible until either the maintenance host returns or the isolated host reconnects. Reference topics: vSAN Maintenance Mode, Ensure Accessibility, Default Storage Policy, RAID-1 FTT=1, Network Partition Handling.

The two most relevant causes are insufficient vCenter permissions and incorrect DNS resolution. The VMware Live Recovery appliance must register with vCenter as a managed extension and service endpoint, so the account used during the Configure Appliance workflow must have the required vCenter privileges. A user that can authenticate but lacks registration or administration privileges can still cause the appliance registration to fail. DNS is equally critical because appliance registration depends on stable FQDN resolution, certificate validation, Lookup Service communication, and service endpoint registration. Forward and reverse DNS records must resolve correctly between the VMware Live Recovery appliance and vCenter Server. Deploying the appliance to a non-vSAN datastore is not the primary reason for vCenter registration failure. DHCP is not inherently invalid if the resulting address and DNS records are correct, though static addressing is usually preferred. A local Photon OS account on the VCSA is not the correct account type, but the direct technical issue is the lack of required vCenter permissions. Reference topics: vSAN Data Protection, VMware Live Recovery Appliance Registration, vCenter Permissions, DNS Forward and Reverse Resolution.

The administrator must create a datastore cluster from the three NFS datastores that are intended to host virtual machine workloads. The ISO datastore should not be included because datastore clusters should contain similar or interchangeable datastores used for the same purpose. All three NFS datastores must be available to each ESX host server so Storage DRS recommendations and VM placement are valid across the cluster. Storage DRS should be configured in Manual mode because the requirement states that migrations must occur only after administrator approval. Manual mode displays placement and migration recommendations but does not execute them automatically. The Storage DRS space threshold should be set to 50% so recommendations are generated when a datastore exceeds that utilization level. Setting the storage space utilization difference to 50% is not correct because that value controls the minimum difference between source and destination datastore utilization, not the trigger threshold itself. Fully Automated mode would violate the approval requirement by automatically applying migrations. Reference topics: Datastore Cluster Requirements, Storage DRS, Manual Automation Mode, Space Utilization Thresholds, NFS Datastores.

Option B satisfies every requirement because it separates management and workload storage onto dedicated Fibre Channel-backed VMFS datastores while relying on array-based encryption at rest. This avoids VMware native encryption and vSAN-specific encryption mechanisms, matching the regulatory requirement. Fibre Channel is a supported non-vSAN storage architecture for VCF and provides enterprise block storage with multipathing, LUN masking, zoning, and consistent datastore presentation. SPBM storage policies allow storage placement and compliance to align with array and LUN characteristics, supporting automated placement and operational consistency. For scalable file-based workloads, NFS v4.1 is appropriate as supplemental file storage, and Kerberos privacy mode provides authentication, integrity, and encryption in transit for NFS traffic. Restricting cross-domain datastore access preserves strict management/workload segregation. Option A does not properly address file workload scaling or NFS encryption. Option C violates the requirement for array-based encryption by using VMware VM encryption. Option D violates segregation by sharing one NAS platform across domains and relies on application-level encryption instead of the mandated storage architecture. Reference topics: Fibre Channel Storage Model, SPBM, Array-Based Encryption, NFS v4.1 Kerberos, Workload Domain Storage Segregation.
