 Cisco SD-WAN IPsec tunnels are different from native IPsec VPN tunnels in several ways. One of the unique features of Cisco SD-WAN IPsec tunnels is that they support real-time dynamic path selection, which means that they can automatically choose the best path for each application based on the network conditions and policies. This feature improves the performance, reliability, and efficiency of the network traffic. Native IPsec VPN tunnels, on the other hand, do not have this capability and rely on static routing or manual configuration to select the path for each tunnel. This can result in suboptimal performance, increased latency, and higher costs. References := Traditional IPsec Versus Cisco SD-WAN IPsec, SD-WAN vs IPsec VPN’s - What’s the difference?, SD-WAN vs. VPN: How Do They Compare?, Traditional IPSEC Versus SD-WAN IPSEC

 A centralized internet gateway is a network design that routes all internet-bound traffic from the on-premises infrastructure through a single point of egress, typically located at the data center or a regional hub1. This approach allows the enterprise to apply consistent security policies and access controls for SaaS applications, as well as optimize the bandwidth utilization and performance of the WAN links2. A centralized internet gateway can use various technologies to provide connectivity to SaaS applications, such as proxy servers, firewalls, web filters, and WAN optimizers3. However, a cloud-based proxy server (option A) is not a part of the centralized internet gateway, but rather a separate service that can be used to route traffic from the on-premises infrastructure to the SaaS provider data center4. VPN connections (option C) and dedicated, private connections (option D) are also not related to the centralized internet gateway, but rather alternative ways of providing secure and reliable access to SaaS applications from the on-premises infrastructure5. Therefore, the correct answer is option B, which describes the basic function of a centralized internet gateway. References := 1: Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 1: Cloud Connectivity Overview, Lesson 1: Cloud Connectivity Concepts, Topic: Centralized Internet Gateway 2: Cloud OnRamp for SaaS, Cisco IOS XE Catalyst SD-WAN Release 17.3.1a and Later, Topic: Centralized Internet Gateway 3: Architect and optimize your internet traffic with Azure routing preference, Microsoft Azure Blog, Topic: Routing via the premium Microsoft global network 4: What is SaaS? Softwareas a Service, Microsoft Azure, Topic: How SaaS works 5: How an application gateway works, Microsoft Learn, Topic: Application gateway components

Azure ExpressRoute is a service that enables a dedicated and secure connection between an on-premises infrastructure and Azure data centers through a colocation provider. A colocation provider is a third-party data center that offers network connectivity services to multiple customers. Azure ExpressRoute allows customers to bypass the public internet and connect directly to Azure services, such as virtual machines, storage, databases, and more. This provides benefits such as lower latency, higher bandwidth, more reliability, and enhanced security. Azure ExpressRoute also supports hybrid scenarios, such as connecting to Office 365, Dynamics 365, and other SaaS applications hosted on Azure. Azure ExpressRoute requires a physical connection between the customer’s network and the colocation provider’s network, as well as a logical connection between the customer’s network and the Azure virtual network. The logical connection is established using a Border Gateway Protocol (BGP) session, which exchanges routing information between the two networks. Azure ExpressRoute supports two models: standard and premium. The standard model offers connectivity to all Azure regionswithin the same geopolitical region, while the premium model offers connectivity to all Azure regions globally, as well as additional features such as increased route limits, global reach, and Microsoft peering. References: Designing and Implementing Cloud Connectivity (ENCC) v1.0, Learning Plan: Designing and Implementing Cloud Connectivity v1.0 (ENCC 300-440) Exam Prep, ENCC | Designing and Implementing Cloud Connectivity | Netec

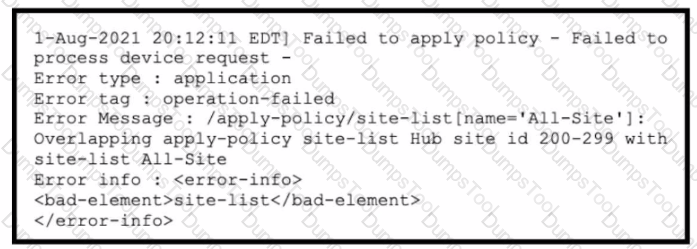

The problem is that the site-list “All-Site” has a higher match sequence than the site-list “Hub”, which means that the policy for “All-Site” will take precedence over the policy for “Hub” for any site that belongs to both lists. This creates a conflict and prevents the engineer from adding a new centralized control policy in Cisco vManage. To resolve this issue, the site-list “All-Site” should be configured with a new match sequence that is lower than the sequence for site-list “Hub”, so that the policy for “Hub” will be applied first and then the policy for “All-Site” will be applied only to the remaining sites that are not in the “Hub” list. References :=

• Designing and Implementing Cloud Connectivity (ENCC, Track 1 of 5), Module 3: Cisco SD-WAN Cloud OnRamp for Colocation, Lesson 3: Cisco SD-WAN Cloud OnRamp for Colocation - Centralized Control Policies
• Cisco SD-WAN Cloud OnRamp for Colocation Deployment Guide, Chapter 4: Configuring Centralized Control Policies
• Cisco SD-WAN Configuration Guide, Release 20.3, Chapter: Centralized Policy Framework, Section: Policy Configuration Overview

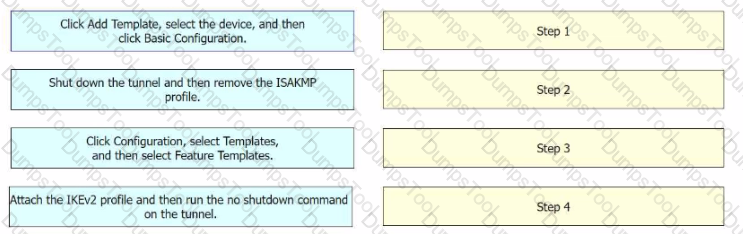

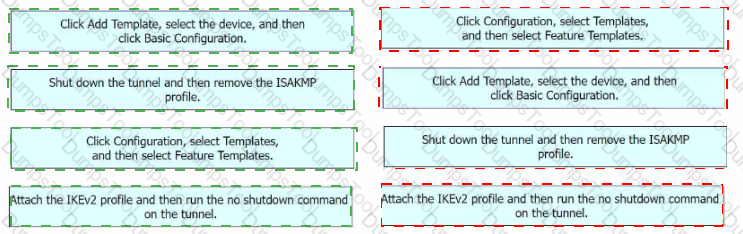

Step 1 = Click Configuration, select Templates, and then select Feature Templates. Step 2 = Click Add Template, select the device, and then click Basic Configuration. Step 3 = Shut down the tunnel and then remove the ISAKMP profile. Step 4 = Attach the IKEv2 profile and then run the no shutdown command on the tunnel.

The process of configuring a site-to-site IPsec VPN connection between an on-premises Cisco IOS XE router in Controller mode and AWS, and changing the IKE version from IKEv1 to IKEv2 in Cisco vManage involves several steps123.

• Click Configuration, select Templates, and then select Feature Templates: This is the first step where you navigate to the Templates section in the Configuration menu of Cisco vManage1.
• Click Add Template, select the device, and then click Basic Configuration: In this step, you add a new template for the device and proceed with the basic configuration1.
• Shut down the tunnel and then remove the ISAKMP profile: Before changing the IKE version, you need to shut down the existing tunnel and remove the ISAKMP profile that is configured for IKEv12.
• Attach the IKEv2 profile and then run the no shutdown command on the tunnel: Finally, you attach the newly created IKEv2 profile to the tunnel and bring the tunnel back up2.

References :=

• Configuring Internet Key Exchange Version 2 (IKEv2) - Cisco
• Switch from IKEv1 to IKEv2 on Cisco Routers - Cisco Community
• Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community
