OGA-031 Questions and Answers

Comprehensive and Detailed in Depth Explanation:TheArchiMate Core Frameworkcategorizes elements into three primary types:

Active Structure Elements– Represent entities that perform behavior (e.g., business actors, applications).

Behavior Elements– Represent functions, processes, or services.

Passive Structure Elements– Represent objects or information (e.g., data objects, artifacts).

TheArchiMate 3.2 Specificationexplicitly defines thesethree primary element types.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed In-Depth Explanation:

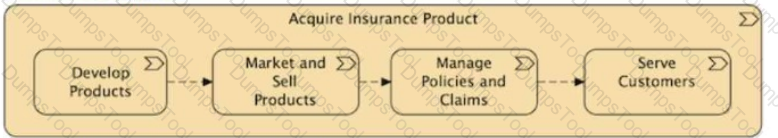

This diagram represents avalue stream, which is a key concept inArchiMate 3.2. Avalue streamdescribes howvalue is created and deliveredacross a sequence of activities. It is used to represent high-levelbusiness activities that contribute to the value creationfor a stakeholder or customer.

TheAcquire Insurance Productat the top level represents anend-to-endflow.

Thesub-elements(Develop Products, Market and Sell Products, Manage Policies and Claims, and Serve Customers) depicthow value is progressively builtthrough different stages.

Thedashed arrowsindicate a flow of value from one stage to the next, typical in value streams.

Analysis of Answer Choices:

✅A. A set of processes for acquiring insurance products→❌Incorrect.

Processes are typically lower-level activitiesdepicted using process modeling, such as BPMN or a process flow diagram.

ArchiMate 3.2 Specification, Section 6.3.2, differentiatesbusiness processesfromvalue streams.

✅B. A sequence of capabilities for acquiring insurance products→❌Incorrect.

Capabilities represent the organization’s abilitiesrather than sequential activities.

InArchiMate, capabilities are morestatic, focusing on what the organization can do, rather thanhow value is delivered over time.

ArchiMate 3.2 Specification, Section 7.3, explains the distinction betweencapabilities and value streams.

✅C. A value stream for acquiring insurance products→✅Correct Answer

A value stream represents a series of high-level activities that create valuefor a customer or stakeholder.

ArchiMate 3.2 Specification, Section 8.2.4, definesvalue streamsas sequences thatdeliver value incrementally.

Thisexact pattern(top-level action decomposed into astructured sequence of stages) is avalue stream.

✅D. A decomposition of the course of action for acquiring insurance products→❌Incorrect.

Course of actionis a concept inStrategy Layerof ArchiMate, referring to guidelines, policies, or directions rather than aflow of activities.

This isnot a strategic breakdown, but rather a flow ofvalue creation.

ArchiMate 3.2 Specification, Section 7.5, states thatcourse of action is different from a structured value creation sequence.

Final Answer:✅C. A value stream for acquiring insurance products.

References:

ArchiMate 3.2 Specification: Sections 6.3.2 (Business Process), 7.3 (Capabilities), 8.2.4 (Value Streams), and 7.5 (Course of Action).

Archi User Guide: Value Stream modeling and decomposition principles.

According to the ISO/IEC 42010 standard1, an architecture viewpoint is a specification of the conventions for constructing and using a view. A view is a representation of a whole system from the perspective of a related set of concerns. An architecture view on an Enterprise Architecture is a representation of a part or whole of an Enterprise Architecture from the perspective of one or more stakeholders and their concerns.

The ArchiMate language provides a flexible approach in which architects and other stakeholders can use their own views on the Enterprise Architecture. In this approach, architecture views are specified by architecture viewpoints. Architecture viewpoints define abstractions on the set of models representing the Enterprise Architecture, each aimed at a particular type of stakeholder and addressing a particular set of concerns2.

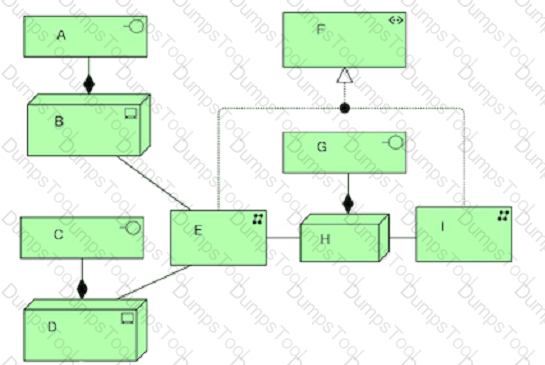

Based on the ArchiMate 3 documents or objectives, a communication network represents a set of structures that connects devices or system software for transmission, routing, and reception of data. A path models the relation between two or more technology internal active structure elements, through which these can exchange information. The diagram uses a flow relationship to indicate that data flows from server B to communication network E, then through path F to communication network I. The notation for a flow relationship is a dashed line with an open arrowhead at the end that points to the direction of the flow.

References: ArchiMate® 3.2 Specification, Chapter 11 Technology Layer, Section 11.2 Active Structure Elements 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.4 Dynamic Relationships 1; ArchiMate communication network 2.

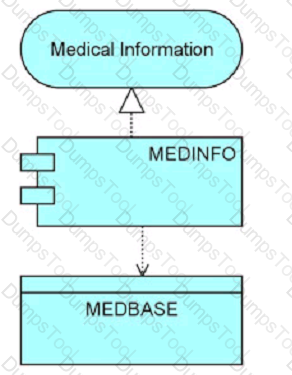

Comprehensive and Detailed in Depth Explanation:In theApplication Layer metamodel, anApplication Serviceprovides functionality that operates onData Objects. TheAccessrelationship is used to model thereading, writing, creation, or deletionof aData Objectby anApplication Service.

This is becauseApplication Servicesdefine what applications offer, andData Objectsrepresent the structured data they process. TheArchiMate 3.2 Specificationexplicitly states thatApplication ServicesuseAccessrelationships to interact withData Objects.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed in Depth Explanation:TheGroupingelement is acomposite elementin ArchiMate. Itcombines multiple elements into a single logical unitto simplify the representation of complex architectures.

UnlikeAggregation, which represents a relationship between a whole and its parts,Groupingallows the modeler to create arbitrary clusters of elements, regardless of their layer or type.

TheArchiMate 3.2 Specificationconfirms thatGroupingis a composite element used for structuring models and can include elements from different aspects and layers.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed In-Depth Explanation:

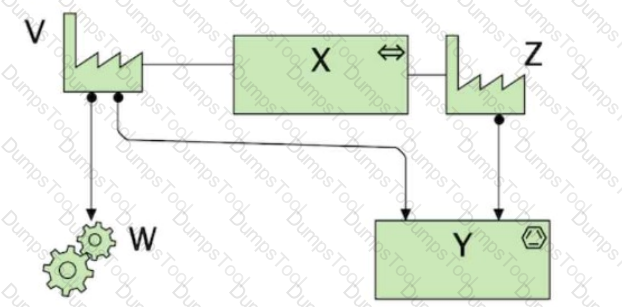

ThisArchiMate Physical Layer diagramrepresentslogistics and supply chain operations. The elements in the diagram align withphysical infrastructure conceptsused inArchiMate 3.2.

Understanding the Diagram Elements:

V (Factory symbol)→ Represents aFactory or Production Facility, where goods are manufactured.

W (Gear symbol)→ RepresentsRaw Material or Equipmentthat isused in production.

X (Network or Transportation symbol)→ RepresentsTransportation or a Distribution networkfor moving goods.

Y (End-point receiving goods)→ Represents alogistics center, warehouse, or transportation endpoint.

This matchesoption D, where:

V = Factory→ The starting point of manufacturing.

W = Raw material→ Essential input for production.

X = Transportation→ Moving products to distribution centers.

Analysis of Answer Choices:

✅A. V = Production process, W = Finished Material, X = Transport network→❌Incorrect

V is not a process; it is aphysical location (Factory).

W represents raw material, not finished material.

X represents transportation, but V is wrongly classified as a process.

✅B. V = Equipment, W = Facility, X = Distribution channel→❌Incorrect

V represents a Facility (Factory), not just Equipment.

W represents raw material, not a Facility.

X is more of a transportation network rather than a distribution channel.

✅C. V = Facility, W = Equipment, X = Distribution network→❌Incorrect

W represents raw material, not just Equipment.

X represents Transportation, not strictly a distribution network.

✅D. V = Factory, W = Raw material, X = Transportation→✅Correct Answer

This is the best match with the diagram’s physical elements.

V (Factory) is the production source.

W (Raw material) is used in production.

X (Transportation) is the means of moving goods.

ArchiMate 3.2 Specification, Section 7.7, definesFacilities, Materials, and Transportation as part of the Physical Layer modeling concepts.

Final Answer:✅D. V = Factory, W = Raw material, X = Transportation.

References:

ArchiMate 3.2 Specification: Sections 7.7 (Facilities & Physical Elements), 7.8 (Material Flow), and 7.9 (Distribution & Logistics).

Archi User Guide: Modeling physical infrastructure in enterprise architecture.

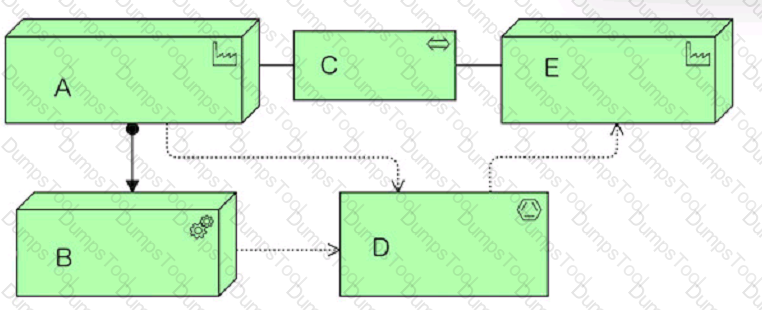

The diagram uses the ArchiMate notation for physical elements, which are used to model physical concepts like machines, physical installations, materials, and distribution networks. A is an equipment element, which represents a physical machine, tool, or instrument that can create, use, store, move, or transform materials. B is a material element, which represents tangible physical matter or energy. C is a distribution network element, which represents a physical network used to transport materials or energy.

References: ArchiMate Physical elements1; ArchiMate® 3.2 Specification, Chapter 9: Physical Elements2; Introduction to ArchiMate 3.0 (Part 4 Physical Elements)3.

Comprehensive and Detailed In-Depth Explanation:

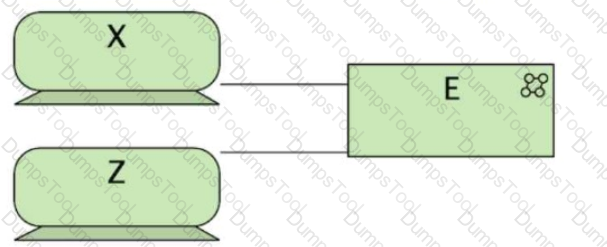

This diagram represents aTechnology Layer modelin ArchiMate, whereX and Z are servers, andE is a shared technology component.

X and Z are likely hardware devices (Servers), which are typically represented as Technology Nodes or Devices in ArchiMate.

E is a shared resource that both servers connect to, implying a common storage or network area storage device.

According toArchiMate 3.2,Technology Objects like Storage Devices or Infrastructure Services can be shared across multiple devices.

Analysis of Answer Choices:

✅A. The servers, represented by devices, are connected by a communication network.→❌Incorrect

There isno explicit network symbol(e.g., a communication path or a network node).

Therelationship between X, Z, and E indicates a shared resource rather than a network connection.

ArchiMate 3.2 Specification, Section 6.6.4, definesCommunication Networksseparately, and none are present here.

✅B. The servers are shown in the technology interaction E, where they collectively process data.→❌Incorrect

Technology Interaction represents behaviorin ArchiMate, meaning two or more active elements arecollaborating on a process.

E is a shared object, not an interaction process.

✅C. The servers share a common network area storage device E.→✅Correct Answer

E is a shared resource, meaningit is likely a storage device used by both servers.

ArchiMate 3.2 Specification, Section 6.6.2, states thatTechnology Objects can represent storage elementsused by multiple devices.

Thismatches the pattern of a shared Network Attached Storage (NAS) or Storage Area Network (SAN).

✅D. Technology collaboration E represents a point of access for services offered by the servers.→❌Incorrect

Technology Collaboration elementsrepresentactive behavior, not astatic resourcelike a shared storage system.

E does not behave as a collaboration element but as a shared infrastructure object.

Final Answer:✅C. The servers share a common network area storage device E.

References:

ArchiMate 3.2 Specification: Sections 6.6.2 (Technology Object), 6.6.4 (Communication Network), and 6.6.7 (Technology Collaboration).

Archi User Guide: Understanding shared technology infrastructure and storage modeling.

Based on the ArchiMate 3 documents or objectives, an application component represents a modular, deployable, and replaceable part of a software system that encapsulates its behavior and data. An application service represents an explicitly defined exposed application behavior. A data object represents data structured for automated processing. A realization relationship indicates that an entity plays a critical role in the creation, achievement, sustenance, or operation of a more abstract entity. An access relationship models the ability of behavior and active structure elements to observe or act upon passive structure elements. The diagram uses a realization relationship from the MEDINFO application component to the Medical Information service to indicate that the application component realizes the service. The diagram also uses an access relationship from the MEDINFO application component to the MEDBASE data object to indicate that the application component accesses the data object.

References: ArchiMate® 3.2 Specification, Chapter 10 Application Layer, Section 10.1 Active Structure Elements 1; ArchiMate® 3.2 Specification, Chapter 10 Application Layer, Section 10.3 Behavior Elements 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.1 Structural Relationships 1; ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.3 Access Relationships 1; ArchiMate Example: Application Components - Visual Paradigm 2.

This is because a grouping is a composite element that aggregates or groups other elements based on some common characteristic or purpose. A course of action is a motivation element that represents an approach or plan for achieving some goal. An aggregation is a structural relationship that models the whole-part hierarchy between elements. A contract is a passive structure element that represents a formal or informal specification of an agreement between a provider and a consumer that specifies the rights and obligations associated with a product or service.

ased on the ArchiMate 3 documents or objectives, a grouping is a composite element that consists of other concepts, from one or more aspects or layers of the ArchiMate language. A grouping can be used to model a logical or physical grouping of elements that belong together based on some criteria. A grouping can itself aggregate or compose other groupings, leading to a hierarchy of these elements.

References: ArchiMate® 3.2 Specification, Chapter 4 Generic Metamodel, Section 4.1 Behavior and Structure Elements, Subsection 4.1.5 Composite Elements 1; Composite Elements | Enterprise Architect User Guide 2.

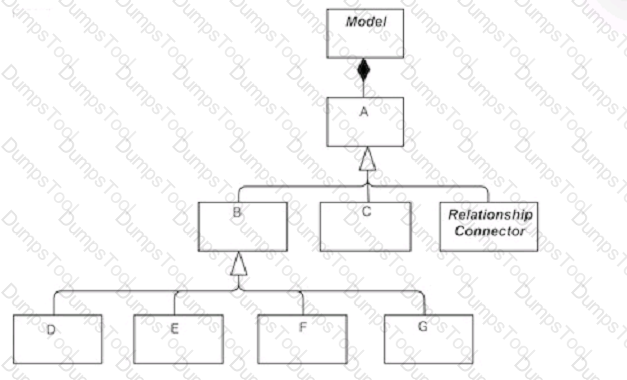

According to the ArchiMate language structure, a concept is either an element or a relationship. An element is either a behavior element, a structure element, a motivation element, or a composite element. A and B in the diagram correspond to these concepts respectively.

References: ArchiMate® 3.2 Specification, Chapter 3: Language Structure, Section 3.2 Top-Level Language Structure; ArchiMate® 3.0 Specification, Chapter 3: Language Structure, Section 3.2 Top-Level Language Structure.

Based on the ArchiMate 3 documents or objectives, an aggregation relationship indicates that an element groups a number of other concepts. The aggregation relationship has been inspired by the aggregation relationship in UML class diagrams. Unlike composition, aggregation does not imply an existence dependency between the aggregating and aggregated concepts. The notation for an aggregation relationship is a solid line with an empty diamond at the end that points to the whole element. The diagram uses an aggregation relationship from the bottom elements to the top element to indicate that the top element groups the bottom elements.

References: ArchiMate® 3.2 Specification, Chapter 5 Relationships, Section 5.1 Structural Relationships 1; Structural Relationship: Part 3 - ArchiMate Resources for FREE 2.

Comprehensive and Detailed in Depth Explanation:ADistribution Networkis aphysical elementthat represents acollection of structuresthat transport physical materials, goods, or energy.

APath, in ArchiMate, represents aroute or connection between two or more locations or elements. Since aDistribution Networkenablesmovement along a defined route, itrealizes a Path.

This relationship is explicitly defined in theArchiMate 3.2 Specification, whereDistribution Networkelementsrealize Paths.

References:

Archi User Guide​

ArchiMate 3.2 Specification

According to the Technology Layer metamodel, a communication network is a physical communication medium between two or more devices or other networks. A communication network realizes a path, which is a relation between two or more nodes through which they can exchange information.

References: Technology Layer in ArchiMate Part 1 - Metamodel1; ArchiMate® 3.2 Specification, Chapter 10: Technology Layer2.

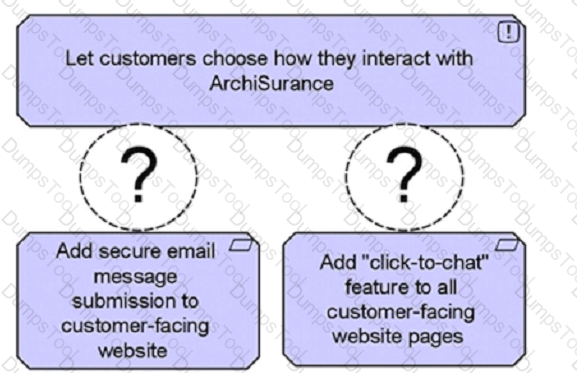

According to the ArchiMate 3.2 Specification1, a driver represents an external or internal condition that motivates an organization to define its goals and implement the changes necessary to achieve them. Drivers that are associated with a stakeholder are often called “concerns” of that stakeholder. A stakeholder represents the role of an individual, team, or organization (or classes thereof) that represents their interests in the outcome of the architecture. A motivation element is an element that represents the reasons for designing and implementing an architecture, such as stakeholders, drivers, goals, principles, requirements, or value. A motivation element is denoted by a hexagonal shape.

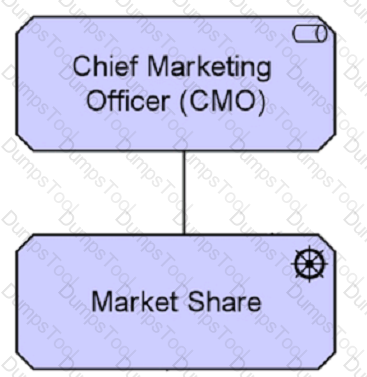

The diagram below shows a motivation element (driver) named Market Share that influences a stakeholder named CMO. The influence relationship is denoted by a dashed line with an open arrowhead.

The influence relationship means that the driver affects the stakeholder’s interests or concerns. Therefore, the best interpretation of the diagram is that the CMO is motivated by the driver Market Share.

According to the ArchiMate® 3.2 Specification1, external active structure elements are also called interfaces. An interface represents a point of access where one or more services are offered by an active structure element to its environment1. Therefore, the correct answer is B. Interfaces.
