SD-WAN-Engineer Questions and Answers

Comprehensive and Detailed Explanation

The Self-Zone is a predefined security zone in the Prisma SD-WAN ZBFW that represents the ION device's own control plane and management traffic.

Default Rule: The security policy contains an implicit, uneditable default rule that Allows traffic originating from the Self-Zone to any destination zone (Internet, Private WAN, etc.).

Rationale: This ensures that the device can always perform essential critical functions—such as connecting to the Cloud Controller, resolving DNS, syncing time via NTP, and establishing VPN tunnels—without the administrator needing to manually create "Allow" rules for the device itself. If this traffic were blocked by a "Deny All" default, the device would become unmanageable (bricked) immediately after applying the policy.

Comprehensive and Detailed Explanation

The RMA replacement process in Prisma SD-WAN is designed to be seamless, leveraging the decoupling of logical configuration from physical hardware.

Replace Device Workflow: The administrator should use the "Replace Device" (or RMA) function within the portal. This workflow allows you to select the "Defective" device (old serial) and the "Replacement" device (new serial).

Configuration Transfer: Once executed, the system automatically binds the existing Device Shell (which contains all interface configs, routing policies, and site associations) to the new hardware's serial number. The new device, once connected to the internet, will "call home," identify itself, and download the exact configuration of the previous unit.

License Transfer: While the configuration moves automatically, the Support License transfer typically requires a specific step in the Customer Support Portal (CSP) or happens automatically if processed as a formal RMA order. Options A and D are incorrect because they involve manual reconfiguration, which is unnecessary and error-prone. Option C is incorrect as the ION platform relies on cloud-based config management, not local USB backups for hardware swaps.

Comprehensive and Detailed Explanation

In the Prisma SD-WAN architecture, the terminology distinguishes between "Native" automation and "Legacy" interoperability.

Secure Fabric Links: These are the proprietary, automated overlay tunnels created between two Prisma SD-WAN ION devices (e.g., Branch ION to Data Center ION). The controller automatically manages the IP addressing, key rotation, and routing for these links. You do not manually configure "Phase 1" or "Phase 2" parameters for Secure Fabric links.

Standard VPNs: These are traditional, standards-based IPSec tunnels configured to connect an ION device to a Non-ION endpoint (Third-Party Peer). This is used for "Data Center to Data Center" connections where one side is a legacy firewall (e.g., Cisco ASA, Palo Alto Networks NGFW) or for connecting to cloud security services (SSE) that do not have a specific CloudBlade integration. For a Standard VPN, the administrator must manually define the IKE/IPSec profiles, pre-shared keys, and peer IP addresses to match the third-party device's configuration.

In the Prisma SD-WAN solution, multi-tenancy and network isolation are achieved through the use of Virtual Routing and Forwarding (VRF) instances. However, there are many operational scenarios—such as providing shared access to a common service (e.g., DNS, NTP) or a central Internet gateway—where traffic must transition between these isolated routing domains. This process is known as route leaking.

In the Prisma SD-WAN management interface, route leaking is specifically configured within the VRF Profile. Unlike traditional CLI-based routers where route leaking might be configured under a global routing table or individual VRF definitions via import/export targets, Prisma SD-WAN utilizes a profile-based approach to ensure scalability and consistency across multiple sites. A VRF Profile acts as a template that defines the routing behavior for specific VRFs across the fabric.

When an administrator navigates to the VRF Profile settings, they can define "Leaking Rules." These rules specify the "From VRF" (source) and "To VRF" (destination) parameters, along with the specific prefixes or default routes that should be shared. By placing this configuration within the VRF Profile rather than a site-specific configuration, Palo Alto Networks allows for a "configure once, apply many" workflow. Once the VRF Profile is updated with the leaking rules, any ION device associated with that profile will automatically update its local routing table to allow the specified inter-VRF communication. This centralized orchestration simplifies the management of complex segmentation requirements in large-scale SD-WAN deployments.

The Prisma SD-WAN (ION) device includes a native, application-aware Zone-Based Firewall (ZBFW) that provides comprehensive security within the branch without the mandatory requirement for additional hardware.2 The fundamental principle of this architecture is the grouping of interfaces and sub-interfaces into logical Security Zones.3 Once these zones are defined (e.g., LAN, WAN, Guest, IoT), the administrator can create security policies that govern the traffic permitted to flow between them.4

Unlike traditional routers that rely on stateless Access Control Lists (ACLs) which are difficult to manage and lack application visibility, the Prisma SD-WAN ZBFW is stateful and application-aware.5 This means it can apply granular control over North-South traffic (flows moving between the LAN and the WAN/Internet) and East-West traffic (flows moving between different segments within the LAN, such as from a Guest zone to a Corporate zone).6

By using security zones, an ION device can ensure that even if two local networks are connected to the same physical appliance, they remain completely isolated unless a specific policy explicitly allows communication. This "Zero Trust" approach at the branch edge allows organizations to segment vulnerable devices (like IoT) from critical internal resources and strictly control how users access the internet or the corporate data center.7 The ZBFW works in tandem with the global controller to ensure that security postures are consistent across all branch locations, eliminating the complexity of manual ACL management at each site.8

In the Prisma SD-WAN architecture, the Controller serves as the centralized management and control plane for the entire fabric. While the Cloud Identity Engine (CIE) is the component responsible for collecting and consolidating user-to-IP mappings from various identity providers (such as Active Directory, Okta, or Azure AD), it does not directly manage the distribution of this operational data to the individual ION devices at the branch level.

Instead, the Prisma SD-WAN Controller integrates with the Cloud Identity Engine to ingest these identity mappings. Once the Controller has synchronized the User-IP and user-group information, it acts as the primary orchestrator. It is responsible for distributing these mappings down to the ION devices across all sites. This distribution ensures that when an ION device sees traffic from a specific source IP, it can accurately associate that traffic with a specific user or group based on the metadata provided by the Controller.

By centralizing this distribution through the Controller, Prisma SD-WAN ensures consistency across the network. Branch ION devices can then apply Application-Based Path Selection and security policies based on user identity rather than just IP addresses. This architectural design offloads the processing requirements of maintaining direct connections to identity providers from the branch hardware, allowing the Controller to handle the heavy lifting of orchestration and global synchronization of identity data.

Comprehensive and Detailed Explanation

In Prisma SD-WAN, Custom Applications are global policy objects managed centrally on the controller.

Immediate Propagation: When an administrator creates or modifies a Custom Application definition (e.g., updating the IP subnet or port for an internal app), the Prisma SD-WAN controller automatically pushes this update to all connected ION devices in the tenant.

No Manual Push: Unlike some legacy firewall management paradigms (like Panorama "Commit and Push"), the Prisma SD-WAN architecture is "intent-based" and continuously synchronized. A change to a global object like an App Definition is considered a live configuration change and is distributed immediately via the secure control channel.

No Reboot: The ION data plane updates its classification engine dynamically without interrupting traffic or requiring a reboot. This ensures that policy enforcement (steering "Inventory_App" to the correct path) remains accurate in real-time.

In the Prisma SD-WAN architecture, security is built directly into the AppFabric using a centralized, controller-led approach to key management. Unlike traditional VPNs that rely on manual Internet Key Exchange (IKE) or static Pre-Shared Keys (PSKs) which can be administratively burdensome and security-vulnerable, Prisma SD-WAN automates the entire lifecycle of encrypted tunnels. The Prisma SD-WAN Controller acts as the central authority for identity and key distribution for all ION (Instant-On Network) devices within the tenant's fabric.

Specifically, the VPN shared secrets used to secure these tunnels are ephemeral and are valid for exactly 24 hours. This 24-hour validity period is a security best practice implemented by Palo Alto Networks to limit the "blast radius" or window of exposure in the unlikely event that a key is compromised. The controller automatically handles the generation, distribution, and rotation of these secrets. Before the 24-hour timer expires, the controller pushes new keys to the ION devices, which then perform a hitless rollover. This ensures that the data plane remains active and encrypted without requiring manual intervention from a network administrator. If an ION device loses its control plane connection to the controller, it will maintain its existing tunnels using the current keys until they expire, at which point it must re-authenticate with the controller to receive a new set of valid secrets. This automated rotation is a core component of the Prisma SD-WAN Zero-Trust security model.

Comprehensive and Detailed Explanation

In Prisma SD-WAN (CloudGenix), Zone-Based Firewall (ZBFW) policies rely on the device's ability to map an IP address to a User-ID to enforce identity-based rules. The key to this question is understanding where the mapping exists and which direction the policy attributes (Source User vs. Destination User) apply to.

1. Mapping Location (Branch-1): The prompt states that Branch-1 has the user-to-IP mapping for User-1. For the most effective and scalable security enforcement, policies should be applied at the source (ingress) device where the traffic originates and where the user identity is known. This prevents unauthorized traffic from consuming WAN bandwidth only to be dropped at the destination. Therefore, the Branch-1 ION is the correct enforcement point for User-1's traffic.

2. Source vs. Destination User:

User-1 is the Source: In all scenarios, User-1 is the initiator of the traffic. Therefore, the security rule must match on Source User-ID.

Options C and D are incorrect because they suggest using Destination User-ID based rules to control User-1. Destination User-ID rules are used when the target of the traffic is a known user (e.g., VoIP calls to a specific user's phone), not when filtering based on the sender. Furthermore, relying on the DC or Branch-2 ION to enforce policies for User-1 would require the propagation of User-ID mappings across the overlay, whereas local enforcement at Branch-1 is the standard architectural model.

3. Valid Use Cases (A and B):

Option A (SaaS/Internet): The Branch-1 ION acts as the internet gateway. It can use the local mapping (IP-1 = User-1) to allow or deny access to specific SaaS applications (Direct Internet Access) based on the user's identity (e.g., "Allow Marketing Group to access Social Media").

Option B (Internal Segmentation): The Branch-1 ION can enforce policies for traffic moving between local zones (e.g., from a "Users" VLAN to a "Servers" VLAN within the branch). Since the ION routes this traffic and holds the mapping, it can enforce Source User-ID policies to secure local private applications.

In Prisma SD-WAN, application performance is monitored through distinct metrics that separate network health from application health. The provided graph displays Network Transfer Time (NTT) in blue and Server Response Time (SRT) in orange. NTT measures the round-trip time of packets traversing the WAN fabric, while SRT measures the time elapsed from when the server receives a request to when it sends the first response packet.

Analysis of the telemetry data shows that the NTT (blue line) remains consistently low and stable, generally staying below 100 milliseconds throughout the capture period. This indicates that the SD-WAN path and underlying network circuits are not the source of the latency. Conversely, the SRT (orange line) exhibits significant and erratic spikes, reaching as high as 450 to 475 milliseconds. These spikes occur while the network latency (NTT) remains flat.

Because the latency increases are isolated to the SRT metric, the root cause is confirmed to be on the Application Server side. This pattern typically suggests that the server is struggling with resource exhaustion, high CPU utilization, or database query delays during peak processing times. For a real-time application, these SRT spikes translate directly to jitter and "lag" for the end-user. By distinguishing between these two metrics, Prisma SD-WAN allows network administrators to prove that the network is performing within SLA and shift the troubleshooting focus to the application or server management teams, significantly reducing mean time to innocence (MTTI).

Comprehensive and Detailed Explanation

The Flow Browser and App Response Time metrics in Prisma SD-WAN are critical tools for isolating the fault domain—determining whether a problem lies in the "Network" or the "Application."

Network Transfer Time (NTT) / Round Trip Time (RTT): These metrics measure the time it takes for packets to traverse the network (WAN/LAN) and for acknowledgments to return. A low NTT (e.g., <50ms) confirms that the network pipes (SD-WAN overlay, Underlay circuits) are healthy and transporting packets quickly.

Server Response Time (SRT): This metric specifically measures the time between the server receiving a request and the server sending the first byte of the response. It essentially measures the "processing time" of the backend server.

In the scenario described, the network metrics (NTT/RTT) are excellent, effectively ruling out WAN congestion, packet loss, or latency (Option A and C). However, the Server Response Time (SRT) is very high (500ms). This signature is a definitive indicator that the network delivered the request instantly, but the application server took a long time to process it. This points the troubleshooting effort toward the server infrastructure (e.g., a slow SQL query, an overloaded web server, or lack of compute resources) rather than the SD-WAN environment.

Comprehensive and Detailed Explanation

The CloudBlade platform is a distinguishing architectural component of the Prisma SD-WAN solution. It is not a physical piece of hardware, nor is it software that runs directly on the branch ION device's CPU.

Instead, the CloudBlade platform is a cloud-based API integration layer hosted by Palo Alto Networks. It functions as an intelligent broker or "translator" between the Prisma SD-WAN Controller and external third-party services (such as Prisma Access, Amazon Web Services, Azure, ServiceNow, or Zscaler).

When an administrator configures the Prisma Access CloudBlade, for example, they input their API credentials and intent (e.g., "Connect all US branches to US West"). The CloudBlade engine then:

Communicates with the Prisma Access API to provision the remote IPSec termination nodes (Security Processing Nodes).

Translates this configuration into specific instruction sets for the Prisma SD-WAN Controller.

The Controller then pushes the necessary VPN tunnel configurations, IKE parameters, and routing rules to the relevant ION devices.

This architecture eliminates the need for manual IPSec configuration on every branch device. It ensures that if the third-party service changes its IP addresses or settings, the CloudBlade can detect the change via API and automatically update the branch fleet, maintaining connectivity without manual administrator intervention.

Comprehensive and Detailed Explanation

The ION 9000 is the flagship high-performance hardware model designed for large Data Centers and Campus Cores.

10GbE Connectivity (C): The defining hardware differentiator for the ION 9000 is its inclusion of multiple 10 Gigabit Ethernet (SFP+) interfaces. This allows it to interconnect with Data Center core switches at 10Gbps speeds, supporting the multi-gigabit aggregate throughput required for hub sites aggregating traffic from hundreds of branches.

ION 3000: The ION 3000 is a branch-tier device limited to 1 Gigabit Ethernet (copper/SFP) interfaces.

Bypass Pairs (B): Both models (and others like ION 2000/7000) support Bypass Pairs.

LTE/PoE (A/D): These are typically features of smaller branch/edge models (like ION 1200), not the high-end DC concentrators.

Comprehensive and Detailed Explanation

To defend against volumetric attacks such as TCP SYN Floods, UDP Floods, or ICMP Floods, Prisma SD-WAN (like PAN-OS) utilizes Zone Protection Profiles.

Function: A Zone Protection Profile is a specific security object designed to screen traffic for protocol anomalies and flood behaviors before it is processed by the complex firewall policy engine. It sets thresholds (e.g., "Max 1000 SYNs/sec"). If the traffic rate exceeds this threshold, the system triggers an action (Alarm, Drop, or SYN Cookies) to protect the device's resources.

Application: Unlike a standard ZBFW Rule (A) which filters based on Source/Destination/App-ID (which might still allow the initial handshake packets that cause the flood), a Zone Protection Profile is applied to the Zone object itself (in this case, the LAN Zone). This ensures that the flood is mitigated at the ingress stage, preventing the ION's session table and CPU from being exhausted by the attack.

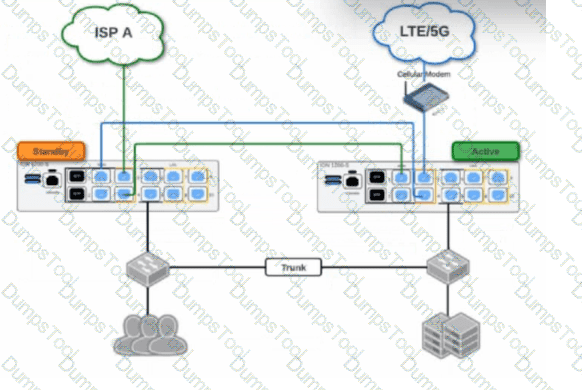

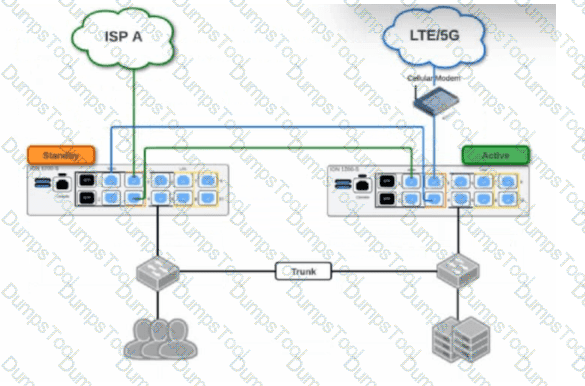

Prisma SD-WAN High Availability (HA) for branch ION devices, particularly the Gen-2 ION 1200-S, is designed to provide "100% WAN Capacity" preservation during a hardware or power failure. This is achieved through the use of Bypass Pairs (Fail-to-Wire). In the provided topology, the ISP A and LTE/5G circuits are cross-connected using the bypass ports (typically ports 3 and 4 on the ION 1200-S).

When the "Active" ION device loses power, the internal physical relays in its bypass ports transition to a closed state, effectively creating a physical bridge between the ports. In this scenario, the LTE/5G signal—which enters the Active ION's port 4—is mechanically bridged to port 3, allowing it to pass through to port 4 of the Standby ION. Simultaneously, ISP A is already connected to the Standby ION. Consequently, once the Standby device completes its transition to the "Active" state, it has physical access to both WAN circuits, validating Statement A.

Regarding the LAN transition, Prisma SD-WAN does not use standard VRRP for ION-to-ION HA; instead, it uses a proprietary Control Plane HA mechanism. When the failover occurs, the newly active ION takes over the IP addresses of all configured Switch Virtual Interfaces (SVIs) and LAN interfaces. To ensure the downstream Layer 2 infrastructure (like the LAN switches shown in the diagram) updates its MAC address tables to point to the new physical hardware for those IPs, the newly active ION immediately broadcasts a Gratuitous ARP (GARP). This ensures that LAN traffic is correctly steered to the new device without a significant timeout, validating Statement C.

Comprehensive and Detailed Explanation

The CLI command debug controller reachability (e.g., debug controller reachability 1) is the specific diagnostic tool designed to verify the entire connectivity chain required for management plane availability.

Unlike a simple ICMP ping (Option A), which only tests Layer 3 connectivity to an IP address, the debug controller reachability command performs a sequential set of tests:

DNS Resolution: It attempts to resolve the specific Locator service URL (locator.cgnx.net or region-specific FQDN) to verify DNS functionality.

TCP Connectivity: It tests the ability to establish a TCP connection to the controller on port 443 (HTTPS).

SSL/TLS Handshake: It validates that the device can successfully negotiate the secure tunnel required for authentication.

If this command fails at the DNS step, the issue is likely a missing DNS server in the interface config. If it fails at the TCP step, it implies an upstream firewall is blocking outbound port 443. This targeted output allows the engineer to pinpoint exactly why the device is offline in the portal.

Prisma SD-WAN is built on an application-defined fabric that prioritizes deep visibility into network traffic and application performance.1 To deliver the high-fidelity flow data and application visibility required for modern operations, Prisma SD-WAN utilizes IPFIX (Internet Protocol Flow Information Export).2 IPFIX is a standardized protocol based on NetFlow v9 that allows for the export of IP flow information from network devices to a collector or management system.3

In the Prisma SD-WAN architecture, ION devices act as the exporters.4 Because the system is application-aware, it doesn't just export basic 5-tuple information (source/destination IP, ports, and protocol); it exports rich metadata including application IDs, performance metrics (latency, jitter, packet loss), and path information. This allows the Prisma SD-WAN Controller and the associated Analytics engine to reconstruct a complete picture of every flow in the network.

While other protocols like SNMPv3 are supported for basic device health monitoring (such as CPU or interface status) and ADEM (Autonomous Digital Experience Management) provides end-to-end visibility for mobile users or SASE-connected branches, IPFIX is the primary "engine" for flow-level data across the SD-WAN fabric. Unlike traditional IP SLA, which relies on synthetic probes, the IPFIX-based monitoring in Prisma SD-WAN uses real-time application traffic to assess performance. This ensures that the visibility provided in the Flow Browser and Analytics dashboards accurately reflects the actual user experience, enabling granular troubleshooting and proactive capacity planning.

Comprehensive and Detailed Explanation

The ION Device Data Plane (the software running locally on the hardware appliance at the branch) is the component responsible for the heavy lifting of traffic analysis.

Edge Processing: Prisma SD-WAN uses an "Application-Defined" architecture. The ION device performs Deep Packet Inspection (DPI) on the first few packets of a flow to identify the application (e.g., distinguishing "Skype Video" from "Skype Chat").

Metric Calculation: The ION device timestamping engine calculates the performance metrics (RTT, NTT, SRT) in real-time as packets pass through its interfaces. It aggregates this metadata.

Role of Controller (B): The Controller collects and visualizes this data (Analytics), but it does not generate it. The Controller does not sit in the data path of the user traffic. If the ION relied on the controller for App-ID, latency would be unacceptably high. Therefore, all detection and metric generation happens locally on the ION Device.

Comprehensive and Detailed Explanation

Prisma SD-WAN utilizes Link Quality Monitoring (LQM) to maintain a real-time health score for every WAN path.

To ensure the system knows the quality of a path before sending critical user traffic onto it, the ION device uses Active Probing.

Mechanism: The ION sends synthetic probe packets (typically UDP) across the Secure Fabric (VPN tunnels) and Direct Internet paths to its peers. These probes measure Latency, Jitter, and Packet Loss.

Active vs. Passive: While the system does use Passive Monitoring (observing actual user flows) when traffic is present to reduce overhead, Active Probes are essential for idle links or backup paths. Without active probing, the ION would have no data to make an intelligent steering decision for the first packet of a new video call. This ensures that "Real-Time" policies always have up-to-date metrics to select the best path immediately.

Comprehensive and Detailed Explanation

The Prisma SD-WAN (CloudGenix) solution is designed with a separation of the control plane (Controller) and the data plane (ION devices).1 In the event that an ION device loses connectivity to the Cloud Controller (often referred to as running in "headless mode"), the device continues to forward traffic and maintain existing VPN tunnels using the keys it currently holds.2

However, for security purposes, the VPN session keys (shared secrets) used for the Secure Fabric have a finite validity period. The system is designed such that these keys are rotated regularly.3 If the controller is unreachable, the ION device can continue to rotate keys locally and maintain the VPNs for a maximum default period of 72 hours (exactly 3 days).4

If the connection to the controller is not restored within this 72-hour window, the keys will eventually expire, and the ION will be unable to retrieve new authorized key material from the controller.5 Consequently, the VPN tunnels will go down, and the "out of shared secret key" error will be observed in the VPN status logs. This mechanism ensures that a permanently compromised or stolen device cannot maintain network access indefinitely without central authorization.
