Definition of Heat Maps:

A heat map is a graphical representation of data where individual values are represented by colors. In the context of wireless networking, a heat map shows the wireless signal strength in different areas of a building.

Purpose of a Heat Map:

Heat maps are used to illustrate the effectiveness of wireless networking coverage, identify dead zones, and optimize the placement of access points (APs) to ensure adequate coverage and performance.

Comparison with Other Options:

Logical Diagram: Represents the logical connections and relationships within the network.

Layer 3 Network Diagram: Focuses on the routing and IP addressing within the network.

Service-Level Agreement (SLA): A contract that specifies the expected service levels between a service provider and a customer.

Creation and Use:

Heat maps are created using specialized software or tools that measure wireless signal strength throughout the building. The data collected is then used to generate a visual map, guiding network administrators in optimizing wireless coverage.

Comprehensive and Detailed Explanation (paraphrased, aligned to N10-009):

In a spine–leaf architecture, endpoints (including servers, firewalls, and WAN/edge routers) connect to leaf switches. Leaf switches then uplink to spine switches; spine switches do not have endpoints connected directly to them. Therefore, a WAN router (an external/edge device) should connect to the leaf layer—often specifically to a “border leaf” that handles external connectivity.

Why not B. Core or D. Spine? In spine–leaf, “core” isn’t a formal layer, and spines are designed only to interconnect leafs, not to terminate endpoints.

Why not A. Access? “Access” is a term from the traditional three-tier model (access–distribution–core). In modern spine–leaf language, the analogous layer for endpoint attachment is the leaf.

References (CompTIA Network+ N10-009):

Domain: Network Infrastructure — Data center and campus architectures (spine–leaf vs. three-tier), roles of leaf/spine, WAN/edge connectivity points.

===========

The most likely issue is a duplex mismatch, which is a well-documented cause of collisions and poor network performance, as outlined in the CompTIA Network+ N10-009 troubleshooting objectives. A duplex mismatch occurs when one end of a network link is configured for full duplex while the other end is operating in half duplex. In half-duplex mode, devices must take turns transmitting and receiving data, which inherently allows for collisions. When paired with a full-duplex device—which expects simultaneous send and receive—collisions and retransmissions occur frequently.

The presence of collisions on a switch interface is a key diagnostic clue. Modern Ethernet switches operating correctly in full duplex should not experience collisions at all. When collisions are observed, it almost always points to a duplex configuration issue, often caused by manual speed/duplex settings on one device and auto-negotiation on the other.

A wrong speed setting may prevent link establishment entirely or cause errors, but it does not typically result in collisions. Jumbo frames can cause packet drops or fragmentation issues, not collisions. An incorrect VLAN configuration affects logical segmentation and connectivity but operates at Layer 2 and does not generate collisions.

CompTIA Network+ emphasizes duplex mismatch as a classic and frequently tested troubleshooting scenario. Correcting it—usually by enabling auto-negotiation on both ends—restores normal, collision-free communication.

Screened Subnet devices – Web server, FTP server

Building A devices – SSH server top left, workstations on all 5 on the right, laptop on bottom left

DataCenter devices – DNS server.

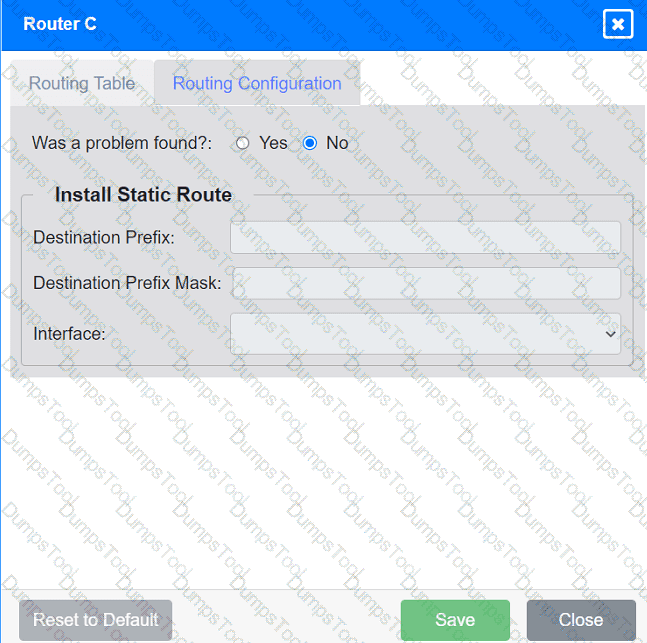

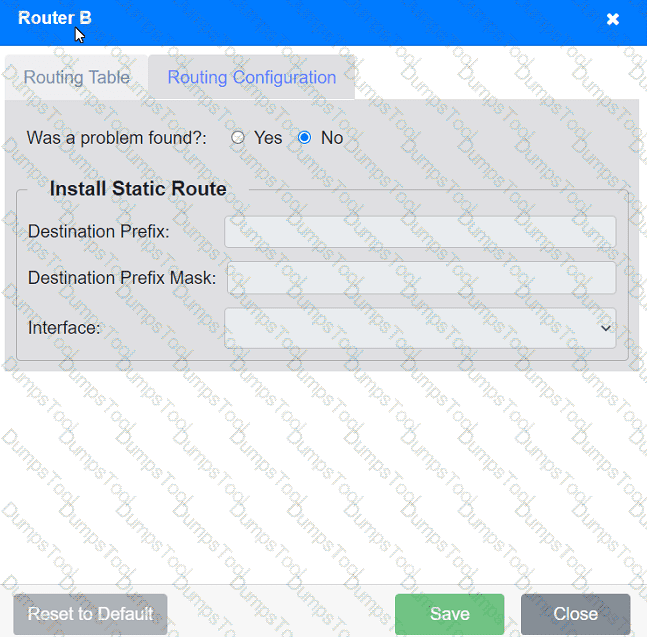

A screenshot of a computer AI-generated content may be incorrect.

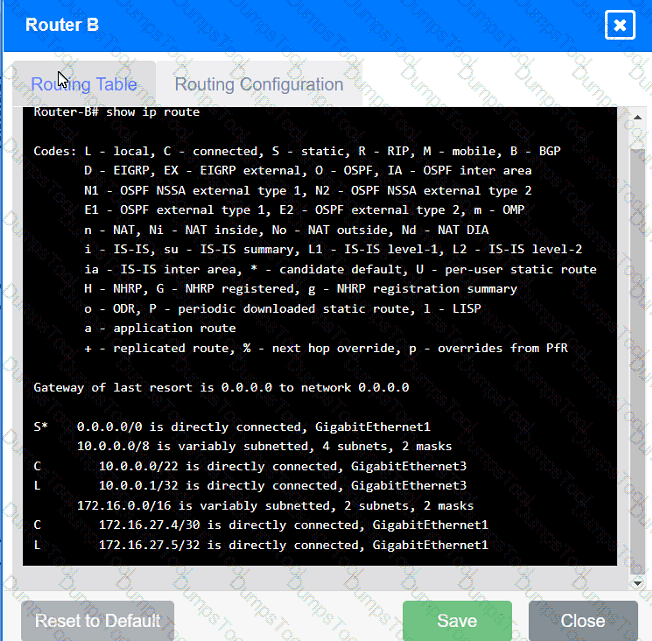

A screenshot of a computer AI-generated content may be incorrect.

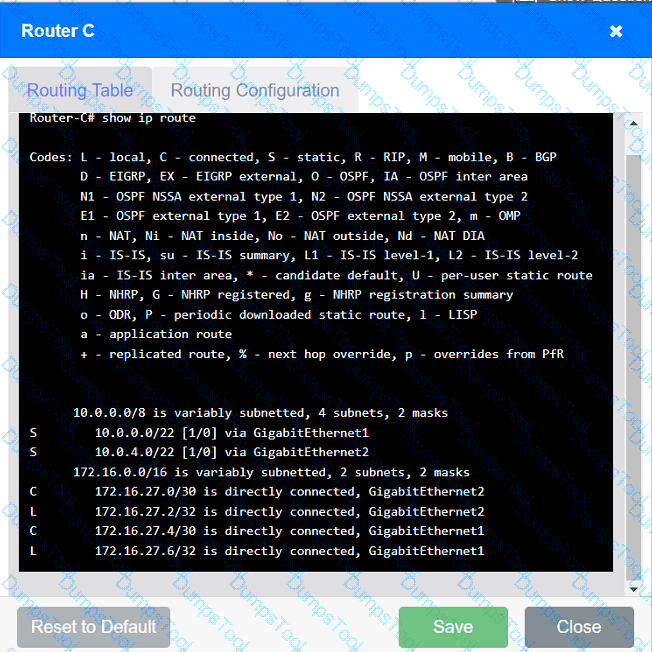

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is Spanning Tree because broadcast storms are typically caused by Layer 2 switching loops in Ethernet networks. According to the CompTIA Network+ (N10-009) objectives under switching concepts, the Spanning Tree Protocol (STP) is specifically designed to prevent loops in networks that have redundant switch connections.

In a Layer 2 environment, switches forward broadcast frames out all ports except the one on which they were received. If redundant paths exist without STP, frames can circulate indefinitely, creating a broadcast storm. This results in excessive traffic, high CPU utilization on switches, MAC address table instability, and significant network performance degradation.

STP prevents this by logically blocking redundant paths while maintaining them as backups. If the active path fails, STP recalculates and activates a previously blocked path, preserving redundancy without loops.

The other options—EIGRP and BGP (routing protocols) and CDP and LLDP (device discovery protocols)—do not prevent Layer 2 loops.

Therefore, configuring Spanning Tree Protocol is the appropriate solution to mitigate broadcast storms.
