DP-600 Questions and Answers

Requirements:

Parallel processing → PySpark runs distributed across Spark clusters.

Minimize duplication of data → OneLake shortcut + Spark queries avoid unnecessary copies.

Time series analysis, anomaly detection, visualization → can be done in PySpark within Fabric Notebooks.

pandas (C) is single-threaded and not efficient for billions of items.

Power BI visuals (A) are good for visualization but not for transformation or large-scale anomaly detection.

Correct: B.

Microsoft Power BI Desktop (A) and Tabular Editor (B) are the tools you can use to prevent report creators from using implicit measures. In Power BI Desktop, you can define explicit measures which can be used in visuals. Tabular Editor allows for advanced model editing, where you can enforce the use of explicit measures. References = Guidance on using explicit measures and preventing implicit measures in reports can be found in the Power BI and Tabular Editor official documentation.

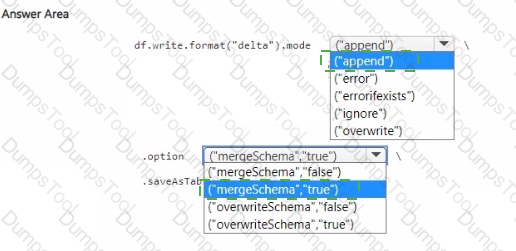

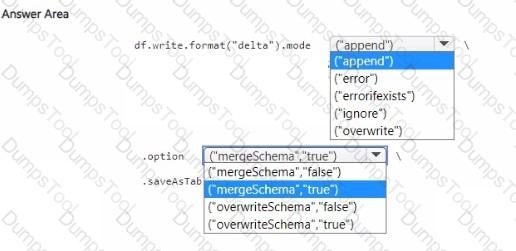

o add new data to the Delta table while meeting the specified requirements:

You should use the append mode to ensure that all new data is added to the table without affecting the existing rows.

You should set the mergeSchema option to true to allow the schema of the Delta table to be updated with the new columns found in the DataFrame.

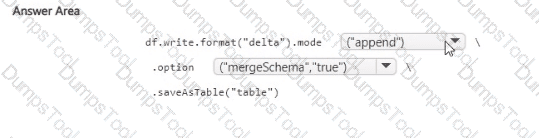

The completed code would look like this:

df.write.format( " delta " ).mode( " append " )

option( " mergeSchema " , " true " )

saveAsTable( " Lakehouse1.TableName " )

For a Type 1 SCD, you should include actions that update rows when non-key attributes have changed (A), and insert new records when the natural key is a new value in the table (D). A Type 1 SCD does not track historical data, so you always overwrite the old data with the new data for a given key. References = Details on Type 1 slowly changing dimension patterns can be found in data warehousing literature and Microsoft ' s official documentation.

For ingesting customer data into the data store in the AnalyticsPOC workspace, a dataflow (D) should be recommended. Dataflows are designed within the Power BI service to ingest, cleanse, transform, and load data into the Power BI environment. They allow for the low-code ingestion and transformation of data as needed by Litware ' s technical requirements. References = You can learn more about dataflows and their use in Power BI environments in Microsoft ' s Power BI documentation.

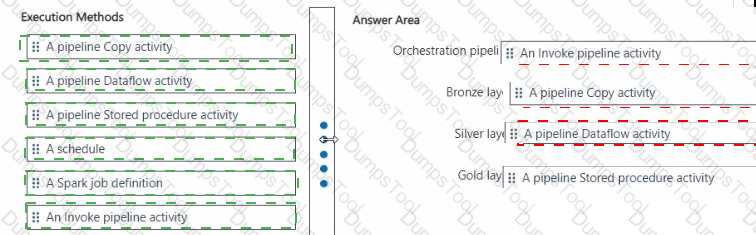

To meet the technical requirement that data loading activities must ensure the raw and cleansed data is updated completely before populating the dimensional model, you would need a mechanism that allows for ordered execution. A pipeline in Microsoft Fabric with dependencies set between activities can ensure that activities are executed in a specific sequence. Once set up, the pipeline can be scheduled to run at the required intervals (hourly or daily depending on the data source).

Both a dataflow (A) and a Stored procedure activity in a pipeline (B) are capable of creating and populating a date dimension table. A dataflow can perform the transformation needed to create the date dimension, and it aligns with the preference for using low-code tools for data ingestion when possible. A Stored procedure could be written to generate the necessary date dimension data and executed within a pipeline, which also adheres to the technical requirements for the PoC.

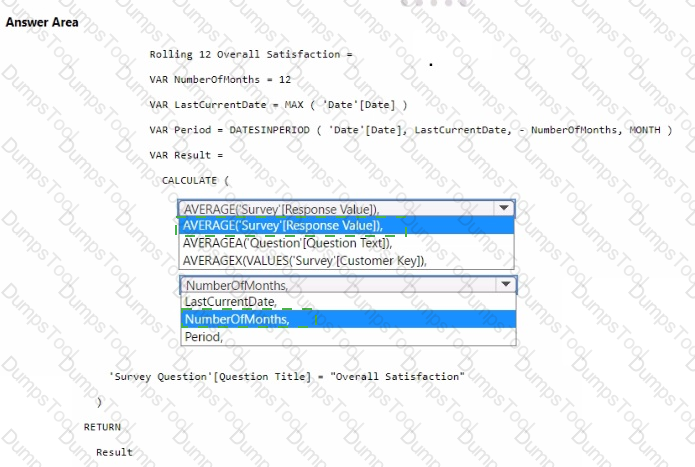

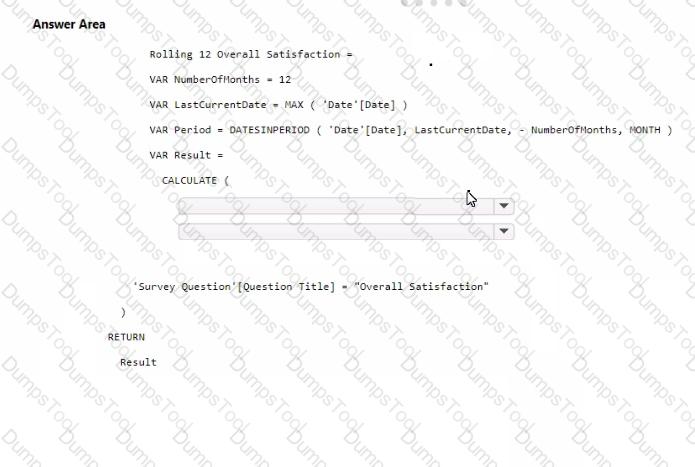

The measure should use the AVERAGE function to calculate the average value.

It should reference the Response Value column from the ' Survey ' table.

The ' Number of months ' should be used to define the period for the average calculation.

To calculate the average overall satisfaction score using DAX, you would need to use the AVERAGE function on the response values related to satisfaction questions. The DATESINPERIOD function will help in calculating the rolling average over the last 12 months.

The PoC is planned to be completed using a Fabric trial capacity, which implies that users involved in the PoC should be able to try paid features. However, this should be limited to specific security groups involved in the PoC to prevent the entire organization from accessing these features before the trial is proven successful (A). The ability for users to create Fabric items should also be enabled for specific security groups to ensure that only the relevant team members participating in the PoC can create items in the Fabric environment (E).

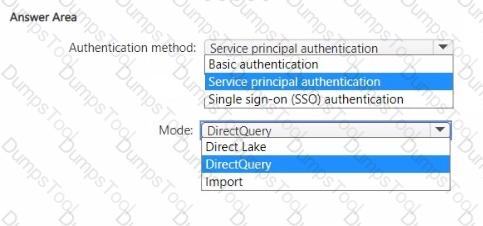

For the semantic model design required for the customer satisfaction report, the choices for data source authentication method and mode should be made based on security and performance considerations as per the case study provided.

Authentication method: The data should be accessed securely, and given that row-level security (RLS) is required for users executing T-SQL queries, you should use an authentication method that supports RLS. Service principal authentication is suitable for automated and secure access to the data, especially when the access needs to be controlled programmatically and is not tied to a specific user ' s credentials.

Mode: The report needs to show data as soon as it is updated in the data store, and it should only contain data from the current and previous year. DirectQuery mode allows for real-time reporting without importing data into the model, thus meeting the need for up-to-date data. It also allows for RLS to be implemented and enforced at the data source level, providing the necessary security measures.

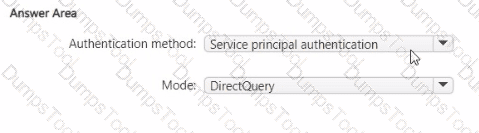

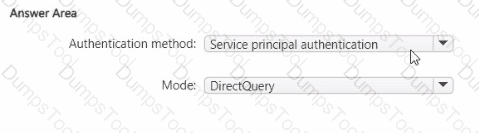

Based on these considerations, the selections should be:

Authentication method: Service principal authentication

Mode: DirectQuery

A lakehouse (C) should be recommended for the AnalyticsPOC workspace. It combines the capabilities of a data warehouse with the flexibility of a data lake. A lakehouse supports semi-structured and unstructured data and allows for T-SQL and Python read access, fulfilling the technical requirements outlined for Litware. References = For further understanding, Microsoft ' s documentation on the lakehouse architecture provides insights into how it supports various data types and analytical operations.

Comprehensive Detailed Explanation

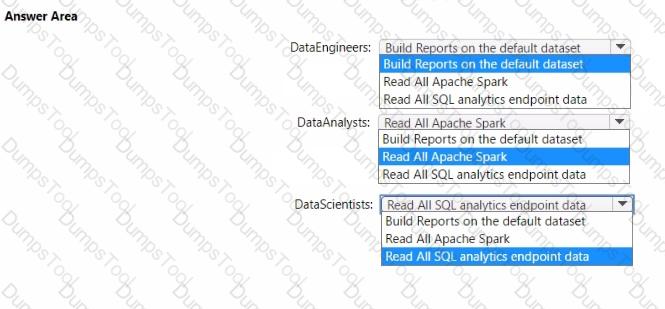

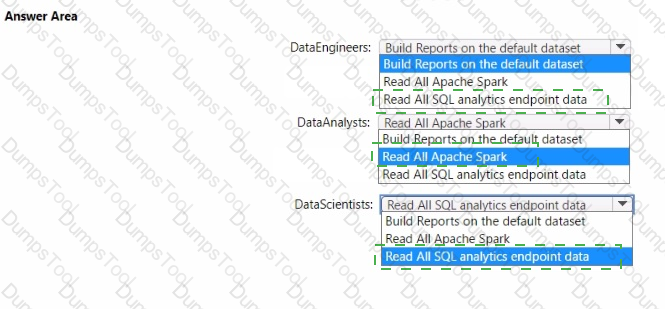

When assigning permissions to roles in a Fabric workspace for analytics workloads, you must align permissions with the responsibilities and tools typically used by each persona:

1. Data Engineers

Their primary tasks include building and transforming data pipelines, as well as making datasets usable by others.

The appropriate permission is Build Reports on the default dataset, because this allows them to create and manage reports using the curated semantic model while preparing data for analysts and scientists.

2. Data Analysts

Analysts work heavily with Apache Spark for exploratory analysis, cleansing, and shaping data.

The correct permission is Read All Apache Spark, as this grants them the ability to query and analyze Spark-based data directly without elevated permissions that are unnecessary for their role.

3. Data Scientists

Data scientists often use SQL analytics endpoints to run queries, train models, and integrate data into machine learning workflows.

The correct permission is Read All SQL analytics endpoint data, since it enables direct programmatic access to the SQL endpoint, which is needed for advanced modeling and experimentation.

Summary of Selections:

DataEngineers → Build Reports on the default dataset

DataAnalysts → Read All Apache Spark

DataScientists → Read All SQL analytics endpoint data

References (Microsoft Fabric – DP-600 exam scope):

Workspace roles and permissions in Microsoft Fabric

SQL analytics endpoint in Fabric

Apache Spark in Microsoft Fabric

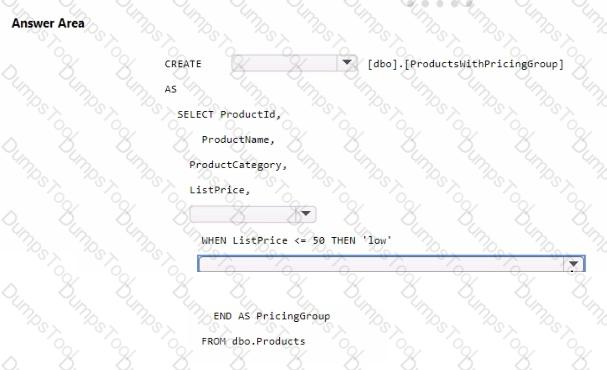

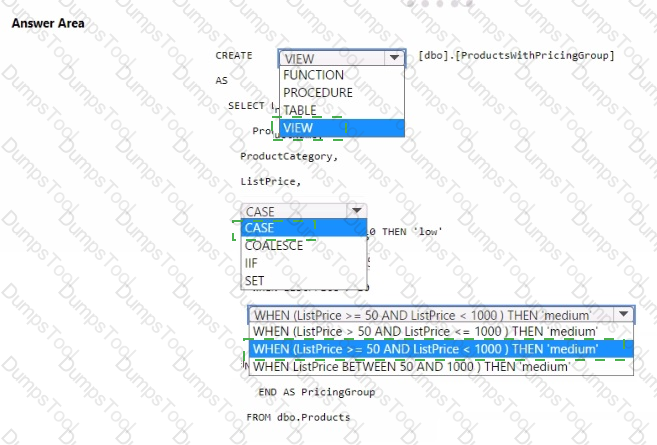

You should use CREATE VIEW to make the pricing group logic available for T-SQL queries.

The CASE statement should be used to determine the pricing group based on the list price.

The T-SQL statement should create a view that classifies products into pricing groups based on the list price. The CASE statement is the correct conditional logic to assign each product to the appropriate pricing group. This view will standardize the pricing group logic across different databases and semantic models.

Requirement: “The number of rows added to the Orders table during refreshes must be minimized.”

The Orders table has a sequential OrderID.

To minimize refresh size, you must only import new rows, not the entire table.

This requires retrieving the maximum OrderID currently loaded, then only loading rows with a greater OrderID.

So, the correct solution is to use a pipeline (ADF) with a dataflow to retrieve the maximum OrderID.

Answer: C. an Azure Data Factory pipeline that executes a dataflow to retrieve the maximum value of the OrderID column in the destination lakehouse

Comprehensive Detailed Explanation

From the case study:

Research division data for Productline2 is currently in CSV format in storage2.

Requirement: “All the Research division data in the lakehouses must be presented as managed tables in Lakehouse explorer.”

In Fabric lakehouses, managed tables are stored in Delta format inside the Tables folder.

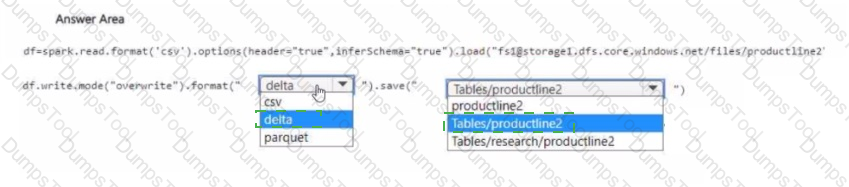

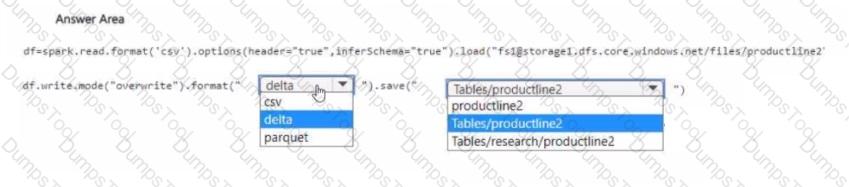

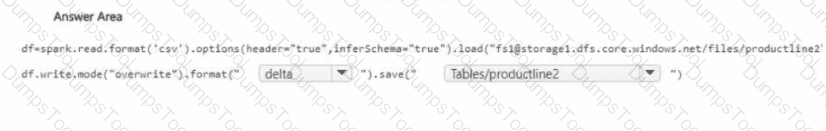

Step 1: Reading the source

df = spark.read.format( " csv " ) \

options(header= " true " , inferSchema= " true " ) \

load( " abfss://storage1.dfs.core.windows.net/files/productline2 " )

This correctly ingests the CSV source from ADLS Gen2.

Step 2: Writing to Lakehouse as a managed table

You must write the data in Delta format to ensure it is queryable and managed within the lakehouse.

The correct path is under Tables/, because this is where Fabric automatically manages Lakehouse managed tables.

The target table should be named productline2, so the correct path is:

df.write.mode( " overwrite " ).format( " delta " ).save( " Tables/productline2 " )

Why not other options?

CSV or Parquet formats would not create a managed Lakehouse table; they would just create files.

Writing to productline2 directly (without Tables/) would store unmanaged files in the Lakehouse Files area, not managed tables.

Writing to Tables/research/productline2 adds an unnecessary subdirectory and is not the standard structure for managed tables.

Correct Final Code

df.write.mode( " overwrite " ).format( " delta " ).save( " Tables/productline2 " )

References

Managed tables in Microsoft Fabric Lakehouse

Delta Lake support in Fabric

Spark write to Lakehouse

Comprehensive Detailed Explanation

The requirement is to logically group the Research division workspaces and support filtering in the OneLake data hub.

Why Domain?

Microsoft Fabric allows you to assign workspace domains (e.g., Finance, HR, Research).

This provides a logical grouping of workspaces within the organization.

Domains are the only supported way to enable filtering in OneLake data hub by department.

Capacity or tenant grouping would not allow filtering by department in OneLake.

Why OneLake data hub?

The OneLake data hub is the centralized interface to browse and discover data assets across the organization.

With workspace domains configured, users can filter directly in the OneLake data hub by domain (e.g., “Research”).

The Fabric Admin portal and Entra admin center are used for administration, not for workspace filtering in data discovery.

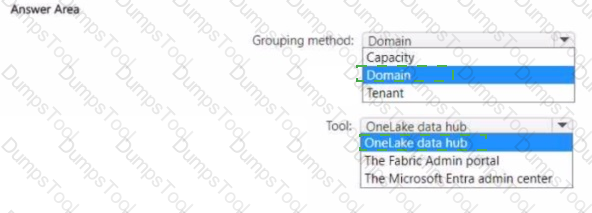

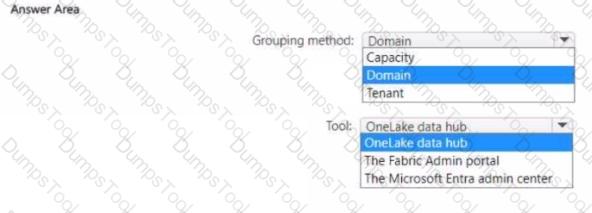

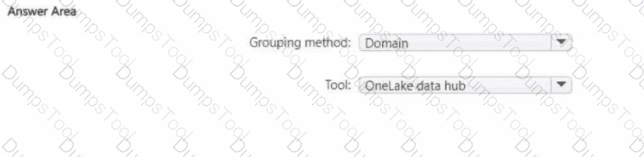

Correct Selection for the Hotspot

Grouping method: Domain

Tool: OneLake data hub

References

Workspace domains in Microsoft Fabric

Discover and filter data in OneLake data hub

Final Answer:

Grouping method = Domain

Tool = OneLake data hub

 Calculation groups are a Tabular Object Model (TOM) feature.

 They cannot be authored in Power BI Desktop or the service.

 They are implemented using Tabular Editor.

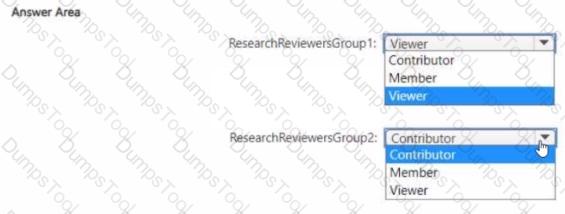

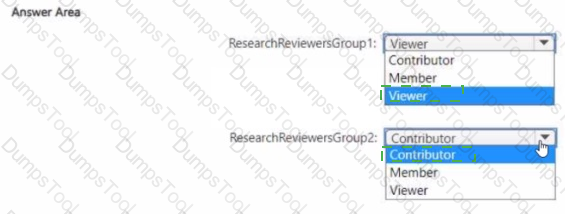

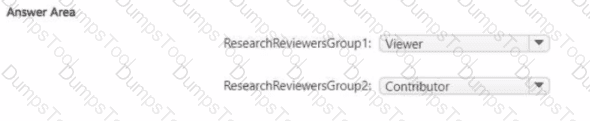

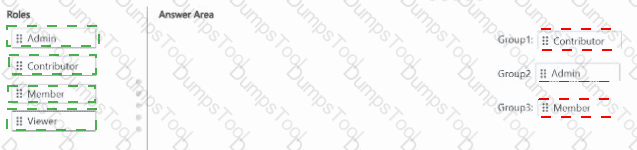

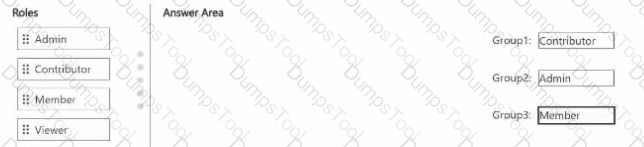

In Azure DevOps workspace (project) security settings, role assignments determine access levels for groups:

Viewer (equivalent to the Readers security group): Grants read-only access to work items, code, pipelines, and other artifacts. Ideal for review-only scenarios where users need to view but not edit content.

Contributor (equivalent to the Contributors security group): Allows full edit and contribute privileges, such as updating work items, code reviews, and pipeline runs. Suitable for active participation in reviews that may involve feedback or changes.

Based on the group names implying review-focused access, Viewer fits Group1 for passive observation, while Contributor fits Group2 for interactive review tasks. These align with default Azure DevOps permissions for secure, least-privilege access.

You need to recommend which type of Fabric capacity SKU meets the data analytics requirements for the Research division.

Requirement: “The Research division workspaces must use a dedicated, on-demand capacity that has per-minute billing.”

Fabric capacity SKUs:

F (Fabric) = dedicated Fabric capacity, available on pay-as-you-go with per-minute billing.

P (Premium) and EM are Power BI capacities (not Fabric-native).

A refers to Azure Analysis Services capacity.

The only correct option is F SKU.

No, the EXPLAIN TABLE statement does not identify whether maintenance tasks were performed on a table. It shows the execution plan for a query. References = The usage and output of the EXPLAIN command can be found in the Spark SQL documentation.

When using XMLA endpoints to manage and update semantic models in Microsoft Fabric, the performance of write operations (such as processing, structural changes, or metadata deployments from Tabular Editor) is directly influenced by the storage format and how the model is persisted.

Why Option A is Correct

By default, Fabric semantic models use the Small semantic model storage format.

To improve write operations performance through XMLA, you must change the workspace setting to use the Large semantic model storage format.

The large format uses more efficient storage techniques, supports partitioning, and handles larger models with optimized write capabilities.

This setting is applied at the workspace level and impacts all semantic models within that workspace, including Model1.

This is explicitly documented in Microsoft’s guidance: Large semantic model storage format is required when using XMLA write operations for large or frequently updated models.

Why the Other Options Are Incorrect

B. Configure Model1 to use the Direct Lake storage format.

Direct Lake mode is designed for query performance (reading data directly from OneLake in delta format without import/duplication).

It improves query latency and freshness but does not improve XMLA write operations, which deal with model metadata and structural updates.

C. Delete any unused semantic models from Workspace1.

Deleting unused semantic models helps manage capacity and storage but does not increase the speed of XMLA endpoint write operations.

Workspace storage overhead does not directly impact the write throughput of XMLA operations.

D. Delete any unused columns from Model1.

Removing unused columns reduces the memory footprint and can improve query performance.

However, it does not directly improve the speed of XMLA write operations. The bottleneck in XMLA writes is tied to the storage format, not the model size alone.

Summary

To increase the speed of XMLA write operations on semantic models, you must enable the Large semantic model storage format at the workspace level. This setting ensures better handling of writes and metadata operations via the XMLA endpoint.

References

Large models in Power BI and Microsoft Fabric

Use the XMLA endpoint in Microsoft Fabric

Manage capacities in Microsoft Fabric

You need to ensure that Contoso can use version control to meet the data analytics requirements and the general requirements.

Requirement: “All the semantic models and reports for the Research division must use version control that supports branching.”

Fabric supports Git integration (Azure Repos or GitHub) for semantic models and reports.

Storing in Data Lake Gen2 or OneDrive does not provide version control with branching.

The correct action is to integrate workspaces with a Git repository.

Answer: D. Modify the settings of the Research division workspaces to use an Azure Repos repository.

Comprehensive Detailed Explanation

The question asks: Which syntax should you use in a Fabric notebook to access the Research division data for Productline1?

Key Background from the Case

In Productline1ws, a lakehouse named Lakehouse1 is created.

In Lakehouse1, a shortcut is created to storage1, named ResearchProduct.

Storage1 contains the Research division data for Productline1 in Delta format.

Requirement: All data in lakehouses must be presented as managed tables in Lakehouse explorer.

Analyzing the Syntax Options

Option A:

spark.sql( " SELECT * FROM Lakehouse1.ResearchProduct " )

This syntax directly queries the ResearchProduct shortcut within Lakehouse1 using Spark SQL.

Since the shortcut points to Delta data, Spark can directly query it.

This is the correct way to retrieve Productline1 data from Lakehouse1.

Option B:

spark.sql( " SELECT * FROM Lakehouse1.productline1.ResearchProduct " )

This introduces an extra schema-like path (productline1) that is not part of the shortcut name.

Incorrect, because the shortcut was created as ResearchProduct inside Lakehouse1, not under another schema.

Option C:

external_table( ' Tables/ResearchProduct ' )

external_table is not the correct way to access a Lakehouse shortcut.

Shortcuts in Lakehouses appear as tables and can be queried using Spark SQL directly.

Option D:

spark.sql( " SELECT * FROM Lakehouse1.productline1.ResearchProduct " )

Same issue as Option B, includes a schema path that does not exist.

Correct Choice

Since the shortcut to ResearchProduct was created inside Lakehouse1, and Spark SQL can query it directly, the correct syntax is:

spark.sql( " SELECT * FROM Lakehouse1.ResearchProduct " )

That matches Option A.

References

Microsoft Fabric Lakehouse – Shortcuts

Query data in a lakehouse using Spark SQL

Delta format support in Microsoft Fabric
