AI-200 Questions and Answers

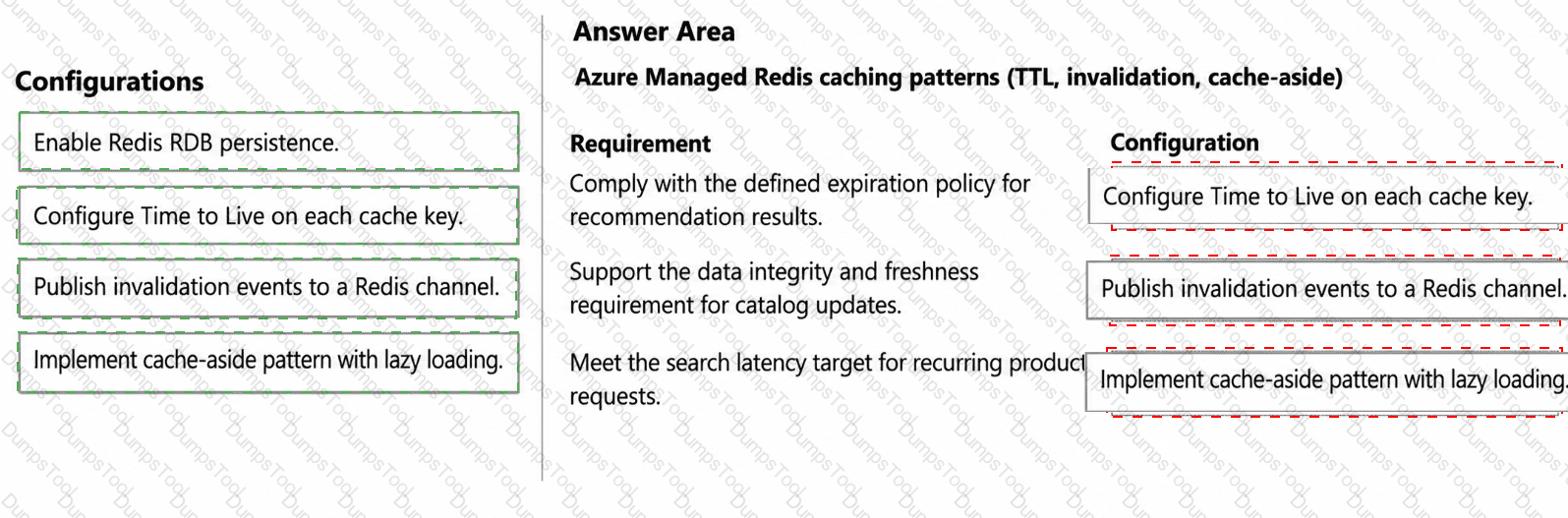

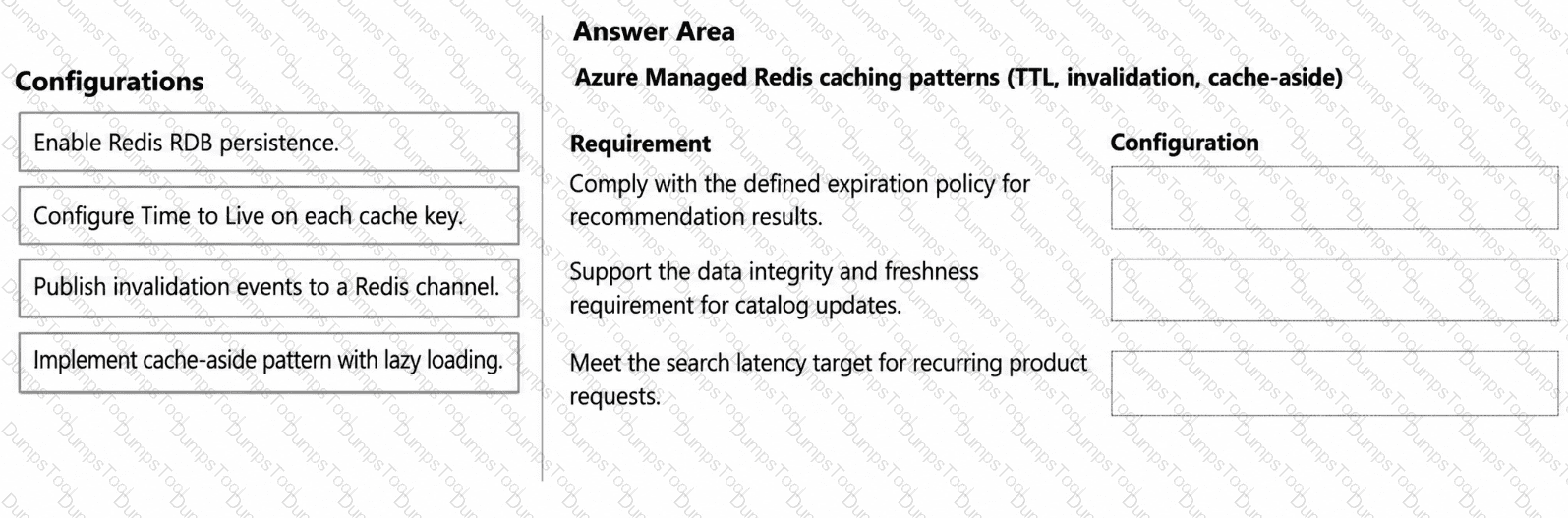

Comply with the defined expiration policy for recommendation results: Configure Time to Live on each cache key.

Support the data integrity and freshness requirement for catalog updates: Publish invalidation events to a Redis channel.

Meet the search latency target for recurring product requests: Implement cache-aside pattern with lazy loading.

The 10-minute expiration requirement should be implemented by configuring a Time to Live (TTL) on each Redis cache key. Redis automatically removes a key after its assigned expiration interval, ensuring recommendation results cannot remain cached indefinitely. Microsoft documents expiration as a standard mechanism for preventing cached data from becoming stale.

For catalog changes, Fabrikam explicitly requires a reactive invalidation mechanism . Publishing invalidation events to a Redis Pub/Sub channel allows application components to notify subscribers immediately when product metadata or pricing changes. Redis Pub/Sub broadcasts messages to channel subscribers, which can then invalidate affected cache entries instead of waiting for TTL expiration.

For repeated recommendation queries, implement the cache-aside pattern with lazy loading . The application first checks Redis; on a cache hit, results are returned from the low-latency in-memory cache. On a miss, the application retrieves data from PostgreSQL, places the result in Redis, and returns it. Microsoft identifies cache-aside as an appropriate pattern for frequently read data and explicitly notes that Azure Managed Redis provides low-latency, high-throughput access.

Redis RDB persistence is unnecessary for these requirements because the cache is an optimization layer rather than the authoritative data store.

Study Guide references: Azure Managed Redis → cache-aside pattern; TTL/expiration; Pub/Sub; cache invalidation and data freshness.

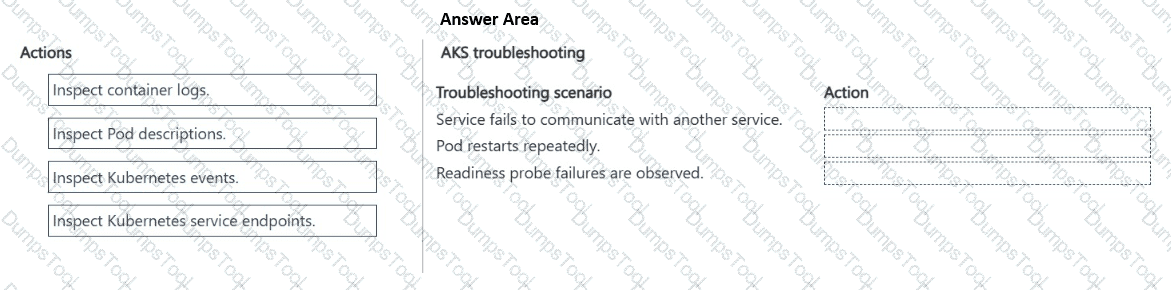

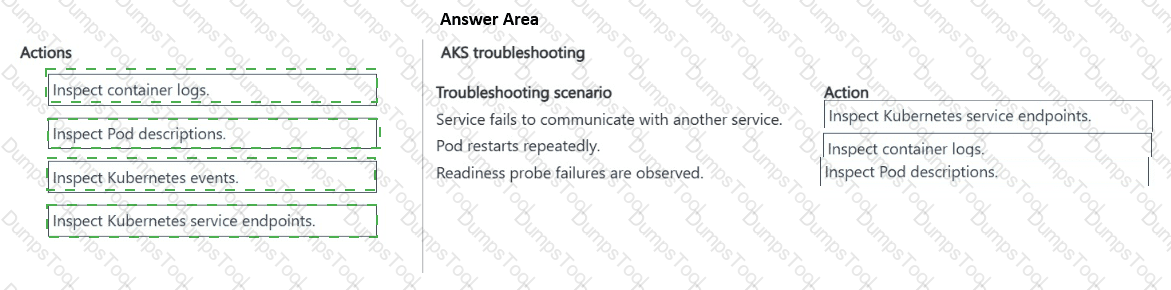

Service fails to communicate with another service: Inspect Kubernetes service endpoints.

Pod restarts repeatedly: Inspect container logs.

Readiness probe failures are observed: Inspect Pod descriptions.

For a service-to-service communication failure , first inspect the Kubernetes service endpoints . Microsoft’s AKS troubleshooting guidance recommends verifying that the destination pod IP address and application port appear as endpoints for the Kubernetes Service. An empty or incorrect endpoint list commonly indicates a selector/label mismatch, incorrect port configuration, or unavailable backend pods.

For a pod that restarts repeatedly , inspect the container logs , including the previous container instance when necessary. Microsoft specifically recommends kubectl logs < pod > --previous for workloads that repeatedly restart because it exposes application errors and termination messages from the container immediately before the restart.

For readiness probe failures , inspect the Pod description by using kubectl describe pod. The description exposes the configured health probes, pod conditions, container state, and associated probe-failure events, allowing you to determine whether the probe path, port, timing, or application readiness behavior is incorrect. Microsoft recommends reviewing kubectl describe output when pods are not Ready or health probes are failing.

Therefore, the correct mapping is service endpoints → container logs → Pod descriptions .

Study Guide references: AKS troubleshooting; Kubernetes Services and endpoints; container logging; Pod health; readiness/liveness probes; kubectl describe and kubectl logs.

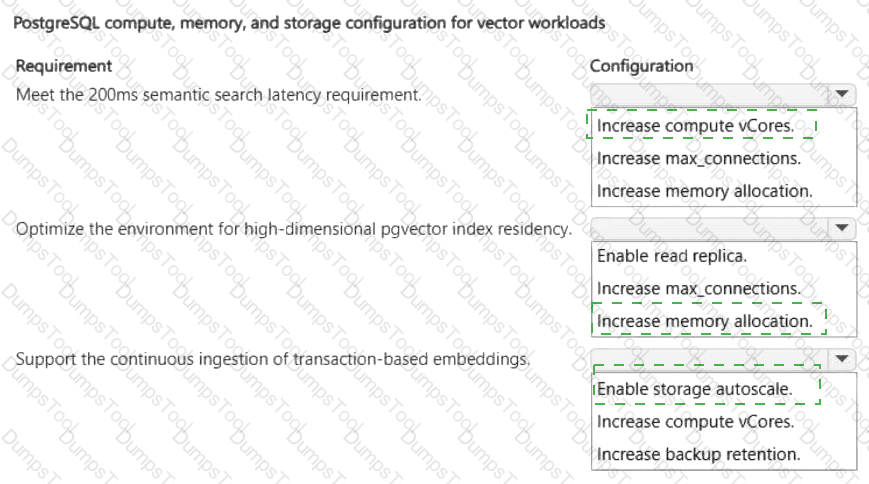

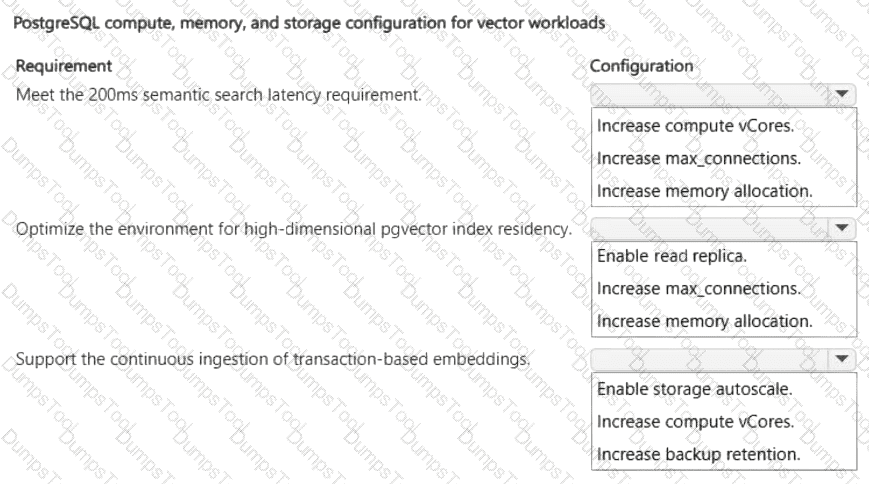

Meet the 200-ms semantic search latency requirement: Increase compute vCores.

Optimize the environment for high-dimensional pgvector index residency: Increase memory allocation.

Support the continuous ingestion of transaction-based embeddings: Enable storage autoscale.

For the strict sub-200-ms vector-search latency target, increasing compute vCores is the appropriate choice. Vector similarity operations are computationally intensive, and additional CPU capacity improves mathematical throughput and parallel query execution. Microsoft’s pgvector guidance emphasizes query-plan optimization, ANN indexes such as HNSW, and sufficient compute resources when optimizing vector workloads.

For high-dimensional pgvector index residency , increase memory allocation . HNSW provides strong query-performance characteristics but consumes more memory than IVFFlat. Keeping frequently accessed vector index structures in memory minimizes disk access and materially improves latency. Microsoft explicitly notes that HNSW requires more memory while providing a better speed/recall tradeoff.

For the continuous ingestion of millions of embeddings, enable storage autoscale . Azure Database for PostgreSQL Flexible Server can automatically increase allocated storage as capacity approaches configured thresholds, avoiding an out-of-storage condition as data volumes grow. Microsoft recommends storage autogrow for workloads whose storage demand can increase dynamically.

Increasing max_connections does not directly improve vector computation or index residency, read replicas primarily scale reads, and backup retention does not address ingestion capacity.

Study Guide references: Azure Database for PostgreSQL Flexible Server → pgvector performance optimization; compute and memory sizing; HNSW indexing; storage autogrow.

Azure Container Apps session affinity, also called sticky sessions , routes requests from the same client to the same container-app replica. Microsoft documents that this functionality is implemented using HTTP cookies , so it requires HTTP ingress rather than raw TCP ingress.

The second requirement is single revision mode . Microsoft explicitly states that session affinity is supported only when the container app is in single revision mode and HTTP ingress is enabled . In single revision mode, all traffic is directed to the latest active revision, allowing the ingress layer to consistently associate a client with a particular replica within that revision.

Multiple revision mode is designed for scenarios such as traffic splitting, blue-green deployments, and A/B testing, where inbound traffic can be distributed among multiple active revisions. That model is incompatible with the documented session-affinity restriction. TCP ingress is also incorrect because sticky-session behavior relies on HTTP cookie affinity rather than generic TCP connection routing.

Therefore, the required configuration is HTTP ingress with single revision mode .

Study Guide references: Azure Container Apps → ingress; sticky sessions/session affinity; revision modes; HTTP routing.

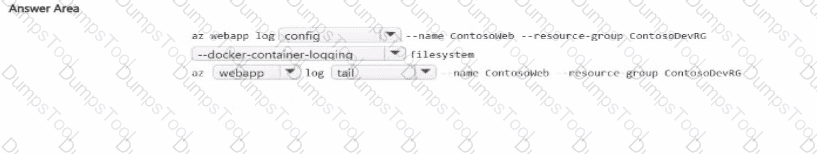

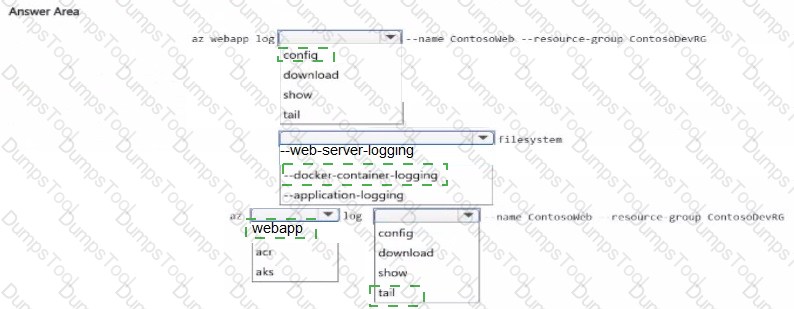

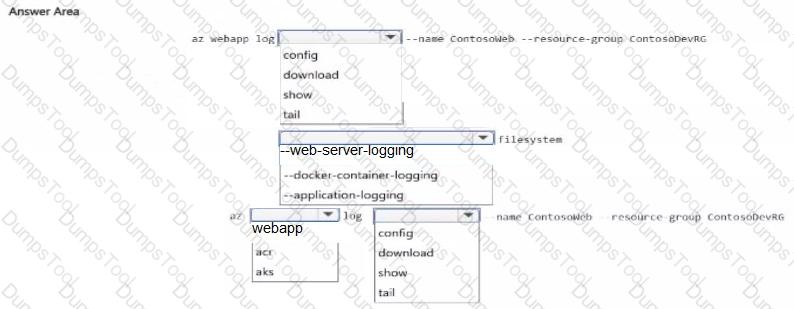

nable container logging with `az webapp log config --docker-container-logging filesystem`, then stream it with `az webapp log tail`.

Detailed Explanation: The Azure CLI exposes separate operations for enabling App Service container logging and viewing the live stream. For a custom Linux container, docker/container logging must first be written to the App Service filesystem. The `az webapp log tail` command then starts real-time log tracing. Commands such as `show` or `download` inspect configuration or retrieve historical files; they do not provide the requested live stream from the running container.

Study Guide Alignment: Containerized Azure workloads: registry builds, App Service containers, Container Apps revision/scaling behavior, and AKS deployment choices.

Official Microsoft Learn References: AI-200 Study Guide | Azure CLI: az webapp log

Use Azure AI Foundry evaluation with a representative evaluation dataset and quality metrics to compare the fine-tuned model against the base model before production promotion. Among the available options, this corresponds to Prompt flow bulk testing / evaluation . Foundry evaluation supports systematic testing of model or application outputs across many test records rather than relying on manual inspection of isolated prompts. Microsoft provides built-in evaluators including Groundedness, Coherence, Relevance, Fluency, and Response Completeness , allowing teams to quantify quality consistently across candidate implementations.

For a valid comparison, run the same representative dataset against both the base and fine-tuned deployments and compare the resulting evaluation metrics. This creates objective evidence about whether fine-tuning improves the targeted behavior without materially degrading relevance, coherence, grounding, or other required quality dimensions. Prompt flow evaluation workflows also support batch execution, per-record scores, and aggregated metrics for comparing variants.

Application Insights is essential for production telemetry such as latency, failures, and usage, but it is not by itself a model-quality comparison framework. Content Safety configuration evaluates or controls harmful content rather than comparative model quality. Azure AI Search indexer scheduling manages search-index ingestion and is unrelated to model evaluation.

Therefore, A is the correct capability.

Study Guide references: Microsoft Foundry → evaluations; evaluation datasets; bulk/batch testing; Groundedness; Coherence; Relevance; comparative model assessment.

The correct solution is to implement connection pooling , ideally by using the built-in PgBouncer capability in Azure Database for PostgreSQL Flexible Server. Connection pooling allows many concurrent application requests to share and reuse a smaller set of established PostgreSQL server connections instead of repeatedly opening and closing database sessions. Microsoft notes that creating a new PostgreSQL connection for each operation consumes server resources because each connection involves its own backend process. Reusing pooled connections therefore reduces connection overhead, lowers CPU and memory consumption, and improves throughput for high-concurrency workloads.

This directly matches Fabrikam ' s stated requirement that database connections support high concurrency with minimal latency through connection optimization . PgBouncer can efficiently multiplex large numbers of client connections onto fewer PostgreSQL connections, particularly in transaction pooling mode.

Increasing max_connections is not the preferred solution because each additional PostgreSQL connection consumes memory and other resources; Microsoft explicitly recommends PgBouncer instead when more concurrent connections are required. Increasing shared_buffers addresses caching and memory allocation rather than connection-management overhead. Read replicas can scale read workloads, but they do not optimize the application ' s connection lifecycle.

Study Guide references: Azure Database for PostgreSQL Flexible Server → connection pooling; PgBouncer; connection management and high-concurrency performance.

Use GitHub Actions because Proseware requires an automated, version-controlled deployment pipeline and explicitly prohibits local and command-line deployments. Microsoft documents GitHub Actions as a supported CI/CD mechanism for Azure Functions: a workflow stored under .github/workflows can build and deploy Function app code automatically in response to repository events such as pushes or pull requests. The Azure Functions deployment action can deploy the application package directly to the target Function app.

GitHub Actions also satisfies the infrastructure requirement. Microsoft provides first-class support for deploying Bicep templates through GitHub Actions , enabling Azure resources to be provisioned declaratively from the same source-controlled pipeline. A pull-request workflow can perform validation or Bicep what-if analysis before changes are merged, while a main-branch workflow can perform the actual deployment after approval. This provides repeatability, auditing, and separation from individual developer machines.

Azure Functions Core Tools and Azure CLI are commonly used for interactive/local deployments, which directly conflicts with the requirement to eliminate command-line deployment. Local Git deployment also fails the requirement for a centrally automated Bicep-based deployment process.

Study Guide references: Azure Functions CI/CD; GitHub Actions; infrastructure as code with Bicep; automated Azure deployments; version-controlled deployment workflows.

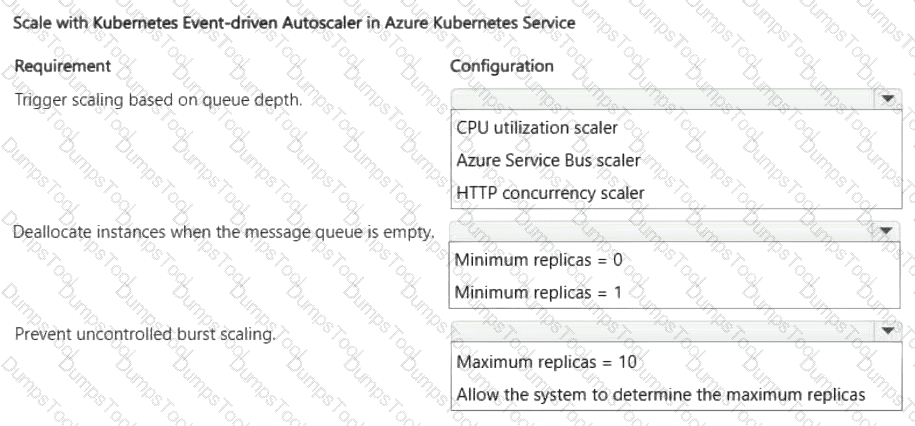

Trigger scaling based on queue depth: Azure Service Bus scaler

Deallocate instances when the message queue is empty: Minimum replicas = 0

Prevent uncontrolled burst scaling: Maximum replicas = 10

The batch retraining workload must scale according to queue length , so the correct KEDA trigger is the Azure Service Bus scaler . KEDA integrates with Azure Service Bus and monitors queue or subscription metrics, allowing AKS workloads to scale according to the number of pending messages rather than CPU utilization or HTTP request concurrency. Microsoft documents KEDA as the event-driven autoscaling mechanism for AKS and specifically supports Azure-based scalers for queue-driven workloads.

To meet the requirement to deallocate workload instances when no messages remain, configure minimum replicas = 0 . KEDA supports scale-to-zero for event-driven workloads, which is particularly appropriate for intermittent batch or machine-learning processing because no pods need to remain running while the queue is empty. Microsoft specifically identifies scale-to-zero as a KEDA capability and recommends it for sporadic ML workloads where cost optimization is important.

Finally, configure maximum replicas = 10 . A finite maximum replica count establishes an explicit upper scaling boundary, preventing large queue bursts from creating an uncontrolled number of worker replicas and protecting both infrastructure cost and downstream services.

Study Guide references: AKS → KEDA; Azure Service Bus event-driven scaling; minReplicaCount; maxReplicaCount; scale-to-zero; autoscaling limits.

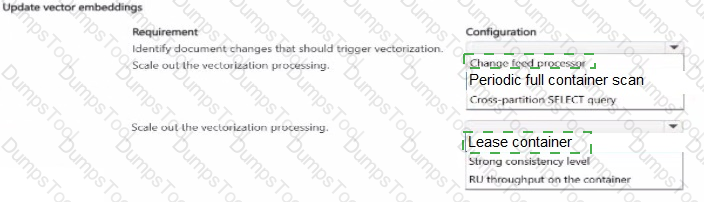

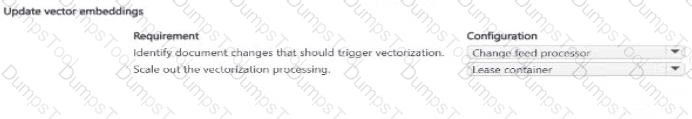

Verified Answer: Identify document changes: Change feed processor. Scale out vectorization processing: Lease container.

Detailed Explanation: The change feed processor is designed to react to inserts and updates in a monitored Cosmos DB container, which directly matches the requirement to generate embeddings for new or changed documents. Its lease container stores processing state and coordinates work across multiple workers, allowing the processing workload to scale out without duplicating ownership of change-feed ranges. A periodic full scan would consume unnecessary RUs, and neither strong consistency nor container RU throughput is the coordination mechanism for distributed change-feed workers.

Study Guide Alignment: AI data-management workloads: Cosmos DB, PostgreSQL, caching, vector storage, vector retrieval, consistency, and connection optimization.

Official Microsoft Learn References: AI-200 Study Guide | Azure Cosmos DB change feed processor

Detailed Explanation: The objective is to reduce RU consumption from vector similarity queries. Microsoft guidance identifies vector numeric precision and vector-index selection as major cost and performance levers. Using a lower supported vector precision can reduce storage and processing cost, while quantizedFlat and DiskANN are designed to reduce latency and RU consumption compared with flat search for appropriate data sizes. Strong consistency would increase resource cost rather than solve vector-search efficiency. A regular composite index is not a substitute for the vector index. Option B should be read as reducing vector numeric precision, not changing a generic “indexing precision” setting.

Study Guide Alignment: AI data-management workloads: Cosmos DB, PostgreSQL, caching, vector storage, vector retrieval, consistency, and connection optimization.

Official Microsoft Learn References: AI-200 Study Guide | Vector search in Azure Cosmos DB | Optimize Cosmos DB vector search performance

Detailed Explanation: A single custom topic is a user-defined publishing endpoint, but creating thousands of customer subscriptions on one custom topic is not the architecture Microsoft provides for managing thousands of isolated topics behind one publisher endpoint. An Event Grid domain is the service construct designed for that scale and partitioning model. The requirement for Microsoft Entra authentication can also be satisfied when publishing to Event Grid resources, but the custom-topic design still misses the domain-level multi-topic requirement.

Study Guide Alignment: Azure service integration: Service Bus, Event Grid, Azure Functions triggers/bindings, and event-driven processing.

Official Microsoft Learn References: AI-200 Study Guide | Azure Event Grid event domains | Authenticate Event Grid publishing with Microsoft Entra ID

Detailed Explanation: GitHub Actions is the correct orchestration mechanism among the options because the case requires an automated, version-controlled pipeline and Bicep-based declarative deployment. Microsoft documents GitHub Actions as a supported way to deploy Bicep and automate Azure resource deployment. Local Git, Azure Functions Core Tools, and Azure CLI can participate in development or scripted deployment, but they do not by themselves satisfy the stated requirement for a repository-driven, repeatable CI/CD pipeline.

Study Guide Alignment: Security and operations: Key Vault, App Configuration, managed identity, OpenTelemetry, Azure Monitor, and KQL-based troubleshooting.

Official Microsoft Learn References: AI-200 Study Guide | Deploy Bicep with GitHub Actions | Automate Function app resource deployment

Trigger for container images build: Base image update

Implementation of image builds: ACR Task

The correct trigger is Base image update because Proseware requires every custom container image to be rebuilt automatically whenever its Docker Hub base image changes. Azure Container Registry Tasks can detect base-image dependencies from the Dockerfile FROM instruction and automatically trigger a rebuild when that base image is updated. Microsoft confirms that ACR Tasks can track base images in public repositories such as Docker Hub and Microsoft Container Registry, as well as images stored in Azure Container Registry.

The build implementation must be an ACR Task . This directly satisfies the technical requirement that image-build automation run inside Azure Container Registry , eliminating dependencies on local developer machines or separate external build services. ACR Tasks provides cloud-based container building and can automate builds based on source-code commits, base-image updates, or scheduled triggers.

A GitHub workflow could orchestrate CI/CD, but using it as the actual image-building implementation would conflict with the explicit requirement that builds execute inside ACR. Docker Compose defines multi-container applications; it is not the native ACR build automation mechanism. A Commit trigger addresses source changes rather than the stated base-image update requirement, while Scheduled builds would introduce unnecessary periodic execution.

Study Guide references: Azure Container Registry Tasks; base-image dependency tracking; automated rebuilds; Docker Hub base-image triggers; cloud-native container builds.

Verified Answer: 1) Instrument the application code with the OpenTelemetry SDK; 2) configure an Azure Monitor trace exporter in the OpenTelemetry SDK; 3) redeploy the instrumented services.

Detailed Explanation: Trace correlation requires the application to create OpenTelemetry spans and an exporter to send those spans to Azure Monitor. Instrumentation must therefore be present before the updated service is deployed. The previous Application Insights SDK instrumentation does not satisfy the case-study requirement that all tracing use OpenTelemetry. Configuring an OpenTelemetry view is unrelated to basic distributed-trace export, and calling TrackEvent is an Application Insights SDK pattern rather than the required OpenTelemetry approach.

Study Guide Alignment: Security and operations: Key Vault, App Configuration, managed identity, OpenTelemetry, Azure Monitor, and KQL-based troubleshooting.

Official Microsoft Learn References: AI-200 Study Guide | Enable Azure Monitor OpenTelemetry

Detailed Explanation: Azure Key Vault references in App Service settings satisfy the requirement to keep secrets out of container images, source control, and directly stored application configuration. App Service resolves the referenced secret at runtime by using the app identity, so the application can consume the value as a normal setting without embedding credentials in the image. GitHub secrets are build/deployment secrets rather than a runtime App Service secret-delivery mechanism. Dockerfile ENV instructions would place secret material in the image configuration and violate the case requirements.

Study Guide Alignment: Security and operations: Key Vault, App Configuration, managed identity, OpenTelemetry, Azure Monitor, and KQL-based troubleshooting.

Official Microsoft Learn References: AI-200 Study Guide | Use Key Vault references for App Service and Functions | Managed identities for Azure resources
