AI-103 Questions and Answers

The solution does not meet the goal. A completeness evaluation flow is useful for detecting incomplete responses, but detection and blocking do not improve the response itself. Microsoft Foundry RAG evaluators define Response Completeness as a metric that measures whether a response covers all critical information from the expected response or ground truth. It is a system evaluation signal used to assess response quality and produce pass/fail or scored results.

In this scenario, the issue is that the agent omits required regulatory clauses even though the clauses are present in retrieved content. Blocking low-scoring responses would prevent incomplete answers from being returned, but it would not revise the summary, add the missing clauses, or improve the generation process. The appropriate improvement is to add a response-generation control such as a reflection or verification pass that checks the draft summary against the retrieved policy content and regenerates or amends the answer before returning it. Evaluation can support the quality gate, but by itself it is an assessment mechanism, not a completeness-enhancement mechanism. Reference topics: Microsoft Foundry RAG evaluators, response completeness, grounded generation, reflection, and response quality optimization.

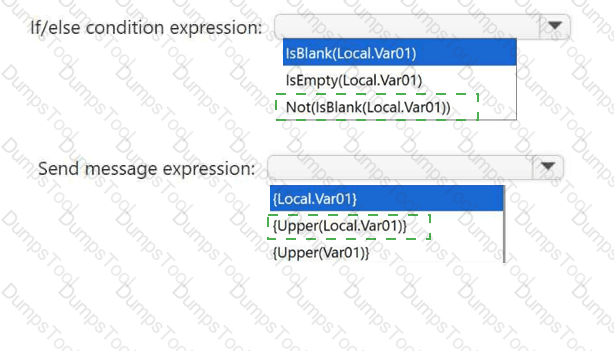

If/else condition expression: Not(IsBlank(Local.Var01))

Send message expression: {Upper(Local.Var01)}

The correct if/else condition is Not(IsBlank(Local.Var01)) because the workflow must continue only when the Ask a question node has captured a nonblank value. In Power Fx, IsBlank checks whether a value is blank, while Not reverses that Boolean result; therefore, Not(IsBlank(Local.Var01)) evaluates to true only when Var01 contains user input. IsEmpty(Local.Var01) is not the correct choice because IsEmpty checks whether a table contains records, not whether a text variable has a value. The Power Fx formula reference distinguishes these functions by defining IsBlank for blank values and IsEmpty for empty tables.

The Send message expression must be {Upper(Local.Var01)}. Microsoft Foundry workflow guidance uses the same pattern for an Ask a question node saved as Var01, followed by a Send message action that outputs {Upper(Local.Var01)}. The Local. prefix is required because the response is stored in a local workflow variable, and Upper() converts the stored text response to uppercase. Reference topics: Microsoft Foundry workflows, Power Fx expressions, local variables, if/else branching, and Send message actions.

The correct capability is token usage . In Microsoft Foundry observability, token consumption is the primary signal for diagnosing model-cost changes when request volume is unchanged. Token usage lets you distinguish whether costs increased because prompts became larger, retrieved or tool-provided context expanded, responses became longer, or agent execution added more model calls. Microsoft Foundry monitoring dashboards track operational metrics such as token consumption, latency, error rates, and quality scores, and the agent monitoring dashboard is specifically intended to help analyze token usage, latency, success rates, and evaluation outcomes for production traffic.

This directly matches the scenario because the issue is not more traffic, but changed request or response characteristics. Input tokens reveal whether the prompt, chat history, grounding data, or tool outputs being sent to the model increased. Output tokens reveal whether the model is generating longer completions. Expanded tool usage can also increase cost indirectly by adding more tool results, intermediate calls, and context into subsequent model requests; Foundry tracing and observability capture tool usage and token consumption for agent runs.

Evaluation metrics assess response quality and safety, not cost drivers. Latency identifies performance delays, and run success rate measures reliability. Reference topics: Microsoft Foundry observability, agent monitoring dashboard, token consumption, cost analysis, tool usage, and production monitoring.

The correct configuration is an API key security scheme . For Microsoft Foundry Agent Service OpenAPI tools, the OpenAPI specification must declare authentication through the components.securitySchemes section and use a scheme of type apiKey when the external service expects a key in a header. Microsoft’s OpenAPI tool guidance states that API key authentication requires updating the OpenAPI spec security schemes with one scheme of type apiKey, and the tool then uses the associated project connection to supply the key value at runtime. This allows the key stored in Project1’s connection to be injected automatically when the tool is invoked.

A header parameter defined separately for each operation is not the correct approach because credentials should not be modeled as ordinary operation parameters. The Foundry guidance explicitly indicates that parameters requiring the API key should be removed from the OpenAPI spec because the API key is stored and passed through a connection. A Bearer token security scheme is used for bearer-token-style authorization, not a generic weather API key passed in a custom HTTP header. Azure Key Vault is a secret store, but the scenario already stores the key in a Foundry project connection. Reference topics: Microsoft Foundry Agent Service, OpenAPI tools, project connections, API key authentication, and OpenAPI security schemes.

The correct answer is A. Implement image moderation . Azure AI Content Safety provides image analysis that classifies uploaded images for harmful content, including harm categories such as hate, sexual content, violence, and self-harm. Microsoft’s Content Safety overview states that the Analyze Image API scans images for harmful content with multi-severity levels, which directly matches the requirement to automatically classify uploaded photos and block content based on configured severity thresholds.

Prompt Shields are intended to detect prompt injection and jailbreak-style attacks against generative models, not to classify image harm categories. Keyword scanning OCR output would only detect visible text extracted from the image and would miss visual harm in the image itself. Blocklists can help match known words or custom patterns, but they are not a complete image safety classifier and do not provide the built-in severity-based image harm classification required here. Image moderation is therefore the correct control for user-uploaded photos. Reference topics: Azure AI Content Safety, image moderation, harm categories, severity levels, Foundry guardrails, and responsible AI controls.

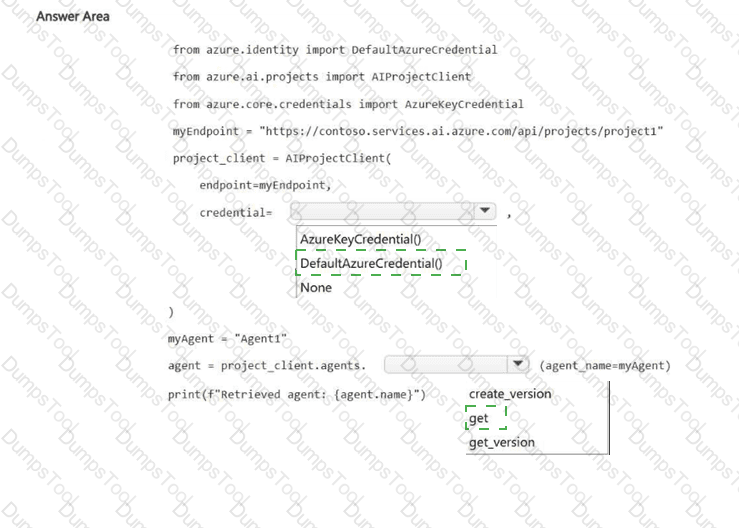

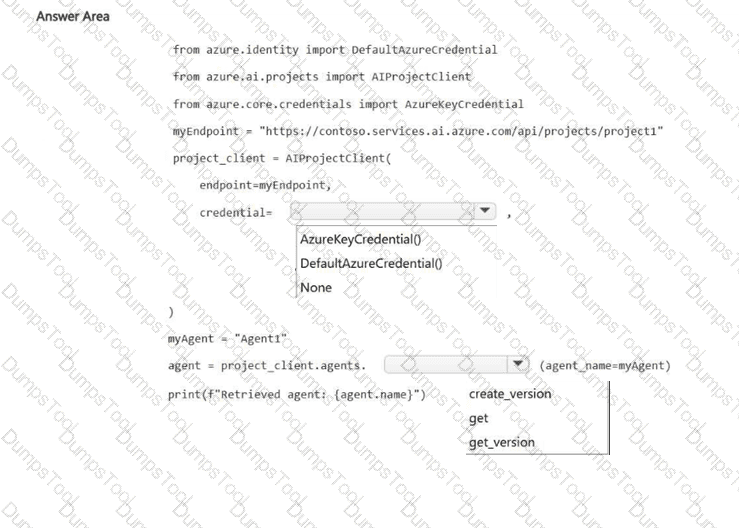

credential = DefaultAzureCredential()

agent = project_client.agents.get(agent_name=myAgent)

The correct authentication option is DefaultAzureCredential() because the case study states that API keys must not be used to access Foundry-deployed models and that Contoso developers must authenticate to Microsoft Foundry resources by using Microsoft Entra authentication. It also states that access to Project1 must be assigned to Agent1Dev Team by using the security group SC_Agent1_Dev . Microsoft Foundry authentication guidance recommends Microsoft Entra ID for production workloads because it supports least-privilege RBAC, per-principal auditing, and keyless authentication. AzureKeyCredential() would violate the no-API-key requirement, and None would not provide a valid credential.

The correct agent operation is get because the task is to access an existing agent named Agent1, not create a new version or retrieve a specific published version. Microsoft Foundry SDK examples show AIProjectClient created with DefaultAzureCredential() and then using project agent operations to create, retrieve, or interact with agents by name. To meet the compliance requirement, the group SC_Agent1_Dev must also be granted the appropriate project-scoped Foundry role, such as Foundry User, for Project1. Reference topics: Microsoft Entra authentication, Foundry RBAC, AIProjectClient, and project agent access.

The correct recommendation is Azure Content Understanding in Foundry Tools . The case study states that Contoso’s finance department must manually review vendor invoices to verify that invoice details match vendor contract terms, and that the invoices contain tables, logos, and varied layouts that make consistent processing difficult. It also states that the planned solution must evaluate both the visual layout and textual content of the invoices.

Azure Content Understanding is designed for this type of multimodal document-processing workload. Microsoft describes Content Understanding as a Foundry Tool that processes unstructured and multimodal content, including documents and images, and transforms it into structured output for AI applications. It can use document analyzers to extract text, layout, tables, fields, and relationships from diverse document types.

Chat completions alone would not reliably extract structured invoice fields from complex layouts. Azure Document Intelligence can extract OCR, layout, and tables, but Content Understanding is the better end-to-end Foundry capability for combining visual and textual understanding with structured extraction for downstream verification. Image Analysis focuses on image-level visual features and is insufficient for invoice field and table review. Reference topics: Content Understanding, document analyzers, multimodal extraction, invoice processing, tables, layout, and structured JSON output.

The correct answer is B. Modify the system message instructions . The case study states that Agent1 answers general questions about Contoso products and that a business requirement is for Agent1 to answer questions only about products sold by Contoso. This requirement defines the agent’s allowed domain and refusal boundary, so it must be expressed in the agent’s system-level instructions. Microsoft Foundry guidance states that system messages steer Azure OpenAI chat model behavior and are used to define the assistant’s role, boundaries, output format, and safety or quality constraints.

The system message should instruct Agent1 to answer only Contoso-product questions, use Contoso product documentation when available, and decline questions about non-Contoso products. This directly enforces the intended business scope at the highest instruction level. Few-shot examples can reinforce desired behavior but are not the primary control for defining mandatory operating boundaries. Top-p sampling and temperature are decoding controls; they influence randomness and diversity, not whether the agent restricts answers to a specific product domain. Increasing temperature would likely reduce consistency. Reference topics: Microsoft Foundry agent instructions, system message design, prompt engineering, response boundaries, and grounded generative AI behavior.

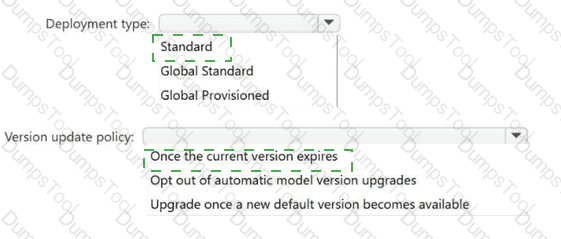

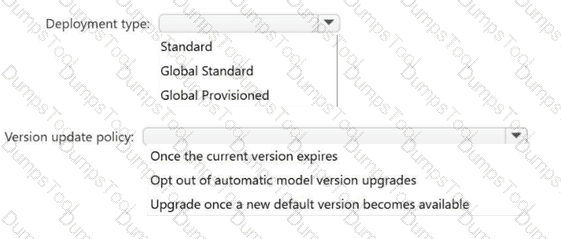

Deployment type: Standard

Version update policy: Once the current version expires

The correct deployment type is Standard . The case study specifies that Project1 is deployed in an EU Azure region and that model-processed data must remain within the EU. It also requires scalable, high-throughput generative AI workloads that dynamically handle variable customer support traffic without reserved throughput capacity. In Microsoft Foundry Models, Standard is a pay-per-token deployment type that processes data in a single Azure region, while Global Standard can process requests across regions and Global Provisioned uses reserved provisioned throughput. Microsoft’s deployment-type guidance identifies Standard as single-region, pay-per-token, whereas Global Provisioned is cross-region with reserved capacity.

The correct version update policy is Once the current version expires . This keeps Agent1 on the selected model version during its supported lifecycle, which supports stable and consistent responses, but still preserves continuity by automatically moving to a supported replacement when the current version is retired. Microsoft’s model versioning guidance states that this policy updates only when the current model version expires, while upgrading when a new default is available changes the deployment sooner and opting out can cause the deployment to stop working after retirement. Reference topics: deployment types, regional data processing, model versioning, throughput capacity, and stable production deployments.

The correct recommendation is Azure AI Search. The case study states that the product detail sheets are stored as PDFs in storage1, and that Agent1 must be enabled to retrieve and use detailed product information from those sheets. It also specifies that the indexing pipeline must enable semantic and vector search, and that Agent1 must answer natural language questions about product details by using the product sheet information. Azure AI Search is the Azure service designed to ingest content from sources such as Azure Blob Storage, create searchable indexes, and support keyword, semantic, hybrid, and vector retrieval for Retrieval Augmented Generation (RAG) solutions.

Microsoft’s Azure AI Search guidance states that integrated vectorization can chunk content and generate embeddings during indexing, enabling vector search over source documents. It also states that Azure AI Search supports text and vector queries and can improve raw content for search-related scenarios through enrichment pipelines. Azure Translator is unrelated to retrieval. Document Intelligence can extract document structure, but it is not the retrieval index for Agent1. Grounding with Bing Search retrieves public web content, not Contoso’s private PDFs in storage1. Reference topics: Azure AI Search, RAG, semantic search, vector search, Azure Blob Storage indexing, and agent grounding.

The correct answer is B. Modify the system message instructions . The case study states that Agent1 answers general questions about Contoso products and that the business requirement is for Agent1 to answer questions only about the products sold by Contoso . This is a behavioral boundary for the agent, so it should be implemented in the highest-priority instructions that define the agent’s role, allowed scope, and refusal behavior.

Microsoft Foundry guidance states that a system message is used to steer model behavior, define the assistant’s role and boundaries, and add safety or quality constraints for the scenario. The system message should instruct Agent1 to answer only when the question concerns Contoso products, use the configured Contoso product documentation as grounding, and politely refuse or redirect questions about non-Contoso products.

Top-p sampling and temperature control randomness, not business-domain scope. Increasing temperature would make responses less deterministic. Few-shot examples can support desired behavior, but examples alone are weaker than explicit system-level instructions for defining operating boundaries. Reference topics: system message design, prompt engineering, agent instructions, response constraints, and grounded generative AI behavior.

The correct built-in skills are Azure OpenAI Embedding and Text Split. The case study requires an indexing pipeline that enables semantic and vector search over the product sheets stored in Azure Blob Storage, so Agent1 can retrieve relevant product information for natural language customer questions. For a RAG pipeline, long PDF content must first be broken into retrievable chunks, and each chunk must then be vectorized for semantic similarity retrieval.

Microsoft’s Azure AI Search integrated vectorization guidance states that you create a skillset that calls the Text Split skill for chunking and the Azure OpenAI Embedding skill to vectorize the chunks. The Text Split skill breaks text into chunks and provides positional metadata, making it suitable when downstream embedding skills have input-length limits. The Azure OpenAI Embedding skill connects to an embedding model deployed in Azure OpenAI or a Microsoft Foundry project and generates embeddings during indexing.

Language Detection, Entity Recognition, and key phrase extraction can enrich text, but they do not create vector embeddings. Merge is useful for combining OCR text with document text, but it does not satisfy the core vector-search requirement. Reference topics: Azure AI Search skillsets, Text Split skill, Azure OpenAI Embedding skill, integrated vectorization, and RAG indexing.

The correct answer is B. Personally Identifiable Information (PII) Detection . The case study states that Agent1 must never reveal customer information , even if a document containing customer data is added accidentally to the product sheet repository in storage1. This is a privacy and compliance control requirement, so the appropriate capability is PII Detection.

Azure Language PII Detection is a Foundry Tools capability that identifies, classifies, and redacts sensitive information across text, conversations, and native documents. Microsoft states that PII Detection can be used to implement privacy controls, reduce sensitive data exposure, and support compliance requirements. In this scenario, PII Detection should be applied to retrieved product-sheet content and generated responses so customer names, contact details, identifiers, and other sensitive values are not exposed to users.

Prompt Shields are important for a separate requirement: protecting Agent1 from malicious instructions hidden in documents or embedded text. Microsoft describes Prompt Shields for documents as protection against hidden instructions embedded in external content. However, the option that directly satisfies the requirement to prevent disclosure of customer information is PII Detection. Self-harm and violence filters address harmful-content categories, not privacy leakage.
