AB-620 Questions and Answers

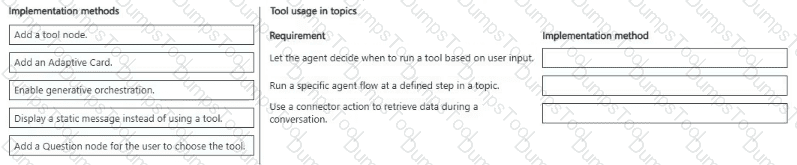

Requirement

Implementation method

Let the agent decide when to run a tool based on user input.

Enable generative orchestration.

Run a specific agent flow at a defined step in a topic.

Add a tool node.

Use a connector action to retrieve data during a conversation.

Add a tool node.

Comprehensive and Detailed Explanation From [Microsoft AB-620 Study Guide]

Generative orchestration is appropriate when the agent must independently determine whether a tool is relevant to the user’s request. Copilot Studio evaluates the user’s message, conversation context, and the tool’s name, description, inputs, and outputs before deciding whether to invoke it. Microsoft documentation confirms that generative orchestration allows an agent to choose tools based on their descriptions and the current user query.

When an operation must occur at a predetermined point in an authored topic, the operation should instead be inserted explicitly by using an Add a tool node. Selecting an agent flow from that node ensures that the flow executes at that exact position in the topic rather than being selected autonomously by the orchestrator.

The same node type is used when calling a connector action. From the topic canvas, the author selects Add a tool , chooses Connector , and then selects and configures the required connector operation. Adaptive Cards present interactive information, while Question nodes collect user input; neither directly invokes flows or connectors.

Relevant study-guide area: Plan and configure agent solutions → Configure topics → Add agent flows to a topic and Add tools to a topic . See Orchestrate agent behavior with generative AI , Add tools to custom agents , and Use connectors in Copilot Studio agents .

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: The Service Desk Agent must be both published and available for connections from other agents. Publishing establishes a runtime version that the primary agent can call; an unpublished draft is not a valid connected-agent target. On the Service Desk Agent, the setting that allows other agents to connect and use it must also be enabled. Microsoft additionally requires the connected agent to be in the same environment and the maker to own it or have it shared, but those conditions are not offered as choices. Replacing the agent with an MCP server would discard the existing agent ' s orchestration and ticket-routing logic. Adding it as a knowledge source would expose content for retrieval, not delegate an IT request to another agent. Publishing Operations Concierge alone does not satisfy the prerequisites of the target agent. After connection, the local description in Operations Concierge should clearly define when IT-specific work is delegated, because descriptions influence routing. Any later changes to the Service Desk Agent must be published before the main agent can use the updated version. Study Guide alignment: Integrate and extend agents in Copilot Studio > Configure multi-agent collaboration from Copilot Studio > Integrate an existing agent in Copilot Studio.

===============

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: A Fabric Data Agent is the capability designed for questions that must be answered from governed analytical data. Fabrikam ' s backlog, SLA-risk, parts-shortage, and dispatch-delay measures already reside behind a Fabric semantic model, so delegating these requests to the data agent preserves the business definitions, relationships, and security applied in Fabric. The result can be returned in a structured form suitable for weekly operational review rather than being estimated from general model knowledge. A Foundry agent is already assigned to summarization and classification of long-form text; it is not the authoritative source for operational KPIs. An MCP server is appropriate when the user must perform a transaction, such as creating a parts request, but the question asks for performance information rather than an update. Azure AI Search supports document retrieval for policies and procedures, not calculation over the Fabric semantic model. The primary agent ' s description for the Fabric specialist should explicitly mention the supported metrics so generative orchestration consistently delegates those requests instead of attempting an unsupported generative answer. Study Guide alignment: Integrate and extend agents in Copilot Studio > Configure multi-agent collaboration from Copilot Studio > Integrate a Fabric data agent.

===============

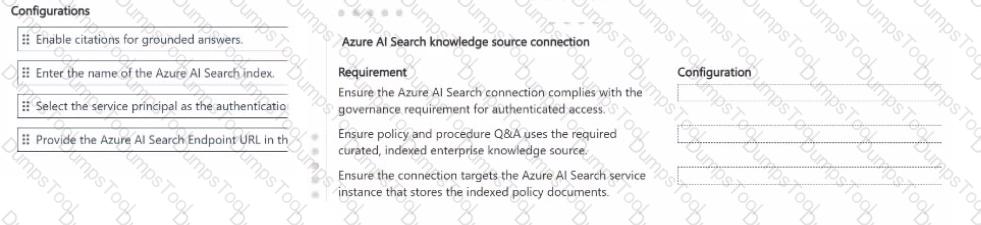

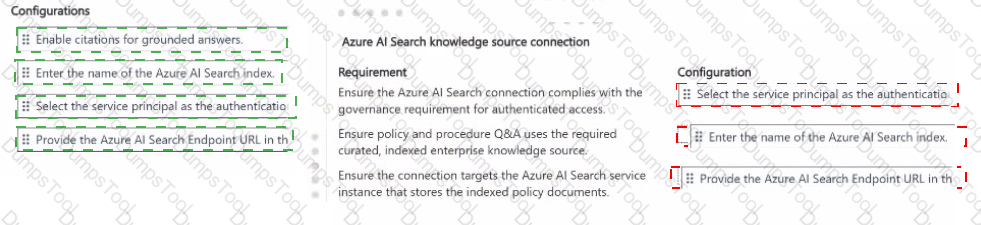

Authenticated governed access → Select service-principal authentication; Required curated vector index → Enter the Azure AI Search index name; Correct Azure AI Search service instance → Provide the Azure AI Search endpoint URL.

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: An Azure AI Search connection needs three distinct pieces of configuration. The endpoint identifies the search-service instance that hosts Fabrikam ' s indexed documents. The index name then selects the specific vector index containing the curated policies and procedures. Authentication determines how Copilot Studio is authorized to query that service. Because the scenario requires governed application access rather than a maker ' s personal identity, the service-principal option is the appropriate selection from the choices provided. Enabling citations is useful after retrieval is configured, but it does not establish the service connection or select an index. Microsoft recommends creating Azure AI Search through the supported data-source connection experience rather than manually assembling an unsupported endpoint/key combination. Administrators should grant the service principal only the permissions needed for query operations, protect its credentials, and maintain separate configuration per environment. Testing should confirm that the intended index—not another index in the same service—is queried, that unauthorized content is excluded, and that policy responses cite material that actually supports the generated guidance. Study Guide alignment: Integrate and extend agents in Copilot Studio > Connect to enterprise knowledge sources > Connect to Azure AI Search.

===============

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: Fabrikam needs both reusable prompt behavior and explicit model governance. A reusable custom prompt template provides the stable summarization instructions, expected structure, and input/output contract that can be applied wherever summarization is required. Within that prompt ' s configuration, selecting the approved model from the Microsoft Foundry model catalog controls which model generates the output. These are separate controls: the template governs the task, while the model selection satisfies the approved-model requirement. Publishing only deploys the configuration already selected; it does not automatically choose or enforce an approved model. Citations are valuable for grounded policy answers but do not determine the model used for summarization. Azure AI Search is the retrieval system for indexed enterprise policy content and is not required merely to apply a long-form summarization template. The prompt should be tested with representative transcripts for completeness, classification accuracy, output schema, safety, and latency. Where Fabrikam already uses a connected Foundry agent for this specialist function, the prompt and model settings should remain owned by that component rather than being duplicated in the primary agent. Study Guide alignment: Integrate and extend agents in Copilot Studio > Integrate agents with Azure > Configure custom prompts to use the Foundry model catalog.

===============

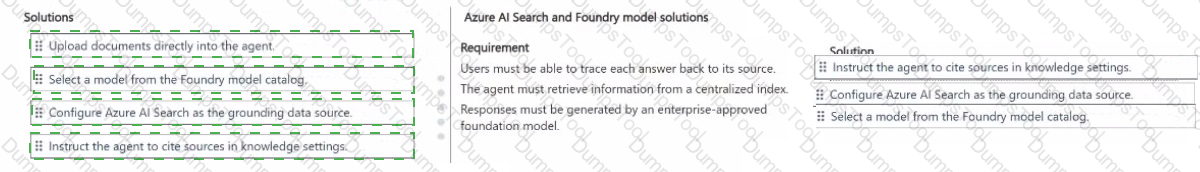

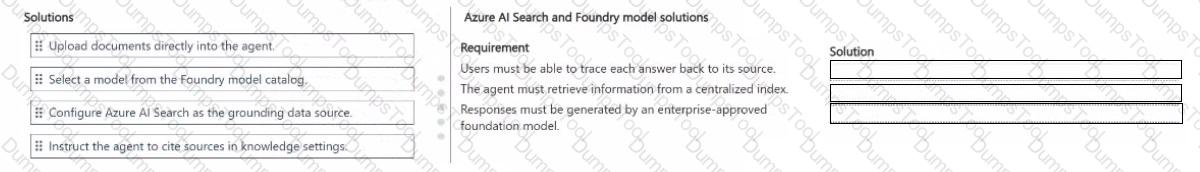

Trace each answer to its source → Instruct the agent to cite sources in knowledge settings; Retrieve from the centralized index → Configure Azure AI Search as the grounding data source; Use an enterprise-approved foundation model → Select a model from the Foundry model catalog.

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: Each requirement is controlled by a different configuration layer. Source traceability is a presentation and grounding requirement, so citations must be enabled or explicitly required for knowledge-based responses. That allows users to inspect the material used to support a policy answer; it is not achieved merely by choosing a model. Centralized retrieval is provided by connecting the existing Azure AI Search vector index as the knowledge source. This preserves the curated index, semantic or vector retrieval behavior, and enterprise management of the policy corpus instead of copying documents into the agent. Model governance is handled in the prompt configuration by selecting the approved model from the Microsoft Foundry model catalog. Publishing does not automatically replace an unapproved model, and Azure AI Search does not enforce the foundation-model selection. Together, the three settings form a complete RAG path: Azure AI Search retrieves authoritative passages, the governed model produces the response, and citation settings expose provenance. The configuration should then be tested with representative policy questions to confirm that the response is grounded and that the cited source actually supports the answer. Study Guide alignment: Integrate and extend agents in Copilot Studio > Integrate agents with Azure > Configure generative answers by using Azure AI Search with Foundry; Configure custom prompts to use the Foundry model catalog.

===============

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: The partner capability is described as an agent available only through a standardized agent-to-agent endpoint. That is the defining use case for an Agent2Agent connection. In Copilot Studio, the primary agent is configured with the external agent ' s A2A message endpoint and the applicable authentication details, after which orchestration can delegate shipment-tracking requests to it. An MCP server exposes tools or resources rather than an independently orchestrated partner agent, so option C changes the integration contract. An indexed knowledge source is also unsuitable because shipment status is dynamic and the requirement is delegation, not retrieval from a copied corpus. Generative responses in the primary agent would have no authoritative live shipment source and would violate the defined architecture. The A2A description should identify shipment tracking precisely so that it does not compete with unrelated agents or tools. Because external-agent support can be preview functionality, Fabrikam should also validate regional availability, authentication, error behavior, latency, and governance before production use. Study Guide alignment: Integrate and extend agents in Copilot Studio > Configure multi-agent collaboration from Copilot Studio > Create a multi-agent solution by using A2A protocol.

===============

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: A generative answers node inside the topic is the correct place to retrieve from configured knowledge sources for that specific conversational path. The node can use the user ' s message as input, search designated sources, and generate a grounded response from the retrieved content. Topic-level sources can override the broader agent-level set, which is useful when the topic must restrict itself to approved data. A custom prompt that merely instructs the model to use company information does not create or enforce a retrieval connection. Increasing the response limit affects length, not grounding. Analytics measures usage after the fact and cannot supply knowledge. Adding SharePoint only at agent level is unnecessarily narrow and would not satisfy the requirement for custom sources configured within the topic. The builder should enable Search only selected sources when strict scoping is required and turn off general knowledge if no ungrounded fallback is allowed. Testing should inspect both the answer and the resource details to confirm that the intended source supplied the evidence. Study Guide alignment: Plan and configure agent solutions > Configure topics > Configure generative answers node; Configure advanced agent responses with custom knowledge sources.

===============

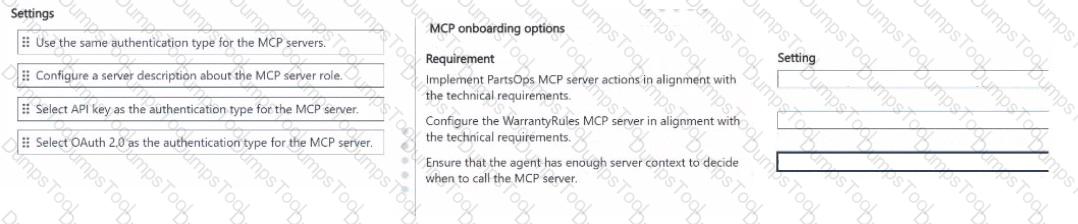

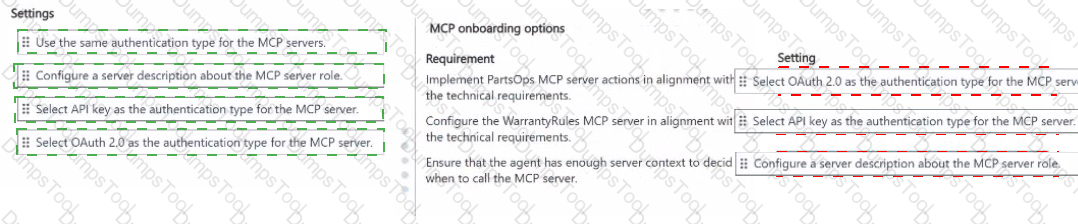

PartsOps per-user authentication → OAuth 2.0; WarrantyRules shared team credential → API key; Tool-selection context → Configure a server description that explains the MCP server ' s role.

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: The authentication choices must follow the identity requirements of each server. PartsOps performs attributable actions, including parts-request creation, so OAuth 2.0 is the appropriate mechanism for individual users to authorize access without sharing their credentials with the agent. That preserves user context and supports accountability for each transaction. WarrantyRules is explicitly read-only and uses a key shared by the agent team; it should therefore be configured with API-key authentication using the required header or query parameter. Applying the same authentication method to both servers would contradict the stated server designs. Authentication alone does not tell the orchestrator when a server is relevant. A concise, discriminating server description should identify PartsOps as the source for availability checks and parts-request creation and WarrantyRules as the source for warranty validation. Copilot Studio uses the names and descriptions of agents, topics, tools, and knowledge sources during generative orchestration. Accurate metadata reduces accidental calls, prevents the wrong server from handling a request, and makes the multi-agent plan more predictable during testing. Study Guide alignment: Integrate and extend agents in Copilot Studio > Add tools to agents > Configure MCP tools.

===============

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: Computer use is the Copilot Studio capability for operating a website or desktop application ' s graphical interface when an API is unavailable. Enabling it gives the agent a UI automation tool driven through the supported machine execution context. During testing, the builder can open the computer-use activity or remote session from the agent ' s activity view to observe steps, inspect logs, and understand failures in real time. Adding a desktop flow is a different deterministic automation technology and is not required by the stated computer-use design. Publishing alone does not provision the UI automation or its machine. A custom connector cannot automate screen controls when the application exposes no API. The tool should be configured with narrowly scoped instructions, a healthy supported machine, protected credentials, and human confirmation for sensitive actions. Because computer-use behavior is probabilistic and visual interfaces change, the team should test alternate screen states, pop-ups, timing, and recovery, then monitor production sessions under strict access and retention controls. Study Guide alignment: Integrate and extend agents in Copilot Studio > Add tools to agents > Configure and monitor computer use for an agent.

===============

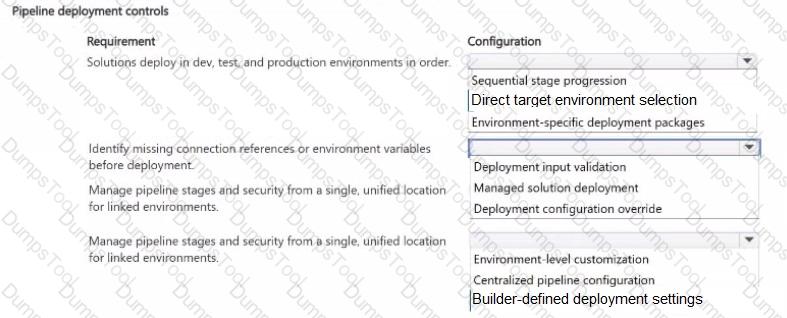

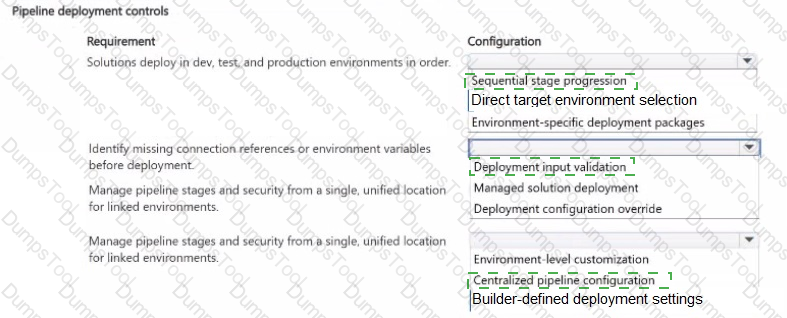

Ordered Dev/Test/Prod deployment → Sequential stage progression; Detect missing references or variables → Deployment input validation; Unified stage and security management → Centralized pipeline configuration.

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: A Power Platform pipeline models the release path as ordered stages, so sequential progression is the control that enforces Dev-to-Test-to-Prod movement instead of allowing an arbitrary target. Deployment input validation checks required connection references, environment variables, and related deployment inputs before promotion begins, reducing failed or partially configured releases. Centralized pipeline configuration in the host environment provides one place to manage linked environments, stages, deployment rules, and security. Environment-specific packages or builder-defined settings would weaken repeatability and governance, while direct target selection would bypass the prescribed order. Managed solutions should be used in downstream environments so production customizations do not create unmanaged drift. The pipeline configuration should assign appropriate deployment roles, protect the host environment, and incorporate approvals or quality gates where required. A successful package check does not replace functional validation: the team should still run the agent ' s test set after deployment and confirm that connections, knowledge access, flows, and environment-specific values operate under target-environment identities. Study Guide alignment: Test and manage agents > Implement application lifecycle management for agents in Copilot Studio > Implement and extend Microsoft Power Platform Pipelines.

===============

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: Terminating immediately on error makes the failure explicit to the runtime but does not send the required notification. The solution therefore still allows an operator-facing silent failure even though the run status is marked failed. A proper pattern uses Configure run after to enter a notification or catch scope on failure and timeout, collects safe diagnostic details, sends the administrative alert, and only then terminates with the intended status. If notification delivery fails, a secondary monitoring or logging path should still preserve the incident. The error message should include a run or correlation identifier, the failed action, and a concise remediation hint without exposing credentials or sensitive business data. Retry behavior should be configured separately according to idempotency and service characteristics. The proposed immediate termination satisfies neither the communication requirement nor controlled recovery, so the answer is No. Tests should force each expected failure state and confirm both notification delivery and final run status. Study Guide alignment: Plan and configure agent solutions > Create and monitor agent flows in Copilot Studio > Implement error handling in agent flows.

===============

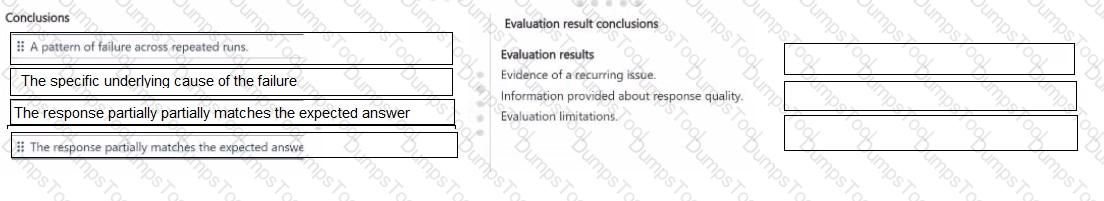

Repeated failures → Evidence of a recurring pattern; Response-quality information → The response partially matches the expected answer; Evaluation limitation → The specific underlying cause cannot be determined from the score alone.

Comprehensive and Detailed Explanation From Microsoft AB-620 Study Guide: Three failures on the same fixed interaction, with scores tightly clustered between 0.58 and 0.61, provide evidence of a repeatable problem rather than an isolated stochastic miss. The evaluator ' s reasoning directly supports the conclusion that the response only partially represents the expected answer. The run also shows that internal documentation was retrieved and no tools were involved, which narrows the diagnostic path toward the knowledge, instructions, retrieval quality, or expected-answer design. It does not, however, prove a single root cause. A score and short reasoning statement cannot tell whether the source document is incomplete, the wrong passage ranked highly, the question is ambiguous, the model omitted a key condition, or the expected response is too strict. The next step is to inspect the test transcript, retrieved sources, activity map, and expected answer, then change one factor and rerun the same case. This disciplined triage distinguishes what the evaluation demonstrates from what still requires investigation and prevents an unsupported causal conclusion. Study Guide alignment: Test and manage agents > Evaluate agent performance > Review test results.

===============

A. Use a Microsoft Graph connector to index the partner’s travel advisory content. Microsoft 365 Copilot connectors—formerly called Microsoft Graph connectors—index non-Microsoft enterprise content into Microsoft Graph, making it available for semantic knowledge grounding and citations. Microsoft Learn: Copilot connectors

D. Add the internal policy documents as a knowledge source. The SharePoint PDFs and policy documents should be connected as agent knowledge so generative answers can retrieve and summarize the relevant content. This is scalable and avoids manually maintaining document-specific topics. Microsoft Learn: SharePoint knowledge sources

B violates the requirement to avoid manually authored Q & A topics. C could produce ungrounded responses from unapproved public sources and would not satisfy the airline’s accuracy, security, or compliance requirements.
