H31-341_V2.5 Questions and Answers

An advantage that is not true about OTN (Optical Transport Network) is that it provides a maximum of five levels of nested or overlapped TCM (Trail Connection Monitoring) connection monitoring (C). In reality, OTN provides powerful out-of-band FEC (Forward Error Correction), wide service interface support (from 2 Mbit/s to 400 Gbit/s), and meets the Tbit/s bandwidth requirements using WDM, but TCM monitoring is more limited. HCIP-Transmission clarifies that OTN’s strengths lie in scalability, error correction, and flexible service mapping, rather than extensive nested TCM levels.

The OptiXtrans E6600 and OptiX OSN 1800 series use a hierarchical system architecture divided into three layers: L0 (optical layer), L1 (multiplexing layer), and L2 (service layer). According to HCIP-Transmission documentation, the E6608T/E6616 and OptiX OSN 1800 II TP/OSN 1800 V Pro models implement the L0+L1+L2 architecture, providing comprehensive functionality across optical signal management, multiplexing, and client service handling. This architecture enables scalable, flexible, and efficient transmission systems supporting various services and network demands. Other options mention partial model sets or incorrect combinations, making option B the accurate statement reflecting the system architecture.

PM (Performance Monitoring), TCM (Trail Channel Monitoring), and APS/PCC (Automatic Protection Switching/Path Connection Control) are defined ODUk overhead functions; NJO is not.

In Link Aggregation Group (LAG) settings, port priority determines which ports carry traffic preferentially. (A) If a primary port is configured to preferentially carry services, it must have a higher priority than other ports to ensure it is selected first. Port priority is numerically represented, and (D) a lower value of “port priority” means higher priority, which can be counterintuitive but is standard in networking. For manual aggregation groups that don’t run LACP, priority settings typically do not apply. This priority mechanism helps optimize link utilization and failover in aggregated links, as detailed in HCIP-Transmission documentation on Ethernet and service aggregation.

The nominal rate of OTU4 signals is precisely 111,809,973.568 kbit/s, which is generally rounded to 112 Gbit/s for practical purposes. This nominal rate corresponds to the standardized high-speed optical transport designed to support extremely high-capacity networks. The rounding simplifies communication and equipment specifications without losing significant accuracy. HCIP-Transmission references this value when discussing OTN signal rates and the design of optical transmission systems to handle next-generation bandwidth demands.

An abnormal TTI in the SM layer triggers a Trail Identifier Mismatch (TIM) alarm. AIS signals loss of signal, not a TTI mismatch.

The statement that the OA gain can be reduced when expanding 100G channels in a 10G system to meet incident optical power requirements is false. In fact, the single wavelength incident optical power of a 100G system is higher than that of a 10G system, and gain adjustment needs to ensure the 100G channels meet their power requirements without degradation. Reducing OA gain indiscriminately could cause insufficient amplification for 100G signals, impairing performance. HCIP-Transmission specifies careful power management and gain setting to balance multi-rate systems during hybrid transmission expansion.

Alarm handling differs between OTN and SDH encapsulation processes, so they are not processed in the same way when GE services are mapped into OTN versus SDH signals.

The formula to calculate the OTUk frame rate is: OTUk frame rate = 255 / (239 - k) × STM-N frame rate. Here, "k" represents the OTUk version index, and STM-N is the synchronous transport module rate. This formula derives from the OTN standard, adjusting the frame rate according to the version and allows synchronization with underlying SDH/SONET rates. HCIP-Transmission materials provide this formula for engineers to correctly understand and calculate transmission rates for different OTN layers.

In coherent transmission systems, the non-standard incident optical power is measured at the output port of the transmit-end OA board, making that board output the reference point.

Among the differences between MPLS-TP OAM and MPLS OAM, the interval for sending OAM packets is not changed by canceling 3.3 ms and 10 ms values (D). This means these intervals remain in place or are not the key differentiators. The other options (A, B, C) correctly describe differences such as packet formats, label alarms (AIS, RD1, UNEXPMEG), and added functions (CC, AIS, LB, LT) unique to MPLS-TP OAM. HCIP-Transmission materials clarify these differences to aid in understanding the enhanced OAM capabilities for transport profile MPLS networks.

QPSK uses four phase states, not two. Statement B incorrectly says it assigns two possible phase values, which describes BPSK, not QPSK. QPSK effectively doubles the bits per symbol compared to BPSK, reducing baud rate while maintaining data rate, but with four distinct phases.

The Delay Measurement (DM) function in MPLS-TP OAM can be used to measure the delay and jitter of service packets accurately. This function is essential for maintaining quality of service (QoS) in transport networks by monitoring timing and synchronization characteristics. Accurate delay and jitter measurement helps in diagnosing performance issues and ensuring service-level agreements are met. HCIP-Transmission emphasizes the use of DM in OAM for real-time monitoring and fault localization in MPLS-TP environments.

Insertion loss refers to the decrease of optical power that occurs when light passes through a passive optical component such as connectors, splitters, filters, or splices. This loss results from absorption, scattering, or imperfect coupling within the component. In optical transmission systems, insertion loss is a critical parameter affecting link budget and overall signal quality. HCIP-Transmission materials stress managing insertion loss to ensure sufficient power reaches the receiver and to maintain the integrity of transmitted signals over long distances. Proper component selection and maintenance help minimize insertion loss in WDM systems.

Avalanche photodiode (APD) receivers are commonly used on OTU boards due to their high sensitivity. The input optical power range typically lies between -4 dBm (maximum) and around -28 dBm (minimum). Among the options, -4 dBm is within the acceptable input power range, ensuring the APD operates without saturation or damage. Optical powers too high can saturate the receiver, while too low powers cause poor signal-to-noise ratio. HCIP-Transmission specifies these ranges to ensure optimal receiver performance and avoid optical overload or underpower conditions.

The TMK1UNS5 is a universal OTN line board that operates in 100 G and 200 G line modes and supports hybrid OTN/SDH/packet mapping (including ODU0, ODU1, ODU2/2e, ODU3, ODU4, and ODUflex) as well as FEC, OSC, and 1+1 protection. Its published “Functions and Features” do not include an electrical 3R regeneration mode, so it cannot be used as a regenerator.

The TNG2WSMD09 board is a 9-port wavelength selective multiplexer/demultiplexer for the Super C band and supports optical power adjustment and online optical power detection.

Abnormal optical power can be caused by external factors such as (A) bent optical cables causing increased attenuation or microbends, (B) contaminated connectors reducing transmission efficiency due to dirt or dust, and (C) old optical fibers suffering from aging and degradation that increase loss. (D) Crossed pairs on the ODF (Optical Distribution Frame) is more related to wiring errors but may not directly cause optical power anomalies. HCIP-Transmission stresses proper handling and maintenance of fibers and connectors to maintain optimal optical power levels and network reliability.

OTUk_LOM (Loss of Multiframe) alarm is generated when frame alignment is lost; however, the statement that it occurs when the Frame Alignment Signal (FAS) is Out of Frame (OOF) for three consecutive milliseconds is false. The actual time threshold differs slightly according to standards and vendor implementations. HCIP-Transmission clarifies these alarm thresholds and conditions to ensure precise timing in fault detection, avoiding false alarms while providing timely notifications for network maintenance.

In OA-free systems, where no optical amplifiers are used, the lower threshold of the receive optical power of a line board or the WDM side of an OTU board is indeed the optical module’s receiver sensitivity plus 3 dB. This ensures a safety margin for stable signal reception and alarm triggering. Without optical amplifiers, signal levels are more susceptible to attenuation, so maintaining this margin helps prevent degradation due to low optical power. HCIP-Transmission highlights this threshold as a standard parameter for optical power management in non-amplified systems.

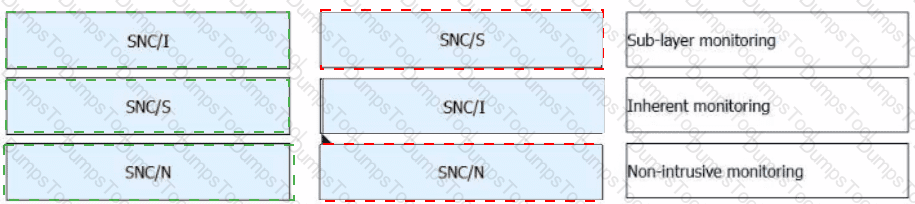

ODUk_PM_BDI refers to the ODUk PM backward defect indication. It is a monitoring signal used in OTN to indicate that a defect has been detected downstream (toward the transmitter side). When this indication is received, it informs the upstream node of the presence of defects or faults, allowing timely protection switching or troubleshooting. This mechanism supports fault propagation awareness across network segments, essential in maintaining service integrity. HCIP-Transmission details this indicator as part of ODUk performance monitoring (PM) overhead functions to enhance network reliability and fault management.

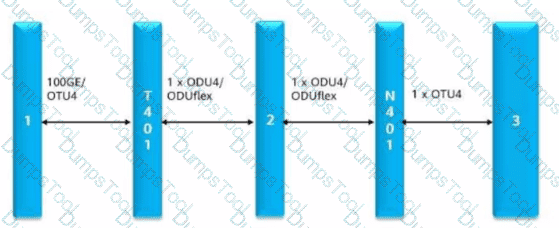

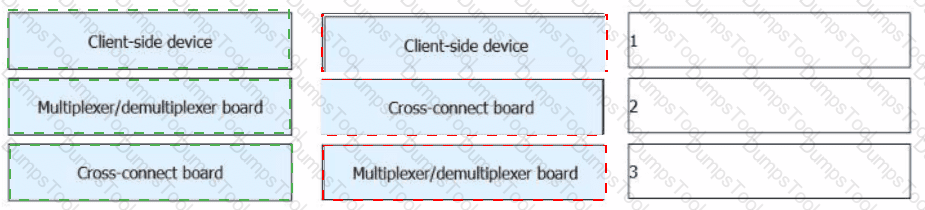

The electrical-layer structure of OTN frames follows the path: OTUk → ODUk → OPUk → Client. OTUk is the outer frame layer that carries ODUk (Optical Data Unit), which in turn contains OPUk (Optical Payload Unit). The OPUk holds the client signal payload. This hierarchical encapsulation supports transparent transport of client signals over optical networks. Understanding this sequence is essential for managing signal mapping and monitoring in OTN networks as outlined in HCIP-Transmission documentation.

An IP subnet mask of 27 bits means 32 - 27 = 5 bits are left for host addresses. The number of hosts per subnet is 2^5 - 2 = 30. The subtraction of 2 accounts for the network address and broadcast address, which cannot be assigned to hosts. This calculation is fundamental in IP subnetting and is widely used in network design to allocate IP address ranges efficiently. HCIP-Transmission materials include these principles as part of the networking fundamentals necessary for transmission network engineers.

The egress node checks received CV or FFD packets over any 3-second window when the ingress interval is 1 s (i.e., at three times the transmission interval).

SOTU denotes a single-OTU interface that supports one OTU channel, whereas MOTU denotes a multi-OTU interface capable of handling multiple OTU channels.

R_LOS, R_LOF, R_OOF, and MUT_LOS all indicate loss of signal or framing, which directly interrupts service delivery.

Operations that generally interrupt services on live networks include (A) cold reset on a service board, (C) hardware loopback, and (D) software loopback. Cold reset reinitializes hardware and can disrupt traffic; hardware loopback physically loops the signal causing interruption; software loopback also reroutes signals internally, impacting live data flow. Warm reset, however, is designed to minimize or avoid service interruptions by restarting software processes without full hardware reinitialization. HCIP-Transmission emphasizes understanding these operational impacts for network maintenance planning to minimize service downtime.

When light passes through a passive optical component, the decrease in optical power is termed insertion loss. This is a fundamental concept in optical transmission where every component like connectors, splices, splitters, or filters adds some level of power attenuation. Managing insertion loss is crucial to maintain overall system performance, especially in long-haul or dense WDM systems where accumulated loss can degrade the signal. HCIP-Transmission emphasizes the importance of measuring and minimizing insertion loss to ensure system stability and reach requirements are met.

The TNG2M60V board is not a 60-channel multiplexer with VOA for the Super C band; this description is incorrect for that board model.
