H13-629_V3.0 Questions and Answers

Huawei explains that a file-system snapshot is a point-in-time copy. When source data changes, ROW writes the new data to another location while the snapshot continues to reference the original data, thereby preserving the source file system ' s state at snapshot creation time.

The statement is TRUE. Snapshot rollback changes the active file-system data state back to the selected protection point. Active NAS clients must therefore not continue issuing file operations against the source file system while that authoritative state is being replaced. The host share is unmounted before rollback so that active client I/O cannot conflict with restoration of snapshot metadata and data mappings.

The HCIE materials also show the same operational consistency principle in rollback workflows: upper-layer service access is stopped before storage state is reverted. In the Lab Guide ' s rollback procedure, the first action is to stop upper-layer service access and unmount the relevant file system before storage mappings are changed.

This ensures that the post-rollback file system presents one internally consistent point-in-time image when service access resumes.

Study Guide Topics: Data Storage Technology Presentation → HyperSnap → File System Snapshot → ROW → Snapshot Rollback → NAS Data Consistency.

The statement is FALSE because it attributes guarantees for CPU, memory, and I/O resources collectively to CPU QoS.

CPU QoS applies to the allocation and scheduling of CPU computing resources. Memory and I/O are distinct resource classes and are controlled through their own resource-management mechanisms. A CPU QoS policy cannot by itself guarantee the VM ' s minimum memory allocation and storage/network I/O resources.

Huawei ' s FusionCompute architecture explicitly separates compute virtualization management, storage virtualization management, and network virtualization management, reflecting the fact that these resource domains are managed independently. The Lab Guide likewise demonstrates separate resource reservation parameters for CPU and memory, configuring “Reserved CPU (%)” and “Reserved Memory (%)” independently rather than treating memory as part of CPU QoS.

FusionCube combines compute, virtualization, networking, and scale-out storage into a unified platform, but convergence does not eliminate the distinction between their QoS controls.

Therefore, CPU QoS can protect or regulate CPU computing capability, but it does not independently guarantee CPU, memory, and I/O resources together. The overall statement is consequently FALSE.

Study Guide Topics: Data Storage Technology Presentation → FusionCube → FusionCompute → VM Resource Management → CPU QoS → Resource Isolation.

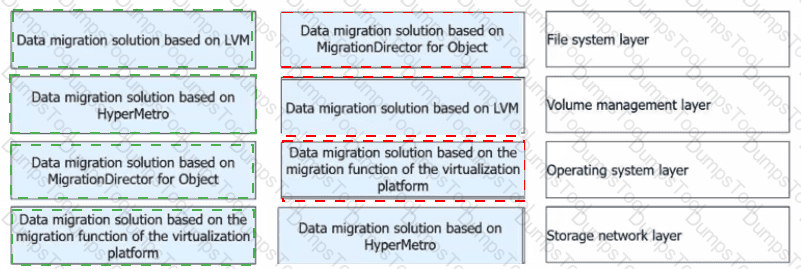

Data migration solution based on MigrationDirector for Object → File system layer; Data migration solution based on LVM → Volume management layer; Data migration solution based on the migration function of the virtualization platform → Operating system layer; Data migration solution based on HyperMetro → Storage network layer

The supplied practice-set answer maps the four migration approaches as shown above. Huawei’s migration architecture organizes migration technologies according to where the migration function is implemented in the host/storage stack. LVM-based migration operates through host volume management, while virtualization-platform migration uses capabilities supplied by platforms such as VMware or FusionCompute. HyperMetro/HyperReplication-based migration operates at the storage-network/storage-system level and moves or mirrors storage data independently of application logic.

There is one important source inconsistency in this item: the official Training Materials’ “Technical Structure of Huawei Storage Migration Solutions” explicitly places Migration Director for Object under the Object layer, while it separately associates the file-system layer with NAS migration. Therefore, the first match in the supplied question key does not align with the official training diagram.

For this practice set, the answer above reproduces the supplied key; for study purposes, remember that Huawei’s official architecture classifies object migration at the Object layer.

Study Guide Topics: Data Migration Solution → Huawei Migration Architecture → LVM → Virtualization Platform → MigrationDirector → HyperMetro.

Huawei ' s LUN-discovery troubleshooting procedure explicitly lists “Cause 1: The storage pool is faulty” and “Cause 2: The link is abnormal.” For an abnormal link, DeviceManager is used to check whether the connected FC or iSCSI port reports Link down. The separate multipathing troubleshooting section states that multipathing malfunction generally leads to storage performance deterioration or failure to discover multiple paths. Typical causes include the multipathing software being blocked or the HBA driver having its own failover function. Therefore, the complete absence of multipathing software does not inherently prevent a Linux host from detecting a mapped LUN through an available single path. Multipathing primarily provides path aggregation, redundancy, failover, and load balancing.

By contrast, a faulty storage pool can make the LUN unavailable; incorrect FC zoning prevents the host initiator from reaching storage targets; and an actual physical or logical link fault prevents device discovery. Consequently, option A is the false statement.

Study Guide Topics: Storage O & M → Basic Storage Service → Failure to Discover LUNs → FC/iSCSI Link Troubleshooting → Multipathing Software.

The OceanStor Pacific architecture states: “Storage engine layer: implements persistent storage.” It further specifies that this layer provides “erasure coding (EC), data rebuilding and balancing, disk management, and data read/write capabilities.”

Therefore, C. Data reconstruction belongs to the engine layer.

Option A, tiered storage, is implemented as an advanced storage-service capability through features such as SmartTier, meaning it belongs logically to the service layer rather than the persistence engine. Option B, protocol interworking, is associated with service/interface processing. Huawei specifically describes multi-protocol access and interworking for NFS, CIFS, POSIX, MPI, S3, and HDFS in the interface/service architecture.

Option D, service configuration, is part of storage management, alongside installation, deployment, user management, device management, alarm reporting, monitoring, upgrade, and capacity expansion.

The architectural separation is therefore clear: interfaces expose protocols; the service layer implements storage services and value-added functions; the engine layer provides persistent storage, redundancy, rebuilding, balancing, and disk I/O; and management performs administrative operations.

Study Guide Topics: Scale-Out Storage Technology Presentation → OceanStor Pacific → Functional Architecture → Storage Engine Layer.

The Huawei flash-storage feature table defines SmartThin as “Intelligent thin provisioning.” Therefore, when the provisioning type is configured for thin provisioning, the associated feature is SmartThin.

The DME Storage course separately states that block-storage service levels support resource-tuning policies for Thin/Thick mode, deduplication and compression, and SmartTier. These are separate resource-tuning dimensions.

SmartTier concerns data placement among storage tiers, SmartCompression performs data reduction by compression, and SmartDedupe eliminates duplicate data. None of those features defines whether a LUN is thinly or thickly provisioned. SmartThin is specifically the capacity-allocation technology that exposes a logical capacity while allocating physical storage according to actual consumption.

Thus, among the four choices, SmartThin is the license/feature corresponding to the requested provisioning type.

The retrieved course material clearly maps SmartThin to intelligent thin provisioning and DME to Thin/Thick resource tuning; the exact licensing dialog wording is not separately reproduced in the parsed Training/Lab pages.

Study Guide Topics: Data Storage Management and O & M → DME Storage → Block Storage Service Level → Resource Tuning → Thin Provisioning → SmartThin.

The only true statement is C, so the false statements are A, B, and D.

Huawei states: “If communication between the storage systems is down, the preferred site continues to provide services while the other site stops providing services.”

The HyperMetro pair therefore transitions to To be synchronized because the two storage systems can no longer maintain synchronous dual-write consistency across the failed inter-site link.

Option A is false because automatic fallback to static priority mode is associated with quorum-server failure, not merely failure of the HyperMetro communication link while the quorum server remains available. Option D is false because permitting both sites to continue independently would create a split-brain risk. Quorum arbitration exists specifically to prevent that condition.

Option B is also false because arbitration does not simply make both sides unavailable. One site wins arbitration and continues providing services, while the losing site stops host access.

This behavior preserves data consistency until the inter-site link is repaired and synchronization resumes.

Study Guide Topics: Data Protection Solution → HyperMetro → Single Quorum Server → Arbitration Mechanism → Link Failure → To-be-Synchronized State.

Huawei states: “SmartEqualizer calculates the load based on the configured load policy and returns the IP address of a proper node to the client so that the client can access the storage system using the standard protocol.”

This directly supports C. SmartEqualizer performs access-layer load balancing when clients resolve and access storage services. It does not rely on all cluster nodes continuously pushing their load information to one designated “primary SmartEqualizer node” in the manner described in A; therefore A is incorrect.

The SmartEqualizer service integrates with DNS-based client access. Huawei supports two DNS deployment approaches: client-side DNS can forward the required OceanStor Pacific domain-resolution request to the storage system ' s DNS service, or a client can use the OceanStor Pacific DNS address directly. These operating approaches correspond to B and D.

This DNS-based mechanism is important because the IP returned to a new client is selected according to the configured balancing policy, allowing new access sessions to be distributed across suitable nodes instead of concentrating service traffic on one storage node.

Study Guide Topics: Data Storage Technology Presentation → OceanStor Pacific → SmartEqualizer → Intelligent Load Balancing → Access-Layer Load Balancing → DNS.

Huawei states that database backup “supports full backup, incremental backup, differential backup, and log backup.” It further specifies: “By using log backup, production data can be recovered to any time point in the past,” and that the solution supports “data encryption, backup data transmission encryption, and storage encryption” as well as “traffic control.”

Therefore, A, C, and D are correct.

Point-in-time recovery is enabled by combining database backup copies with transaction/archive log backup. Instead of being restricted to a full or incremental backup timestamp, the restore workflow can replay the required logs until the requested recovery time, thereby reducing the effective RPO.

Encryption is supported across multiple stages: backup data itself can be encrypted, backup-data transmission can be protected, and the underlying storage can use encryption. Traffic control is also supported so that backup activity does not consume excessive network or storage bandwidth and interfere with production services.

Data cleaning, option B, is not listed among the database backup capabilities described in this course section.

Study Guide Topics: Data Protection Solution → OceanProtect Database Backup → Log Backup → Point-in-Time Recovery → Encryption → Traffic Control.

The HCIE Lab Guide states: “For bond ports of the Bond4 type on the host, the dynamic LACP mode must be configured for the bond ports on the switch.”

Therefore, the correct selection is B. Mode 4.

Mode 4 corresponds to the Bond4/LACP-based link-aggregation design used where multiple physical Ethernet links operate as one logical connection. When front-end switches are deployed as an M-LAG pair, link aggregation can span the two physical switches while presenting a single logical aggregation relationship toward the connected system.

This design is specifically appropriate for switch-port and link redundancy. If one member link or one associated switch-side port fails, the remaining member links continue carrying traffic without requiring the logical storage interface to be taken offline. It also enables bandwidth aggregation under normal conditions.

The Lab Guide ' s networking principles distinguish this from simple standalone interfaces and explicitly require dynamic LACP on the switch side when Bond4 is used. That requirement aligns with an M-LAG front-end design where resilient link aggregation is required across redundant switches.

Study Guide Topics: Data Protection Solution → OceanProtect Network Planning → Front-End Storage Network → Bond4 → Dynamic LACP → M-LAG.

The SmartVirtualization offline-takeover workflow states: “Step 2: Disconnect the application server from the heterogeneous storage system to stop data transfer and services. Step 3: Connect the application server to the local storage system and enable the local storage system to take over services.” The takeover-mode section further states that offline takeover uses no masquerading and is applicable to compatible Huawei and third-party heterogeneous storage systems; importantly, services on the related application servers are stopped temporarily. For migration implementation, services must therefore first be stopped. The original source-storage mapping is then changed so that host access can be redirected correctly. SmartVirtualization subsequently takes over the source LUNs. After the host paths and service relationship have been transferred to Huawei storage, applications and services are restored. SmartMigration can then move the actual data from the heterogeneous eDevLUN to the target internal LUN while Huawei storage controls host access.

Consequently, the sequence is b → a → c → e → d, or baced.

Study Guide Topics: Data Migration Solution → SmartVirtualization → Offline Takeover → Takeover Mode Selection → SmartMigration.

Huawei states that the default UltraPath settings are recommended for most scenarios. At the controller level, UltraPath supports load balancing between controllers or within a controller. At the link level, the supported modes are explicitly listed as “round-robin, min-queue-depth, and min-task.”

Therefore, the statement is FALSE. FIFO is not listed as an UltraPath link load-balancing algorithm in the HCIE training material. Furthermore, changing a load-balancing algorithm is not the appropriate corrective action when only certain hosts cannot access a LUN that is successfully mapped to multiple hosts. That symptom requires checking the affected hosts ' paths, initiators, mapping relationships, SAN/iSCSI connectivity, and UltraPath path status.

Huawei defines min-queue-depth as the default link-level algorithm: UltraPath selects the available path with the smallest number of outstanding I/Os. Round-robin distributes I/Os across available paths sequentially, whereas min-task chooses the path carrying the least I/O data volume.

Study Guide Topics: Data Storage Management and O & M → UltraPath → Parameter Settings → Load Balancing Modes → Host-to-Storage Path Management.

The mandatory network planes are the backup network and the management network.

Huawei defines the management network plane as the network used for web-console login, service configuration, and alarm reporting. Without it, administrators cannot perform the fundamental control and administration functions required by the appliance. Huawei defines the backup network plane as the network used for backup data and in-band signaling transmission, making it essential for the appliance ' s core data-protection function.

The replication network, by contrast, is needed when backup copies must be replicated to another data-protection appliance. If remote replication is not part of the deployment, this plane is not mandatory. Similarly, an archive network is optional because the backup network can be reused for archiving under supported configurations.

An internal communication network becomes relevant to multi-node architectures where separate nodes must communicate internally. The question explicitly specifies a single-node system, so this separate internal plane is not mandatory.

Therefore, the baseline single-node OceanProtect networking requirement is C and D.

Study Guide Topics: Data Protection Solution → OceanProtect Appliance → Network Planning → Management Network → Backup Network → Replication Network.
