D is correct after correcting the YAML location to spec.predictor.model.storageUri. The ServingRuntime describes the runtime container capable of serving the model; the InferenceService describes the particular model instance to deploy. Because the CodeLlama model files already reside on a persistent volume claim named demo-model, the InferenceService must tell KServe where those model artifacts are stored. A PVC URI is therefore supplied through the model’s storageUri field, for example pvc://demo-model.

Option A is structurally wrong because modelFormat.name identifies the model format understood by the ServingRuntime; it is not a storage location. Option B incorrectly assigns model storage to the ServingRuntime specification. Option C changes the NIM cache directory inside the container but does not tell KServe to mount and initialize the requested model from the PVC. KServe’s v1beta1 schema places storageUri alongside modelFormat and runtime under the predictor’s model block.

This distinction is fundamental to reusable KServe design: a runtime can serve multiple compatible models, while each InferenceService supplies the model-specific location and deployment parameters.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 5 “Other options for serving models on HPE Private Cloud AI”; HPE AI Essentials KServe documentation; KServe InferenceService v1beta1 schema.

A is correct, with the terminology corrected to “second-generation Transformer Engine.” NVIDIA Blackwell introduces a second-generation Transformer Engine that expands support for lower-precision numerical formats used in AI workloads. By dynamically selecting suitable precision while preserving model quality, the architecture can increase throughput and reduce memory and compute requirements for training and inference. Blackwell also introduces newer Tensor Core capabilities specifically designed for generative-AI workloads.

The other choices do not accurately describe Blackwell. The architecture is not characterized by an “L4 memory cache.” High-speed GPU-to-GPU communication in HGX-class systems relies on NVIDIA NVLink/NVSwitch technology rather than simply routing peer traffic over ordinary PCIe lanes. Blackwell uses fifth-generation Tensor Cores; therefore an answer referring to a mixture of fourth-generation Tensor and RT cores is not correct.

For the HPE7-S02 objective, the important point is workload fit. HPE AI-optimized systems use current accelerator architectures because LLM training and inference depend heavily on tensor throughput, efficient low-precision arithmetic, high memory bandwidth, and fast GPU interconnects.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 1 “HPE ProLiant Gen12 for AI”; HPE and NVIDIA Blackwell platform materials; NVIDIA Blackwell architecture documentation.

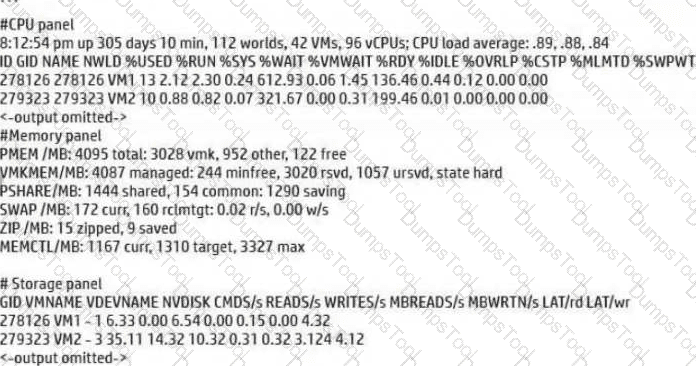

A is correct. The esxtop output indicates memory pressure rather than CPU or storage saturation. The host has only about 122 MB of free physical memory, the VMkernel memory state is shown as hard, ballooning is active, and swap is in use. Those are strong indicators that ESXi is reclaiming memory because demand is approaching or exceeding comfortable physical capacity. Reclamation can increase latency sharply, especially when guest memory is swapped to storage.

The CPU figures do not show the classic signature of CPU contention. The displayed VMs have low %RDY values, so they are not spending excessive time waiting for physical CPU scheduling. The storage panel also shows relatively low read/write latency for the displayed workloads, which does not support a storage-controller or storage-network bottleneck as the primary cause.

The appropriate remediation is therefore to add physical memory, reduce VM memory commitments, or evacuate some VMs to other hosts. The screenshot is a good example of why VMware troubleshooting should correlate multiple esxtop panels rather than infer the bottleneck from utilization alone.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 8 “Troubleshooting HPE running VMware”; VMware ESXi esxtop memory-reclamation concepts.

B is correct. HPE Slingshot uses fine-grained adaptive routing to make efficient use of available fabric paths. For traffic that can tolerate reordering, the network can make routing decisions at packet granularity, steering packets away from congested links and distributing high-bandwidth MPI or storage traffic across the fabric. This is particularly useful in HPC environments where compute collectives and Lustre I/O can create dynamic hotspots that are difficult to predict with static routing.

Option A is false because Slingshot is an Ethernet-based HPC interconnect, not InfiniBand NDR. Option C incorrectly characterizes its congestion management as primarily DiffServ-based; Slingshot uses specialized congestion-control and telemetry mechanisms designed for HPC traffic behavior. Option D overstates a topology requirement. HPC applications do not require every fabric to be constructed as a mathematically non-blocking network, and Slingshot’s value includes maintaining performance through adaptive routing and congestion management even under variable traffic.

The design goal is sustained application throughput, not merely peak link speed. Efficient path use keeps compute nodes from idling behind network congestion.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 10 “HPE HPC networking solutions”; HPE Slingshot QuickSpecs and adaptive-routing documentation.

A is correct. HPE Machine Learning Inference Software supports canary rollout behavior for a deployment when a new model version is introduced. A canary allows the current production version and the candidate version to run concurrently while a defined percentage of inference traffic is directed to each. Setting the new version to 10% gives the customer a controlled production test while retaining 90% of traffic on the established version.

Option B invents a “Canal” routing service and unnecessarily creates a separate deployment. Option C confuses autoscaling with traffic splitting; autoscaling changes replica capacity, not the percentage of requests routed to different model versions. Option D also misstates the model: traffic distribution is part of the versioned canary rollout rather than an arbitrary routing rule between two independently configured model versions in the existing deployment.

The canary mechanism reduces change risk because model quality, latency, error rate, and resource consumption can be compared before full promotion. If the candidate is satisfactory, its traffic share can be increased; if not, the rollout can be stopped or rolled back.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 5 “Serving models with HPE Machine Learning Inference Software”; HPE AI Essentials MLIS documentation, “Initiate Canary Rollout.”

B is correct. HPE AI Essentials uses service identities based on SPIFFE concepts. Workloads receive SPIFFE Verifiable Identity Documents (SVIDs) from the platform’s SPIRE infrastructure, and the Istio service mesh uses those identities to establish authenticated service-to-service communication. This gives workloads cryptographically verifiable identities that are independent of network location and supports mutual authentication between services inside the platform.

Option A incorrectly attributes workload identity to the Istio ingress gateway. The ingress gateway handles north-south access, but it is not the certificate authority that independently issues identities to every internal workload. Option C describes Kubernetes secrets generated by Kyverno, which is not the HPE AI Essentials workload-authentication architecture. Option D is too generic; static self-signed certificates created at installation would not provide the dynamic, workload-specific identity and rotation model that SPIRE supplies.

For integrators, the important design point is that the platform treats workload identity as a first-class security control. Istio provides the service-mesh enforcement and mTLS capabilities, while SPIRE supplies trusted identities used by workloads and proxies.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 3 “Understanding and managing communications”; HPE Private Cloud AI/HPE AI Essentials core-concepts documentation for Istio, SPIRE, and service identity.

D is correct. HPE Private Cloud AI can export observability data through an OpenTelemetry (OTel) endpoint. HPE AI Essentials retains Prometheus metrics for a defined local retention period, but organizations that require longer retention can register an OTel endpoint and send the telemetry to an external observability or storage platform with the retention policy they require. This decouples operational history from the local Prometheus retention window.

Option A does not describe the supported long-term metrics export mechanism. Option B would merely add another visualization component and would not solve durable metric retention; Grafana reads metrics but is not itself the long-term time-series store. Option C concerns alert output, which is a subset of operational events and cannot substitute for retained Prometheus time-series data.

This design is operationally important for capacity analysis, incident review, compliance evidence, and trend detection. The platform remains responsible for producing metrics, while the external OTel destination provides enterprise-scale storage and analytics.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Modules 3 and 7, monitoring and troubleshooting; HPE AI Essentials Software documentation, “Configuring Endpoints,” which describes OTel export for long-term metric storage.
