HPE7-J01 Questions and Answers

The HPE Alletra 9000 (and its predecessor, HPE Primera) supports various Remote Copy (RC) topologies to meet different disaster recovery and data distribution requirements. These include 1-to-1, 1-to-N (fan-out), and N-to-1 (fan-in) configurations.

In an N-to-1 Remote Copy configuration, multiple source storage systems (represented by 'N') replicate their data to a single, centralized target system at a disaster recovery (DR) or secondary site. This architecture is particularly efficient for organizations with multiple regional or branch offices that wish to centralize their backup and DR operations into a single data center to reduce hardware costs and simplify management. In the scenario described, the company has three primary sites ($N = 3$), each with its own storage array. To implement an N-to-1 strategy, the administrator only needs to provide one storage array at the DR site. This single target array must be sized appropriately to handle the combined capacity and performance requirements (IOPS and throughput) of the incoming replication streams from all three source systems.

Architecturally, the Alletra 9000 uses Remote Copy Groups to manage these relationships. Each group on the source systems is mapped to a corresponding group on the single target system. It is important to note that while the hardware requirement is a single array, the administrator must ensure the target array has sufficient Remote Copy ports (RCIP or RCFC) and licensed capacity to accommodate the fan-in ratio. The Alletra 9000 management interface and HPE GreenLake Data Services Cloud Console (DSCC) provide the orchestration necessary to monitor these multiple inbound streams and ensure that the Recovery Point Objectives (RPOs) are met across all sites simultaneously.

In a Brocade FCIP (Fibre Channel over IP) environment, an extension trunk (or tunnel) can be composed of multiple circuits to provide both increased bandwidth and high availability. The operational state of these circuits—whether they are active or standby—is determined by the Metric assigned to each individual circuit.

According to the Brocade Fabric OS Extension Configuration Guide, all circuits within a tunnel or trunk have a metric of either 0 or 1.

Metric 0: This is the default value and indicates an active circuit. If multiple circuits are configured with Metric 0, they will operate in an active-active mode, and the load will be balanced across them.

Metric 1: This indicates a standby (or passive) circuit. Standby circuits with Metric 1 are not used for data transmission unless all Metric 0 circuits within that tunnel/failover group fail.

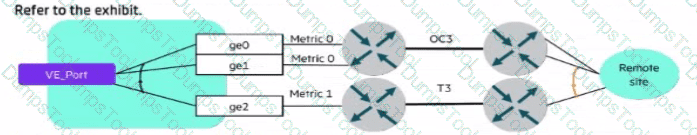

In the provided exhibit, there is a single VE_Port (Virtual E_Port) trunking three individual IP circuits:

ge0 is configured with Metric 0 (Active).

ge1 is configured with Metric 0 (Active).

ge2 is configured with Metric 1 (Standby).

Therefore, this is a valid configuration where the system will utilize the two Metric 0 circuits (ge0 and ge1) simultaneously for data traffic, providing an active-active load-balanced connection. The third circuit (ge2) will remain in a standby state, only becoming active to maintain the link if both primary circuits go offline. Options A and B are incorrect because trunks do not require an even number of circuits, and FCIP trunks are specifically established over Ethernet (ge) ports, not native Fibre Channel ports.

In the context of HPE StoreOnce Catalyst and NAS replication, security is governed by a bi-directional trust or permission-based handshake. When configuring replication between two StoreOnce appliances, the "Target" (Secondary) system acts as the gatekeeper. The error described occurs because the primary system is attempting to push data or create a mapping to a destination that has not authorized it.

According to the HPE StoreOnce documentation regarding Replication Permissions, the secondary appliance must explicitly grant permission to the source appliance before any mapping or data transfer can occur. This is a security measure designed to prevent unauthorized data ingestion or "rogue" replication tasks from consuming storage resources on the target system. To resolve the permission error, the administrator must log into the Secondary StoreOnce appliance (the target) and navigate to the replication settings. There, they must add the Primary StoreOnce appliance as an authorized "source" by specifying its network address (FQDN or IP) and providing the necessary credentials (username and password) that the primary system will use to authenticate.

Unlike simpler protocols where a "Public Access" setting (Option B) might exist, HPE StoreOnce requires a defined relationship for NAS and Catalyst replication to ensure data integrity and multi-tenancy security. Option A refers to token-based authentication, which is more common in modern cloud-native Alletra environments via DSCC, but not the standard for legacy StoreOnce NAS replication. Options D is incorrect because the permission must be granted at the receiving end, not the sending end. Once the secondary system has the primary's details stored in its Replication Permissions list, the primary appliance will be able to successfully "discover" the target libraries and establish the mapping without further permission errors.

For workloads like NoSQL databases (e.g., MongoDB, Cassandra), Big Data analytics (e.g., Hadoop, Spark), and high-throughput data lakes, the primary performance bottleneck is often the latency and bandwidth between the compute and the storage media. When a customer specifies they are running on bare-metal servers to achieve "most efficient performance," they are looking for a solution that minimizes the overhead of hypervisors and provides direct, high-speed access to storage.

The HPE Alletra Storage Server 4000 series, and specifically the Alletra 4110, is purposefully engineered for this "Data-First" server-based storage market. The Alletra 4110 is a 1U, all-NVMe ultra-dense storage server that supports dual 4th or 5th Gen Intel Xeon Scalable processors and PCIe Gen5 throughput. Unlike traditional storage arrays that connect via a SAN, the Alletra 4110 functions as high-performance Software-Defined Storage (SDS) infrastructure. It is designed to run the application and the data storage on the same high-density nodes, or to act as a high-speed storage tier for bare-metal clusters.

Other options are less suitable for this specific "bare-metal NoSQL" requirement:

HPE SimpliVity (B) is a Hyperconverged Infrastructure (HCI) solution that is inherently tied to a hypervisor (VMware or Hyper-V), which contradicts the customer’s bare-metal requirement.

HPE Alletra dHCI (C) is a disaggregated HCI solution that automates a SAN environment but is also centered around VMware virtualization.

HPE GreenLake for Private Cloud Business Edition (A) is a service-oriented offering primarily for managing virtualized private clouds.

The Alletra 4110 provides the massive I/O throughput (up to 315 GB/s of PCIe Gen5 bandwidth to SSDs) and the low-latency NVMe performance that NoSQL and analytics workloads demand, making it the superior architectural choice for bare-metal, data-intensive environments.

To protect Oracle databases using HPE StoreOnce, the preferred architectural method is using HPE StoreOnce Catalyst for Oracle RMAN. This integration allows Oracle Database Administrators (DBAs) to manage backups directly from their native RMAN (Recovery Manager) tools while leveraging the deduplication and performance benefits of the StoreOnce appliance.

According to the HPE StoreOnce Catalyst for Oracle RMAN User Guide, the implementation involves two distinct stages: configuration on the StoreOnce appliance and configuration on the database server. First, the storage administrator must log into the StoreOnce UI and, under the Data Services section, navigate to Catalyst. Here, they must create a Catalyst Store. This store acts as the target repository for the backup data. During creation, the administrator sets permissions (client access) to allow the Oracle server to communicate with this specific store.

The second, and crucial, part of the implementation (as noted in Option D) is the installation of the HPE StoreOnce Catalyst Plug-in for Oracle RMAN on the actual Oracle database server. This plug-in provides the "SBT" (System Backup to Tape) interface that RMAN requires to talk to a non-disk/non-tape target. Without this plug-in installed on the host, RMAN has no way of translating its commands into the Catalyst protocol. Once the plug-in is installed and configured with the StoreOnce details, the DBA can allocate channels to the "SBT_TAPE" device and run backup jobs directly to the Catalyst Store created in the UI. Options A, B, and C are incorrect because the StoreOnce UI does not have an "Oracle RMAN option" toggle or "Database Library" creator; the intelligence resides in the combination of the Catalyst Store and the host-side plug-in.

HPE GreenLake for File Storage is built upon a disaggregated, shared-everything (DASE) architecture powered by VAST Data software. The replication mechanism in this environment is fundamentally different from traditional block-based replication. Instead of replicating entire volumes or LUNs, HPE GreenLake for File Storage performs replication at the directory level.

According to the HPE GreenLake for File Storage Administrator Guide, the system utilizes a snapshot-based asynchronous replication engine. This allows for highly flexible topologies, including N:1 (fan-in) and 1:N (fan-out) configurations, which are essential for modern distributed data environments and centralized backup strategies. Because the solution is file-based, it leverages "Views" (or shares) that point to specific directory paths. Protection policies and snapshot schedules are applied directly to these paths, ensuring that only the specific datasets required for disaster recovery are replicated.

Option B is a common point of confusion; while the system is inherently "reduction-aware" and uses similarity-based data reduction (deduplication and compression) to save space on the physical media, the replication process itself focuses on the metadata and unique data blocks associated with the directory-level snapshots. Option A is incorrect because, in an asynchronous replication relationship, the destination is typically Read-Only until a failover or clone operation is initiated. Option D is incorrect as the management of protected paths follows strict pairing rules to prevent configuration conflicts. Thus, the support for flexible fan-in/fan-out topologies and granular directory-level protection (Option C) is the defining characteristic of this enterprise file solution.

The HPE B-Series SN7000B is a high-performance Director based on Brocade Gen 7 (G7) technology. Buffer-to-Buffer (BB) credits are the fundamental flow-control mechanism used in Fibre Channel to prevent frame loss and manage congestion.

Statement D is a foundational principle of SAN architecture: BB credits are based on link speed and frame size. In an FC fabric, the number of credits required to "fill the pipe" (keep data moving without waiting for acknowledgments) is a direct function of the Round Trip Time (RTT), which is determined by the physical distance, the speed of the link (e.g., 64Gb/s vs 32Gb/s), and the size of the frames being sent (typically 2KB). As link speeds increase, more buffer credits are required to maintain full throughput over the same distance.

Statement C reflects a specific technical default in the Brocade Fabric OS (FOS) for Gen 7 hardware. To ensure that ports can initialize and handle basic traffic immediately upon being enabled, the switch reserves a default number of credits from the ASIC's global buffer pool. For user ports on these high-density blades, the system reserves eight buffer credits per port, regardless of whether the port is currently online or offline. This reservation ensures that the port has the minimum resources necessary to complete a fabric login (FLOGI) or negotiate a link without competing for pool resources.

Option E is incorrect because the entire pool is not reserved; a significant portion of the ASIC's buffers remains in a "shared pool" that can be dynamically allocated for long-distance links or high-demand ports via the "Extended Fabrics" feature. Option B is incorrect as it confuses the TCP windowing concept with FC credit-based flow control. Option A is incorrect because BB credits are a local port-to-port negotiation (link-level) and do not need a fabric-wide global "agreement" to form the fabric.

Sizing a storage solution for SAP HANA is fundamentally different from sizing general-purpose virtualization workloads. SAP HANA is an in-memory database, but it has extremely strict requirements for the underlying persistent storage layer to ensure data integrity during savepoints and log writes. SAP enforces these requirements through the SAP HANA Tailored Data Center Integration (TDI) program.

To begin the sizing process and ensure the solution will pass the SAP Hardware Configuration Check Tool (HWCCT) or the newer SAP HANA System Check, a storage architect must first determine the required IOPS rate, specifically for the /hana/data and /hana/log volumes. SAP provides specific KPIs for latency and throughput that must be met. For instance, the log volume requires extremely low-latency writes to handle the sequential redo logs, while the data volume requires high-throughput (MB/s) and specific IOPS to handle asynchronous savepoints.

While the number of nodes (Option C) and replication features (Option D) are important for the overall architecture, they do not dictate the "right-sizing" of the storage performance tier in the same way the IOPS and throughput requirements do. If the storage cannot meet the SAP-certified IOPS and latency thresholds, the entire solution will be unsupported, regardless of how many nodes are present. By identifying the IOPS and throughput needs first, the architect can determine if the customer requires an All-Flash Alletra 9000 or if an Alletra MP configuration with specific drive counts is necessary to provide the required "parallelism" to hit SAP's performance targets.

The HPE Alletra MP X10000 is an object and file storage solution utilizing a Disaggregated Shared-Everything (DASE) architecture. A key differentiator of this disaggregated design is the stateless nature of the controller nodes and the centralized management of the data plane.

When a cluster expansion occurs—such as adding a new controller node or an additional JBOF (Just a Bunch of Flash) storage shelf—the system is designed to automatically optimize the workload distribution. According to the HPE Alletra MP Architectural Guide, adding an additional JBOF or drives triggers an automatic rebalancing of the data stripes. Unlike older architectures where manual rebalancing services were required (such as in the 3PAR/B10000 block lineage), the X10000 uses a sophisticated hashing mechanism.

Specifically, data is distributed across DSPs (Data Storage Processors) which are virtualized management units. Upon the addition of hardware, these DSPs are rebalanced across the available compute and storage resources in a matter of seconds. Because the nodes are stateless and state is persisted only within the JBOFs, this rebalancing happens with minimal performance impact and no need for the massive "data movement" traditionally associated with expanding a RAID group. This ensures that as a customer scales from the minimum of 3 nodes up to 8 or more, the system always maintains an optimal load balance and utilizes all available flash bandwidth and compute cycles in parallel.

The HPE Alletra MP X10000, which powers HPE GreenLake for File Storage, utilizes a disaggregated shared-everything (DASE) architecture based on VAST Data software. Unlike traditional RAID, this architecture uses highly advanced locally decodable erasure coding.

While the system is designed to be incredibly resilient—often surviving multiple concurrent drive failures across the cluster—the removal of three drives simultaneously from a single JBOF (Just a Bunch of Flash) chassis can exceed the immediate "vertical" stripe protection thresholds, especially in smaller cluster configurations. In the Alletra MP File architecture, the metadata and data are distributed with specific redundancy parameters. Intentionally pulling three drives at once is treated as a multi-point catastrophic failure rather than a standard drive wear-out event.

When such an event occurs, the system enters a "Fail-Stop" state to protect data integrity and prevent file system corruption. Because the system cannot guarantee the consistency of the data stripes or the underlying V-Trees (metadata structures), it will cease I/O services. Simply reinserting the drives (Option B) will not automatically bring the file system back online because the system likely marked those drives as "failed" or "stale" the moment they were removed. Recovery requires HPE Level 3 Support and Engineering to perform a manual "forced mount" or metadata reconstruction process to verify that no partial writes occurred during the removal. This is a high-touch recovery scenario designed to ensure that when the data becomes available again, it is 100% consistent.

The customer's requirements focus on a single data management platform that can unify disparate backup tasks and eliminate data silos across files, objects, and archiving while supporting massive scale-out NAS. The HPE Solutions with Cohesity (specifically Cohesity DataProtect and Cohesity SmartFiles) are architecturally designed to meet these specific needs.

Unlike traditional backup software that often relies on separate components for different data types, Cohesity provides a unique shared-nothing, scale-out architecture that consolidates secondary data onto a single platform. It natively supports a vast array of workloads including virtual machines, containers (Kubernetes), databases (SQL, Oracle, NoSQL), and physical servers. A core differentiator for Cohesity is its ability to act as a Scale-Out NAS via its SmartFiles feature, allowing it to manage PB-scale unstructured data without the performance bottlenecks found in traditional "siloed" storage.

When delivered via HPE GreenLake Flex, this solution is typically paired with HPE Alletra 4000 storage servers (such as the Alletra 4120 or 4140). These servers are density-optimized, storage-centric systems that provide the high-throughput and massive internal capacity required for a modern secondary storage environment. While Commvault (Option A) and Veeam (Option D) are powerful data protection suites, they are often used in conjunction with external target storage (like StoreOnce or Alletra MP) and do not always provide the same level of native, unified scale-out NAS and data silo elimination within a single management plane as the integrated Cohesity/Alletra 4000 stack.

The HPE Solutions for Qumulo utilize a modern, distributed file system designed specifically for the era of multi-petabyte unstructured data management. Unlike traditional block storage systems that organize data into LUNs or volumes, Qumulo uses a single, unified namespace where all data is organized into a hierarchical structure of Directories.

According to the HPE Qumulo Administration Guide, all advanced data services—including snapshots, quotas, and replication—are applied at the Directory level. When a storage administrator wants to protect a dataset, they create a snapshot of a specific directory (and all its subdirectories). The Snapshot Locking feature is an extension of this capability, designed to provide "immutable" data protection against ransomware or accidental deletion.

When snapshot locking is implemented, it is associated with a snapshot policy that targets a specific Directory path. Once a snapshot is locked, the metadata associated with that directory at that specific point in time becomes immutable; it cannot be deleted, modified, or shortened in its expiration period until the lock period has expired. This is fundamentally different from legacy architectures where you might lock a whole "Volume" (Option B), which can be inefficient for large datasets. Because Qumulo is a scale-out file system without the concept of traditional volumes or LUNs, "Directory" is the most granular and correct object for implementing these protection policies. This allows for massive flexibility, enabling administrators to set different retention and locking policies for different departments or projects (e.g., /marketing vs /research) all within the same physical cluster without needing to pre-allocate storage pools (Option D).

The HPE Peer Motion Utility (PMU) and its integrated counterpart in HPE GreenLake and SSMC are designed for the non-disruptive migration of data between storage systems, such as from an HPE 3PAR to an HPE Alletra 9000 or Primera. A core requirement for the "Online" (non-disruptive) version of this migration is that the storage fabric must support and have N-Port ID Virtualization (NPIV) enabled.

Architecturally, Peer Motion relies on the destination array's ability to "masquerade" as the source array during the transition. When a volume is migrated, the destination array creates virtual ports using NPIV to inherit the identity (WWNs) of the source array's ports. This allows the host's multipathing software to see the new storage paths as if they were additional paths to the original volume, enabling a seamless transition without a server reboot or I/O interruption. According to the HPE Peer Motion Utility User Guide, if the SAN fabric (the switches) does not support NPIV or if NPIV is disabled on the specific ports, the migration utility will default to a Minimally Disruptive Migration (MDM) or an offline migration, both of which involve host-side downtime.

Furthermore, the fabric must be zoned such that the source and destination arrays can "see" each other to establish the Peer Motion relationship and handle the data orchestration. Option B is incorrect because while the management station (running the PMU) requires IP connectivity to send commands, the actual data movement and host-transparent pathing are strictly dependent on the FC fabric's NPIV capability. Option C is incorrect as fabric connections (via switches) are required; direct point-to-point connections between array FC ports are typically not supported for Peer Motion federations.
