NSE7_CDS_AR-7.6 Questions and Answers

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

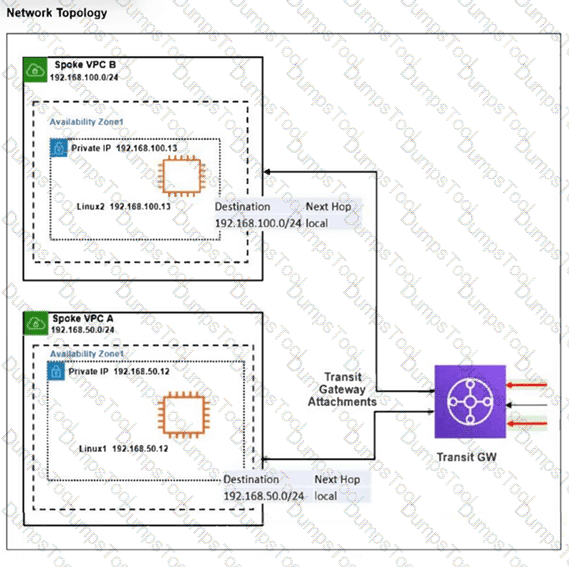

Based on the FortiOS 7.6 Cloud Security Study Guide regarding AWS Transit Gateway (TGW) integration and VPC routing, the following steps are mandatory to establish connectivity between Spoke VPCs via a TGW:

VPC Route Table Configuration (Option A): For traffic to leave a VPC and reach the Transit Gateway, the VPC's subnet route table must have a specific entry. While the exhibit shows local routes for internal VPC traffic (192.168.50.0/24 and 192.168.100.0/24), any traffic destined for "outside" the local VPC (such as the other Spoke VPC) must be directed to the TGW. Adding a default route (0.0.0.0/0) with the TGW ID as the next hop ensures that all non-local traffic is forwarded to the Transit Gateway for processing.

TGW Association (Option B): Within the Transit Gateway itself, connectivity is managed through Associations and Propagations. An "Association" links a specific VPC attachment to a TGW route table. Without associating the two attachments (for Spoke VPC A and Spoke VPC B) to a TGW route table, the TGW will not know which route table to use to make forwarding decisions for packets arriving from those VPCs.

Why Option C is incorrect: Route propagation is used to automatically populate the TGW route table with the CIDR blocks of the attached VPCs. While propagation is a valid step for dynamic routing, Option C specifically mentions propagating a static summary range (192.168.0.0/16) which is not the standard automated mechanism; usually, you propagate the specific VPC CIDRs. Furthermore, without the Association (Option B), propagation alone does not allow the TGW to process incoming traffic from the attachment.

Why Option D is incorrect: Directing traffic to an Internet Gateway (IGW) would send the traffic to the public internet. This would not facilitate internal routing between the two Spoke VPCs via the Transit Gateway.

According to the FortiOS 7.6 Azure Administration Guide and the Cloud Security 7.4 Public Cloud Study Guide, the integration of FortiGate-VMs with an Azure Gateway Load Balancer (GWLB) requires specific network configurations to ensure packet transit:

IP Forwarding Requirement (Option A): By default, Azure Network Interfaces (NICs) drop any traffic that does not originate from or is not destined for the IP address assigned to that NIC. For a FortiGate to act as a "bump-in-the-wire" or transparent inspector, it must receive traffic destined for other IPs and forward it. This requires the IP Forwarding setting to be explicitly enabled on the FortiGate's network interfaces within the Azure portal. If this is disabled, the Azure fabric will discard the traffic being steered through the FortiGate HA cluster by the GWLB.

VXLAN Encapsulation: The Azure GWLB uses VXLAN to encapsulate traffic (adding a VXLAN header with a specific VNI) before sending it to the FortiGate. The FortiGate must terminate this VXLAN tunnel. While the VXLAN configuration is crucial, the underlying infrastructure check for IP Forwarding is the most common cause of traffic being blocked at the NIC level before the FortiOS stack can process the packet.

Why other options are incorrect:

Option B: If health probes fail, the GWLB will typically stop sending traffic to that specific instance. While this affects the HA cluster's availability, the question states traffic is not being routed correctly through the firewalls (implying an active flow issue), and the primary mechanism for allowing a VM to process third-party traffic in Azure is IP Forwarding.

Option C: NSGs are typically applied to the NIC or Subnet. While incorrect NSG rules can block traffic, "IP Forwarding" is a specific requirement for the FortiGate to function as a network appliance (NVA) regardless of the NSG state.

Option D: Azure GWLB supports cross-subscription and cross-tenant chaining. The consumer (protected VMs) and the provider (FortiGate HA cluster) do not need to be in the same subscription, provided the GWLB endpoint is correctly mapped.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiOS 7.6 AWS Administration Guide and the Public Cloud Security documentation regarding AWS VPC Flow Logs, the level at which a flow log is created determines the scope of the data collected:

Flow Log Scope and Hierarchy (Option A): AWS VPC Flow Logs can be created at three different levels: VPC, Subnet, or Network Interface (ENI).

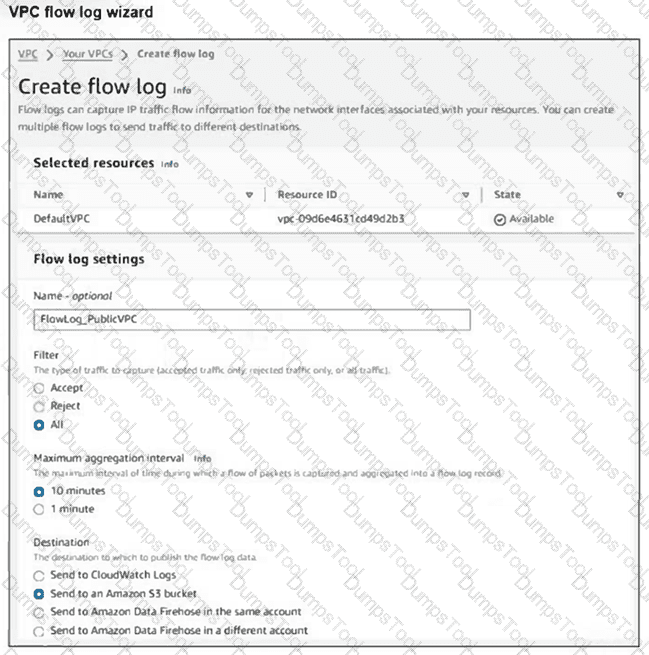

As seen in the exhibit (VPC flow log wizard), the flow log is being created for the resource vpc-09d6e4631cd49d2b3. When a flow log is created at the VPC level, it captures IP traffic for all network interfaces within that VPC.

To isolate traffic specifically for a single FortiGate EC2 instance and avoid seeing traffic from other instances in the same VPC or subnet, the administrator must create a flow log at the Network Interface level. This provides the most granular visibility and ensures the logs only contain traffic associated with the specific ENIs of that FortiGate instance.

Why other options are incorrect:

Option B: Changing the maximum aggregation interval from 10 minutes to 1 minute increases the frequency of log delivery and captures shorter-lived flows more accurately, but it does not change the scope of the resources being monitored.

Option C: This is a general troubleshooting statement and not a configuration action within the AWS Flow Log wizard that would filter the traffic by instance.

Option D: Changing the destination to Amazon Data Firehose changes how the logs are processed and delivered (e.g., for streaming to a SIEM), but the source data is still determined by the resource level selected (VPC vs. Interface).

According to the FortiOS 7.6 AWS Administration Guide and the Fortinet 7.4 Public Cloud Security study materials regarding infrastructure as code (IaC) for cloud deployments:

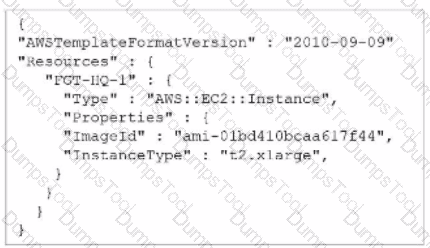

JSON Format Limitations (Option B): The exhibit shows an AWS CloudFormation template in JSON (JavaScript Object Notation) format. JSON, by its official specification, does not support comments. There is no native syntax (like // or /* */) to include remarks that are ignored by the CloudFormation parser.

YAML Support: To add descriptive comments—such as instructing other regional administrators to update the AMI ID—the administrator must convert the template into YAML format. YAML is a superset of JSON and specifically supports comments using the # character.

Best Practice for Multinational Deployments: For organizations operating across multiple AWS regions, using YAML is the recommended standard because it allows for inline documentation, making templates more maintainable and easier for different teams to understand regional requirements.

Why other options are incorrect:

Option A: Comments are part of the template file itself, not a parameter or flag within the aws cloudformation update-stack CLI command.

Option C: While # is the correct character for comments in YAML, it is invalid syntax in JSON and would cause the CloudFormation stack creation to fail with a parsing error.

Option D: The AWSTemplateFormatVersion "2010-09-09" is currently the only valid version for CloudFormation templates; updating it does not add JSON comment support.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiCNP 24.x Administration Guide and the FortiOS 7.6 Security Fabric Integration documentation, integrating a FortiGate-VM with FortiCNP requires specific local configurations on the FortiGate to ensure the cloud security platform can ingest and analyze traffic data.

Configuring Logging (Option C): Before adding the FortiGate VM to FortiCNP, the administrator must Enable Send Logs on the FortiGate. This allows the FortiGate to forward the necessary security telemetry and traffic logs to the FortiCNP cloud endpoint for threat correlation and risk analysis.

Policy and Inspection Setup (Option D): The integration relies on the FortiGate's ability to identify and block threats at the network layer. Specifically, the administrator must Create a FortiGate IPS Sensor and Create a FortiGate Firewall Policy. The IPS sensor detects malicious patterns, while the firewall policy dictates which traffic is subjected to this inspection.

Deep Packet Inspection (Option E): To provide visibility into encrypted traffic—which is critical for identifying threats hidden in HTTPS flows—the administrator must Create an SSL/SSH Inspection Profile on the FortiGate. Without this profile, FortiCNP would lose significant visibility into potential attack vectors utilizing encrypted channels.

Why other options are incorrect:

Option A: While pre-shared keys are used in VPN and some Fabric setups, they are not listed as one of the specific mandatory steps for the initial FortiGate-to-FortiCNP fabric integration workflow.

Option B: While certificate exchange is part of the overall trust relationship, the primary "mandatory configuration steps on FortiGate" defined in the official setup guide focus on the logging and security profile components required to generate the data FortiCNP needs.
