NSE5_FSW_AD-7.6 Questions and Answers

The correct statement about the quarantine VLAN on FortiSwitch is:

B. Users who fail 802.1X authentication can be placed on the quarantine VLAN.This feature allows network administrators to isolate devices that do not meet the network’s security criteria as determined through 802.1X authentication. Placing these devices in a quarantine VLAN restricts their network access, thereby protecting the network from potential security threats posed by unauthorized or compromised devices.

Option A is incorrect as the presence of a DHCP server in a quarantine VLAN depends on specific network configurations. Option C is incorrect without more context regarding global settings, and option D misstates the functionality of quarantine VLANs, as their primary use is to restrict, not block, devices without additional VLAN configuration changes.

In FortiSwitchOS 7.6,IGMP snooping proxyis an enhancement to standard IGMP snooping that optimizes multicast control-plane traffic between hosts, switches, and the upstream IGMP querier. Its primary purpose is toreduce the number of IGMP membership reportsthat the querier must process, thereby improving scalability and efficiency in multicast-enabled networks.

Without an IGMP snooping proxy, every multicast receiver on a VLAN independently sends IGMP membership reports to the querier. In environments with many hosts subscribing to the same multicast groups, this behavior can generate a large volume of redundant IGMP reports, unnecessarily increasing control-plane load on both the querier and intermediate network devices.

When the IGMP snooping proxy feature is enabled, the FortiSwitch acts as anIGMP proxy agenton behalf of hosts within the VLAN. The switch tracks multicast group membership locally andsuppresses individual IGMP reports from downstream hosts. Instead, the FortiSwitch forwards an IGMP report upstreamonly when the first host joins a multicast group. Likewise, when hosts leave the group, the switch sends an IGMP leave message or reportonly when the last remaining member leaves.

This aggregation mechanism dramatically reduces IGMP signaling traffic while preserving correct multicast forwarding behavior. Importantly, the switch does not alter IGMP packet types or convert them to broadcast or unicast traffic. It simply optimizes reporting behavior based on group membership state.

Therefore, the correct explanation is that IGMP snooping proxy reduces IGMP report processingby forwarding IGMP reports only when the first member joins and the last member leaves, makingOption Dthe correct and fully verified answer according to FortiSwitchOS 7.6 documentation.

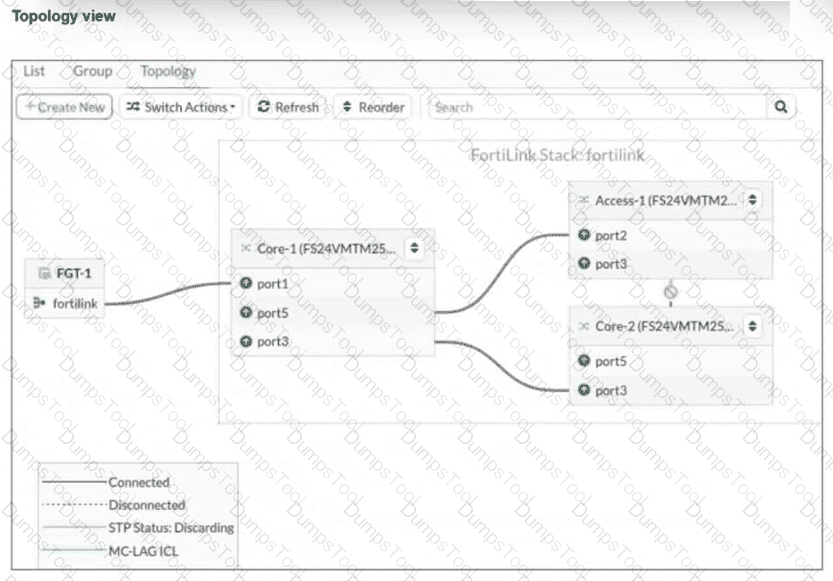

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, the Spanning Tree Protocol (STP) is automatically enabled on managed FortiSwitches to ensure a loop-free Layer 2 topology within the FortiLink fabric. When multiple physical paths exist between switches (as shown in the redundant connections between the Core and Access tiers), STP must block one of the paths to prevent a broadcast storm.

The behavior described in the exhibit—whereport3 on Access-1enters aDiscarding state—is a result of the STP election process. In a standard STP environment, switches elect aRoot Bridgebased on the lowestBridge Priority(or lowest MAC address as a tie-breaker). Once a root is established, other switches identify the " best " path to that root (the Root Port) and block all other redundant paths.

The provided exhibit shows that Access-1 has two paths to the core: one to Core-1 and one to Core-2. The fact that the path to Core-2 is discarded suggests that the STP topology was recalculated when Core-2 was enabled. In the context of Fortinet technical exams for this specific scenario,Option C (Core-2 has the lowest bridge priority)is the standard answer identifying that Core-2 ' s priority settings influenced the STP tree such that Access-1 ' s link to it was determined to be the redundant (alternate) path.

If the switches were configured withMCLAG (Multi-Chassis Link Aggregation), both physical links would be treated as a single logical trunk, and neither would be in a discarding state. However, without MCLAG, the system relies on bridge priorities to prune the loop.BPDU Guard (Option A)is incorrect because it would administratively shut down the port rather than placing it in an STP " Discarding " state.Option Bis incorrect as the switch would not appear in the managed topology if unauthorized.

To enable access to the FortiSwitch management interface from the network, certain configuration adjustments need to be made, particularly considering the VLAN settings displayed in the exhibit:

Adding port24 native VLAN to the allowed VLANs on internal (Option A): The management VLAN (VLAN 4094 in this case, as it is set as the native VLAN on the ' internal ' interface of the FortiSwitch) must be included in the allowed VLANs on the interface that provides management connectivity. Since port24 is set with a different native VLAN (VLAN 100), VLAN 4094 (the management VLAN) should be allowed through to ensure connectivity.

Allow VLAN ID 4094 on port24 if management traffic is tagged (Option C): Management traffic is tagged on VLAN 4094. Since port24 is connected to the network and serves as an uplink, allowing VLAN 4094 ensures that management traffic can reach the management interface of the FortiSwitch through this port.

The changes align with Fortinet’s best practices for setting up management VLANs and ensuring they are permitted on the relevant switch ports for proper management traffic flow.

In a hierarchical network model, the role of a device functioning simultaneously as both the distribution and core is most accurately described as " FortiGate managing FortiSwitch (B). " In this setup, FortiGate acts as the central unit managing multiple FortiSwitch units, thereby functioning both as a distribution layer—handling traffic between network segments—and as a core layer—managing traffic within the network on a broader scale. This setup is typical in medium-sized networks where a single device is capable enough to handle both roles effectively.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6.1 Administration Guide—Standalone Mode, aRouted VLAN Interface (RVI)is a physical port or trunk interface that is converted to support Layer 3 routing protocols.2This transformation changes the fundamental nature of the interface from a switching component to a routing component.

When an RVI is enabled on a specific physical port or trunk, the system automatically assignsVLAN 4095to that interface at the backend.3This specific VLAN ID is reserved across the FortiSwitch platform to signal that the interface is no longer operating as a standard Layer 2 switch port.4Once configured as an RVI, the interface supports advanced Layer 3 features such asOSPF, BGP, RIP, IS-IS, and static routing, as well asVirtual Routing and Forwarding (VRF)for routing isolation.5

Importantly, the documentation states that upon enabling RVI,Layer 2 protocols(such as Spanning Tree Protocol or 802.1X port-based security) and most standard switch interface features aredisabledon that port.6This is because the port is now treated as a dedicated Layer 3 " routed " interface rather than a member of the Layer 2 switching fabric.7Additionally, if the underlying physical port or trunk interface is administratively shut down, the associated RVI will also transition to a " down " state.

Fortinet FortiLink Protocol:The FortiLink protocol is Fortinet ' s proprietary mechanism for managing FortiSwitch units from a FortiGate firewall. It simplifies configuration and security policy enforcement across the connected network devices.

Auto-Discovery:FortiLink ' s auto-discovery feature means that by default, all ports on a FortiSwitch will actively send out discovery frames. This allows them to locate a FortiGate device that has a FortiLink interface enabled, streamlining the device management process.

No Configuration Needed:You don ' t have to manually configure individual ports for FortiLink discovery on FortiSwitch devices.

References

FortiSwitchOS FortiLink Guide (FortiSwitch Devices Managed by FortiOS 7.6):Refer to pages 13 and 14 for details on zero-touch management and FortiLink configuration. [https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/27f63c72-b083-11ec-9fd1-fa163e15d75b/FortiSwitchOS-7.6.0-FortiLink_Guide%E2%80%94FortiSwitch_Devices_Managed_by_FortiOS_7.6.pdf]

Time synchronization between FortiGate and its managed FortiSwitch devices is essential for several reasons:

A. FortiSwitch does not retain its time after a reboot, which gets reset after each reboot.This characteristic of FortiSwitch underlines the importance of time synchronization with FortiGate. Since FortiSwitch loses its time settings upon reboot, synchronizing with FortiGate ensures that its system clock is accurate, which is vital for logging, troubleshooting, and security timestamping.

C. FortiSwitch cannot complete the DTLS handshake used in the CAPWAP tunnel.Accurate time synchronization is crucial for security protocols such as DTLS, which rely on timestamped certificates for establishing a secure connection. If the time on FortiSwitch is not synchronized with FortiGate, the DTLS handshake used in the CAPWAP tunnel for secure communication may fail due to time discrepancies, impacting the management and operation of the switch.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, the Spanning Tree Protocol (STP) is automatically enabled on managed FortiSwitches to ensure a loop-free Layer 2 topology within the FortiLink fabric. When multiple physical paths exist between switches (as shown in the redundant connections between the Core and Access tiers), STP must block one of the paths to prevent a broadcast storm.

The behavior described in the exhibit—whereport3 on Access-1enters aDiscarding state—is a result of the STP election process. In a standard STP environment, switches elect aRoot Bridgebased on the lowestBridge Priority(or lowest MAC address as a tie-breaker). Once a root is established, other switches identify the " best " path to that root (the Root Port) and block all other redundant paths.

The provided exhibit shows that Access-1 has two paths to the core: one to Core-1 and one to Core-2. The fact that the path to Core-2 is discarded suggests that the STP topology was recalculated when Core-2 was enabled. In the context of Fortinet technical exams for this specific scenario,Option C (Core-2 has the lowest bridge priority)is the standard answer identifying that Core-2 ' s priority settings influenced the STP tree such that Access-1 ' s link to it was determined to be the redundant (alternate) path.

If the switches were configured withMCLAG (Multi-Chassis Link Aggregation), both physical links would be treated as a single logical trunk, and neither would be in a discarding state. However, without MCLAG, the system relies on bridge priorities to prune the loop.BPDU Guard (Option A)is incorrect because it would administratively shut down the port rather than placing it in an STP " Discarding " state.Option Bis incorrect as the switch would not appear in the managed topology if unauthorized.

In FortiSwitch, Access Control Lists (ACLs) are used to enforce security rules on both ingress and egress traffic:

ACL Evaluation Order (D):

Operational Function:FortiSwitch processes ACL entries from top to bottom, similar to how firewall rules are processed. The first match in the ACL determines the action taken on the packet, whether to allow or deny it, making the order of rules critical.

Configuration Advice:Careful planning of the order of ACL rules is necessary to ensure that more specific rules precede more general ones to avoid unintentional access or blocks.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the Routing Information Base (RIB) contains all potential routes discovered by the switch, but theForwarding Information Base (FIB)only includes the " best " active routes used for hardware packet forwarding. When the routing process receives multiple paths to the exact same destination (in this case, the default route 0.0.0.0/0), it must select the most reliable source based on a specific hierarchy.

The primary tie-breaker for routes from different protocols is theAdministrative Distance (AD). AD is a value from 1 to 255 that represents the trustworthiness of the routing source, where alower value is more preferred. In the provided exhibit:

TheOSPFroute has an AD of110(shown as [110/10]).

TheStaticroute has been configured with an AD of220(shown as [220/0]).

Because the OSPF route ' s AD (110) is lower than the Static route ' s AD (220), the system considers the OSPF route to be superior. Consequently, only the OSPF route is " Selected " and installed into theFIB. The static route remains in the RIB as a " backup " or floating static route; it will only be moved to the FIB if the preferred OSPF route becomes unavailable. Option D is incorrect because having identical prefixes is not a " conflict " but a standard part of route selection where AD decides the winner. Option A is incorrect because metric is only compared if the AD is identical.

QSFP+ transceiver (A): The QSFP+ (Quad Small Form-factor Pluggable Plus) transceiver is designed to handle 40G data rates and can be used to split a 40G port into multiple 10G connections. This type of transceiver supports such configurations, making it suitable for high-density applications where multiple 10G connections are derived from a single 40G port, thereby maximizing the utilization of the port and the fiber infrastructure.

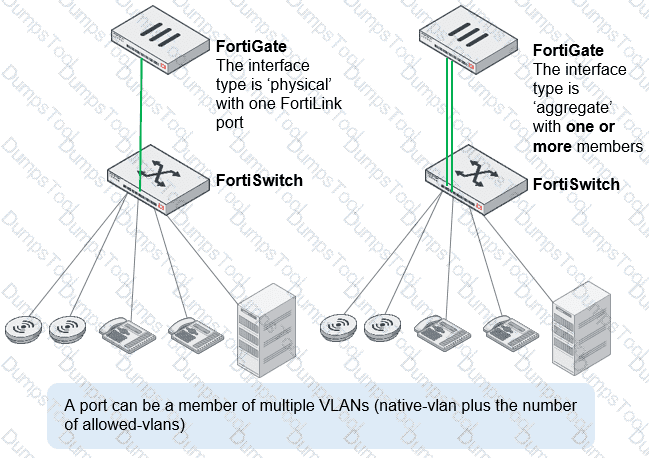

The native VLAN is implicitly part of the allowed VLAN on the port (C): On a managed FortiSwitch port, the native VLAN, which is the VLAN assigned to untagged traffic, is implicitly included in the list of allowed VLANs. This means it does not need to be explicitly specified when configuring VLAN settings on the port. This configuration simplifies VLAN management and ensures that untagged traffic is handled correctly without additional configuration steps.

According to theFortiSwitchOS 7.6 Administration Guideand theNSE 5 FortiSwitch 7.6 Administrator Study Guide, FortiSwitch supports a multi-stage ACL pipeline that allows for granular traffic control at different points in a packet ' s journey through the switch.1The documentation identifies three primary stages for ACL application:Prelookup,Ingress, andEgress.

Prelookup (Option D):This is the earliest stage in the switching pipeline. The documentation explicitly states thatPrelookup ACLsare processedbefore any Layer 2 or Layer 3 lookupsare performed by the switch hardware. This stage is highly recommended for high-performance security actions, such as dropping unwanted traffic immediately upon arrival, because it prevents the switch from wasting internal resources (CPU and ASIC lookup cycles) on frames that are destined to be discarded anyway.

Ingress (Option A):This stage occursafterthe switch has completed its Layer 2 (MAC table) and Layer 3 (routing table) lookups butbeforethe packet is queued for the egress port. While powerful, actions here occur after initial processing has already taken place.

Egress (Option C):This stage is processed just before the frame leaves the switch through the destination port. It is typically used for final modifications or filtering based on the outgoing interface context.

Therefore, to achieve the goal of applying actionsbeforeany Layer 2 or Layer 3 processing occurs, thePrelookupstage is the technically correct and recommended choice in FortiSwitchOS 7.6.Forwarding (Option B)is a general functional stage of a switch but is not a specific ACL stage type in the FortiSwitch configuration hierarchy.

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the health and stability of the control plane between a FortiGate and a managed FortiSwitch are maintained through a continuous keepalive mechanism. Once a FortiSwitch is authorized and transitions to theFL_STATE_READYstate (as shown in the debug output in the exhibit), the devices must ensure the management tunnel remains active.

The primary mechanism for this is theFortiLink heartbeat. The documentation specifies that a managed FortiSwitch sends heartbeat messages to the FortiGate every few seconds over the FortiLink interface. The FortiGate, acting as the controller, must acknowledge these heartbeats to confirm that the switch is still reachable and responding to management commands. If the FortiGate fails to receive a certain number of consecutive heartbeats, it will consider the switch " offline " in the GUI, even if physical link lights remain green.

Checking for these heartbeat exchanges is a critical troubleshooting step to verify that theCAPWAP(Control and Provisioning of Wireless Access Points) based management tunnel is functioning correctly without intermittent drops. Option A is incorrect as port disabling is a configuration choice, not a health check. Option C is incorrect because firmware updates are manual or scheduled, not automatic upon authorization. Option D is a logging function that relies on a healthy management tunnel but is not a direct measure of the FortiLink ' s operational health.

When transitioning the management of a FortiSwitch from standalone mode to being managed by FortiGate via FortiLink, it is critical to ensure that the existing configurations are preserved. The best practice involves:

FortiGate ' s Role in Configuration Preservation:FortiGate has the capability to automatically preserve the existing configuration of a FortiSwitch when it is integrated into the network via FortiLink. This feature helps ensure that the transition does not disrupt the network ' s operational settings.

Configuration Integration:As FortiSwitch is integrated into FortiGate ' s management via FortiLink, FortiGate captures and integrates the existing switch configuration, enabling a seamless transition. This process involves FortiGate recognizing the FortiSwitch and its current setup, then incorporating these settings into the centralized management interface without the need for manual reconfiguration or the use of additional tools.

When a FortiSwitch is converted fromstandalone (local) management modetoFortiGate-managed mode using FortiLink, FortiSwitchOS follows a well-defined and protective transition process. According to the FortiSwitchOS 7.6 Administrator Guide, the switchdoes not mergeits existing standalone configuration with FortiLink-managed settings, nor does FortiGate import or preserve the active configuration for reuse.

Instead, when the management mode change occurs, the FortiSwitchsaves the current standalone configuration internallyand thenresets its operational configuration to the default FortiLink configuration. This default configuration is required so the switch can correctly establish FortiLink control-plane communication with the FortiGate, including CAPWAP-based management, VLAN 4094 usage, and dynamic policy provisioning.

Once the FortiSwitch is under FortiGate management,all configuration is controlled centrally by the FortiGate, including VLANs, port policies, security features, and firmware management. The previously saved standalone configuration is retained only as a backup reference on the switch and isnot actively usedunless the switch is later reverted back to standalone mode.

This behavior ensures configuration consistency, prevents conflicts between local and centralized policies, and aligns the switch with the FortiGate-centricSecurity Fabric architecture. It also avoids unpredictable results that could occur if legacy standalone settings were merged with FortiLink-managed profiles.

The other options are incorrect because FortiSwitch does not register with FortiSwitch Cloud automatically, does not merge configurations, and FortiGate does not back up the standalone configuration during onboarding.

Therefore, the correct and fully documented answer isC. FortiSwitch saves the standalone configuration and changes to the default FortiLink configuration.

In mixed-vendor network environments, such as deployments that include bothFortiSwitchandCiscodevices, properLayer 2 discovery protocolsmust be enabled to allow devices to automatically discover neighbors and exchange essential device and interface information. FortiSwitchOS 7.6 supports bothCisco Discovery Protocol (CDP)andLink Layer Discovery Protocol (LLDP)to ensure interoperability.

Cisco Discovery Protocol (CDP)is a Cisco-proprietary Layer 2 discovery protocol widely used by Cisco switches, routers, and IP phones. When CDP is enabled on FortiSwitch interfaces, Cisco devices can discover FortiSwitch neighbors and receive information such as device ID, port ID, platform, and capabilities. This is particularly important in Cisco-centric networks where CDP is the primary discovery mechanism.

Link Layer Discovery Protocol (LLDP), defined by IEEE 802.1AB, is a vendor-neutral discovery protocol supported by both Fortinet and Cisco devices. Enabling LLDP allows FortiSwitch and Cisco devices to exchange standardized information including system name, port description, VLAN information, and management address. LLDP is essential for cross-vendor compatibility and is commonly enabled by default in modern enterprise networks.

The remaining options are incorrect.Unidirectional Link Detection (UDLD)is used to detect unidirectional fiber or copper link failures and does not provide device discovery or information exchange.LLDP-MEDis an extension of LLDP specifically designed for media endpoints such as IP phones and is not required for general switch-to-switch discovery.

Therefore, to ensure automatic discovery and information exchange between FortiSwitch and Cisco devices,both CDP and LLDP must be enabled, makingOptions B and Cthe correct and fully verified answers based on FortiSwitchOS 7.6 documentation.

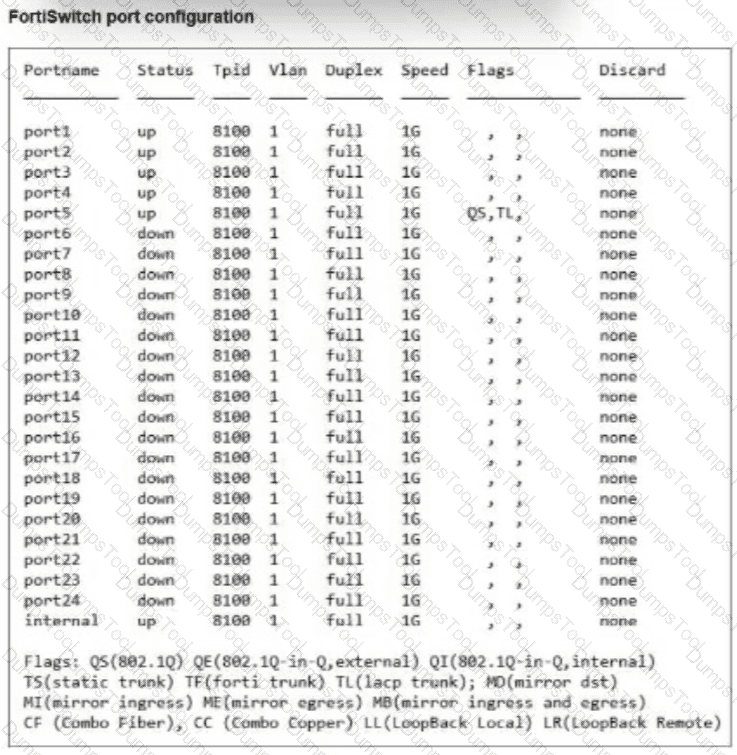

According to the FortiSwitchOS 7.6 Administration Guide and the FortiSwitch 7.6 Study Guide , the diagnose switch physical-ports summary command provides an overview of physical interface states, VLAN memberships, duplex/speed parameters, and port encapsulation flags.

When a FortiSwitch operates in managed mode via FortiLink, two distinct characteristics appear in this command output:

Management VLAN Assignment: The FortiLink control plane automatically establishes a dedicated management VLAN—by default, VLAN 4094 —and assigns it to the internal discovery interfaces and uplinks.

Encapsulation Flags: Interfaces participating in the FortiLink fabric or Inter-Switch Links (ISLs) are assigned the TF (Forti Trunk) flag to indicate proprietary FortiLink management framing.

In the provided exhibit, every single interface (from port1 through port24, as well as the virtual internal interface) is assigned to default Vlan 1 . Furthermore, looking at the Flags column, port5 has QS (standard 802.1Q) and TL (standard LACP trunk), but no TF (Forti Trunk) flag is present on any interface. The absence of VLAN 4094, the complete absence of the TF flag, and the presence of the default factory VLAN 1 mapping confirm that this device is operating in standalone mode (Option C) .

Regarding the incorrect options: Option A is incorrect because port5 is bundled into a standard LACP 802.1Q trunk (QS, TL), not configured purely as an access port. Option B is incorrect because this output reflects Layer 2 switchport properties rather than Layer 3 routing interfaces. Option D is incorrect because managed mode would display FortiLink-specific VLANs and TF trunk flags.

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the automatic discovery and subsequent management of a FortiSwitch by a FortiGate controller is primarily facilitated by theLink Layer Discovery Protocol (LLDP). LLDP is an industry-standard, layer-2 protocol that allows network devices to advertise their identities and capabilities to neighbors on the same physical link.

When a factory-default FortiSwitch is connected to a FortiGate port (specifically one configured as a FortiLink interface), the switch automatically sends outLLDP advertisements. These advertisements include specificOrganizationally Specific TLVs (Type-Length-Values)that identify the device as a FortiSwitch and provide its management MAC address and current state. The FortiGate " listens " for these LLDP frames; once it receives a frame from a compatible FortiSwitch, it automatically lists the switch in theManaged FortiSwitchinventory as a " discovered " device awaiting authorization.

WhileZero-touch deployment (Option A)describes the overall goal of deploying a switch without manual CLI configuration, it is the underlyingLLDPprotocol that provides the technical mechanism for the initial detection. Once the switch is discovered via LLDP and authorized, the FortiGate uses a DHCP server on the FortiLink interface to assign an IP address to the switch and establishes a secureCAPWAP(Control and Provisioning of Wireless Access Points) tunnel for management. TheFortiLink heartbeat (Option D)is a secondary mechanism usedafterthe connection is established to monitor the health and status of the link, rather than for the initial detection of the device.

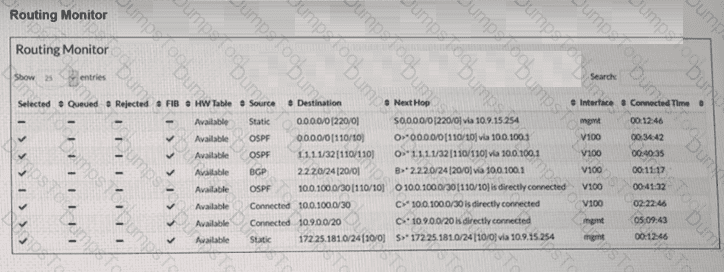

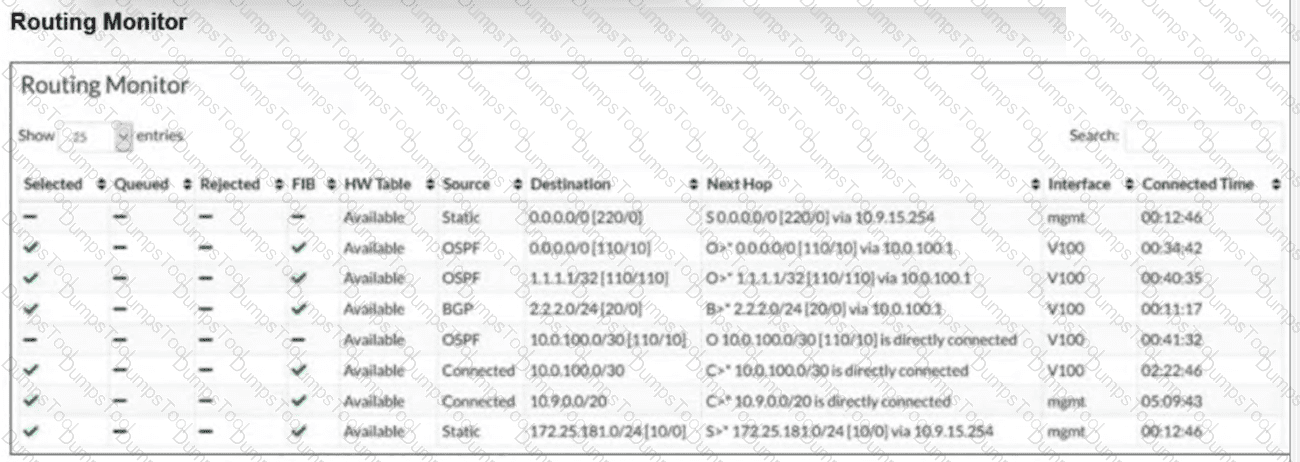

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the Routing Monitor provides a comprehensive view of the Routing Information Base (RIB), which includes all routes learned via static configuration or dynamic protocols (OSPF, BGP, etc.). However, not every route present in the RIB is active for traffic forwarding. The switch must select the " best " path for any given destination to be installed into theForwarding Information Base (FIB).

The provided exhibit shows a routing table with multiple sources for the same destination. Specifically, there is aStaticdefault route ($0.0.0.0/0$) with an administrative distance of 220, and anOSPFdefault route ($0.0.0.0/0$) with an administrative distance of 110. In FortiSwitchOS routing logic, when multiple routes to the exact same destination exist, the system compares theirAdministrative Distance (AD). The route with the lowest AD is considered the most " preferred " or " trustworthy " .

In this case, the OSPF route ($AD 110$) is more preferred than the Static route ($AD 220$). Consequently, the OSPF route is marked with a green checkmark in theFIBcolumn, while the Static route—despite being " Available " in the RIB—is excluded from the FIB. The same logic applies to the $10.0.100.0/30$ subnet, where theConnectedroute is preferred over the OSPF learned route for the same destination. Therefore, the status reflects standard route selection behavior where less-preferred routes remain in the RIB as backups but are not used for active forwarding.

It provides benefits that can be obtained when using 802.1X authentication (C): MAC, IP, and protocol-based VLANs on FortiSwitch are beneficial in network environments where additional granularity is needed in traffic segmentation and security, similar to what can be achieved through 802.1X authentication. These VLAN types allow for dynamic assignment of ports to VLANs based on the characteristics of the incoming traffic, enhancing both security and network efficiency.

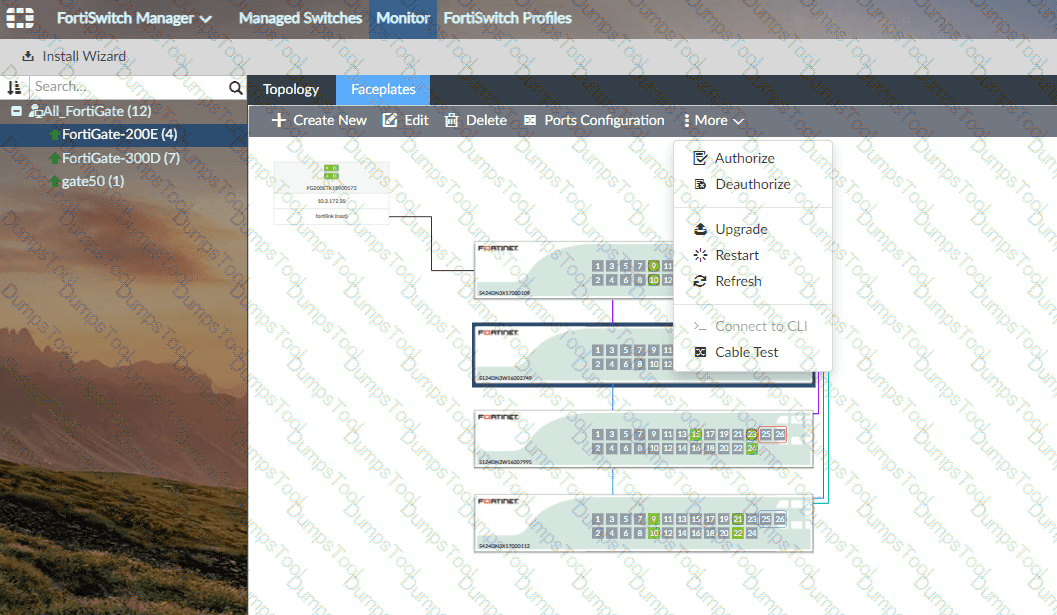

In a FortiLink-managed switching architecture, the FortiGate firewall acts as the centralized controller for downstream FortiSwitch devices. TheFortiSwitch Faceplatesview in the FortiGate GUI provides a physical-style representation of switch ports, including port numbers, operational status, link state, speed, duplex, and connected neighbor information. According to FortiOS 7.6 and FortiSwitchOS 7.6 documentation fromFortinet, this port-level intelligence is derived fromLink Layer Discovery Protocol (LLDP)advertisements received from the FortiSwitch.

LLDP is an IEEE 802.1AB standard protocol used for vendor-neutral Layer 2 neighbor discovery. FortiSwitch periodically sends LLDP frames that include detailed port descriptors such as chassis ID, port ID, port description, system name, system capabilities, and VLAN-related attributes. When FortiGate receives these LLDP advertisements over the FortiLink interface, it correlates the information with the managed FortiSwitch inventory and renders accurate port details in the Faceplates view.

Other options are incorrect for the following reasons. The FortiSwitch model alone is insufficient to populate per-port operational details. Cisco Discovery Protocol (CDP) is a Cisco-proprietary protocol and is not used by FortiGate for Faceplates visualization. FortiLink discovery frames are used to establish and maintain the FortiLink management relationship, but they do not carry the granular per-port metadata required for the Faceplates display.

Therefore, the Faceplates view relies specifically onLLDP advertisements received from the FortiSwitch, making optionCthe correct and fully verified answer based on FortiOS 7.6 and FortiSwitchOS 7.6 behavior.

To enable SNMP v2c on a managed FortiSwitch, the essential requirement involves configuring the SNMP agent and community strings:

Configure SNMP Agent and Communities (D):

SNMP Agent:Activating the SNMP agent on FortiSwitch allows it to respond to SNMP requests.

Community Strings:SNMP v2c uses community strings for authentication. These strings function as passwords to grant read-only or read-write access to the SNMP data.

Understanding Other Options:

Create an SNMP user (A)is necessary for SNMP v3, not v2c, as it involves user-based authentication and encryption.

Specify an SNMP host (B)is typically a part of SNMP configuration but not a requirement just to enable SNMP.

Enable SNMP v3 (C)is not related to enabling SNMP v2c.

To deploy FortiSwitch in a remote location with multiple VLANs and no Layer 3 switch or router, you would need specific configurations:

VXLAN Interfaces (B):

Purpose:VXLAN (Virtual Extensible LAN) allows network segmentation without a Layer 3 device, extending VLAN capabilities across dispersed geographical locations over the WAN.

Implementation:Configuring VXLAN on both FortiSwitch and FortiGate can encapsulate Layer 2 traffic over a Layer 3 network, making it ideal for scenarios lacking dedicated routing hardware.

Appropriate Hardware (D):

Requirement:Not all FortiSwitch models might support advanced features like VXLAN; hence, ensuring that the hardware can support such configurations is crucial.

Active multicast receiver entries are aging on each IGMP query sent on the VLAN (A): When IGMP snooping querier is enabled on a VLAN, it functions to manage multicast traffic within the VLAN by keeping track of multicast group memberships. The IGMP querier sends queries to determine which ports require the multicast traffic. The multicast receiver entries, which are entries that indicate which devices have requested the multicast data, age or time out based on these IGMP queries. Each query refreshes active connections but ages out entries that no longer respond, helping to ensure that multicast traffic is only sent to ports with active receivers.

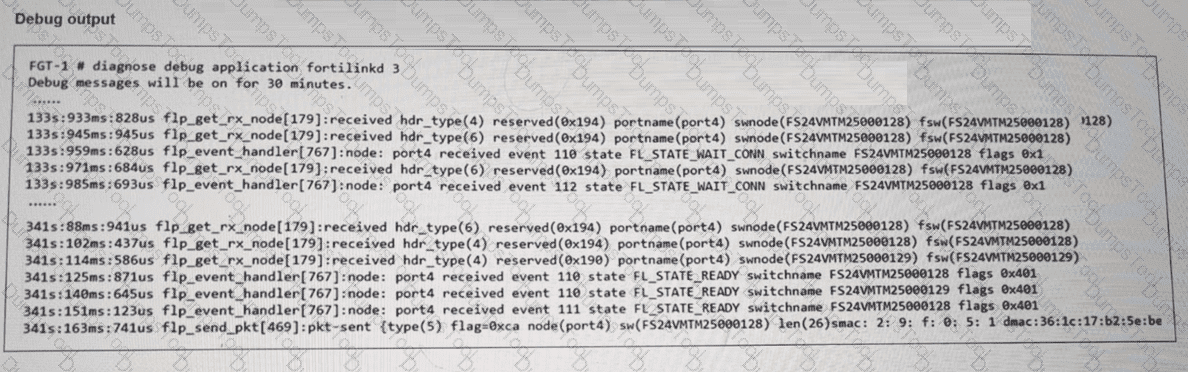

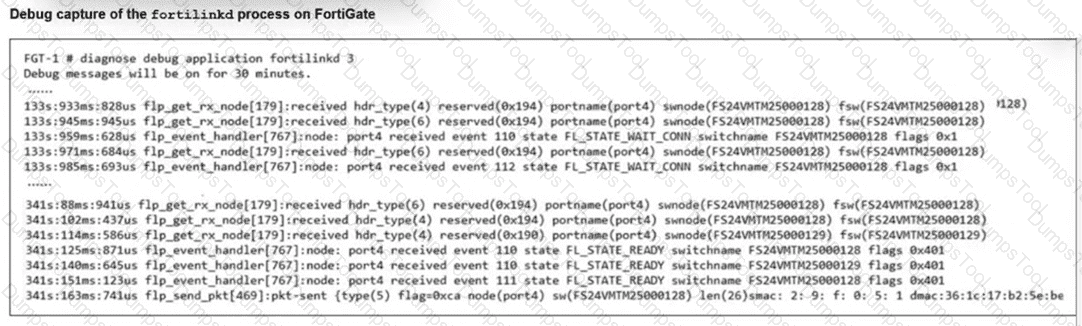

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, the health of the Control and Provisioning of Wireless Access Points (CAPWAP) based management tunnel between a FortiGate and a FortiSwitch is maintained through a continuous keepalive mechanism. The provided exhibit captures the fortilinkd process logs, which are essential for verifying the operational status of the FortiLink control plane.

The debug output reveals two critical indicators of a successful connection:

State Transitions:The lines at timestamp 341s show the managed switch (FS24VMTM25000128) has reached theFL_STATE_READYstate. This state indicates that the discovery, authorization, and configuration synchronization phases are complete, and the switch is now fully operational under the FortiGate ' s management.

Heartbeat Mechanism:The entry flp_send_pkt[469]:pkt-sent {type(5)} represents the transmission of aFortiLink heartbeat. TheseType 5 packetsare sent every few seconds to verify that the peer device is still reachable and responsive. In a healthy environment, the FortiGate sends these heartbeats, and the FortiSwitch responds (or vice versa depending on the specific sub-protocol phase), ensuring the management tunnel remains active.

The regular exchange of these messages as shown in the exhibit confirms that the FortiLink connection ishealthy and active. If the switch were unauthorized or stuck in a negotiation phase, the state would be shown as FL_STATE_WAIT_AUTH or FL_STATE_DISCOVERY, and the periodic type(5) heartbeats would either be absent or not acknowledged.

When FortiGate exports configuration settings to a managed FortiSwitch stack with sampling mode set to " perimeter is true, " the behavior is:

B. FortiGate configures FortiSwitch to perform ingress sampling on all switch interfaces, except ICL and ISL interfaces.This setting ensures that all incoming traffic on normal operational ports is sampled for monitoring and analysis purposes, but it excludes the inter-chassis link (ICL) and inter-switch link (ISL) interfaces from sampling. These exclusions are typically made to prevent the duplication of sampled data and to reduce unnecessary load on the monitoring system, as these links often carry traffic already monitored at other points.

Options A and D are incorrect because they either generalize the sampling across all interfaces without exceptions or incorrectly specify egress sampling on management interfaces. Option C is also incorrect as FortiGate can modify existing sampling settings to fit the perimeter-based configuration requirement.

According to theFortiOS 7.6 Study Guideand theFortiSwitch 7.6 FortiLink Guide, several prerequisite steps and compatibility checks must be performed before a FortiGate can successfully discover, authorize, and manage a FortiSwitch or a stack of switches.

First, theSwitch Controller feature must be enabled (Option B)on the FortiGate.2By default, on many FortiGate models, the " Switch Controller " menu is hidden in the GUI to simplify the interface. Administrators must navigate toSystem > Feature Visibilityand toggle theSwitch Controllerswitch to " on " to expose the management menus required to configure FortiLink interfaces and manage FortiSwitch units.3Without this feature enabled, the FortiGate cannot act as a centralized management entity for the switch fabric.

Second, theFortiSwitchOS version must be compatible with FortiOS (Option D). While it is not strictly required to be on the " latest " version (Option A), the firmware on both devices must fall within the supported compatibility matrix provided by Fortinet. If the versions are incompatible, the FortiLink tunnel (CAPWAP) may fail to establish, or certain management features may be unavailable in the FortiOS GUI.

Regarding the incorrect options:Option Ais not a requirement because older, compatible versions are often used in stable environments.Option Cis incorrect because FortiLink interfaces are the very mechanism used for management; they must be correctly configured and enabled, not disabled, for management to function. Therefore, ensuring feature visibility and verifying the compatibility matrix are the two essential administrative requirements for establishing a managed switch stack.
