NSE5_FNC_AD_7.6 Questions and Answers

The correct answer is B . When a device profiling rule classifies an endpoint, the Register as setting can place the device in the host view, the topology/inventory view, or both. The study guide explains that if the profiled endpoint is registered into the topology view, the administrator must select a topology container.

The advantage of modeling the endpoint as a device in the inventory view is that it can be treated as a pingable device , where FortiNAC-F can use Contact Status settings. The guide explains that a modeled pingable device has contact status controls that allow polling to be enabled or disabled, the polling interval to be set, and the last successful and last attempted poll to be displayed.

Option A and option C are not the best answers because connection logs are associated with host connection tracking, not the key advantage of placing a profiled endpoint into inventory as a modeled device. Option D is wrong because user association applies more naturally to hosts or BYOD ownership workflows; it is not the main benefit of inventory modeling. The tested benefit is scheduled reachability monitoring through contact status polling.

The integration between FortiNAC-F and Mobile Device Management (MDM) platforms (such as Microsoft Intune, VMware Workspace ONE, or Jamf) is a critical component for providing visibility into mobile assets that do not connect directly to the managed infrastructure via standard wired or wireless protocols.

According to theFortiNAC-F MDM Integration Guide, the communication between the FortiNAC-F appliance and the MDM server is handled throughREST APIcalls. FortiNAC-F acts as an API client, periodically polling the MDM server to retrieve device metadata, compliance status, and ownership information. If communication is failing, it is most likely because the API credentials (Client ID/Secret) are incorrect, the MDM ' s API endpoint is unreachable from the FortiNAC-F service port, or the SSL certificate presented by the MDM is not trusted by the FortiNAC-F root store.

While SSH (B) is used for switch CLI management and the Security Fabric (A) uses proprietary protocols for FortiGate synchronization, neither is the primary vehicle for MDM data exchange. SOAP API (D) is an older protocol that has been largely replaced by REST in modern FortiNAC integrations.

" FortiNAC integrates with MDM systems by utilizingREST APIcommunication to query the MDM database for device information. To establish this link, administrators must configure the MDM Service Connector with the appropriateAPI URLand authentication credentials. If the ' Test Connection ' fails, verify that the FortiNAC can reach the MDM provider via theREST APIport (usually HTTPS 443). " —FortiNAC-F Administration Guide: MDM Integration and Troubleshooting.

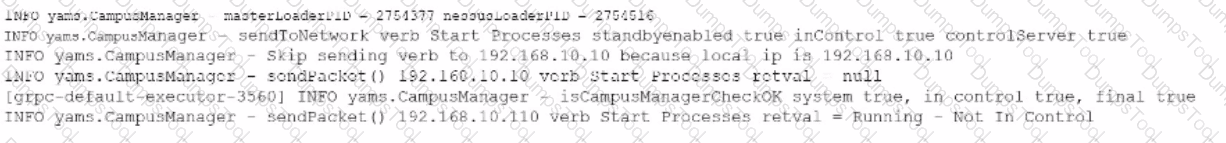

The correct answer is D . The log output shows the local IP address as 192.168.10.10 , which the question identifies as the primary FortiNAC-F server. In the same output, FortiNAC-F reports inControl true and controlServer true , which means the local primary server is currently the control server. The line showing communication to 192.168.10.110 returns Running - Not In Control , confirming that the secondary server is alive but is not the active controlling node.

This matches FortiNAC-F 1+1 HA behavior. The study guide describes a 1+1 HA pair as an active-passive deployment where one FortiNAC-F device is designated primary and the other secondary. Database and configuration synchronization keep the devices aligned, but only one server is in control at a time. If the primary fails, the secondary assumes control automatically; otherwise, the primary remains the active control server.

Option A is wrong because the secondary explicitly reports Not In Control . Option B is wrong because the output does not show database replication failure. Option C is wrong because failover is not in progress; the output shows a stable state where the primary is in control and the secondary is running as the passive node.

In FortiNAC-F,Port Groupsare used to apply specific enforcement behaviors to switch ports. When a port is assigned to an enforcement group, such asForced RegistrationorForced Remediation, FortiNAC-F overrides normal policy logic to force all connected adapters into that specific state. The exhibit shows a port (IF#13) with " Multiple Hosts " connected, which is a common scenario in environments using unmanaged switches or hubs downstream from a managed switch port.

According to theFortiNAC-F Administrator Guide, it is possible for a single port to be a member of multiple port groups. However, when those groups have conflicting enforcement actions—such as one group forcing a registration state and another forcing a remediation state—FortiNAC-F utilizes aranking systemto resolve the conflict. In the FortiNAC-F GUI underNetwork > Port Management > Port Groups, each group is assigned a rank. The system evaluates these ranks, andonly the higher ranked enforcement group is appliedto the port. If a port is in both a Forced Registration group and a Forced Remediation group, the group with the numerical priority (rank) will dictate the VLAN and access level assigned to all hosts on that port.

This mechanism ensures consistent behavior across the fabric. If the ranking determines that " Forced Registration " is higher priority, then even a known host that is failing a compliance scan (which would normally trigger Remediation) will be held in the Registration VLAN because the port-level enforcement takes precedence based on its rank.

" A port can be a member of multiple groups. If more than one group has an enforcement assigned, the group with thehighest rank(lowest numerical value) is used to determine the enforcement for the port. When a port is placed in a group with an enforcement, that enforcement is applied toall hostsconnected to that port, regardless of the host ' s current state. " —FortiNAC-F Administration Guide: Port Group Enforcement and Ranking.

In FortiNAC-F,Security Triggersare used to identify specific security-related activities based on incoming data such as Syslog messages or SNMP traps from external security devices (like a FortiGate or an IDS). These triggers act as a filtering mechanism to determine if an incoming notification should be escalated from a standard system event to aSecurity Event.

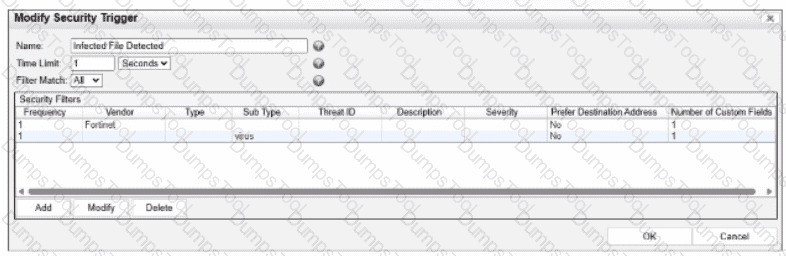

According to theFortiNAC-F Administrator Guideand relevant training materials for versions 7.2 and 7.4, theFilter Matchsetting is the critical logic gate for this process. As seen in the exhibit, the " Filter Match " configuration is set to " All " . This means that for the Security Trigger named " Infected File Detected " to " fire " and generate a Security Event or a subsequent Security Alarm,every single filterlisted in the Security Filters table must be satisfied simultaneously by the incoming data.

In the provided exhibit, there are two filters: one looking for the Vendor " Fortinet " and another looking for the Sub Type " virus " . If only one of these filters is satisfied (for example, a message from Fortinet that does not contain the " virus " subtype), the logic for the Security Trigger is not met. Consequently, FortiNAC-F does not escalate the notification. Instead, it processes theincoming data as aNormal Event, which is recorded in the Event Log but does not trigger the automated security response workflows associated with security alarms.

" The Filter Match option defines the logic used when multiple filters are defined. If ' All ' is selected, then all filter criteria must be met in order for the trigger to fire and aSecurity Eventto be generated. If the criteria are not met, the incoming data is processed as anormal event. If ' Any ' is selected, the trigger fires if at least one of the filters matches. " —FortiNAC-F Administration Guide: Security Triggers Section.

In FortiNAC-F, theGuest & Contractor Templateis a configuration object that defines the parameters for accounts created by sponsors or through self-registration. One of the critical security controls within this template is theLogin Availabilitysetting. This setting restricts the specific days and times during which a guest or contractor is permitted to authenticate and access the network.

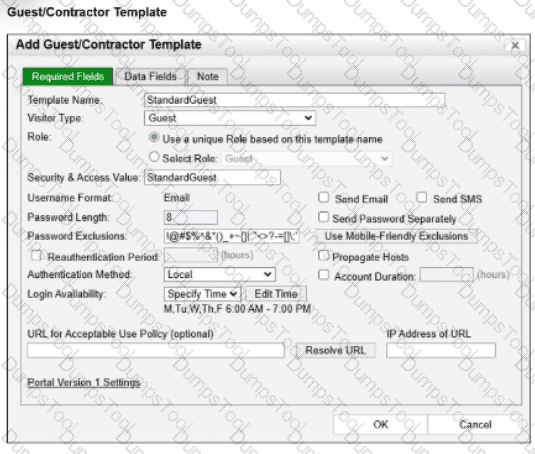

As shown in the exhibit, the " StandardGuest " template hasLogin Availabilityset to " Specify Time " , with a schedule defined asMon-Fri, 6:00 AM to 7:00 PM. If a guest user attempts to connect or authenticate at8:00 PM, which is outside of the permitted window, FortiNAC-F ' s policy engine will automatically deny the authentication request. When an authentication attempt is denied due to schedule restrictions, the system does not move the host into the " Authenticated " or " Registered " state required for production access. Instead, the host ismarked as non-authenticatedin the adapter or host view.

This behavior ensures that even if a guest possesses valid credentials, their access is strictly bound by the organizational policy for visitor hours. The host will typically remain in its current isolation or registration VLAN, and the user will see a message on the captive portal indicating that their account is not currently authorized for login. It is important to distinguish this from " at-risk " (C), which relates to security scan failures, or " rogue " (B), which typically refers to unknown devices that have not yet been associated with a valid account or profiling rule.

" Login Availabilitydefines the timeframe during which the guest or contractor account is valid for network access. This schedule is enforced at the time of authentication. If a user attempts to log in outside of the designated window, the authentication is rejected by the system. Consequently, the host record will reflect anon-authenticatedstatus, and the device will remain restricted to the isolation or registration network until a valid login window is reached. " —FortiNAC-F Administration Guide: Guest and Contractor Templates Section.

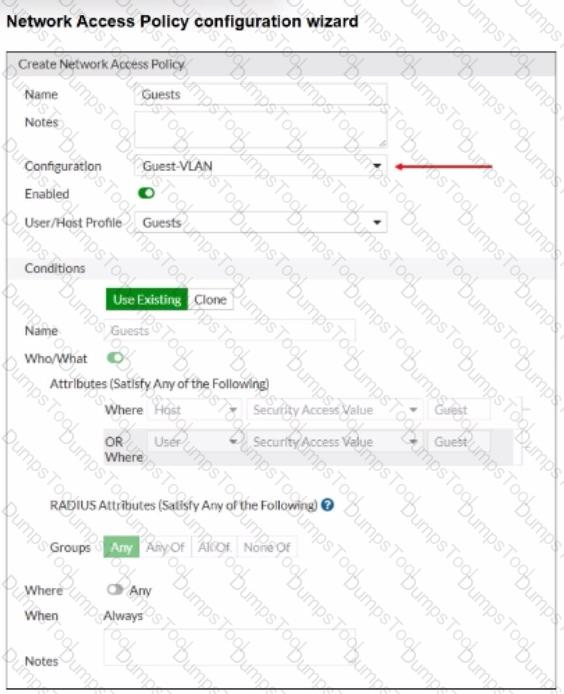

The correct answer is A . In the exhibit, Guest-VLAN is selected as the network access policy Configuration . That policy configuration points to a logical network, but the actual access value for that logical network is not defined inside the guest template, user/host profile, or guest portal. The FortiNAC-F study guide explains that logical networks translate policy-level names into device-specific access values, and those values are configured in the Model Configuration of the infrastructure device. It specifically states that device-specific configurations for infrastructure devices associate the configuration values with the devices, and that after a logical network is created, it appears within the model configuration of each modeled infrastructure device.

So, Guest-VLAN is the logical network selected by the network access policy, while the actual VLAN ID, VLAN name, SSID role, controller group, or vendor-specific access value is configured under the relevant switch, AP, controller, or firewall Model Configuration . Option B is wrong because the guest template defines guest account properties such as role, security/access value, password settings, account duration, and login availability. Option C is wrong because the user/host profile defines the matching condition for guests. Option D is wrong because the guest portal controls onboarding or login behavior, not the infrastructure access value used to provision the endpoint.

The correct answer is D . For FortiGate VPN integration, FortiNAC-F depends on syslog from FortiGate to receive VPN user, IP address, and session information. The FortiNAC-F study guide states that after a remote user successfully authenticates and establishes a VPN connection, FortiGate sends user, IP, and session information to FortiNAC-F using syslog. This keeps FortiNAC-F aware of the VPN session so it can apply the correct access control state and update FortiGate when the device becomes trusted.

Option A is wrong because SNMP traps are commonly used for infrastructure events, link traps, or third-party event inputs, but this VPN workflow uses FortiGate syslog. Option B is wrong because RADIUS accounting can update session information in some NAC workflows, but the FortiGate VPN integration described in the guide uses syslog. Option C is wrong because Security Fabric integration is not the required mechanism for keeping FortiNAC-F updated with VPN session details in this scenario.

Questions no:9

Verified Answer: B

Comprehensive and Detailed 250 to 300 words each Explanation with Exact Matched Extract from FortiNAC-F Administrator library and documentation for current versions (including F 7.2, 7.4, and 7.6) documents:

In FortiNAC-F, the integration with FortiGate for Security Fabric and Single Sign-On (FSSO) allows the system to communicate the access level of an endpoint directly to the firewall usingfirewall tags. This eliminates the need for complex VLAN steering in some environments by allowing the FortiGate to apply policies based on these dynamic tags instead of just a physical or virtual network segment.

The actual assignment of the firewall tag value occurs within aLogical Network. In the FortiNAC-F architectural model, a Logical Network acts as a container for " Access Values " . When an administrator configures a Logical Network (located underNetwork > Logical Networks), they define what that network represents—such as " Corporate Access " or " Contractor Limited " . Within that definition, they assign the specificFirewall Tagthat matches the tag created on the FortiGate. Once a user or host matches aNetwork Access Policy, FortiNAC-F identifies the associated Logical Network and pushes the defined tag to the FortiGate via the FSSO connector.

It is important to note that whileNetwork Access Policies(and by extensionSecurity Rules) are the logic engines thattriggerthe assignment, they do not hold the tag value itself. They simply point to a Logical Network, which serves as the central repository for that specific access configuration.

" To assign firewall tags, navigate toNetwork > Logical Networks. Select the desired logical network and clickEdit. Under theAccess Valuesection, selectFirewall Tagas the type and enter the tag name exactly as it appears on the FortiGate. When a Network Access Policy matches a host, FortiNAC sends this tag to the FortiGate as an FSSO message. " —FortiNAC-F Administration Guide: Logical Networks and Security Fabric Integration.

The correct answer is A . When FortiNAC-F needs near real-time Layer 2 visibility, it relies on link traps, MAC notification traps, RADIUS, or scheduled/manual Layer 2 polling. The study guide explains that MAC notification traps contain the MAC address learned or removed from the switch MAC address table and the associated port, allowing FortiNAC-F to update its database when hosts connect, disconnect, or move. It also states that MAC notification traps are the preferred method for learning and updating Layer 2 information.

If a newly modeled switch does not show hosts as they connect or move between ports, the likely problem is that MAC notification traps are not correctly configured or not reaching FortiNAC-F . Layer 3 polling failure would affect IP-to-MAC correlation, not the ability to learn which switch port a MAC address is connected to. Disabled scheduled polling could delay updates, but it would not be the best explanation when the expected behavior is immediate host detection during connection or movement testing. Contact polling only checks whether the device is reachable; it does not collect host MAC-to-port visibility.

The correct answers are B and C . FortiNAC-F must have a persistent agent on the endpoint if the goal is continual or background endpoint monitoring. The study guide states that the persistent agent is an install-and-stay resident agent and that, after deployment, it communicates back to FortiNAC-F every 15 minutes. It also performs scheduled scans in the background without normal user interaction unless the scan fails. That is the agent model required for continuous compliance monitoring, not a one-time captive portal scan.

A custom scan is also required because the administrator wants to check very specific endpoint conditions: a registry key and a security service. The FortiNAC-F study guide lists Windows custom scan types including Registry Keys and Service , which directly match the two conditions in the question.

Option A is wrong because MDM integration is used to synchronize mobile device data, retrieve MDM-known hosts, receive MDM host updates, and apply policies based on MDM attributes; it is not the required mechanism for checking Windows registry keys or Windows service status. Option D is wrong because a remediation admin scan is not what defines the compliance check itself. The compliance logic must be created as a custom scan, and continuous monitoring requires the persistent agent.

TheFortiNAC-F Manageris designed to centralize the management of multiple Control and Application (CA) appliances, ensuring consistent security posture across a distributed enterprise. To achieve this, the Manager allows administrators to define and distribute specific types of policies globally rather than configuring them on each individual CA.

According to theFortiNAC Manager Guide, the two primary policy types that are managed globally are:

Network Access Policies (D):These policies define the " If-Then " logic for network entry. By managing these at the global level, an administrator can ensure that a " Contractor " receives the same restricted access regardless of which branch office or campus they connect to.

Endpoint Compliance Policies (B):Global management of compliance policies—which consist of scans and configurations—allows for a unified security baseline. For example, a global policy can mandate that all Windows devices across the entire organization must have a specific antivirus version installed and active before gaining access to the production network.

While the Manager provides visibility into authentication events and can synchronize directory data, the specificAuthentication(A) configurations (like local RADIUS secrets or specific LDAP server links) are often localized to the CA to account for site-specific infrastructure.Supplicant EasyConnect(C) is a feature set for onboarding, but the structural " Global Policy " engine focuses primarily on the Access and Compliance frameworks.

" The FortiNAC Manager enablesGlobal Policy Management, allowing for the creation and distribution of policies across all managed CA appliances. This includesNetwork Access Policies, which control VLAN and ACL assignment, andEndpoint Compliance Policies, which define the security requirements for hosts. Centralizing these policies ensures that security standards are enforced uniformly across the global network fabric. " —FortiNAC Manager Administration Guide: Global Policy Management Overview.
