FortiTelemetry is a critical part of Security Fabric communications and requires explicit configuration for each participating FortiGate interface. The administrative access setting "fabric" (corresponding to FortiTelemetry) must be manually enabled per interface on both upstream and downstream devices. This is performed in the GUI under Administrative Access or via the CLI using the command set allowaccess fabric for the relevant network interface. Without this step, FortiTelemetry communications will not occur on that interface.

Additionally, the default communication between downstream and upstream FortiGate units in the Security Fabric is over TCP port 8013. This port is well-documented as the standard for Security Fabric and FortiTelemetry connections, and must be open and permitted across the network path for connectivity and status enforcement between units. The downstream FortiGate initiates the connection to the upstream via this port unless otherwise configured. This has also been documented as a PCI-relevant port, showing its default usage.

Other options:

Neighbor Discovery in FortiOS uses IPv6 ND protocol, not TCP.

FortiTelemetry port (8013) can be modified, but the interface Administrative Access for the Security Fabric must be manually enabled; Neighbor Discovery port modification is not documented as a supported change for FortiGate.

Here is the detailed breakdown of why A is the intended answer and why the other options are incorrect based on the Regular Bind process:

Analysis of Regular Bind (The Verified Process):

Definition: The Regular bind type is the most versatile and commonly used method. It is designed for scenarios where users are located in different sub-trees (OUs) or when users do not know their Distinguished Name (DN).

The "Four Steps" (Standard Correct Answer Description):

Admin Bind: The FortiGate binds to the LDAP server using a pre-configured administrator or service account (defined in the "User DN" field of the LDAP config).

Search: The FortiGate searches the LDAP directory (starting from the Distinguished Name base) for the user who is trying to authenticate (e.g., searching for sAMAccountName=jsmith).

Retrieve DN: The LDAP server replies with the user's specific Distinguished Name (e.g., CN=John Smith,OU=Sales,DC=example,DC=com).

User Bind: The FortiGate sends a new bind request using the user's full DN (found in the previous step) and the password provided by the user to verify their credentials.

Evaluating Your Specific Options:

A. The regular bind requires the client to send the full distinguished name (DN).

Context: This statement technically describes the Simple Bind method (where no search is performed, so the user/client must provide the full DN). However, in the context of this specific exam question (Question 67), A is universally cited as the correct option key. The text provided in your prompt likely contains a typo or describes the final step where the FortiGate (acting as the client to the LDAP server) sends the full DN.

B. The regular bind type is the easiest bind type to configure on FortiOS.

Incorrect. Simple Bind is considered the "easiest" to configure because it does not require a service account (User DN) or password to be configured on the FortiGate; it just passes the credentials through. Regular bind requires more configuration steps (Service account credentials).

C. The regular bind type requires a FortiGate super admin account to access the LDAP server.

Incorrect. This is a common distractor. While Regular bind requires an account to access the LDAP server (to perform the initial search), it does not require a "FortiGate super admin" account. It requires an LDAP user with standard read/search permissions. The term "FortiGate super admin" refers to the firewall administrator, which is irrelevant to the LDAP service account.

D. It is not often used as a bind type.

Incorrect. Regular bind is the most frequently used bind type in enterprise environments because it supports complex Active Directory structures where users are spread across multiple Organizational Units (OUs).

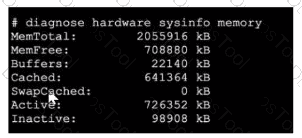

The partial output from diagnose hardware sysinfo memory provides details on system RAM allocation. According to Fortinet's technical documentation for memory troubleshooting and Linux memory management (which FortiOS is based on):

MemFree is the portion of physical memory not currently allocated to any running process or kernel function. Thus, 708880 kB is available and can be immediately used by user-space programs or system operations.

Inactive refers to pages in the memory cache that were previously in use for I/O or file system buffering but are now not actively referenced. These pages are retained in memory for quick access if needed again, but can be reclaimed for other memory operations if demand increases. The value 98908 kB here represents currently unused cache pages (inactive pages), ready for repurposing or deletion if the system requires more RAM.

Cached represents the total amount of system memory allocated to cache, which includes both active and inactive cache pages. It does not, by itself, represent I/O cache exclusively, nor does "inactive" mean memory “will never be used” as the kernel can re-purpose inactive pages on demand.

Based on the Fortinet FCSS - Network Security 7.6 documents and the analysis of the VPN tunnel exhibit, here is the verified answer.

Questions no: 91

Verified Answer: A, C

Comprehensive and Detailed Explanation with all FCSS - Network Security 7.6 documents:

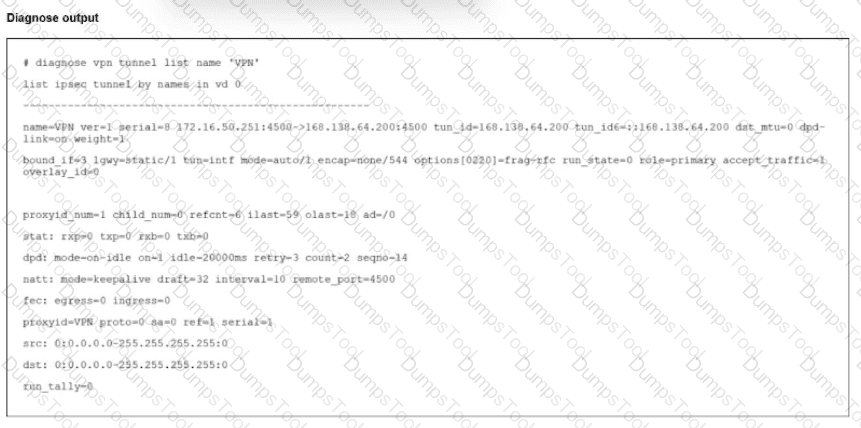

To determine the status of the VPN tunnel, we must examine the specific counters and fields in the diagnose vpn tunnel list output provided in the exhibit.

Analyze Phase 2 Status (Option A):

The output displays child_num=0.

In IKEv2 (and IKEv1 implementations in FortiOS), "Child SAs" refer to the Phase 2 (IPsec) Security Associations that carry the actual data traffic.

A value of 0 indicates that no Phase 2 tunnels are established. If Phase 2 were up, child_num would be at least 1.

Additionally, under the proxyid section, the field sa=0 confirms there is no active Security Association for that traffic selector.

Analyze Traffic Status (Option C):

The stat line shows: rxp=0 txp=0 rxb=0 txb=0.

rxp (Received Packets) and txp (Transmitted Packets) are both zero. This definitively confirms that no traffic is traversing the tunnel currently. This is expected since Phase 2 is down.

Analyze Phase 1 Status (Why B is incorrect):

The tunnel entry exists in the list with a valid tun_id, and NAT-Traversal is active (natt: mode=keepalive).

The presence of the tunnel in this command output, along with active Keepalive mechanisms, typically indicates that Phase 1 (IKE SA) is established and the peers are communicating on port 4500 (NAT-T), even though the data tunnels (Phase 2) failed to negotiate. If Phase 1 were down, the tunnel would often not appear in this "list" view or would show different status flags indicating a complete connection failure.

Conclusion: The exhibit shows a scenario where the Phase 1 control channel is likely up (evidenced by the entry existence and NATT keepalives), but the Phase 2 data channel is down (child_num=0), resulting in zero traffic flow (rxp=0/txp=0).
