220-1201 Questions and Answers

Because the smudges are not in the original document, CompTIA A+ troubleshooting logic indicates the problem is occurring inside the print process, not in the application or file. For laser printers, smudging commonly points to an issue with the imaging components—especially the drum/photoconductor unit (and sometimes the fuser). A+ Core 1 (220-1201) printer troubleshooting emphasizes starting with the most likely, easiest-to-verify causes before replacing parts. Inspecting the drum is a diagnostic step that can reveal visible defects such as scratches, toner buildup, contamination, or worn surfaces that cause toner to transfer incorrectly, leading to streaks or smears on output.

Replacing the toner (D) is a corrective action and may be unnecessary if the drum is damaged. Changing paper type (A) can help with some issues (like poor fusing or humidity-related problems), but it’s less directly tied to consistent smudges caused by the imaging process. Firmware updates (C) are rarely the first step for print-quality defects; they’re more relevant to compatibility, bugs, or feature issues—not physical smearing. Therefore, inspecting the printer drum first best matches A+ methodology and common laser printer failure points.

The correct answer is D. Injector.

Power over Ethernet (PoE) allows network cables to carry electrical power to devices such as wireless access points, IP cameras, and VoIP phones, eliminating the need for separate power supplies. According to the CompTIA A+ Core 1 220-1201 objectives under Networking, PoE can be implemented in the following ways:

PoE-enabled switches: Switches that can supply power directly over the Ethernet ports.

PoE injectors: Devices that add power to an existing Ethernet connection when the switch or router does not provide PoE.

Why the other options are incorrect:

A. Modem: A modem connects a network to the Internet but does not provide PoE functionality.

B. Range extender: Extends the range of a wireless network; does not supply power over Ethernet.

C. Media converter: Converts one type of network media to another (e.g., fiber to copper) but does not implement PoE.

Therefore, when a switch does not natively provide PoE, a PoE injector is the standard solution to add power to the Ethernet line.

According to the CompTIA A+ Core 1 (220-1201) virtualization objectives, a Type 1 hypervisor is known as a bare-metal hypervisor because it installs directly onto the physical hardware of a system rather than running on top of a traditional operating system. This architecture allows the hypervisor to manage hardware resources—such as CPU, memory, storage, and networking—without the overhead of a host operating system. Because of this direct interaction with the hardware, Type 1 hypervisors typically provide higher performance, better scalability, and improved stability compared to Type 2 hypervisors.

Examples of Type 1 hypervisors include VMware ESXi, Microsoft Hyper-V (bare-metal deployment), and Citrix XenServer. These hypervisors are commonly used in enterprise data centers, cloud infrastructure, and large virtualization environments where multiple virtual machines must run efficiently on a single physical server. ???? ️

Option A (Host OS required) describes a Type 2 hypervisor, such as VMware Workstation or Oracle VirtualBox, which runs on top of an existing operating system. Option C (Lightweight OS) may describe some hypervisor environments but is not the defining characteristic. Option D (Local configuration options) is also not specific to Type 1 hypervisors.

Therefore, the key characteristic that defines a Type 1 hypervisor is that it performs a bare-metal server installation directly on the hardware

The correct answer is A. The internal antenna has been damaged.

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Networking:

Many laptop Wi-Fi antennas are embedded in the display panel and connected via small cables to the wireless card on the motherboard.

If the display panel is replaced and the Wi-Fi antenna is disconnected, damaged, or improperly routed, the laptop will experience weak or intermittent Wi-Fi connectivity.

Why the other options are incorrect:

B. Airplane mode is enabled: Would completely disable wireless radios; the question specifies difficulty staying connected, not a total lack of connectivity.

C. The inverter is not connected: The inverter powers the backlight of the display, unrelated to wireless connectivity.

D. The wireless drivers have not been updated: While outdated drivers can cause connectivity issues, a sudden problem after a display replacement strongly points to physical antenna damage.

The correct answer is B. Near-field communication (NFC).

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

NFC is commonly used for secure access control. Many organizations implement NFC-enabled ID badges or mobile devices to unlock doors, gates, or secure areas.

The mobile device communicates over a very short range (a few centimeters) with a reader to authenticate the user.

Why the other options are incorrect:

A. Hotspot: Provides internet access, not physical building access.

C. Infrared scanner: While used in some legacy devices, it is not commonly implemented for secure mobile access.

D. Geolocation: Can provide location awareness but does not grant direct access to secure physical spaces.

The correct answer is B. Moving to a supported system under a Type 2 hypervisor.

In the CompTIA A+ Core 1 (220-1201) objectives, virtualization is a key concept for maintaining compatibility with legacy systems. A Type 2 hypervisor (hosted hypervisor) runs on top of an existing operating system and allows users to run a virtual machine (VM) with an older OS.

This solution is ideal because:

It allows the legacy application to run in its required OS environment.

It avoids replacing the application (which could cause data loss or compatibility issues).

It is cost-effective, as it uses existing hardware.

It minimizes user disruption, since users can continue using the application within a VM.

Why the other options are incorrect:

A. Setting up a bare-metal hypervisor

A Type 1 (bare-metal) hypervisor is more complex, costly, and disruptive. It typically requires dedicating hardware and is not ideal for a single department use case.

C. Upgrading to an alternative product and importing the data

Although this may be a long-term solution, it involves higher cost, potential data loss, retraining, and disruption.

D. Uploading the database to a private cloud

This does not solve the compatibility issue of the legacy application with the new OS.

Final Answer: B. Moving to a supported system under a Type 2 hypervisor

The correct answer is D. Channel width.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Wireless:

Channel width refers to the size of the frequency band used for Wi-Fi communication.

Increasing channel width (e.g., from 20 MHz to 40 MHz, 80 MHz, or 160 MHz) allows more data to be transmitted at once, effectively increasing wireless throughput speed.

Why the other options are incorrect:

A. Licensed bands: Licensed spectrum is used for certain types of communication and does not directly increase Wi-Fi throughput.

B. Maximum transmission unit (MTU): MTU defines the largest packet size transmitted over a network but is not the primary factor for increasing Wi-Fi throughput.

C. Transmit power: Adjusting transmit power affects signal range and coverage but does not significantly increase throughput; it may improve connectivity but not data rates.

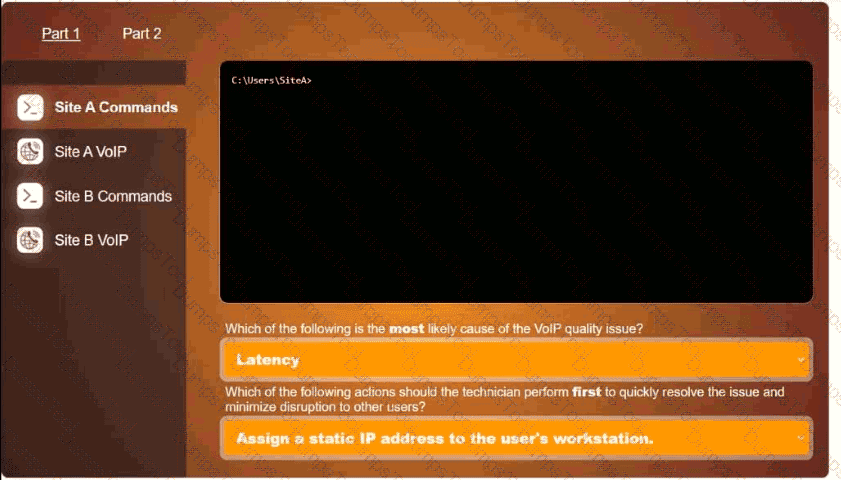

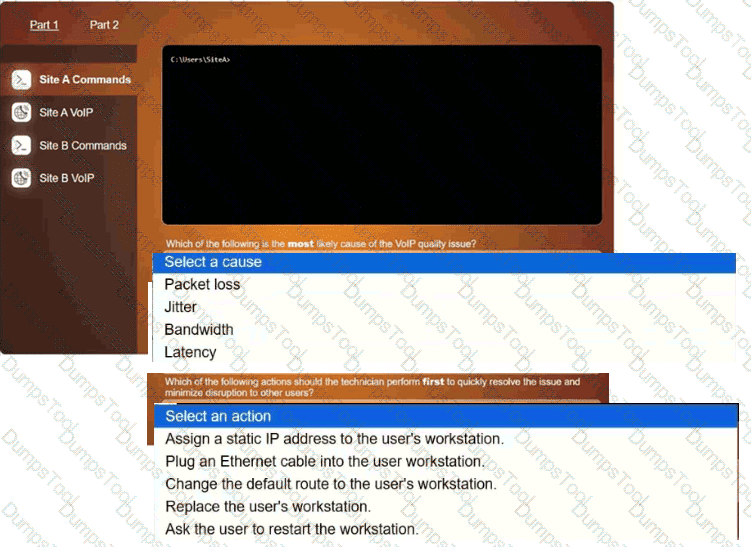

Network jitter is variation in the amount of time packets take to reach their destination. Real-time video and audio applications require packets to arrive at relatively consistent intervals.

When jitter becomes excessive, video packets may arrive late or out of sequence. The videoconferencing application may temporarily run out of usable video data, causing the displayed image to freeze. When sufficient packets arrive again, the video resumes.

High bandwidth generally improves the ability to carry video traffic.

Port flapping means a network switch port repeatedly transitions between up and down states. It can cause intermittent connectivity, but a temporary freeze followed by recovery is more directly associated with jitter.

Low latency is desirable because it means packets are delivered with little delay.

CompTIA objective 5.5 explicitly identifies jitter as a common network troubleshooting symptom. Cisco also states that network impairments such as jitter, delay, and packet loss can negatively affect videoconferencing quality.

==========

A printer with text boxes AI-generated content may be incorrect.

The correct answer is C. Virtualization.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud/Virtualization Concepts:

Virtualization allows a single physical server to host multiple virtual machines (VMs), each running its own operating system and applications.

This reduces hardware costs because fewer physical servers are required to run multiple workloads, and it improves resource utilization, scalability, and management.

Why the other options are incorrect:

A. Containerization: Optimizes application deployment by packaging applications and dependencies, but containers share the host OS kernel and are not full OS instances.

B. Cloud computing: Refers to delivering computing services over the internet; it can use virtualization but is broader and not specifically focused on reducing physical hardware.

D. Remote desktop services: Provides remote access to desktops or applications; it does not reduce hardware requirements for hosting multiple OS environments.

A spam gateway is an email-security system positioned in the mail-delivery path. It examines incoming messages and attempts to identify spam, phishing messages, malicious attachments, suspicious links, spoofed senders, and other unwanted content.

Depending on its configuration, a spam gateway can:

Reject the message.

Quarantine it for review.

Mark it as spam.

Deliver it to a junk-mail folder.

Remove or block malicious content.

Because the question specifically asks about preventing unwanted email from reaching an inbox, a spam gateway is the most precise answer.

A proxy server commonly intermediates web or application requests.

An intrusion detection system monitors activity and generates alerts but does not primarily filter email.

A firewall filters network connections and ports but normally does not perform detailed email-content classification.

CompTIA objective 2.3 explicitly identifies spam gateways as network-based internet appliances. Microsoft’s anti-spam documentation explains that spam filtering identifies and separates unwanted email from legitimate messages

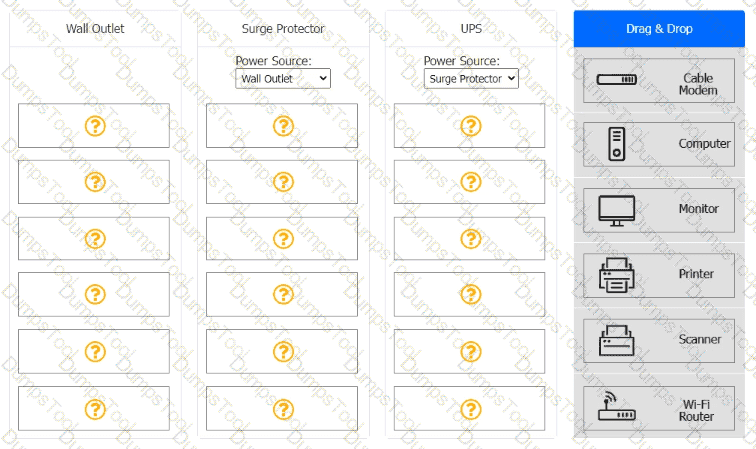

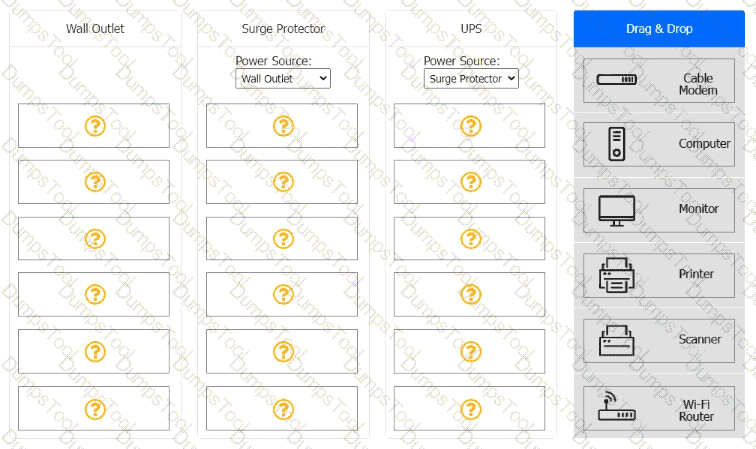

Wall Outlet

(empty — nothing goes directly to the wall)

Surge Protector (Power Source: Wall Outlet)

Printer

Scanner

UPS (Power Source: Surge Protector)

Computer

Monitor

Cable Modem

Wi-Fi Router

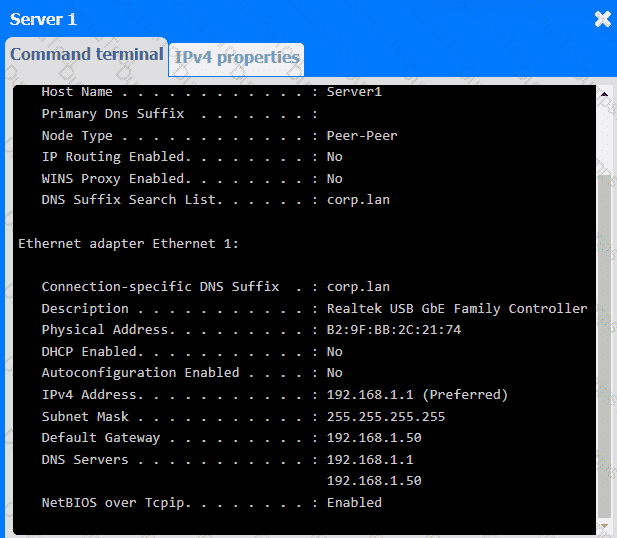

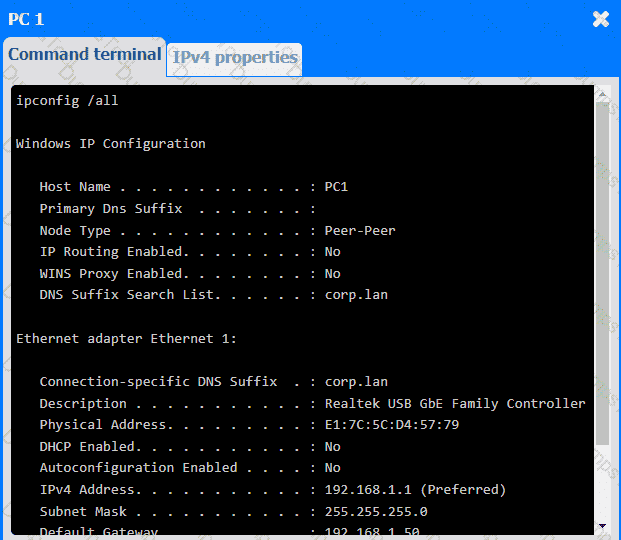

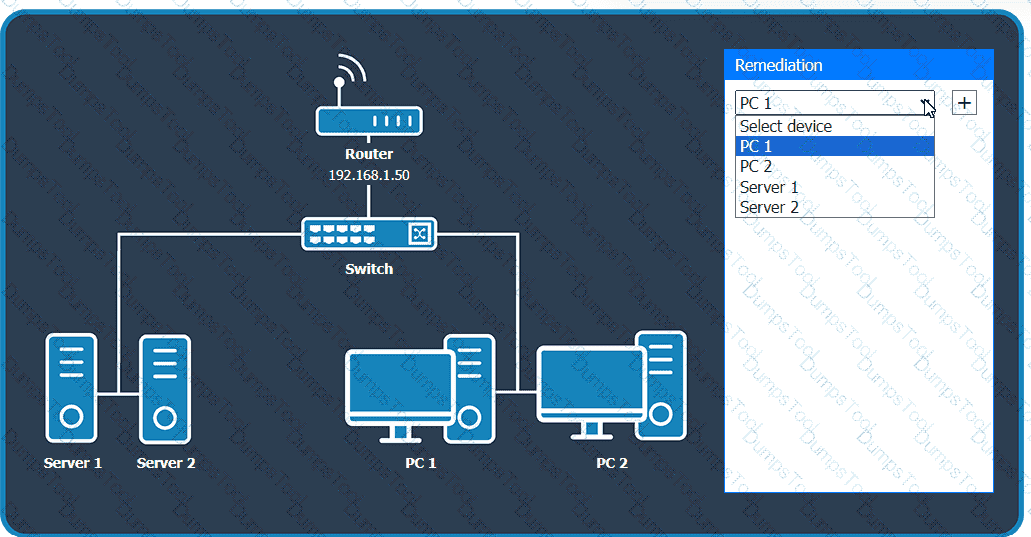

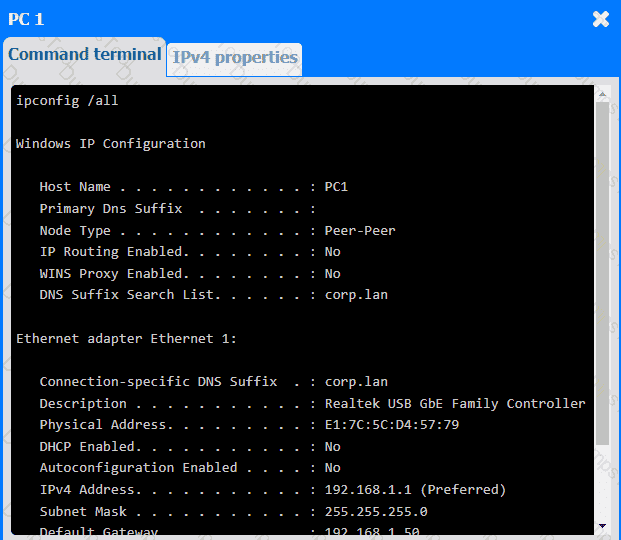

Looking at the network configurations and outputs from both PCs and servers, here are the possible issues and solutions:

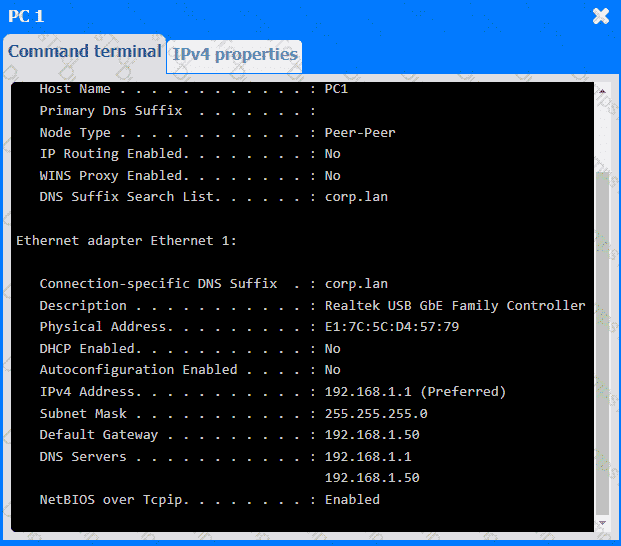

1. PC 1

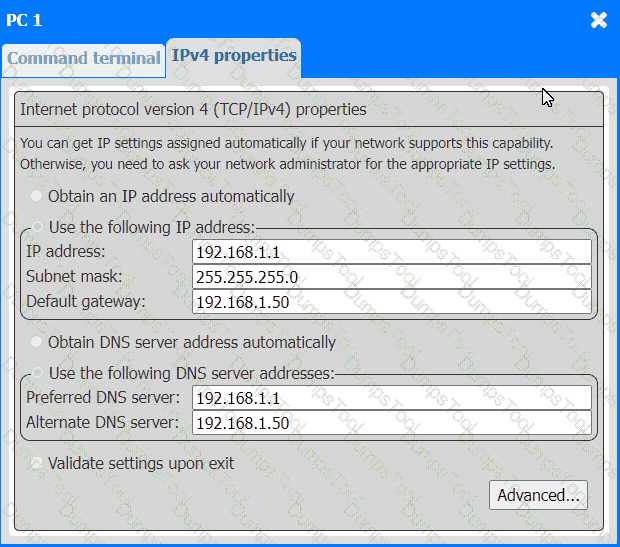

Issue: The IP address for PC1 is 192.168.1.1, which conflicts with Server 1 (which also uses 192.168.1.1).

Solution: Change the IP address on PC1 to a unique one within the range, like 192.168.1.3.

2. PC 2

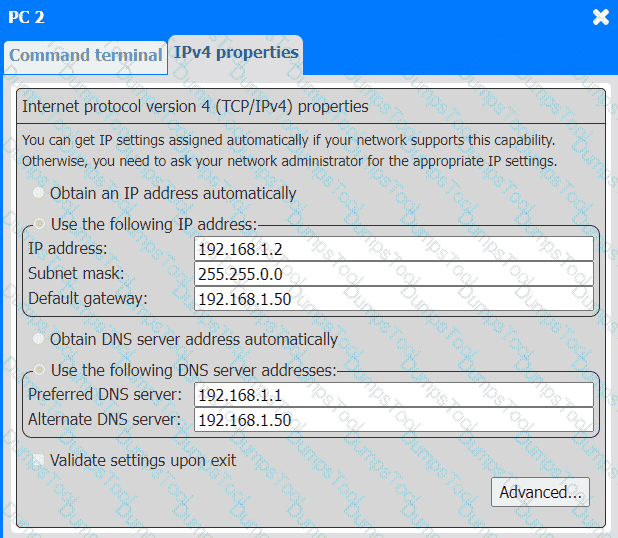

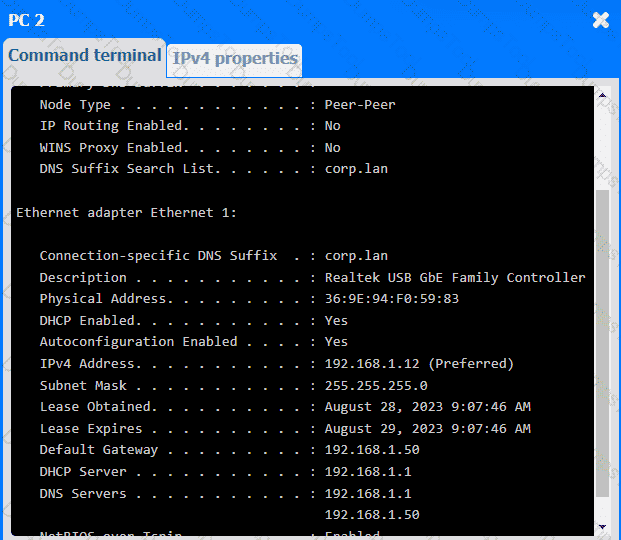

Issue: PC 2 is configured with 192.168.1.2, which conflicts with Server 2 that has the same IP address.

Solution: Update the IP address on PC 2 to something unique, like 192.168.1.4.

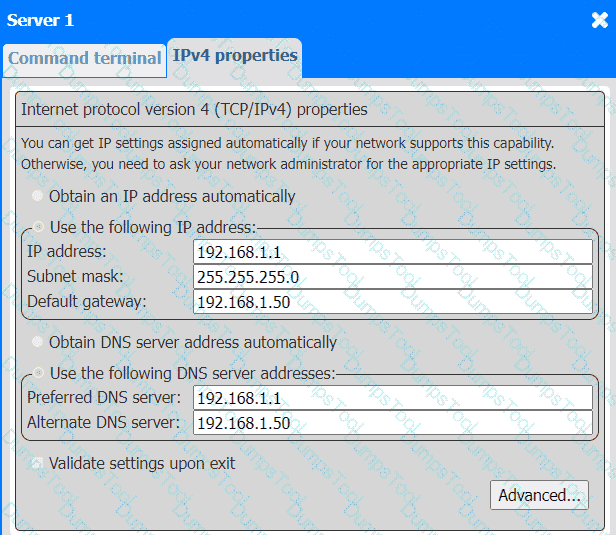

3. Server 1

Issue: The IP address for Server 1 is 192.168.1.1, which conflicts with PC1.

Solution: Since Server 1 and PC1 are using the same IP address, change one of them. For Server 1, you could change the IP address to 192.168.1.5.

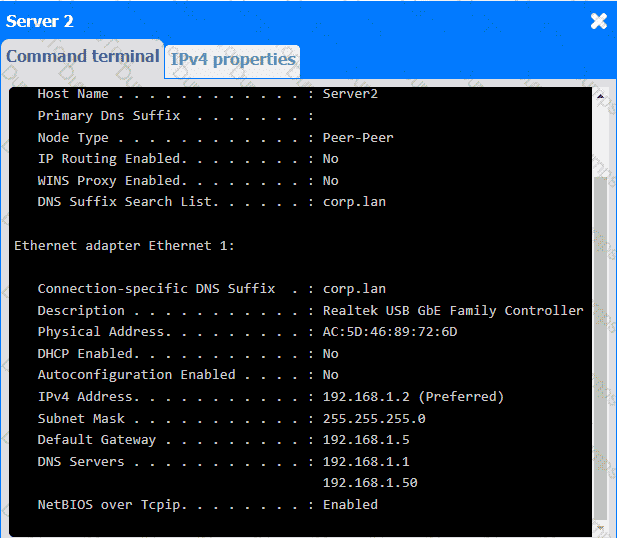

4. Server 2

Issue: Server 2 is using the IP address 192.168.1.2, which conflicts with PC2.

Solution: Update Server 2 to use a different IP address, such as 192.168.1.6.

General Remediation:

The primary problem here is overlapping IP addresses, leading to connectivity issues. Each device on the network must have a unique IP address. After making these changes, ensure that all devices can communicate properly by testing the connection between devices and verifying they can access shared resources.

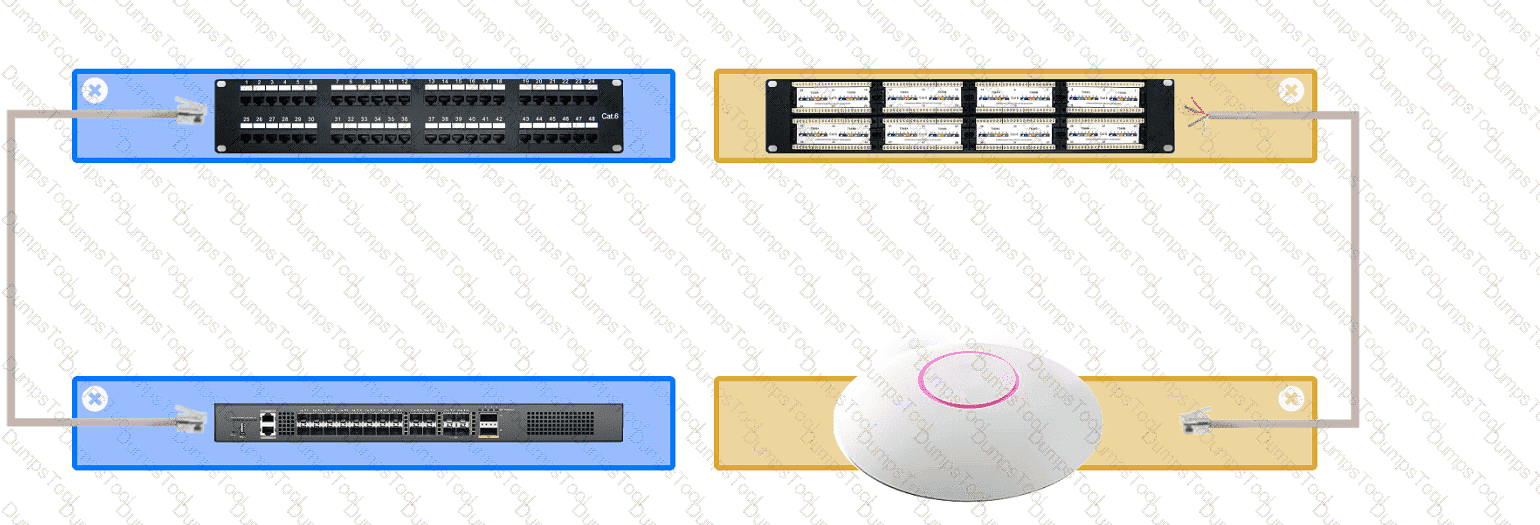

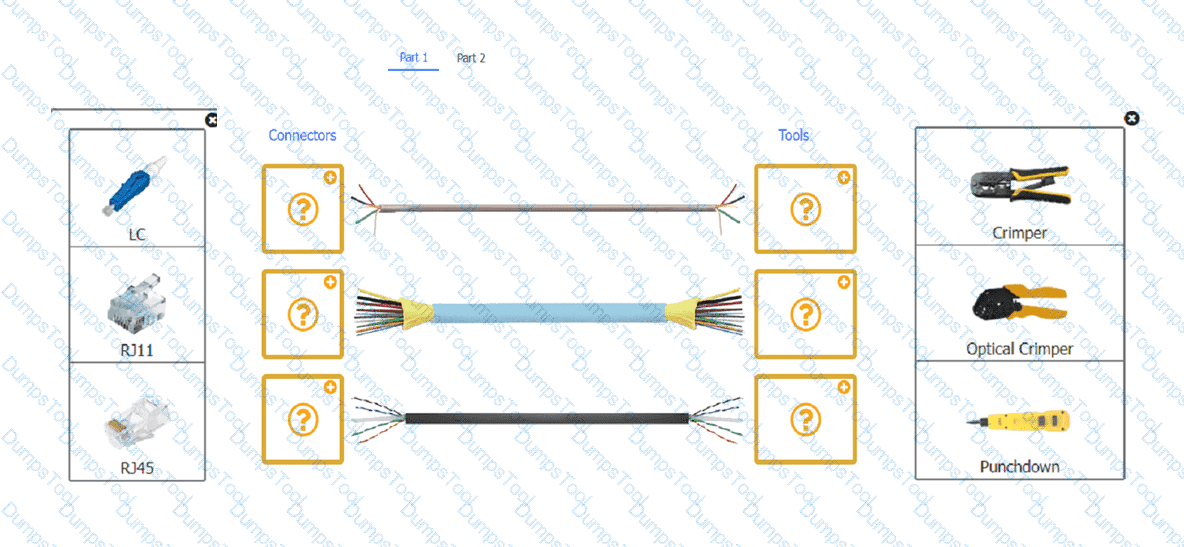

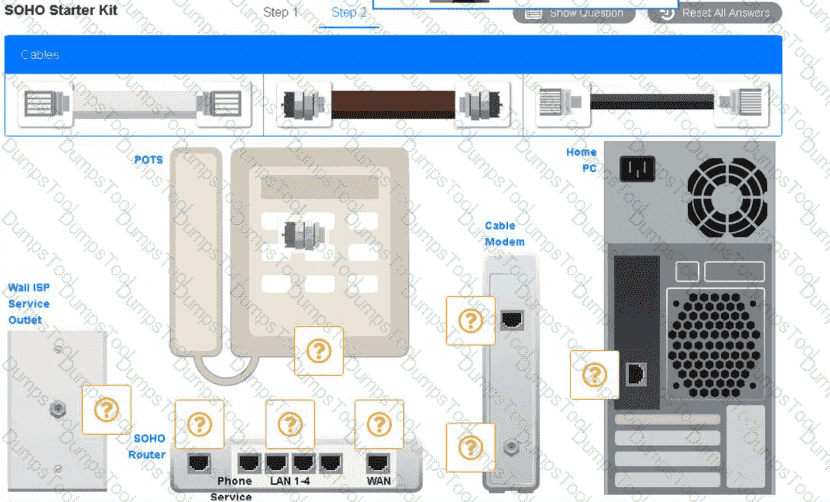

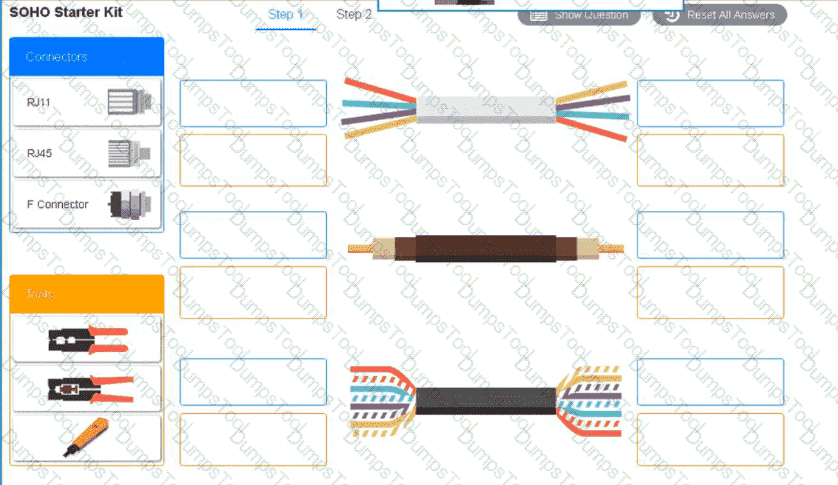

Check the exhibit diagram for both parts.

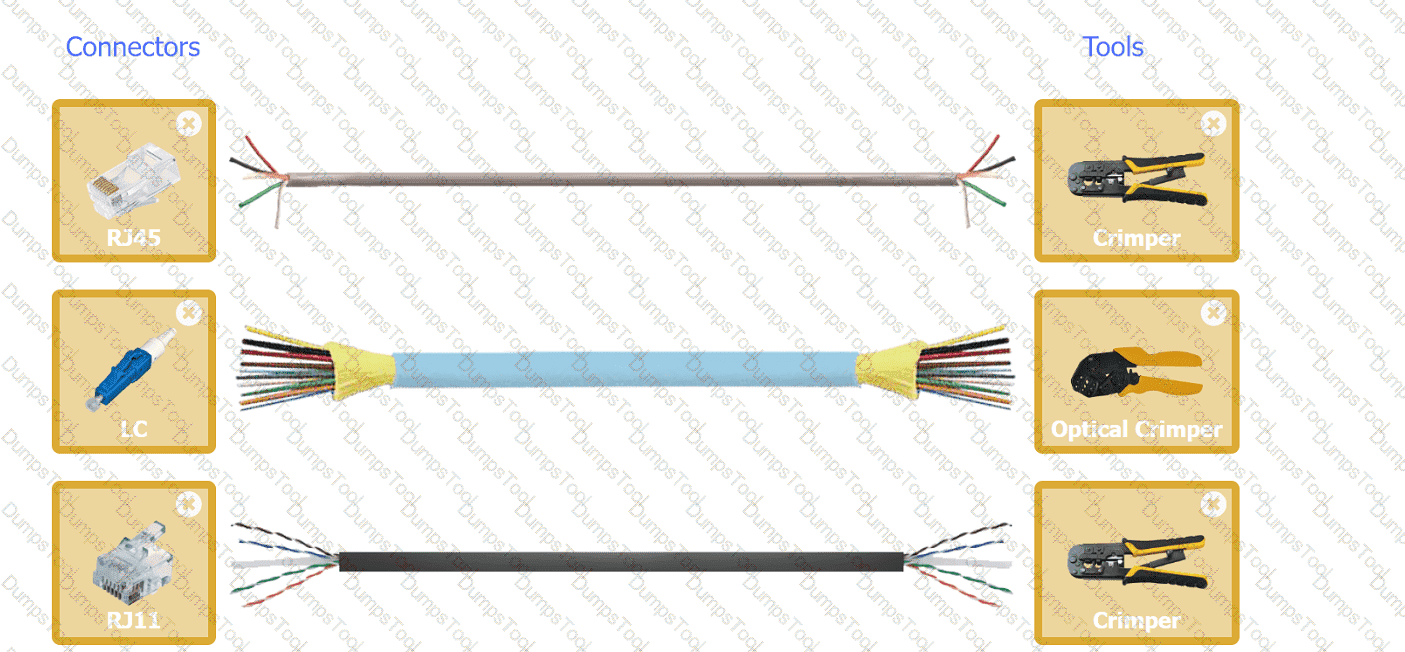

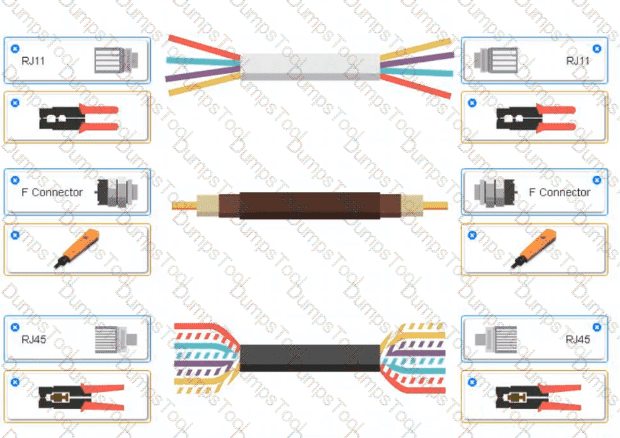

A close-up of several cables AI-generated content may be incorrect.

Part 2

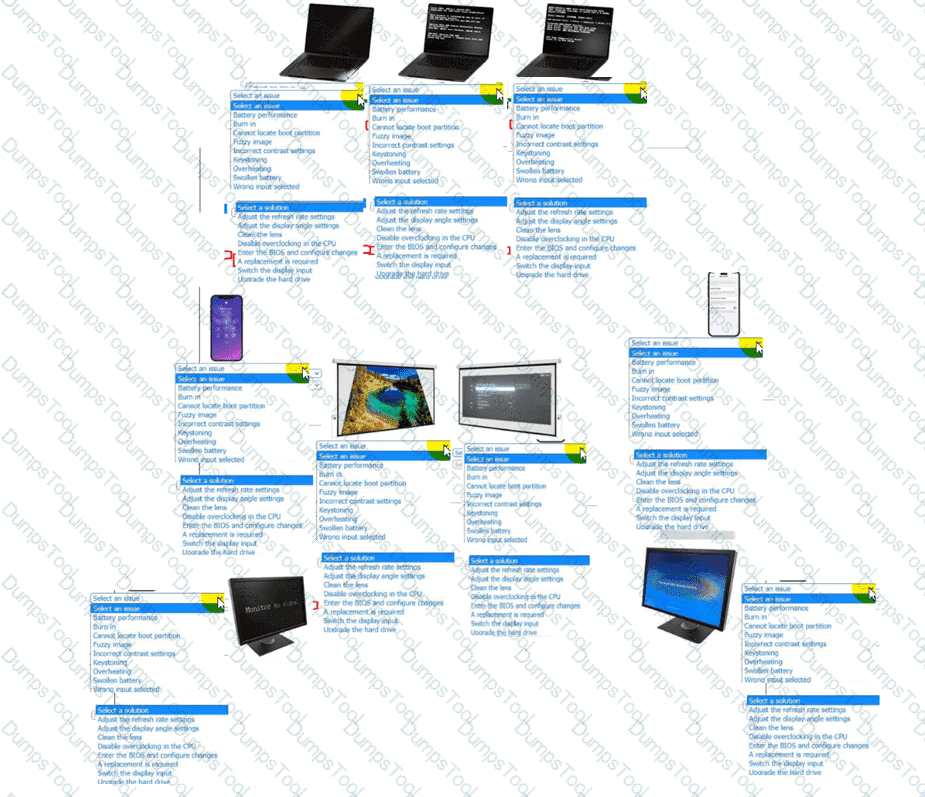

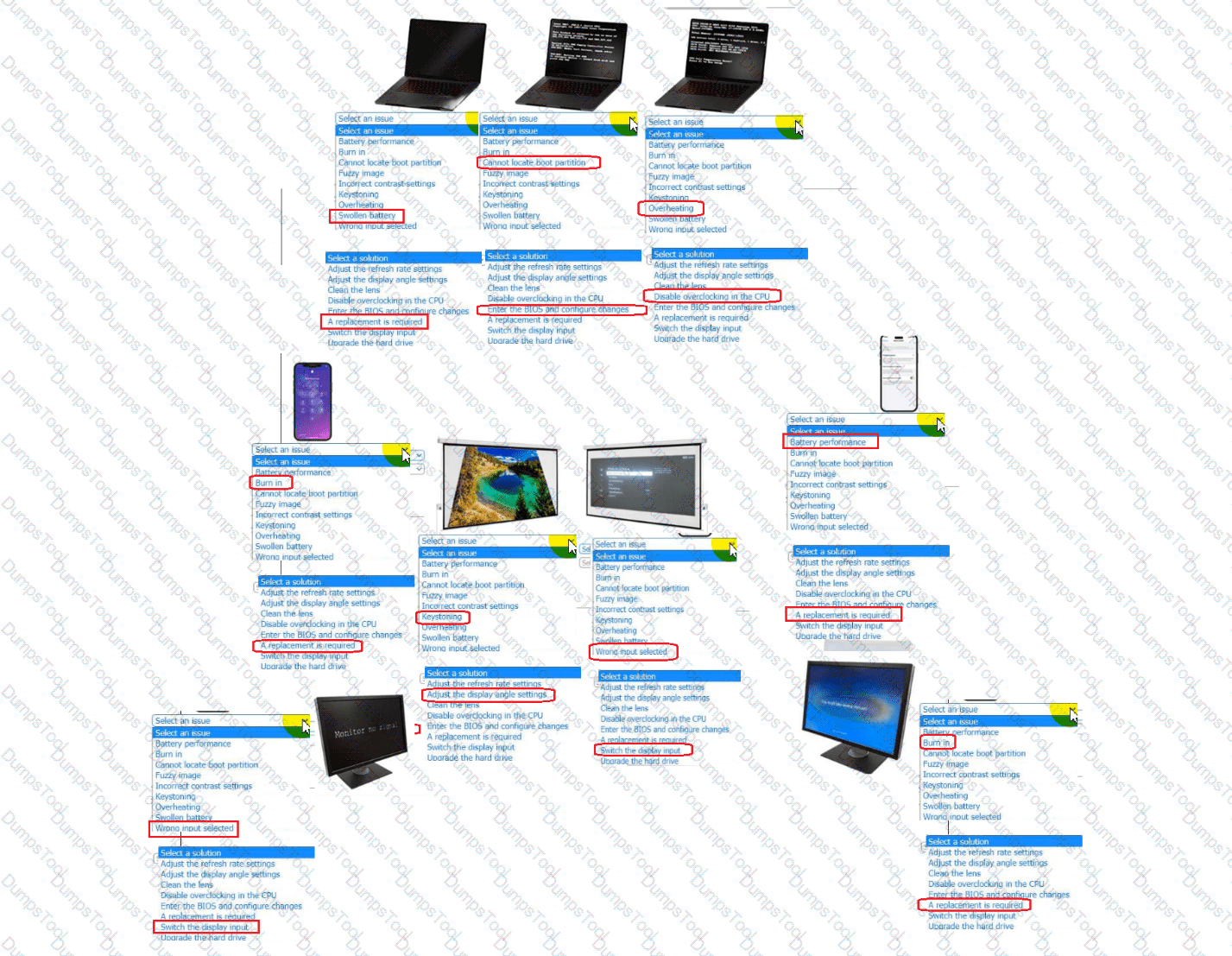

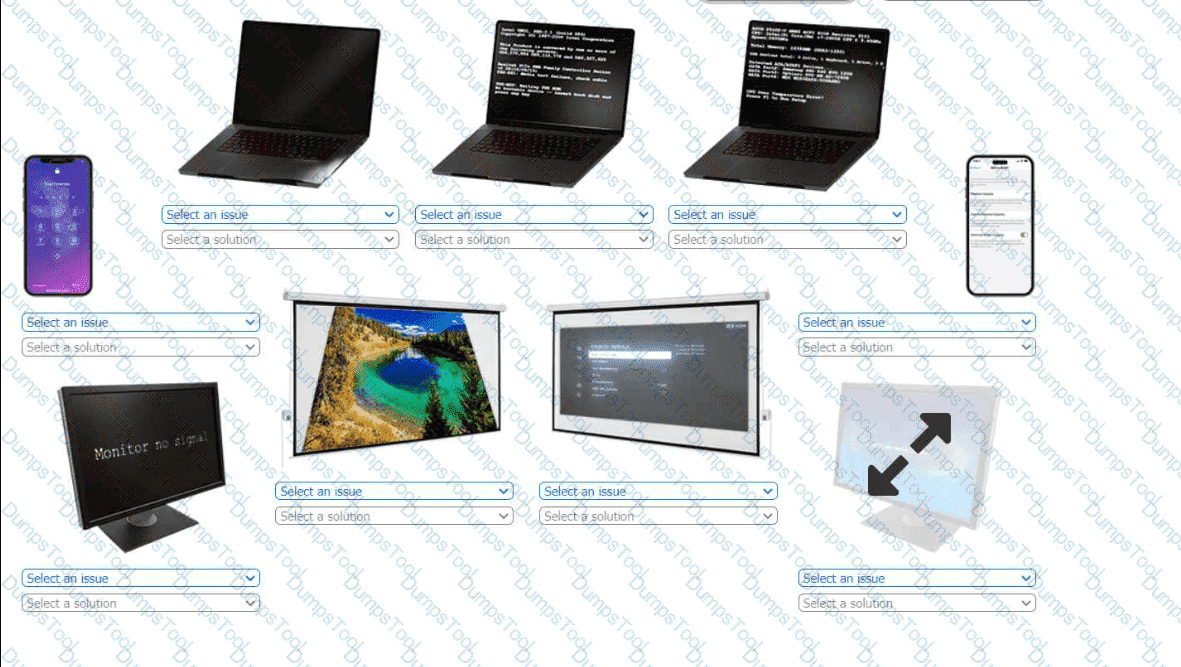

A group of different colored rectangular objects AI-generated content may be incorrect.

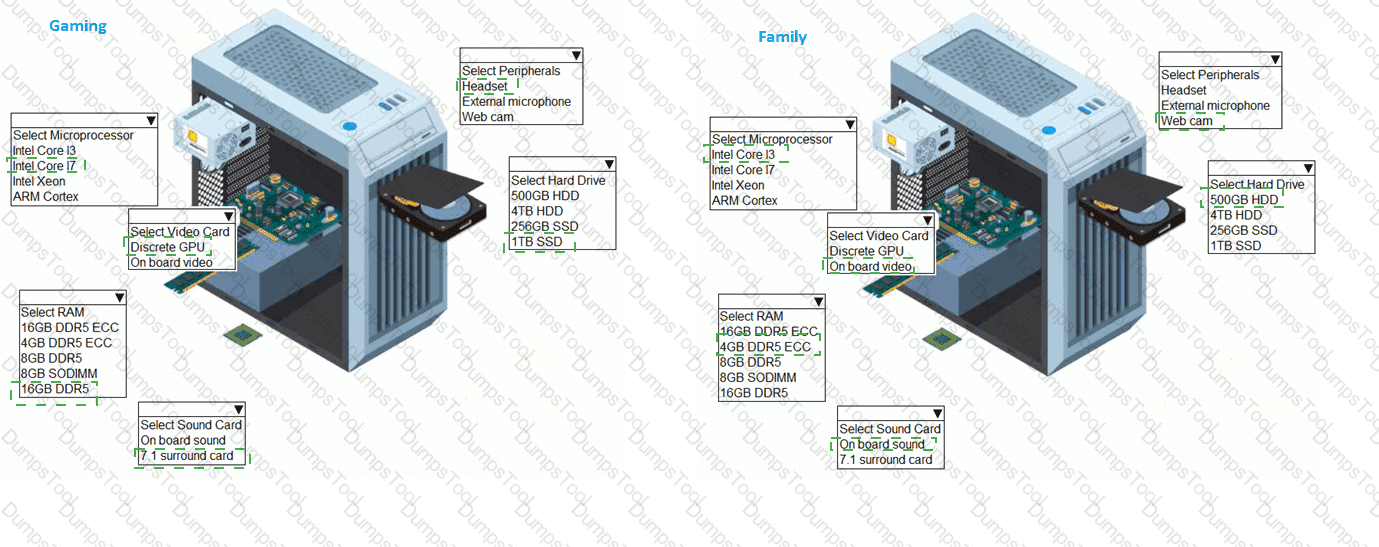

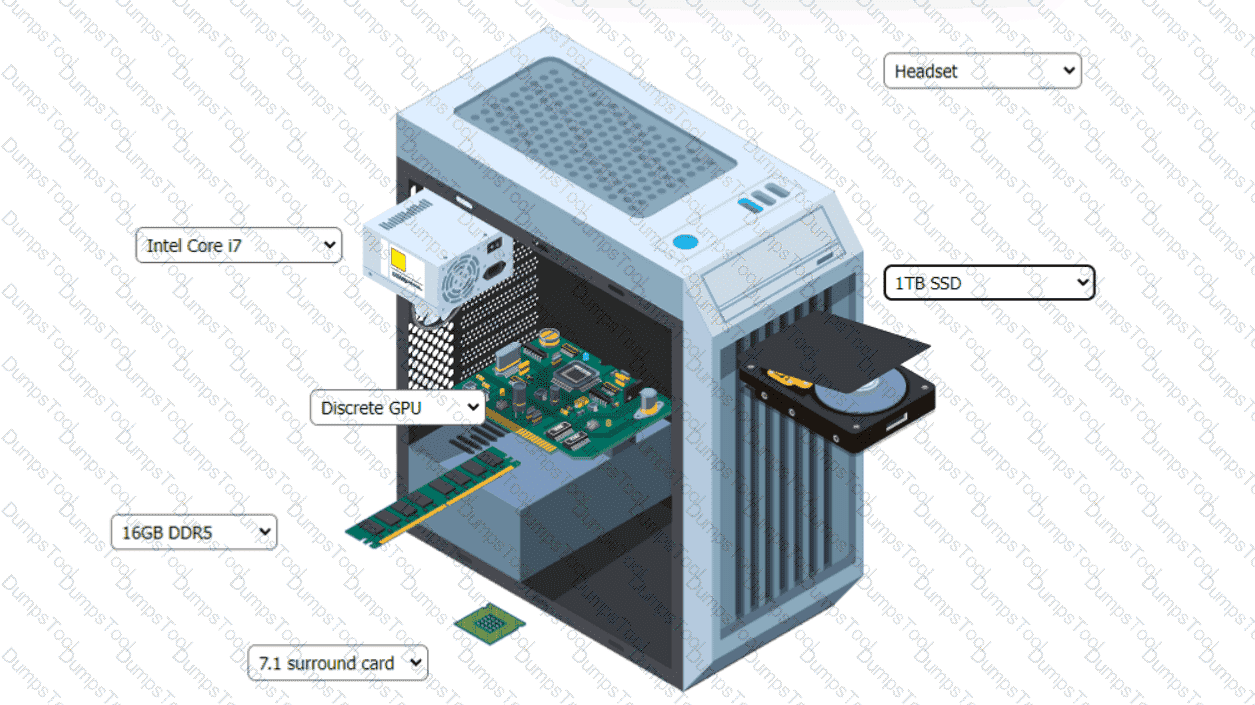

A computer tower with a hard drive and a hard drive AI-generated content may be incorrect.

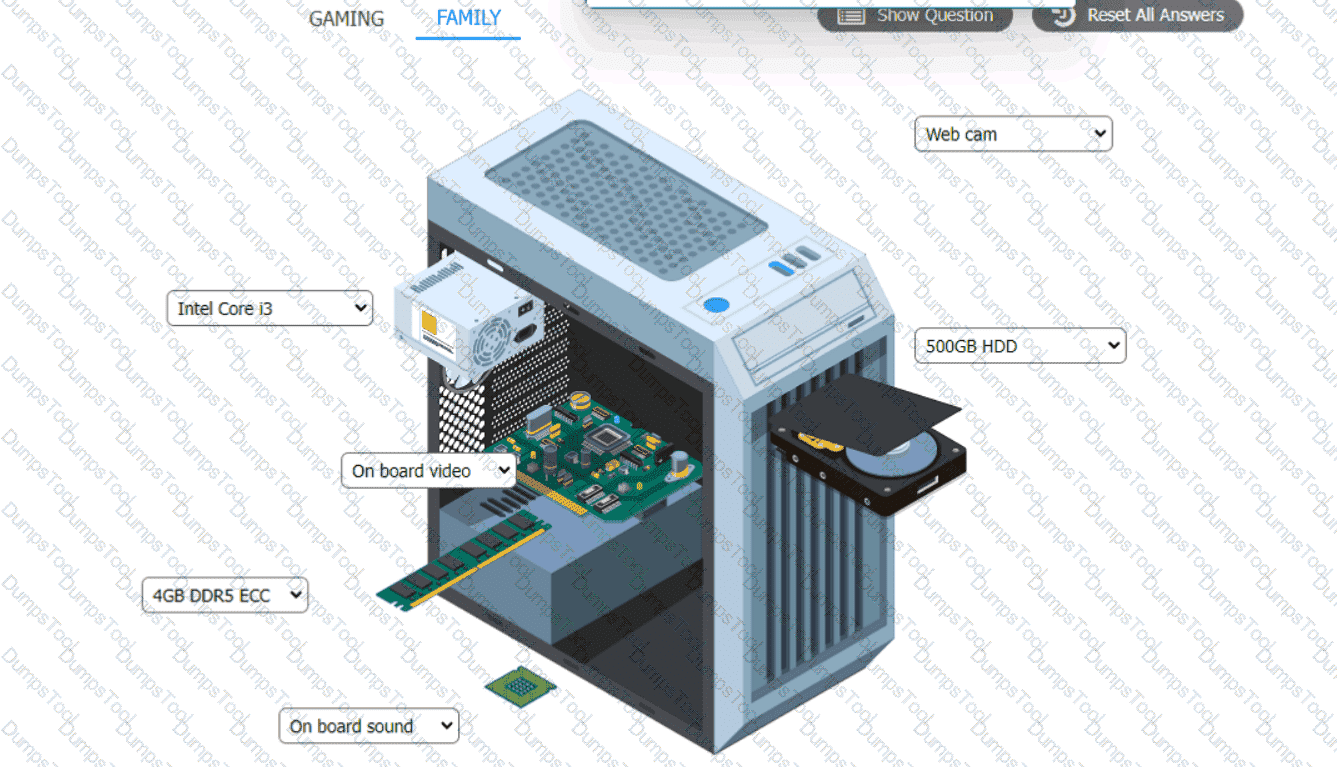

A computer tower with a computer and a hard drive AI-generated content may be incorrect.

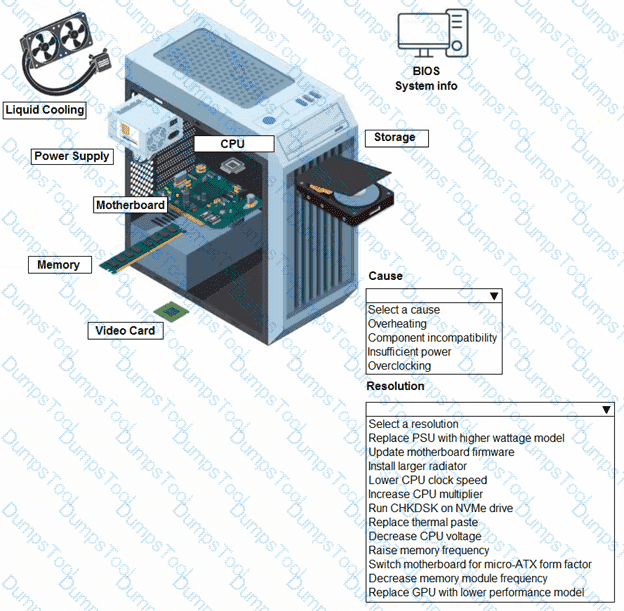

correct answer is " Overclocking " and " Reduce CPU Clock speed " CPU is at 4.5 Ghz when normal is 3.2 Ghz. Overclocking too much can cause freezes, and this is a gaming computer sothe user probably took it too far. http://blog.logicalincrements.com/2018/12/4-troubleshooting-tips-overclocking-pc/

The correct answer is A. Better compatibility.

According to CompTIA A+ Core 1 220-1201 objectives under Software Troubleshooting and Virtualization:

Application virtualization allows applications to run in an isolated environment on a client device without being installed directly on the operating system.

This improves compatibility, as applications can operate regardless of OS differences, avoiding conflicts with other installed applications or system configurations.

Why the other options are incorrect:

B. Reduced network latency: Application virtualization does not inherently reduce network latency; network performance depends on connectivity.

C. Secure telnet access: Telnet is unrelated to application virtualization.

D. Metered utilization: Metering refers to cloud service usage or billing, not a benefit of application virtualization itself.

The correct answer is A. Loopback plug.

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

A loopback plug is used to test a network interface card (NIC) port by sending a signal out of the port and back into the same port, verifying that the NIC can send and receive data properly.

This is a common diagnostic tool when troubleshooting network connectivity issues on individual devices.

Why the other options are incorrect:

B. Toner probe: Used for tracing and locating cables, not for testing NIC ports.

C. Cable tester: Checks the integrity of network cables but does not verify NIC send/receive functionality.

D. Network tap: Passively monitors network traffic but does not test the NIC port itself.

The correct answer is B. Header pinouts.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware:

Header pinouts on a motherboard are designated connectors for internal components such as USB ports, audio connectors, and front panel buttons/LEDs.

When adding additional internal USB ports, a technician typically connects them to the motherboard’s USB header pinouts. These headers provide the necessary data and power connections to enable USB functionality for front-panel or expansion USB ports.

Why the other options are incorrect:

A. TPM (Trusted Platform Module): Used for hardware-based security functions like encryption, not USB connectivity.

C. M.2 connector: Used primarily for SSDs and other small-form-factor expansion devices, not standard USB ports.

D. Expansion slots: Typically PCIe or PCI slots are used for expansion cards such as GPUs, network cards, or USB controller cards, but not for connecting internal USB headers directly.

The correct answer is A. RJ11.

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

RJ11 connectors are commonly used for telephone lines and data cables that use two pairs of wires (four wires total).

This connector is standard for analog telephone connections and DSL connections.

Why the other options are incorrect:

B. F-type: Used for coaxial cables, commonly in cable TV or broadband internet, not for two-pair data cables.

C. ST: A type of fiber optic connector, not used for copper two-pair wiring.

D. Molex: Primarily used for power connections in computer hardware, not for network or phone cabling.

The correct answer is C. DHCP (Dynamic Host Configuration Protocol).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

DHCP is used to automatically assign IP addresses and related network configuration (such as subnet mask, default gateway, and DNS servers) to devices on a network.

This eliminates the need for manually configuring IP addresses on each PC and helps prevent conflicts.

Why the other options are incorrect:

A. VLAN (Virtual Local Area Network): VLANs segment a network into logical subnets but do not assign IP addresses.

B. DNS (Domain Name System): DNS translates domain names to IP addresses; it does not assign IP addresses to devices.

D. TCP (Transmission Control Protocol): TCP is a transport layer protocol used for reliable communication between devices, not for IP assignment.

The correct answer is D. Replace the failed drive.

RAID 6 is a redundant array of independent disks that can tolerate up to two drive failures while still maintaining data integrity. According to CompTIA A+ Core 1 (220-1201) objectives, a red LED on a drive in a RAID array indicates that the drive has failed or is in a critical state.

Next Step: In RAID 6, a single failed drive should be replaced immediately to prevent additional failures and maintain redundancy. The array can continue to operate in a degraded state, but performance may be slow during rebuilds. Replacing the failed drive allows the RAID controller to rebuild data onto the new drive, restoring full redundancy.

Why the other options are incorrect:

A. Reconfigure the RAID array: This would erase existing data; unnecessary if only one drive failed.

B. Run a S.M.A.R.T. test: While useful for diagnosing drive health, the red LED already indicates failure, so immediate replacement is required.

C. Reinstall the controller drivers: This does not address a physically failed drive and would not fix the degraded RAID array.

The technician is creating a DHCP reservation . A DHCP reservation associates a specific IP address with a particular network interface. The network interface is normally identified by its MAC address , also called its physical address or hardware address.

When the printer requests an address from DHCP, the DHCP service recognizes the printer’s MAC address and repeatedly assigns the reserved IP address. This allows computers and print servers to reach the printer consistently without requiring the printer to be manually configured with a static address.

The printer driver version affects how the operating system communicates with the printer, not DHCP addressing.

A spool target relates to print-job processing.

A serial number identifies the physical product but is not normally used by DHCP.

CompTIA objective 2.4 includes DHCP reservations, while objective 2.5 identifies the MAC address as the physical address of a network interface card. Microsoft confirms that DHCP reservations assign an address to a particular client NIC based on its MAC address.

==========

The combination of an unusual mechanical noise and random shutdowns strongly indicates a problem with the computer’s cooling system . A cooling fan with worn bearings, accumulated debris, or physical obstruction can produce a grinding sound.

When the CPU fan cannot rotate properly, airflow decreases and the CPU temperature rises. The computer may then shut down automatically to protect the processor and motherboard from thermal damage. Therefore, among the available answers, CPU overheating is the most likely cause of the shutdowns.

The other answers are less appropriate:

An SSD contains no moving mechanical components and would not normally produce a grinding noise.

An improperly installed graphics card is more likely to produce a blank screen, display artifacts, crashes, or failure to complete POST.

Damaged RAM commonly causes application crashes, POST errors, blue screens, freezes, or data corruption, but not a grinding sound.

CompTIA objective 5.1 associates overheating, random shutdowns, and unusual noises with motherboard, CPU, power, and RAM troubleshooting. Dell identifies fan problems as causes of noise and overheating, while SSD documentation confirms that SSDs have no moving mechanical parts.

==========

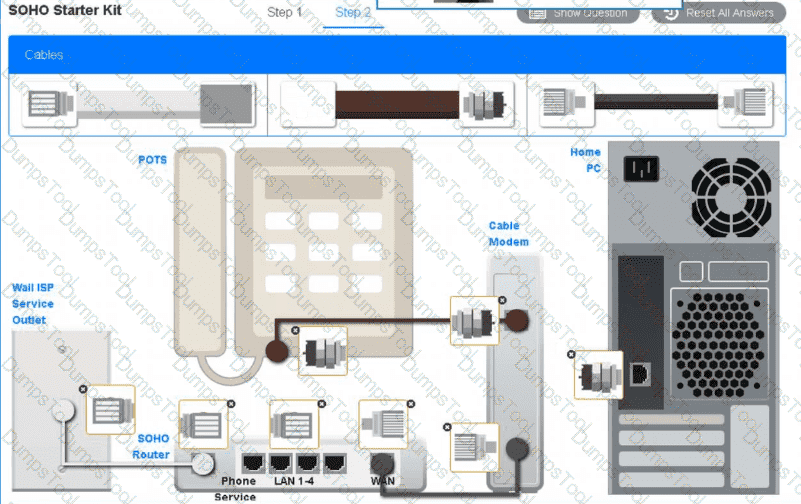

Answer of both steps below.

A group of wires with different colors AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

The best answer provided is A, although it is important to note that the question is somewhat misleading because it asks about motherboard selection but provides mostly incorrect or irrelevant motherboard-related options.

For high-performance workloads such as video editing and virtual reality (VR) using an Intel Core i9 processor and multiple graphics cards (multi-GPU setup), system design considerations include high power consumption and significant heat output. In the CompTIA A+ Core 1 220-1201 objectives under hardware planning and troubleshooting, high-performance CPUs and multiple GPUs require adequate thermal management solutions, including advanced cooling systems (air or liquid cooling) to ensure system stability and prevent thermal throttling.

Why A is the best answer:

High-end CPUs like Intel Core i9 and multiple GPUs generate substantial heat.

Proper cooling is essential for maintaining performance under sustained load (video rendering, VR workloads).

While not strictly a motherboard feature, cooling is a critical system requirement for such a build.

Why the other options are incorrect:

B. Use DDR3 RAM for increased compatibility

Incorrect because modern Intel Core i9 platforms use DDR4 or DDR5, not DDR3, which is obsolete and incompatible with current high-performance motherboards.

C. Verify there are two PCIe x1 slots for additional devices

Incorrect because PCIe x1 slots are used for low-bandwidth devices (sound cards, network cards), not graphics cards.

Multiple GPUs require PCIe x16 slots, not x1.

D. Select a motherboard with integrated graphics to support video output

Incorrect because high-performance systems with discrete GPUs rely on those GPUs for rendering. Integrated graphics are unnecessary and sometimes disabled when a dedicated GPU is installed.

Exam Insight (CompTIA A+ perspective):

In real-world A+ Core 1 scenarios, the correct motherboard selection for this requirement would focus on:

Multiple PCIe x16 slots (for multi-GPU support)

Compatible socket for Intel Core i9

Support for modern RAM (DDR4/DDR5)

Adequate chipset and power delivery (VRM design)

Proper cooling solution for thermal management

However, since those correct motherboard specifications are not provided in the options, A is the only viable system-level requirement relevant to stability under high-performance load.

The correct answer is A. Containers.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Cloud/Virtualization Concepts:

Containers provide lightweight, portable environments that package applications and their dependencies, allowing them to run consistently across multiple environments.

Containers are ideal for development teams because they require minimal underlying infrastructure, can be quickly deployed or destroyed, and isolate applications from the host system, making it easier to manage multiple applications simultaneously.

Why the other options are incorrect:

B. IaaS (Infrastructure as a Service): Provides virtualized hardware over the cloud but is more general-purpose; it includes virtual machines, storage, and networking, not minimal isolated application environments.

C. SaaS (Software as a Service): Provides fully managed software to end-users; not intended for deploying custom web applications by a development team.

D. Desktop virtualization: Provides virtual desktop environments to users; it does not provide a minimal, disposable platform for web application development.

The correct answer is A. NFC (Near Field Communication).

According to the CompTIA A+ Core 1 220-1201 objectives under Mobile Devices, NFC is commonly used for short-range wireless communication between devices. In the context of mobile printing:

NFC-enabled printers allow a user to tap a mobile device (phone or tablet) to the printer to initiate a print job instantly without needing to configure Wi-Fi credentials or use cables.

This is particularly common in mobile-friendly environments like offices or public kiosks.

Why the other options are incorrect:

B. Hotspot: Provides an Internet connection, not a direct mobile-to-printer interface.

C. Infrared: Legacy technology largely replaced by NFC and Wi-Fi; rarely used in modern printers.

D. USB: Requires a wired connection, not suitable for sending a print job wirelessly from a mobile device.

The correct answer is D. Dual channel.

In the CompTIA A+ Core 1 (220-1201) hardware objectives, memory bandwidth refers to the amount of data that can be transferred between RAM and the CPU in a given amount of time.

Dual channel memory architecture increases bandwidth by:

Allowing the memory controller to access two memory modules simultaneously

Effectively doubling the data transfer rate compared to single-channel configurations

Improving overall system performance, especially in memory-intensive tasks

Why the other options are incorrect:

A. CAS latency

CAS latency measures the delay before data is available after a request. Lower latency improves response time, but it does not significantly increase total bandwidth.

B. ECC

ECC (Error-Correcting Code) improves reliability by detecting and correcting errors, but it does not increase data transfer bandwidth.

C. High clock speed

Higher clock speed does increase bandwidth, but not as significantly as enabling dual channel, which allows parallel data transfer paths and provides a greater overall increase.

Final Answer: D. Dual channel

The correct answer is D. RAID 10 (also called RAID 1+0).

According to CompTIA A+ Core 1 220-1201 objectives under Storage:

RAID 10 combines the mirroring of RAID 1 with the striping of RAID 0. This provides both high data availability (because each drive has a mirror) and improved performance (because data is striped across multiple disks).

RAID 10 requires a minimum of four drives and is suitable for servers that handle high I/O workloads while maintaining redundancy.

Why the other options are incorrect:

A. RAID 1: Provides mirroring for redundancy but does not improve performance as effectively as RAID 10.

B. RAID 0: Provides striping for performance but has no redundancy; a single drive failure results in data loss.

C. RAID 5: Provides parity and can tolerate one drive failure with decent read performance, but write performance is lower than RAID 10 and rebuilds can impact system performance under heavy load.

In the CompTIA A+ Core 1 (220-1201) exam objectives, cloud deployment models describe how and where computing resources are hosted and who has access to them. A private cloud is defined as a cloud environment that is dedicated to a single organization and may be hosted on-premises within the company’s own data center or in a dedicated external facility. Since the question states that the directory services server is located on premises, it indicates that the organization is hosting and managing its own infrastructure internally. This aligns directly with the definition of a private cloud deployment model.

Directory services—such as Microsoft Active Directory or LDAP-based services—are commonly deployed internally to manage user authentication, authorization, group policies, and resource access within an organization. When these services run on company-owned hardware inside the organization’s network, the infrastructure remains under the organization’s full administrative control, security policies, and management.

The other options do not match this scenario. A public cloud is hosted by third-party providers and shared among multiple customers ☁. A hybrid cloud combines on-premises infrastructure with public cloud services. A community cloud is shared by multiple organizations with similar requirements. Because the system is hosted internally for a single organization, the correct classification is Private Cloud .

The correct answer is B. USB.

In the CompTIA A+ Core 1 (220-1201) objectives under mobile devices and connectivity methods, tethering refers to sharing a mobile device’s internet connection with another device such as a laptop. There are several tethering methods, including USB tethering, Bluetooth tethering, and Wi-Fi hotspot.

USB tethering is considered the most stable and reliable (tethered) connection because:

It uses a physical cable connection, eliminating wireless interference.

It provides consistent bandwidth and low latency.

It also charges the phone while connected, which is an added benefit.

It is less prone to disconnections compared to wireless methods.

Why the other options are incorrect:

A. Bluetooth

Bluetooth tethering is slower and less stable due to limited bandwidth and susceptibility to interference. It is not ideal for high-performance or stable connections.

C. Hotspot

A mobile hotspot uses Wi-Fi, which is wireless, not tethered. While convenient, it is less stable than a wired USB connection and can be affected by interference and signal range.

D. NFC

NFC (Near Field Communication) is used for very short-range communication like payments or quick pairing. It is not used for maintaining a continuous network connection.

Final Answer: B. USB

Comprehensive and Detailed Explanation From Exact Extract (Aligned With CompTIA A+ 220-1201 Official Study Guide)

Mobile Device Management (MDM) is the technology used by organizations to centrally configure, secure, and control mobile devices such as smartphones and tablets.

The CompTIA A+ Core 1 (220-1201) objectives specify that MDM solutions allow administrators to implement and enforce security and usage policies, including:

Application control (whitelisting and blacklisting)

Restricting installation of unapproved applications

Enforcing corporate compliance requirements

Remotely managing mobile device configurations

This directly applies to the scenario: the company wants to prevent users from installing unapproved apps on corporate tablets.

MDM enforces this through:

App whitelisting → only approved apps can be installed

App blacklisting → specific apps are blocked

Locked-down app stores → only corporate-approved app stores or catalogs

This is exactly the function MDM is designed for in enterprise mobile security and management.

Why the Other Options Are Incorrect

B. ACL (Access Control List)

ACLs control network or file-system access, such as allowing or denying IP addresses, ports, or file permissions.

They cannot control app installation behavior on mobile devices.

C. DRM (Digital Rights Management)

DRM protects digital content from unauthorized copying or distribution.

It does not restrict which applications can be installed on a mobile device.

D. PAM (Privileged Access Management)

PAM controls administrative or privileged accounts in enterprise environments.

It is unrelated to app-installation restrictions on tablets.

DHCP Dynamic Host Configuration Protocol is the service that automatically assigns IP addresses and other essential network settings to devices when they join a network. Instead of manually configuring each device with an IP address, subnet mask, default gateway, and DNS servers, a DHCP server provides these settings dynamically from a defined address pool. This reduces configuration errors, prevents IP conflicts, and makes network administration easier—especially in environments with many devices or frequent changes. In the DHCP process, a client broadcasts a request, the DHCP server offers an address, the client requests that offered address, and the server acknowledges it, granting the device a lease for a specific period. The lease can be renewed, and administrators can also configure reservations to always give the same IP to a particular device based on its MAC address.

DNS is used for resolving hostnames to IP addresses, not assigning them. SMTP is for sending email between mail servers and clients. SNMP is used for monitoring and managing network devices. Therefore, DHCP is the correct service for automatically assigning IP addresses.

If the user is on a guest network and cannot access internal resources like printers, connecting to the corporate Wi-Fi will place the device on the correct subnet to access the printer.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Network segmentation:

“Guest networks are isolated from internal resources for security. Connect to the main corporate Wi-Fi to access shared devices.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Wireless Networking

CompTIA Exam Objectives 220-1101, Domain 2.2

============

The best answer is B. Replacing the fans. The key clue is the sequence: normal operation, gradual slowdown, and then sudden shutdown. That pattern is typical of overheating. As temperature rises, modern CPUs and GPUs may throttle performance to reduce heat; if cooling remains inadequate, the system may lock up or shut down to prevent damage. The Quentin Docter study guide specifically states that overheating components may cause intermittent shutdowns and that a PC working for a few minutes and then locking up is probably experiencing a heat sink or fan problem. It recommends checking all fans and heat sinks first. The study guide also notes that motherboards often include CPU heat and fan sensors that can shut the computer down before damage occurs if active cooling fails. Upgrading RAM or adding drive space could improve some performance issues, but they would not usually cause a heat-related shutdown. A failing power supply can cause shutdowns, but the gradual slowdown before power-off makes fan/cooling failure the better match.

=========

The technician should reinstall the printer driver software. Continuous pages of random characters usually indicate that the printer is receiving data in an unsupported or incorrectly interpreted printer language. This commonly occurs when the wrong driver is installed, the driver has become corrupted, or a driver configured for a different printer model sends incompatible PCL, PostScript, or proprietary commands. Reinstalling the correct manufacturer-supported driver restores proper translation between the operating system and printer. DPI settings control print resolution and image detail but do not cause raw characters or command data to print continuously. A toner problem would produce faded, blank, uneven, or smudged output rather than correctly formed random symbols. Updating firmware might help with compatibility in some cases, but the established first corrective action for garbled character output is to remove and reinstall the appropriate printer driver.

The scan-to-SMB feature allows the printer to send scanned documents to a shared folder (SMB share) on the network. Setting up a network share enables the device to securely and conveniently save files for user access.

Mobile devices can share their LTE or cellular data connection using a feature called tethering, more commonly known as hotspot mode. According to CompTIA A+ objectives on mobile networking technologies, a hotspot allows a smartphone or tablet to become a mini wireless router, broadcasting a Wi-Fi signal that nearby devices can connect to. The LTE (or 5G) connection is then shared over Wi-Fi, enabling laptops, tablets, or other phones to access the internet through the mobile device.

Bluetooth is capable of tethering but provides much lower bandwidth and slower speeds—not ideal for sharing LTE widely. NFC is used for close-range data exchange or payment transactions and cannot share internet service. " Cellular " refers to the phone’s own mobile network connection, not the mechanism for sharing it with others.

Hotspot functionality is specifically built into modern mobile OSs and supports WPA2/3 encryption, password protection, and device whitelisting. This makes it the most common and efficient method to share LTE connectivity with multiple nearby devices.

Thus, Hotspot (D) is the correct answer.

A Type 2 hypervisor is defined as a hypervisor that runs on top of a host operating system, rather than directly on the system’s hardware. According to CompTIA Core 1 (220-1201) virtualization concepts, Type 2 hypervisors are also referred to as hosted hypervisors and are commonly used in desktop, lab, and testing environments.

In this model, the host operating system (such as Windows, macOS, or Linux) is installed first, and the hypervisor runs as an application within that OS. The hypervisor then manages virtual machines by requesting hardware resources through the host OS. Examples of Type 2 hypervisors include VirtualBox, VMware Workstation, and Parallels Desktop.

Option B describes a Type 1 (bare-metal) hypervisor, which runs directly on the hardware without a host OS. Type 1 hypervisors are typically used in enterprise environments and offer higher performance and isolation. Option A is unrelated to virtualization, as firewall functionality controls network traffic. Option D is incorrect because hypervisors do not inherently increase CPU capabilities; they allocate existing resources.

CompTIA emphasizes understanding the distinction between Type 1 and Type 2 hypervisors, particularly that Type 2 hypervisors rely on a host operating system, making option C the correct answer.

When troubleshooting intermittent latency to a remote internal resource, CompTIA A+ recommends using tools that help identify where latency occurs and whether it is consistent or fluctuating over time. The best tools for this scenario are ping -t and tracert.

Ping -t (B) sends continuous ICMP echo requests, allowing the technician to observe packet loss, fluctuating response times, or timeouts. This helps identify intermittent connectivity problems that occur at specific times, such as bandwidth congestion, routing instability, or wireless interference.

Tracert (F) maps each hop between the local workstation and the remote office. If latency spikes occur only after a particular hop—such as a VPN tunnel, MPLS gateway, or inter-office router—that device becomes the suspected bottleneck. This makes tracert essential for isolating WAN-related slowdowns.

Ipconfig /all (A) only provides local configuration and does not diagnose latency. Nslookup (C) is for DNS testing—not latency to a specific internal host. Examining switchports (D) helps with local issues but not remote latency. QoS (E) is a solution, not a troubleshooting step. Calling ISP (G) may be premature unless testing confirms ISP-related issues.

Thus, ping -t and tracert are the correct diagnostic tools.

Data centers and high-performance servers prioritize stability and fault tolerance. CompTIA A+ identifies ECC (Error-Correcting Code) RAM as the standard memory used in such environments. ECC RAM automatically detects and corrects single-bit memory errors, preventing system crashes, data corruption, and downtime—critical requirements for servers running mission-critical workloads.

ECC memory is commonly paired with registered/buffered modules (RDIMM) for additional stability, but ECC itself is the defining feature required in data center environments. Non-ECC, unbuffered memory is used in consumer desktops where minor memory errors pose minimal risk.

Single-channel memory (B) is simply a configuration and does not imply reliability. Unbuffered RAM (C) is not used in enterprise-grade systems because it lacks error correction and electrical stabilization. RDIMM (D) includes buffering but may come with or without ECC; however, ECC is the key requirement highlighted by the question.

Therefore, the correct answer is ECC RAM.

Most meeting or conferencing applications default to the built-in laptop camera unless manually changed. When an external camera is connected, the software may continue to use the default device, resulting in a blank preview, especially if the internal camera is disabled, covered, or malfunctioning. CompTIA A+ stresses verifying correct device selection when peripherals are installed.

Selecting the correct camera source is a quick, non-invasive test that resolves the issue in the majority of cases. The technician should open the application’s video settings and choose the external webcam from the camera dropdown menu.

Replacing the camera (B) is premature without confirming configuration. Updating software (C) is beneficial but will not resolve a simple input-selection error. Checking the cable (D) is a valid step if the preview still fails after selecting the device.

Thus, the correct next step is to select the proper camera source.

AVLAN (Virtual LAN)is used to logically segment a network without requiring physical separation. It enables grouping devices based on function or department regardless of their physical location.

Option A (DHCP):Assigns IP addresses dynamically but doesn’t create network segments.

Option C (DNS):Resolves domain names to IP addresses, not used for network segmentation.

Option D (VPN):Provides secure remote access but does not relate to logical segmentation within a local network.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.3: Explain common logical networking concepts.

Dynamic Host Configuration Protocol (DHCP) is a network service used to automatically assign IP addresses and other network configuration details (such as subnet masks and default gateways) to devices on an enterprise-wide network.

Why Not A (DNS): DNS resolves domain names to IP addresses but does not allocate IP addresses.

Why Not B (Syslog): Syslog is used for logging system events, not IP address management.

Why Not C (Telnet): Telnet is a protocol for remote access, not for IP allocation.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 2.6, DHCP concepts​.

CompTIA A+ identifies satellite internet as the connection type most susceptible to weather-related interference, particularly rain, snow, and heavy cloud cover. This phenomenon is known as rain fade. Satellite connections rely on high-frequency microwave signals transmitted between a dish antenna at the customer site and an orbiting satellite. Moisture in the atmosphere absorbs and scatters these signals, causing latency spikes, reduced bandwidth, or complete signal loss during storms.

Fiber (A) uses light signals through glass fiber and is immune to electromagnetic and weather interference. Cable internet (B) uses shielded coaxial lines buried or run overhead, but rain does not affect signal quality in normal conditions. DSL (D) uses telephone lines, which may degrade with physical line issues, but not directly due to rain in the same way satellite is affected.

Thus, satellite internet is most likely to experience signal degradation during rain conditions.

A switch is the device that primarily forwards traffic based on MAC addresses and is used to connect devices within the same local network. It operates at Layer 2 (Data Link) of the OSI model. When a switch receives an Ethernet frame, it reads the source MAC address and records it in its MAC address table along with the port it arrived on. Then, when the switch needs to send a frame to a destination, it looks up the destination MAC address in that table and forwards the frame only out the correct port. This makes switching efficient and reduces unnecessary traffic compared to older hub-based networks. In CompTIA A+ Core 1, recognizing that MAC-based forwarding is a key switch function is essential.

A router forwards traffic based on IP addresses at Layer 3 and is used to connect different IP networks or VLANs. A modem converts signals for ISP connectivity (e.g., cable/DSL/fiber handoff) and does not forward frames by MAC table learning. A firewall filters traffic based on security rules and is not primarily a MAC-forwarding device. Therefore, the best answer is Switch.

A. Check the product manual for the procedure:

When hardware is not easily accessible, always consult the product manual for proper disassembly procedures. Forcing the cover can damage the laptop or void the warranty.

Product manuals often provide step-by-step instructions for safely accessing internal components.

Incorrect Options:

B. Use a pry tool to force the cover open: Forcing the cover can cause physical damage to the device.

C. Insert the wireless card into the M.2 slot: This step cannot be performed until the cover is properly removed.

D. Try to move the cover by sliding it in all directions: Randomly sliding the cover can cause damage if the correct removal method is not followed.

Key Takeaway: Always refer to the product manual to ensure safe and proper disassembly of laptop components.

C. Installing redundant PSUs (Power Supply Units):

Redundant PSUs provide fault tolerance by ensuring that if one power supply fails, another will take over seamlessly.

This is a cost-effective way to increase uptime while waiting for the UPSs to arrive.

Incorrect Options:

A. Purchasing backup generators: Generators are costly and are typically used for long-term outages, not as an immediate or cost-effective solution.

B. Increasing input voltage: This is not a practical solution to hardware failures or power issues.

D. Activating a hot site: A hot site is an expensive, fully operational backup facility that would not be a cost-effective solution for this scenario.

Key Takeaway: Installing redundant PSUs is a cost-effective way to balance uptime requirements in case of power or hardware failure.

Virtual Desktop Infrastructure (VDI) delivers a desktop operating system hosted on a centralized server and streams the graphical user interface (GUI) to endpoint devices such as thin clients, zero clients, or standard PCs. According to CompTIA Core 1 (220-1201) virtualization objectives, VDI allows users to access their desktop environments remotely while all processing and data remain on the server.

Option A accurately describes this model: a GUI streamed from a server to thin clients. This approach improves centralized management, enhances security, and simplifies endpoint hardware requirements.

Provisioning a sandbox is an example of test or development virtualization, not desktop virtualization. High-performance workstations with a local OS are physical desktops, not VDI. Launching a virtual machine server on a hypervisor describes server virtualization, not desktop delivery.

CompTIA highlights VDI as a common enterprise solution that separates the desktop environment from the physical device, enabling flexibility, scalability, and centralized control.

To ensure a workstation always receives the same IP address while still using DHCP, the correct method is to configure a DHCP reservation. A reservation “combines” two key pieces: the workstation’s MAC address (hardware address) and a specific IP address within the DHCP scope. When the workstation requests an address, the DHCP server matches the request to the stored MAC address and consistently assigns the reserved IP each time the device connects. This provides the benefits of DHCP (central management, consistent options like gateway/DNS, easier changes) while giving the workstation a predictable IP, which is often needed for management, monitoring, or firewall rules.

Creating a new scope is used to define an address pool and options for an entire subnet, but it does not guarantee one device always gets the same IP. NAT translates private IPs to public IPs and is unrelated to consistent DHCP assignments for a specific workstation. APIPA automatic private IP addressing 169.254.x.x occurs when DHCP fails and is not a controlled way to ensure a consistent, usable network address. Therefore, assigning a reservation is the correct answer.

To share a phone’s cellular data connection with a laptop, the user should use a hotspot, also known as mobile hotspot or Wi-Fi tethering. In CompTIA A+ Core 1 terms, this feature allows a smartphone to act like a small wireless router: it takes the phone’s mobile data (4G/5G) connection and rebroadcasts it over Wi-Fi so another device (the laptop) can join the wireless network using an SSID and password. This is the most common and straightforward method because laptops universally support Wi-Fi and the connection typically provides better throughput than other tethering methods. Hotspot/tethering settings also commonly allow configuration of security (WPA2/WPA3) and can limit connected devices to reduce unauthorized access and manage data usage.

Bluetooth (option B) can support tethering on some devices, but it is slower, more limited, and not the primary expected answer when the goal is simply sharing cellular internet with a laptop. NFC (option C) is mainly used for close-range pairing or payments and does not provide an internet sharing link by itself. Ethernet (option D) would require wired adapters and is not the standard method for cellular sharing. Therefore, Hotspot is the best answer.

A device that connects directly to a laptop and provides a one-to-one duplication of the laptop’s existing ports is known as a port replicator. According to CompTIA Core 1 (220-1201) mobile device and laptop accessories objectives, a port replicator extends the available connections by mirroring the laptop’s built-in ports, such as USB, HDMI, Ethernet, and audio. This allows users to quickly connect peripherals like monitors, keyboards, mice, and network cables without plugging each device in individually.

Port replicators are typically passive devices and do not add new functionality beyond duplicating existing ports. They are commonly used in office environments where users frequently dock and undock laptops.

A docking station, by contrast, often provides additional or enhanced functionality, such as extra video outputs, higher-power charging, expansion slots, or proprietary connectors. A USB hub only expands USB connectivity and does not replicate all peripheral connections. A KVM switch is used to control multiple computers with a single keyboard, video display, and mouse, which is unrelated to laptop port expansion.

CompTIA distinguishes port replicators as simple port-duplication devices, making them the correct answer in this scenario.

An older HDMI cable version may not support 4K resolution. For 4K output, both the device and the cable must support HDMI 2.0 or higher.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.1 – Display troubleshooting:

“Ensure the correct version of HDMI cable is used for high-resolution outputs like 4K. Older cables may be limited to 1080p.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Display and Video

CompTIA Exam Objectives 220-1101, Domain 3.1

============

A hybrid environment combines both on-premises infrastructure and cloud-based resources, allowing virtual machines to operate seamlessly between the two. CompTIA A+ describes hybrid cloud as a deployment model where organizations maintain their own private servers or virtualization hosts while also leveraging public cloud platforms such as AWS, Azure, or Google Cloud. This model supports flexibility, scalability, and gradual migration, making it ideal for businesses not ready to fully abandon local infrastructure.

In this model, workloads can move between the local environment and the cloud depending on performance requirements, cost considerations, or redundancy needs. Additionally, hybrid clouds allow resource sharing, data synchronization, and load balancing across both environments.

A public cloud hosts resources entirely in the provider’s data center, offering no on-premises integration. A private cloud exists solely within the organization’s infrastructure with no external shared resources. SaaS delivers applications, not infrastructure, meaning it cannot host or manage virtual machines.

Therefore, an environment where VMs exist both on-site and in the cloud is best described as a Hybrid cloud.

CompTIA A+ explains that Wi-Fi issues at the edges of a building are typically caused by weak signal coverage, not client configuration. The recommended solution is to add additional wireless access points (APs) or mesh extenders to expand coverage and eliminate dead zones.

Enabling 5GHz would worsen the problem because 5GHz has shorter range and penetrates walls less effectively than 2.4GHz. Flushing DNS affects name resolution, not wireless signal strength. Upgrading the NIC to Wi-Fi 6 improves maximum throughput but still depends on sufficient signal, which the user does not have.

Additional APs ensure strong signal-to-noise ratio, consistent throughput, and stable roaming all solutions emphasized in the A+ wireless troubleshooting section. Therefore, option D is the correct and CompTIA-aligned fix.

A cable modem connects to an ISP’s wall jack using a coaxial cable, and the standard connector used for coaxial connections is the F-type connector. According to CompTIA Core 1 (220-1201) networking hardware and cabling objectives, F-type connectors are specifically designed for coaxial cabling used in cable television and cable internet (DOCSIS) installations. These connectors screw onto the coaxial wall outlet and the cable modem, ensuring a secure physical connection and proper signal transmission.

An LC connector is a fiber-optic connector commonly used with single-mode or multimode fiber cables and is not associated with cable modems. An RJ45 connector is used for Ethernet networking and is typically used to connect the cable modem to a router or computer, not to the wall jack. Lightning is a proprietary Apple connector used for charging and data transfer on mobile devices and has no role in network uplinks.

CompTIA expects candidates to clearly distinguish between different cable types and connectors based on the service being installed. When the scenario involves a cable modem and ISP wall jack, the correct and standard connector is the F-type.

PoE (Power over Ethernet) allows both data and electrical power to be delivered over the same Ethernet cable. A PoE injector adds power to Ethernet cables for devices that need it.

From CompTIA A+ 220-1101 Official Study Guide, Objective 2.2 – Networking hardware:

“Power over Ethernet (PoE) technology and PoE injectors enable both power and data transmission to compatible network devices like access points and IP cameras.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 2: Network Hardware

CompTIA Exam Objectives 220-1101, Domain 2.2

============

Virtualization is the most suitable solution for maintaining a legacy application that is currently running on multiple physical servers. According to CompTIA Core 1 (220-1201) virtualization concepts, virtualization allows physical servers to be consolidated into virtual machines (VMs) that run on a single or reduced number of physical hosts while preserving the original operating systems and application environments.

Legacy applications often rely on older operating systems, specific hardware configurations, or outdated dependencies. Virtualization enables the organization to encapsulate the legacy environment, reducing hardware dependency and simplifying maintenance until the application can be fully retired. This approach also lowers power consumption, hardware costs, and physical space requirements while improving manageability and backup options.

A SAN (Storage Area Network) provides shared storage but does not address application hosting or server consolidation. FaaS (Function as a Service) is a cloud-native, event-driven computing model that requires application redesign and is unsuitable for legacy systems. A configuration management platform is used to manage and automate system configurations but does not replace physical servers or host applications.

CompTIA highlights virtualization as a key strategy for supporting legacy systems, improving flexibility, and extending the lifespan of applications during transition periods.

If a printer is set to use a special tray (for cards/invitations) but a different type of print job is attempted (like a letter), a paper tray setting mismatch can cause errors. Changing the tray setting to match the print media resolves the issue.

From CompTIA A+ 220-1101 Official Study Guide, Objective 4.3 – Troubleshooting printers:

“If print jobs fail when media type changes, verify and adjust the paper tray settings to match the required output.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Printer Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 4.3

============

The digitizer is the component responsible for detecting touch input on a screen. If touch is not registering and there ' s no physical damage, the digitizer may be faulty.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.1 – Mobile device hardware:

“If a touchscreen device does not respond to input and the screen is intact, the digitizer (touch sensor) may be defective.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Mobile Hardware

CompTIA Exam Objectives 220-1101, Domain 3.1

============

ECC (Error-Correcting Code) RAM is commonly used in servers to provide error detection and correction, improving reliability in critical systems. It is designed to detect and correct single-bit errors, ensuring data integrity in environments where stability is paramount.

Option A (SODIMM): Incorrect. SODIMM is typically used in laptops, not servers.

Option B (Rambus): Incorrect. Rambus is an outdated RAM type and not commonly used today.

Option C (DDR3): Incorrect. While DDR3 is a type of RAM, it is not specific to servers and does not provide error correction.

TPM 2.0 (Trusted Platform Module) is often disabled by default in the UEFI BIOS. Enabling it is necessary to meet the requirements for certain Windows installations, including Windows 11.

Why Not B (Install an HSM): A Hardware Security Module (HSM) is a separate device used for cryptographic functions and is not related to TPM on the motherboard.

Why Not C (Perform a clean install): A clean installation will not bypass the TPM 2.0 requirement.

Why Not D (Implement BitLocker): BitLocker requires TPM but does not resolve its absence or lack of activation.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 3.4, BIOS/UEFI configuration​.

Ultra HD (UHD), also referred to as4K UHD, has a resolution of3840x2160. It ' s four times the resolution of standard 1080p (Full HD), offering more screen real estate and sharper images.

Option A (1920x1080):Full HD (FHD), not UHD.

Option B (2048x1080):DCI 2K used in cinema, not common for Ultra HD.

Option D (7680x4320):Known as 8K UHD, not standard Ultra HD.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 1.7: Compare and contrast display technologies and their features.

===========

When a newly built workstation shows no response at all—no fans spinning, no indicator LEDs, and no POST activity—this indicates that the system is not receiving the signal to power on. Since the technician has already verified that all primary power connectors are fully seated (including the 24-pin ATX motherboard connector and the 4-pin or 8-pin CPU power connector), the most likely cause is that the case header pins are not connected to the motherboard.

According to CompTIA Core 1 (220-1201) hardware installation and troubleshooting concepts, the power button on the computer case connects to the motherboard via the front-panel (system panel) header, specifically the PWR_SW pins. If this connector is missing, improperly placed, or connected to the wrong pins, pressing the power button will do nothing because the motherboard never receives the power-on signal.

Incorrectly seated RAM typically allows the system to power on but prevents successful POST, often resulting in beep codes or error lights. An underpowered PSU usually causes instability, random shutdowns, or failure under load rather than complete inactivity. A faulty CPU fan connector generally triggers a BIOS warning or shutdown after power-on, not total failure to start.

This scenario directly matches CompTIA’s emphasis on checking front-panel connections as a primary step when a system does not power on at all.

CompTIA A+ strongly emphasizes that virtual machines (VMs) are ideal for testing potentially unsafe software, malware samples, or experimental code because they isolate the environment from the host system. VMs allow snapshots, cloning, and rollback functionality, which makes them essential in development, QA, and cybersecurity environments where code might be unstable or harmful.

Hybrid cloud refers to infrastructure strategy, not code execution isolation. Load balancers distribute production traffic but have no testing or sandboxing purpose. Application gateways filter traffic but do not provide execution environments.

Virtual machines create a safe sandbox where failure, infection, or corruption is contained. This is covered in the Virtualization and Cloud Computing domain of the CompTIA A+ exam, making VMs the correct tool for executing unauthorized code safely.

A private cloud is the best choice when an organization requires ownership and control of all physical hardware. In CompTIA A+ terms, a private cloud is a cloud deployment model where the cloud infrastructure is dedicated to a single organization and can be implemented on-premises (or hosted for that organization only). If the requirement explicitly states the organization must own the servers, storage, and network equipment, that aligns with a private cloud built and maintained using the organization’s own datacenter resources. This provides greater control over security, compliance, customization, and data governance compared with shared models.

A public cloud is owned and operated by a third-party provider, so the organization does not own the underlying hardware. A hybrid cloud combines private and public components; since part of it relies on provider-owned infrastructure, it does not meet the requirement of owning all physical hardware. IaaS and PaaS are cloud service models (what is consumed), not deployment/delivery models (how it is deployed), and they commonly run on provider-owned hardware as well. Therefore, Private cloud is the correct answer.

A proxy server acts as an intermediary between client devices and the internet. One of its primary functions is URL filtering, web-content restriction, and logging user activity. When a user attempts to connect to a website, the request first goes to the proxy, where filtering rules determine whether the site is allowed or blocked. CompTIA A+ 220-1201 emphasizes that proxies help organizations control outbound traffic, enforce browsing policies, block malicious or inappropriate content, and improve security through caching.

Spam gateways only filter email, DHCP assigns IP addresses, and RADIUS handles authentication, none of which enforce website restriction. Therefore, the correct solution for content control is a proxy server, as stated in the Networking domain of the A+ curriculum.

Comprehensive and Detailed Explanation From Exact Extract (Aligned With CompTIA A+ 220-1201 Study Guide)

To run Secure Boot, the system must have:

✔ UEFI firmware (not legacy BIOS)

Secure Boot is a UEFI feature that validates bootloaders using digitally signed keys stored in secure firmware.

✔ TPM (Trusted Platform Module)

The TPM stores cryptographic keys in tamper-resistant hardware, enabling secure key management that cannot be altered by normal users.

CompTIA materials describe TPM as essential for enhanced platform security and for storing validated boot keys when Secure Boot is enabled.

Together, UEFI + TPM provide:

Verified boot loader

Hardware-level key protection

Prevention of unauthorized OS tampering

Non-user-controllable secure key storage

Why the other options are incorrect

A. VDI – Virtual desktops; unrelated to Secure Boot hardware requirements.

B. BIOS password – Helps protect firmware settings but is not required for Secure Boot.

E. Disabled boot drive – Irrelevant to Secure Boot.

F. USB permissions – Not part of Secure Boot requirements.

Final Answer: C, D

When a printer refuses to use paper that is physically present in the tray, CompTIA A+ identifies tray configuration settings as the most likely cause. Printers require a match between tray settings (paper size, paper type, orientation) and the incoming print job’s specifications. If the tray is incorrectly configured—such as being set to Letter (8.5×11 in) or A4—then the printer will keep prompting for the correct paper even though 11×17 paper is loaded.

The fact that the technician successfully prints the same diagram on another identical printer proves that the driver, print job format, and user permissions are correct. This isolates the issue to the local printer’s configuration. Incorrect drivers (B) would affect printing on both printers. Connectivity issues (C) would prevent printing entirely, not cause paper prompts. Permissions (D) do not affect paper-size recognition.

Therefore, the most likely cause is improper tray settings on the user’s printer.

Bluetooth is a wireless technology designed for short-range communication between devices. It is a classic example of a Personal Area Network (PAN), which supports communication between devices like smartphones, headsets, keyboards, and mice within a few meters. PANs are smaller in scope compared to LANs or WANs.

A crimper is specifically used to attach RJ45 connectors to the ends of network cables. It pressesthe connector pins into the cable ' s wires, establishing a secure electrical connection. A punchdown tool is used for wiring patch panels or keystone jacks, not for attaching connectors.

If users canaccess local network resourcesbut not theinternet, the most likely culprit is amisconfigured or missing default gateway. The default gateway routes traffic from the local network to external networks (i.e., the internet). If it’s not properly set or was altered during a firewall update, internet traffic won’t be forwarded correctly.

Option A:Static IPs could cause conflict, but wouldn ' t affect only external access if configured correctly.

Option C:An incorrect subnet mask could isolate devices, but local communication would likely be impacted too.

Option D:VLANs segment networks; while misconfigured VLANs could cause access issues, they’d more likely isolate local traffic as well.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.6: Given a scenario, configure and troubleshoot network connectivity.

AnMX (Mail Exchange)record defineswhich mail servers are responsible for receiving emailfor a domain. If you want to change or redirect email traffic, theMX recordmust be updated with the correct server information.

Option B (TXT):Stores text-based info used for SPF, DKIM, etc.

Option C (SPF):Part of email authentication stored in a TXT record; doesn’t redirect traffic.

Option D (CNAME):Alias for another domain name not used for email routing.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 2.4: Compare and contrast common networking hardware.

===========

Adegraded RAID 1array usually meansone of the drives has failed or is failing. The correctnext step is torun diagnostics on each driveto identify the faulty one. RAID 1 uses mirroring, so one good drive should still contain all the data.

Option B:chkdsk checks file system integrity, not hardware drive health.

Option C:Rebuilding should only occurafteridentifying and replacing a faulty drive.

Option D:RAID 0 offers no redundancy and would destroy data in this context.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to storage devices.

If print quality remains poor after replacing the ink cartridge, the next step is to clean the printheads. Printheads can become clogged with dried ink, especially in inkjet printers, causing streaks or faded output.

From the CompTIA A+ 220-1101 Official Study Guide, Objective 4.3 – Troubleshoot printing problems:

“Poor print quality after replacing cartridges is commonly caused by clogged or dirty printheads. Use the printer ' s cleaning cycle or manually clean the printheads as needed.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Printer Troubleshooting

CompTIA Exam Objectives 220-1101, Domain 4.3

============

Comprehensive and Detailed Step-by-Step Explanation:

S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology):

S.M.A.R.T. is a monitoring system integrated into modern HDDs and SSDs that detects and reports on various indicators of drive health and reliability.

A S.M.A.R.T. error indicates that the drive is showing signs of impending failure, even if the PC continues to boot and work normally for the time being.

Next Steps:

The appropriate action is to replace the hard drive (HDD) because a S.M.A.R.T. error is an early warning of possible hardware failure. Ignoring the warning could result in data loss if the drive fails completely.

The technician should also back up the user ' s data immediately to avoid losing critical information.

Incorrect Options:

B. Update the PC ' s BIOS: While keeping the BIOS updated is a good practice, it does not address the S.M.A.R.T. error, which is specific to the HDD.

C. Close the ticket: Closing the ticket without resolving the issue would be improper, as the S.M.A.R.T. error is a hardware problem that needs to be addressed to prevent future data loss or downtime.

D. Change the NIC: The NIC (Network Interface Card) is unrelated to the storage system and would not resolve a S.M.A.R.T. error.

Key Takeaway:

A S.M.A.R.T. error is a critical indicator of HDD health issues, and the drive should be replaced as soon as possible. Backing up data is also essential.

Degraded performance that occurs only during business hours strongly suggests network congestion caused by simultaneous data and voice traffic. According to CompTIA Core 1 (220-1201) networking objectives, combining voice (VoIP) and data traffic on the same network without proper segmentation can lead to latency, jitter, and packet loss, especially during peak usage periods.

Implementing VLANs (Virtual Local Area Networks) allows administrators to logically separate voice and data traffic, enabling better traffic management and prioritization. VLANs also support Quality of Service (QoS) policies that ensure time-sensitive voice traffic is prioritized over standard data traffic, improving call quality and overall performance.

Replacing switches with higher-capacity models is costly and unnecessary if proper traffic segmentation has not yet been implemented. Adding RAM to PCs or VoIP lines does not address network-level congestion. Firmware updates may improve stability but will not resolve sustained performance degradation caused by traffic contention.

CompTIA highlights VLAN implementation as a best practice for environments that use IP phones, especially when performance issues occur during high utilization periods.

The correct answer is B. Secure Boot.

According to CompTIA A+ Core 1 220-1201 objectives under Security:

Secure Boot is a UEFI firmware feature that ensures a computer boots only with software that is trusted and digitally signed by the manufacturer.

This prevents malicious or unauthorized bootloaders and operating systems from loading, protecting the system from rootkits and other boot-time attacks.

Secure Boot does not require disabling USB devices; it simply checks that any bootable device contains a signed operating system.

Why the other options are incorrect:

A. BIOS password: Protects access to BIOS/UEFI settings but does not verify trusted software during boot.

C. USB settings: Can control USB access but cannot enforce boot validation for signed OS or prevent unauthorized boot devices.

D. Single sign-on: Provides authentication convenience for users, unrelated to boot security.

Cable internet is the most appropriate recommendation because it commonly uses coaxial cabling between the service provider’s network and the customer’s cable modem. A coaxial wall jack normally terminates with an F-type connector and indicates that the building may already have cable television or DOCSIS-compatible broadband infrastructure. A technician can connect a cable modem to this outlet and then connect the modem or gateway to the business network. Fiber service requires optical fiber and an optical network terminal rather than a standard coaxial outlet. DSL operates over copper telephone wiring and typically uses an RJ11 connection. Satellite internet requires an externally mounted satellite dish and does not depend on an existing coaxial broadband wall jack, although coaxial cable may connect the dish to indoor equipment. The installed jack therefore most strongly indicates cable internet availability.

A bulge under the trackpad on a laptop is a strong and well-known indicator of a swollen lithium-ion battery. According to CompTIA Core 1 (220-1201) mobile device hardware and troubleshooting objectives, laptop batteries are often located directly beneath the palm rest or trackpad area. When a lithium-ion battery begins to fail, it can swell due to internal chemical reactions, causing physical deformation of nearby components.

This swelling can interfere with the normal operation of the trackpad, leading to cursor control issues, clicking problems, or unresponsive behavior. More importantly, a swollen battery presents a serious safety risk, including the potential for overheating, leakage, or fire. For this reason, CompTIA emphasizes that battery replacement should be the first corrective action when physical swelling is observed.

Replacing the trackpad would not resolve the underlying pressure caused by the expanding battery. The motherboard and heat sink are unrelated to the physical bulge and cursor control symptoms described. Proper troubleshooting requires identifying and addressing the root cause, not the secondary symptom.

CompTIA best practices also stress safe handling and immediate replacement of damaged or swollen batteries to prevent further hardware damage or personal injury.

Comprehensive and Detailed Explanation From Exact Extract (Aligned With CompTIA A+ 220-1201 Study Guide)

When installing an operating system from external media (USB flash drive), the motherboard firmware must be instructed to check that device before checking the internal storage.

The CompTIA A+ official objectives describe that technicians must know how to access UEFI/BIOS settings and configure boot priority. Installing an OS from USB requires:

Entering UEFI/BIOS setup

Navigating to the Boot or Startup menu

Setting the USB drive as the first boot device

Saving and exiting to allow the computer to boot from the USB installer

This process is specifically referenced in CompTIA A+ material under “BIOS/UEFI settings,” where boot sequence / boot order is a fundamental configuration needed for OS installation.

Thus, the next step after assembling the PC is to modify the boot order to allow the system to boot from the USB installation media.

Why the other options are incorrect

A. BIOS password

Used for system access security; has no relevance to installing an OS from USB.

B. PXE boot

Used for network-based installations, not USB installations.

C. Secure Boot

Controls OS signature validation; not required to be changed for USB installation and is not the next required step.

Final Answer: D

The correct statement when comparing DDR3 and DDR4 memory technologies is that DDR4 offers faster data transfer rates compared to DDR3. According to CompTIA Core 1 (220-1201) memory and hardware objectives, DDR4 was designed as the successor to DDR3 and provides several performance and efficiency improvements.

DDR3 memory typically operates at data transfer rates ranging from 800 MT/s to 2133 MT/s, while DDR4 starts at 2133 MT/s and can scale significantly higher depending on the module and platform. This increased transfer rate allows DDR4 to handle more data per second, improving overall system performance, especially in modern systems and multitasking environments.

Option B is incorrect because DDR4 achieves higher bandwidth, not DDR3. Option C is incorrect because DDR4 operates at a lower voltage (typically 1.2V) compared to DDR3 (typically 1.5V), making DDR4 more power efficient. Option D is also incorrect because DDR4 is better suited for low-power environments due to its reduced voltage requirements.

CompTIA emphasizes understanding RAM generations, including differences in speed, bandwidth, and power consumption, making DDR4’s higher data transfer rates a key distinguishing factor.

The customer wants to consolidate multiple physical servers running different operating systems, including Windows, Linux, and Unix, while maintaining strong isolation between systems. CompTIA A+ identifies Infrastructure as a Service (IaaS) as the best model for hosting fully isolated virtual machines in a cloud environment, allowing each OS to run independently on its own virtual hardware.

IaaS provides virtualized computing resources—CPU, RAM, networking, and storage—while allowing the customer full control over the OS and application layer. This means Windows, Linux, and Unix VMs can coexist without compatibility concerns because each VM runs its native OS without modification.

Containers (B) are unsuitable because they share the host OS kernel, meaning they cannot run different OS families. A Type 2 hypervisor (C) is workstation-based and not designed for enterprise server consolidation. VDI (D) provides user desktops, not server workload consolidation.

Thus, IaaS is the correct solution for compatibility, isolation, and consolidation across multiple OS types.

Excessive heat buildup due to insufficient cooling is a primary cause of unexpected shutdowns. A high-performance heat sink improves thermal transfer, dissipates more heat, and helps maintain CPU temperature within safe limits. When CPU temperatures reach levels like 208°F (98°C), the system may shut down to prevent damage.

Dual-BIOS motherboards contain two firmware chips. If theprimary BIOS becomescorrupted, the system canfailover to the secondary BIOS. Most boards allow manual enabling of the secondary BIOS via a physical switch or jumper.

Option B:Downgrading firmware may not be possible if the system won’t POST or access UEFI.

Option C:Not necessary until both BIOS chips are non-functional.

Option D:Thermal paste affects heat dissipation, not BIOS/boot behavior.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 3.5: Given a scenario, troubleshoot problems related to motherboards, RAM, CPU, and power.

Comprehensive and Detailed Step-by-Step Explanation:

LC Connector (Lucent Connector):

LC is a type of fiber optic connector commonly used in optical networking cables. It is small, compact, and widely used for high-speed data transfer over fiber optic networks.

LC connectors are specifically designed for fiber optic cables, making them the correct answer.

Incorrect Options:

A. RJ45: RJ45 connectors are used for Ethernet cables (twisted-pair copper cabling) and are not compatible with optical networking cables.

C. USB-C: USB-C is a connector type used for general-purpose data transfer, charging, and video output, not for optical networking.

D. Lightning: Lightning connectors are proprietary to Apple devices and are not used in optical networking.

Key Takeaway:

The LC connector is specifically designed for fiber optic cables, making it the correct answer for optical networking.

B. Correct the keystone:

A keystone correction adjusts the image shape when a projector is angled either up or down. When a projector is not positioned directly perpendicular to the screen, the image becomes distorted or offset. Correcting the keystone will resolve alignment issues, ensuring that the presentation matches the display.

Incorrect Options:

A. Adjust the color settings: This is used for improving color balance and has no impact on ghosting or mismatched images.

C. Increase the brightness levels: Brightness changes the visibility of the image but does not address ghosting or alignment.

D. Replace the monitor: Replacing the monitor is unnecessary unless there is hardware failure, which is not indicated here.

Key Takeaway: Keystone correction is essential to resolve alignment and distortion issues in projected images.

Choppy or unintelligible audio is typically caused by issues with the microphone, such as poor quality, hardware defects, or misconfiguration.

Why Not A (Webcam): The webcam handles video, not audio.

Why Not B (Digitizer): A digitizer relates to touchscreens, not audio.

Why Not C (Inverter): Inverters manage power for displays, not audio.

CompTIA A+ Exam Reference: Core 1 (220-1201), Section 3.6, audio troubleshooting​.

To add additional wired network devices in a simple and cost-effective manner, the best solution is an unmanaged switch. CompTIA A+ explains that unmanaged switches require no configuration, provide instant port expansion, and operate using plug-and-play functionality. This makes them ideal for home offices where the user wants more Ethernet ports without dealing with administrative overhead or complex setup.

An unmanaged switch automatically forwards traffic using MAC addresses, expanding the network without altering IP configuration or security settings. It is inexpensive compared to other networking equipment and requires no firmware updates, VLAN management, or routing knowledge.

A DSL modem or cable modem provides internet service but does not increase the number of available network ports beyond the single LAN port commonly offered. A firewall controls traffic but does not expand physical connectivity. Therefore, neither modem nor firewall options meet the requirement of adding more wired devices.

Thus, the unmanaged switch is the simplest, cheapest, and most practical choice for expanding connectivity in a home office environment.

In Wi-Fi, the 2.4GHz band contains 14 total channels (depending on region), but only channels 1, 6, and 11 are considered non-overlapping in most countries. CompTIA A+ highlights the importance of selecting these channels to minimize interference, especially in environments with multiple wireless networks or access points.

The 2.4GHz band is narrower than 5GHz, causing adjacent channels to overlap significantly. Using channels 1, 6, and 11 prevents overlap and reduces signal interference, improving performance and stability.

5GHz (B) has many non-overlapping channels and does not use the 1/6/11 scheme. The 6GHz band (C) is part of Wi-Fi 6E and uses entirely different channel planning. The 60GHz band (D) supports short-range high-speed connections like WiGig, not traditional Wi-Fi channels.

Therefore, the 2.4GHz band is the correct answer.

A spam gateway filters unsolicited emails at the server level, significantly reducing spam before it reaches user inboxes.

Why Not A (Load balancer): Load balancers distribute traffic but don’t filter spam.

Why Not C (Mail forwarding): Forwarding doesn’t filter spam.

Why Not D (Proxy servers): Proxies control web traffic, not email filtering.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 2.10, email security controls​.

A hybrid cloud combines private infrastructure (on-premises, self-operated data centers) with public cloud services, providing flexibility and scalability.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Cloud concepts:

“A hybrid cloud model integrates private and public cloud infrastructure to allow applications and data to be shared between them.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Cloud Computing

CompTIA Exam Objectives 220-1101, Domain 3.7

============

Comprehensive and Detailed Explanation:

Laptop Wi-Fi antennas run through the display bezel and connect via small coaxial clips. After motherboard replacement, these are often not fully seated, causing weak or unstable Wi-Fi.

CompTIA Concepts:

Laptop hardware troubleshooting

Antenna connector checks after repair

WLAN performance issues caused by antenna misalignment

A hypervisor is software or firmware that allows multiple operating systems (virtual machines) to run on a single physical host. It manages the allocation of resources and isolation of each VM.

From CompTIA A+ 220-1101 Official Study Guide, Objective 3.7 – Virtualization concepts:

“A hypervisor is the key component of virtualization, enabling a physical server to host multiple virtual machines (VMs), each with its own OS and resources.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 3: Virtualization

CompTIA Exam Objectives 220-1101, Domain 3.7

============

To locate or identify an unlabeled network connection, the tool most suited for tracing cables through walls, ceilings, or patch panels is a toner probe (also called a tone generator and probe kit). CompTIA A+ describes this tool as essential for cable identification: the technician attaches the tone generator to one end of the network cable, and the probe detects the signal on the other end, even across long distances or through bundled wiring.

This makes the toner probe ideal for environments where cables are unlabeled, routed through structured cabling systems, or mixed with other wires. It allows the technician to listen for the distinctive tone, confirming the cable’s termination point.

A cable tester (C) verifies wiring integrity and pinouts but cannot trace a cable through physical pathways. It is used after identification, not during it. A loopback plug (B) is used for port testing and NIC diagnostics, not cable tracing. A network tap (A) is used for traffic monitoring, security analysis, and packet capture; it does not help locate cables.

Therefore, the toner probe is the correct tool for identifying and tracing an unlabeled network cable, aligning with CompTIA’s recommended cable management and troubleshooting procedures.

Laptop display assemblies typically include not only the LCD panel but also the webcam, microphone, display cable, and critically, the Wi-Fi antennas. In most laptops, Wi-Fi antennas are built into the display bezel, because the elevated position allows for stronger wireless signal reception. When replacing the entire display assembly, the antennas must be carefully disconnected and reconnected during reinstallation.

CompTIA A+ emphasizes proper cable routing and antenna reattachment as essential steps in laptop hardware disassembly and reassembly. Failing to reconnect these antennas results in weak or nonfunctional wireless connectivity, even though the display replacement itself may be successful.

Heat sinks and CPU fans are located on the motherboard and are unrelated to display assembly replacement. Resetting BIOS settings is unnecessary unless troubleshooting firmware-related issues, not replacing hardware components like a display. Therefore, the only action that aligns with standard laptop design and CompTIA A+ procedures is ensuring that the wireless antennas are reconnected.

Thus, the correct answer is B.

NFC (Near-Field Communication) is a subset of RFID technology designed for very short-range wireless communication, typically within a few centimeters. It is primarily used for contactless transactions, like mobile payments, and can also support peer-to-peer data exchanges. NFC operates at 13.56 MHz and enables devices to communicate when placed near each other.

Secure badging—often used with “pull printing” or “secure print release”—requires users to authenticate at the printer before documents are printed. CompTIA A+ highlights this feature as critical for protecting sensitive data in corporate environments. With badge-based printing, jobs stay in a secure print queue until the authorized user physically scans their badge.

This prevents confidential documents, like HR termination notices, from sitting unattended in the output tray. It also reduces print waste and ensures accountability for printed materials.

Duplex printing (B) simply prints double-sided pages. Printer sharing (C) allows multiple users to use a printer but does not provide security. Wireless encryption (D) protects network traffic but does not address abandoned print jobs.

Therefore, badging / secure print release is the correct protective measure.

Infrastructure as a Service (IaaS)providesvirtualized computing resources over the internetsuch as servers, storage, and networking. It allows a business to quickly spin up virtual machines and is ideal fordisaster recoveryand scalable IT infrastructure needs.

Option B:SecaaS focuses on cloud-delivered security, not infrastructure.

Option C:PaaS offers development environments, not full virtual infrastructure.

Option D:SaaS delivers applications over the internet (e.g., email, CRM) not for disaster recovery.

CompTIA A+ Core 1 Exam Objective Reference:

Objective 4.1: Compare and contrast cloud computing concepts.

===========

A physical bulge under the trackpad is a classic CompTIA-identified symptom of a swollen lithium-ion battery. As batteries degrade, internal gas buildup expands the casing, pushing upward on the laptop chassis—often distorting the trackpad, keyboard, or bottom shell. This can cause cursor issues, clicking problems, and safety hazards.

Replacing the battery first is essential because swollen batteries can rupture, leak, or ignite. Only after the battery is removed and replaced should the technician evaluate whether the trackpad suffered permanent damage.

Replacing the trackpad (D) without addressing the battery fails to correct the root cause. The motherboard (A) and heat sink (B) are unrelated to the physical bulge.

Thus, the correct first step is replacing the battery.

Infrastructure as a Service (IaaS) provides virtualized computing resources over the internet. This includes virtual servers, storage, and networking. Deploying server machines falls under IaaS since the organization is responsible for managing the OS and applications on top of the infrastructure.

A DHCP reservation ensures a specific device always receives the same IP address from the DHCP server whenever it requests an address. The reservation is typically created by associating the device’s MAC address with a chosen IP address inside the DHCP scope. When that device connects and performs the DHCP process, the server recognizes the MAC address and offers the reserved IP instead of assigning the next available dynamic address. This is commonly used for devices that benefit from consistent addressing (for example, printers, servers, or network appliances) while still centrally managing addressing through DHCP rather than configuring a manual static IP on the endpoint.

An exclusion is the opposite idea: it defines a range of IP addresses within a scope that the DHCP server will not hand out (often because those addresses are used for statically assigned devices). A lease is the time period that a dynamically assigned IP address is valid before it must be renewed; it does not guarantee the same IP every time. A scope is the overall pool/range of IP addresses and DHCP options (gateway, DNS, etc.) available for a given subnet. Therefore, the component that guarantees the same IP is a reservation.

A hard disk drive (HDD), especially if it ' s older or nearly full, is the most common cause of slow startup times in laptops. HDDs are much slower than SSDs and can significantly bottleneck the boot process.

From CompTIA A+ 220-1101 Official Study Guide, Objective 4.1 – Troubleshoot common hardware problems:

“A slow startup or sluggish system performance is commonly due to a failing or fragmented hard disk drive (HDD). Replacing with an SSD can greatly improve boot times and overall system responsiveness.”

Verified Source:

CompTIA A+ Core 1 (220-1101) Official Study Guide, Chapter 4: Troubleshooting PC Hardware

CompTIA Exam Objectives 220-1101, Domain 4.1

============

The technician should replace the Ethernet cable because the problem is isolated to the laptop’s wired connection. The laptop connects reliably through Wi-Fi, which demonstrates that the internet service, router routing functions, operating system, and general network configuration are operational. An Ethernet cable with damaged conductors, loose connectors, poor termination, or intermittent internal breaks can cause the link to repeatedly disconnect or renegotiate. Replacing the cable with a known-good cable is a quick and inexpensive isolation step. Restarting the router is less appropriate because wireless connectivity through the same router works correctly. Disabling the firewall would unnecessarily weaken security and would not normally correct intermittent physical-link failures. Installing another wireless access point is irrelevant because Wi-Fi already functions without the reported problem. If replacing the cable does not resolve the issue, the router port and laptop Ethernet adapter should then be tested.

If a computer can access internal network resources but cannot reach external websites, the most likely issue is a DNS configuration problem. According to CompTIA Core 1 (220-1201) networking troubleshooting methodology, DNS should be one of the first items checked when internet access fails but local connectivity remains intact.

DNS translates human-readable domain names into IP addresses. If DNS settings are incorrect, missing, or pointing to an invalid server, the computer will be unable to resolve website names even though it has network connectivity. Since other users on the same network can access the internet, the issue is isolated to the individual workstation.

Replacing the network cable is unnecessary because internal connectivity is already working. Restarting the DHCP server would impact all users, not just one. Adjusting firewall rules on the router would affect the entire network rather than a single computer.

CompTIA emphasizes starting with least disruptive and most likely causes when troubleshooting. Verifying DNS settings aligns with this best-practice approach.

The best answer is B. Moving to a supported system under a Type 2 hypervisor. The issue is application compatibility after an OS update. The Quentin Docter study guide explains that application virtualization is commonly used for legacy software or a legacy OS because older applications often run only on older operating systems. It further explains that virtualization allows users to run multiple environments without buying extra hardware, which directly matches the requirement for minimal cost and disruption. A Type 2 hypervisor runs on top of an existing host operating system, making it suitable for a department workstation scenario because users can keep the new supported OS while accessing the legacy application in a virtualized environment. A bare-metal Type 1 hypervisor is usually server-side and would be more disruptive and expensive. Migrating to a new product and importing data may be the long-term answer, but it introduces higher cost, retraining, and possible data loss. A private cloud does not solve OS compatibility by itself.

=========

A VLAN (Virtual Local Area Network) is the correct solution because it logically separates devices into different broadcast domains on the same physical switching infrastructure. In CompTIA A+ Core 1 (220-1201), VLANs are described as a way to segment a network for security, performance, and management—for example, isolating departments like Accounting and Customer Service so their traffic is separated. Devices assigned to different VLANs cannot communicate directly at Layer 2; communication between VLANs requires a Layer 3 device (such as a router or a Layer 3 switch) using inter-VLAN routing and appropriate access control. This effectively prevents unnecessary broadcast traffic from crossing department boundaries and helps enforce separation policies.

A VPN is used to create an encrypted tunnel over an untrusted network (commonly for remote access or site-to-site connectivity), not for internal departmental segmentation. DNS resolves hostnames to IP addresses and does not isolate networks. DHCP automatically assigns IP configuration (IP address, gateway, DNS servers), but it does not provide segmentation by itself. Therefore, implementing VLANs is the best way to separate the two departments’ networks.

The correct answer is D. DVI (Digital Visual Interface).

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Technologies:

DVI is primarily a video-only interface that transmits digital or analog video signals from a source (like a computer) to a display.

Unlike HDMI or USB-C, DVI does not carry audio signals, making it strictly for video.

Why the other options are incorrect:

A. DisplayPort: Supports video and audio as well as other features such as daisy-chaining multiple monitors.

B. HDMI: Transmits both video and audio signals over a single cable.

C. USB-C: Can carry data, power, and video/audio signals depending on the device and protocol (e.g., DisplayPort Alt Mode).

The correct answers are E. NFC and F. Location services.

According to CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

NFC (Near-Field Communication): Enables the device to communicate with contactless payment terminals, which is essential for detecting nearby stores that accept contactless payments.

Location services: Allows the application to determine the user’s geographic location so it can provide notifications only when the user is near a participating store.

Why the other options are incorrect:

A. MDM (Mobile Device Management): Manages device policies but does not enable location-based notifications or contactless payments.

B. Contact syncing: Synchronizes contacts; unrelated to payment notifications.

C. Bluetooth: Can be used for some proximity services, but NFC is required for contactless payment detection.

D. Hotspot: Provides internet access; not required for proximity detection in this context.

The correct answer is C. Synchronized system clocks.

According to CompTIA A+ Core 1 220-1201 objectives under Networking and Server Services, NTP (Network Time Protocol) is used to synchronize the clocks of computers across a network to a common time source. This is critical for:

Ensuring accurate timestamps for logs and events.

Coordinating scheduled tasks across multiple systems.

Preventing authentication issues in environments that rely on time-based credentials (e.g., Kerberos).

Why the other options are incorrect:

A. Defined network transport protocols: NTP itself is a protocol that uses UDP, but its primary purpose is not defining transport protocols.

B. Enabled print services on the server: NTP does not relate to printing.

D. Defined server options in DHCP: NTP may be referenced by DHCP options, but the act of adding NTP to a server is focused on time synchronization, not DHCP configuration.

A router is a network device that forwards data between different networks by examining packet headers, specifically the IP address information contained in Layer 3 (Network Layer) of the OSI model. According to the CompTIA A+ Core 1 (220-1201) networking objectives, routers use routing tables and packet header analysis to determine the best path for data to travel from a source network to a destination network. When a packet arrives at a router interface, the router reads the destination IP address in the packet header, compares it against its routing table, and then forwards the packet to the appropriate next hop or network interface. This function allows routers to connect multiple networks such as LANs, WANs, and the internet.

The other options do not perform this function. A hub operates at Layer 1 (Physical Layer) and simply broadcasts incoming signals to all connected ports without inspecting any packet information. A repeater also operates at the physical layer and is used only to regenerate or amplify signals to extend network distance. An unmanaged switch operates mainly at Layer 2 (Data Link Layer) and forwards frames based on MAC addresses, not IP packet headers. Because only routers analyze packet headers and forward traffic between different networks, Router is the correct answer.

The correct answer is D. Restart the device.

According to CompTIA A+ Core 1 220-1201 objectives under Mobile Devices and Security:

Warning messages like this can be caused by malicious pop-ups or temporary software glitches. Restarting the device is the safest and quickest first step to clear temporary processes, refresh the system, and remove transient malware or pop-up overlays.

This approach addresses the issue without risking data loss or unnecessary downtime.

Why the other options are incorrect:

A. Force close all running applications: May help if a specific app is causing the pop-up, but restarting achieves this more reliably and fully resets background processes.

B. Replace the tablet with a newer device: Unnecessary and costly for a potentially temporary software issue.

C. Reset the device to default settings: This is a last-resort action, as it erases personal data and settings; it is not the first step.

The correct answer is D. Router.

According to the CompTIA A+ Core 1 (220-1201) objectives for Networking, routers are devices that operate at Layer 3 (Network layer) and are primarily used to connect multiple networks, including LANs, WANs, and the Internet. Routers use IP addressing to determine the best path for forwarding packets between networks.

Why the other options are incorrect:

A. Controller: Generally refers to a device that manages a network or hardware component but does not inherently connect different networks.

B. Bridge: Connects two segments of the same network, not different networks, and operates at Layer 2 (Data Link layer).

C. Hub: Connects devices within the same network segment, simply repeating signals, and does not perform routing between networks.

The correct answer is A. Clean the feed rollers.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

Frequent paper jams, particularly in high-use shared printers, are commonly caused by dirty or worn feed rollers.

Cleaning the feed rollers removes dust, paper debris, and toner residue that can prevent smooth paper feeding, especially when printing double-sided documents.

This is a standard preventive maintenance procedure that improves reliability and extends the printer’s operational life.

Why the other options are incorrect:

B. Use a different paper weight: A4 standard paper is appropriate; changing paper weight is unnecessary unless the paper is damaged or incompatible.

C. Replace the fuser unit: Fuser problems generally cause smudging or incomplete fusing, not frequent paper jams.

D. Change the toner cartridge: Toner issues affect print quality (light or streaky prints), not paper feeding or jamming.

The correct answer is B. NVMe SSD.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Storage:

NVMe (Non-Volatile Memory Express) SSDs provide the fastest data access and retrieval speeds compared to other storage types, especially on laptops. NVMe SSDs use the PCIe interface, which allows significantly higher throughput and lower latency than SATA-based storage.

This improves boot times, application load times, and overall system responsiveness.

Why the other options are incorrect:

A. SATA M.2: While faster than traditional 2.5” SSDs and HDDs, SATA M.2 is limited by the SATA III interface (~600 MB/s), which is slower than NVMe SSDs (~3,000–7,000 MB/s).

C. Optical disk: Optical media (CD/DVD/Blu-ray) is extremely slow and not suitable for quick access or retrieval.

D. 7,200rpm HDD: Mechanical hard drives have the slowest access times and throughput compared to SSDs.

The correct answer is C. ECC (Error-Correcting Code).

In the CompTIA A+ Core 1 (220-1201) hardware objectives, RAM types and features include technologies designed to improve reliability and data integrity.

ECC memory is specifically designed to detect and correct data errors (faults) in memory automatically. It uses additional bits to store error-checking information, allowing the system to:

Detect single-bit and some multi-bit errors

Automatically correct errors without system interruption

Improve system stability, especially in servers and critical systems

This makes ECC the best choice for recovering from data faults.

Why the other options are incorrect:

A. Capacity

Capacity refers to how much data the RAM can hold (e.g., 8GB, 16GB). It has nothing to do with error detection or correction.

B. Speed

Speed (measured in MHz or MT/s) affects performance but does not provide any fault recovery capability.

D. DDR

DDR (Double Data Rate) refers to the generation/type of RAM (e.g., DDR3, DDR4, DDR5). It improves performance but does not handle errors.

E. Parity

Parity memory can detect errors but cannot correct them. Since the question specifically asks for recovery from faults, ECC is the correct answer because it both detects and corrects errors.

Final Answer: C. ECC

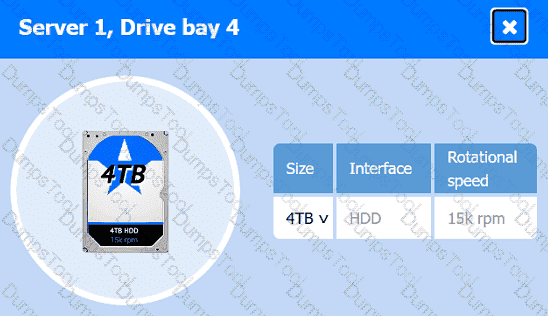

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

Recommended Replacement Drive:

To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

A user reports poor performance on the

application server.

INSTRUCTIONS

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black and silver parts AI-generated content may be incorrect.A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer AI-generated content may be incorrect.A screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer AI-generated content may be incorrect.A computer screen shot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

A screenshot of a computer AI-generated content may be incorrect.A screenshot of a computer Description automatically generated

The correct answer is A. Virtual LAN (VLAN).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

VLANs are used to segment a physical network into multiple logical networks. By assigning the accounting department to a separate VLAN, users on other VLANs cannot access its network traffic without routing, thereby isolating sensitive departments while using the same physical switch.

VLANs improve security, reduce broadcast traffic, and allow network administrators to enforce access controls at the layer 2 level.

Why the other options are incorrect:

B. DHCP reservations: Ensure that specific devices always receive the same IP address, but do not restrict network access.

C. Content filtering: Controls web or application traffic based on content, not segmenting network access between departments.

D. Port security: Limits which devices can connect to a port but does not provide full network segmentation for an entire department.

In CompTIA A+ Core 1 (220-1201) networking and troubleshooting, a common cause of “can’t reach internal resources” while docked is that the laptop is still using the wireless interface (or has a higher interface priority for Wi-Fi) instead of the docking station’s wired Ethernet connection. If the Wi-Fi network is a guest/isolated VLAN, uses different routing, or has stricter access controls, the user may be blocked from reaching department file servers even though an Ethernet cable is physically connected to the dock. Disabling Wi-Fi is a fast, low-risk step that forces the system to use the wired NIC path through the docking station, which typically provides the correct corporate network access, DHCP scope, and routing to internal servers.

Restarting the computer might help in some cases, but it’s less targeted and not the “best next step” when the likely issue is interface selection. Replacing the Ethernet cable is appropriate if link lights are off or the wired connection is clearly down, but the scenario highlights that the dock has a hardwired connection—suggesting the physical layer may be fine. Dock firmware updates are not a first-line fix for basic connectivity/access symptoms.

In the CompTIA A+ Core 1 (220-1201) networking concepts, satellite internet is commonly associated with higher (increased) latency compared with terrestrial options like cable, fiber, or DSL. Latency is the delay between sending data and receiving a response. With satellite, signals must travel from the user’s dish up to a satellite and then back down to a ground station (and return again for responses). That long travel distance adds noticeable delay, which can affect real-time activities such as VoIP, video conferencing, and online gaming. Even though newer low-earth-orbit (LEO) systems can reduce latency compared with older geostationary systems, satellite service is still generally discussed in A+ as having higher latency characteristics to consider.

The other options do not best fit satellite internet. Proximity to urban infrastructure (A) is more relevant to cable/fiber availability. An eSIM requirement (B) relates to cellular/mobile service, not satellite broadband. Line of sight to a nearby tower (C) describes cellular or fixed wireless services that depend on tower connectivity; satellite instead needs a clear view of the sky toward the satellite (not a nearby tower). Therefore, increased latency is the best characteristic to consider.

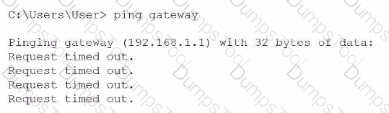

Packet loss

Plug an Ethernet cable into the workstation

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is D. SMTP (Simple Mail Transfer Protocol).

According to CompTIA A+ Core 1 220-1201 objectives under Networking:

SMTP is the standard protocol used to send emails from a client to a mail server or between servers.

POP3 (Post Office Protocol 3) and IMAP (Internet Message Access Protocol) are used for receiving emails, not sending them.

LDAP (Lightweight Directory Access Protocol) is used for accessing and managing directory services, such as authentication and organizational information, not for email transport.

The correct answer is B. Change the resolution.

According to the CompTIA A+ Core 1 220-1201 objectives, troubleshooting display issues involves checking the display settings, including resolution, scaling, and orientation. When a projector is only showing part of a laptop screen:

The most common cause is that the laptop’s output resolution does not match the projector ' s native resolution. If the laptop is set to a resolution larger than what the projector supports, only a portion of the screen is visible.

The technician should first adjust the laptop ' s resolution to match the projector’s native resolution before attempting other options like extending or mirroring the desktop.

Why the other options are incorrect:

A. Extend the desktop: This is only used if the user wants to have two separate screens (dual monitors), not to fix partial display issues.

C. Mirror the desktop: Mirroring duplicates the laptop display but does not solve issues caused by resolution mismatch.

D. Switch the input source: Necessary only if the projector is on the wrong input, but the problem here is a partial display, not no display.

The most likely cause is system overheating . Laptops have limited internal space and depend on properly functioning fans, heat sinks, vents, and thermal controls. Dust accumulation, blocked vents, a malfunctioning fan, dried thermal compound, or sustained high processing load can cause the internal temperature to increase.

When the CPU or another component reaches a critical temperature, the laptop may shut down automatically to prevent permanent hardware damage. These shutdowns may appear unpredictable because they depend on temperature and workload rather than the displayed battery percentage.

Malware can increase processor usage and indirectly contribute to heat, but it is not the most direct answer.

RAM corruption generally produces crashes, freezes, memory errors, or operating-system stop errors.

Outdated drivers can cause instability but are less closely associated with repeated thermal shutdown behavior.

CompTIA objective 5.4 specifically lists overheating as a common mobile-device issue. Dell also identifies random shutdowns and reboots as symptoms of an overheating laptop.

==========

solution as

A screenshot of a network settings AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

A screenshot of a computer AI-generated content may be incorrect.

An MX, or Mail Exchanger, record is a type of DNS resource record. It identifies the mail server responsible for accepting email for a particular domain. Consequently, an MX record is created or modified in the domain’s DNS zone , which is hosted on a DNS server.

Although the MX record points to a mail server, the record itself is configured through DNS. The mail server is the destination identified by the record, not the service in which the DNS record is stored.

A proxy server intermediates network requests, commonly for filtering, caching, or privacy.

A mail server sends, receives, and stores email, but DNS tells other systems how to locate it.

A print server manages printers and print jobs.

CompTIA objective 2.4 specifically includes DNS record types such as A, AAAA, CNAME, MX, and TXT. Microsoft also defines an MX record as a DNS resource record that identifies a domain’s mail server.

==========

The correct answer is A. Adjust the SMTP server configurations for email.

Scan-to-email functionality on a multifunction printer relies on proper configuration of an SMTP (Simple Mail Transfer Protocol) server. The printer must know how to send outgoing email, which requires settings such as:

SMTP server address

Port number (commonly 25, 465, or 587)

Authentication credentials (username/password)

Encryption method (SSL/TLS if required)

If scan-to-email is not working, the most common cause is incorrect or missing SMTP configuration. Without this setup, the printer cannot send scanned documents via email.

Why the other options are incorrect:

B. Check the printer ' s IP address configuration

This ensures network connectivity, but since the printer is already in use and the issue is specific to email functionality, IP configuration is unlikely the root cause.

C. Install the printer ' s driver software on all computers

Drivers are needed for printing from computers, but scan-to-email is handled directly by the printer and does not depend on client-side drivers.

D. Configure user authentication settings for email access

While authentication may be required in some setups, it is part of the broader SMTP configuration. The primary and most direct fix is ensuring SMTP settings are correct.

Exam Tip (Core 1 220-1201):

Scan-to-email issues → Check SMTP settings first

Multifunction printers rely on network services (email protocols), not just drivers

Final Answer: A. Adjust the SMTP server configurations for email

To ensure seamless connectivity during (and after) migrating an application server, the best DNS approach in CompTIA A+ Core 1 (220-1201) terms is to use a CNAME (Canonical Name) record, which creates an alias from one hostname to another. Instead of users connecting directly to a server’s changing hostname, they connect to a consistent service name (for example, app.company.com). That name can be configured as a CNAME pointing to the current host (such as server1.company.com). When the application is moved to a new server, the technician updates what the alias ultimately resolves to (or updates the target host’s A/AAAA record), and clients continue using the same familiar application URL/name—minimizing disruption and avoiding the need to reconfigure endpoints across devices.

The other record types are not designed for this purpose. TXT records store text-based information (often verification or policy data). SPF and DKIM are email authentication-related mechanisms (typically implemented via TXT records) used to validate authorized mail senders and message integrity—not application server migration. Because the goal is maintaining a stable name for a service while the underlying host changes, CNAME is the correct record type.

A screenshot of a computer AI-generated content may be incorrect.

The correct answer is D. Decreased burn-in.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Technologies:

Mini-LED displays use an array of tiny LEDs as a backlight for LCD panels.

Unlike OLED displays, which are susceptible to burn-in (permanent image retention when static content is displayed for long periods), mini-LEDs reduce the risk because the pixels themselves do not emit light individually and are less prone to permanent image retention.

Why the other options are incorrect:

A. Increased contrast: OLED typically provides better contrast because it can turn off individual pixels completely.

B. No backlight: Mini-LEDs still use a backlight, whereas OLEDs do not.

C. Improved viewing angle: OLEDs generally offer wider viewing angles than mini-LED LCDs.

The correct answer is B. Inspect and replace the printer rollers.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

Frequent paper jams with no visible obstruction are often caused by worn or dirty feed rollers, which fail to grip and feed paper properly.

Inspecting and replacing the rollers ensures smooth paper feeding and prevents repeated jams, particularly in high-use network printers.

Why the other options are incorrect:

A. Check for firmware updates: Firmware updates address software or functionality issues, not mechanical paper feeding problems.

C. Reseat the fuser assembly: Fuser issues typically cause smudging or incomplete toner adhesion, not paper jams.

D. Clean the corona wire: The corona wire affects toner adhesion and print quality, not paper feeding.

In CompTIA A+ Core 1 (220-1201) cloud concepts, the key differentiator between cloud deployment models is where the service is hosted and who owns/uses the underlying infrastructure. If a company’s directory services server (for example, a domain controller providing authentication/authorization and centralized identity management) is located on premises, that points to infrastructure that is owned and operated by the organization for its own internal use. This aligns best with a private cloud model, which is defined as cloud resources dedicated to a single organization and can be implemented on-premises (internally hosted) or in a dedicated off-site environment.

It is not a public cloud because public cloud services are hosted by a third-party provider and shared across multiple customers. It is not hybrid cloud because hybrid requires a mix of on-prem resources and public cloud resources working together (the question only specifies on-prem). It is not community cloud because that involves shared infrastructure among multiple organizations with common needs.

The correct answer is D. Check for loose connections on the display.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Display Troubleshooting:

Flickering or strange colored lines on a monitor are often caused by loose or damaged video cable connections (internal or external).

Before considering costly or time-consuming solutions like replacement, the technician should verify that the display cable, internal ribbon cables, or connectors are properly seated.

Why the other options are incorrect:

A. Suggest a secondary monitor: Provides a temporary workaround but does not resolve the underlying hardware issue.

B. Conduct a factory reset: Resets software settings but will not correct physical connection problems that cause flickering or colored lines.

C. Install a screen protector: Does not affect video signal or display functionality; irrelevant for flickering issues.

The correct answer is B. Change the fuser temperature.

According to CompTIA A+ Core 1 220-1201 objectives under Printers:

A laser printer fuses toner onto paper using heat and pressure. Thicker paper often requires a higher fuser temperature to properly adhere the toner.

If the output smudges on thick paper but prints fine on standard paper, adjusting the fuser temperature is the first step before performing more invasive maintenance or replacing parts.

Why the other options are incorrect:

A. Install a maintenance kit: Typically includes rollers, belts, and other parts; this is not the first action if the issue is temperature-related.

C. Clean the transfer roller: Cleaning may improve print quality, but smudging on thick paper usually relates to insufficient fusing heat.

D. Install an OEM toner cartridge: The issue is unlikely to be caused by non-OEM toner if standard paper prints correctly.

For a main database server with high read/write activity, the best RAID choice must deliver strong performance while still providing fault tolerance. Per CompTIA A+ Core 1 (220-1201) storage/RAID objectives, RAID 10 (1+0) combines disk mirroring (RAID 1) and disk striping (RAID 0). Striping improves performance by distributing read/write operations across multiple disks, which is ideal for databases that perform frequent transactions. Mirroring provides redundancy by keeping an identical copy of data on a paired drive, allowing the system to tolerate drive failures (typically one drive per mirrored pair) without data loss.

RAID 0 is fast but offers no redundancy, making it inappropriate for critical servers. RAID 5 and RAID 6 use parity, which provides redundancy but introduces a write penalty because parity must be calculated and written during updates—often a poor fit for workloads with heavy random writes like databases. RAID 6 is even more write-intensive

CompTIA A+ Core 1 (220-1201) display technology objectives emphasize that contrast ratio is strongly influenced by how well a screen can produce true black. OLED (Organic Light-Emitting Diode) panels are known for the highest contrast ratios because each pixel is self-emissive—meaning it generates its own light. When an image requires black, OLED can turn individual pixels completely off, producing near-perfect black levels and extremely high (often “infinite”) contrast in practical terms.

By comparison, LCD panels require a backlight, so black areas still allow some light leakage through the liquid crystal layer, reducing contrast. LED in this context is typically an LED-backlit LCD, not a fundamentally different pixel technology; it improves brightness and efficiency but still relies on backlighting, so contrast is limited by backlight bleed and panel design. QLED is also a type of LCD technology that uses a quantum dot layer to enhance color and brightness, but it still uses a backlight, so it cannot match OLED’s per-pixel shutoff for black levels. Therefore, OLED is the best choice for the highest contrast ratios.

The correct answer is B. Reconnect the wireless antennas.

According to CompTIA A+ Core 1 220-1201 objectives under Hardware and Laptop Maintenance:

Many laptop wireless antennas are routed through the display assembly to provide optimal Wi-Fi and Bluetooth signal strength.

When replacing a laptop display, it is essential to disconnect and then reconnect the wireless antennas to ensure proper connectivity.

Failing to reconnect these antennas can result in weak or no wireless signal.

Why the other options are incorrect:

A. Reattach the heat sinks: Heat sinks are part of the CPU/GPU cooling assembly and are unrelated to replacing the display.

C. Install a new CPU fan: CPU fans are part of the cooling system, not the display assembly.

D. Reset the BIOS to default settings: Not required for physically replacing the display; the BIOS retains settings independently of display hardware.

The correct answer is B. Switches connect devices within a network; routers connect networks.

According to the CompTIA A+ Core 1 220-1201 networking objectives:

Switches operate at the Data Link layer (Layer 2) and sometimes Layer 3, connecting multiple devices within the same local area network (LAN). They manage data traffic between devices by using MAC addresses to forward frames only to the intended recipient.

Routers operate at the Network layer (Layer 3) and connect different networks together, such as connecting a LAN to the internet. They use IP addresses to determine the best path for forwarding packets between networks.

Why the other options are incorrect:

A. Routers are programmable; switches are not programmable: Both devices can have programmable configurations in enterprise environments, so this is not a defining difference.

C. Switches are programmable; routers are not programmable: Same reasoning as above; not accurate.

D. Routers connect devices within a network; switches connect networks: This reverses the actual roles and is incorrect.

The correct answer is A. 2.4GHz.

In the CompTIA A+ Core 1 220-1201 networking objectives, wireless networking technologies include frequency bands such as 2.4GHz, 5GHz, and 6GHz, along with related concepts like channels, regulations, channel selection, Bluetooth, 802.11 standards, NFC, and RFID.

The 2.4GHz band supports the most devices because it is the oldest and most widely adopted Wi-Fi frequency listed. Many legacy devices, including older laptops, printers, IoT devices, smart home devices, and wireless peripherals, still rely on 2.4GHz. It also has better range and wall penetration than higher-frequency bands, although it is usually more crowded and slower.

Why the other options are incorrect:

B. 5GHz

5GHz is newer than 2.4GHz and generally provides faster speeds with less interference, but it does not support as many older legacy devices.

C. 6GHz

6GHz is the newest Wi-Fi frequency option used with newer Wi-Fi standards, so it has the least legacy device support among the Wi-Fi frequency choices.

D. NFC

NFC is a short-range communication technology, not a Wi-Fi frequency band. It is used for close-proximity functions such as tap-to-pay, pairing, and access cards, so it is not the best answer.

Final Answer: A. 2.4GHz

For the highest possible stability, the best power-supply choice is a redundant power supply. In CompTIA A+ Core 1 (220-1201) hardware concepts, redundant PSUs are used in systems where uptime and reliability are critical. A redundant PSU configuration typically includes two power supply units operating together (often in a hot-swappable bay). If one PSU fails, the other continues supplying power, allowing the workstation to remain operational and preventing unexpected shutdowns that could interrupt CAD work or corrupt data. This directly matches the requirement for maximum stability.

A UPS improves resilience to power loss and brownouts by providing battery backup and line conditioning, but it is not a power supply type and doesn’t protect against the PSU itself failing. A surge protector helps guard against voltage spikes, but it also does not ensure system operation if the PSU fails. A modular PSU mainly improves cable management and airflow by allowing detachable cables; it can be convenient and neat, but it does not inherently increase stability compared with redundancy. Therefore, the most stability-focused PSU option is Redundant.

The correct answer is B. VGA.

VGA (Video Graphics Array) is an analog video interface. It transmits video signals as continuous electrical waves, which means the signal can degrade over distance or due to interference. VGA uses a 15-pin connector and is considered legacy hardware in modern systems, but it is still important for CompTIA A+ because you may encounter it in older equipment.

Why the other options are incorrect:

A. DVI

DVI can support both digital and analog signals, but in most modern contexts and exam questions, it is primarily treated as a digital interface (especially DVI-D). Since the question asks for a clearly analog cable, VGA is the best answer.

C. USB-C

USB-C is a digital interface that can carry video signals using protocols like DisplayPort Alternate Mode. It does not transmit analog video.

D. HDMI

HDMI is a fully digital interface used for high-definition video and audio transmission. It does not support analog signals.

Exam Tip (Core 1 220-1201):

Analog video = VGA

Digital video = HDMI, DisplayPort, USB-C, most DVI types

Final Answer: B. VGA

When a printout is being cut off, CompTIA A+ Core 1 (220-1201) troubleshooting emphasizes checking the simplest, most likely configuration mismatch first—the printer’s paper size/source settings. Even if the user physically loaded the correct paper, the print job can still be formatted incorrectly if the printer driver, application, or printer itself is set to use a different paper size or a different tray. If the printer thinks it is using a smaller paper size (or a tray configured for smaller paper), it may clip the printable area and truncate the image at the edges.

Changing tray settings (paper size and paper source) aligns the printer’s configuration with the actual media installed, which is a standard first-step for issues related to formatting, clipping, and page boundaries. Image quality (DPI) affects sharpness, not cropping. File type rarely causes consistent edge cutoff compared with page setup mismatches. Adjusting image size could work as a workaround, but CompTIA best practice is to correct the paper/tray and page setup settings first so all prints format properly without editing the document each time.
