Refer to the exhibit.

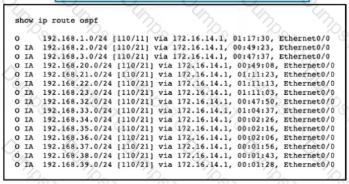

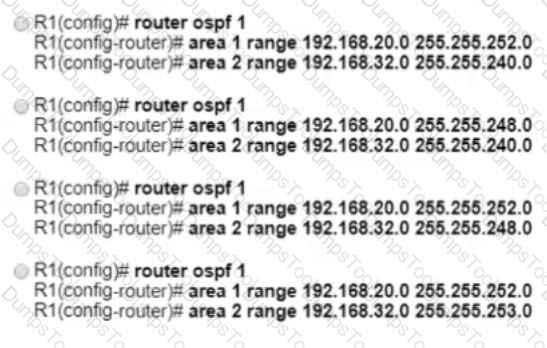

An engineer applied the summarization configuration on R1 for four networks (192.168.20.0/24 to 192.168.23.0/24) in area 1 and eight networks (192.168.32.0/24 to 192.168.39.0/24) in area 2 to stop the flooding of all the customer routes. While checking the routing table of R2, the engineer noticed that R1 is still sending only specific routes to R2. Which configuration should the engineer apply on R1 to summarize routes?
Refer to the exhibit.
An engineer applied the summarization configuration on R1 for four networks (192.168.20.0/24 to 192.168.23.0/24) in area 1 and eight networks (192.168.32.0/24 to 192.168.39.0/24) in area 2 to stop the flooding of all the customer routes. While checking the routing table of R2, the engineer noticed that R1 is still sending only specific routes to R2. Which configuration should the engineer apply on R1 to summarize routes?

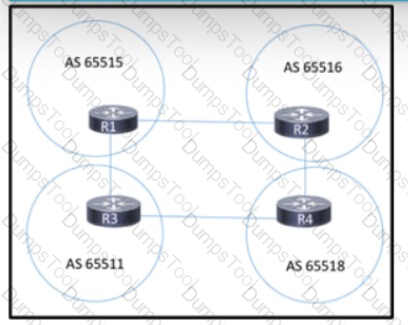

Refer to the exhibit.
.

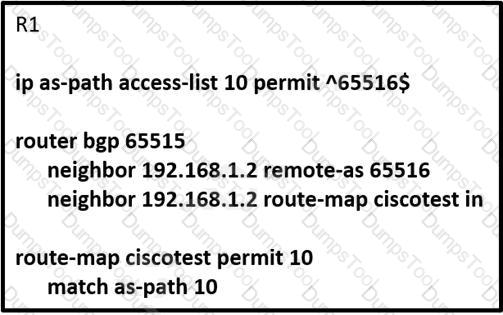

R1 is expected to receive routes originating from AS 65516 and from any ASs that are directly attached to it. However, R1 is receiving routes only from AS 65516. Which action corrects the configuration?
After changing the IP address on an IOS XR router, an engineer cannot ping the new address Which step did the engineer forget to complete?
Refer to the exhibit A network engineer configured the redistribute connected subnets route-map filtering command on R1 to redistribute connected interfaces to the OSPF process The engineer also wants to filter out IP address 10 0 1 0/24. but the prefix still appears in the routing tables of the other routers on the network. Which action corrects the problem?

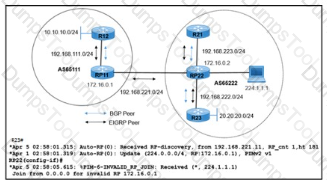

Refer to the exhibit. R21 is a multicast source sending multicast traffic 224.1.1.1 to R23, with RP22 serving as the rendezvous point inside AS65222. A network engineer noticed that when R21 goes down, R12 in AS65111 starts to send the same multicast group 224.1.1.1 through RP11. Which action resolves the issue ?
Refer to the exhibit.
A network engineer implemented this segment routing configuration. Which statement
about the output is true?
Which difference should be considered when intradomain or interdomain multicast routing is implemented?
Which difference must an engineer consider when Implementing Inter-domain and Intra-domain multicast routing on the network?
Refer to the exhibit.

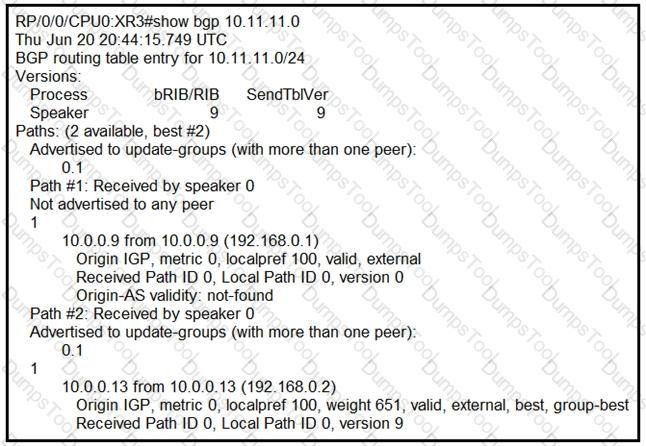

A network operator is getting the route for 10.11.11 0/24 from two upstream providers on
#XR3. The network operator must configure #XR3 to force the 10.11.11.0/24 prefix to route via next hop of 10.0.0.9 as primary when available. Which of these can the operator use the routing policy language for, to enforce this traffic forwarding path?
Which difference must an engineer consider when Implementing Inter-domain and Intra-domain multicast routing on the network?

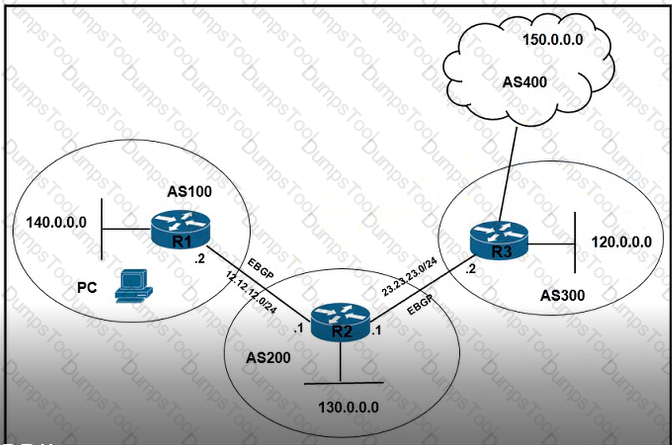

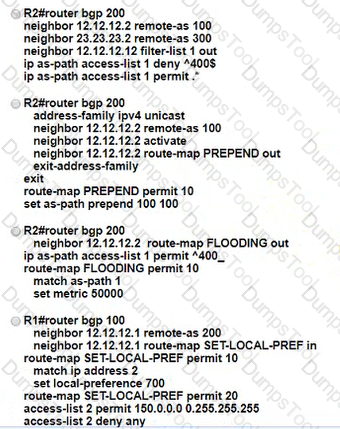

Refer to the exhibit. Excessive routes are flooding from network 150.0.0.0 into AS100. Internet traffic between AS400 and AS300 is working normally. No route controlling mechanism is applied on incoming and outgoing traffic Which configuration resolves the issue?

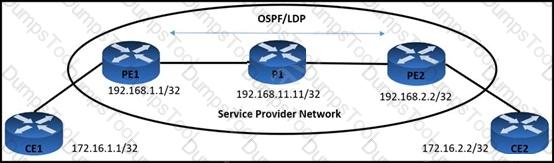

Refer to the exhibit.

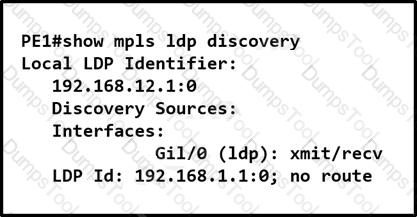

An administrator is troubleshooting network issues on a customer’s network PE1 cannot form an LDP relationship with PE2 using LDP ID 192 168.1.1. Due to this connectivity issue, the customer’s routes behind both PE routers cannot be exchanged. Which action must the administrator take to correct the problem?
Refer to the exhibit.

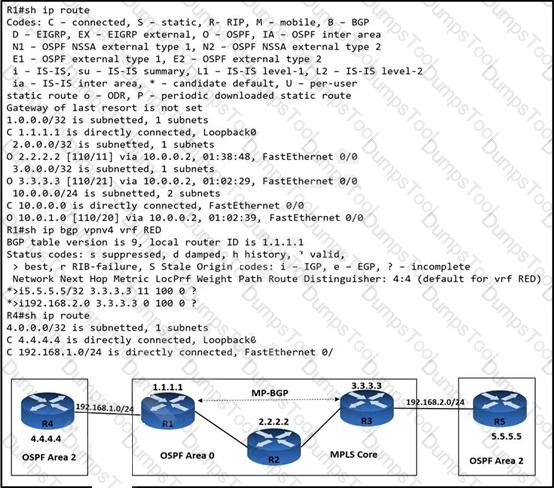

An engineer is troubleshooting connectivity issues on the MPLS core network. A customer connected through R4 cannot reach the OSPF domain on R5. While checking the routing table of R1, the engineer cannot see all the routes from R3 and R5. Which task must the engineer perform so that R4 is able to reach R5?
Refer to the exhibit A network engineer installed a new router (router 3) at the regional hub running MPLS services for scalability Router 3 is connected to the 10.44 4.0,'24. 10.44 5.024. 10 44.6.0/24. and 10 44 7 0/24 subnets The new router has been configured for OSPF area 2. and it is advertising the four connected networks. The engineer noticed that the same networks are listed as interarea summary routes, and they are being flooded into each area on the area borders Which action resolves the issue?
Refer to the exhibit.
How are packets directed through the data plane when SRv6 is implemented?
Refer to the exhibit.
All routers on this network have been configured with P1M-SM and R1 is the rendezvous point However, when asymmetric routing is implemented to modify link usage the network begins to drop certain multicast traffic Which action corrects the problem?
Refer to the exhibit.

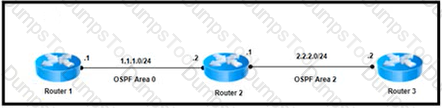

Router 1 has attempted to establish a Cisco MPLS TE tunnel to router 2, but the tunnel
has failed. Which statement about this configuration is true?
Refer to the exhibit.

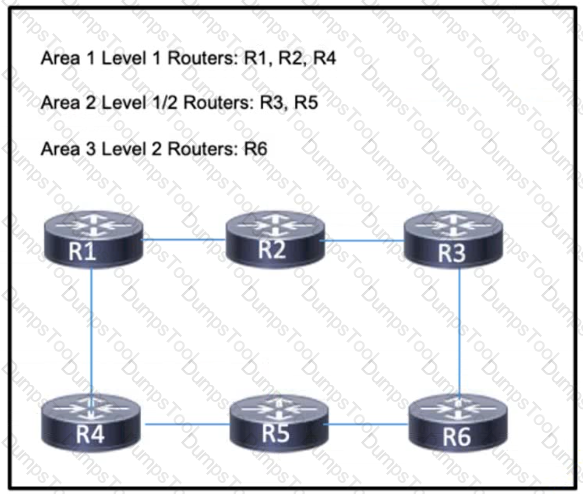

IS-IS is the routing protocol on the network. After the team noticed excessive CPU usage on all routers, particularly routers R2 and R6, they configured route summarization on all routers. However, a network engineer noticed that summary routes and more specific routes are present in the routing table on R1. Which action must the team take so that R1 receives only the summary routes?
Refer to the exhibit A network engineer configured the redistribute connected subnets route-map filtering command on R1 to redistribute connected interfaces to the OSPF process The engineer also wants to filter out IP address 10 0 1 0/24. but the prefix still appears in the routing tables of the other routers on the network. Which action corrects the problem?

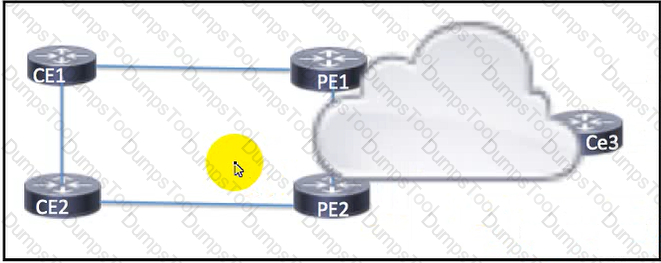

Refer to the exhibit. CE1 and CE2 use connectivity over the service provider cloud to reach CE3 In the event of a link failure in the service provider cloud which BGP feature relies on IGP convergence to quickly assist in the installation of a backup path?
Refer to the exhibit.
Router 1 and Router2 have shared routes in the OSPF database but the routes are missing from their routing tables. Checking me prefix-list configuration on both routers, the engineer confirmed all networks are allowed What action should the engineer take to fa the problem?

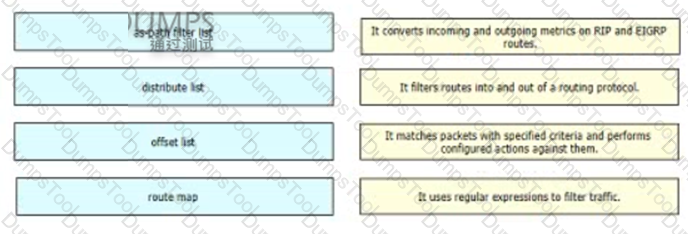

Drag and drop the route-manipulation methods from the left onto their features on the right

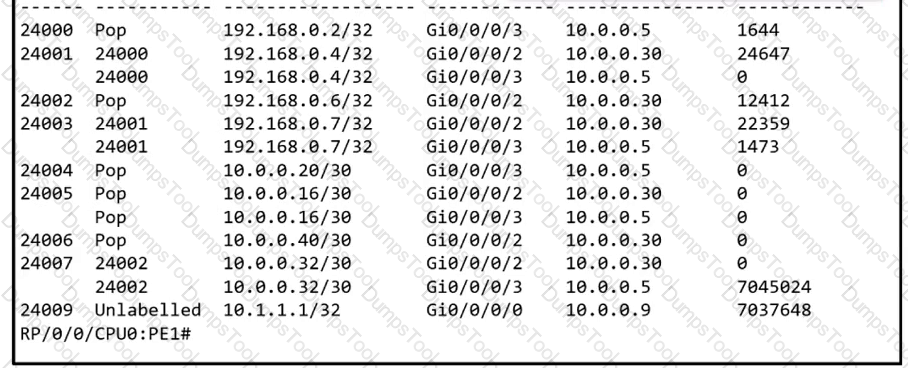

Refer to the exhibits.
A network operator is troubleshooting packet loss seen from the R1 loopback interface to the R2 loopback interface over the core network. The operator is attempting to identify the next leg in the path from PE1. Which interface and label path should the operator investigate next?
Which two differences should be considered when deciding whether to implement to implement routing policies or route maps? (Choose two.)
Refer to the exhibit. Mid-sized company Z connected two branch offices via a multicast-enabled ISP using the BGP routing protocol. PIM was implemented to support multicast streaming between the branches via MSDP Client A cannot connect to the multicast stream source of company Z. The network engineer ran a debug on the edge of the network as shown. Which action resolves the issue?
Refer to the exhibit.
Which task must you perform on interface g1/0/0 to complete the SSM implementation?

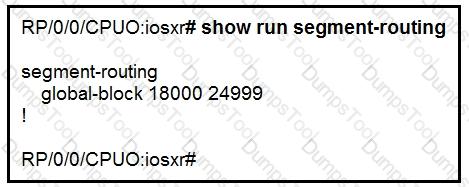

An engineer is working to implement segment routing protocol on the customer's core network. Which step should the engineer take before the segment routing is enabled and is running with BGP?
Refer to the exhibit.

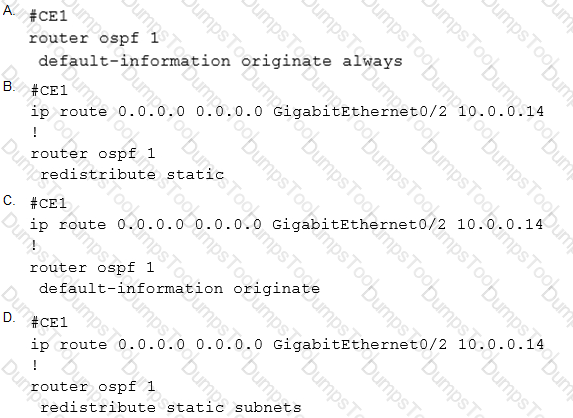

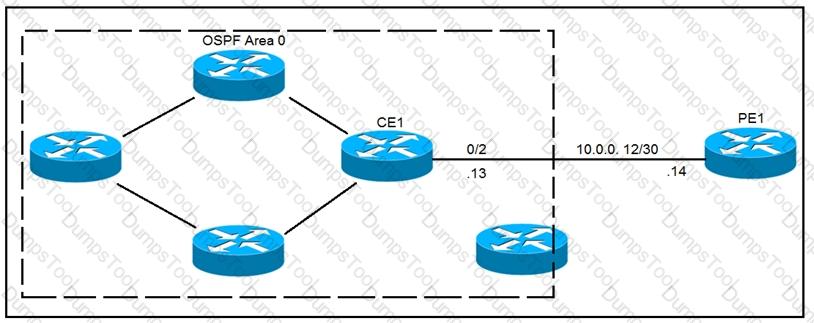

CE1 is the gateway router into the provider network via PE1. A network operator must
inject a default route into OSPF area 0. All devices inside area 0 must be able to reach PE1. Which configuration achieves this goal?

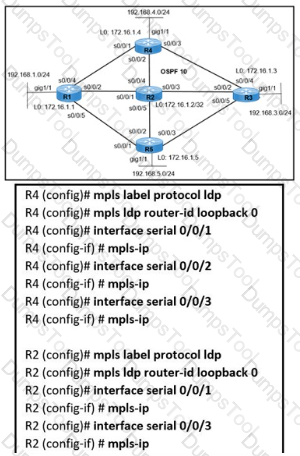

Refer to the exhibit. MPLS traffic from 192.168.4.0/24 to 192.168.5.0/24 is failing to pass over the link from R4 to R2. The engineer verified that:
Which action resolves the issue?
Refer to the exhibit.

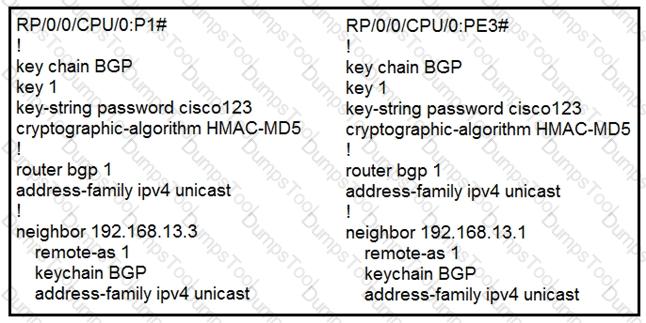

P1 and PE3 Cisco IOS XR routers are directly connected and have this configuration
applied. The BGP session is not coming up. Assume that there is no IP reachability problem and both routers
can open tcp port 179 to each other. Which action fixes the issue?
Which difference should be considered when intradomain or interdomain multicast routing is implemented?
Refer to the exhibit. An engineering team implemented IS-IS on the network, with several different areas. Recently, router R6 in area 3 has been experiencing excessive CPU usage. To reduce the load, a network engineer implemented route summarization on R2 However. R6 is still receiving the full routes from all routers. Which action must the engineer take to resolve the excessive CPU usage?
Refer to the exhibit.

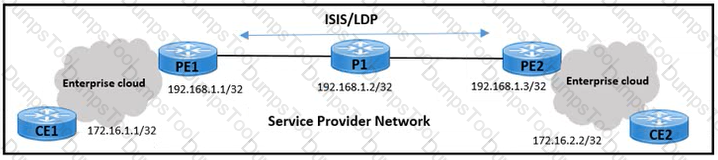

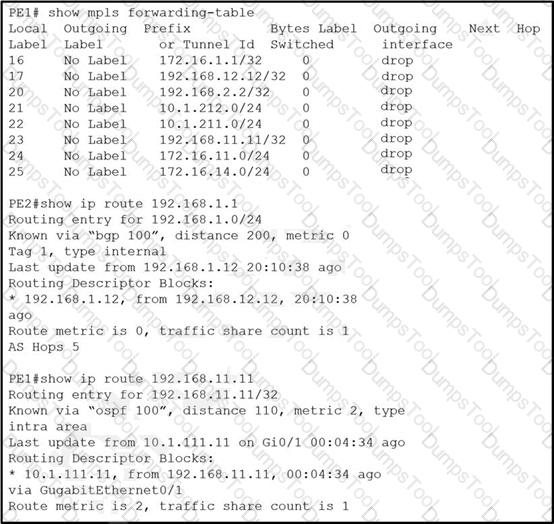

VPN users that are connected to PE routers are facing network issues. Traffic that originates from CE1 drops before reaching CE2. An engineer finds no outgoing traffic statistics on PE1 and PE2 routers toward CE devices and finds that the PE1 router is running the older software image. Which action must be implemented to resolve the issues?

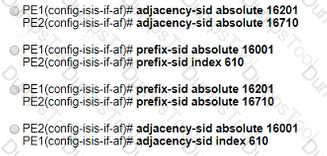

Refer to the exhibit. An engineer working for a private telecommunication company with an employee id 4115 46 881 is enabling a segment routing solution with these requirements.
Which configuration must be implemented to meet the requirements?
Refer to the exhibit.

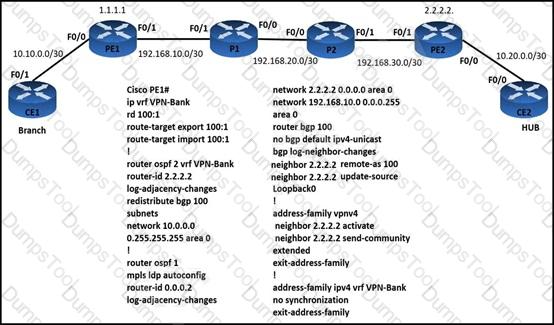

Customer traffic from the branch site to the hub is experiencing packet drops. The engineer verified that:
Which action resolves the issue?
Level 3 switch SW1 is part of an EIGRP enabled network located at the edge of an area. Cisco Express Forwarding and SSO are enabled on the router. A network engineer must minimize the downtime of data-transmit services in the network. HSRP group 2 has already been configured with standby preempt delay minimum 2 and standby timers 140. Which additional action must the engineer take on SW1 to suppress routing flaps for 2 minutes?
After you change the IP address on an IOS XR router, you cannot ping the new address.
Which step did you forget to complete?

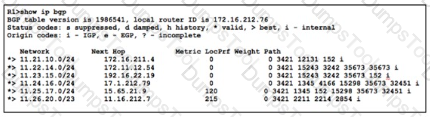

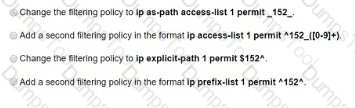

Refer to the exhibit. Company A established BGP sessions with several ISPs. A network engineer at the company must filter out all traffic except for routes that transit AS 152. The engineer configured the filtering policy “permit _152S_(_[0.9])” on R1, but after applying the configuration, the engineer notices that other routes are still visible. Which action resolves the issue?

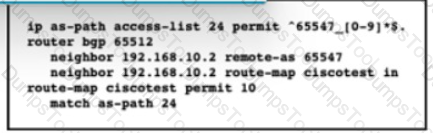

Refer to the exhibit. Router R1 is expected to receive routes that originate from AS 65547 only. However, R1 is receiving routes from AS 65547 and several other ASs that are directly attached to it. Which change to the AS path permit filter corrects the problem?
Refer to the exhibit.

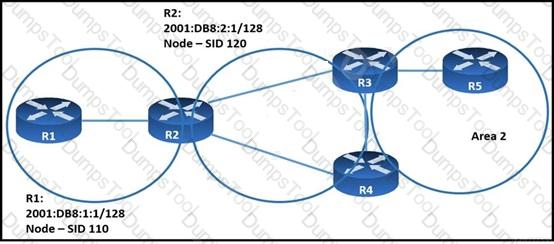

When implementing SRv6, which SID does R2 propagate into area 0 for the prefix 2001:DB8:1:1/128?

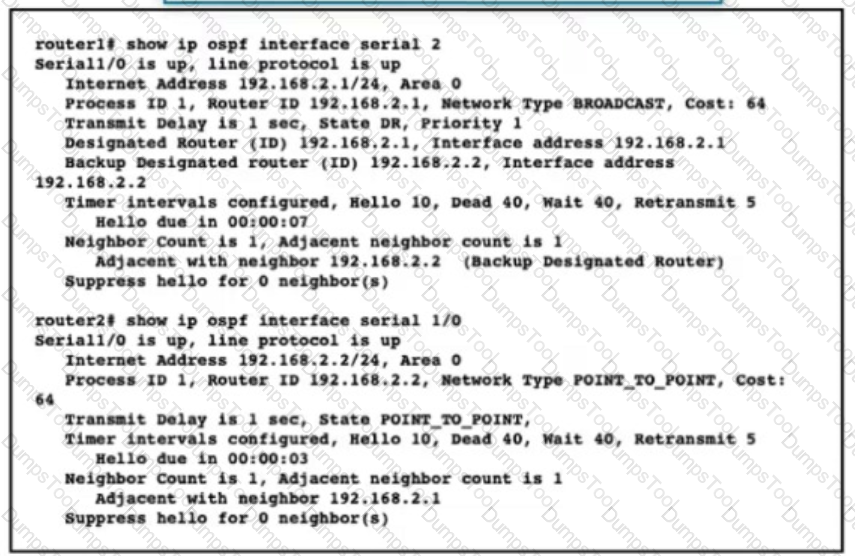

For which reason can two devices fail to establish an OSPF neighbor relationship?

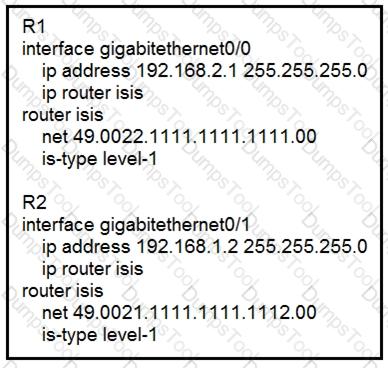

Refer to the exhibit.
Routers R1 and R2 cannot form a neighbor relationship, but the network is otherwise
configured correctly and operating normally. Which two statements describe the problem? (Choose two.)

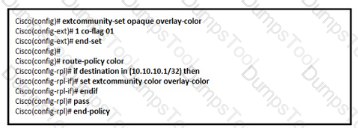

Refer to the exhibit. An engineer is troubleshooting an issue with traffic steering using the color-only automated steering mechanism. BGP is failing to automatically steer traffic into an SR policy with the given color of a route, regardless of the next hop. The layer 2 configuration is correct, and the physical connection between the devices is working normally. Whch additional command sequence must the engineer add to correct the issue?
Which keyword is used with the match route-type command to redistribute the external BGP and IGP routes using route map?
Refer to the exhibit. Routers R1. R2, R3. and R4 are peer routers that reside in different administrative domains. PIM-SM is running in each autonomous system, and EBGP is configured between the peers. A network administrator has just implemented MSDP between the connected peers. When the administrator enabled the MSDP configuration. R1 and R2 failed to establish a peering relationship. All other connected routers successfully established peering sessions Which action must the engineer take to resolve the issue between R1 and R2?
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
Refer to the Tasks tab to view the tasks for this lab item.
Refer to the Topology tab to access the device console(s) and perform the tasks.
Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
All necessary preconfigurations have been applied.
Do not change the enable password or hostname for any device.
Save your configurations to NVRAM before moving to the next item.
Click Next at the bottom of the screen to submit this lab and move to the next question.
When Next is clicked, the lab doses and cannot be reopened.
Topology
Tasks

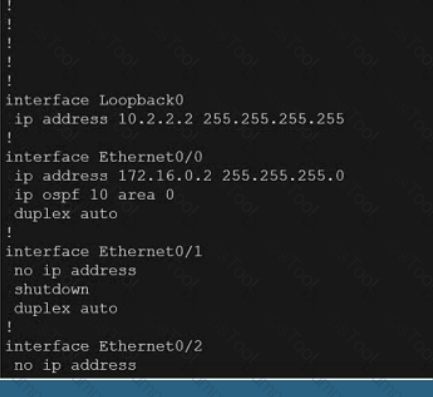

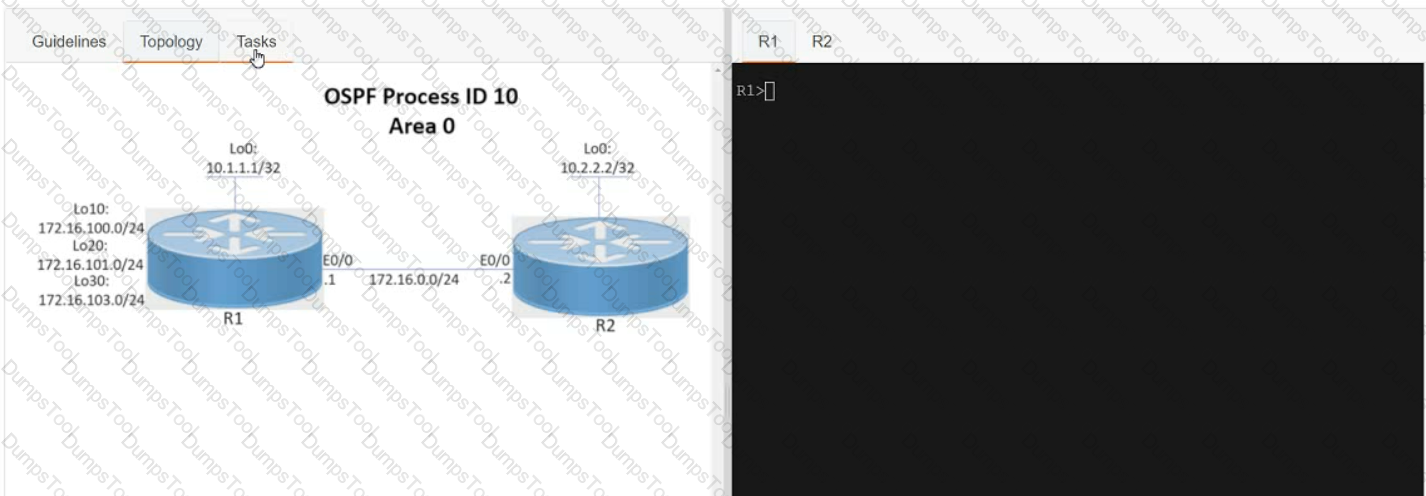

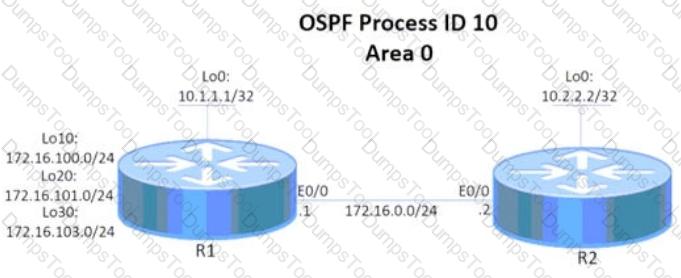

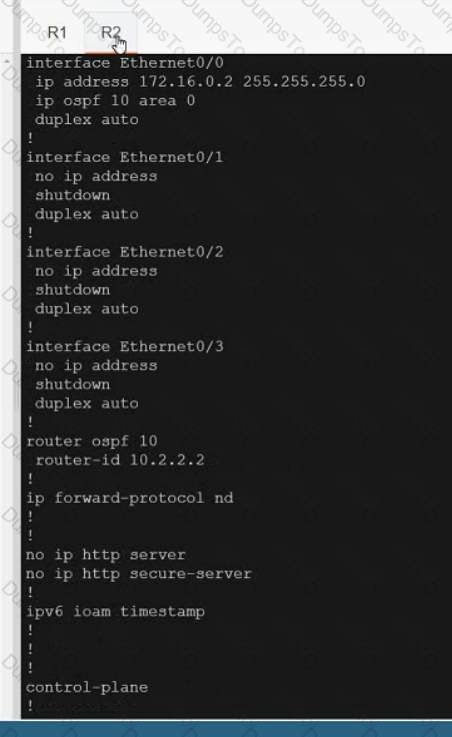

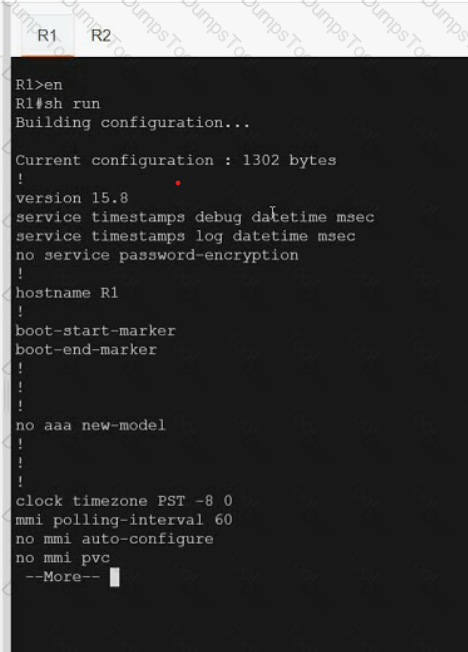

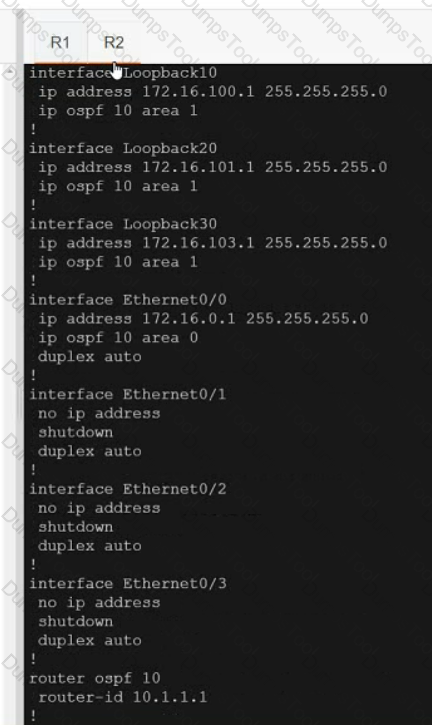

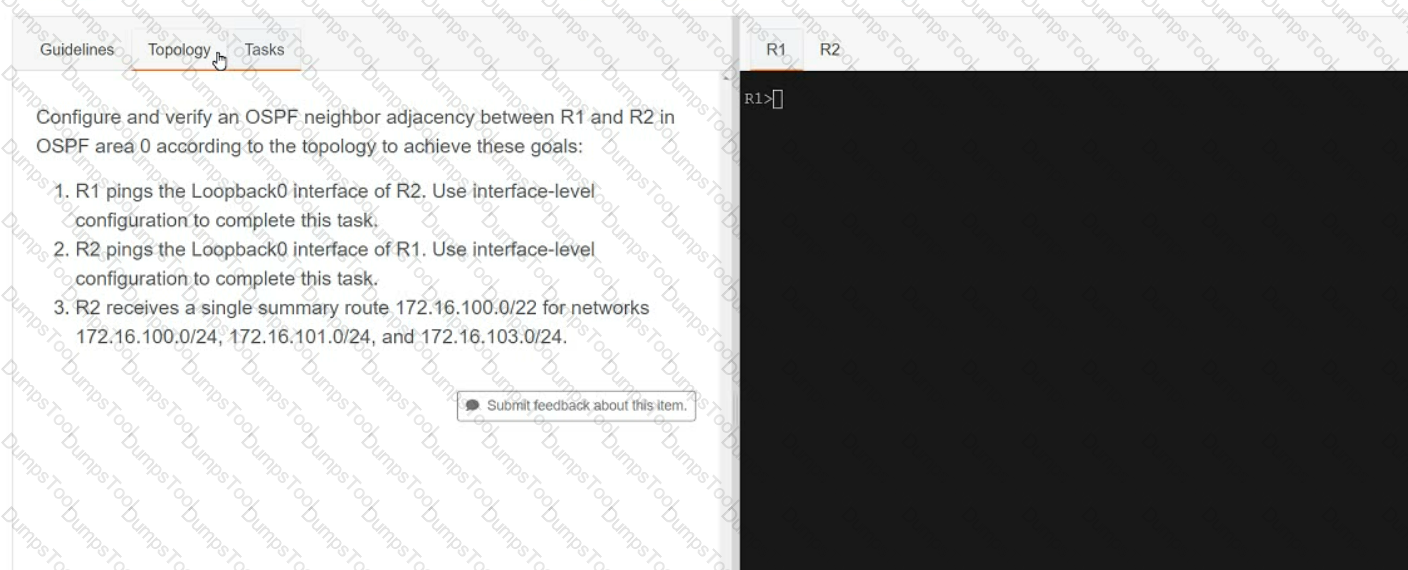

Configure and verify an OSPF neighbor adjacency between R1 and R2 in OSPF area 0 according to the topology to achieve these goals:

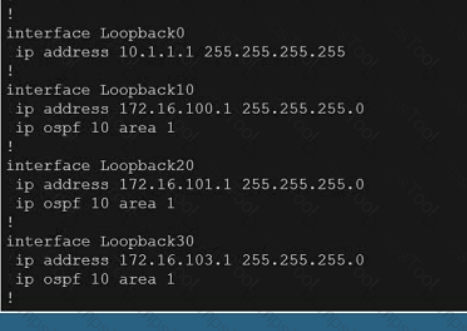

1. R1 pings the Loopback0 interface of R2. Use interface-level configuration to complete this task.

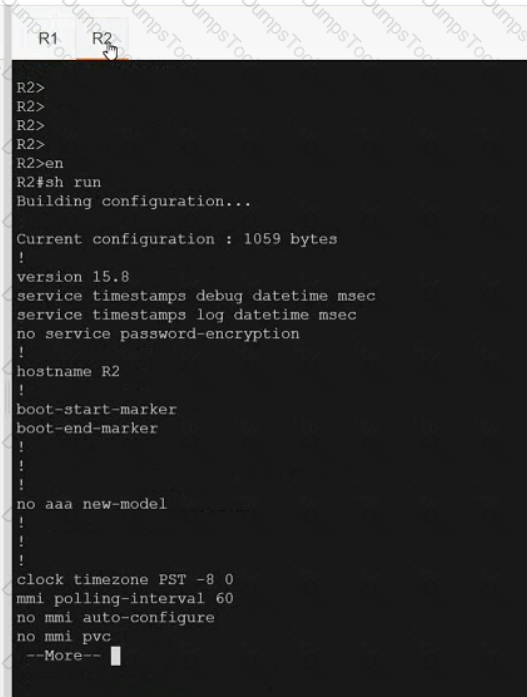

2. R2 pings the Loopback0 interface of R1. Use interface-level configuration to complete this task.

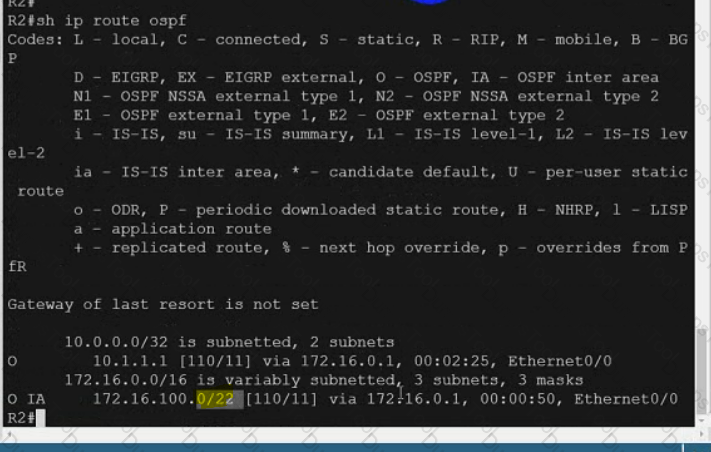

3. R2 receives a single summary route 172.16.100.0/22 for networks 172.16.100.0/24, 172.16.101.0/24, and 172.16.103.0/24.

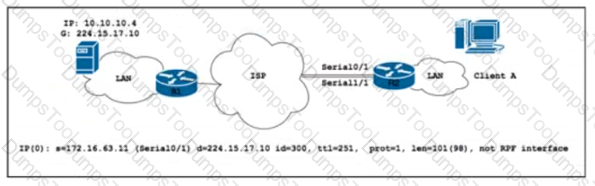

Refer to the exhibit. Mid-sized company Z connected two branch offices via a multicast-enabled ISP using the BGP routing protocol. PIM was implemented to support multicast streaming between the branches via MSDP Client A cannot connect to the multicast stream source of company Z. The network engineer ran a debug on the edge of the network as shown. Which action resolves the issue?
Refer to the exhibit.

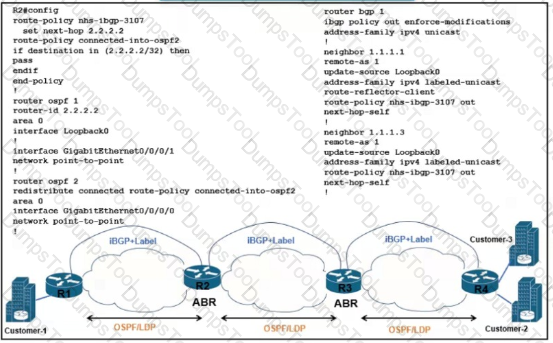

There is a connectivity issue between Customer-1 and Customer-2 File servers between the customers cannot send critical data R3 routes are missing from the routing table on the Customer-1 router All interlaces on Customer-1 are up Which configuration must be applied to router R2 to correct the problem?
