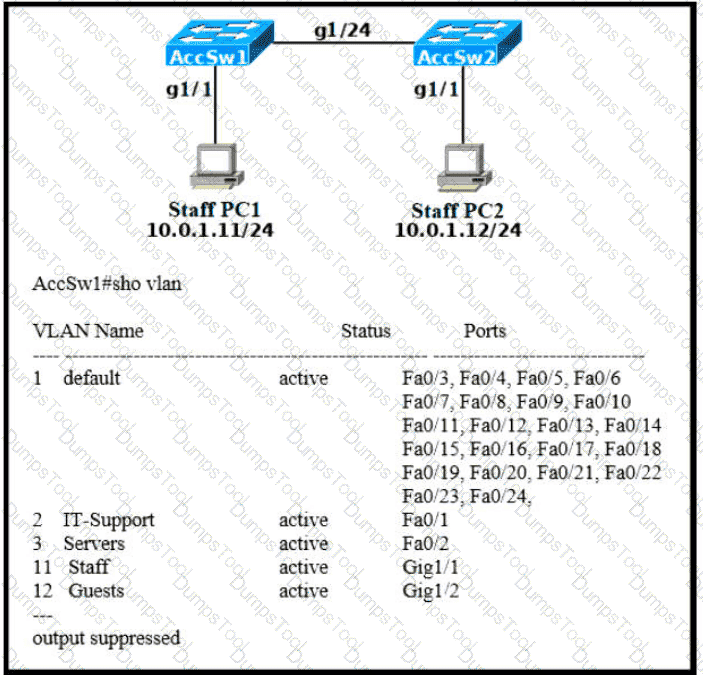

Refer to the exhibit.

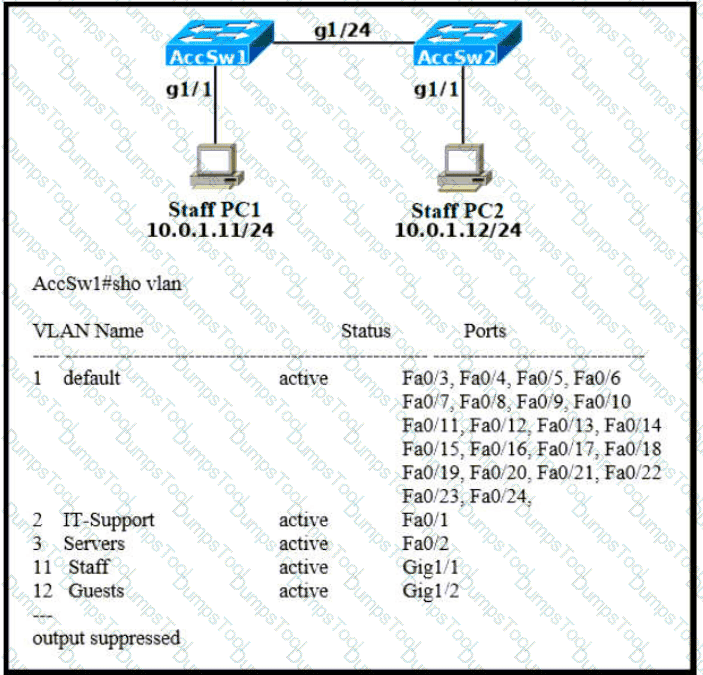

Switch AccSw2 has just been added to the network along with PC2. All VLANs have been implemented on AccSw2. How must the ports on AccSw2 be configured to establish Layer 2 connectivity between PC1 and PC2?

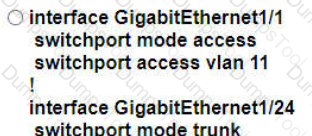

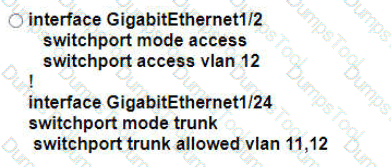

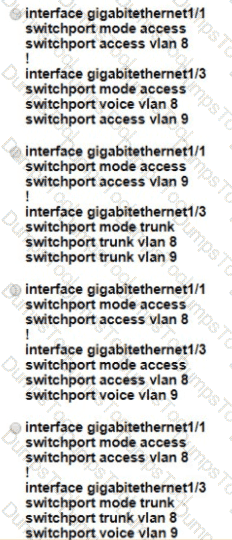

Text
Description automatically generated
Text
Description automatically generated
Text
Description automatically generated
Text
Description automatically generated

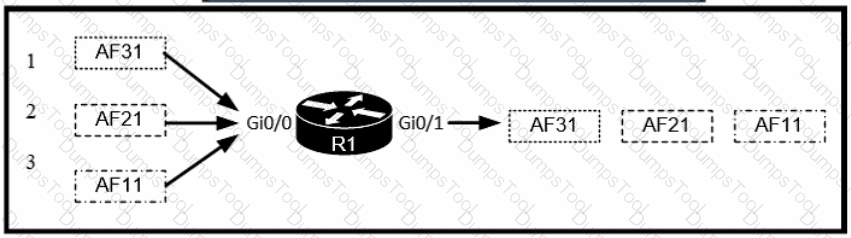

Drag and drop the QoS terms from the left onto the descriptions on the right.

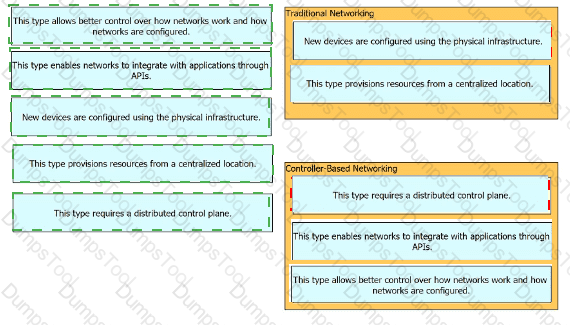

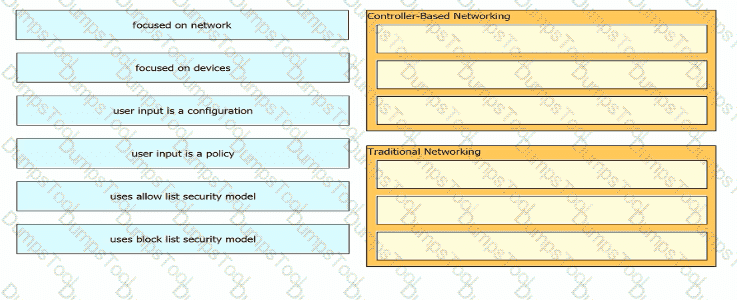

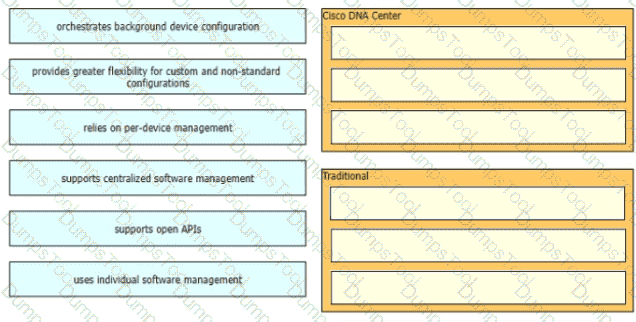

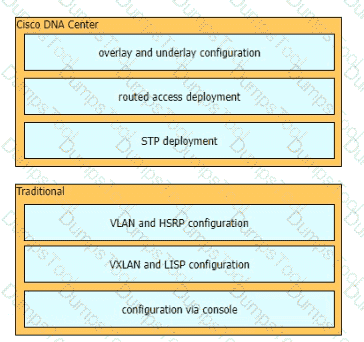

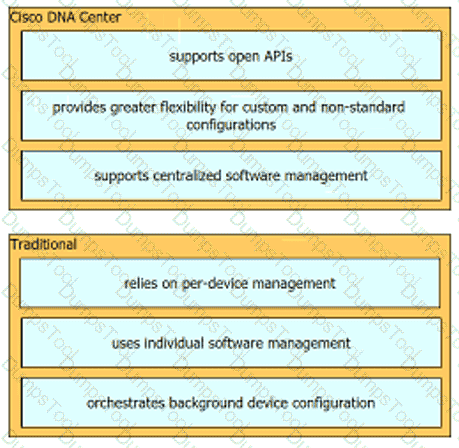

How do traditional campus device management and Cisco DNA Center device management differ in regards to deployment?

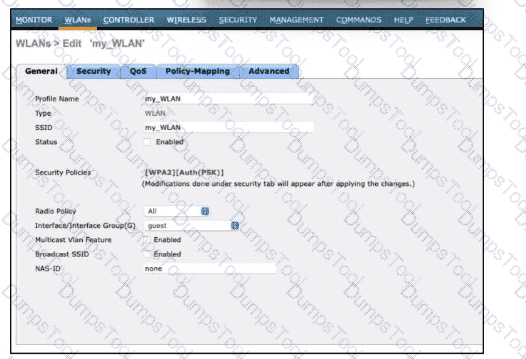

Refer to the exhibit.

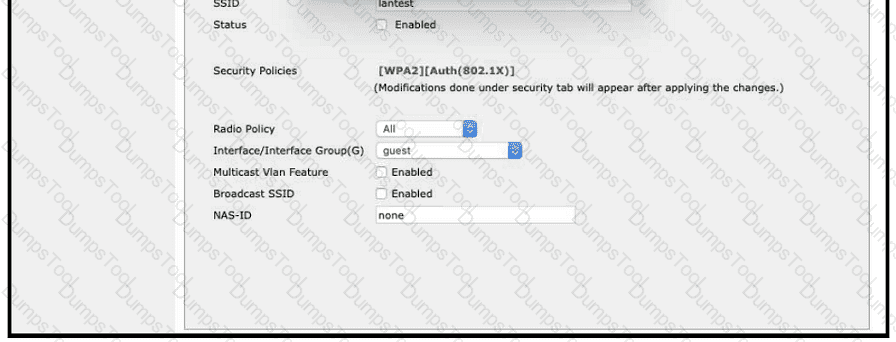

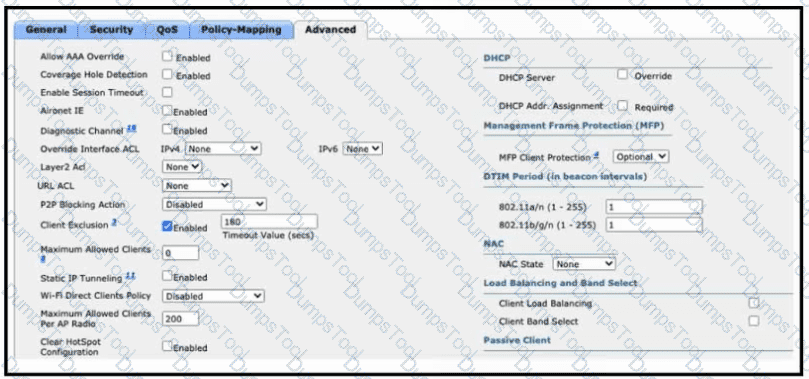

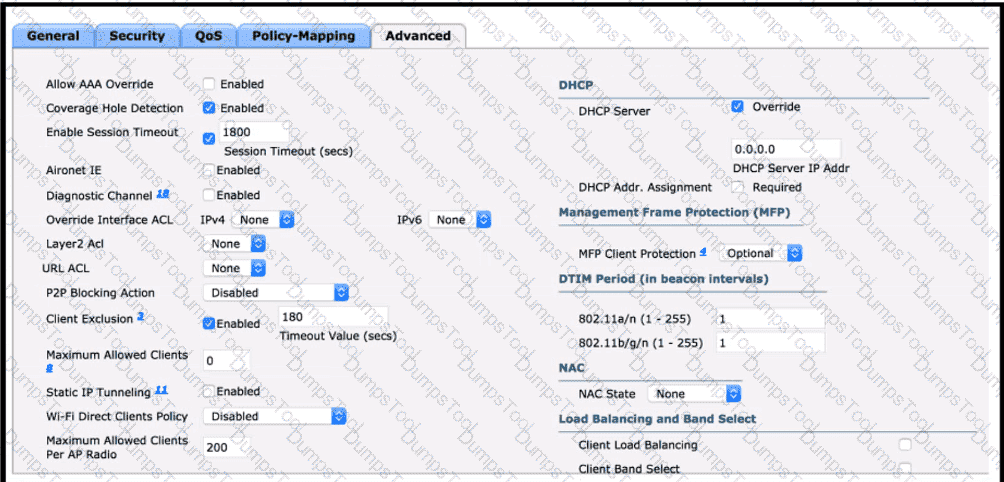

A Cisco engineer creates a new WLAN called lantest. Which two actions must be performed so that only high-speed 2.4-Ghz clients connect? (Choose two.)
Refer to the exhibit.

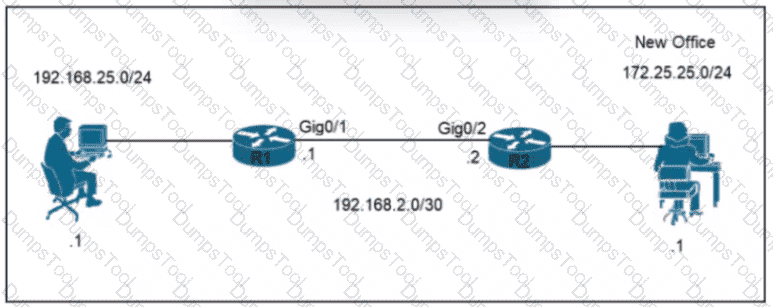

A network engineer must configure the link with these requirements:
• Consume as few IP addresses as possible.
• Leave at least two additional useable IP addresses for future growth.
Which set of configurations must be applied?

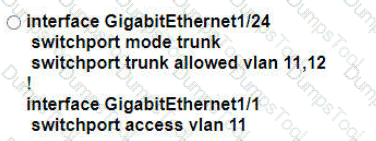

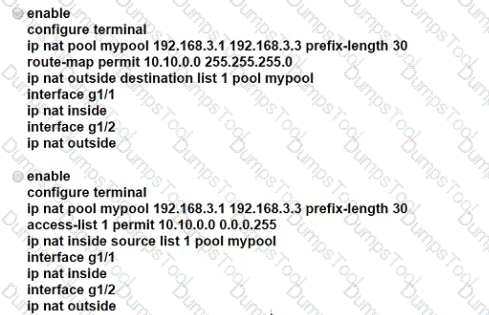

A)
B)
C)
D)

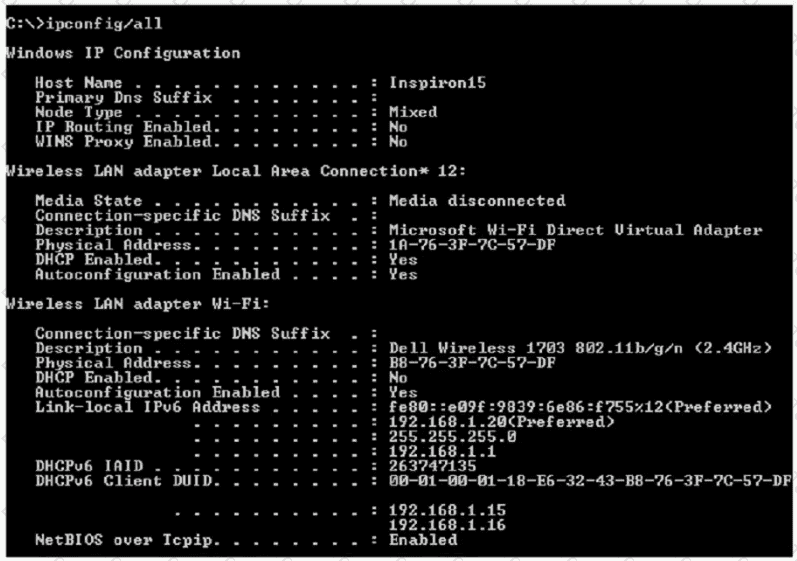

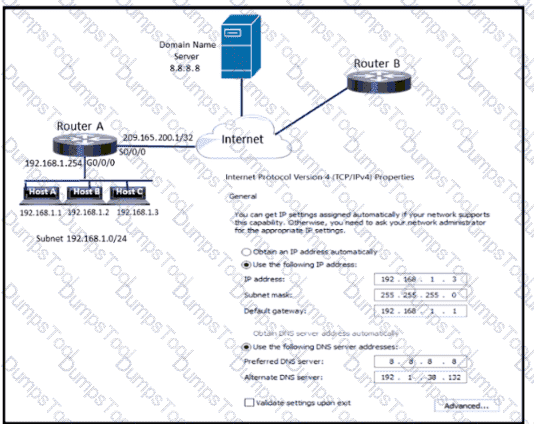

Refer to the exhibit.

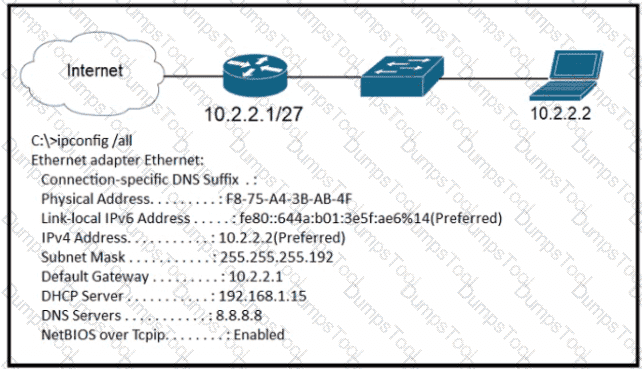

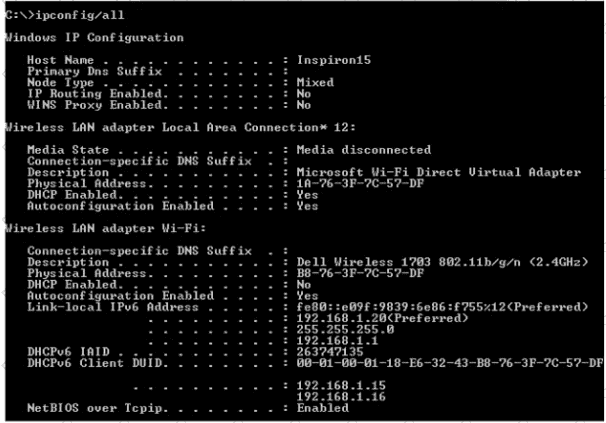

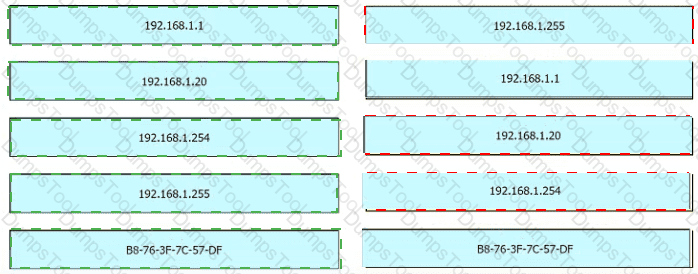

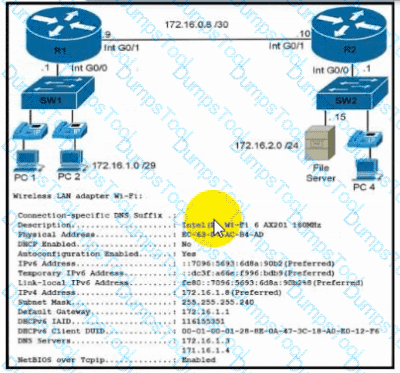

The given Windows PC is requesting the IP address of the host at www.cisco.com. To which IP address is the request sent?

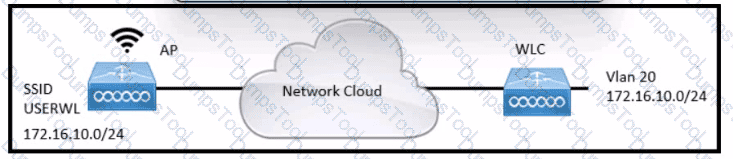

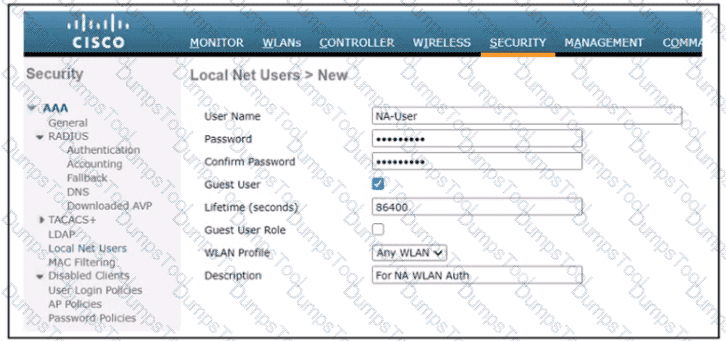

Refer to the exhibit.
A network engineer configures the Cisco WLC to authenticate local wireless clients against a RADIUS server Which task must be performed to complete the process?

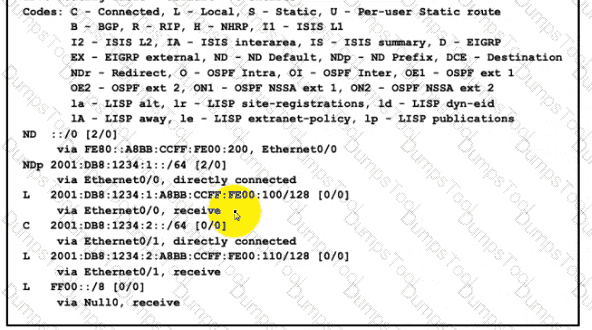

Refer to the exhibit.

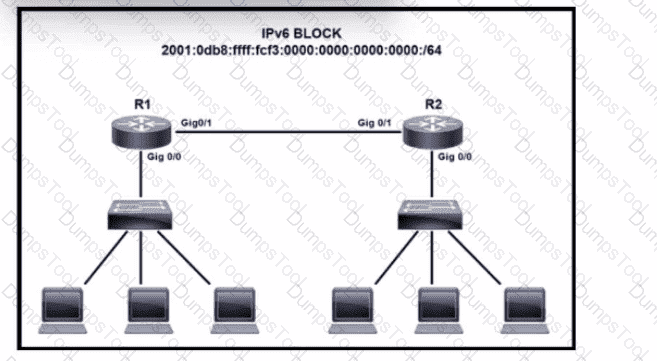

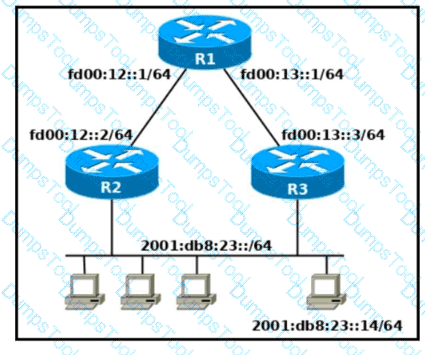

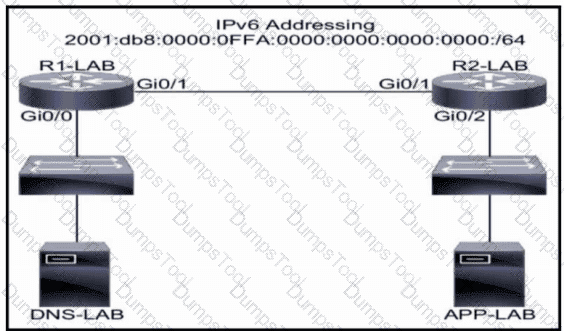

Refer to the exhibit. The IPv6 address for the LAN segment on router R1 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?
Refer to the exhibit.
An engineer must configure router R2 so it is elected as the DR on the WAN subnet. Which command sequence must be configured?
A)
B)
C)
D)
Refer to the exhibit.

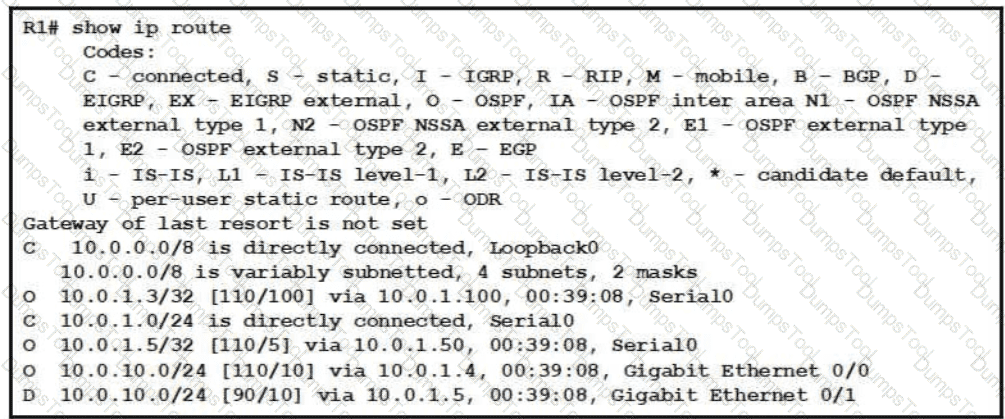

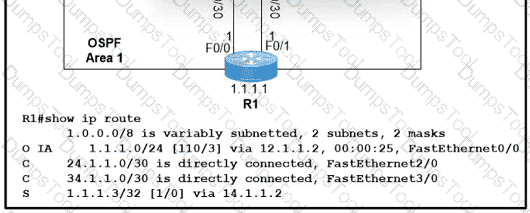

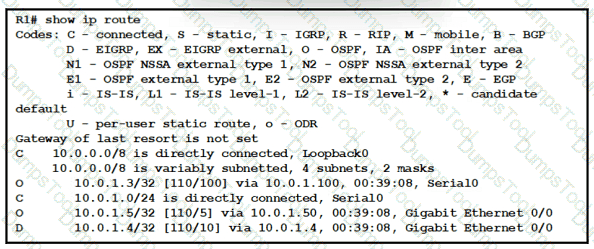

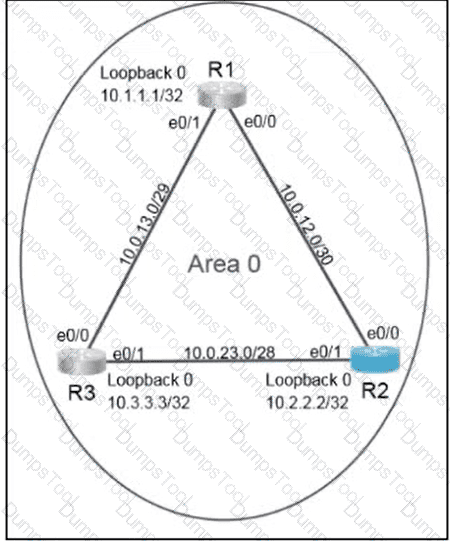

Which two values does router R1 use to identify valid routes for the R3 loopback address 1.1.1.3/32? (Choose two.)
Which physical component is distributed among multiple virtual machines running on the same hypervisor?

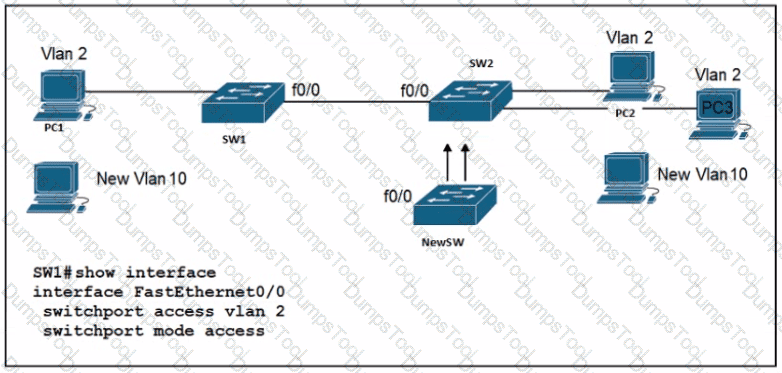

Refer to the exhibit.
A new VLAN and switch are added to the network. A remote engineer configures OldSwitch and must ensure that the configuration meets these requirements:
• accommodates current configured VLANs
• expands the range to include VLAN 20
• allows for IEEE standard support for virtual LANs
Which configuration on the NewSwitch side of the link meets these requirements?
A)
B)
C)
D)
What does a switch do when it receives a frame whose destination MAC address is missing from the MAC address table?
The clients and OHCP server reside on different subnets. Which command must be used to forward requests and replies between clients on the 10.10.0.1/24 subnet and the DHCP server at 192.168.10.1?

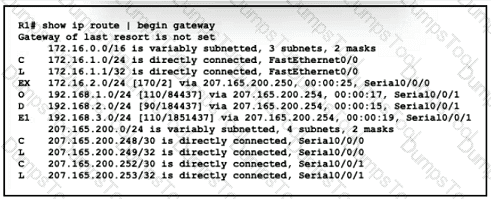

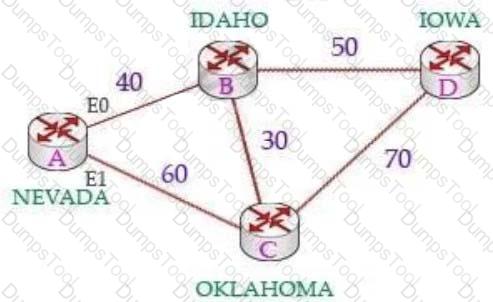

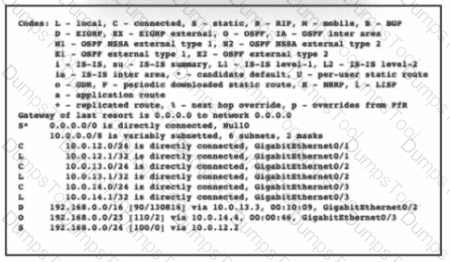

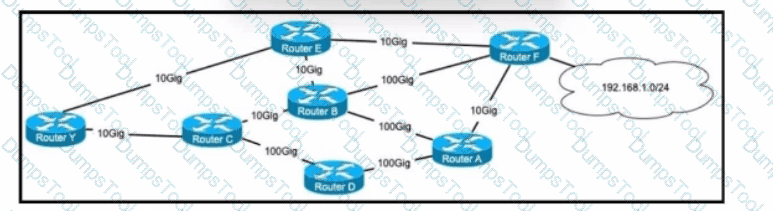

Refer to the exhibit.

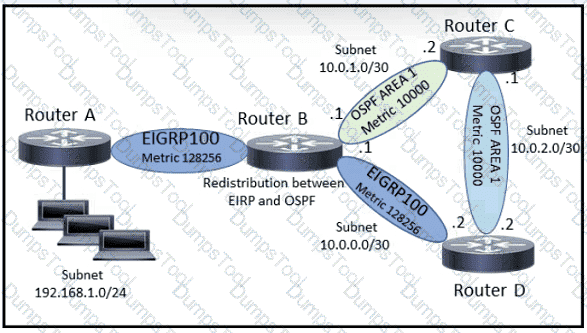

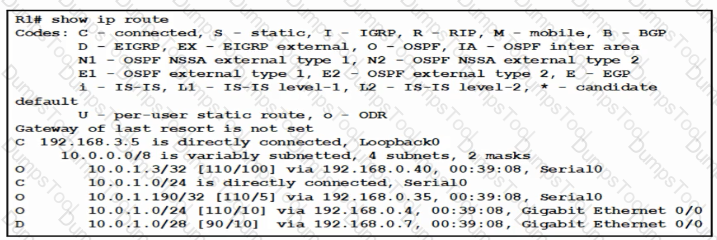

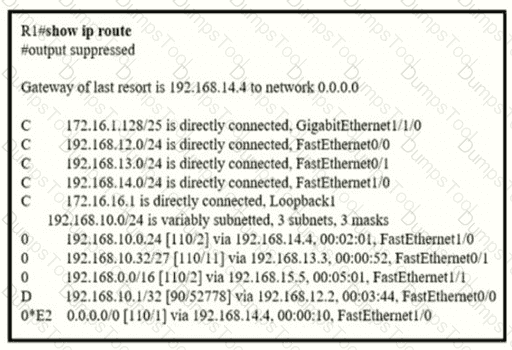

A network engineer executes the show ip route command on router D. What is the next hop to network 192.168 1 0/24 and why?

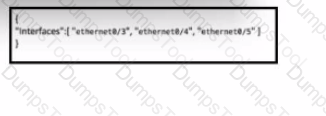

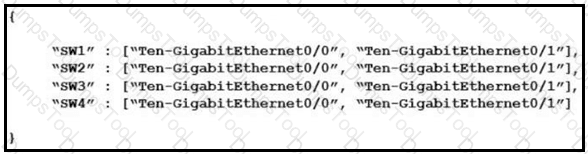

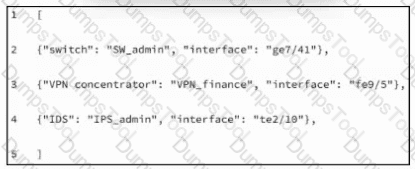

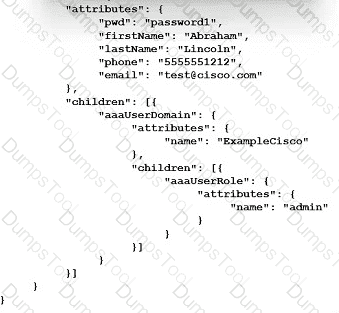

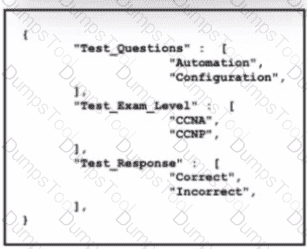

Refer to the exhibit.

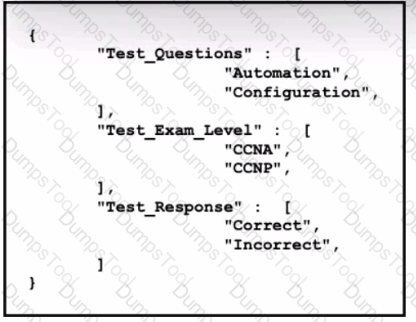

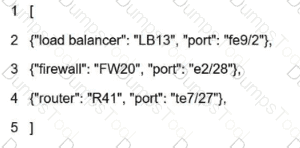

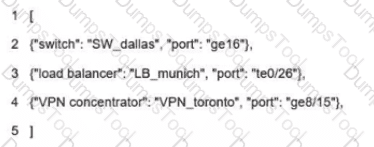

What is represented by the word "switch’’ in line 2 of the JSON schema?

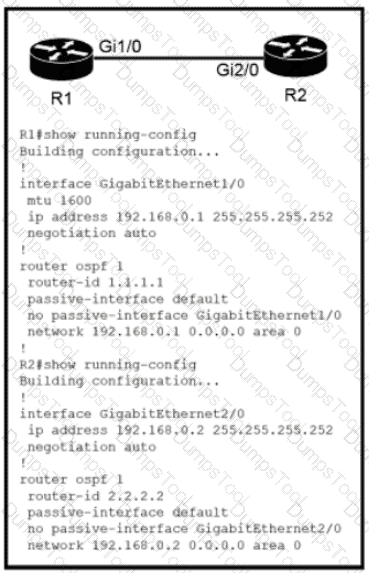

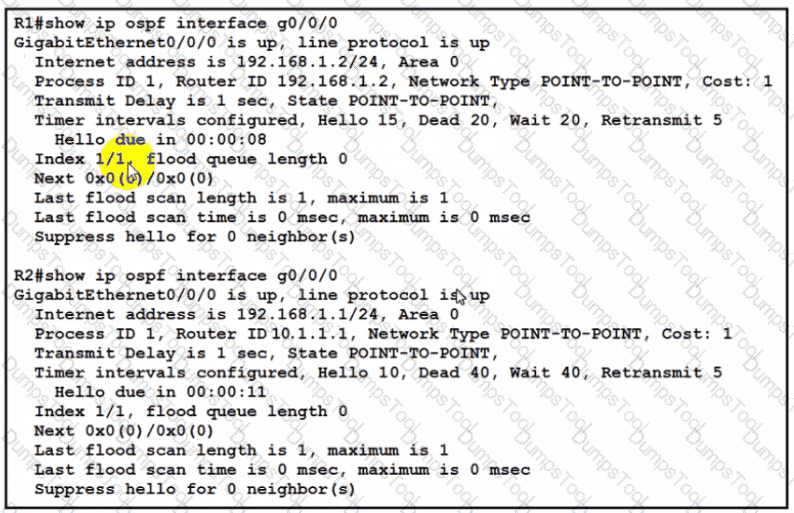

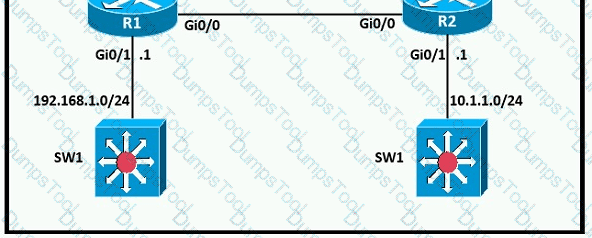

Refer to the exhibit.
A network engineer started to configure two directly-connected routers as shown. Which command sequence must the engineer configure on R2 so that the two routers become OSPF neighbors?
A)
B)
C)
D)

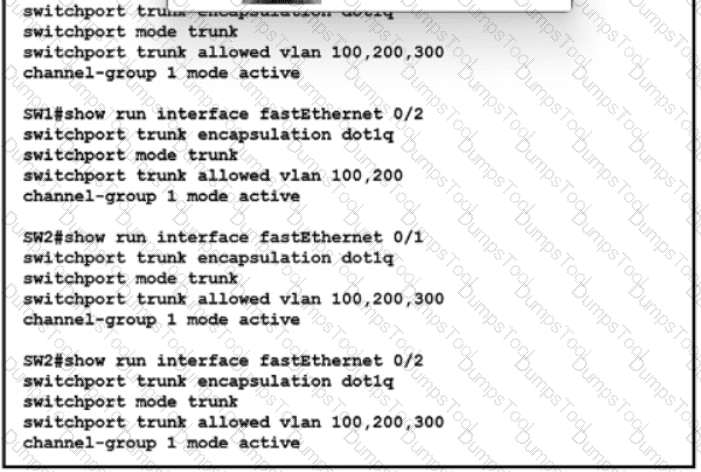

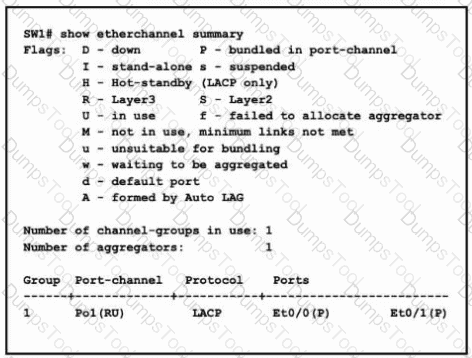

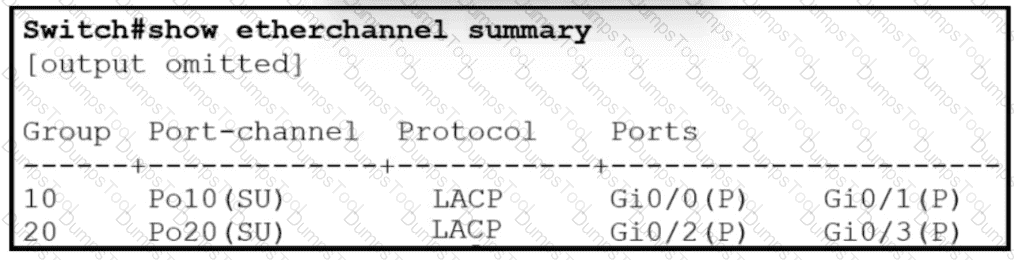

Refer to the exhibit. An engineer is building a new Layer 2 LACP EtherChannel between SW1 and SW2. and they executed the given show commands to verify the work Which additional task must be performed so that the switches successfully bundle the second member in the LACP port-channel?
What differentiates device management enabled by cisco DNA center from traditional campus device management?

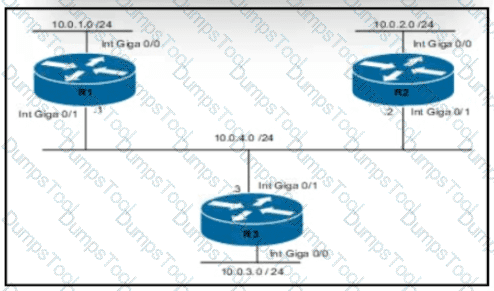

Refer to the exhibit.

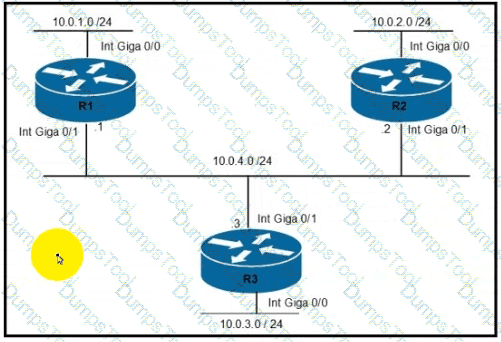

Routers R1 and R3 have the default configuration The router R2 priority is set to 99 Which commands on R3 configure it as the DR in the 10.0 4.0/24 network?
Refer to the exhibit.

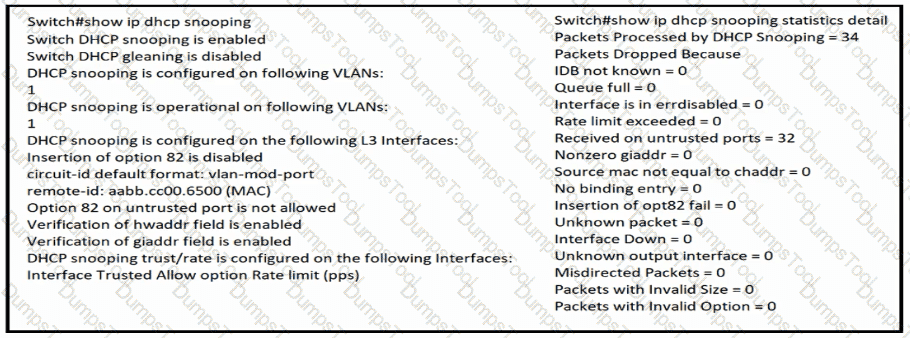

The DHCP server and clients are connected to the same switch. What is the next step to complete the DHCP configuration to allow clients on VLAN 1 to receive addresses from the DHCP server?

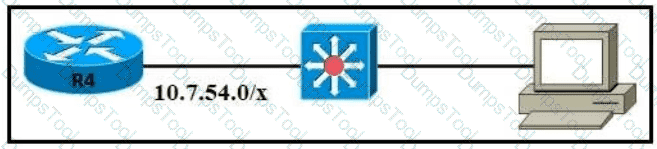

Refer to the exhibit.
The router has been configured with a supernet to accommodate the requirement for 380 users on a subnet The requirement already considers 30% future growth. Which configuration verifies the IP subnet on router R4?
A)
B)
C)
D)

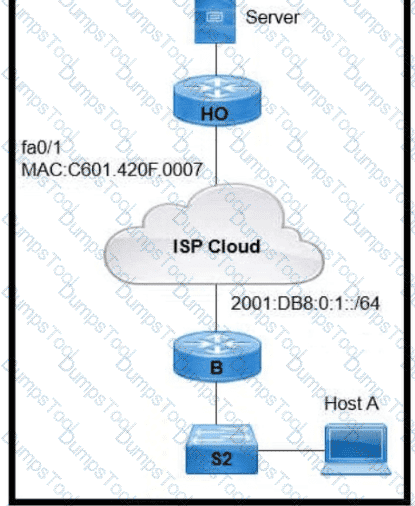

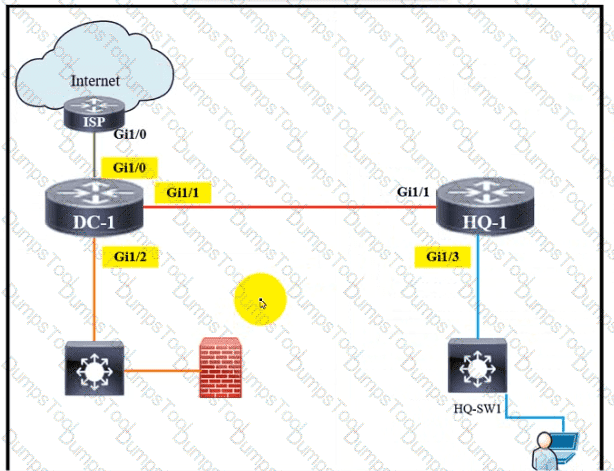

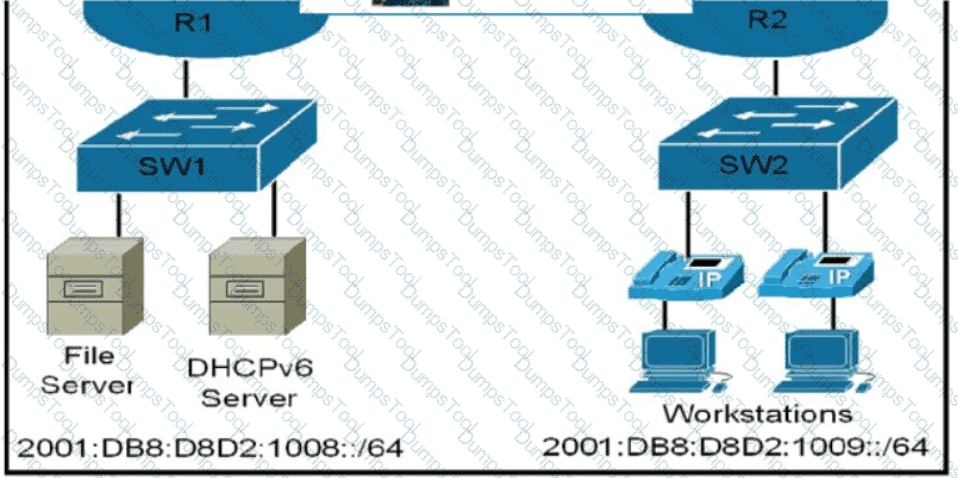

Refer to the exhibit.

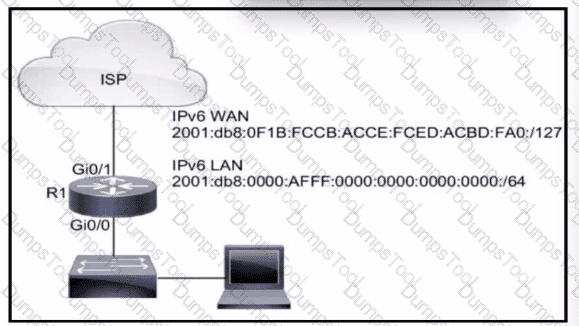

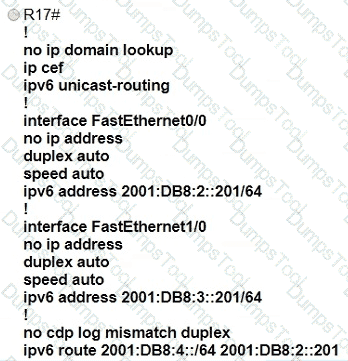

An engineer is configuring the HO router. Which IPv6 address configuration must be applied to the router fa0'1 interface for the router to assign a unique 64-brt IPv6 address to Itself?

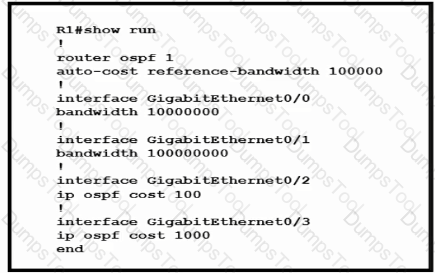

Refer to the exhibit.

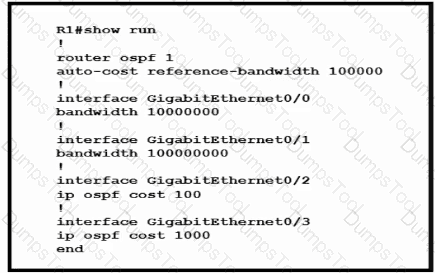

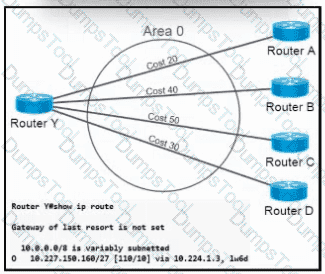

Router R1 resides in OSPF Area 0. After updating the R1 configuration to influence the paths that it will use to direct traffic, an engineer verified that each of the four Gigabit interfaces has the same route to 10.10.0.0/16. Which interface will R1 choose to send traffic to reach the route?
Which Layer 2 switch function encapsulates packets for different VLANs so that the packets traverse the same port and maintain traffic separation between the VLANs?
A network engineer must implement an IPv6 configuration on the vlan 2000 interface to create a routable locally-unique unicast address that is blocked from being advertised to the internet. Which configuration must the engineer apply?

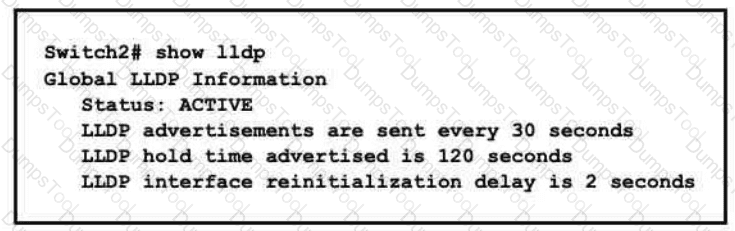

Refer to the exhibit.

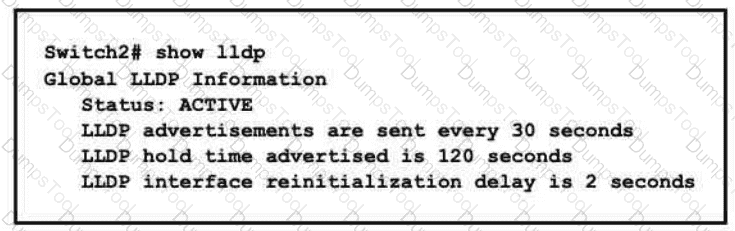

A network engineer must update the configuration on Switch2 so that it sends LLDP packets every minute and the information sent via LLDP is refreshed every 3 minutes Which configuration must the engineer apply?
A)
B)
C)
D)
An engineer is configuring remote access to a router from IP subnet 10.139.58.0/28. The domain name, crypto keys, and SSH have been configured. Which configuration enables the traffic on the destination router?
A)
B)
C)
D)
What is a function of Opportunistic Wireless Encryption in an environment?

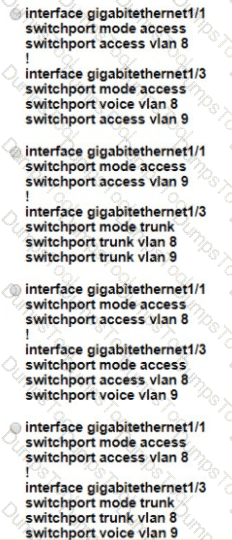

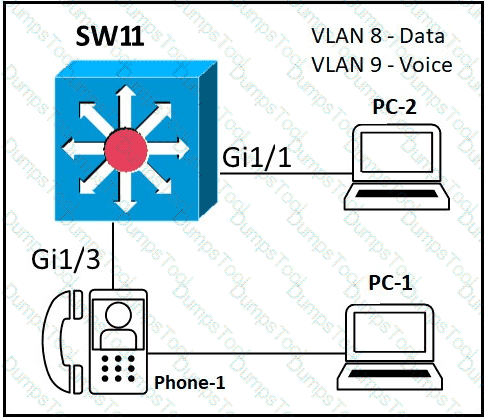

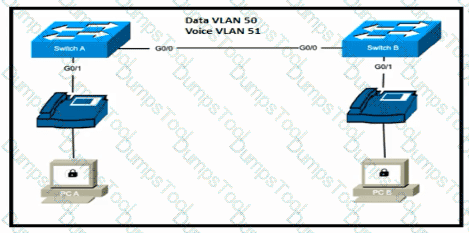

A Cisco engineer must configure a single switch interface to meet these requirements
• accept untagged frames and place them in VLAN 20
• accept tagged frames in VLAN 30 when CDP detects a Cisco IP phone
Which command set must the engineer apply?
A)
B)
C)
D)
A network engineer must configure two new subnets using the address block 10 70 128 0/19 to meet these requirements:
• The first subnet must support 24 hosts
• The second subnet must support 472 hosts
• Both subnets must use the longest subnet mask possible from the address block
Which two configurations must be used to configure the new subnets and meet a requirement to use the first available address in each subnet for the router interfaces? (Choose two )

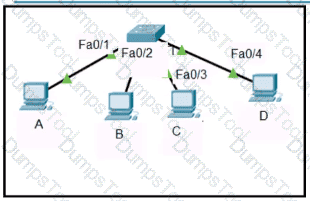

Refer to the exhibit.

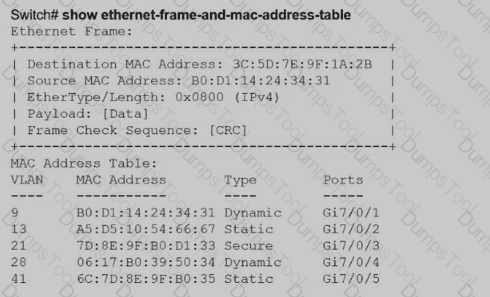

Host A sent a data frame destined for host D
What does the switch do when it receives the frame from host A?

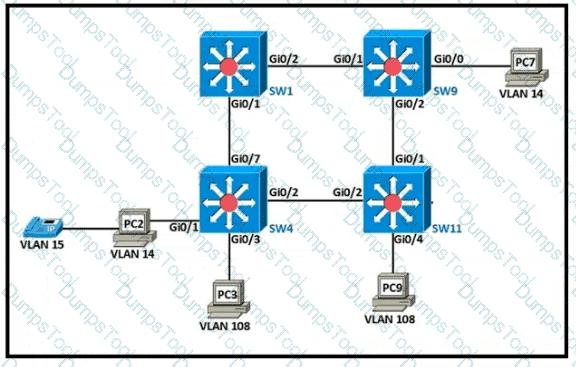

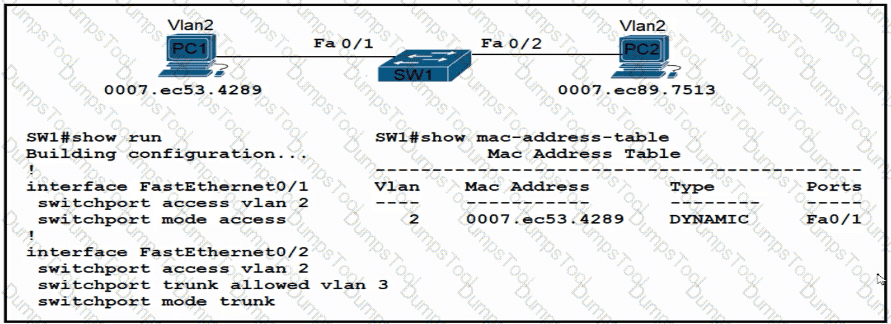

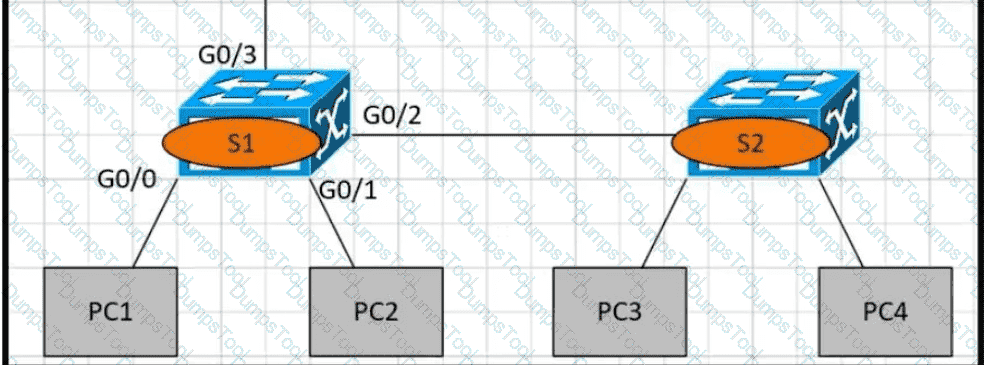

Refer to the exhibit.
An engineer has started to configure replacement switch SW1. To verify part of the configuration, the engineer issued the commands as shown and noticed that the entry for PC2 is missing. Which change must be applied to SW1 so that PC1 and PC2 communicate normally?
A)
B)
C)
D)

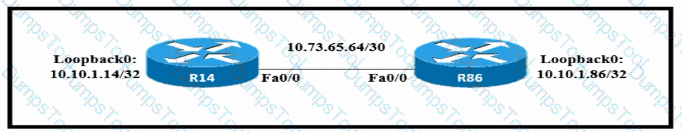

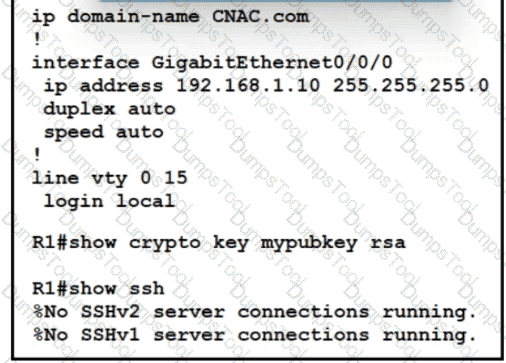

Refer to the exhibit.
Which minimum configuration items are needed to enable Secure Shell version 2 access to R15?

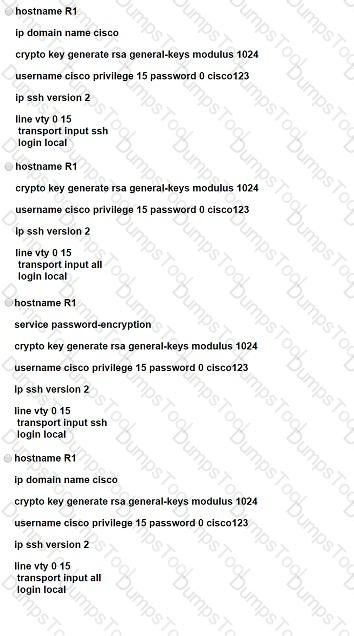

A)
B)
C)
D)

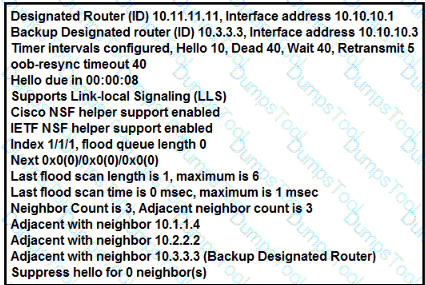

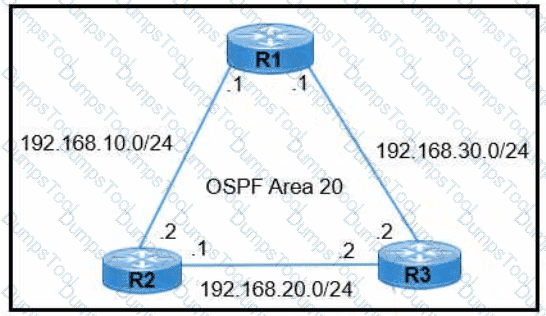

Refer to the exhibit.

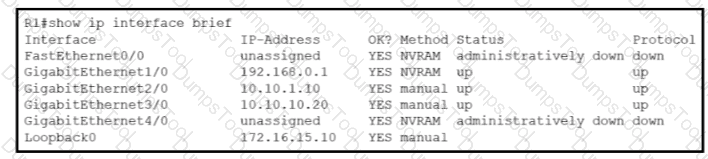

Which two configurations must the engineer apply on this network so that R1 becomes the DR? (Choose two.)
A)
B)
C)
D)
E)
Which action implements physical access control as part of the security program of an organization?

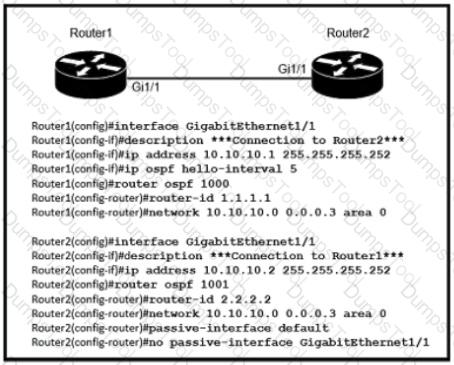

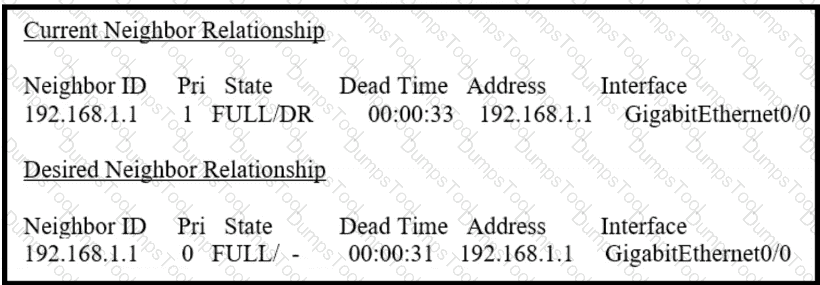

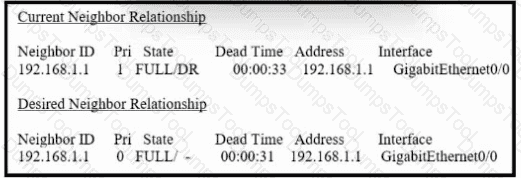

OSPF must be configured between routers R1 and R2. Which OSPF configuration must be applied to router R1 to avoid a DR/BDR election?

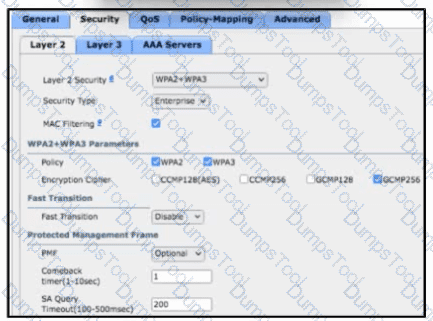

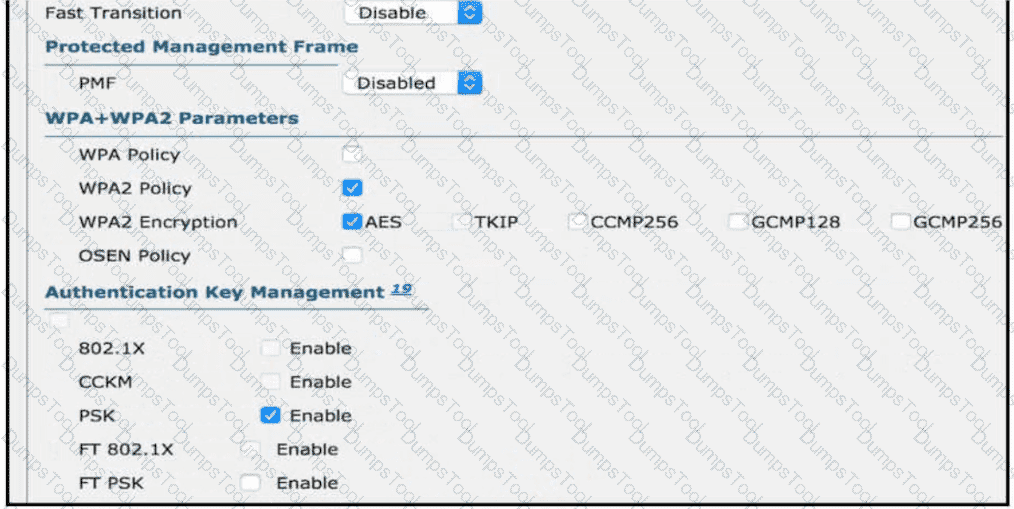

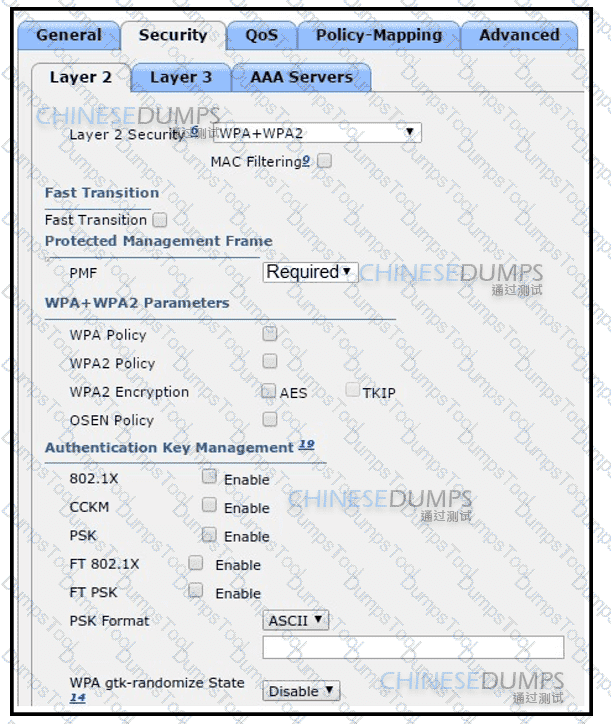

Refer to the exhibit.

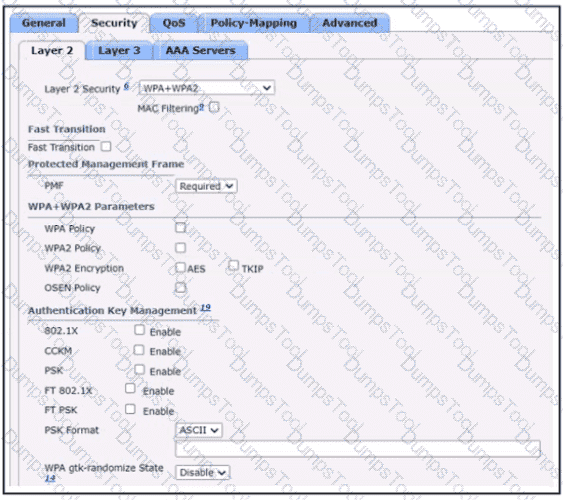

Users need to connect to the wireless network with IEEE 802. 11r-compatible devices. The connection must be maintained as users travel between floors or to other areas in the building What must be the configuration of the connection?

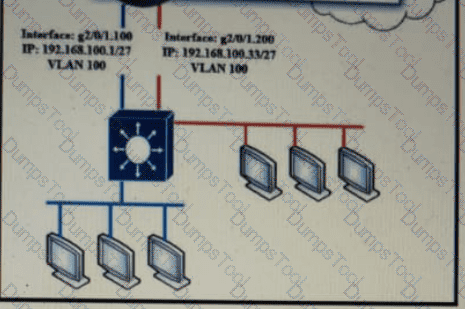

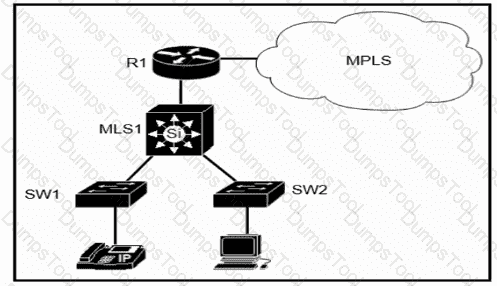

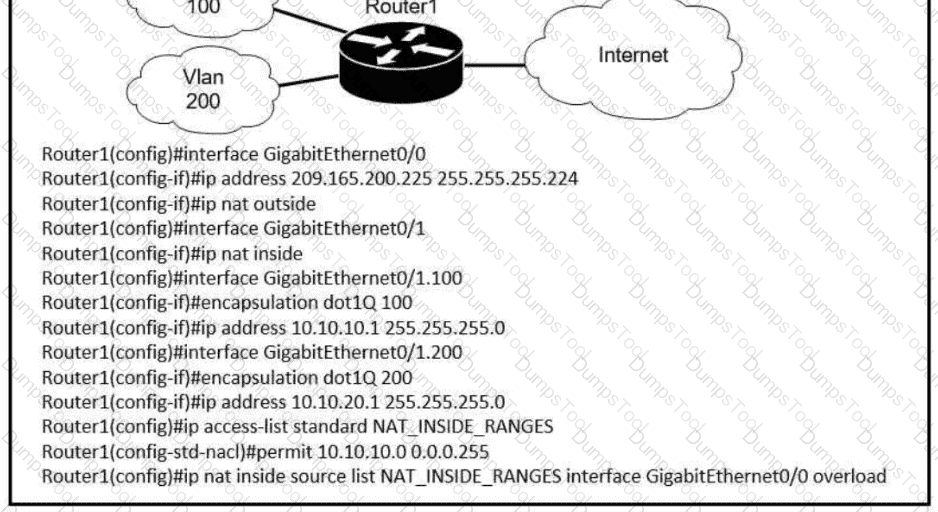

Refer to the exhibit.

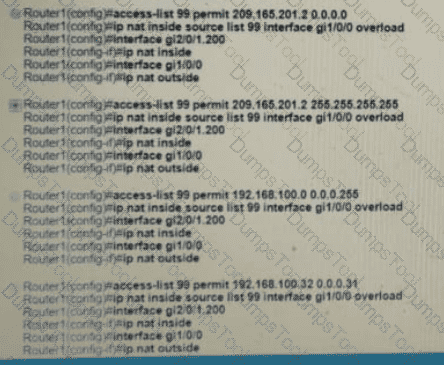

Users on existing VLAN 100 can reach sites on the Internet. Which action must the administrator take to establish connectivity to the Internet for users in VLAN 200?

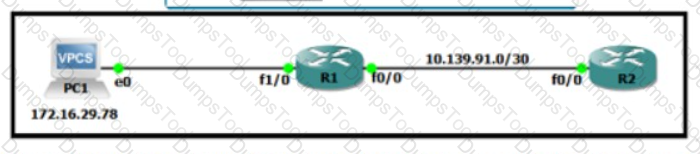

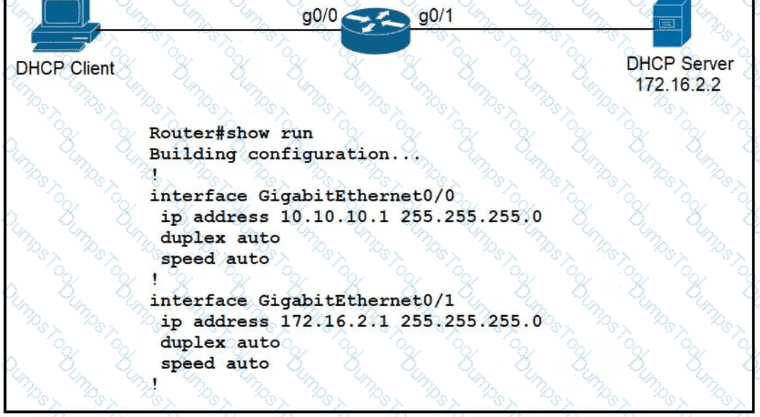

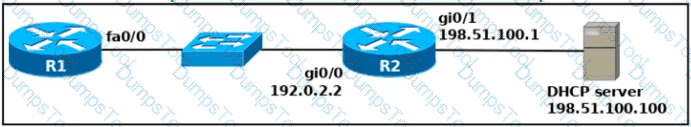

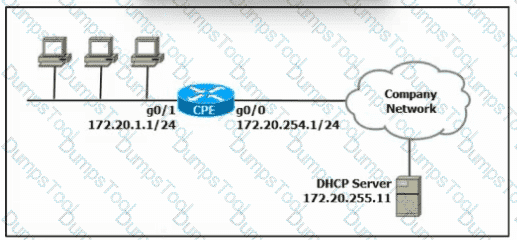

Refer to the exhibit.
An engineer is configuring a new router on the network and applied this configuration. Which additional configuration allows the PC to obtain its IP address from a DHCP server?

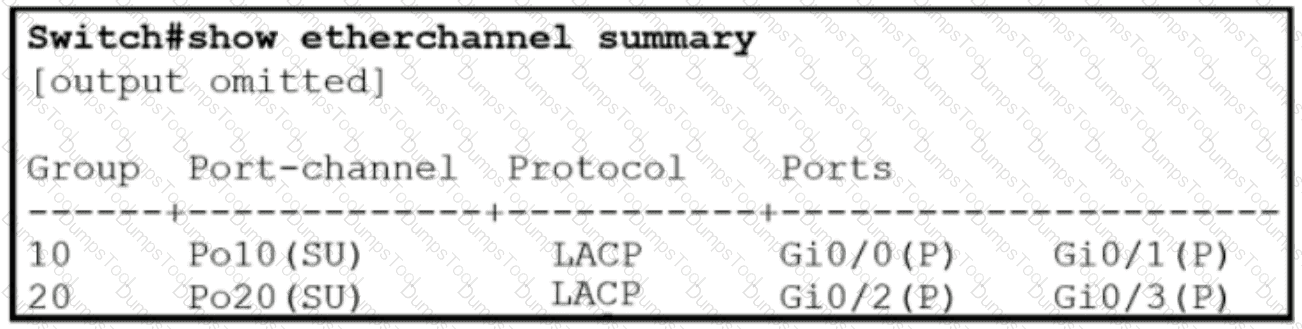

Refer to the exhibit.

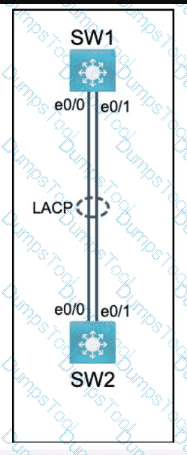

An engineer is configuring an EtherChannel using LACP between Switches 1 and 2 Which configuration must be applied so that only Switch 1 sends LACP initiation packets?

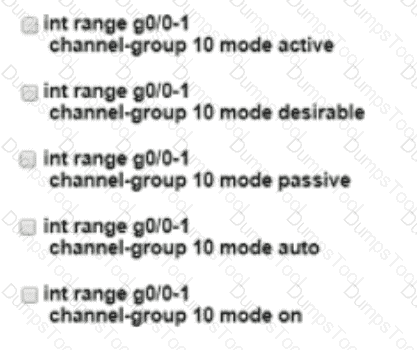

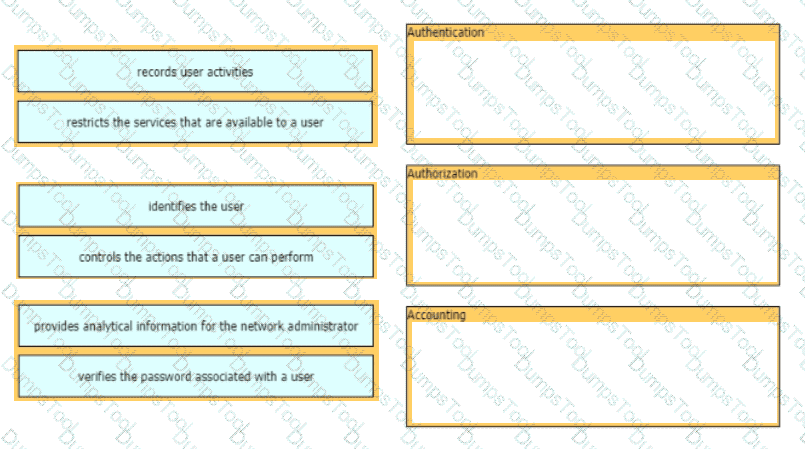

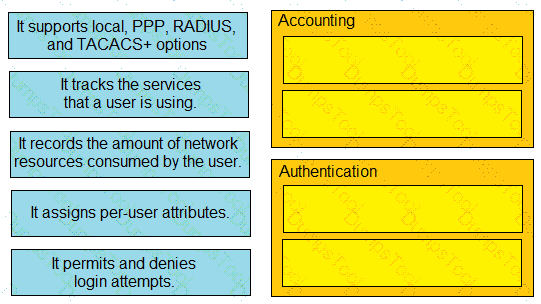

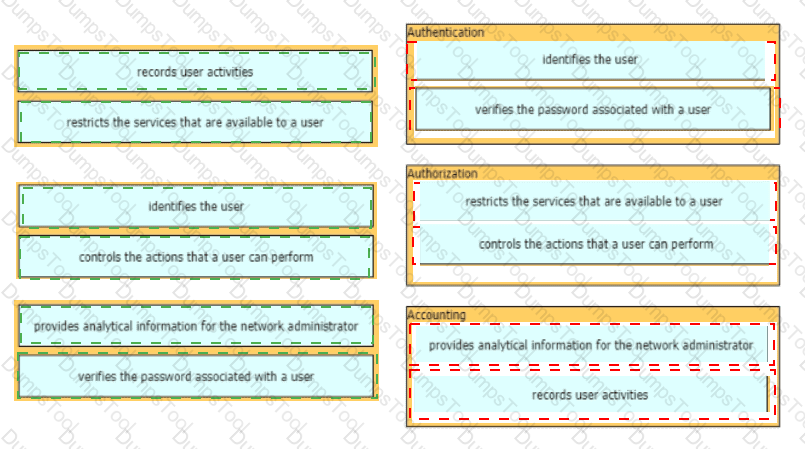

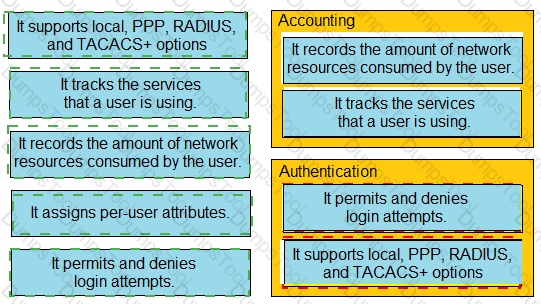

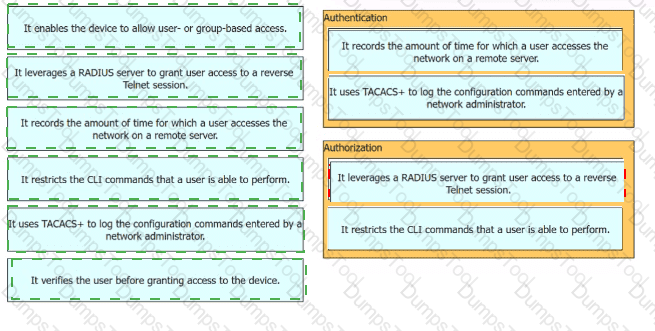

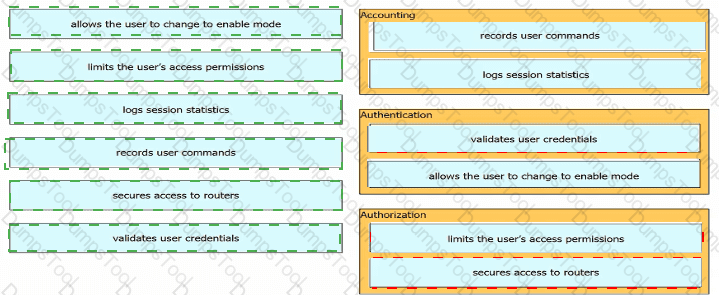

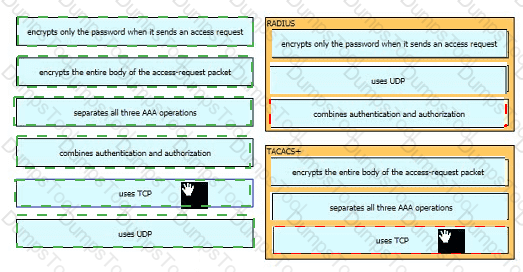

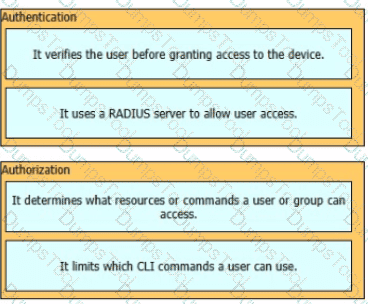

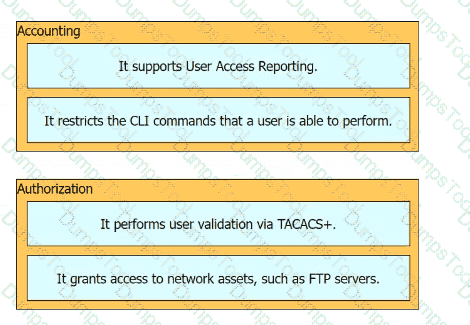

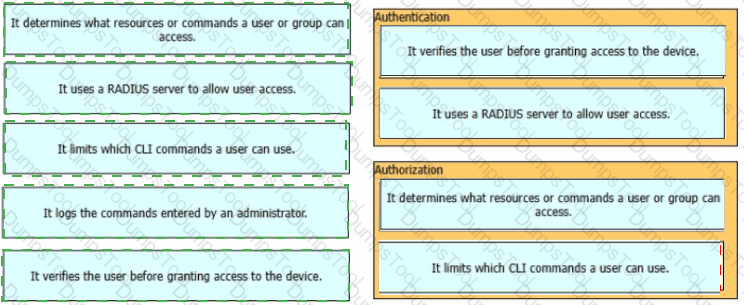

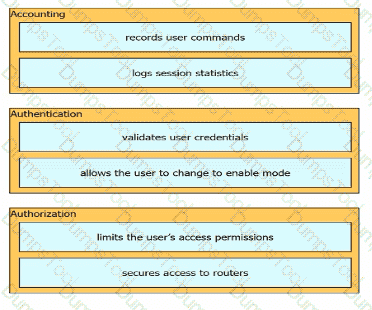

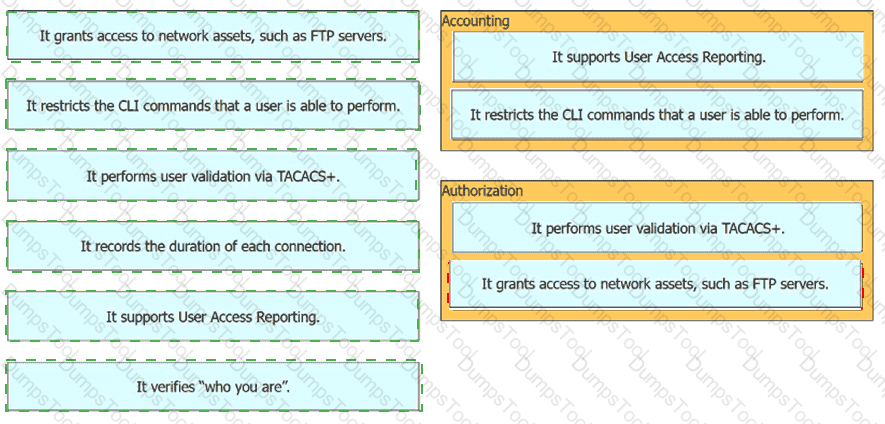

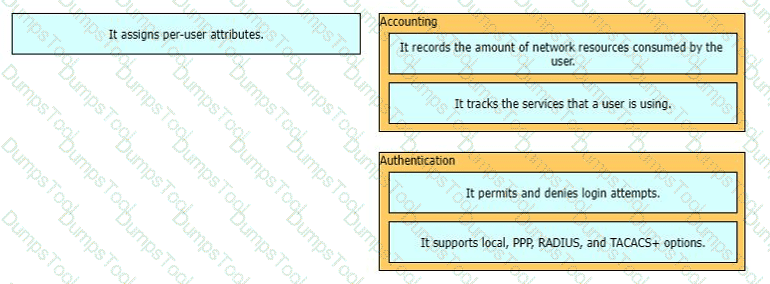

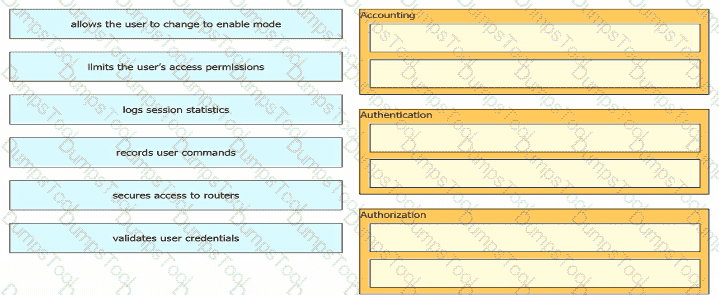

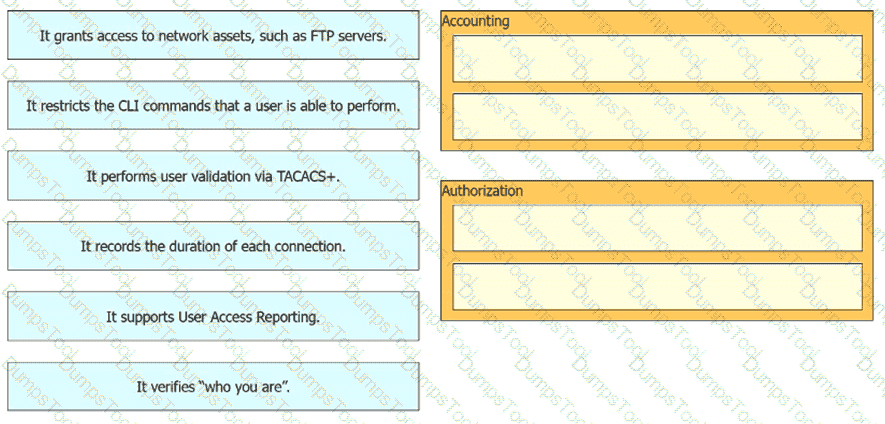

Drag and drop the descriptions of AAA services from the left onto the corresponding services on the right.

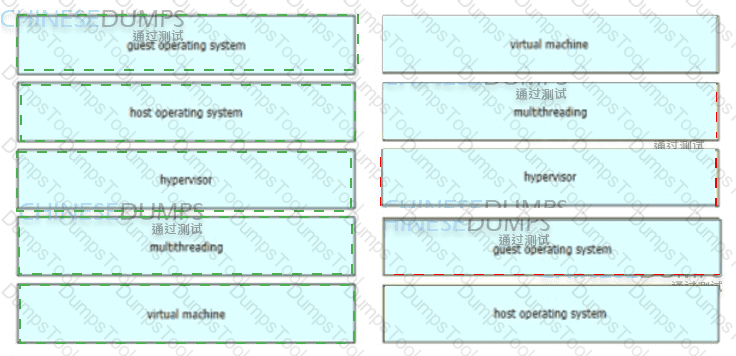

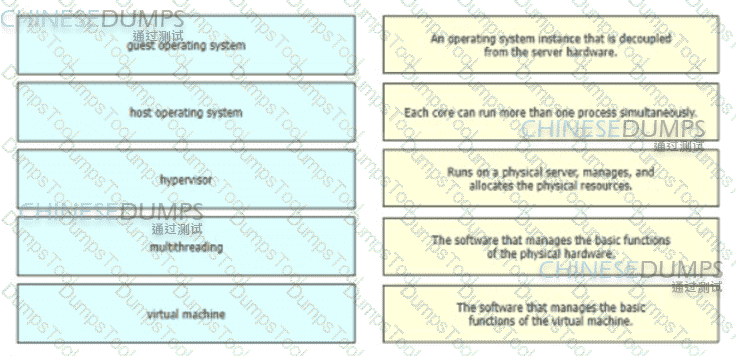

Drag and drop the virtualization concepts from the left onto the matching statements on the right.

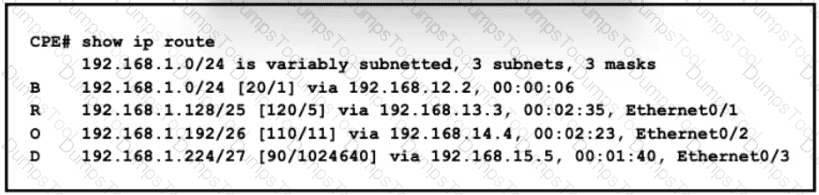

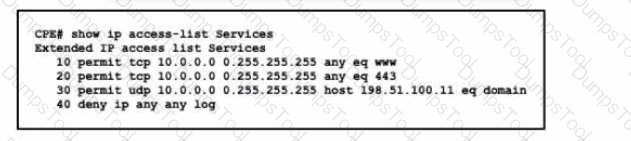

Refer to the exhibit.

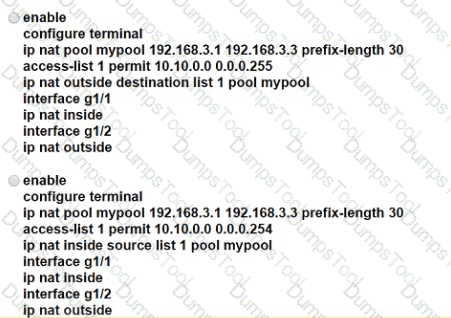

All traffic enters the CPE router from interface Serial0/3 with an IP address of 192 168 50 1 Web traffic from the WAN is destined for a LAN network where servers are load-balanced An IP packet with a destination address of the HTTP virtual IP of 192 1681 250 must be forwarded Which routing table entry does the router use?
What provides centralized control of authentication and roaming In an enterprise network?

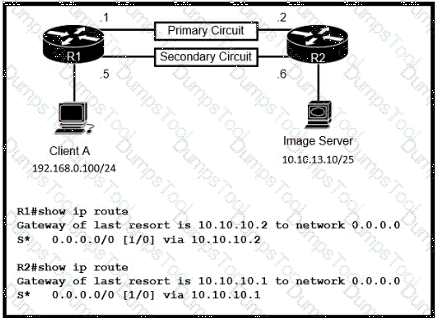

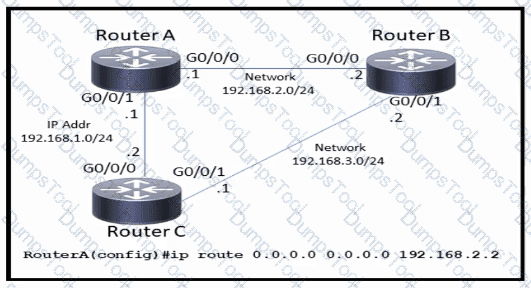

Refer to the exhibit.

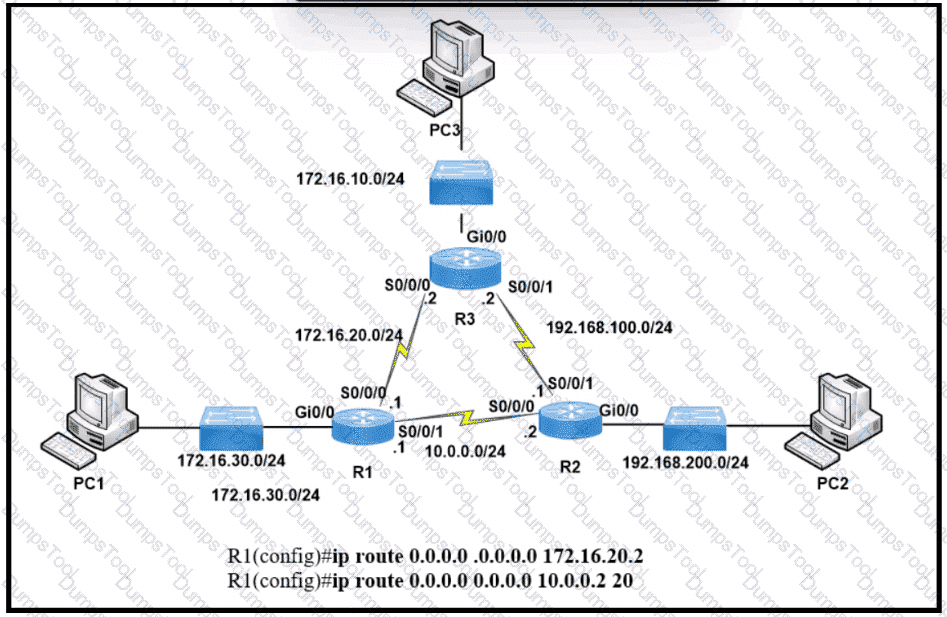

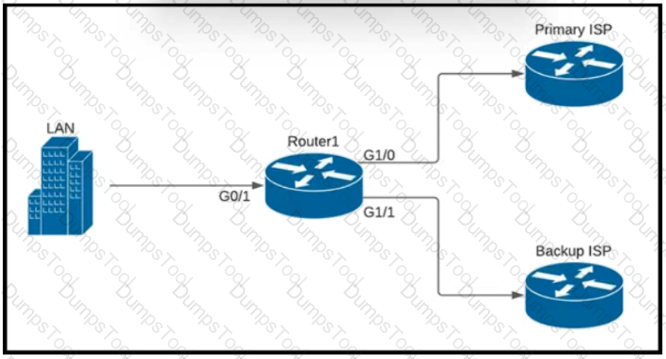

A company is configuring a failover plan and must implement the default routes in such a way that a floating static route will assume traffic forwarding when the primary link goes down. Which primary route configuration must be used?

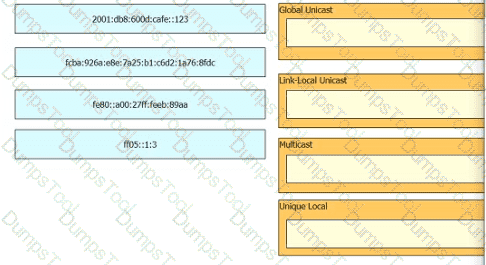

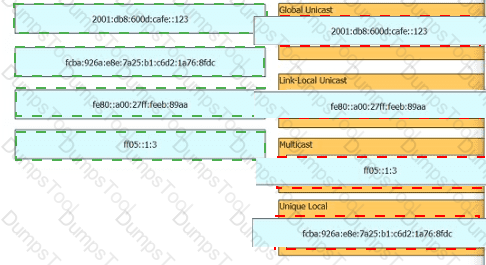

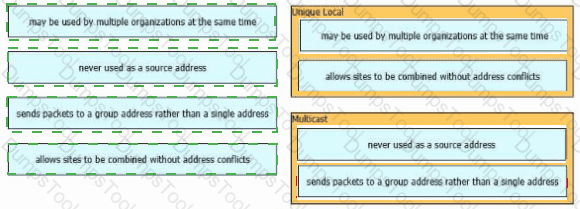

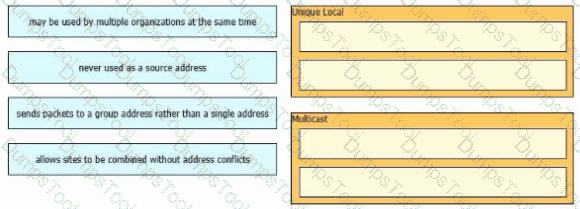

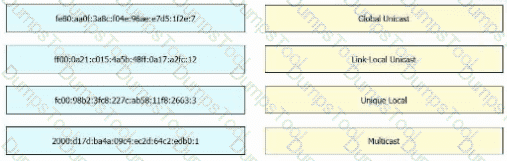

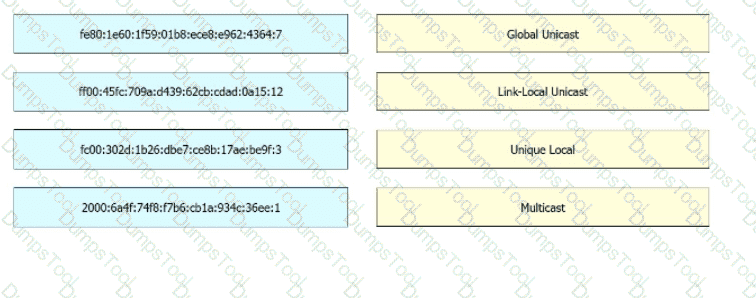

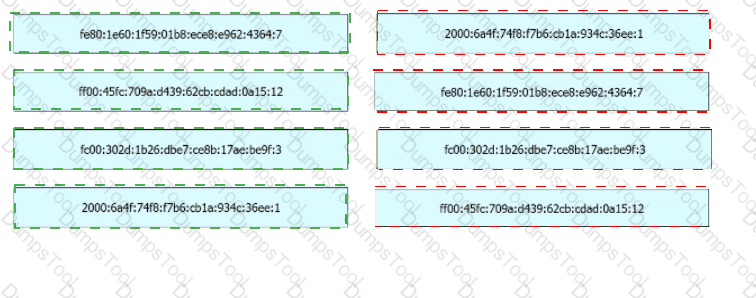

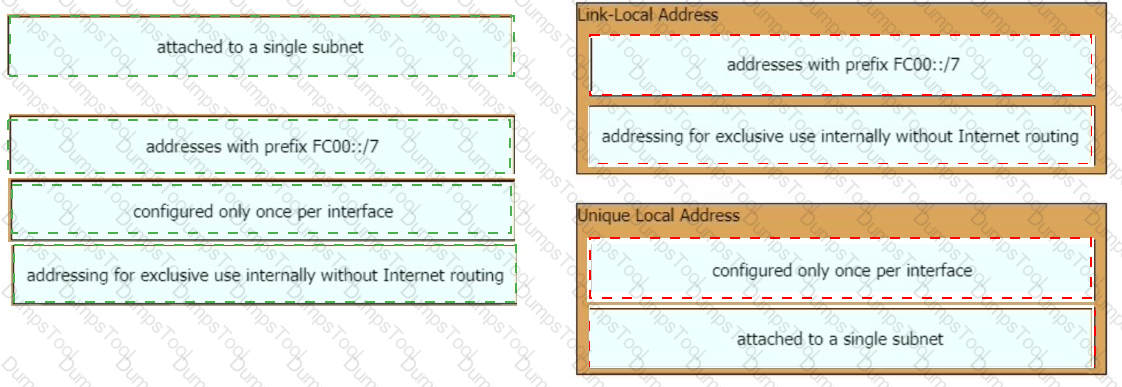

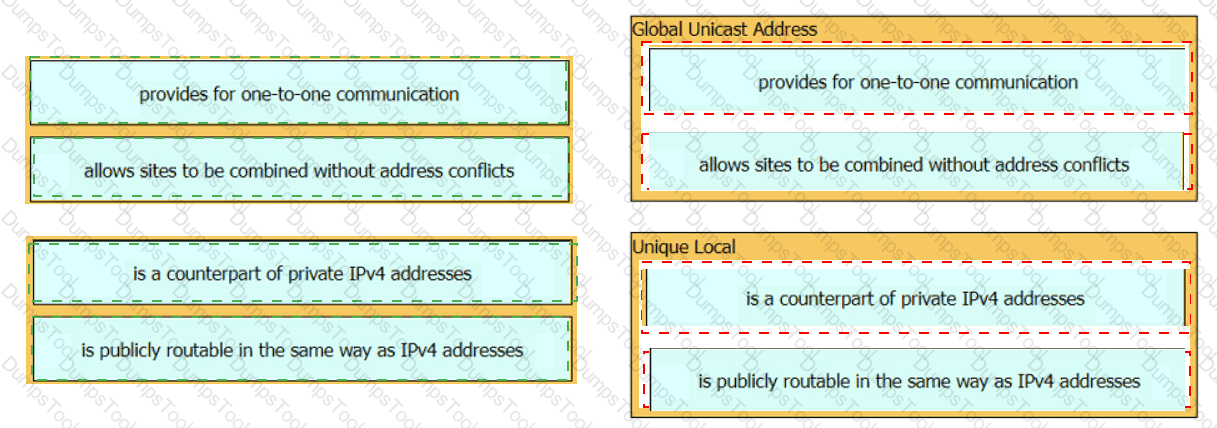

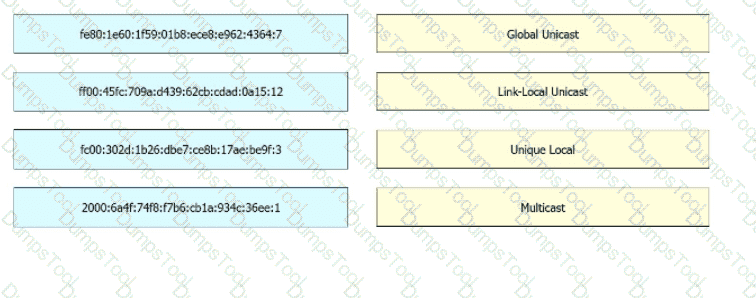

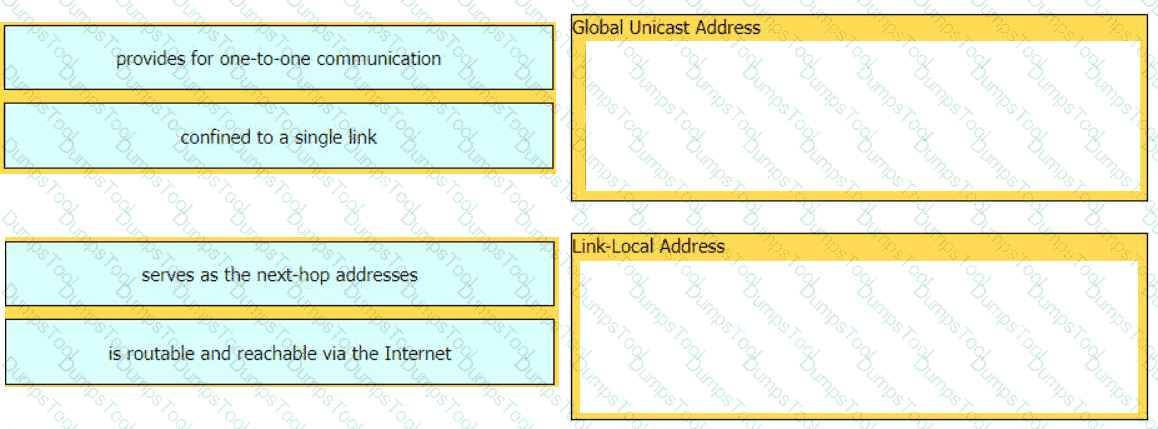

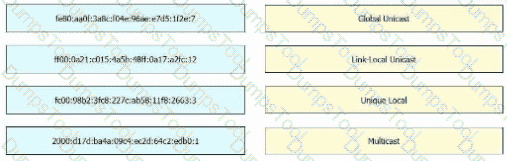

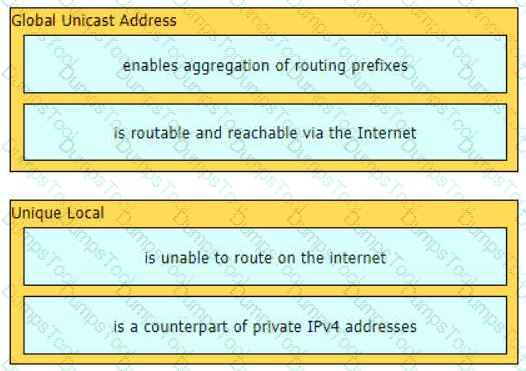

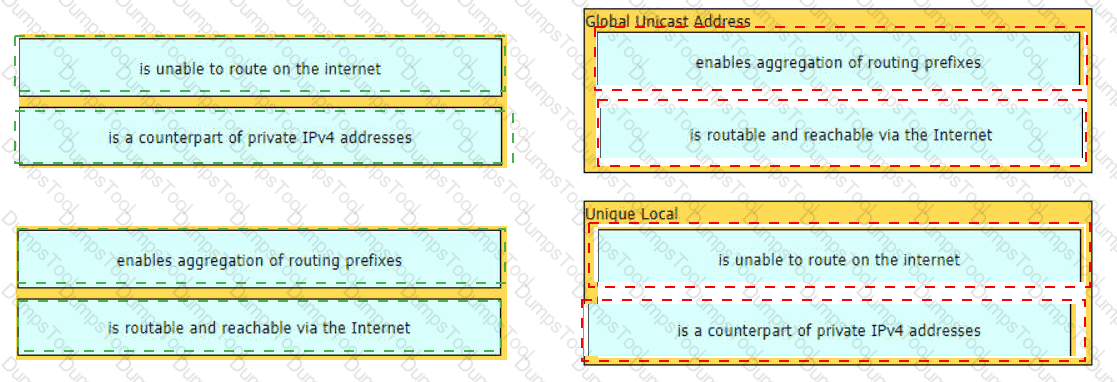

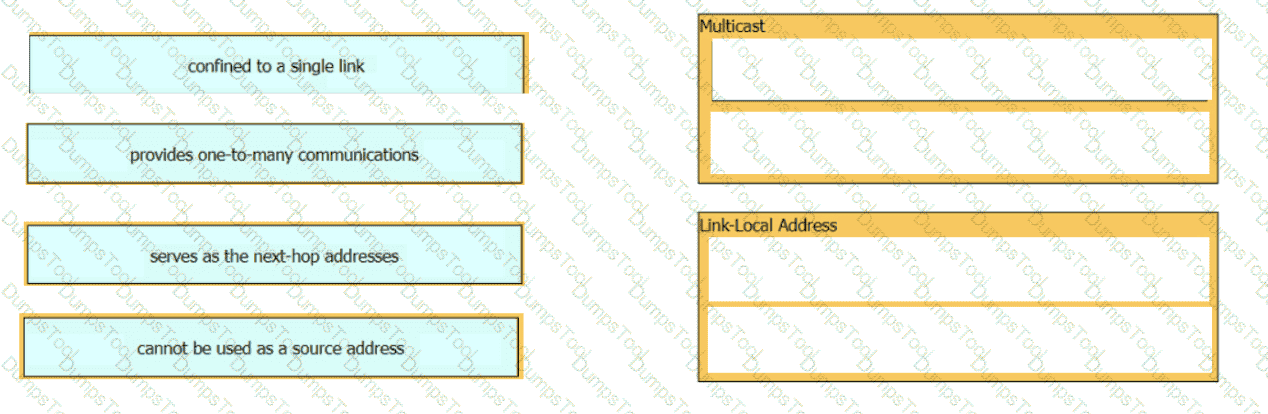

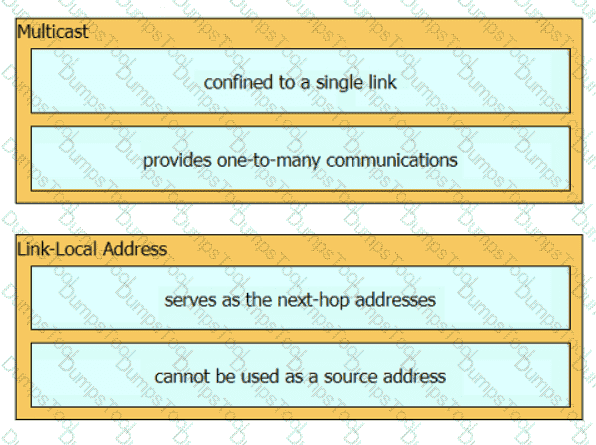

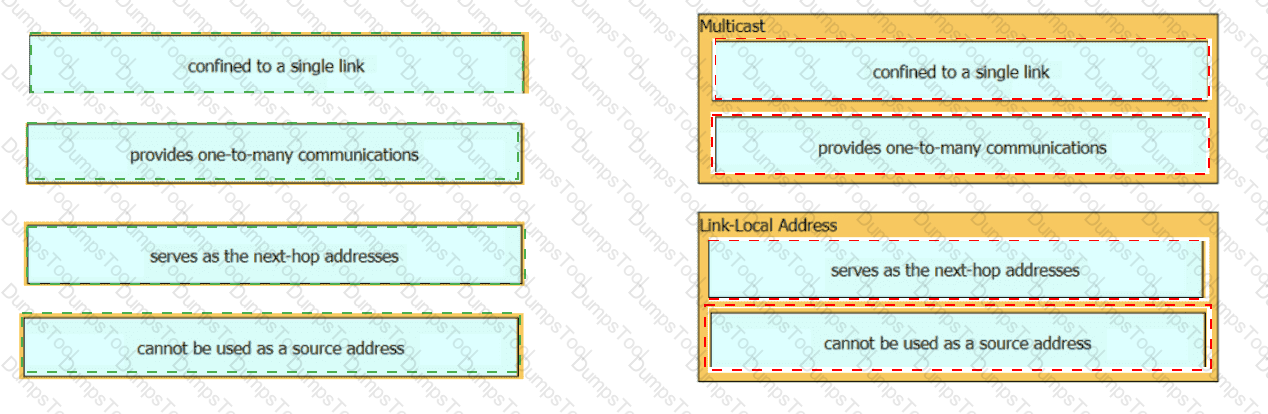

Drag and drop the characteristic from the left onto the IPv6 address type on the right.

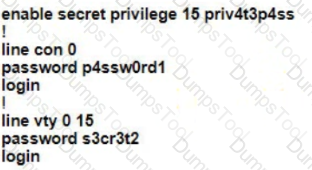

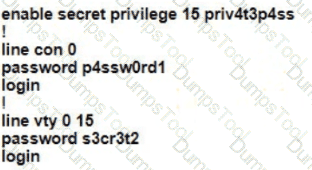

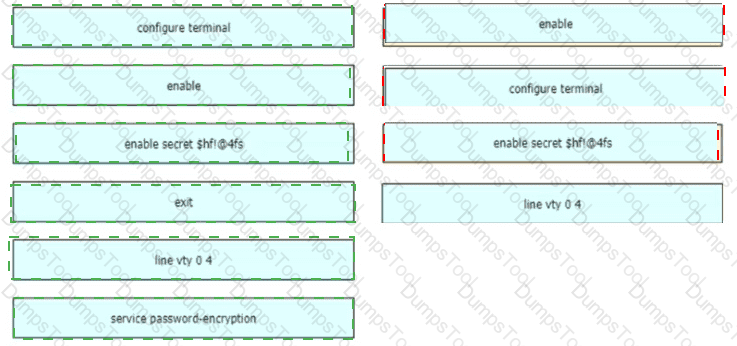

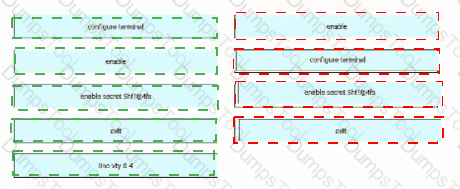

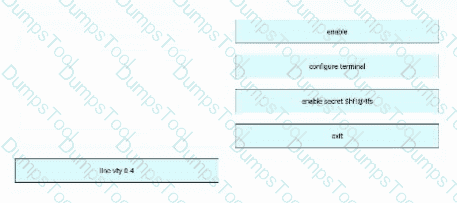

A Cisco engineer is configuring a factory-default router with these three passwords:
• The user EXEC password for console access is p4ssw0rd1
• The user EXEC password for Telnet access is s3cr3t2
• The password for privileged EXEC mode is pnv4t3p4ss Which command sequence must the engineer configured
A)
B)
C)
D)

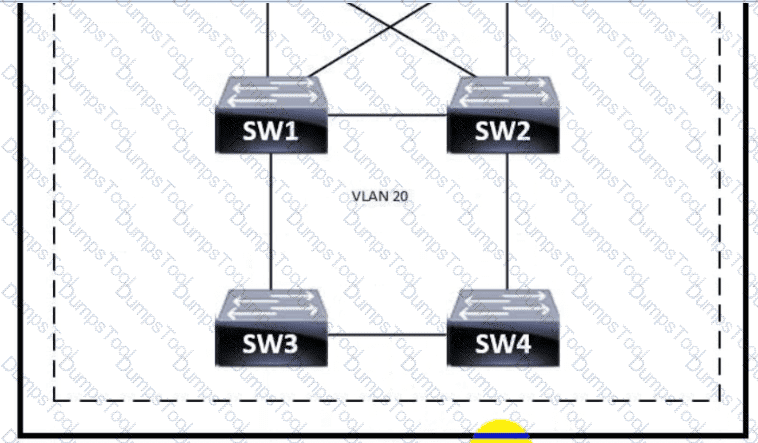

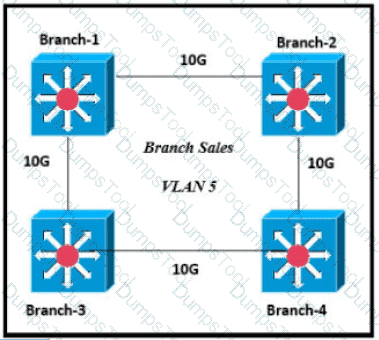

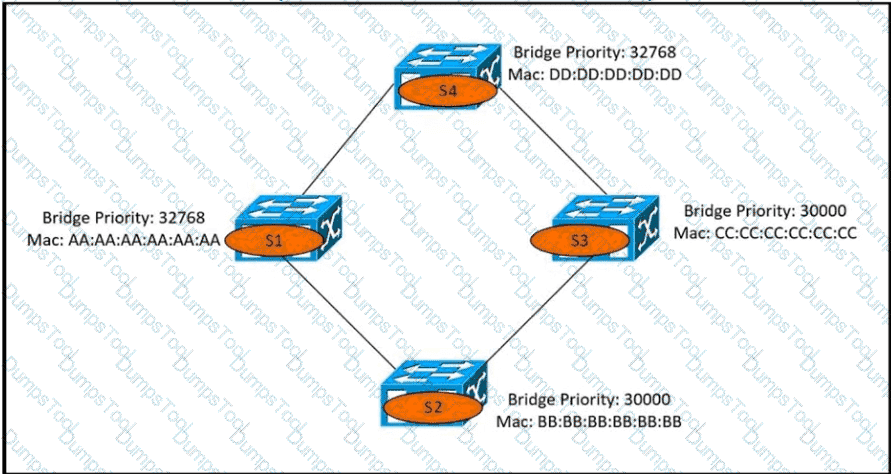

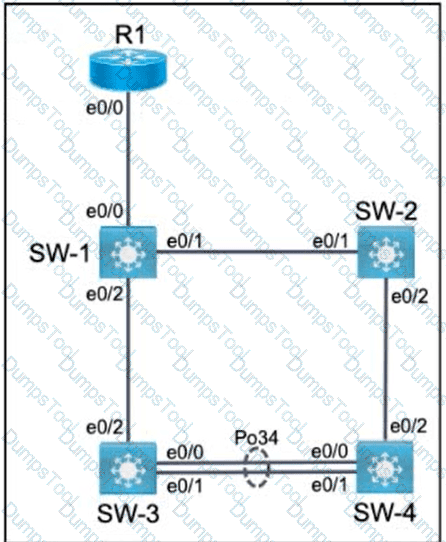

Refer to the exhibit.

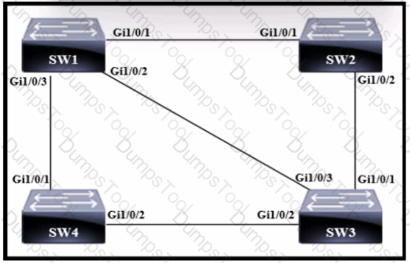

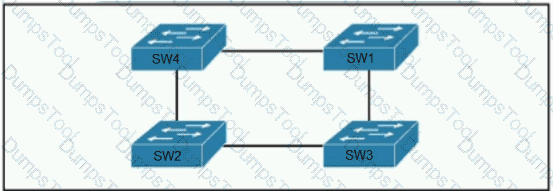

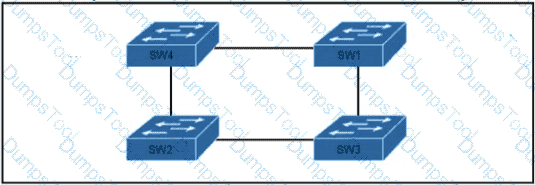

Which switch becomes the root of a spanning tree for VLAN 20 if all li links are of equal speed?

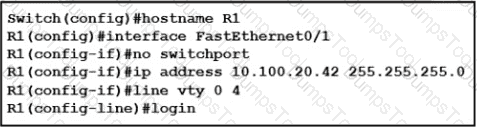

A network engineer is configuring a switch so that it is remotely reachable via SSH. The engineer has already configured the host name on the router. Which additional command must the engineer configure before entering the command to generate the RSA key?
Which type of IPv6 address is similar to a unicast address but is assigned to multiple devices on the same network at the same time?

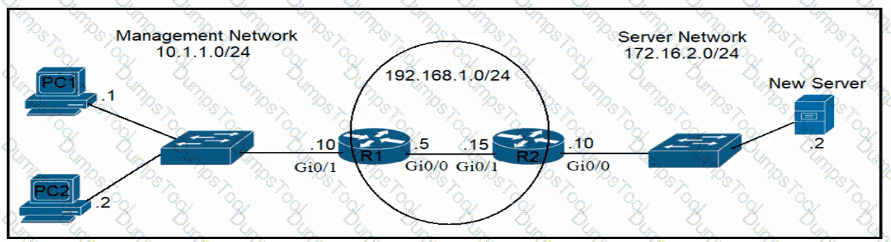

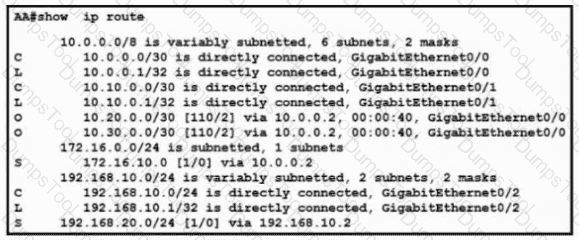

Refer to the exhibit.

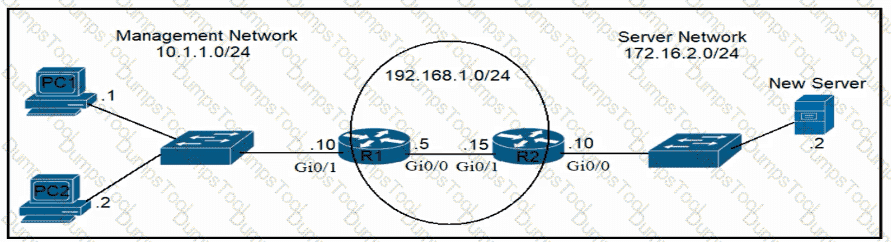

Which route must be configured on R1 so that OSPF routing is used when OSPF is up. but the server is still reachable when OSPF goes down?

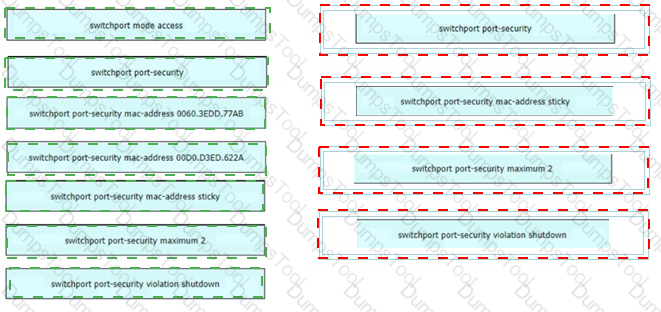

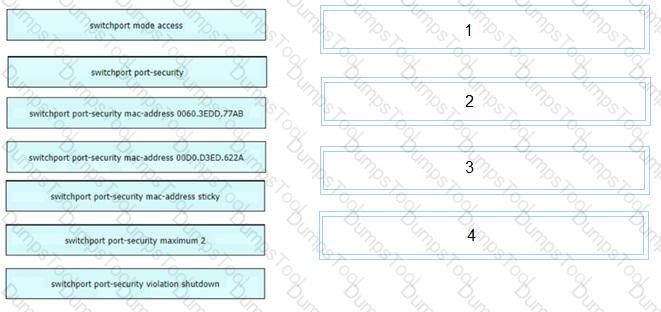

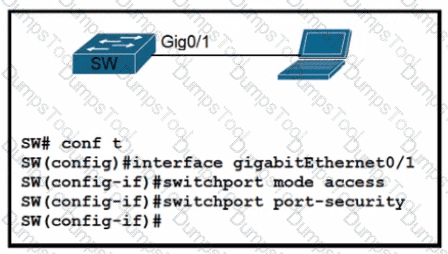

An engineer is tasked to configure a switch with port security to ensure devices that forward unicasts multicasts and broadcasts are unable to flood the port The port must be configured to permit only two random MAC addresses at a time Drag and drop the required configuration commands from the left onto the sequence on the right Not all commands are used.

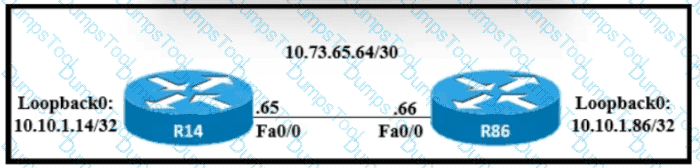

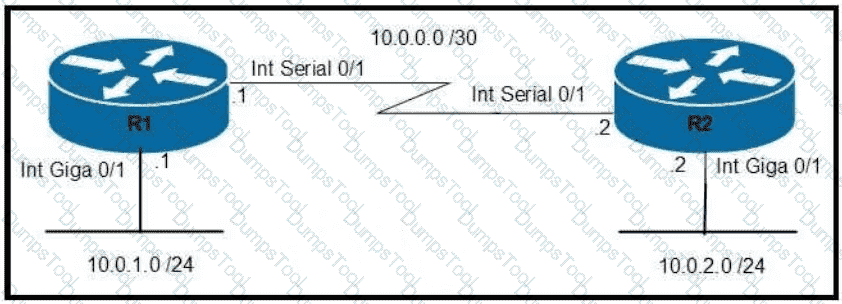

Refer to the exhibit.
Which command configures OSPF on the point-to-point link between routers R1 and R2?

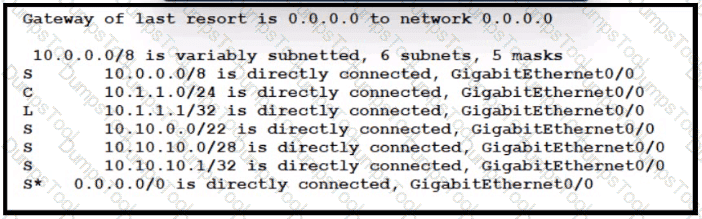

Refer to the exhibit.
Packets received by the router from BGP enter via a serial interface at 209.165.201.10. Each route is present within the routing table. Which interface is used to forward traffic with a destination IP of 10.10.10.24?

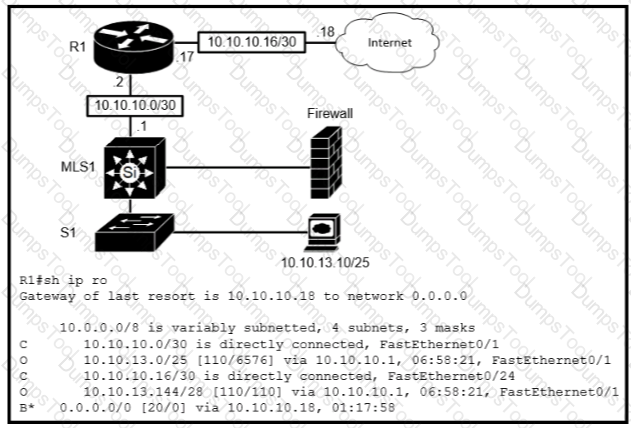

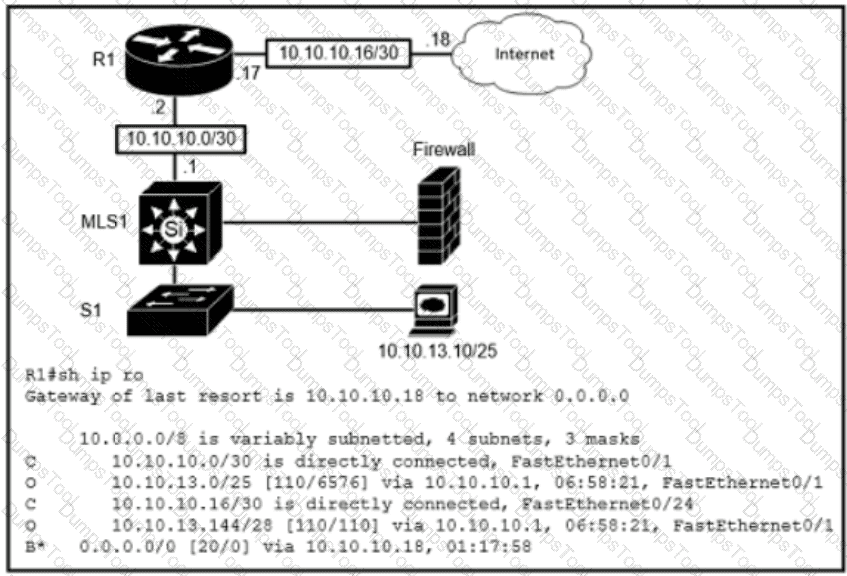

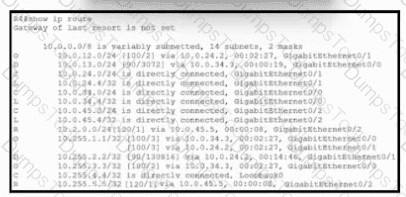

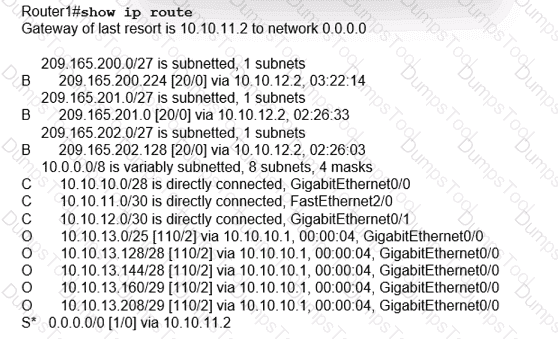

Refer to the exhibit.
Which next-hop IP address does Routed use for packets destined to host 10 10.13.158?
Refer to the exhibit.
Packets received by the router from BGP enter via a serial interface at 209 165 201 1 Each route is present within the routing table Which interface is used to forward traffic with a destination IP of 10.1.1.19?
A network engineer is installing an IPv6-only capable device. The client has requested that the device IP address be reachable only from the internal network. Which type of IPv6 address must the engineer assign?

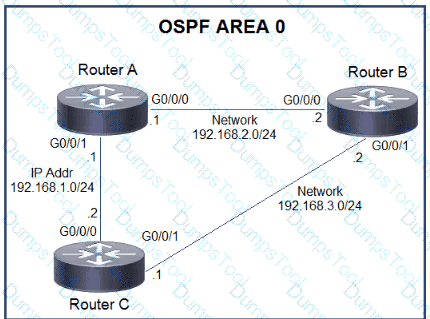

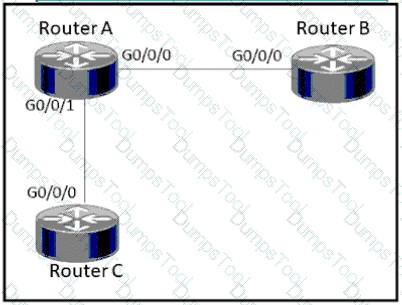

Refer to the exhibit.

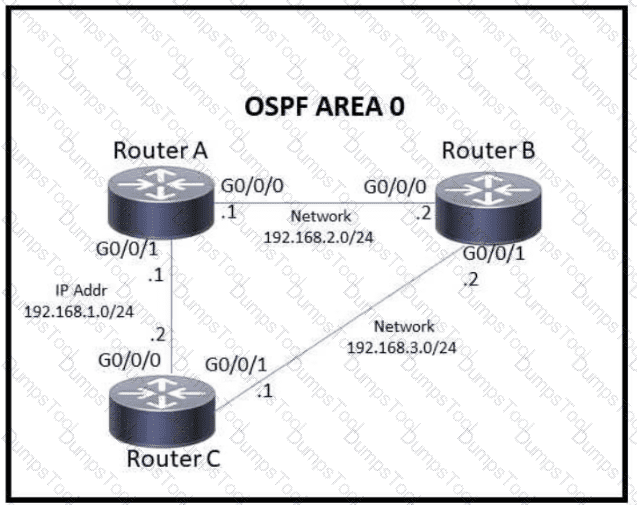

Which action must be taken to ensure that router A is elected as the DR for OSPF area 0?

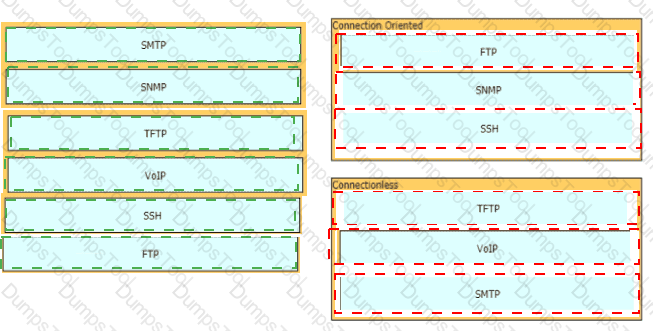

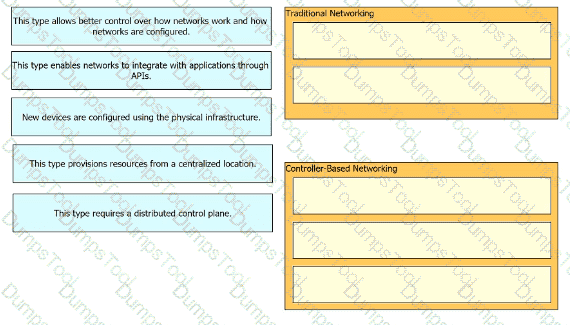

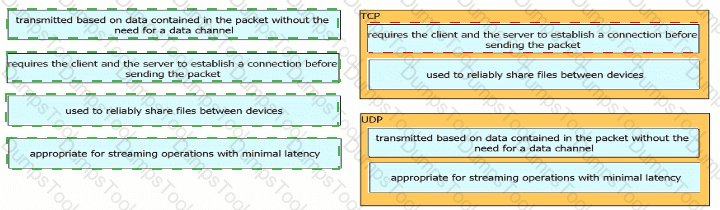

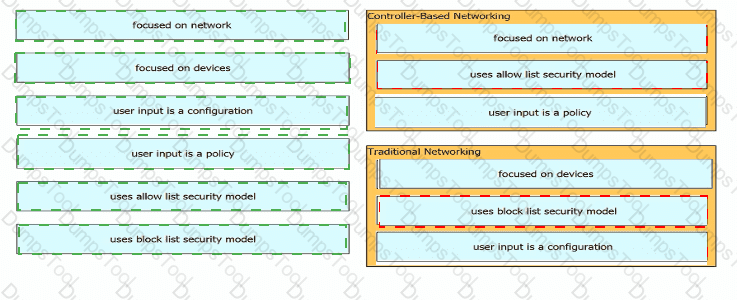

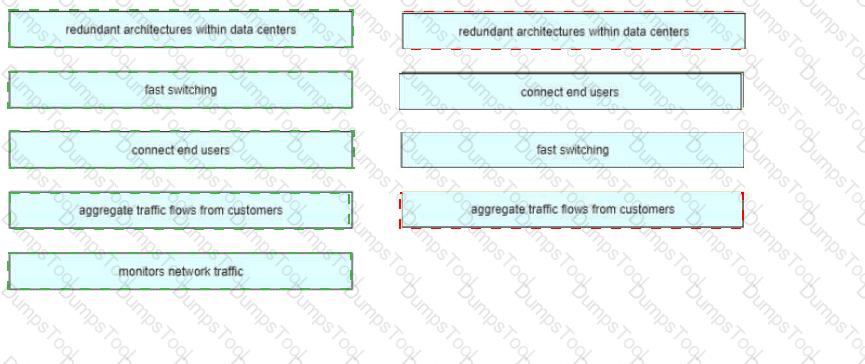

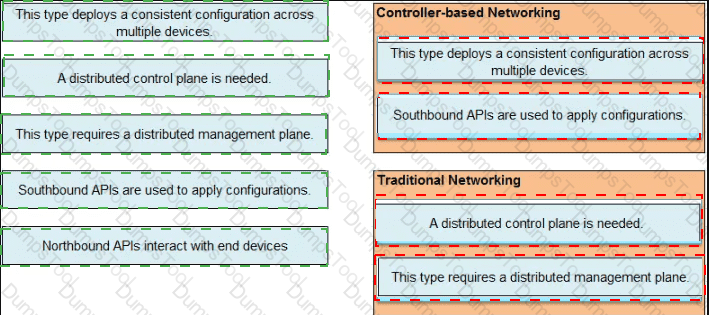

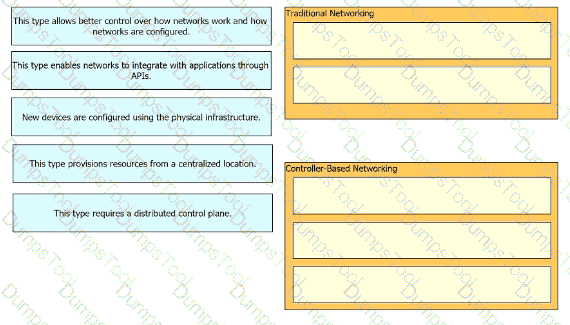

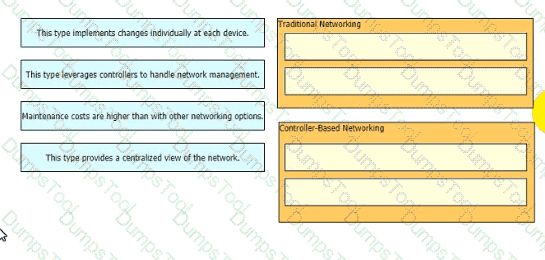

Drag and drop the characteristics of networking from the left onto the networking types on the right.

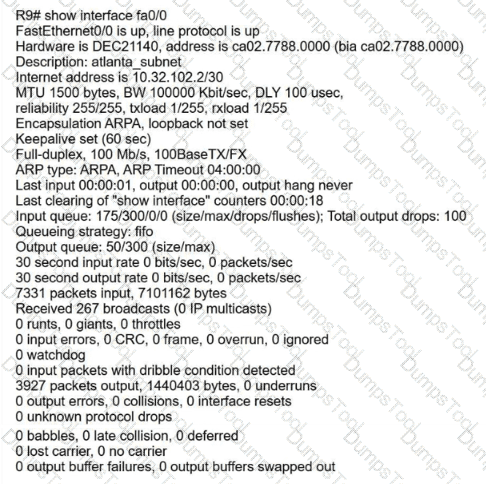

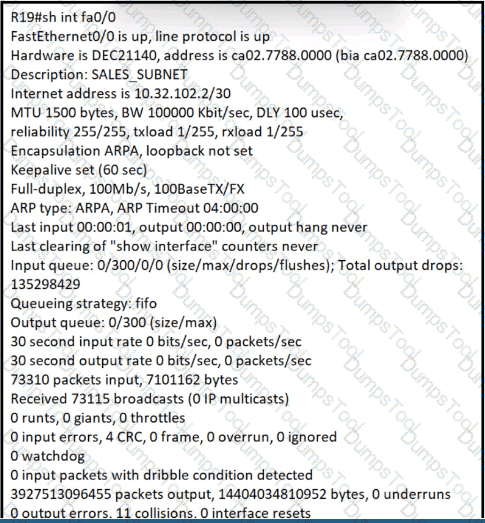

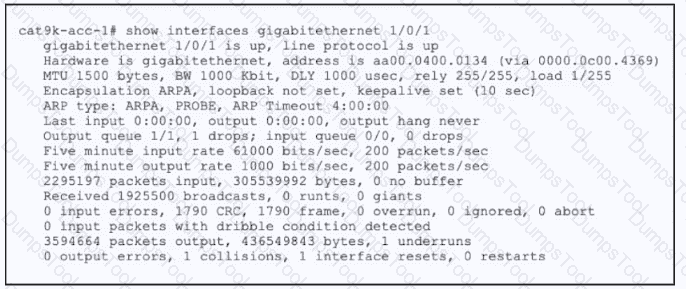

Refer to the exhibit.

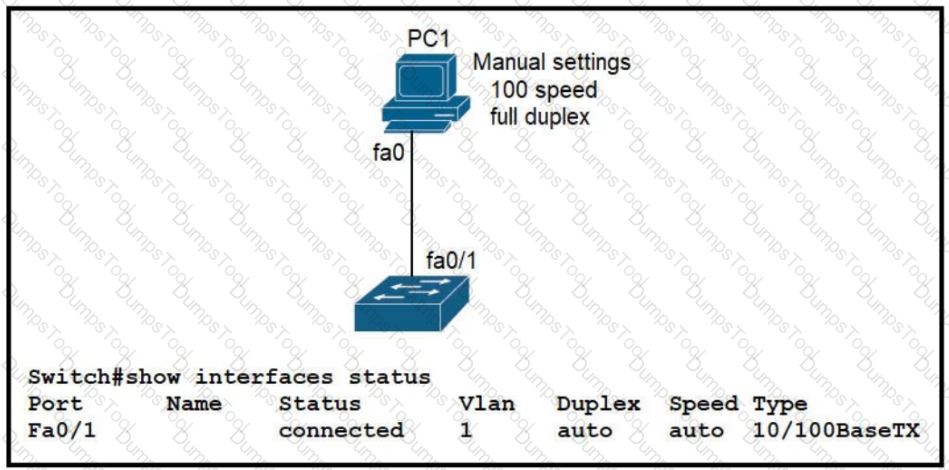

The link between PC1 and the switch is up. but it is performing poorly. Which interface condition is causing the performance problem?
If a switch port receives a new frame while it is actively transmitting a previous frame, how does it process the frames?

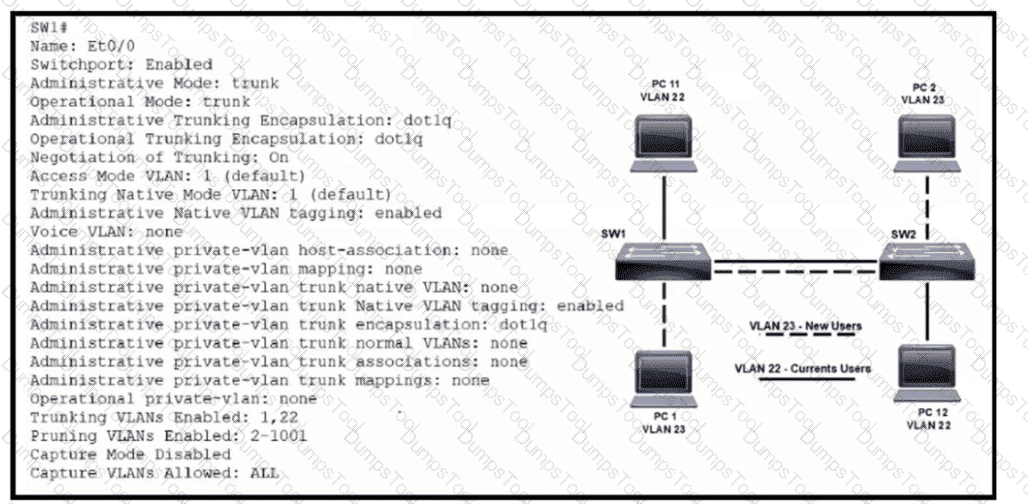

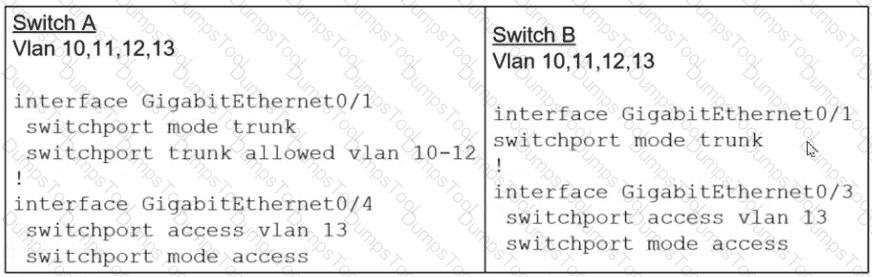

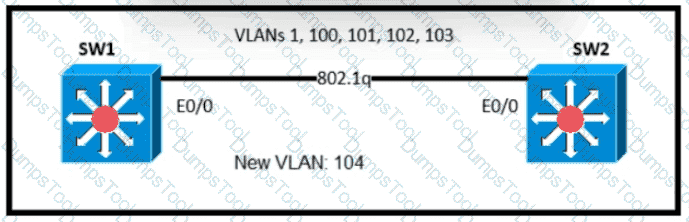

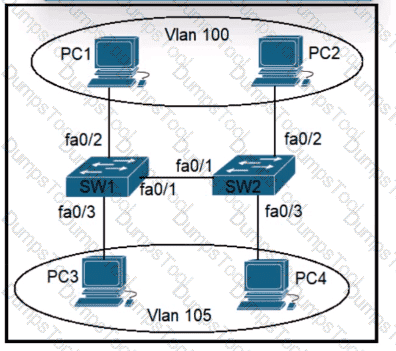

Refer to the exhibit.

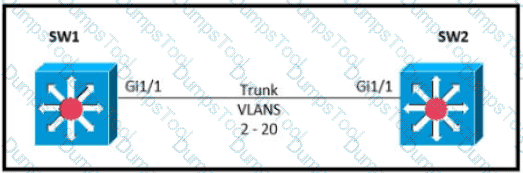

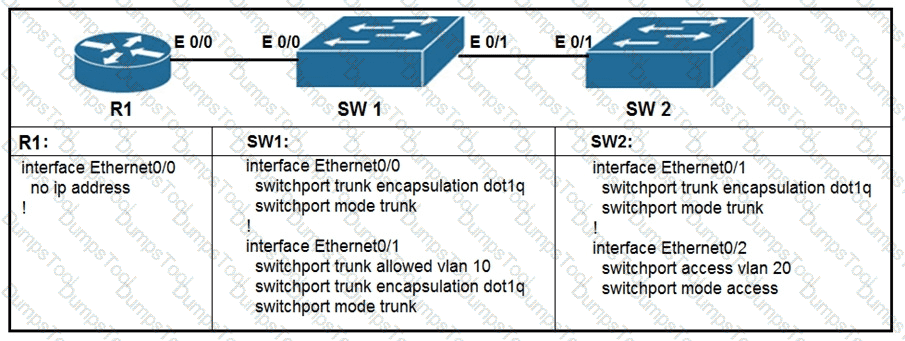

An engineer is asked to insert the new VLAN into the existing trunk without modifying anything previously configured Which command accomplishes this task?

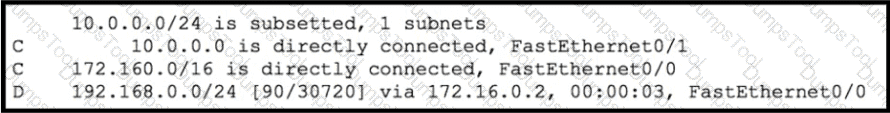

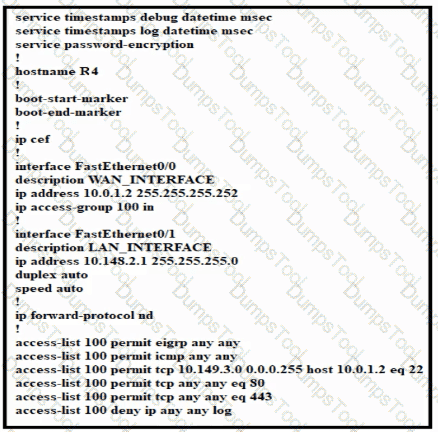

Refer to the exhibit.
Which configuration enables DHCP addressing for hosts connected to interface FastEthernetO/1 on router R4?
What does an SDN controller use as a communication protocol to relay forwarding changes to a southbound API?
Refer to the exhibit.

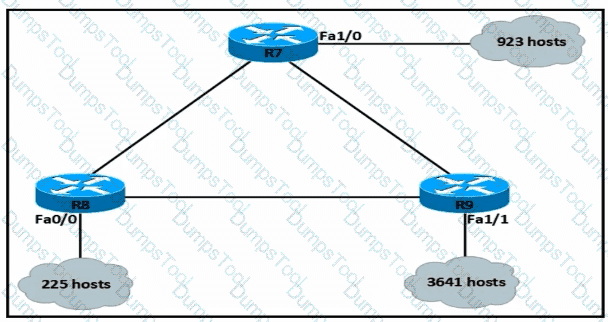

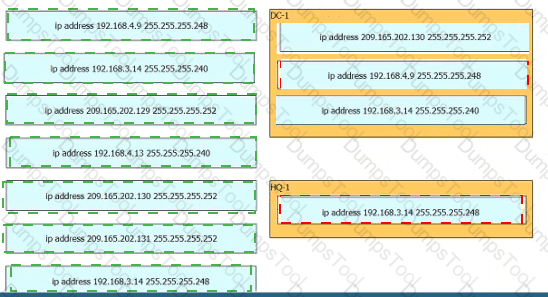

An IP subnet must be configured on each router that provides enough addresses for the number of assigned hosts and anticipates no more than 10% growth for now hosts. Which configuration script must be used?
A)
B)
C)
D)
When a client and server are not on the same physical network, which device is used to forward requests and replies between client and server for DHCP?
Which set of action satisfy the requirement for multifactor authentication?
Which configuration management mechanism uses TCP port 22 by default when communicating with managed nodes?

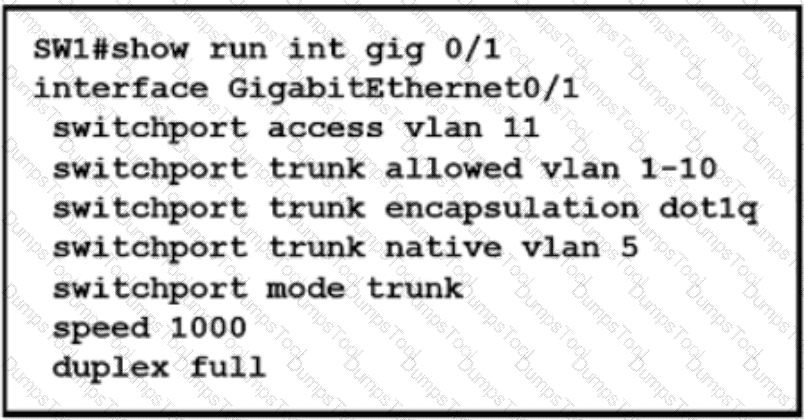

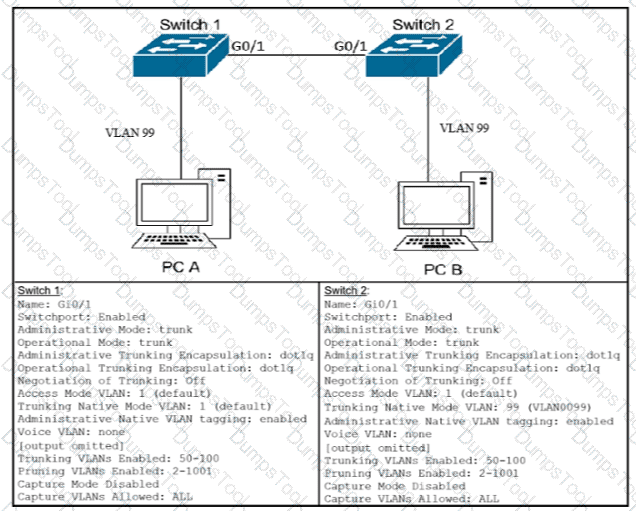

Refer to the exhibit.
Which action is expected from SW1 when the untagged frame is received on the GigabitEthernet0/1 interface?
Refer to the exhibit.
The New York router is configured with static routes pointing to the Atlanta and Washington sites. Which two tasks must be performed so that the Serial0/0/0 interfaces on the Atlanta and Washington routers can reach one another?
(Choose two.)

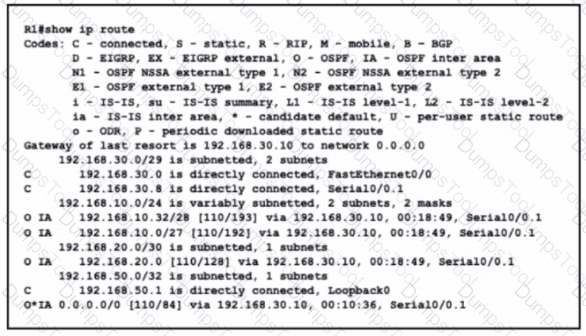

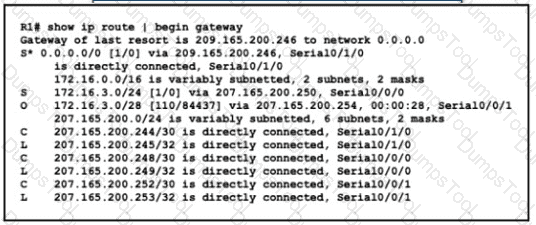

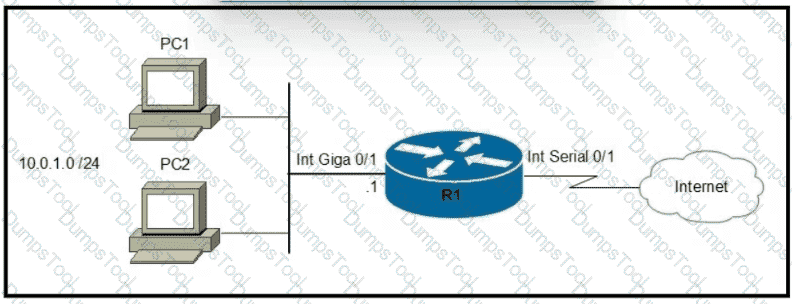

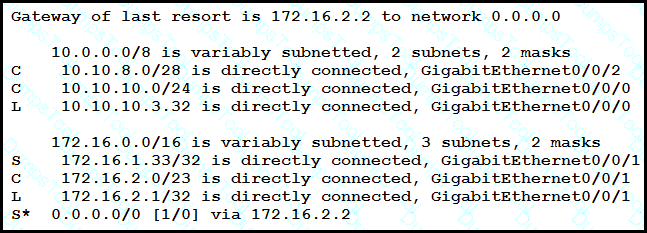

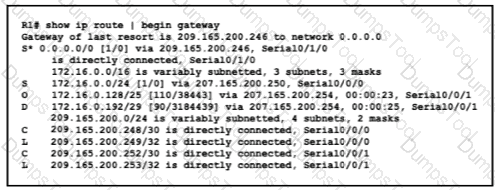

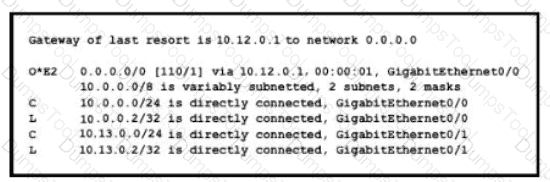

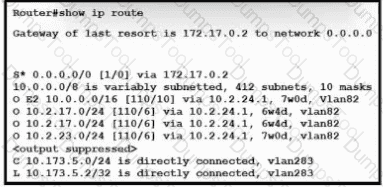

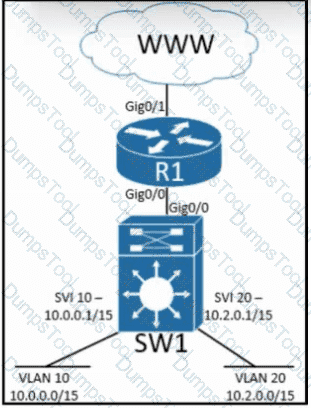

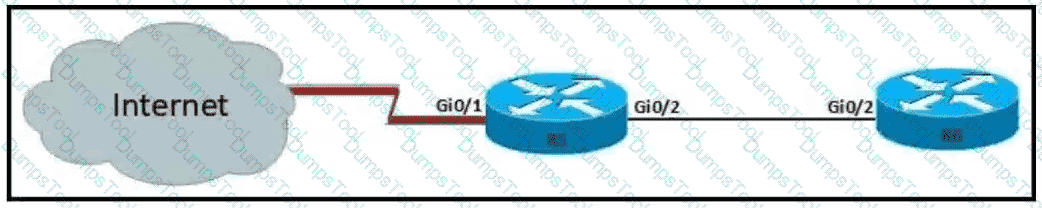

Refer to the exhibit.

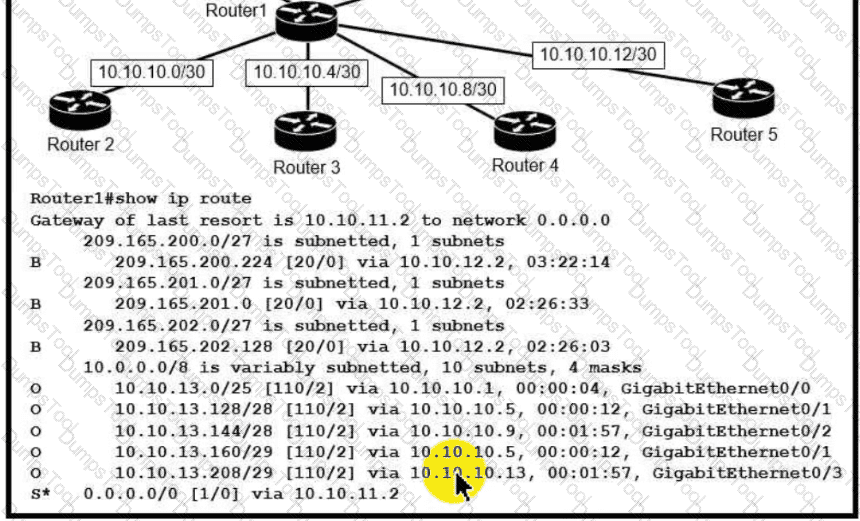

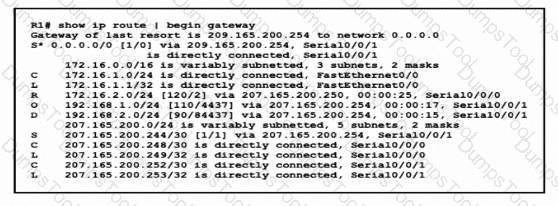

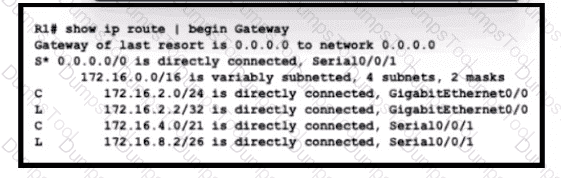

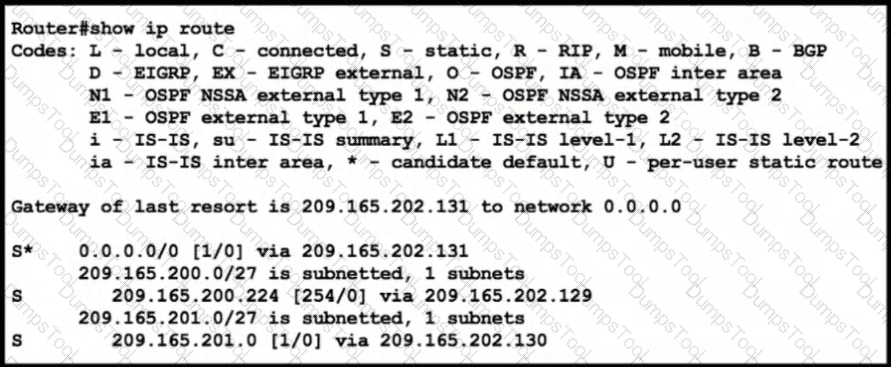

Which route type is configured to reach the internet?

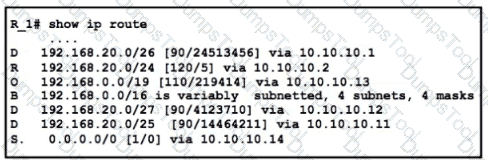

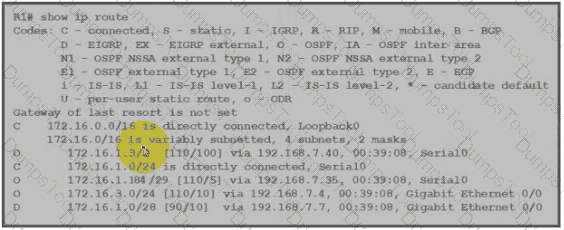

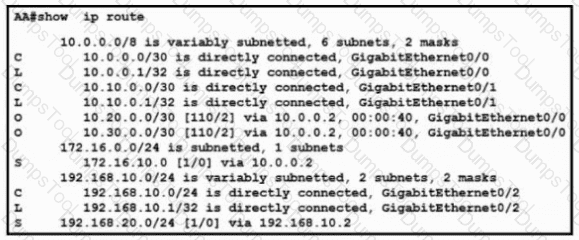

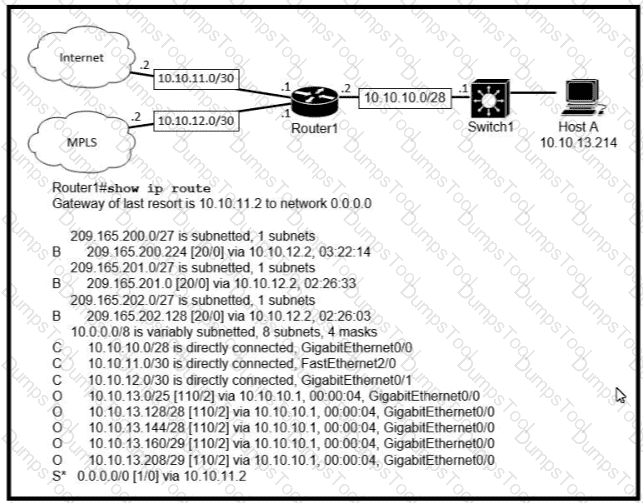

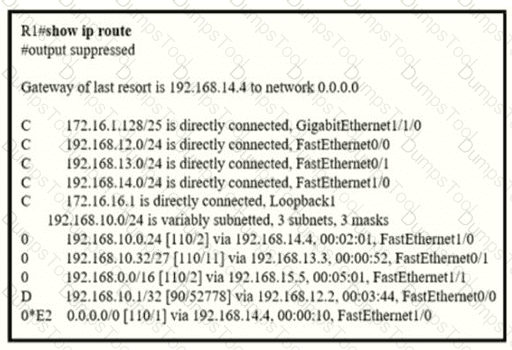

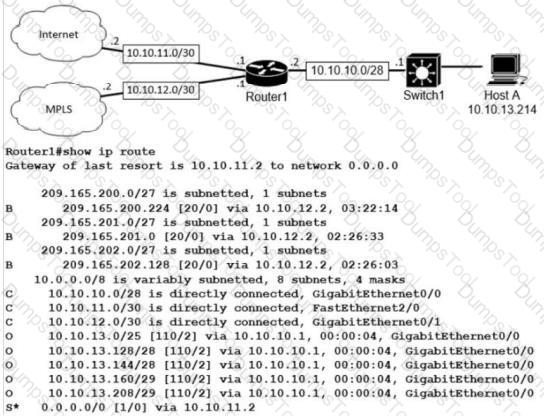

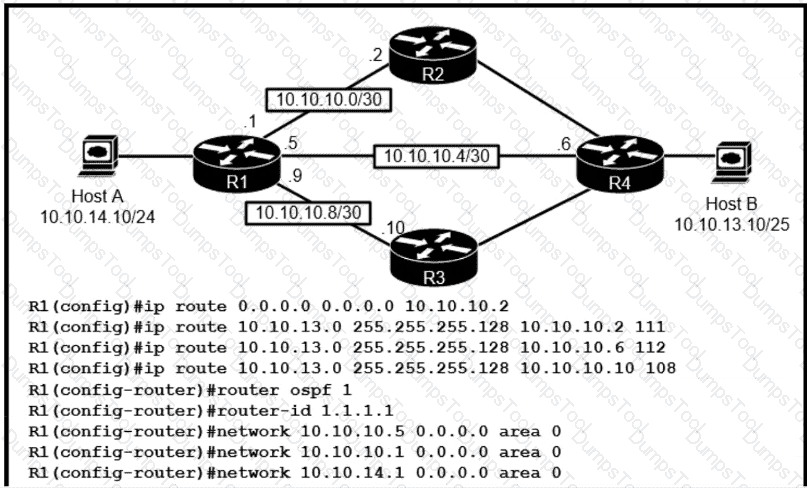

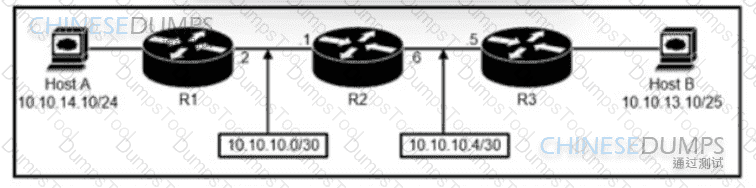

Refer to the exhibit.
Which prefix does Router 1 use for traffic to Host A?

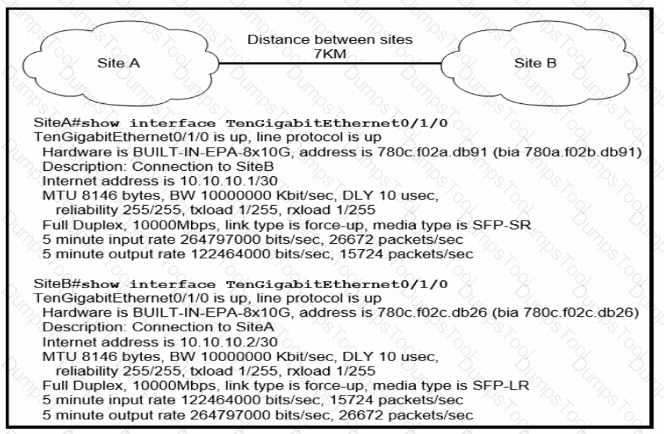

What is the same for both copper and fiber interfaces when using SFP modules?
Which WPA3 enhancement protects against hackers viewing traffic on the Wi-Fi network?
Which communication interaction takes place when a southbound API Is used?
When a site-to-site VPN is used, which protocol is responsible for the transport of user data?
Which two protocols must be disabled to increase security for management connections to a Wireless LAN Controller? (Choose two )
Which statement about Link Aggregation when implemented on a Cisco Wireless LAN Controller is true?
What are two reasons for an engineer to configure a floating state route? (Choose two)

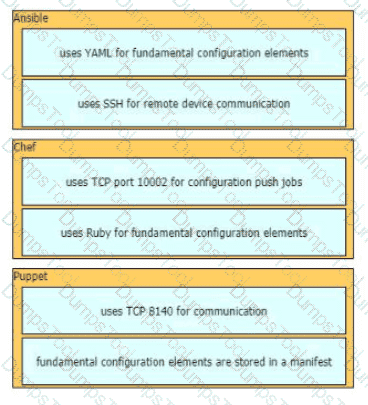

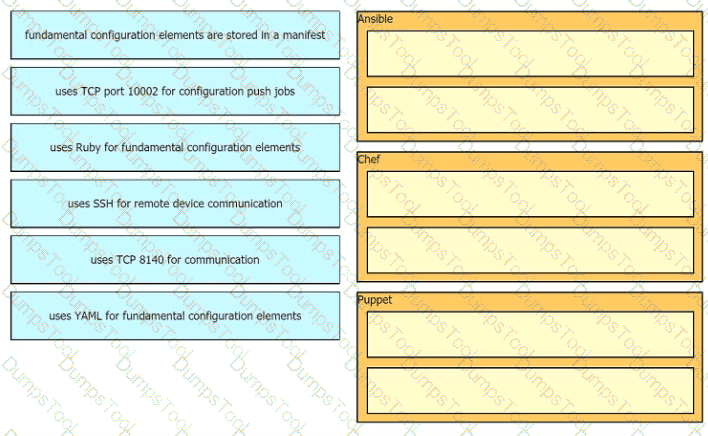

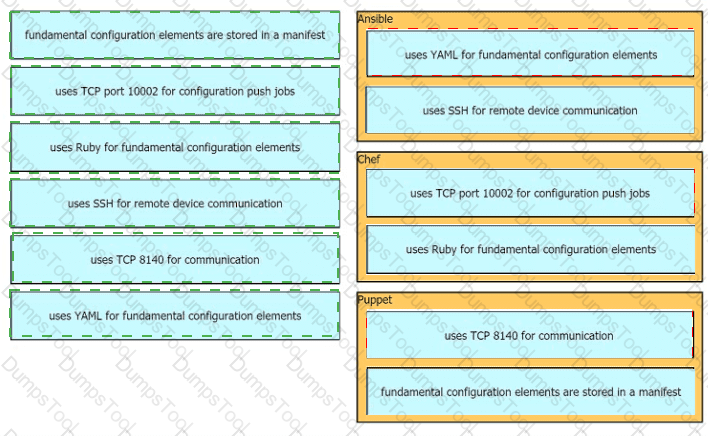

Drag and drop the descriptions from the left onto the configuration-management technologies on the right.
A user configured OSPF and advertised the Gigabit Ethernet interface in OSPF By default, which type of OSPF network does this interface belong to?

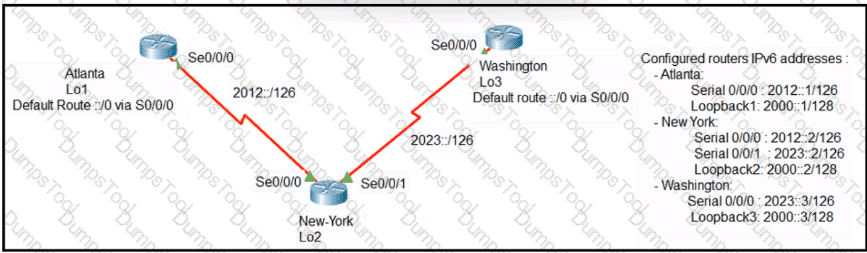

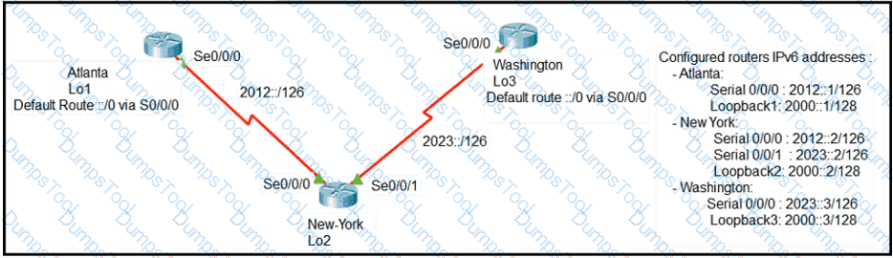

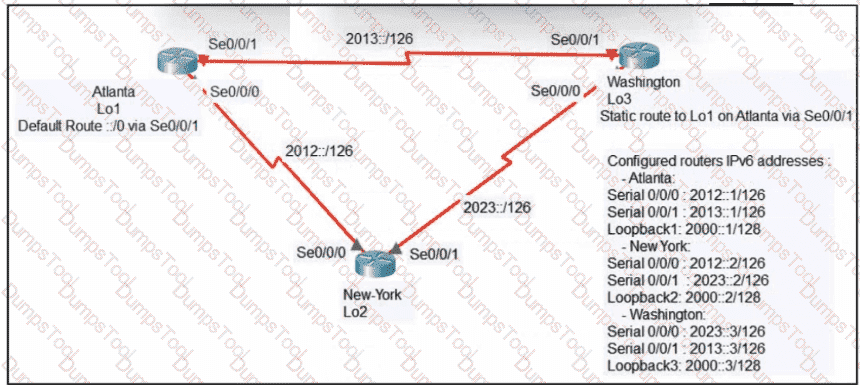

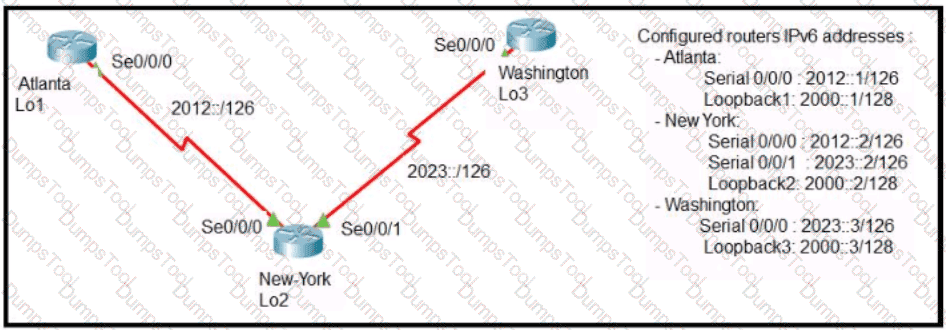

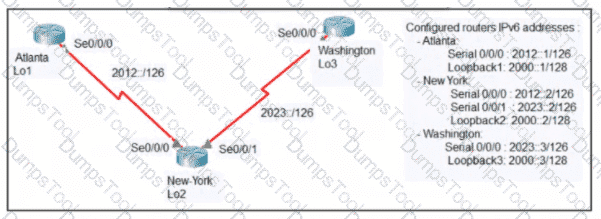

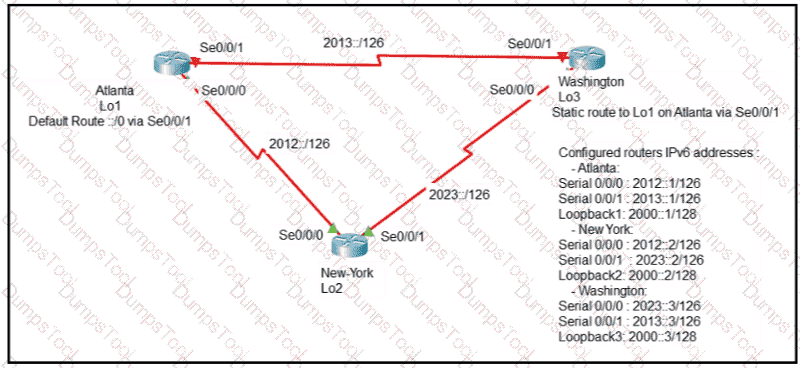

Refer to the exhibit.
An engineer configured the New York router with state routes that point to the Atlanta and Washington sites. When command must be configured on the Atlanta and Washington routers so that both sites are able to reach the loopback2 interface on the New York router?

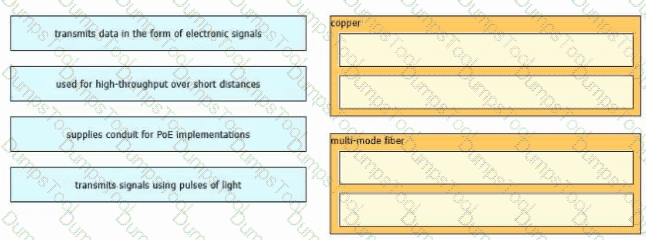

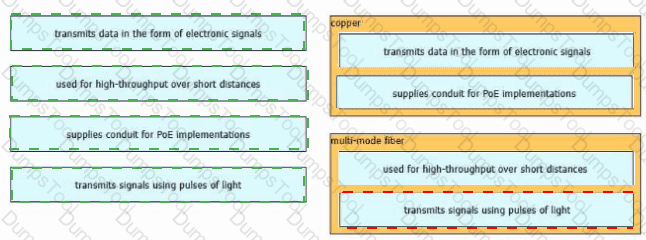

What are two differences between optical-fiber cabling and copper cabling? (Choose two)
Which two must be met before SSH can operate normally on a Cisco IOS switch? (Choose two)
An engineer must configure traffic for a VLAN that is untagged by the switch as it crosses a trunk link. Which command should be used?
Which result occurs when PortFast is enabled on an interface that is connected to another switch?

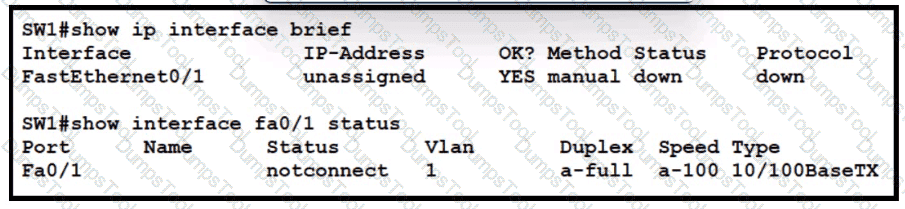

The SW1 interface g0/1 is in the down/down state. Which two configurations are valid reasons for the interface conditions?(choose two)

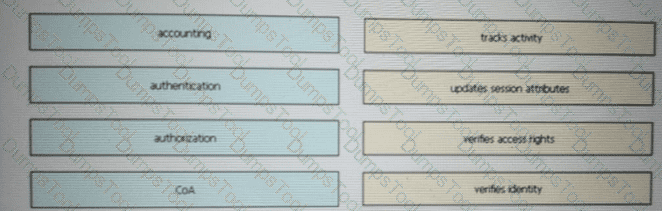

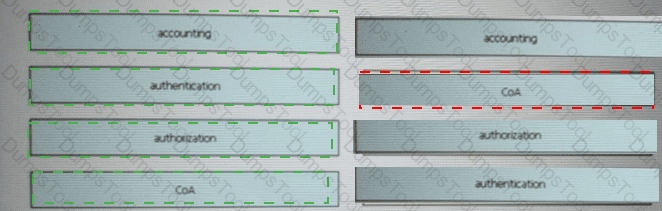

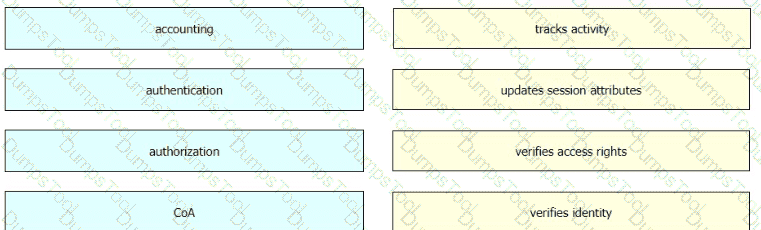

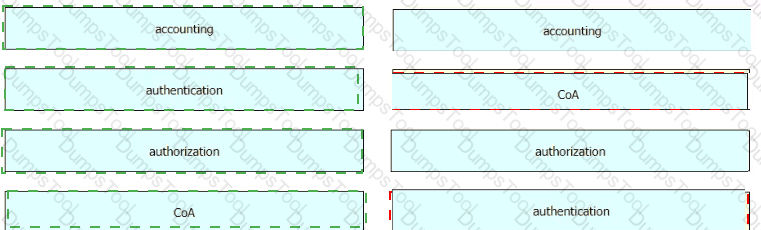

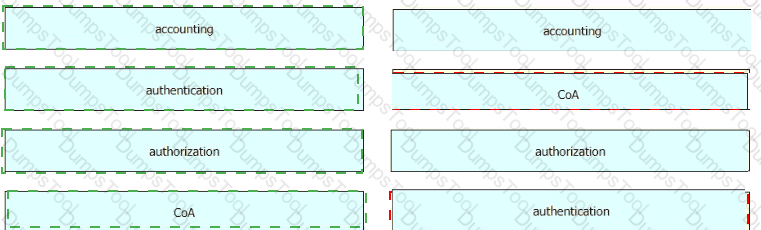

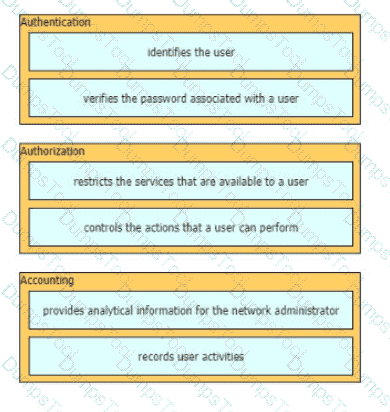

Drag and drop the AAA terms from the left onto the description on the right.

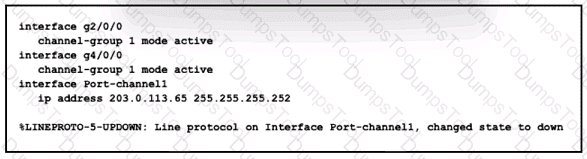

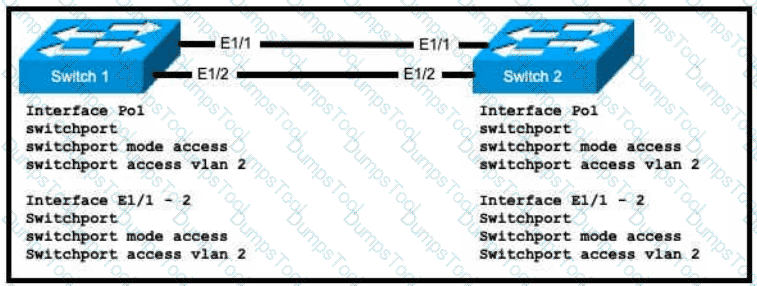

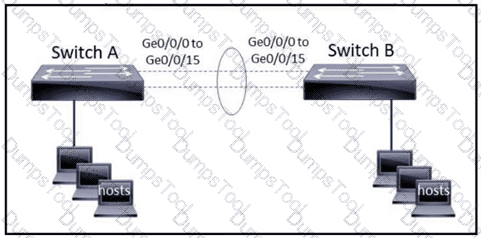

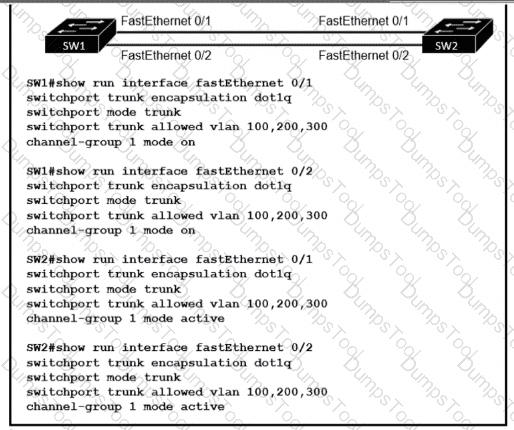

Refer to the exhibit.
Which change to the configuration on Switch?
allows the two switches to establish an GtherChannel?
When the active router in an HSRP group fails, what router assumes the role and forwards packets?
Which two primary drivers support the need for network automation? (Choose two.)

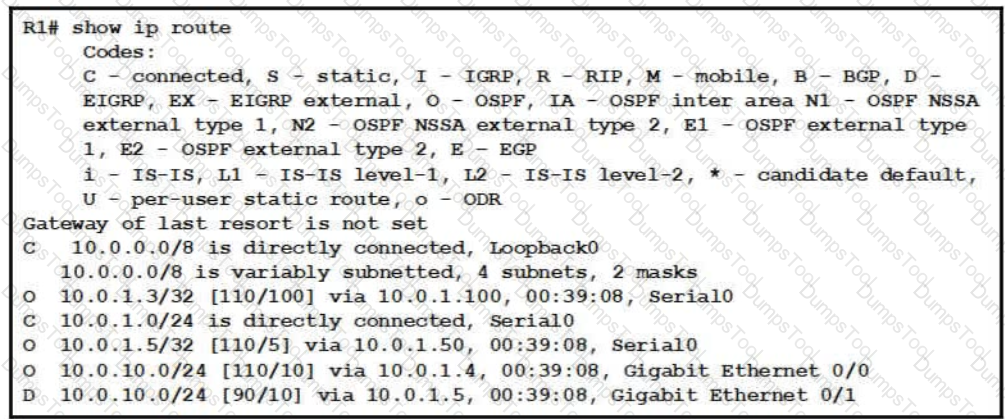

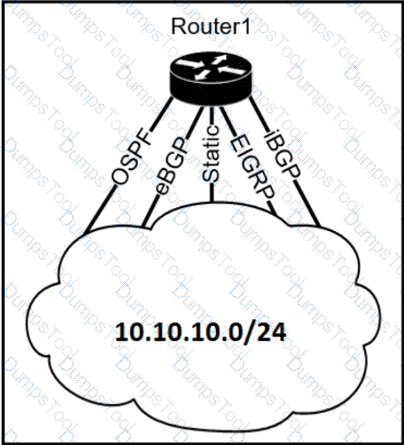

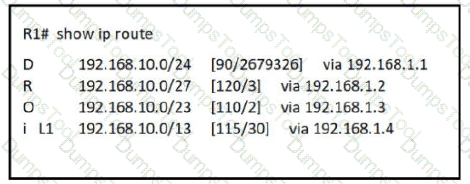

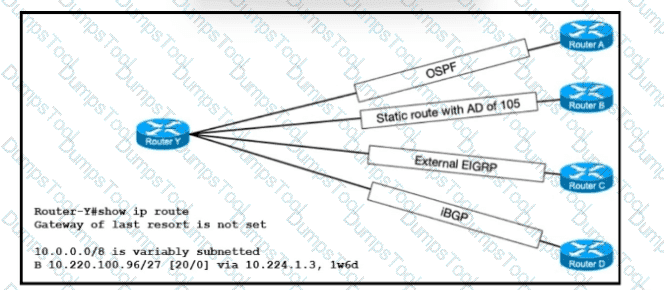

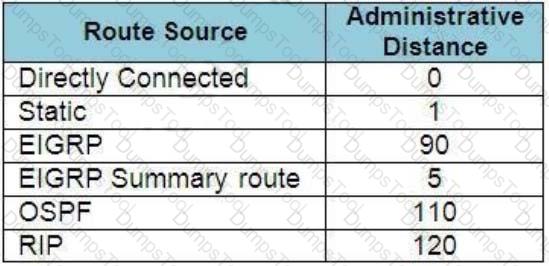

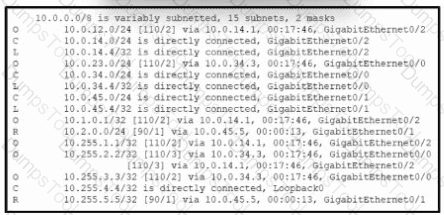

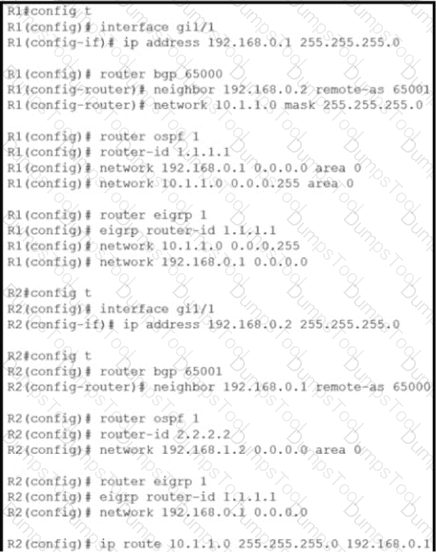

R1 has learned route 10.10.10.0/24 via numerous routing protocols. Which route is installed?
Where is the interface between the control plane and data plane within the software-defined architecture?
How does CAPWAP communicate between an access point in local mode and a WLC?
The service password-encryption command is entered on a router. What is the effect of this configuration?
Which configuration is needed to generate an RSA key for SSH on a router?
Which technology must be implemented to configure network device monitoring with the highest security?

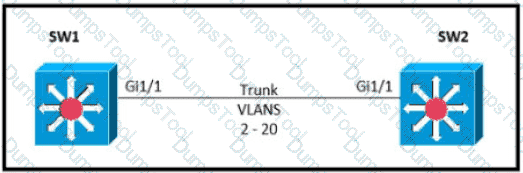

Refer to the exhibit.
Which command must be executed for Gi1.1 on SW1 to become a trunk port if Gi1/1 on SW2 is configured in desirable or trunk mode?

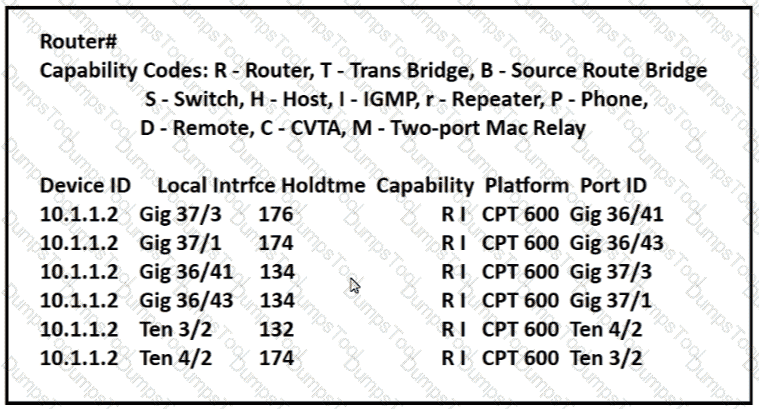

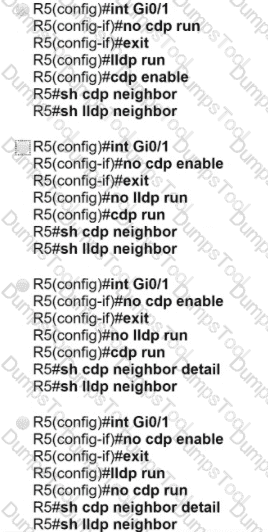

A network engineer must create a diagram of a multivendor network. Which command must be configured on the Cisco devices so that the topology of the network can be mapped?
Refer to the exhibit.
Based on the LACP neighbor status, in which mode is the SW1 port channel configured?

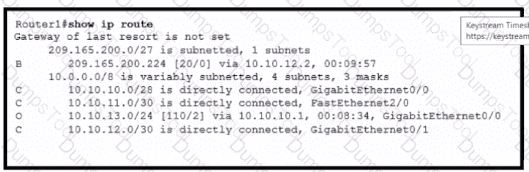

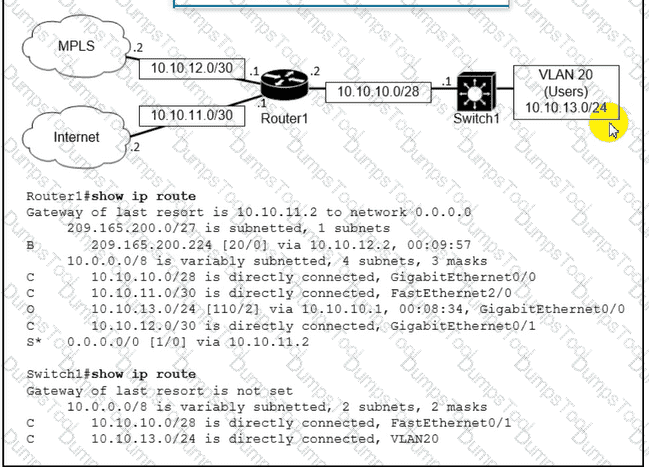

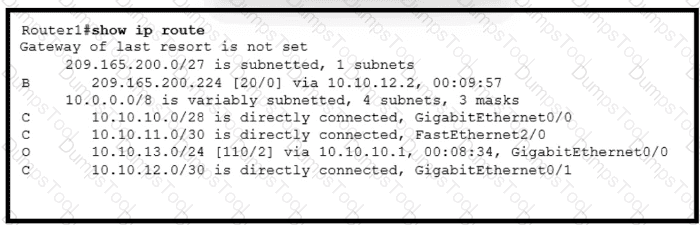

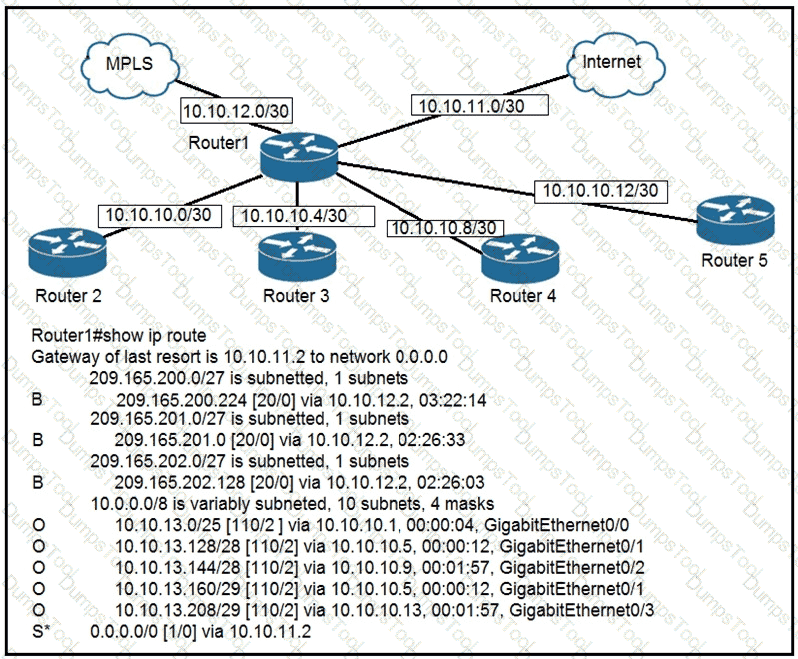

Refer to the exhibit.
To which device does Router1 send packets that are destined to host 10.10.13.165?

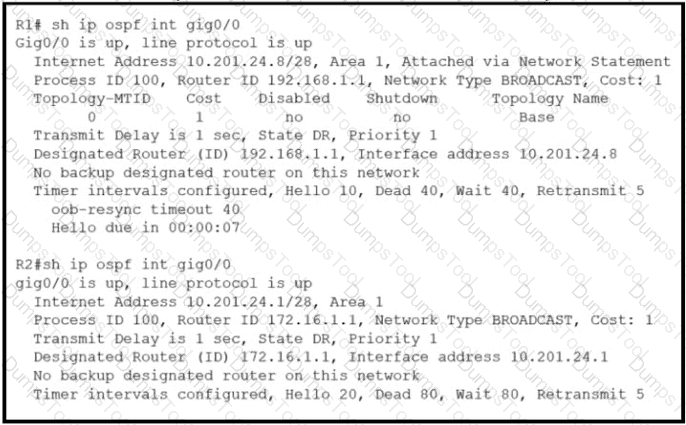

Refer to the exhibit.
What action establishes the OSPF neighbor relationship without forming an adjacency?

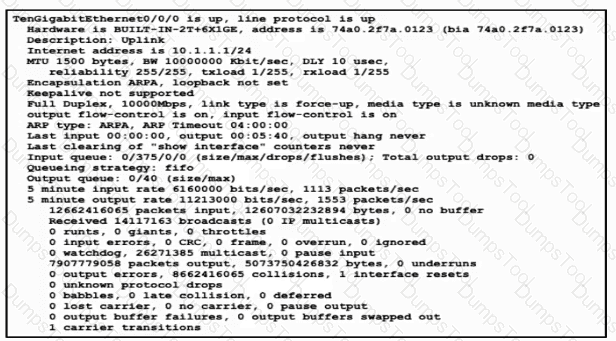

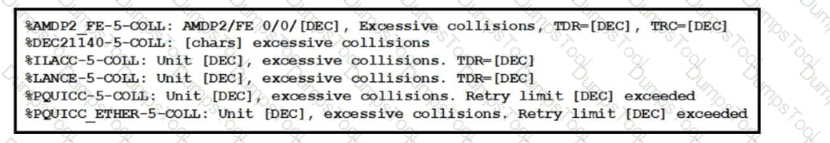

What are two reasons that cause late collisions to increment on an Ethernet interface? (Choose two)

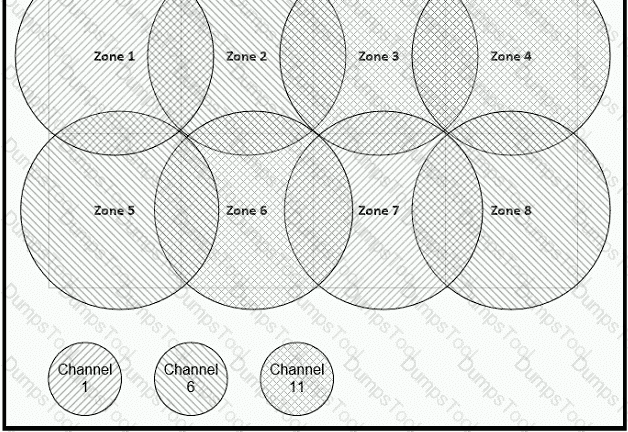

Using direct sequence spread spectrum, which three 2.4-GHz channels are used to limit collisions?

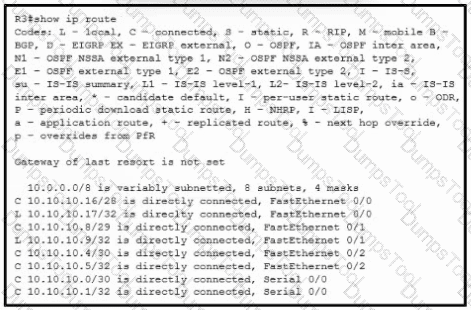

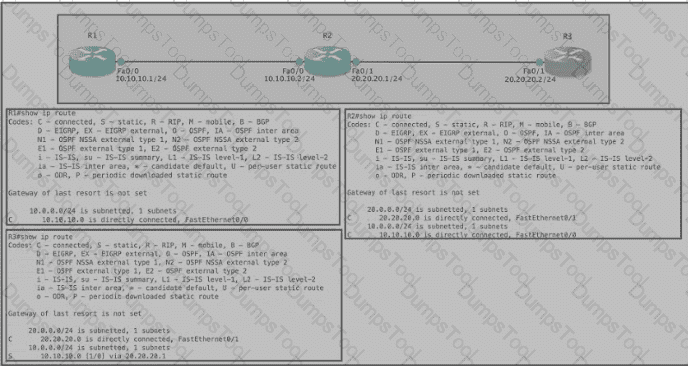

Refer to the exhibit.
Router R1 Fa0/0 is unable ping router R3 Fa0/1.
Which action must be taken in router R1 to help resolve the configuration issue?
Which technology is appropriate for communication between an SDN controller and applications running over the network?
In QoS, which prioritization method is appropriate for interactive voice and video?

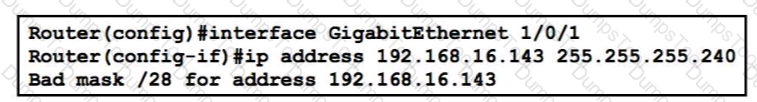

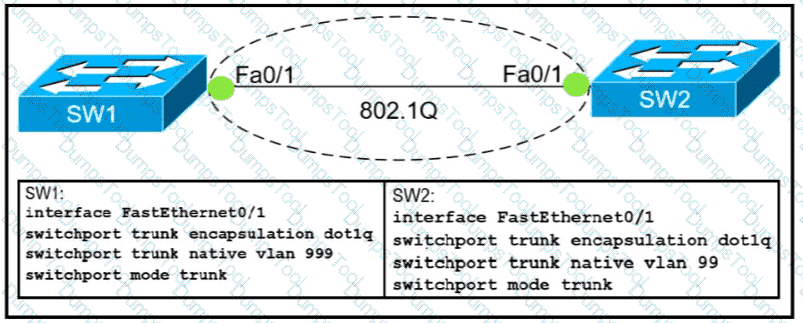

Refer to exhibit.
Which statement explains the configuration error message that is received?

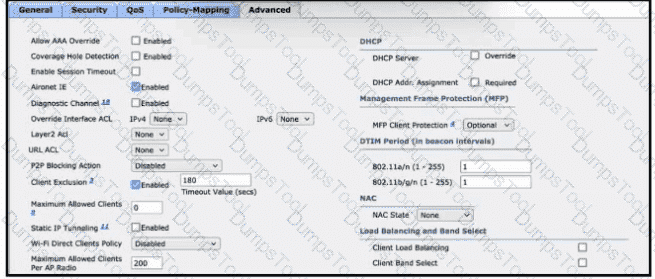

An engineer observes high usage on the 2.4GHz channels and lower usage on the 5GHz channels. What must be configured to allow clients to preferentially use 5GH2 access points?
Which goal is achieved by the implementation of private IPv4 addressing on a network?
in Which way does a spine and-leaf architecture allow for scalability in a network when additional access ports are required?

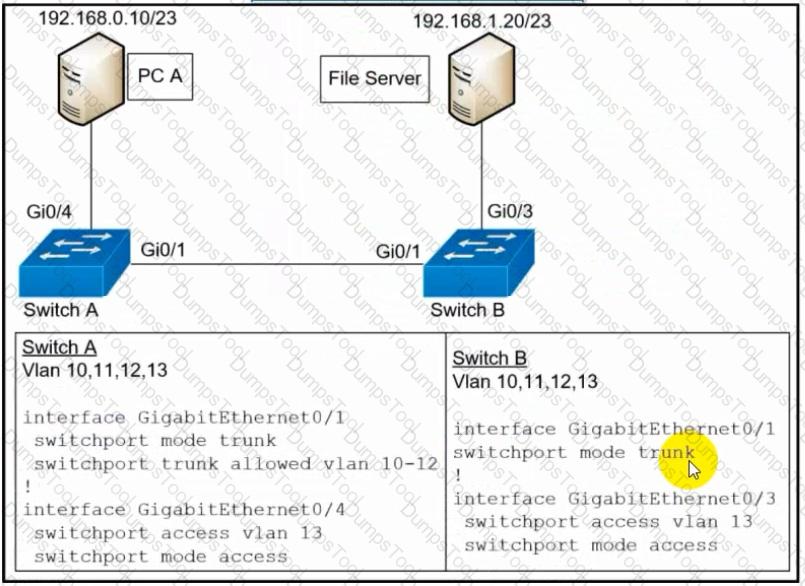

Refer to the exhibit.

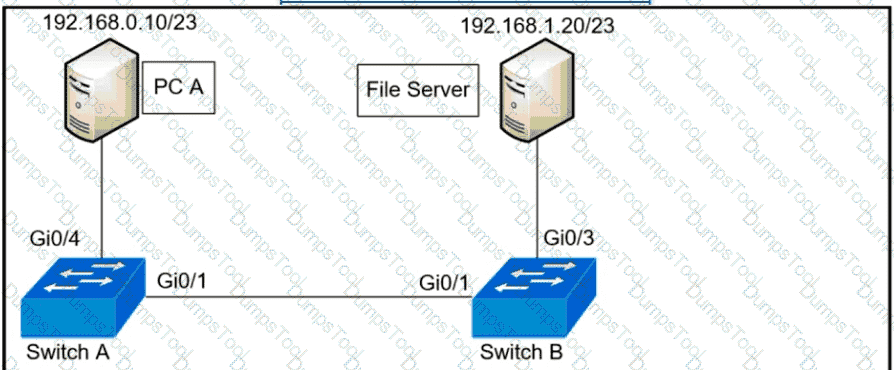

A network engineer must configured communication between PC A and the File Server. To prevent interruption for any other communications, which command must be configured?
Which mode allows access points to be managed by Cisco Wireless LAN Controllers?

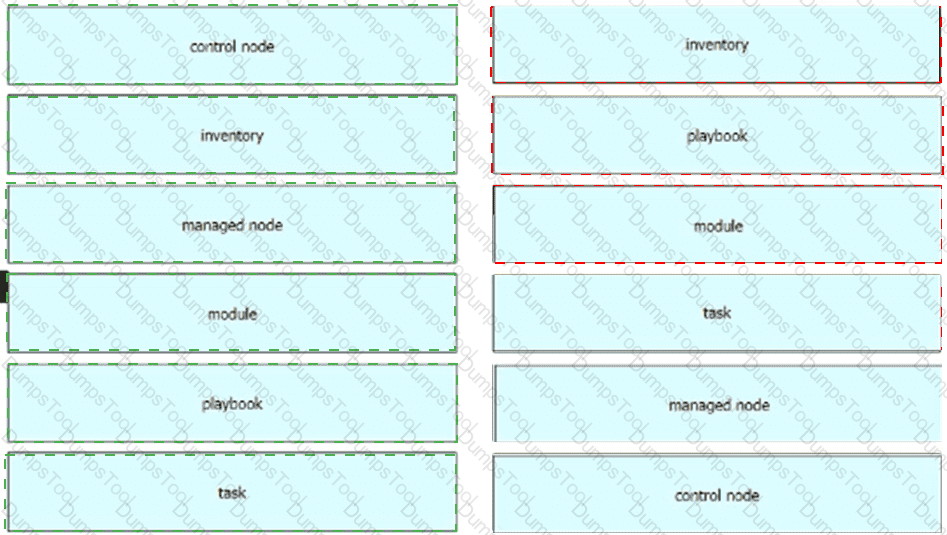

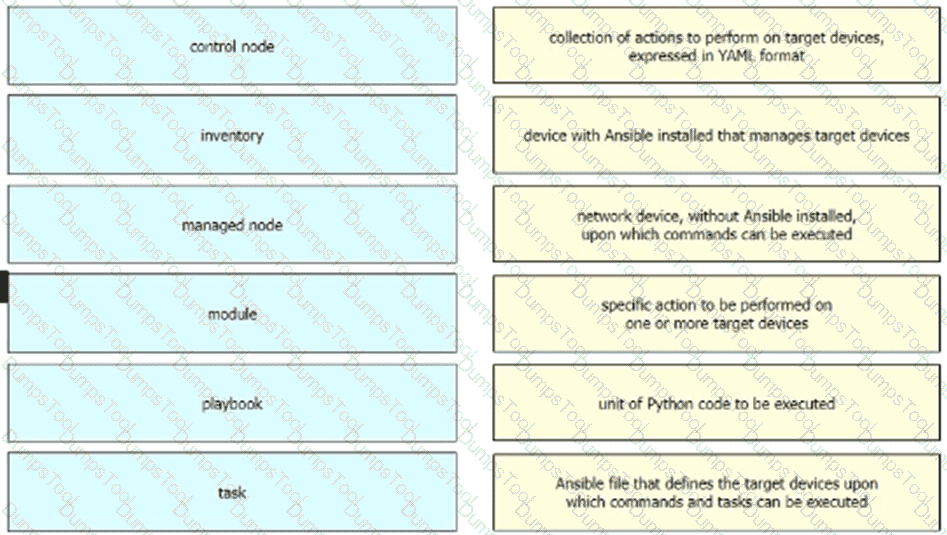

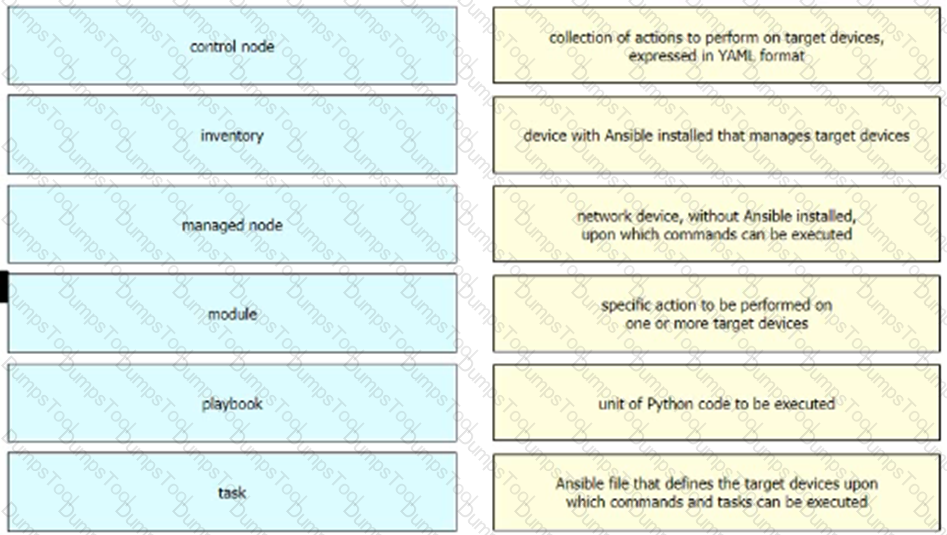

Which two components are needed to create an Ansible script that configures a VLAN on a switch? (Choose two.)
Which technology is used to improve web traffic performance by proxy caching?
When using Rapid PVST+, which command guarantees the switch is always the root bridge for VLAN 200?

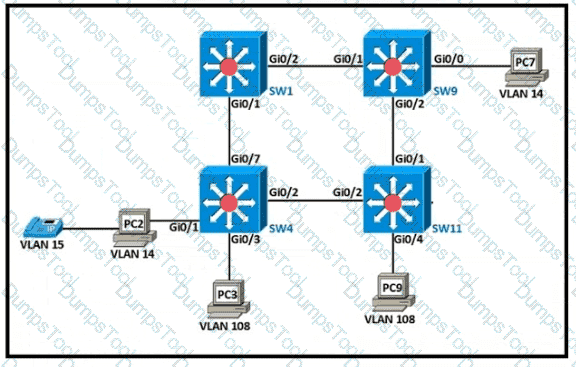

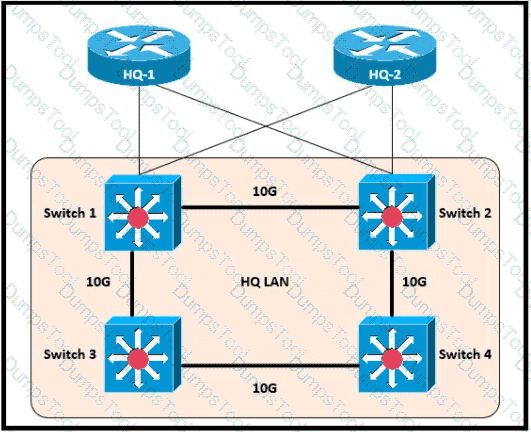

Refer to the exhibit.

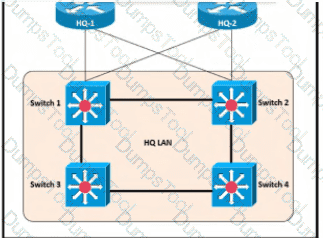

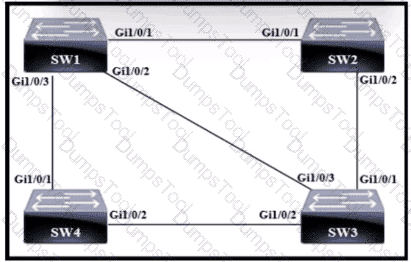

Which switch becomes the root of the spanning tree for VLAN 110?

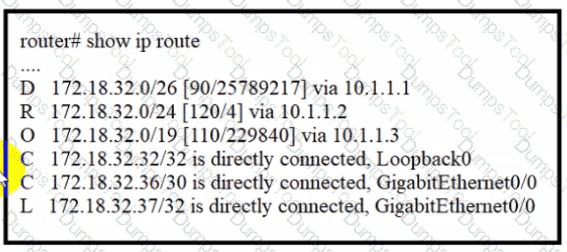

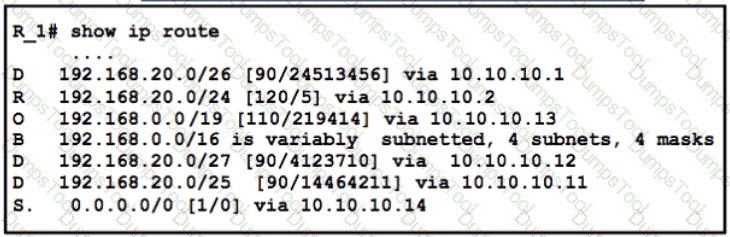

Refer to the exhibit.

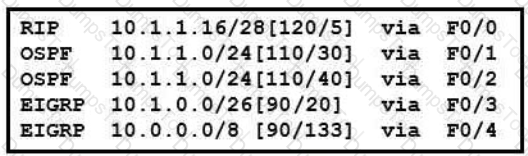

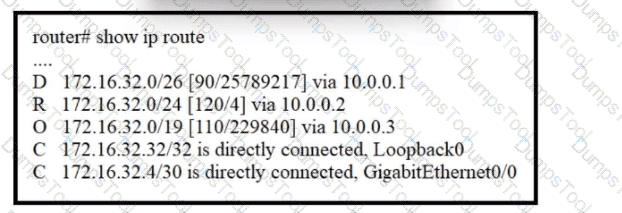

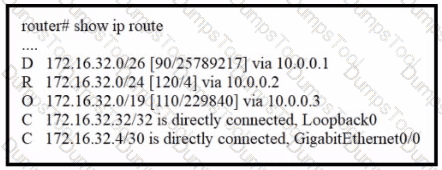

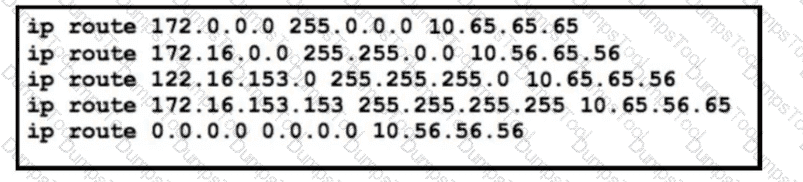

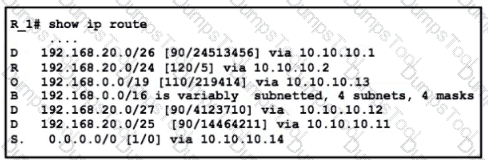

A router reserved these five routes from different routing information sources.
Which two routes does the router install in its routing table? (Choose two)
A network engineer must back up 20 network router configurations globally within a customer environment. Which protocol allows the engineer to perform this function using the Cisco IOS MIB?

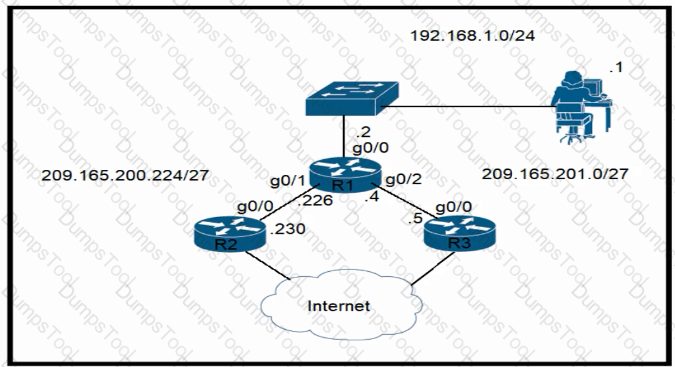

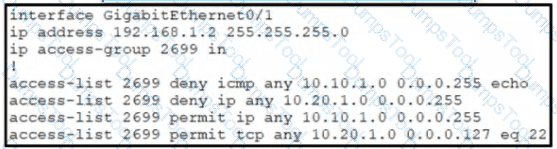

Refer to the exhibit.

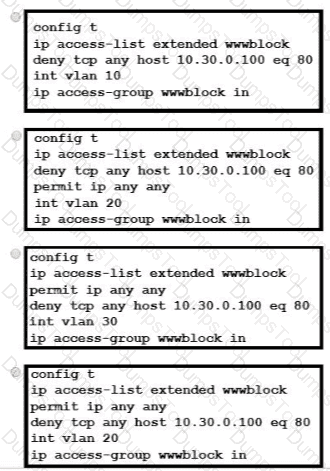

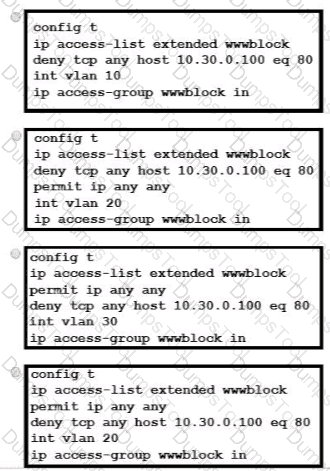

An access list is required to permit traffic from any host on interface G0/0 and deny traffic from interface G/0/1. Which access list must be applied?
An email user has been lured into clicking a link in an email sent by their company's security organization. The webpage that opens reports that it was safe but the link could have contained malicious code. Which type of security program is in place?
Which two actions are performed by the Weighted Random Early Detection mechanism? (Choose two)

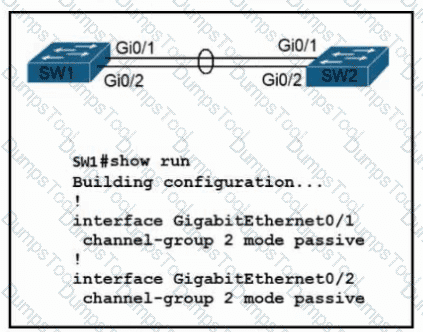

Which mode must be used to configure EtherChannel between two switches without using a negotiation protocol?
What does a router do when configured with the default DNS lookup settings, and a URL is entered on the CLI?

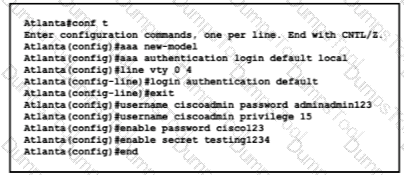

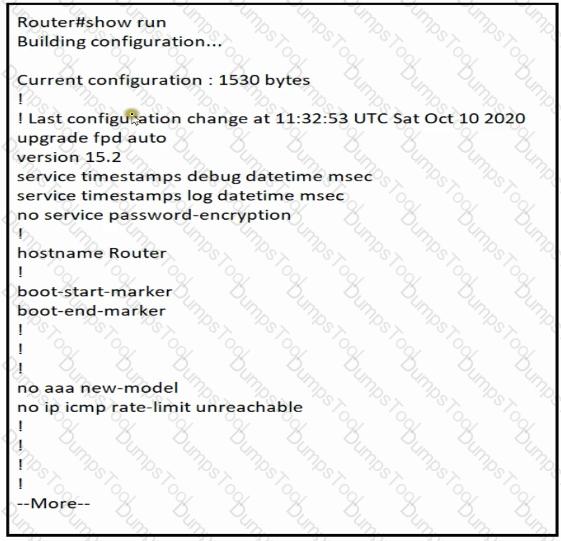

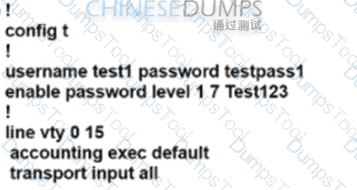

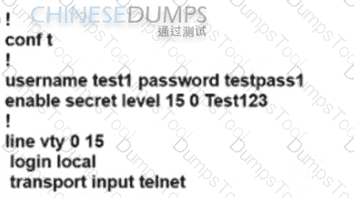

Refer to the exhibit.

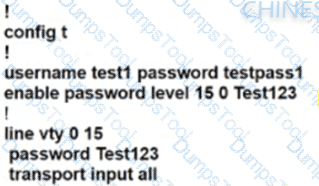

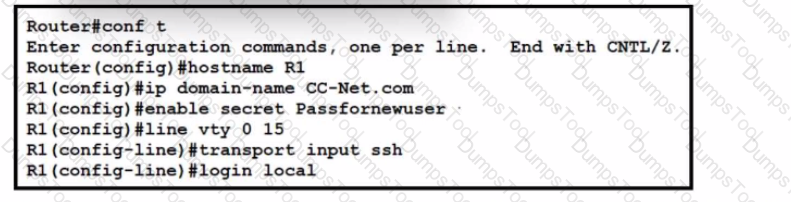

Which password must an engineer use to enter the enable mode?
Which two protocols are supported on service-port interfaces? (Choose two.)
Refer to the exhibit Router R1 Fa0/0 is unable to ping router R3 Fa0'1. Which action must be taken in router R1 to help resolve the configuration issue?

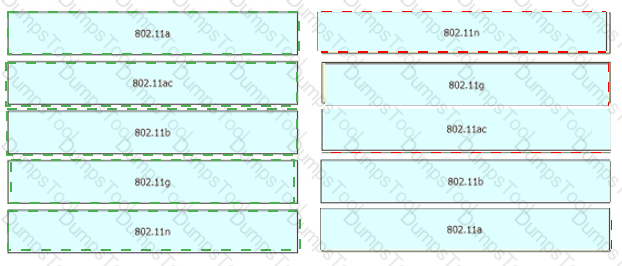

Drag and drop the 802.11 wireless standards from the left onto the matching statements on the right
By default, how Does EIGRP determine the metric of a route for the routing table?
Which protocol does an IPv4 host use to obtain a dynamically assigned IP address?

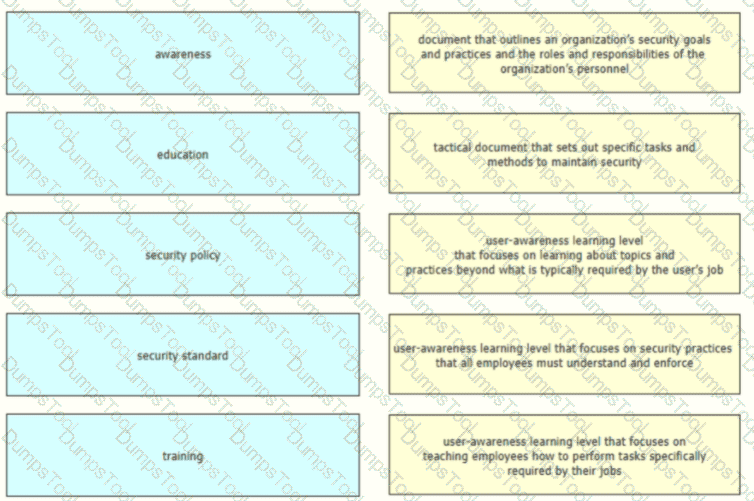

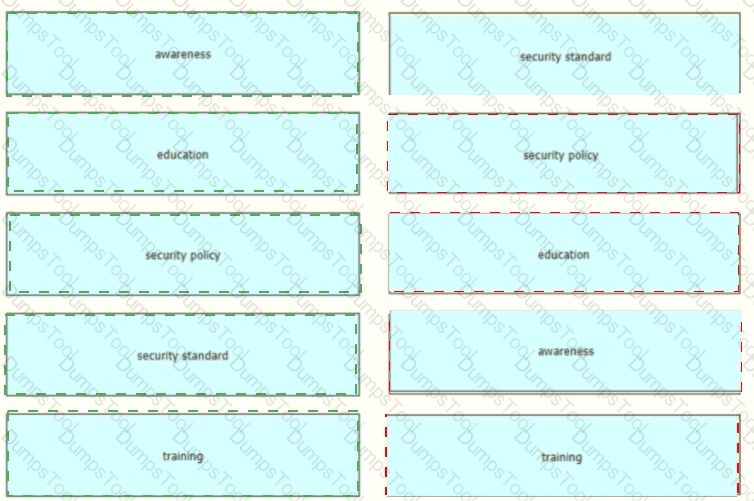

Which security program element involves installing badge readers on data-center doors to allow workers to enter and exit based on their job roles?
Which type of security program is violated when a group of employees enters a building using the ID badge of only one person?
What is the default behavior of a Layer 2 switch when a frame with an unknown destination MAC address is received?
An engineer must configure a/30 subnet between two routers. Which usable IP address and subnet mask combination meets this criteria?
Aside from discarding, which two states does the switch port transition through while using RSTP (802.1w)? (Choose two)

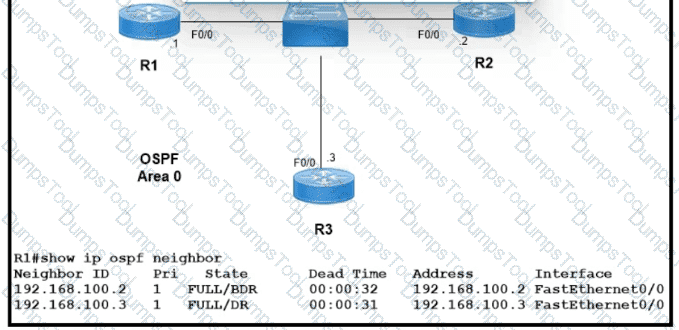

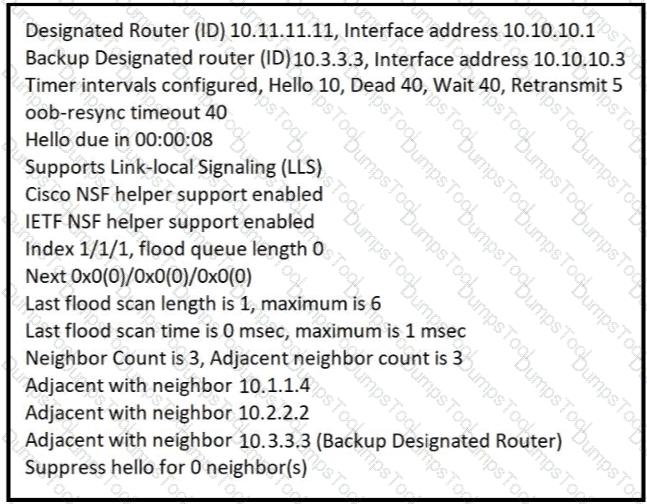

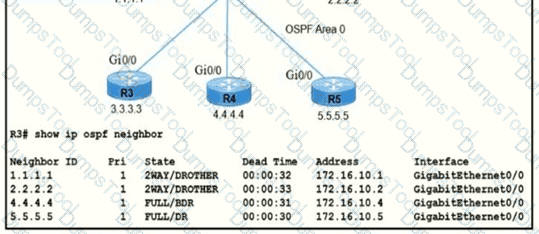

Refer to the exhibit.

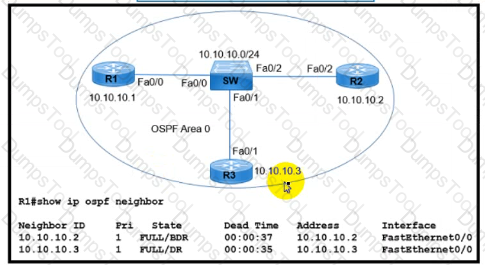

R1 has taken the DROTHER role in the OSPF DR/BDR election process. Which configuration must an engineer implement so that R1 is elected as the DR?
Which action implements physical access control as part of the security program of an organization1?

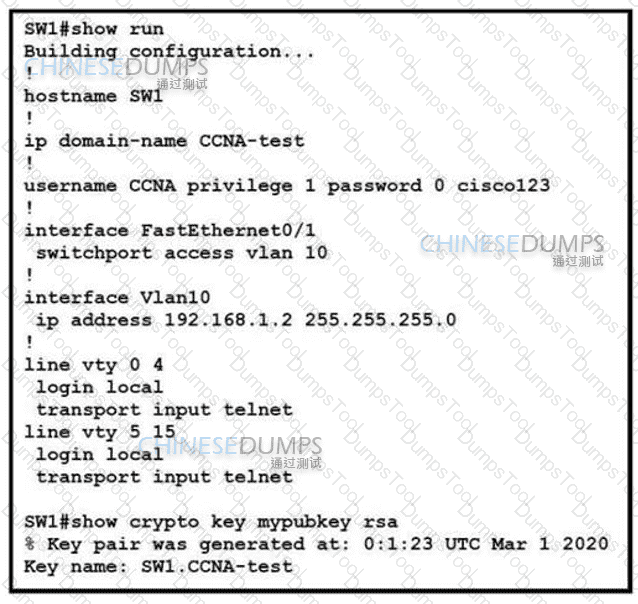

Refer to the exhibit.

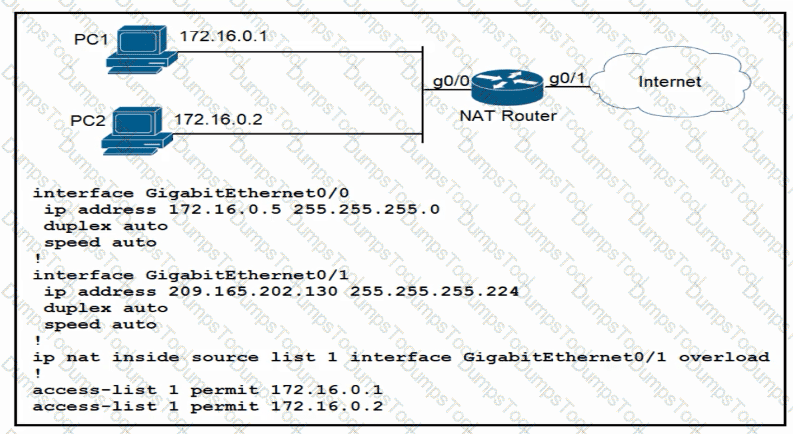

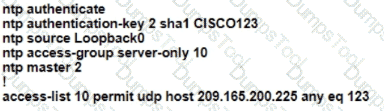

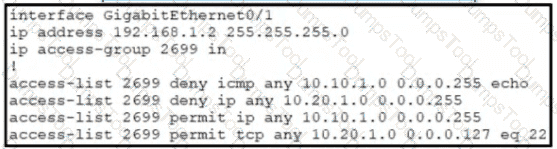

What are two conclusions about this configuration? {Choose two.)

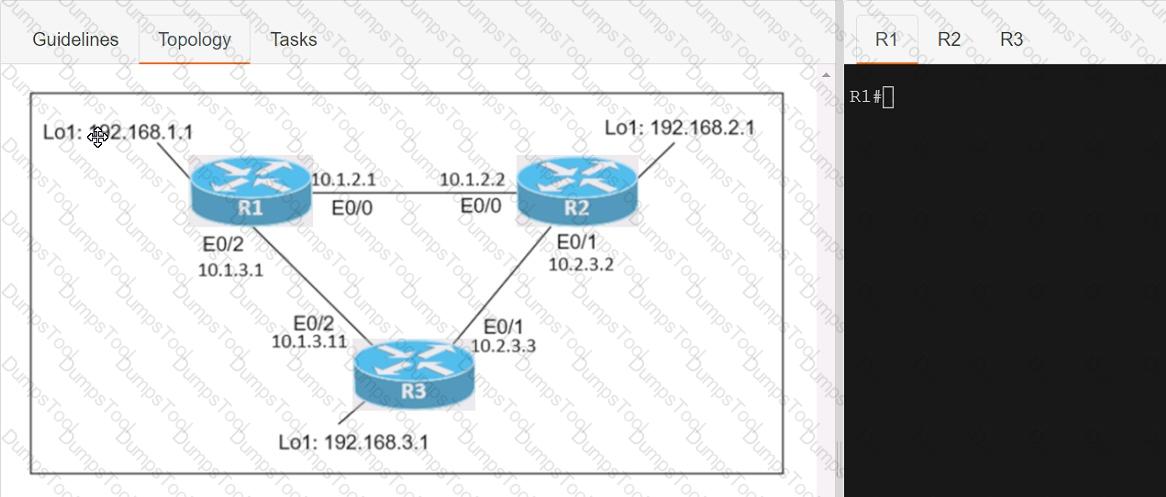

Connectivity between three routers has been established, and IP services must be configured jn the order presented to complete the implementation Tasks assigned include configuration of NAT, NTP, DHCP, and SSH services.
1. All traffic sent from R3 to the R1 Loopback address must be configured for NAT on R2. All source addresses must be translated from R3 to the IP address of Ethernet0/0 on R2, while using only a standard access list named NAT To verify, a ping must be successful to the R1 Loopback address sourced from R3. Do not use NVI NAT configuration.

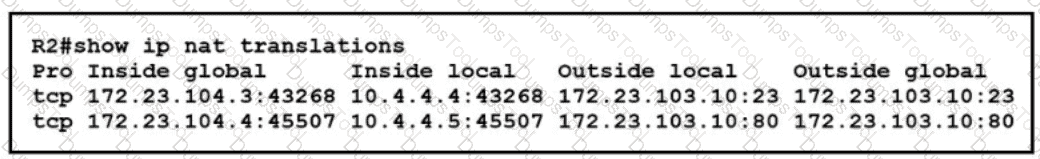

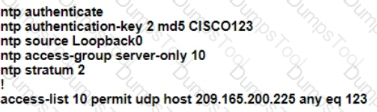

2. Configure R1 as an NTP server and R2 as a client, not as a peer, using the IP address of the R1 Ethernet0/2 interface. Set the clock on the NTP server for midnight on January 1, 2019.
3. Configure R1 as a DHCP server for the network 10.1.3.0/24 in a pool named TEST. Using a single command, exclude addresses 1-10 from the range. Interface Ethernet0/2 on R3 must be issued the IP address of 10.1.3.11 via DHCP.
4. Configure SSH connectivity from R1 to R3, while excluding access via other remote connection protocols. Access for user root and password Cisco must be set on router R3 using RSA and 1024 bits. Verify connectivity using an SSH session from router R1 using a destination address of 10.1.3.11. Do NOT modify console access or line numbers to accomplish this task.

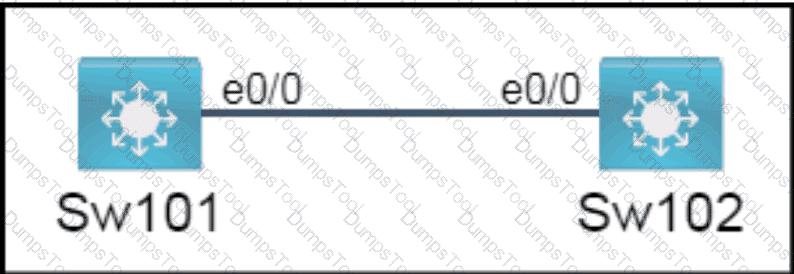

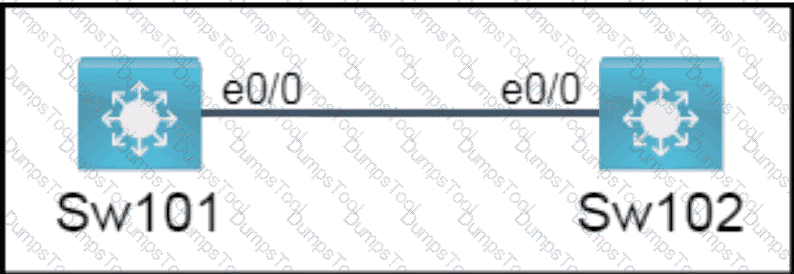

All physical cabling is in place. A company plans to deploy 32 new sites.
The sites will utilize both IPv4 and IPv6 networks.
1 . Subnet 172.25.0.0/16 to meet the subnet requirements and maximize
the number of hosts
Using the second subnet
• Assign the first usable IP address to e0/0 on Sw1O1
• Assign the last usable IP address to e0/0 on Sw102
2. Subnet to meet the subnet requirements and maximize
the number of hosts
c Using the second subnet
• Assign an IPv6 GUA using a unique 64-Bit interface identifier
on e0/0 on Sw101
• Assign an IPv6 GUA using a unique 64-Bit interface identifier
on eO/O on swi02
Guidelines

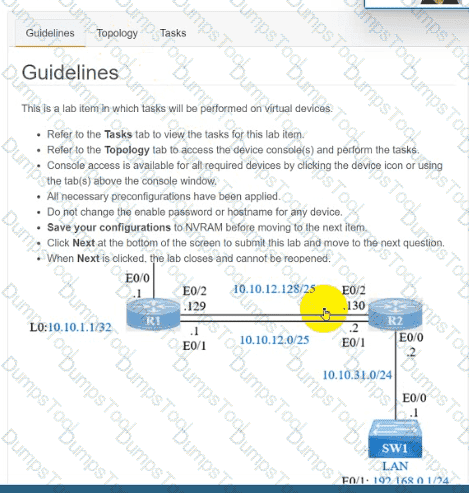

This is a lab item in which tasks will be performed on virtual devices.
• Refer to the Tasks tab to view the tasks for this lab item.
• Refer to the Topology tab to access the device console(s) and perform the tasks.
• Console access is available for all required devices by clicking the device icon or using
the tab(s) above the console window.
• All necessary preconfigurations have been applied.
• Do not change the enable password or hostname for any device.
• Save your configurations to NVRAM before moving to the next item.
• Click Next at the bottom of the screen to submit this lab and move to the next question.
• When Next is clicked, the lab closes and cannot be reopened.

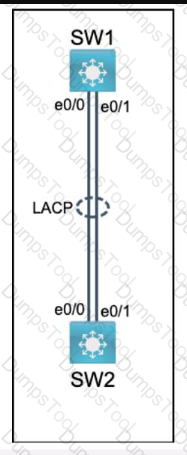

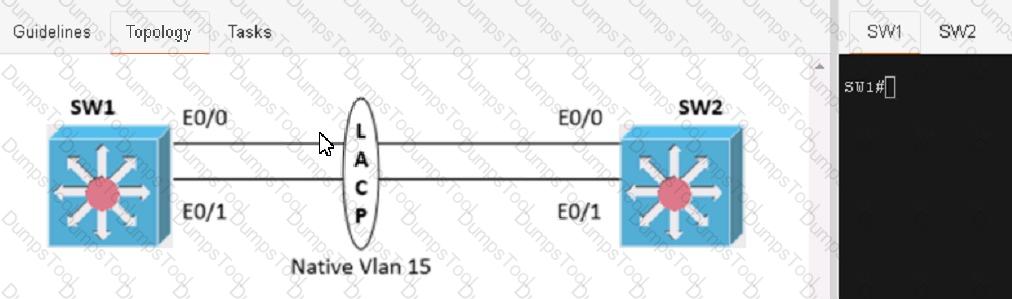

Physical connectivity is implemented between the two Layer 2 switches, and the network connectivity between them must be configured
1. Configure an LACP EtherChannel and number it as 1; configure it between switches SW1 and SVV2 using interfaces Ethernet0/0 and Ethernet0/1 on both sides. The LACP mode must match on both ends
2 Configure the EtherChannel as a trunk link.
3. Configure the trunk link with 802.1 q tags.
4. Configure the native VLAN of the EtherChannel as VLAN 15.

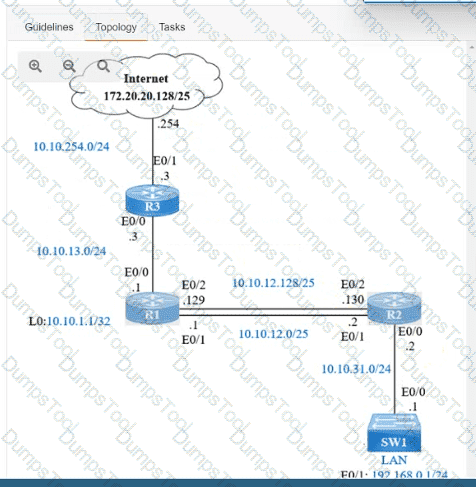

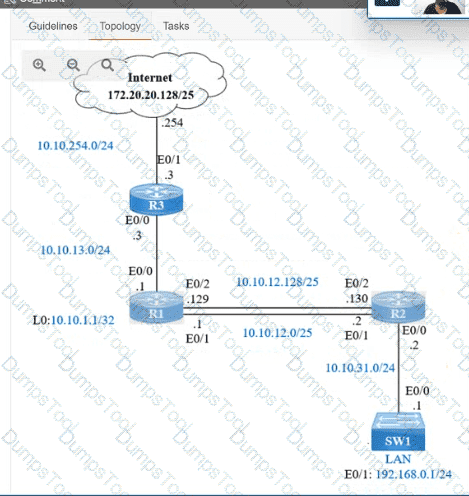

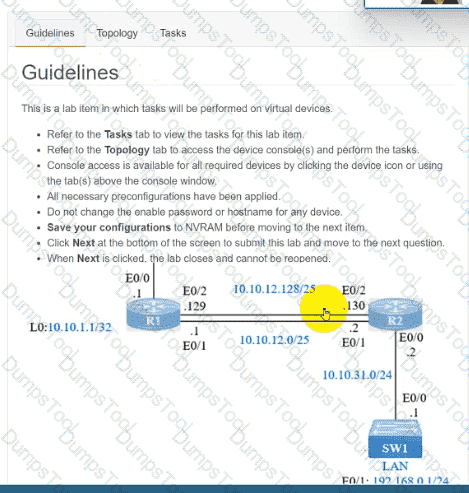

IP connectivity and OSPF are preconfigured on all devices where necessary. Do not make any changes to the IP addressing or OSPF. The company policy uses connected interfaces and next hops when configuring static routes except for load balancing or redundancy without floating static. Connectivity must be established between subnet 172.20.20.128/25 on the Internet and the LAN at 192.168.0.0/24 connected to SW1:
1. Configure reachability to the switch SW1 LAN subnet in router R2.
2. Configure default reachability to the Internet subnet in router R1.
3. Configure a single static route in router R2 to reach to the Internet subnet considering both redundant links between routers R1 and R2. A default route is NOT allowed in router R2.
4. Configure a static route in router R1 toward the switch SW1 LAN subnet where the primary link must be through Ethernet0/1. and the backup link must be through Ethernet0/2 using a floating route. Use the minimal administrative distance value when required.
What is the function of "off-the-shell" switches in a controller-based network?

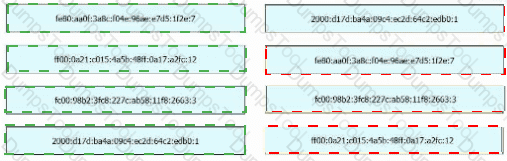

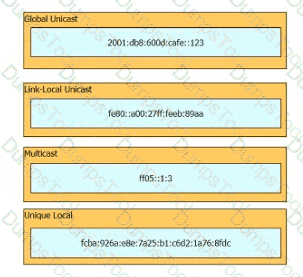

Drag and drop the characteristic from the left onto the IPv6 address type on the right.

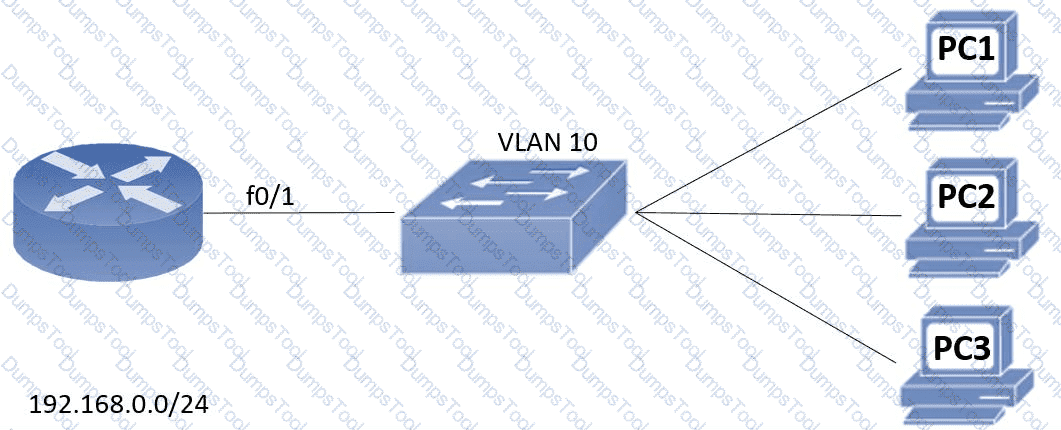

Refer to the exhibit.
An engineer assigns IP addressing to the current VLAN with three PCs. The configuration must also account for the expansion of 30 additional VLANS using the same Class C subnet for subnetting and host count. Which command set fulfills the request while reserving address space for the expected growth?

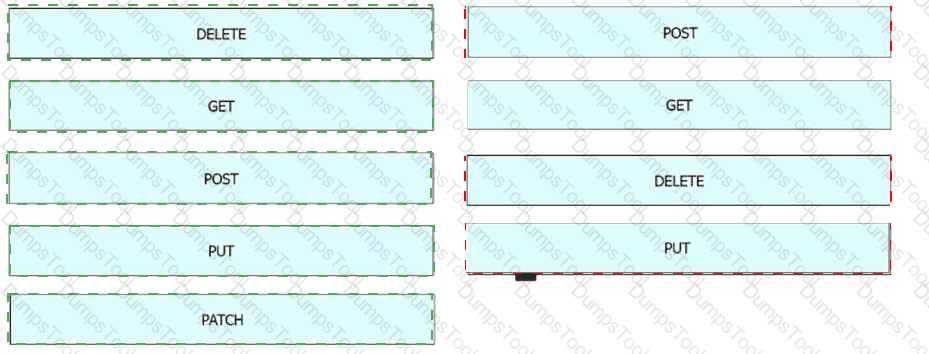

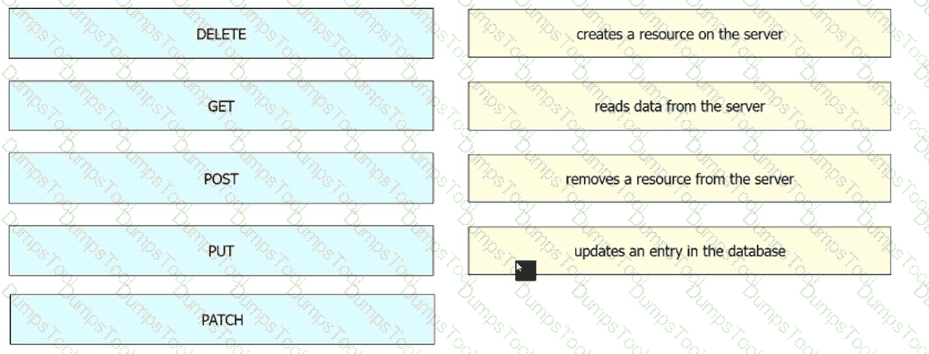

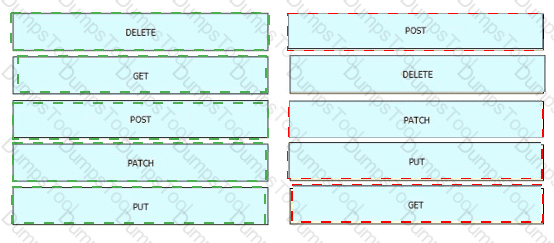

Drag and drop the HTTP methods used with REST-Based APIs from the left onto the descriptions on the right.

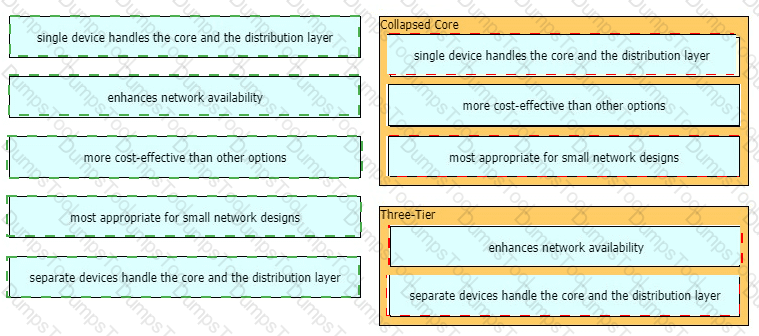

What is a function of the core and distribution layers in a collapsed-core architecture?
Refer to the exhibit.
The network administrator must prevent the switch Cat9K-2 IP address from being visible in LLDP without disabling the protocol. Which action must be taken must be taken to complete the task?

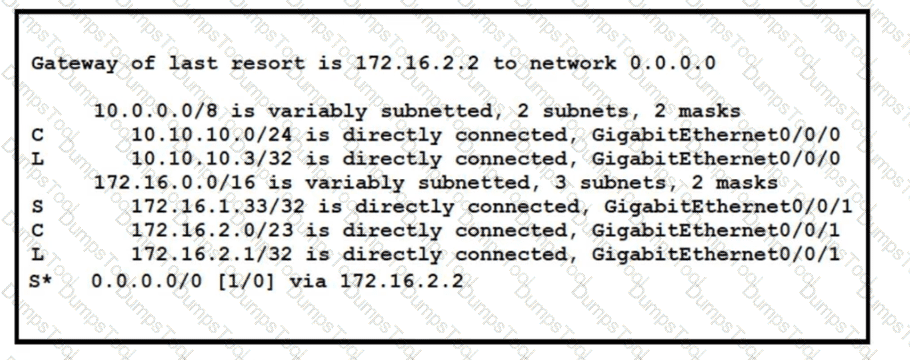

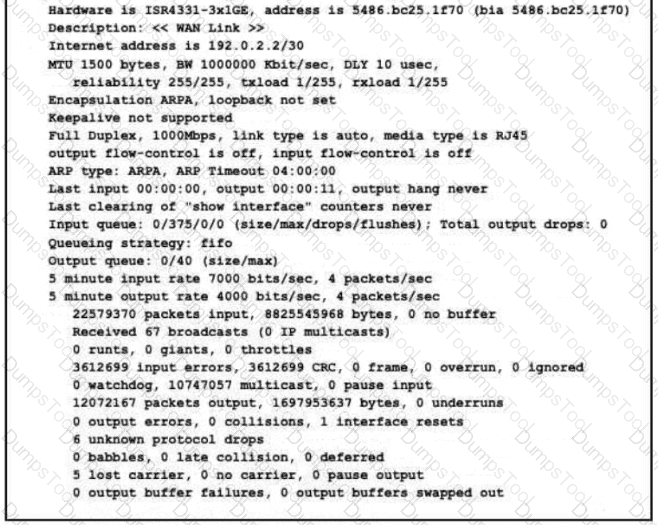

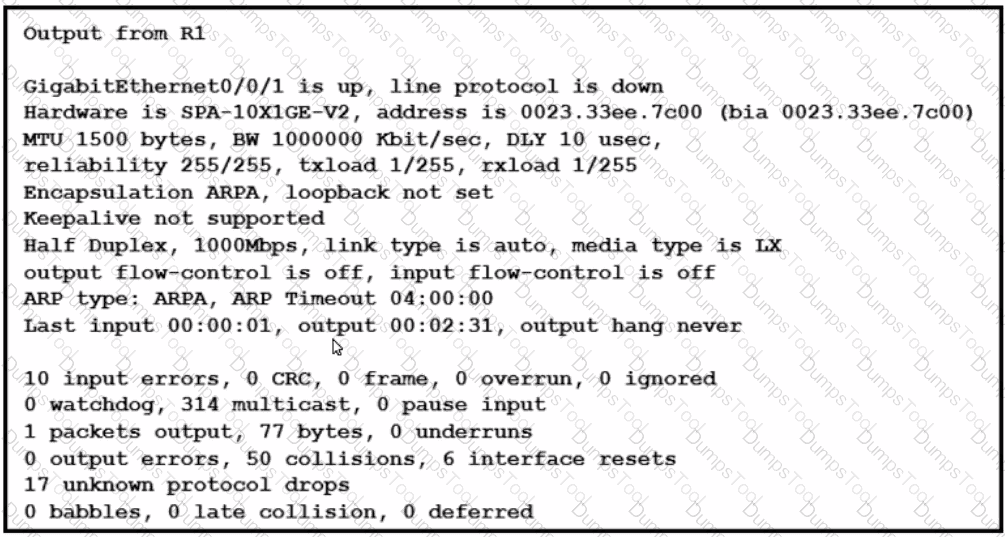

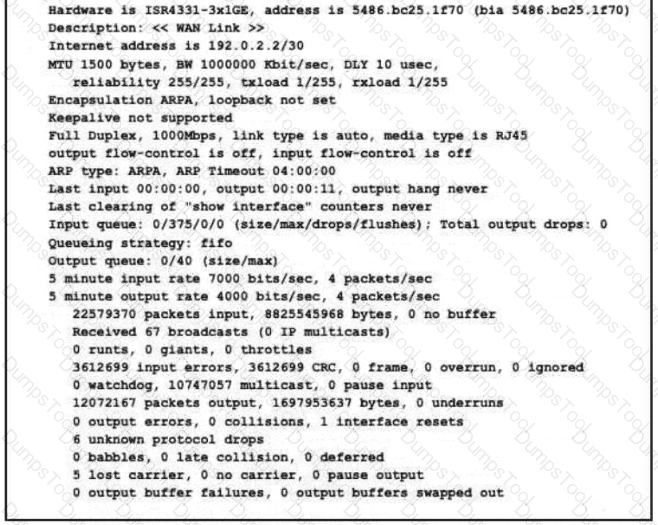

Refer to the exhibit.
What is the issue with the interface GigabitEthernet0/0/1?
What are two advantages of implementing a controller-based architecture instead of a traditional network architecture? (Choose two.)

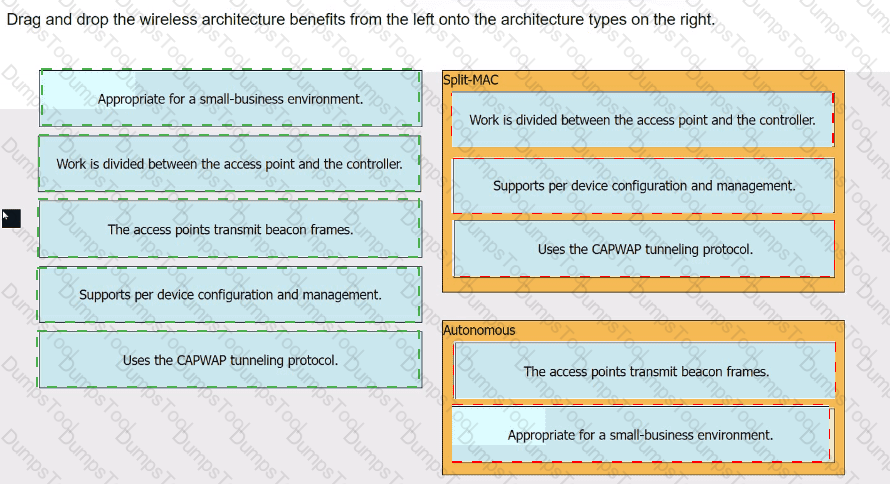

A wireless access point is needed and must meet these requirements:
• "zero-touch" deployed and managed by a WLC
• process only real-time MAC functionality
• used in a split-MAC architecture. Which access point type must be used?

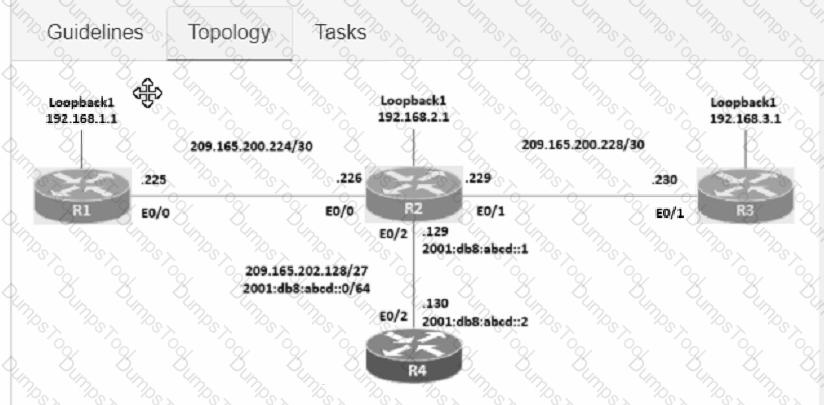

Connectivity between four routers has been established. IP connectivity must be configured in the order presented to complete the implementation. No dynamic routing protocols are included.
1. Configure static routing using host routes to establish connectivity from router R3 to the router R1 Loopback address using the source IP of 209.165.200.230.
2. Configure an IPv4 default route on router R2 destined for router R4.
3. Configure an IPv6 default router on router R2 destined for router R4.

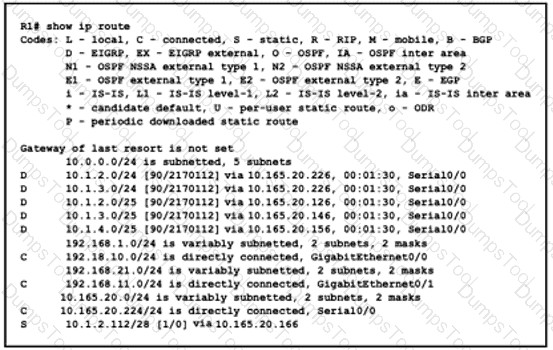

Refer to the exhibit.
When router R1 receives a packet with destination IP address 10.56.0 62. through which interface does it route the packet?
Physical connectivity is implemented between the two Layer 2 switches,
and the network connectivity between them must be configured.
I . Configure an LACP EtherChanneI and number it as 44; configure it
between switches SWI and SW2 using interfaces EthernetO/O and
Ethernet0/1 on both sides. The LACP mode must match on both ends.
2. Configure the EtherChanneI as a trunk link.
3. Configure the trunk link with 802. Iq tags.
4. Configure VLAN 'MONITORING' as the untagged VLAN of the
EtherChannel.
==================

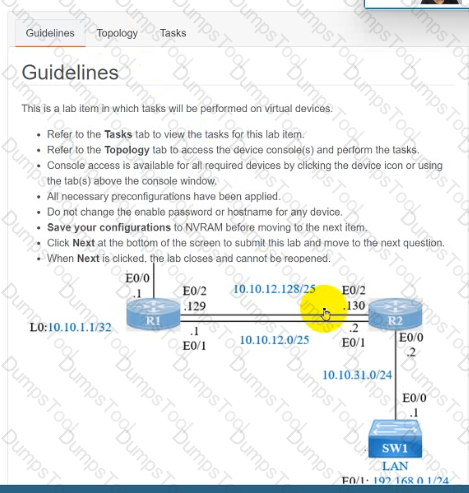

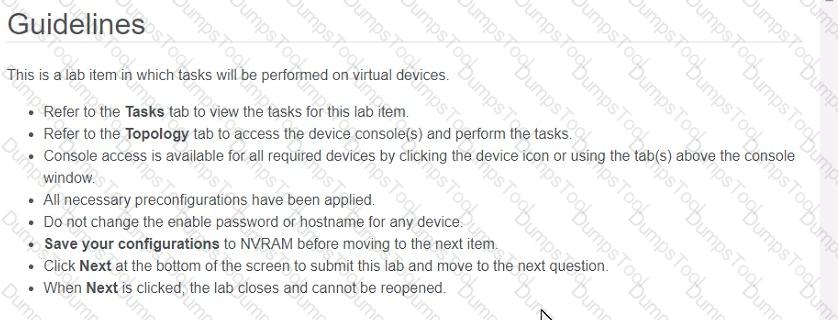

Guidelines
This is a lab item in which tasks will be performed on virtual devices.
• Refer to the Tasks tab to view the tasks for this lab item.
• Refer to the Topology tab to access the device console(s) and perform the tasks.
• Console access is available for all required devices by clicking the device icon or using
the tab(s) above the console window.
• All necessary preconfigurations have been applied.
• Do not change the enable password or hostname for any device.
• Save your configurations to NVRAM before moving to the next item.
• Click Next at the bottom of the screen to submit this lab and move to the next question.
• When Next is clicked, the lab closes and cannot be reopened.

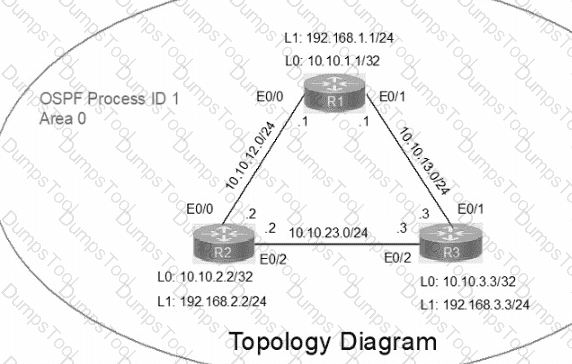

IP connectivity between the three routers is configured. OSPF adjacencies must be established.
1. Configure R1 and R2 Router IDs using the interface IP addresses from the link that is shared between them.
2. Configure the R2 links with a max value facing R1 and R3. R2 must become the DR. R1 and R3 links facing R2 must remain with the default OSPF configuration for DR election. Verify the configuration after clearing the OSPF process.
3. Using a host wildcard mask, configure all three routers to advertise their respective Loopback1 networks.
4. Configure the link between R1 and R3 to disable their ability to add other OSPF routers.

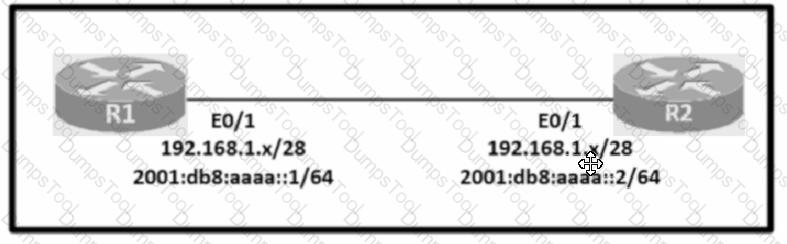

Configure IPv4 and IPv6 connectivity between two routers. For IPv4, use a /28 network from the 192.168.1.0/24 private range. For IPv6, use the first /64 subnet from the 2001:0db8:aaaa::/48 subnet.
1. Using Ethernet0/1 on routers R1 and R2, configure the next usable/28 from the 192.168.1.0/24 range. The network 192.168.1.0/28 is unavailable.
2. For the IPv4 /28 subnet, router R1 must be configured with the first usable host address.
3. For the IPv4 /28 subnet, router R2 must be configured with the last usable host address.
4. For the IPv6 /64 subnet, configure the routers with the IP addressing provided from the topology.
5. A ping must work between the routers on the IPv4 and IPv6 address ranges.
All physical cabling between the two switches is installed. Configure the network connectivity between the switches using the designated VLANs and interfaces.

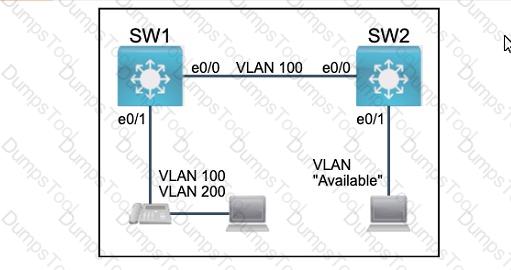

1. Configure VLAN 100 named Compute and VLAN 200 named Telephony where required for each task.
2. Configure Ethernet0/1 on SW2 to use the existing VLAN named Available.
3. Configure the connection between the switches using access ports.
4. Configure Ethernet0/1 on SW1 using data and voice VLANs.
5. Configure Ethemet0/1 on SW2 so that the Cisco proprietary neighbor discovery protocol is turned off for the designated interface only.

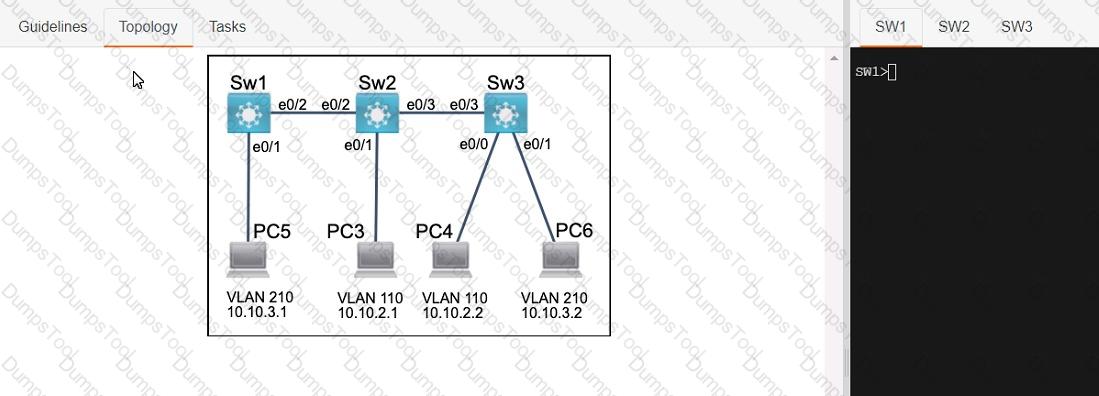

Three switches must be configured for Layer 2 connectivity. The company requires only the designated VLANs to be configured on their respective switches and permitted accross any links between switches for security purposes. Do not modify or delete VTP configurations.
The network needs two user-defined VLANs configured:
VLAN 110: MARKETING
VLAN 210: FINANCE
1. Configure the VLANs on the designated switches and assign them as access ports to the interfaces connected to the PCs.
2. Configure the e0/2 interfaces on Sw1 and Sw2 as 802.1q trunks with only the required VLANs permitted.
3. Configure the e0/3 interfaces on Sw2 and Sw3 as 802.1q trunks with only the required VLANs permitted.

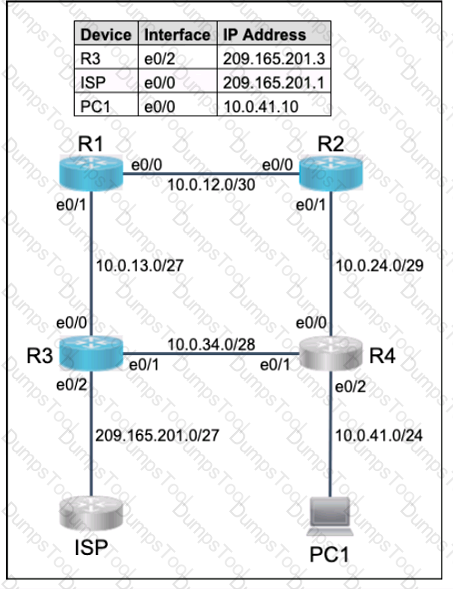

All physical cabling is in place. Router R4 and PCI are fully configured and
inaccessible. R4's WAN interfaces use .4 in the last octet for each subnet.
Configurations should ensure that connectivity is established end-to-end.
1 . Configure static routing to ensure RI prefers the path through R2 to
reach only PCI on R4's LAN
2. Configure static routing that ensures traffic sourced from RI will take
an alternate path through R3 to PCI in the event of an outage along
the primary path
3. Configure default routes on RI and R3 to the Internet using the least number of hops
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
• Refer to the Tasks tab to view the tasks for this lab item.
• Refer to the Topology tab to access the device console(s) and perform the tasks.
• Console access is available for all required devices by clicking the device icon or using
the tab(s) above the console window.
• All necessary preconfigurations have been applied.
• Do not change the enable password or hostname for any device.
• Save your configurations to NVRAM before moving to the next item.
• Click Next at the bottom of the screen to submit this lab and move to the next question.
• When Next is clicked, the lab closes and cannot be reopened.

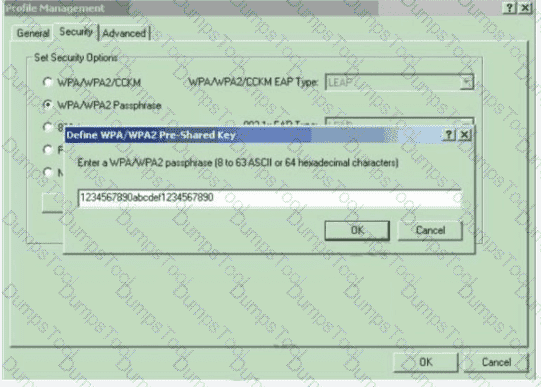

Refer to the exhibit.

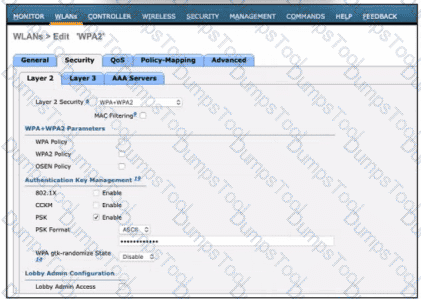

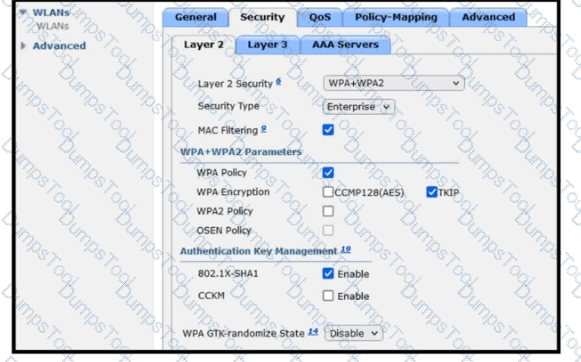

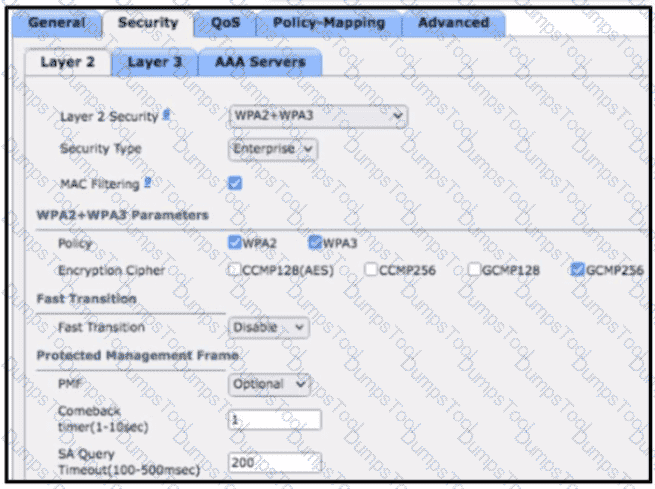

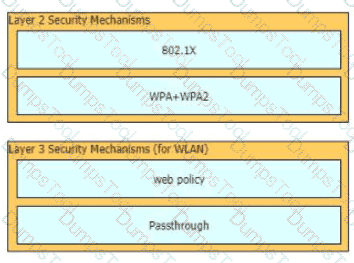

What are the two steps an engineer must take to provide the highest encryption and authentication using domain credentials from LDAP?

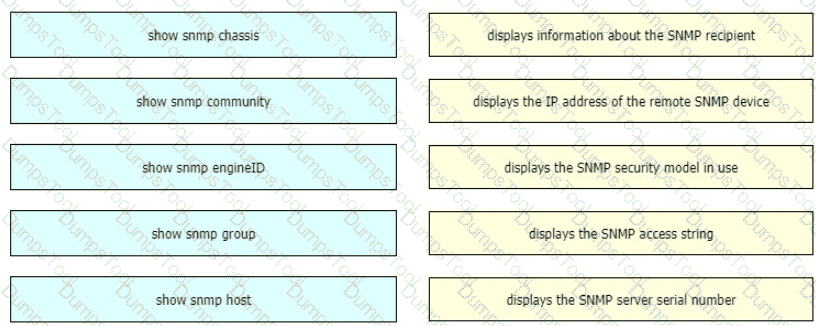

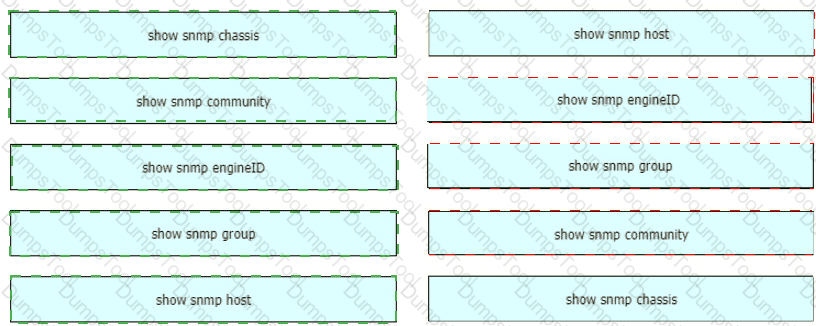

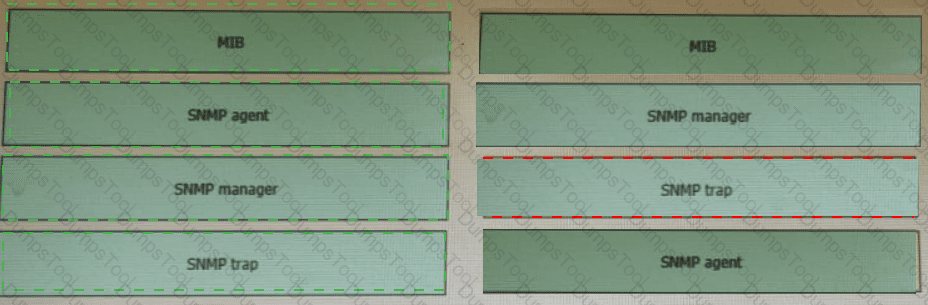

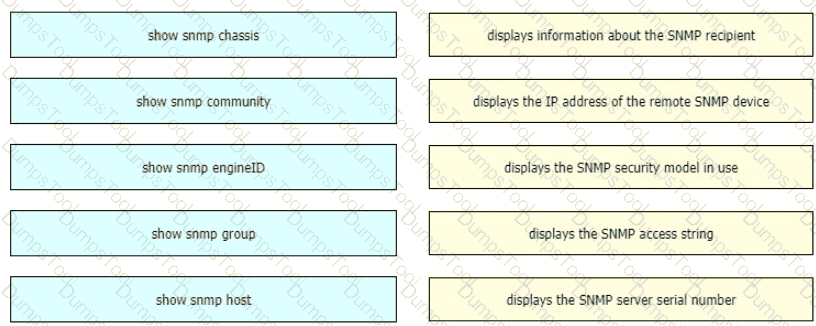

Drag and drop the SNMP components from the left onto the description on the right.
Which device segregates a network into separate zones that have their own security policies?

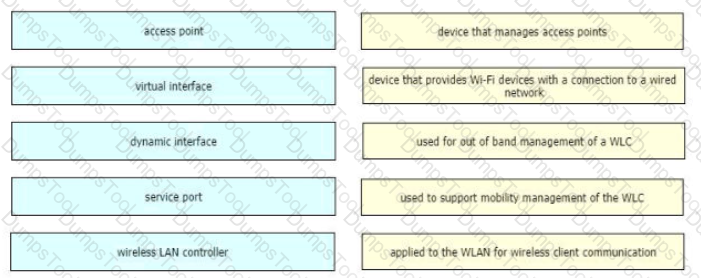

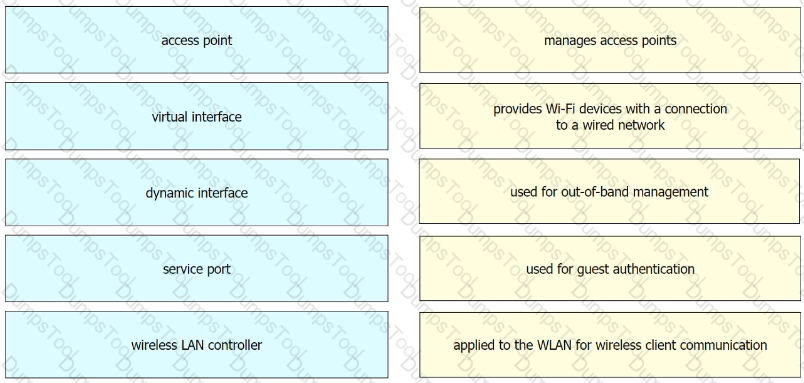

Which WLC interface provides out-of-band management in the Cisco Unified Wireless Network Architecture?

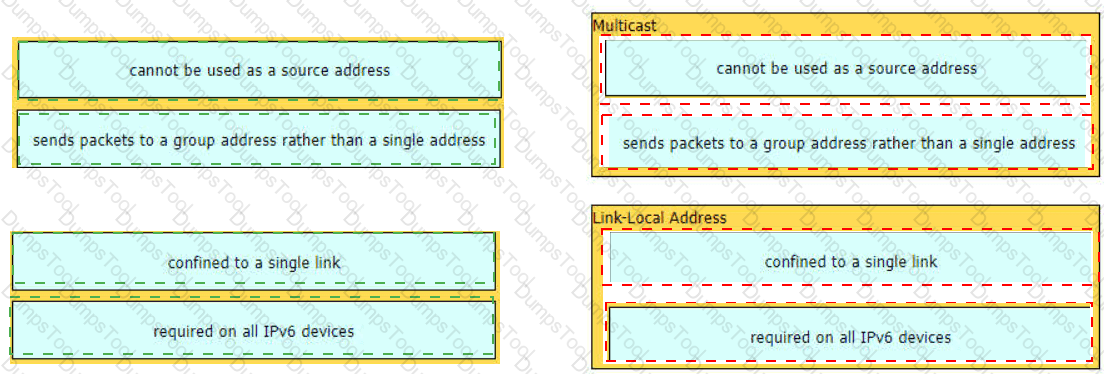

Drag and drop the characteristic from the left onto the IPv6 address type on the right.

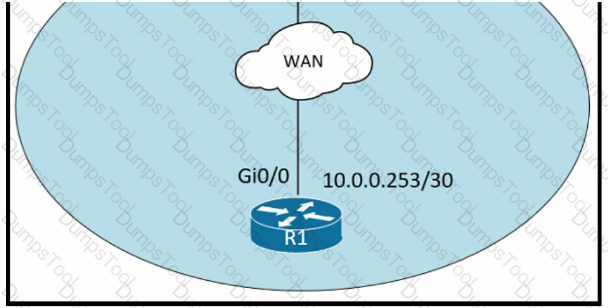

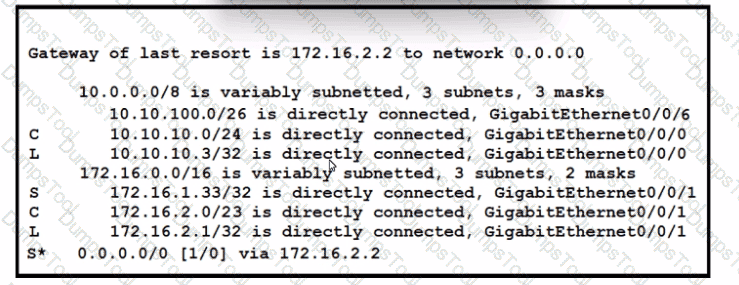

Refer to the exhibit.

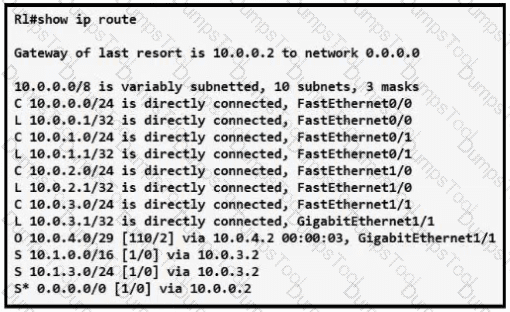

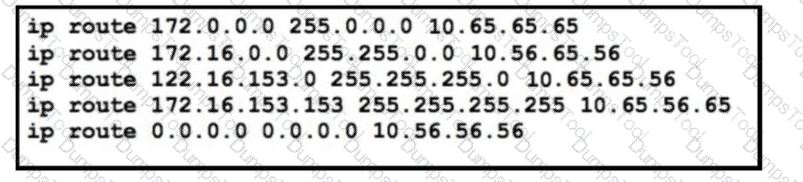

Web traffic is coming in from the WAN interface. Which route takes precedence when the router is processing traffic destined for the LAN network at 10 0.10.0/24?
Which interface mode must be configured to connect the lightweight APs in a centralized architecture?

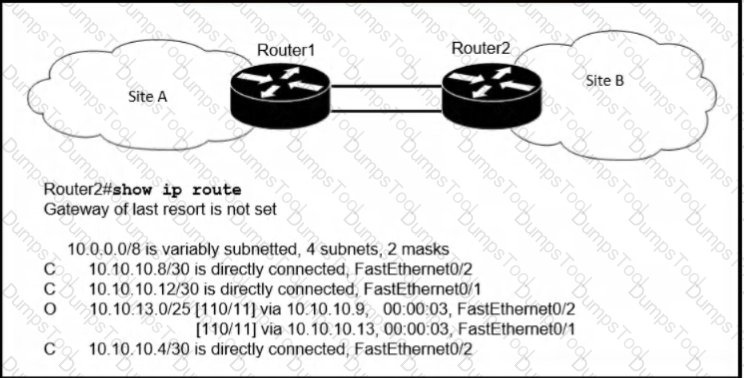

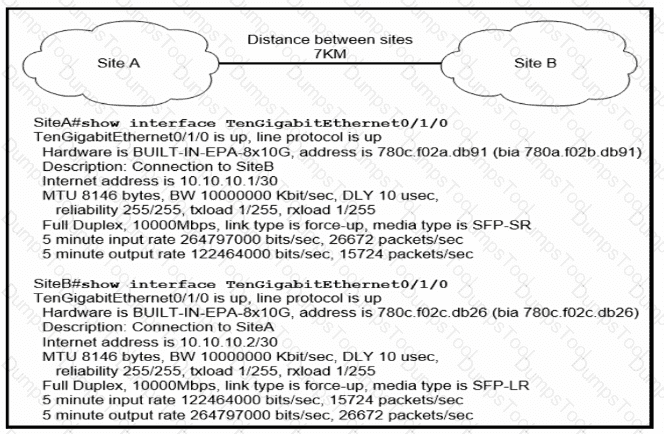

Refer to the exhibit.

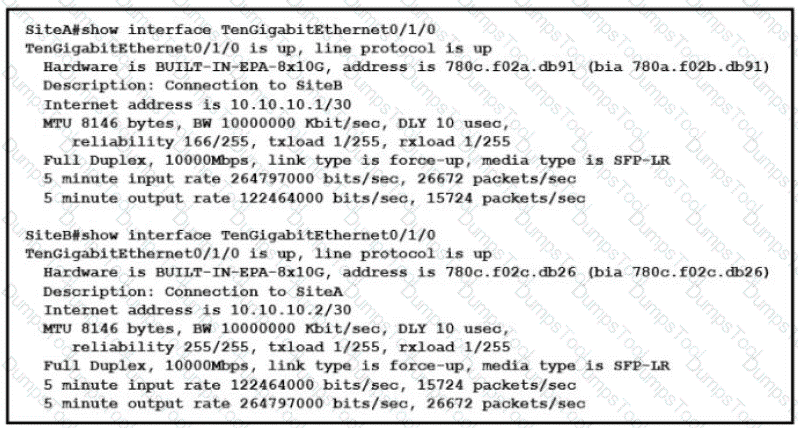

Site A was recently connected to site B over a new single-mode fiber path. Users at site A report Intermittent connectivity Issues with applications hosted at site B. What is the reason for the problem?

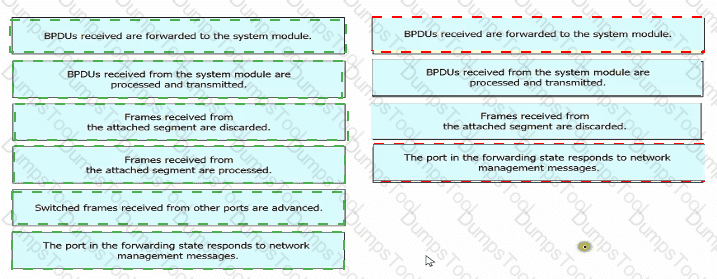

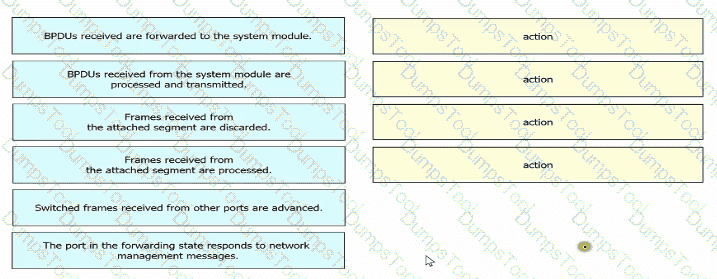

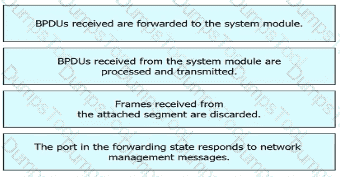

Drag and drop the Rapid PVST+ forwarding slate actions from the loft to the right. Not all actions are used.
TESTED 20 May 2024
Table
Description automatically generated
Diagram
Description automatically generated
Graphical user interface, application
Description automatically generated
Table
Description automatically generated
Graphical user interface, application
Description automatically generated
